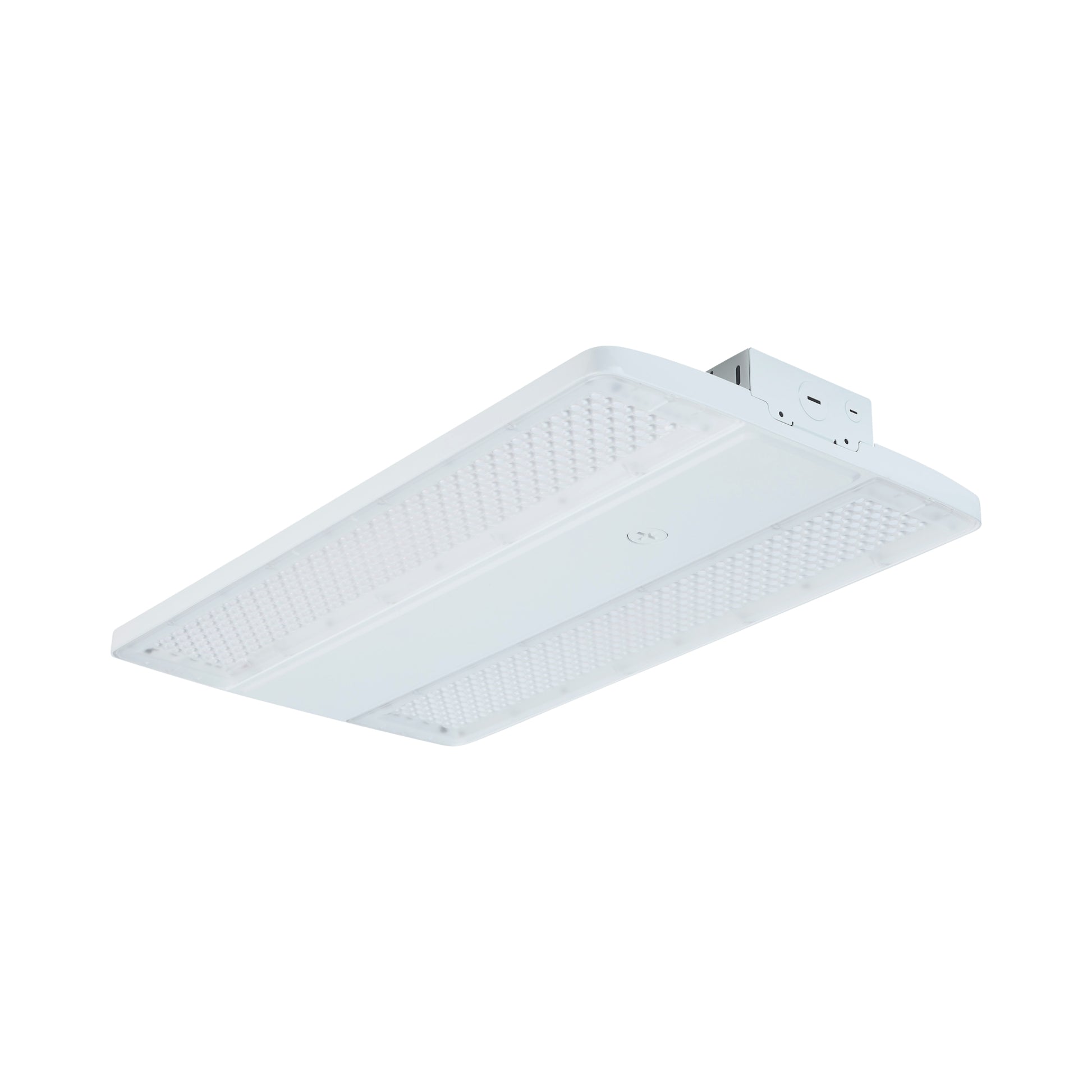

Satco 65-1512 Beam Selectable Linear High Bay — 240/220/180W Selectable — 3000K/4000K/5000K — 120-347V — White

The Satco 65-1512 is a commercial linear high bay engineered to deliver up to 38,000 lumens with field-adjustable 240W / 220W / 180W power settings and switchable 3000K / 4000K / 5000K color temperatures. Operating on 120-347V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for legacy fixtures. Built with an IP20 damp location rating, IK09 impact resistance, and UL Listing, it is qualified for commercial utility rebates under DLC Premium standards and features selectable beam distributions (45°x100°, 65°x95°, or 90°x90°) for tailored light delivery.

Key Features

• Selectable Wattage: 240W / 220W / 180W — field-adjustable via onboard switch
• Wattage Equivalency: Replaces legacy HID/Fluorescent fixtures for direct energy savings
• Maximum Lumen Output: 38,000 lm at 240W
• Peak Efficacy: Up to 158 lm/W for high-efficiency commercial operation
• CRI: 80 color rendering across all settings
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via onboard switch
• Lens & Optics: Polycarbonate lens with switchable beam distributions (45°x100° / 65°x95° / 90°x90°)
• Dimming: 0–10V continuous dimming standard
• Voltage: Universal 120–347V AC, 50/60Hz
• Location Rating: UL Listed for damp locations; IP20 ingress rated; IK09 impact rated
• Operating Temperature: −40°F (−40°C) to 122°F (50°C) ambient range
• Certifications: DLC Premium, UL Listed, FCC Part 15 Class A
• Rated Life: L70 50,000 hours
• Warranty: 5-year warranty — Satco
• Sensor Compatibility: Integrated sensor port accepts plug-and-play controls without internal wiring

Performance & Light Output

CRI 80 across all configurations. Rated life 50,000 hours (L70). Delivers direct energy reduction compared to traditional high-intensity discharge systems.

Lens & Optics

The field-adjustable optical system provides interchangeable aisle and open-area optics on the job site without tools or rewiring:

• 45°x100° Beam Angle: Concentrates beam distribution for narrow racking aisles and elevated mounting heights.
• 65°x95° Beam Angle: Provides balanced light distribution for general staging areas and mid-height layouts.
• 90°x90° Beam Angle: Delivers broad, uniform beam distribution for wide open warehouse floors and general layouts.

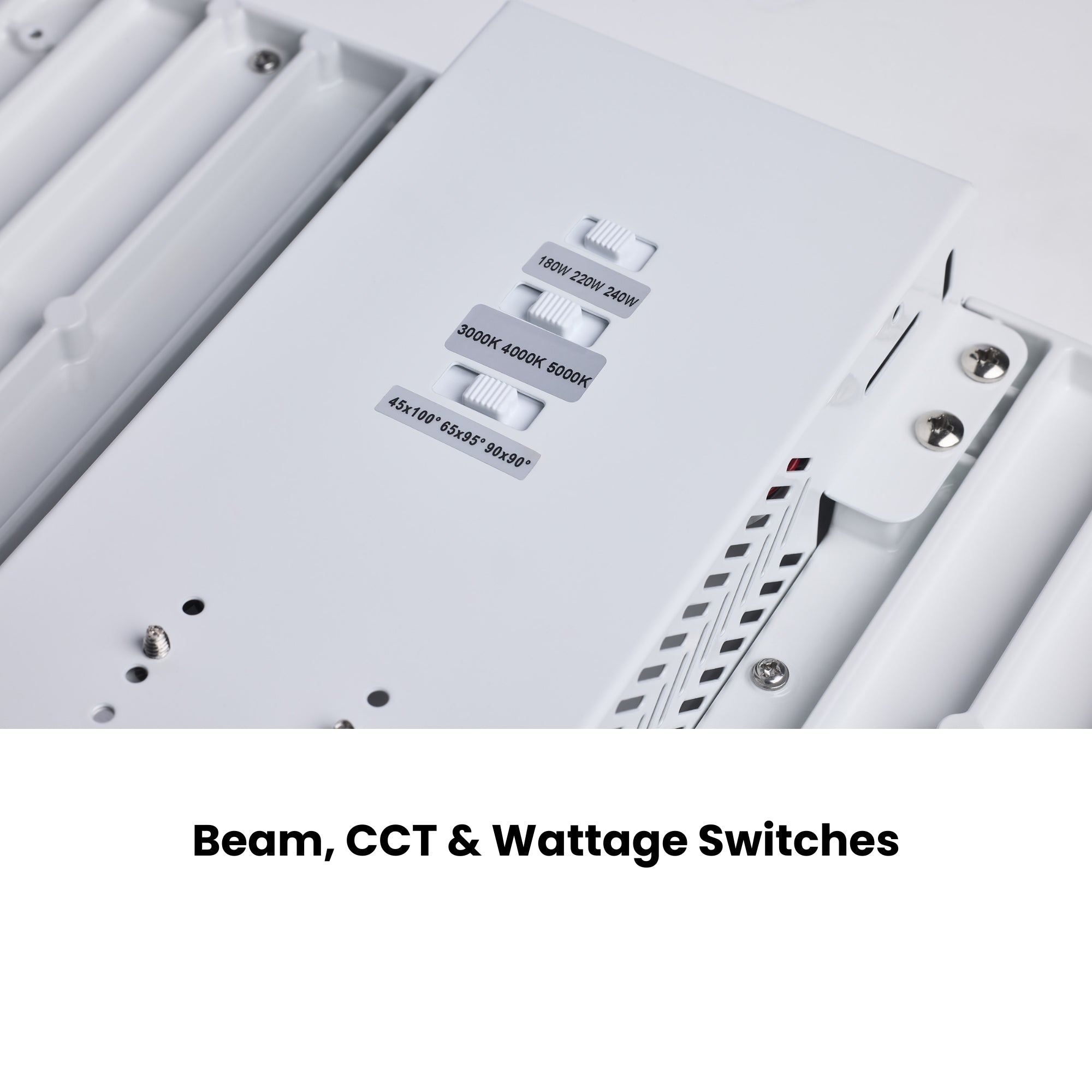

Beam distributions are selected via a physical switch on the fixture body.

Smart & Control Features

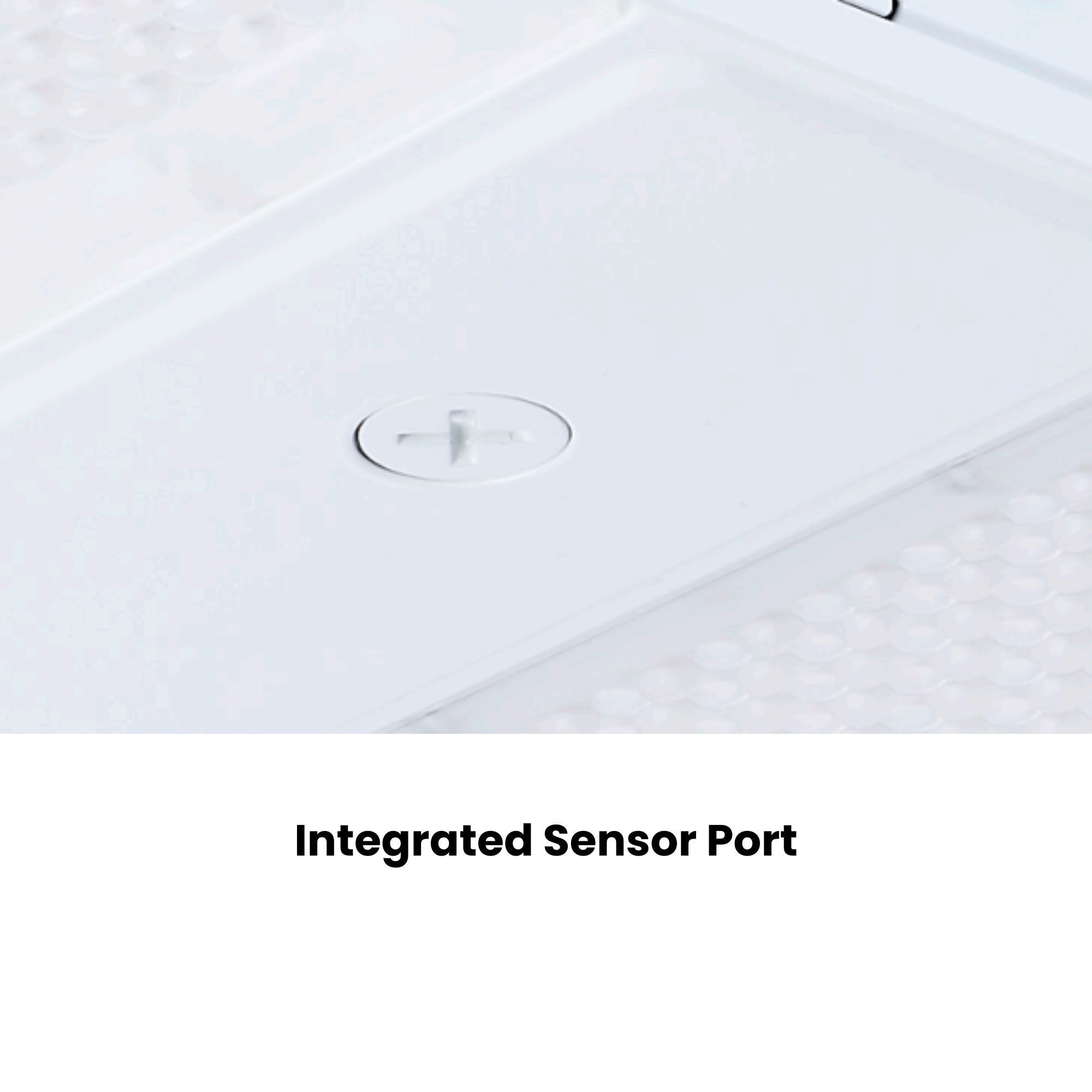

The 65-1512 features an integrated sensor port supporting modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
• Satco Sensor Compatibility (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the integrated port without opening the internal driver compartment.

Compatible plug-and-play sensors include the 86-238 (PIR Sensor) and 86-239 (Microwave Sensor) — sold separately. Field sensor adjustments must be managed using the required handheld wireless remote (catalog # 86-237, sold separately).

Electrical

Powered by a constant current driver operating on 120–347V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes.

Construction

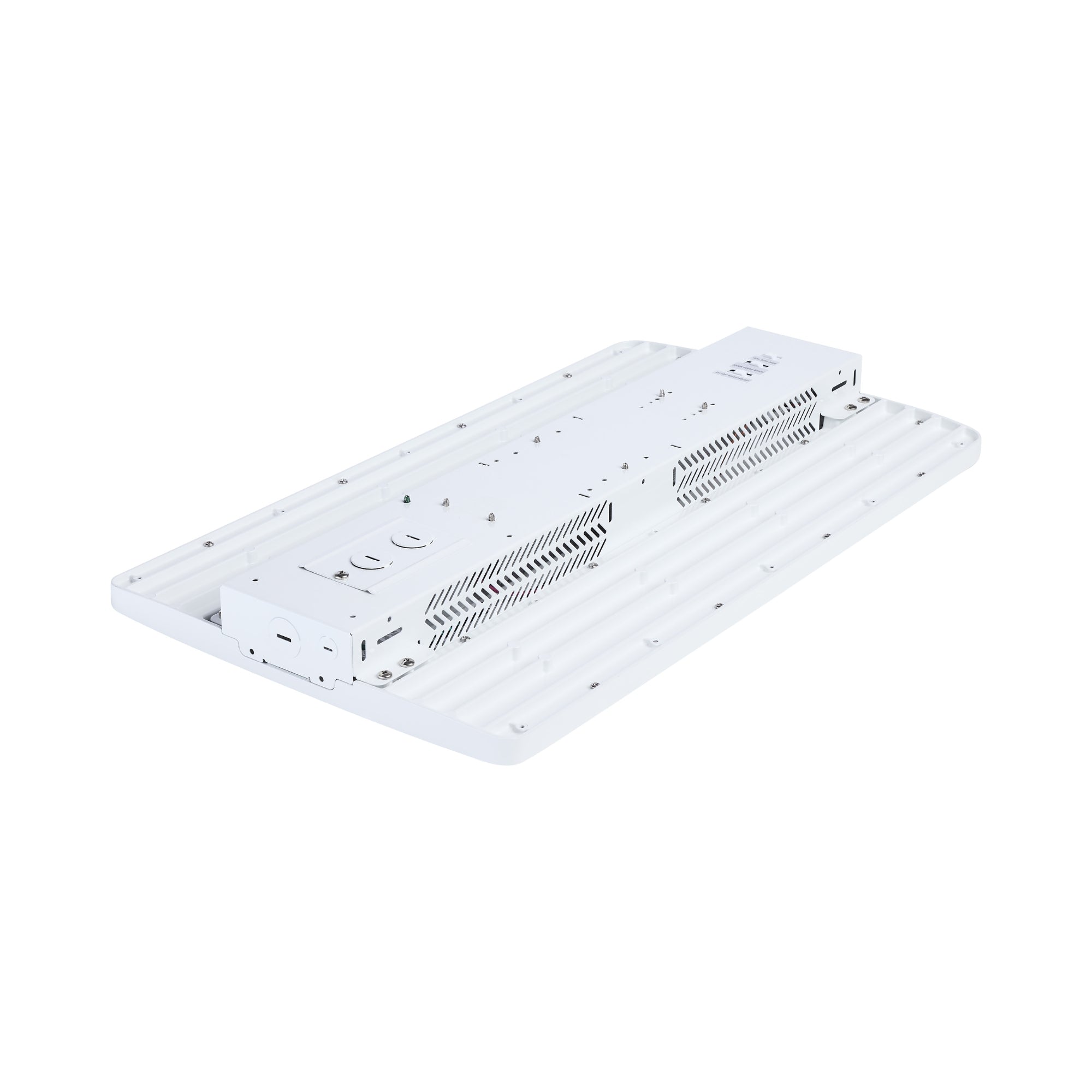

Housing & Thermal: Die-cast aluminum housing engineered to function as a passive heatsink, dissipating heat away from LED arrays to preserve lumen maintenance.

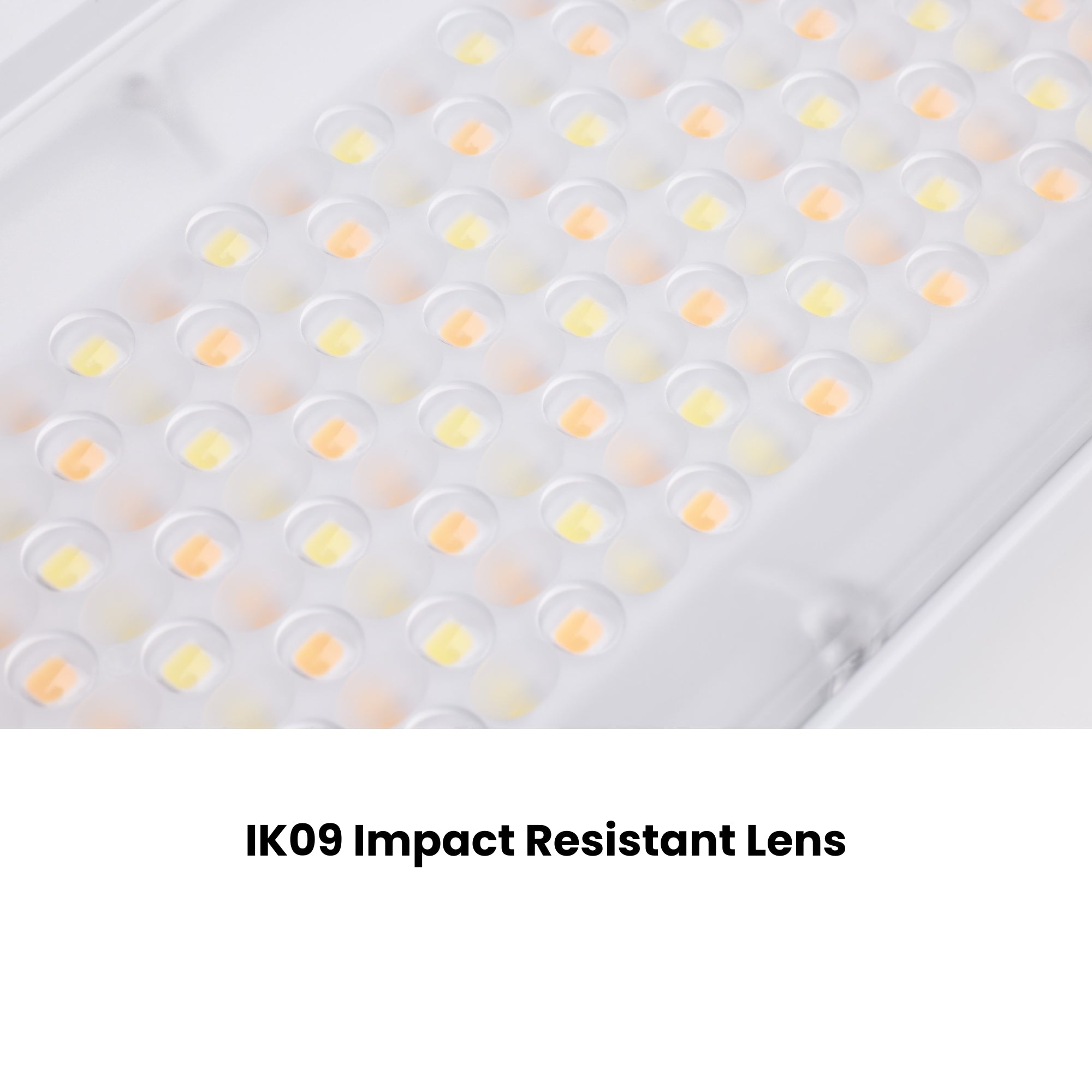

Lens & Optics: IK09 impact-resistant polycarbonate (PC) lens featuring switchable beam distributions (45°x100°, 65°x95°, 90°x90°).

Finish: Commercial finish in White.

Environmental Sealing: IP20 rated and UL Listed for damp locations. Ambient operating temperature range: −40°F (−40°C) to 122°F (50°C).

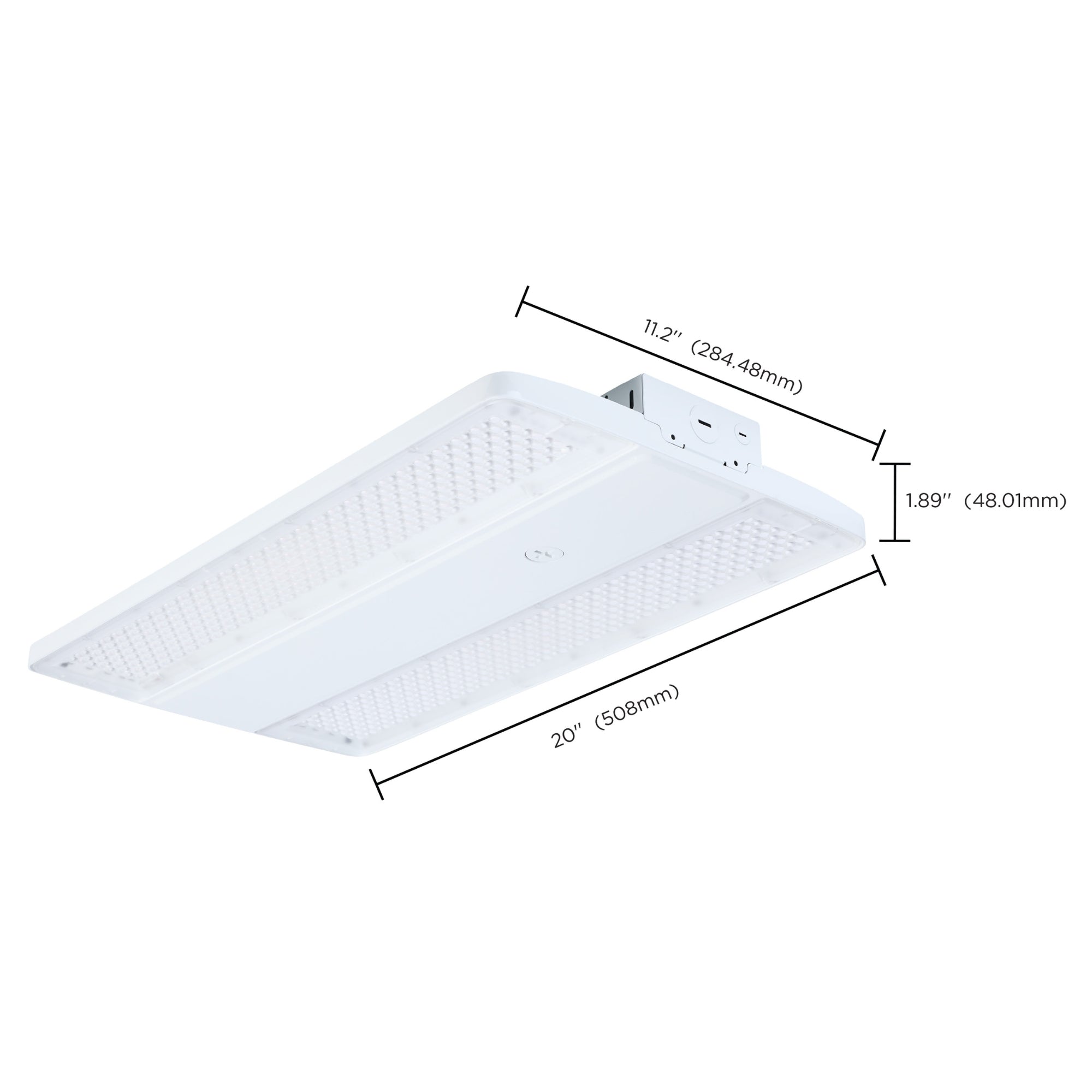

Dimensions & Weight: 20.00" L × 11.20" W × 1.89" H. Fixture weight: 7.26 lbs.

Installation & Mounting

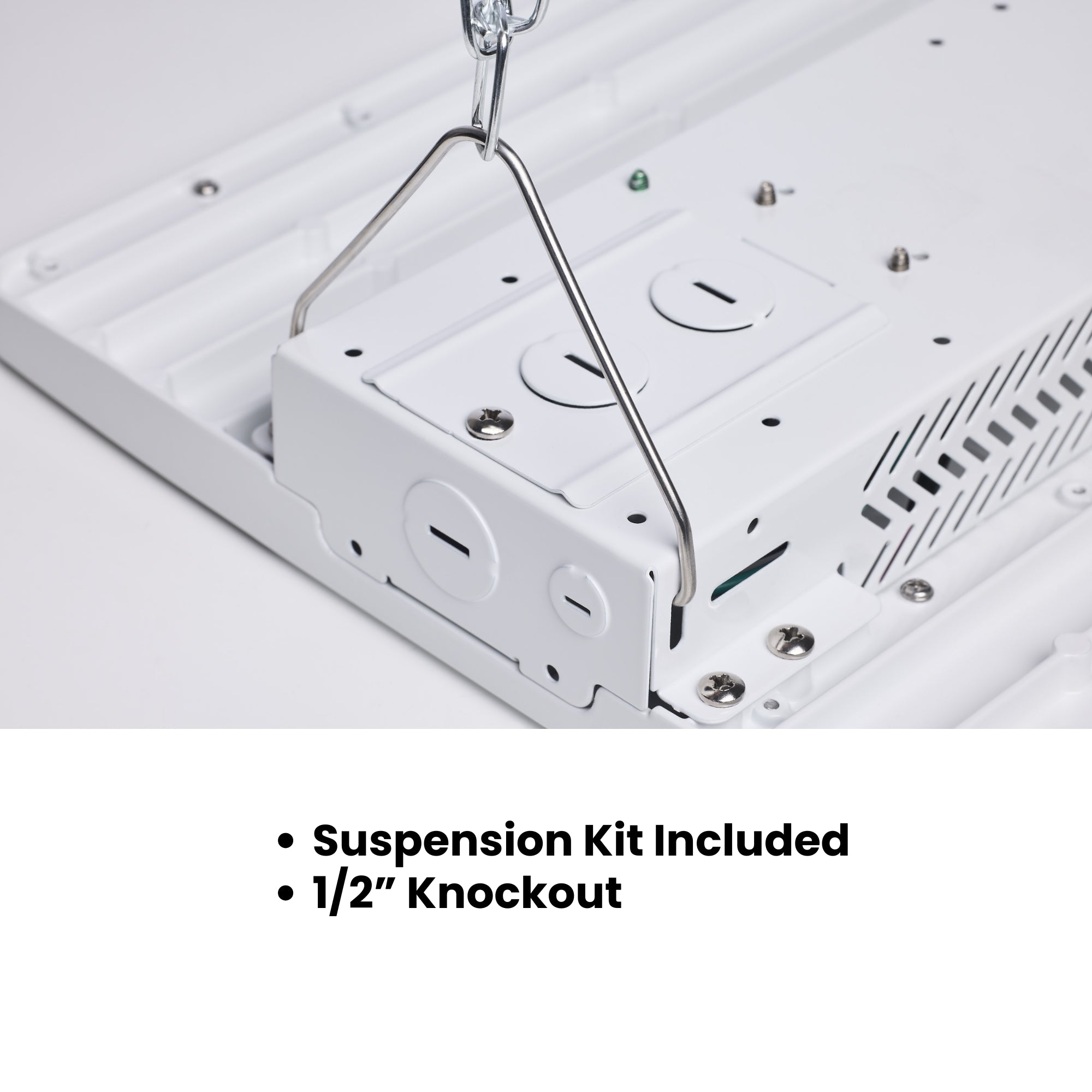

Standard Hardware: Ships standard with a 41" suspension kit for quick chain or suspension cable installation.

Mounting Options: Compatible with direct surface mounting or pendant mounting via optional bracket kits (sold separately).

Accessories (Sold Separately):

• Wire Guards: 65-1515 (Cage for Beam Selectable Linear Highbay)
• Mounting Brackets: 65-1014 (Pendant Mount Kit) | 65-1015 (Surface Mount Kit)
• Emergency Battery Backup: 65-1517 (Add on Emergency Backup Battery)
• Sensors & Controls: 86-238 (Add On PIR Sensor; 12 Meter) | 86-239 (Add on Microwave Sensor; 15 Meter) | 86-237 (Programming Remote)

Certifications & Rebates

• DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide
• UL Listed: Certified for damp locations per UL standards for commercial luminaires
• FCC Part 15, Class A: Certified for commercial and industrial electromagnetic interference immunity (ICES-005)

Typical Applications

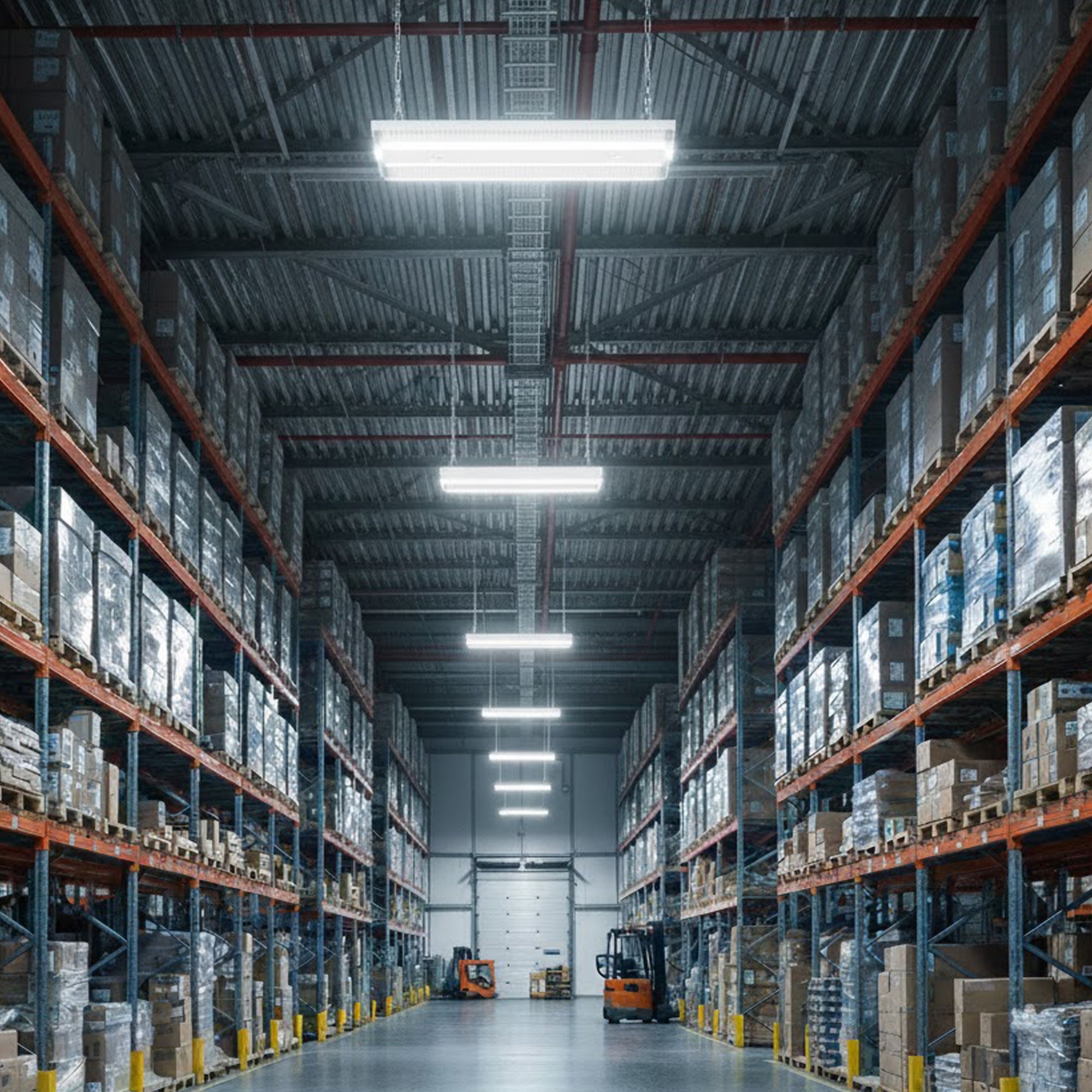

• Aisle Racking & Logistics Corridors — 45°x100° beam angle concentrates illumination along narrow storage rows to eliminate wasted vertical spill
• Open Warehouse Floors — 90°x90° beam angle provides broad, uniform footcandle distribution across large racking aisles and open spaces
• Factories & Distribution Centers — IK09 impact-resistant lens and die-cast aluminum housing provide durable performance in active environments
• Gymnasiums — selectable beam distributions and optional wire guards protect optics in athletic applications
• Cold Storage & Unconditioned Warehouses — −40°F (−40°C) minimum ambient temperature rating supports reliable ignition in freezing environments

What's Included

• Satco 65-1512 Beam Selectable Linear High Bay — White
• 41" suspension kit
• Installation and operation instructions
