Satco|Nuvo Beam Selectable LED Linear High Bay — 160W/135W/120W Selectable

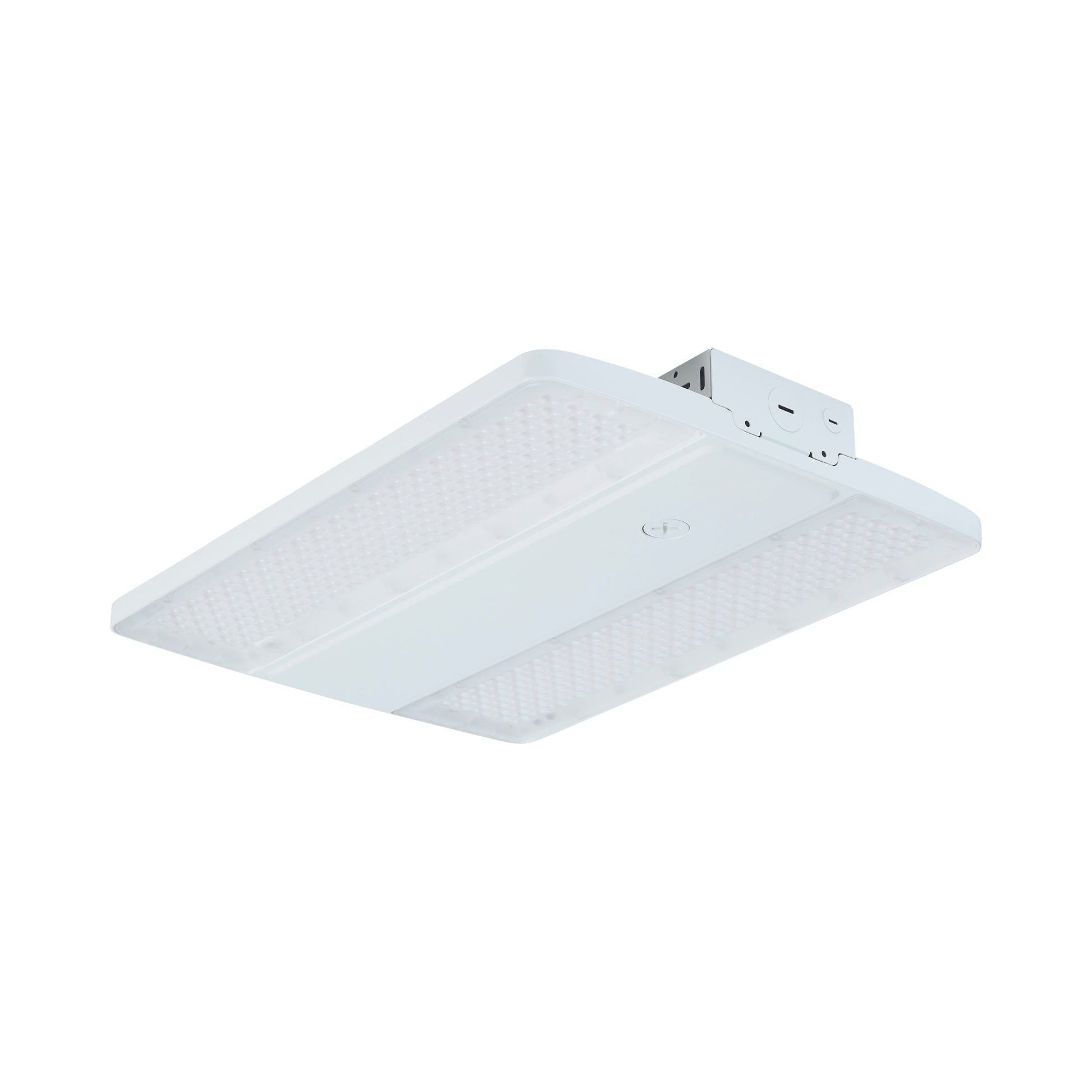

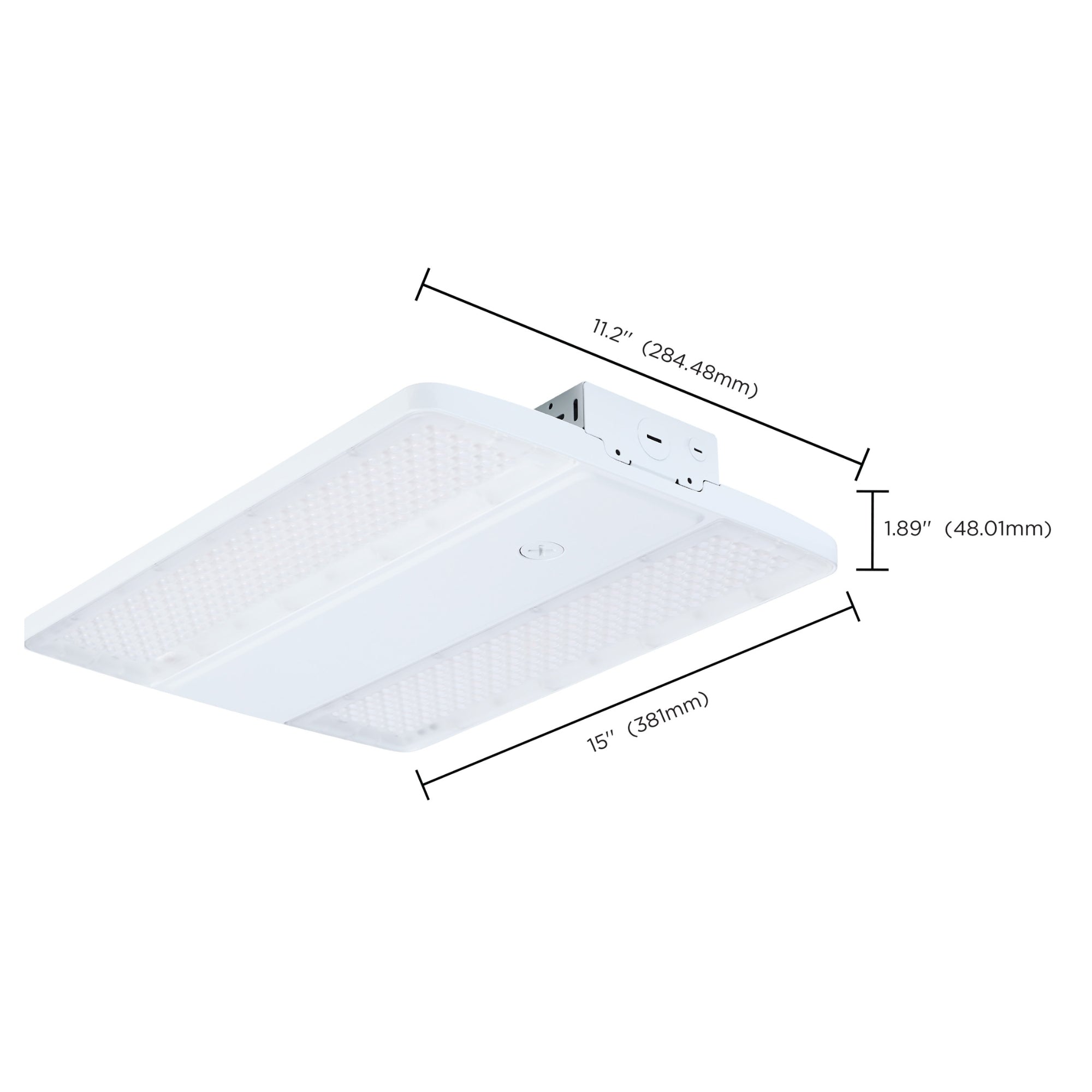

The Satco 65-1511 is an innovative LED linear high bay offering beam selectable technology alongside 160W/135W/120W selectable wattage and up to 24,200 lumens. Operating on a universal 120-347V input, it provides contractors with unparalleled flexibility. The rugged 1.25 ft design ensures optimized lighting distribution for complex industrial layouts and warehousing setups.

Key Features

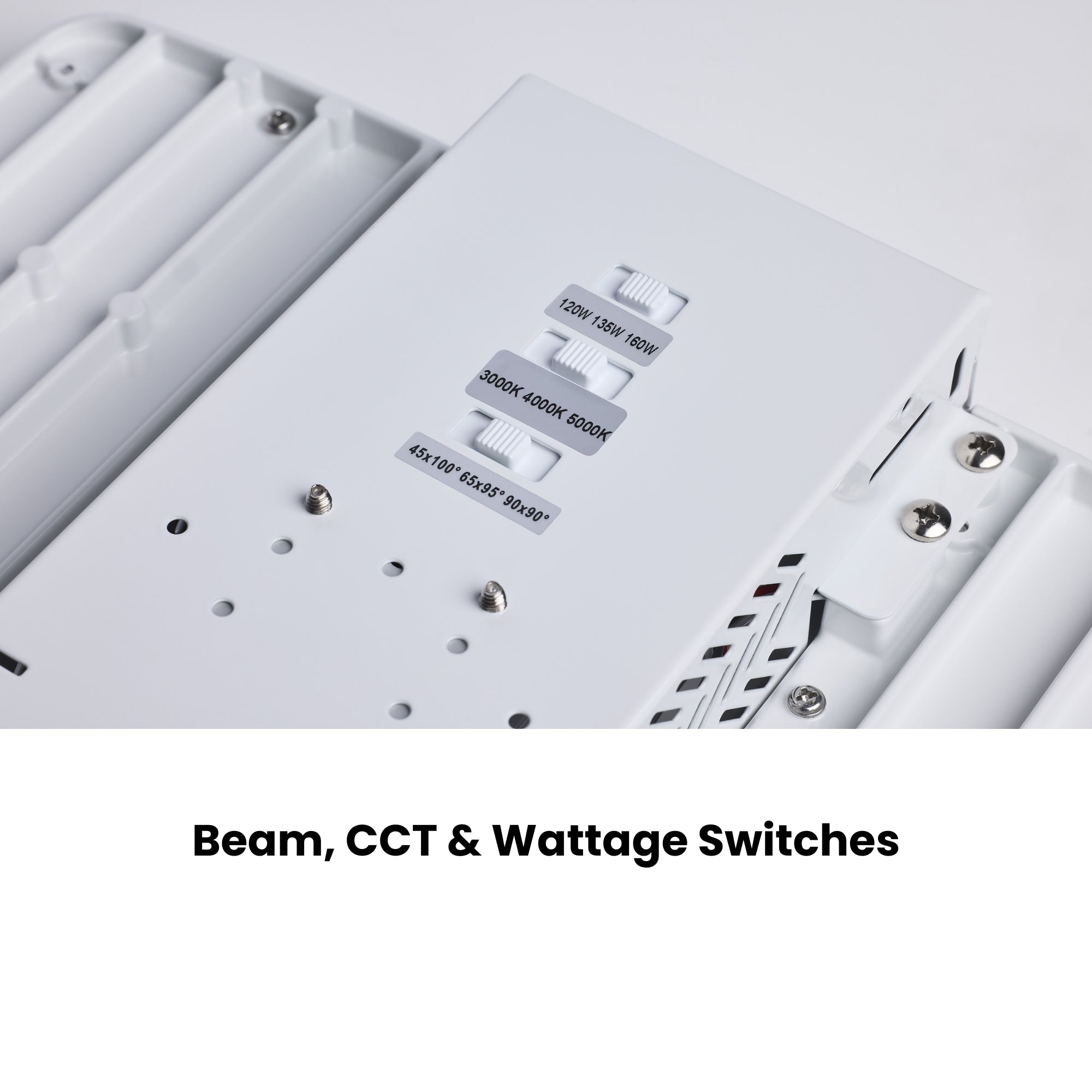

• Beam Selectable: 45°x100°, 65°x95°, or 90°x90° adjustable distribution.
• Wattage Selectable: 160W/135W/120W field-adjustable power options.
• CCT Selectable: 3000K, 4000K, and 5000K switchable color temperatures.
• Input Voltage: 120-347V universal operation.
• Light Output: Up to 24,200 lumens with a maximum 151 LPW efficacy.
• Dimming: Standard 0-10V continuous dimming.
• Environmental Rating: IP20 rated for damp locations.

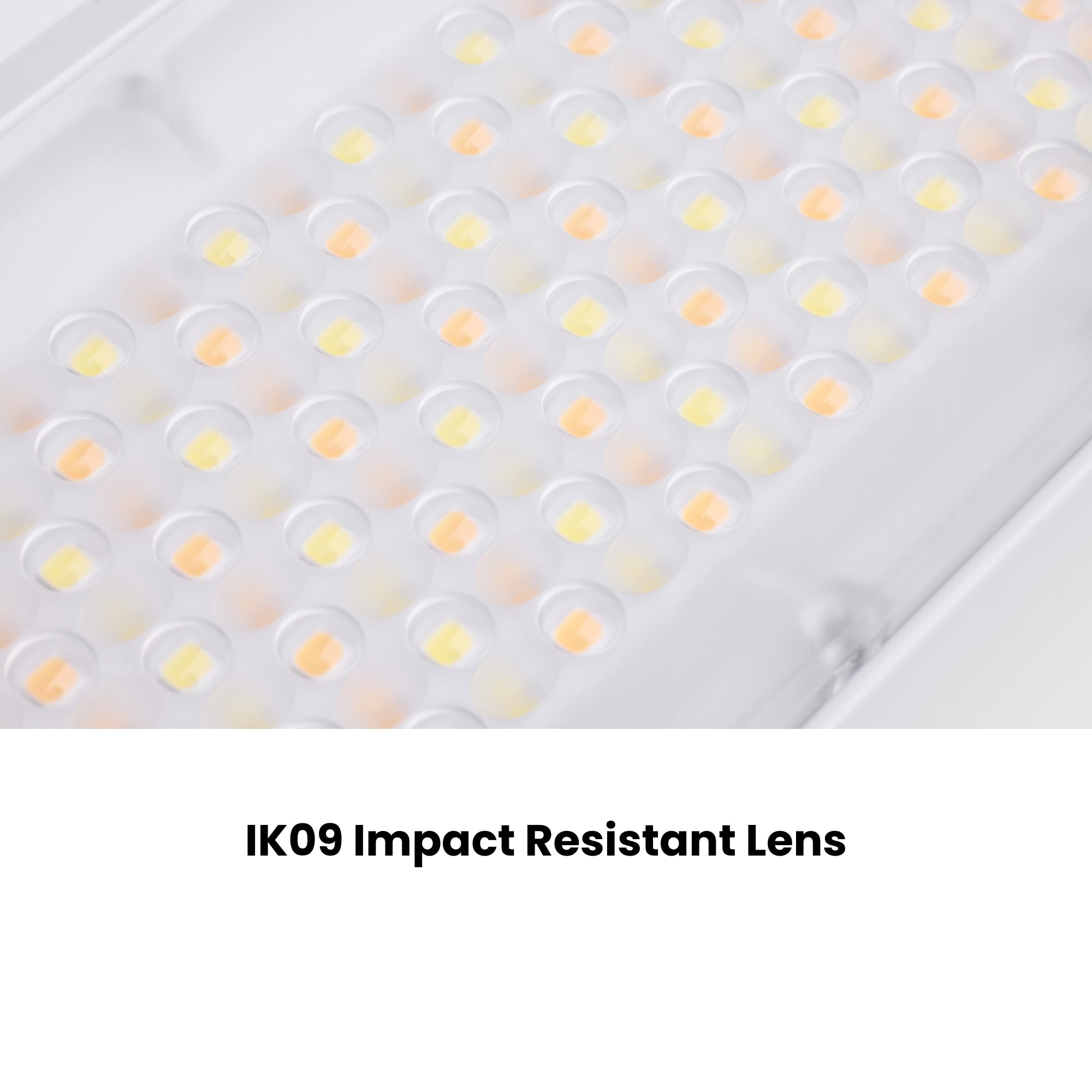

• Lens: IK09 impact-resistant polycarbonate lens.

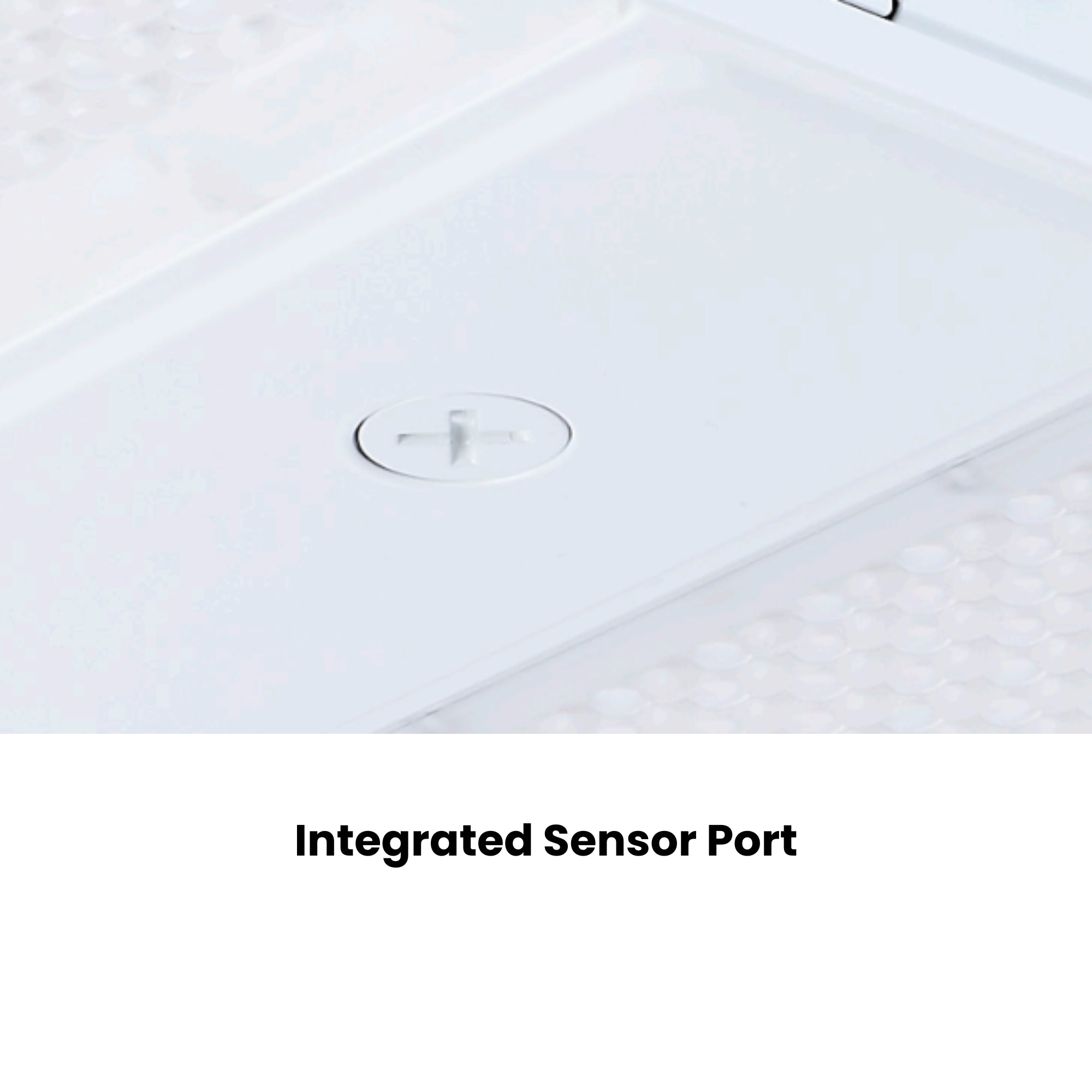

• Sensor Ready: Integrated sensor port for quick additions.

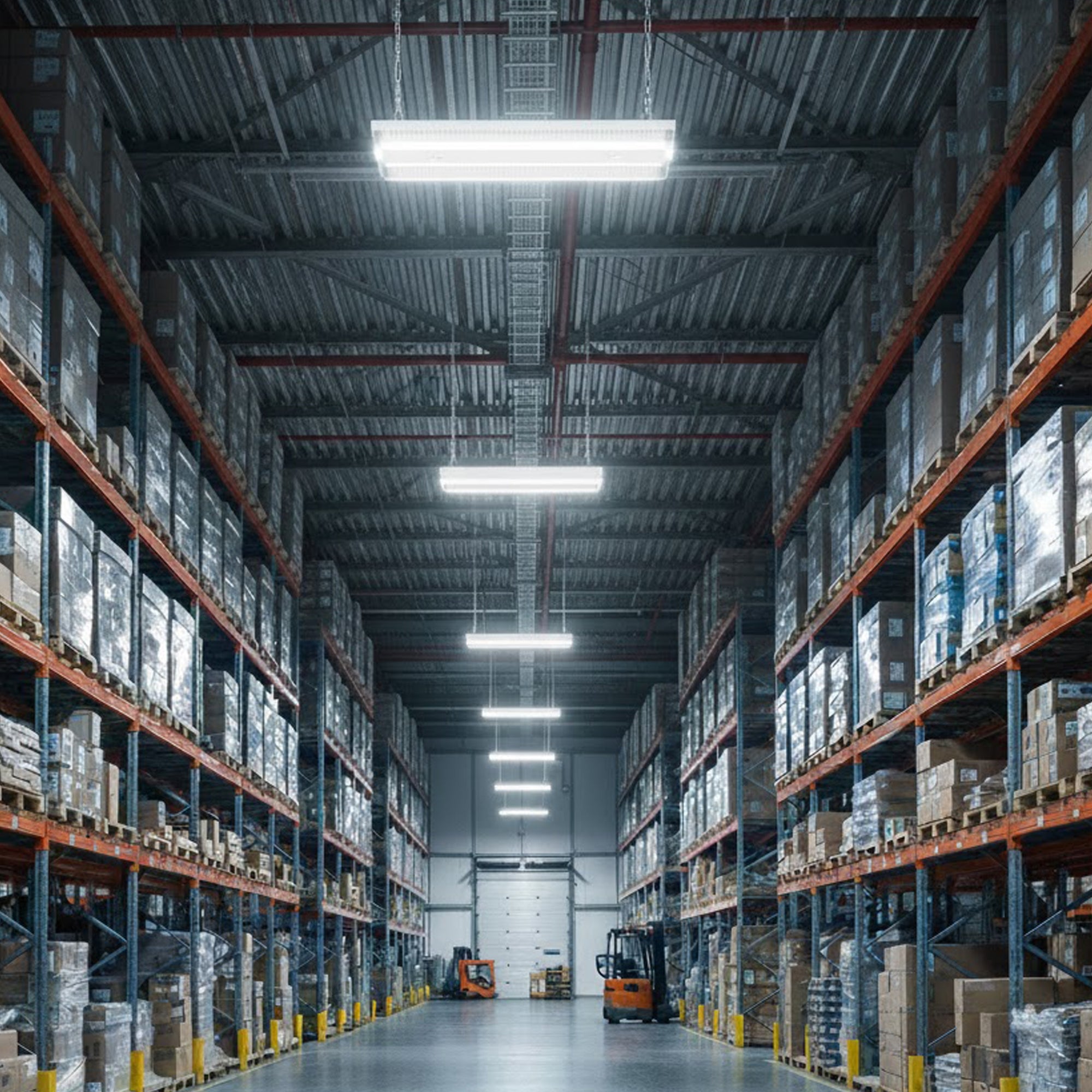

Typical Applications

• Warehouses
• Factories
• Commercial Facilities
• Gymnasiums
• Distribution Centers

Performance & Light Output

This luminaire delivers brilliant, consistent illumination ranging from 17,600 to 24,200 lumens with an outstanding maximum efficacy of 151 LPW. It features an 80 CRI LED array for clear visual acuity and a long-lasting 50,000-hour functional life. The standout feature is the physically adjustable beam distribution, allowing installers to set the light to 45°x100°, 65°x95°, or 90°x90° to optimize coverage for narrow racking aisles or open floor plans.

Electrical & Controls

Powered by a robust 120-347V driver, this fixture ensures broad compatibility across standard commercial power systems. It comes equipped with 0-10V continuous dimming functionality to maximize energy savings when paired with automated building controls. Additionally, it includes a 6kV surge protector and an integrated sensor port, making it ready for immediate occupancy or daylight sensor integration.

Construction & Durability

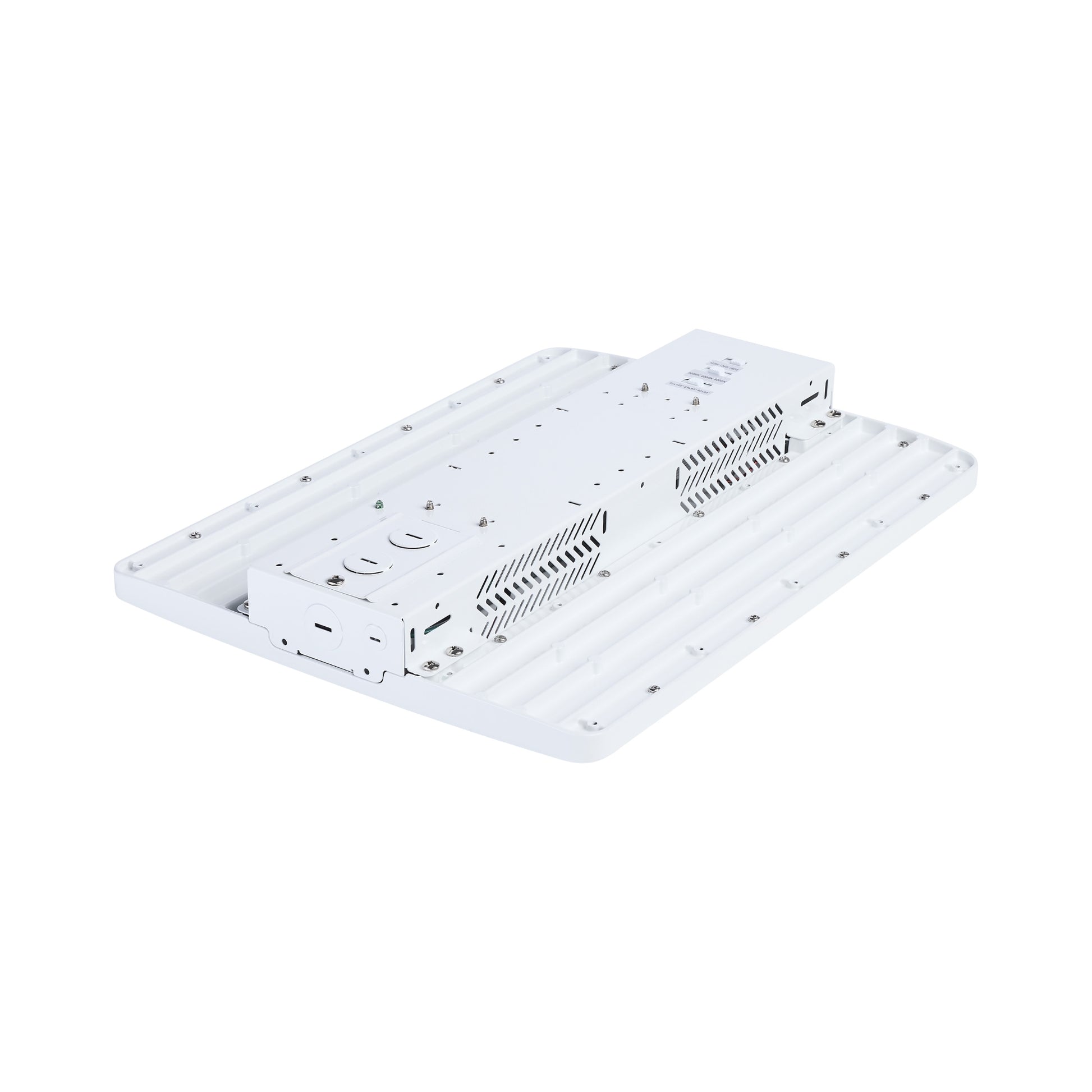

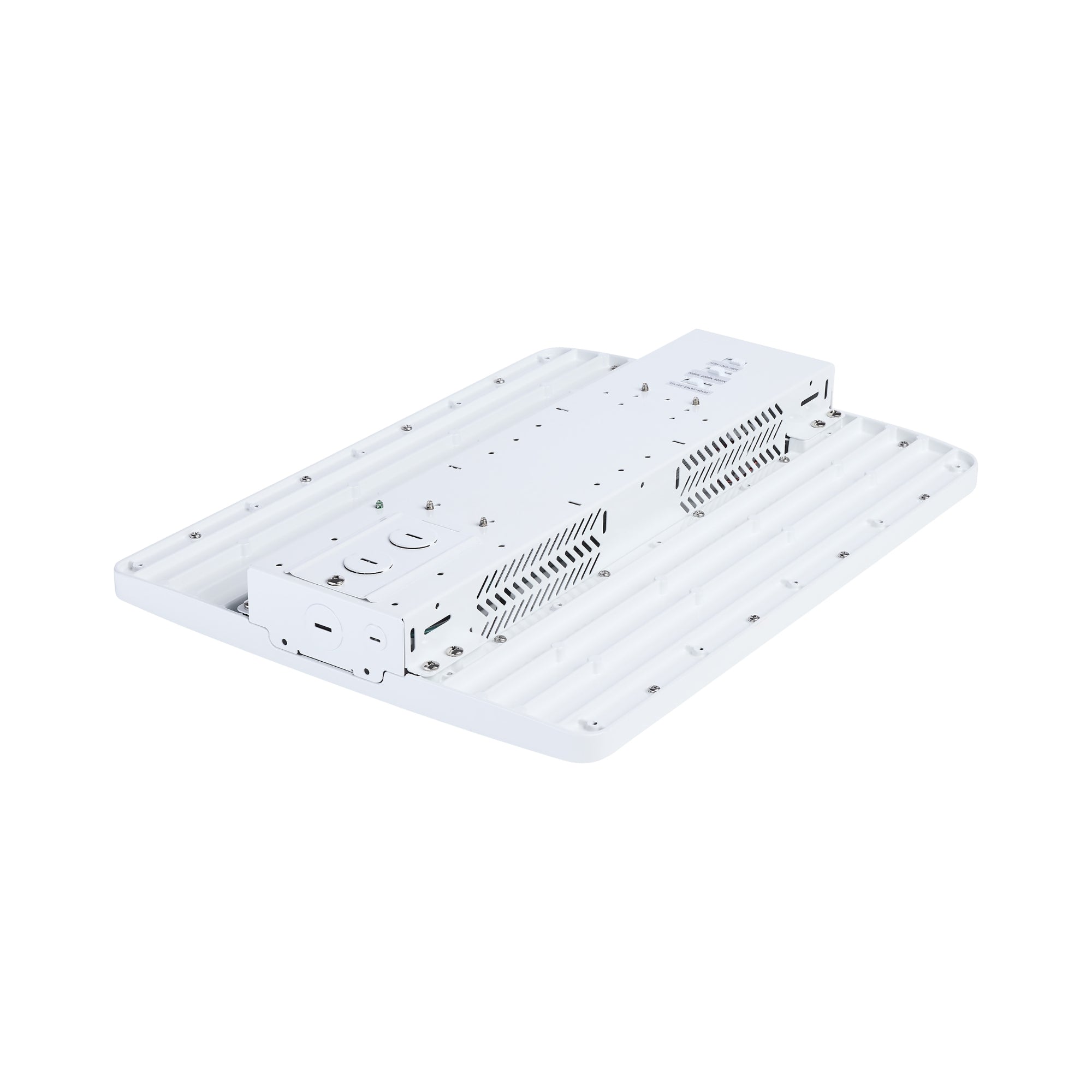

Built to endure demanding industrial environments, the fixture is constructed from rugged die-cast aluminum with a clean white finish. It utilizes a durable IK09 impact-resistant polycarbonate lens that protects internal LED components while ensuring uniform light distribution. The thermally efficient design maintains optimal operating temperatures from -40°C to 50°C, ensuring long-term reliability in damp locations.

Installation & Mounting

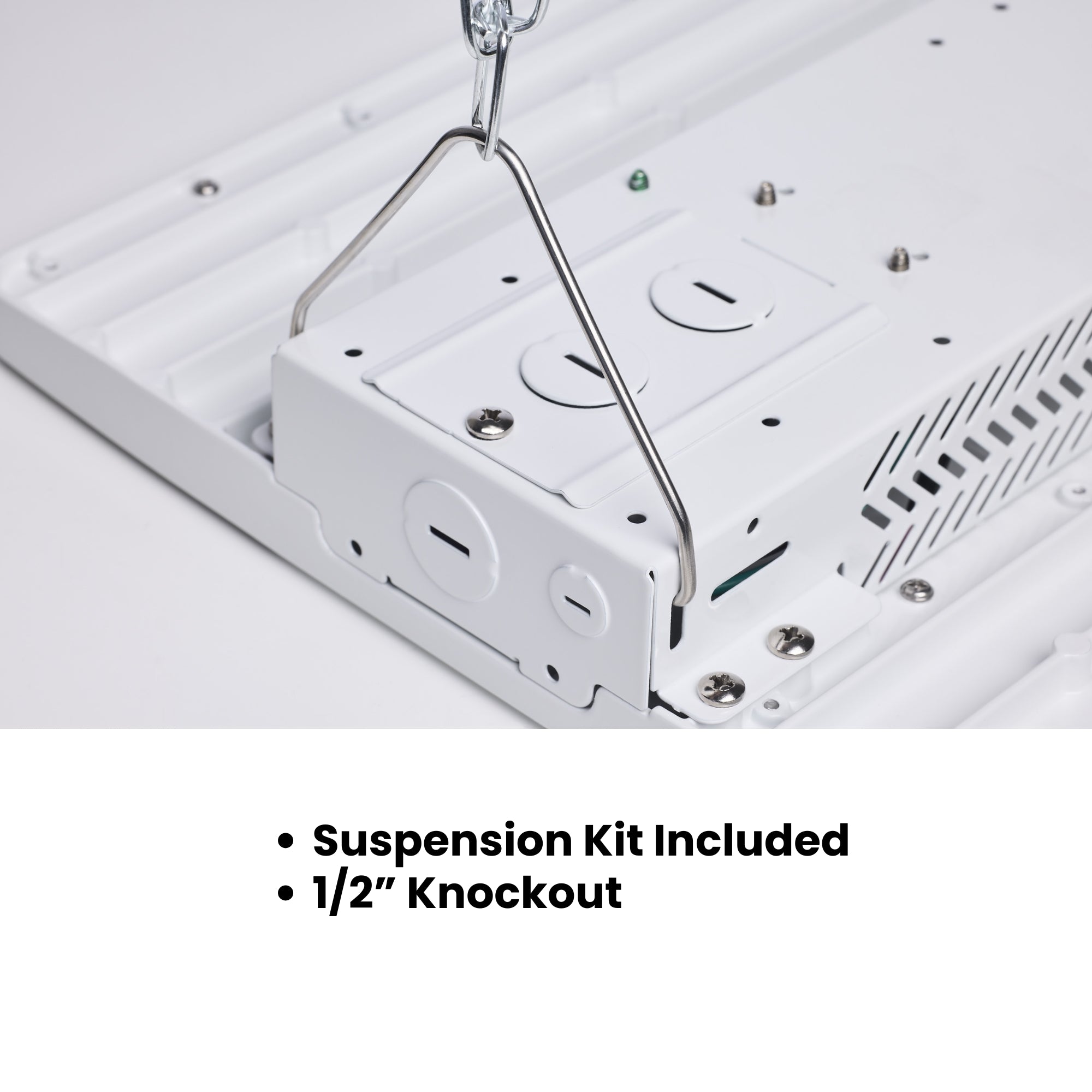

Engineered for rapid deployment in high-ceiling environments, this linear high bay supports standard suspended mounting configurations out of the box. It includes a 41 in. suspension kit, allowing contractors to efficiently secure the fixture without sourcing additional suspension hardware. A 1/2 in. knockout is also provided for secure wiring access.

What's Included

• (1) LED Linear High Bay
• (1) 41 in. Suspension Kit
