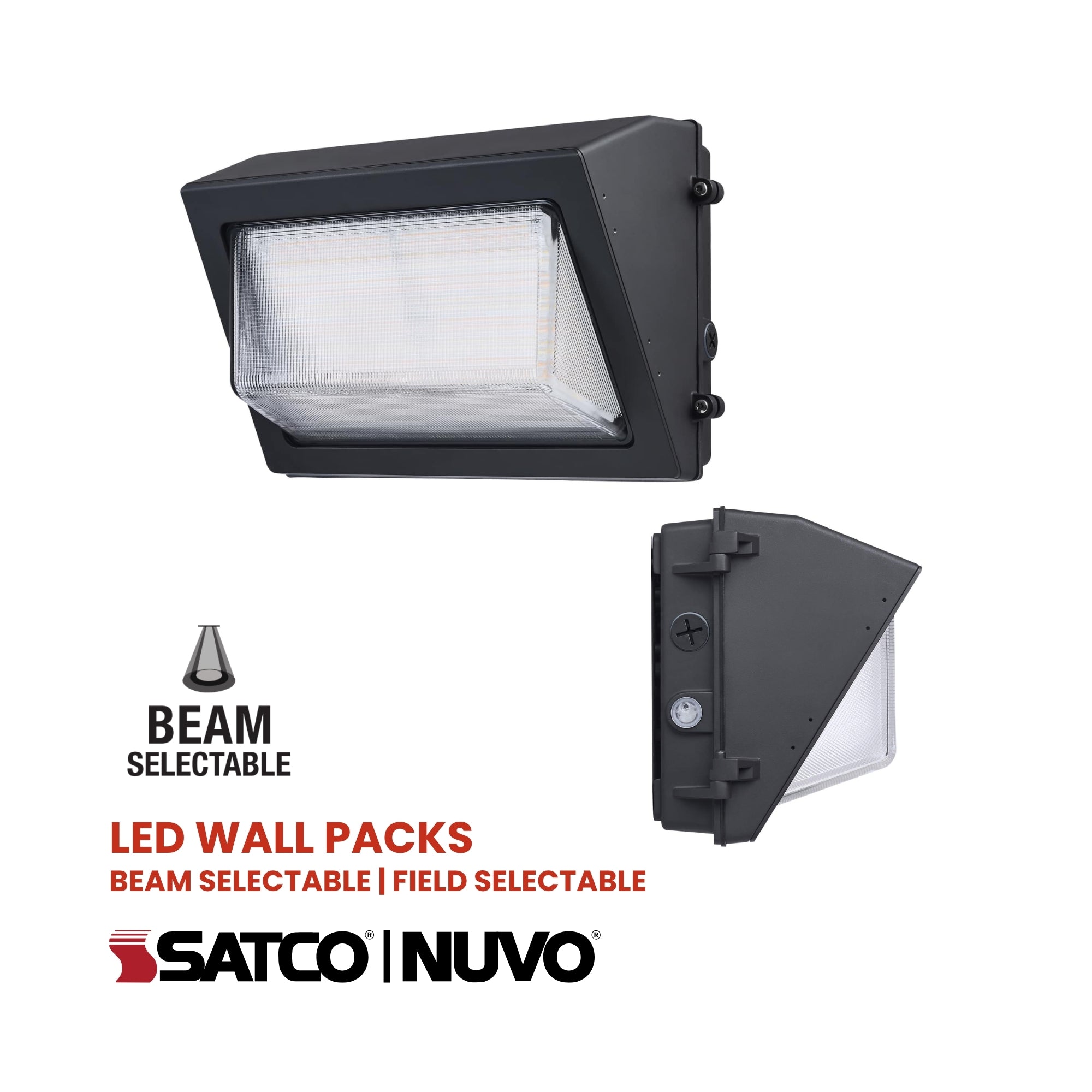

Satco|Nuvo 65-1501 Beam Selectable LED Wall Pack, 15305 Lumens, 100W/80W/60W, 3K/4K/5K, 120-347V, Bronze
Available in stock (35)
About this item
About this item
- Adjustable Beam Optics: Features an innovative selectable beam design allowing contractors to switch between 60, 90, and 110-degree distributions for precise exterior targeting.
- Selectable Output: Provides adjustable 100W, 80W, and 60W power settings to deliver up to 15,305 lumens of tailored illumination for building perimeters.

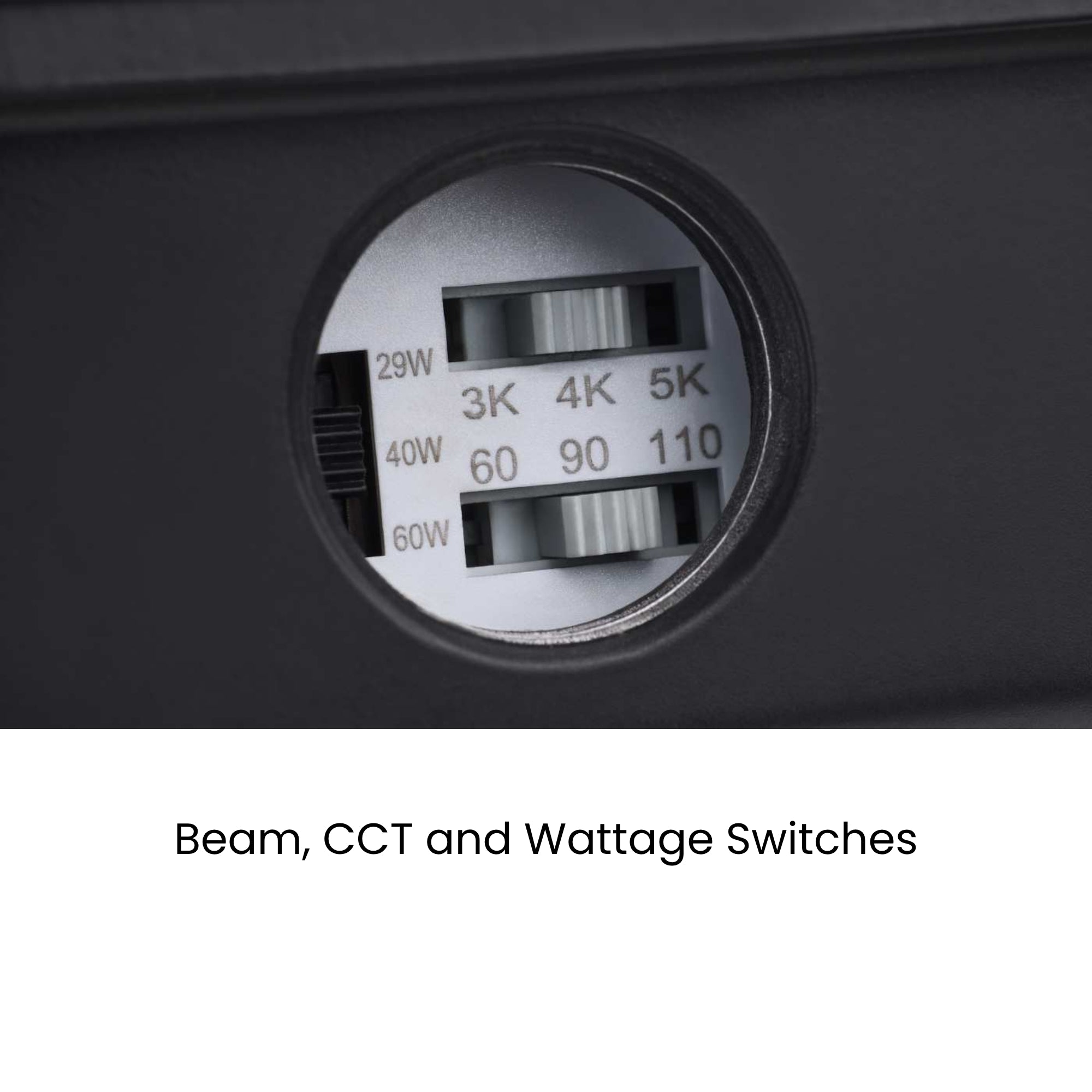

- Color Temperature Control: Includes field-selectable CCT switches to seamlessly toggle between 3000K, 4000K, and 5000K for optimal architectural matching.
- Voltage Flexibility: Operates efficiently across a broad 120-347V input range, ensuring smooth integration into diverse commercial electrical circuits.
- Rugged Durability: Housed in a heavy-duty bronze die-cast aluminum enclosure with a clear borosilicate glass lens to withstand severe weather and impacts.
We process payments securely and do not store credit card information.
Description
Description
Satco|Nuvo LED Wall Pack — Selectable 100W/80W/60W
The 65-1501 is a highly adaptable LED wall pack delivering up to 15,305 lumens on universal 120-347V circuits. This selectable 100W fixture provides targeted architectural lighting for commercial perimeters while allowing adjustable power and beam distribution.
Key Features
- Selectable Wattage: Field-adjustable power outputs of 100W, 80W, and 60W to customize energy consumption.
- Input Voltage: Operates efficiently across universal 120-347V electrical circuits.
- Lumen Output: Generates a versatile range of 8,660 to 15,305 lumens for superior visibility.
- Color Temperature: Selectable 3000K, 4000K, and 5000K settings to match existing environments.
- Beam Angle: Innovative optics allow switching between 60, 90, and 110-degree light distributions.
- Dimming Controls: Standard 0-10V dimming capabilities enable advanced building energy savings.
- Surge Defense: Built-in 6KV surge protection safeguards components from unexpected grid spikes.
- Housing Material: Heavy-duty die-cast aluminum construction with a premium bronze finish.

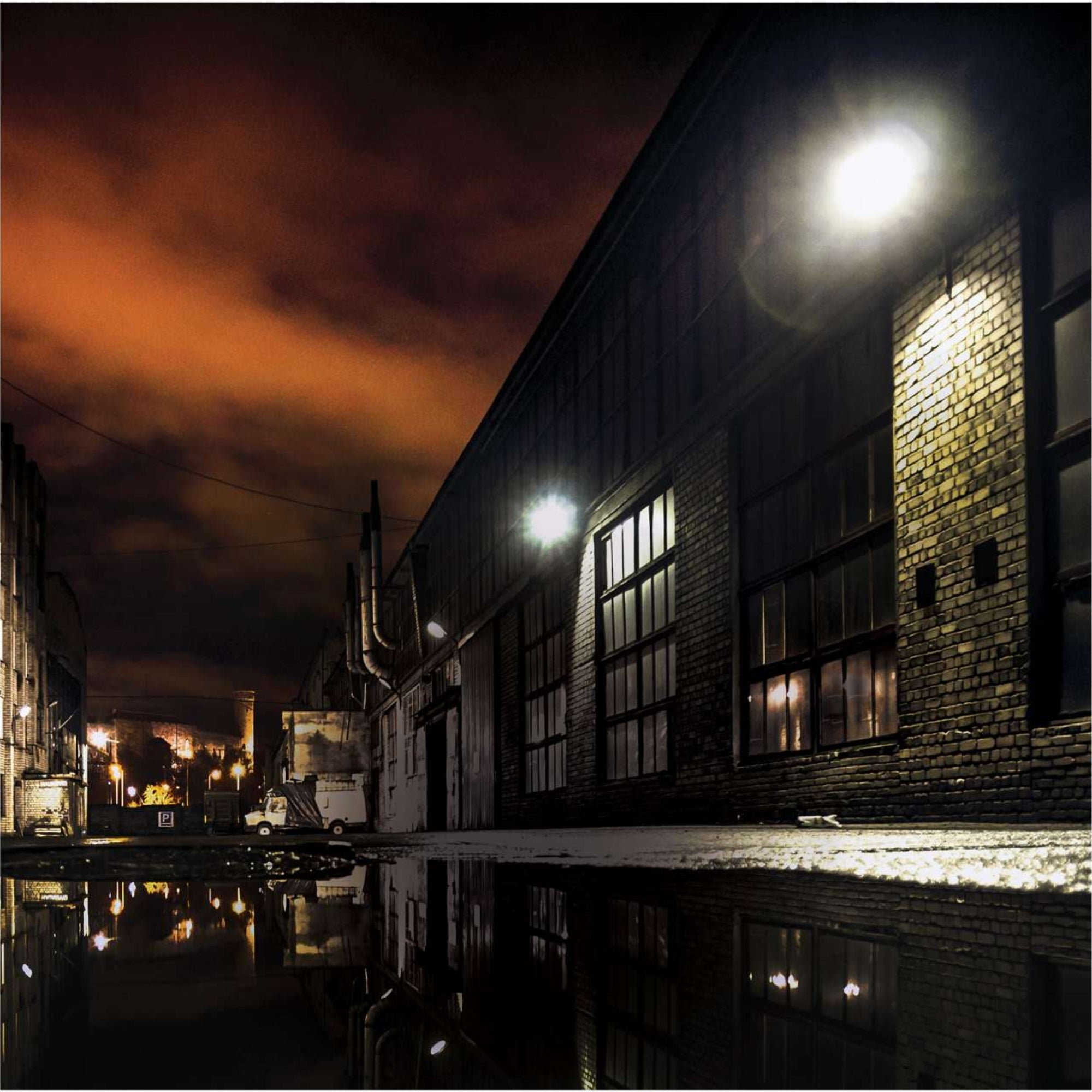

Typical Applications
- Building perimeters
- Loading docks
- Facility exteriors
- Pathways
- Storefronts
Performance & Light Output
Producing up to 15,305 lumens, the adjustable 60, 90, or 110-degree beam ensures tailored site coverage. It features an 80 CRI for accurate color rendering and a robust 50,000-hour lifespan.
Electrical & Controls
Powered by a robust 120-347V driver, it provides smooth 0-10V dimming, a power factor greater than 0.9, and total harmonic distortion below 20 percent. It includes integrated 6KV surge protection.
Construction & Durability

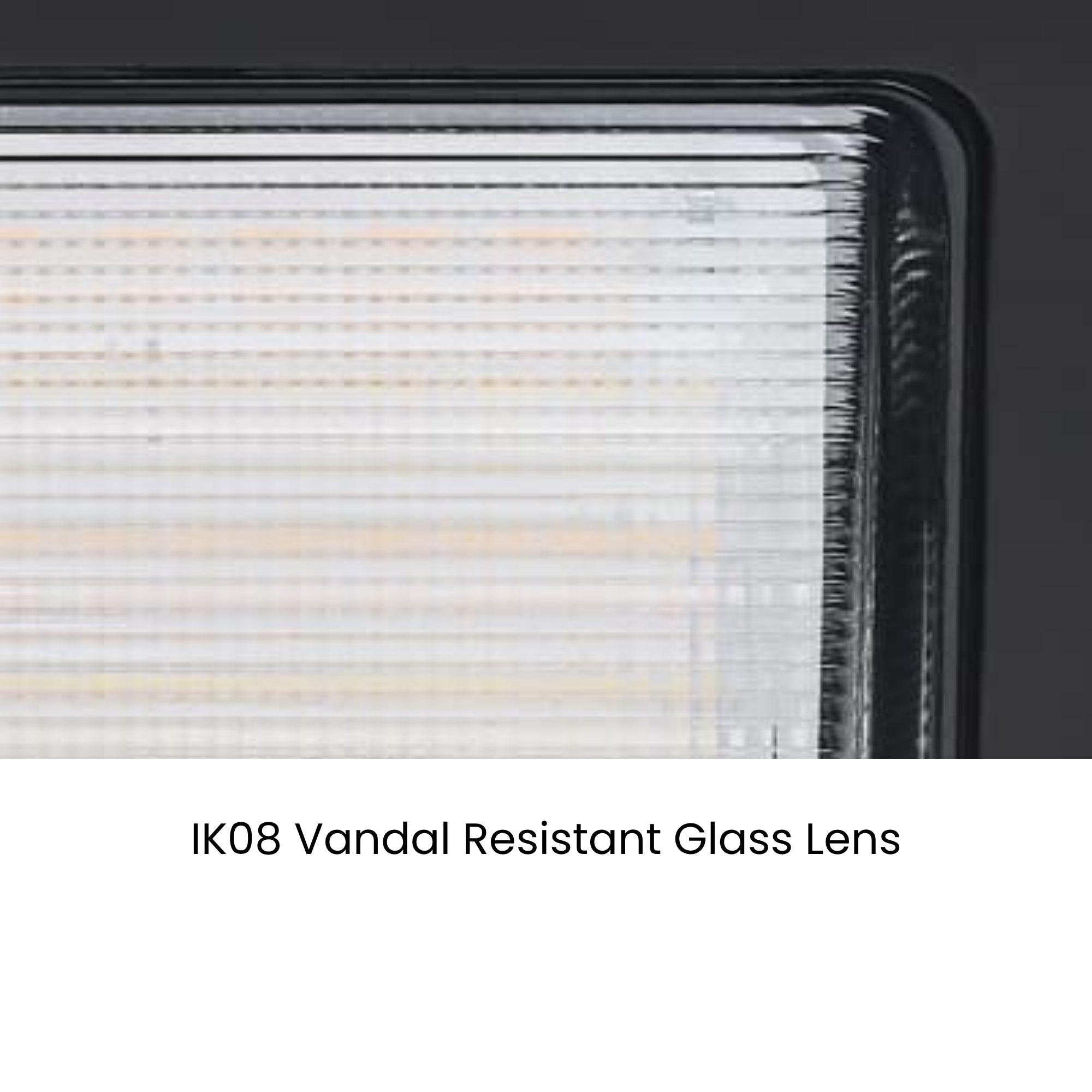

Built with heavy-duty die-cast aluminum, a bronze finish, and a clear borosilicate glass lens. It features IP65 wet location and IK08 impact ratings, operating reliably in extreme ambient temperatures from -40 to 122 degrees F.

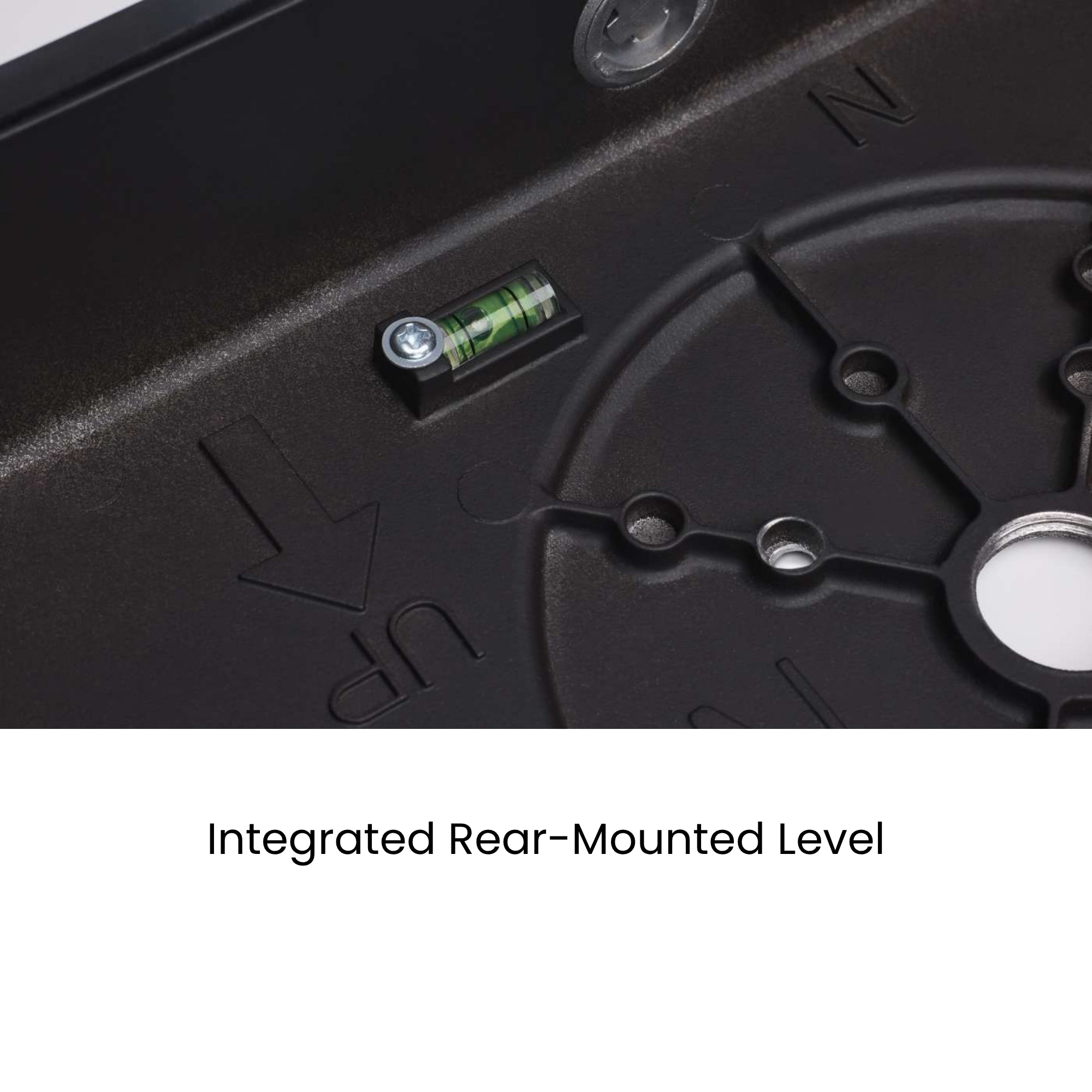

Installation & Mounting
Engineered for secure exterior wall mounting directly over standard electrical junction boxes. It is compatible with an optional cutoff shield (sold separately) and a protective steel wire cage (sold separately) to enhance utility and defense.
What's Included
- LED Wall Pack
- Installation Hardware
Specifications
Specifications

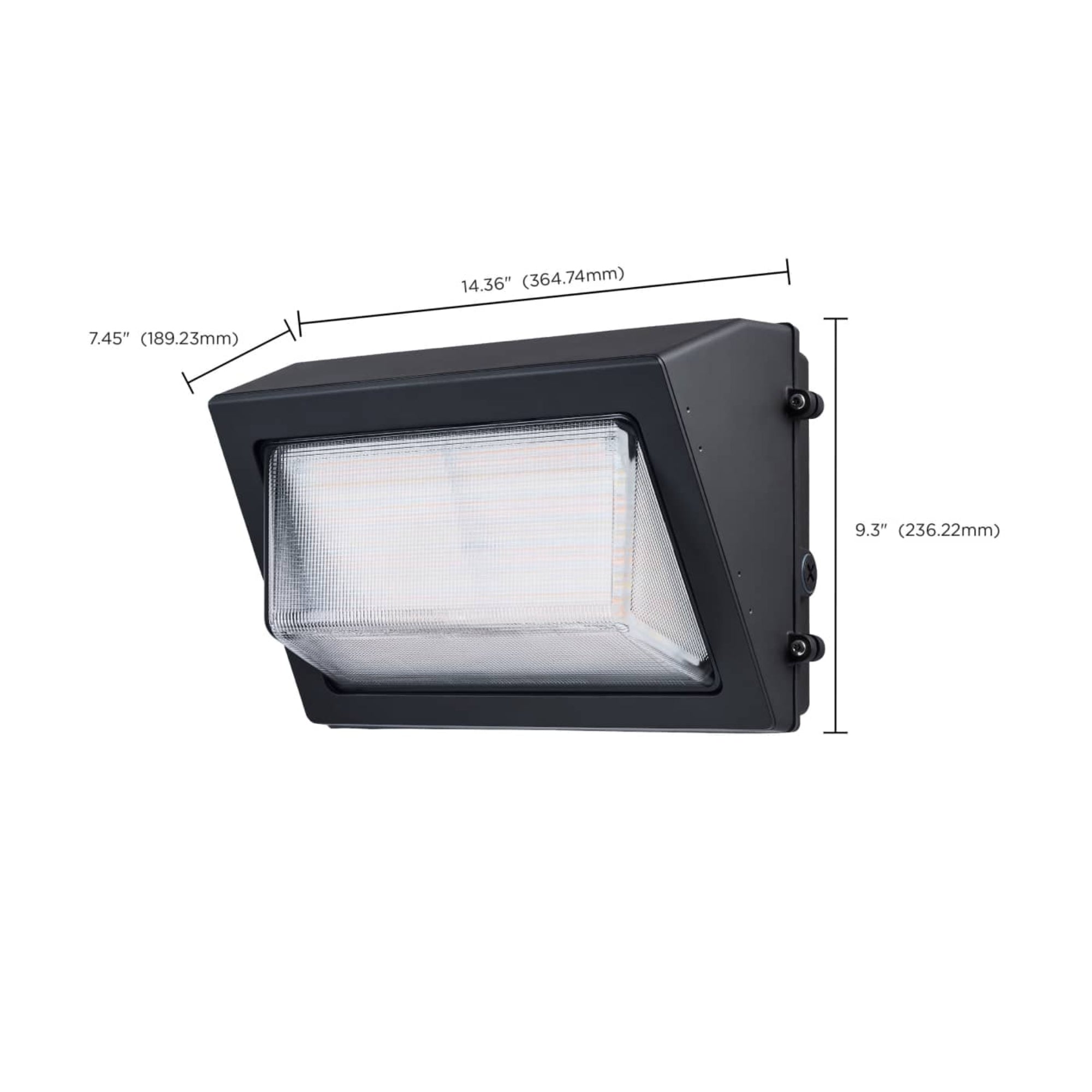

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I adjust the beam angle on this Satco|Nuvo wall pack?
Can I adjust the beam angle on this Satco|Nuvo wall pack?
Can I change the wattage on this fixture?
Can I change the wattage on this fixture?
What input voltage does this LED wall pack accept?
What input voltage does this LED wall pack accept?
Is the glass lens durable against impacts?
Is the glass lens durable against impacts?
Are there accessories available for this wall pack?
Are there accessories available for this wall pack?
