Satco|Nuvo 65-1500 Beam Selectable LED Wall Pack, 9193 Lumens, 60W/40W/29W, 3K/4K/5K, 120-347V, Bronze
Available in stock (516)
About this item
About this item

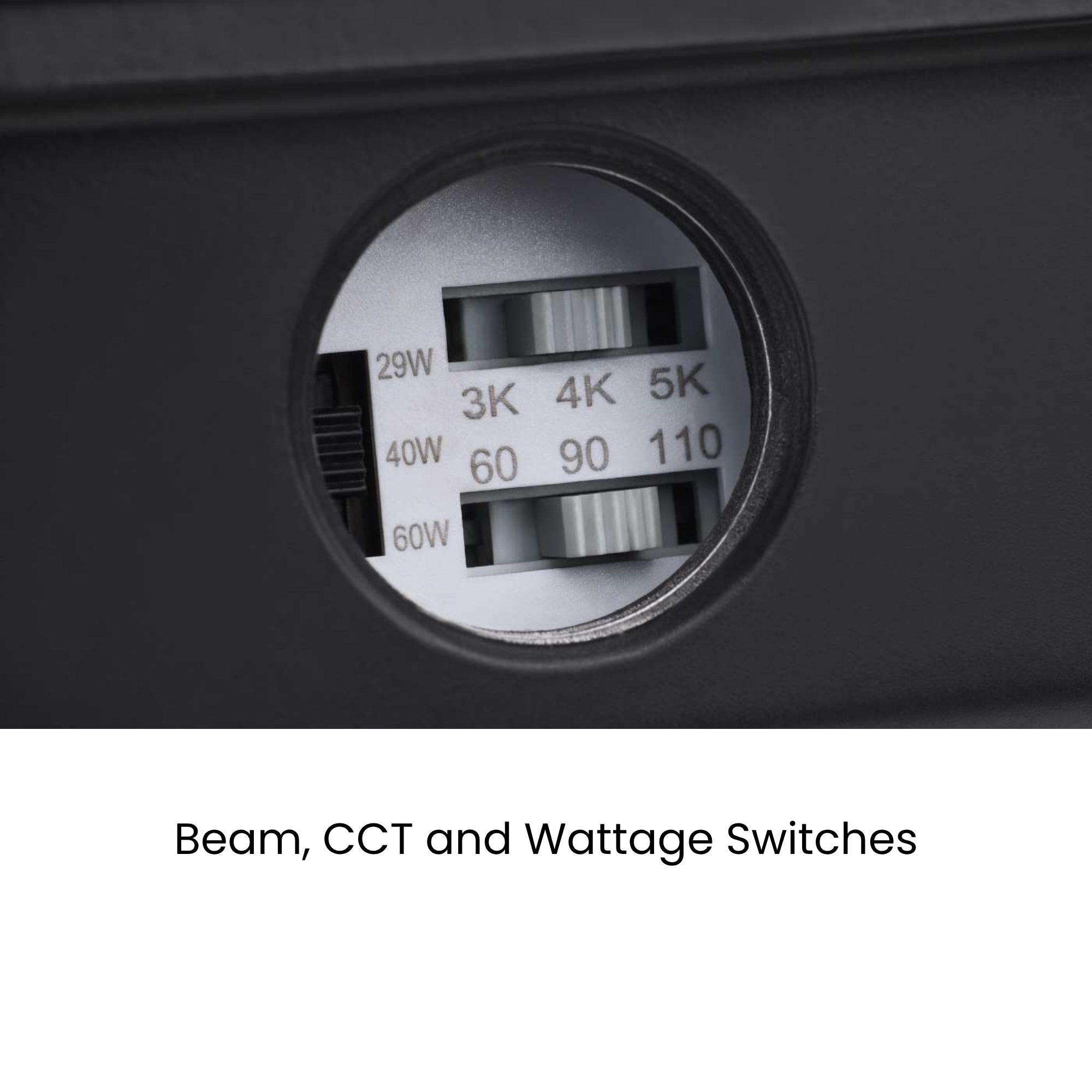

- Adjustable Beam Optics: Features an innovative selectable beam design allowing contractors to switch between 60, 90, and 110-degree distributions for precise exterior targeting.
- Selectable Output: Provides adjustable 60W, 40W, and 29W power settings to deliver up to 9,193 lumens of tailored illumination for building perimeters.
- Color Temperature Control: Includes field-selectable CCT switches to seamlessly toggle between 3000K, 4000K, and 5000K for optimal architectural matching.
- Voltage Flexibility: Operates efficiently across a broad 120-347V input range, ensuring smooth integration into diverse commercial electrical circuits.

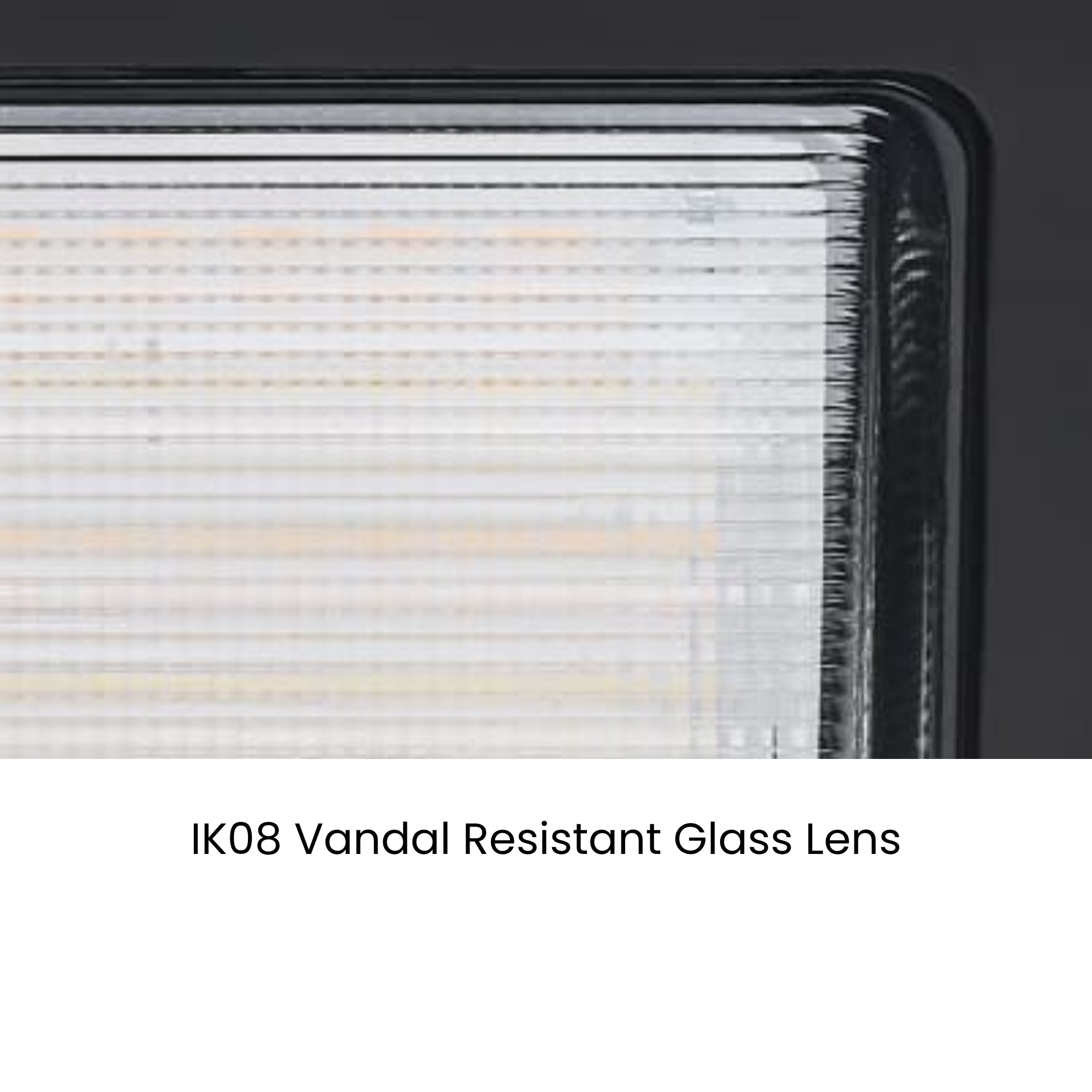

- Rugged Durability: Housed in a heavy-duty bronze die-cast aluminum enclosure with a clear borosilicate glass lens to withstand severe weather and impacts.
We process payments securely and do not store credit card information.
Description
Description
Satco|Nuvo LED Wall Pack — Selectable 60W
The 65-1500 is a versatile LED wall pack delivering up to 9,193 lumens on a 120-347V circuit. This selectable 60W fixture provides targeted lighting for commercial perimeters.
Key Features
- Selectable Wattage: Field-adjustable power outputs of 60W, 40W, and 29W to customize energy consumption.
- Input Voltage: Operates efficiently across universal 120-347V electrical circuits.
- Lumen Output: Generates a versatile range of 4,225 to 9,193 lumens for superior visibility.
- Color Temperature: Selectable 3000K, 4000K, and 5000K settings to match existing environments.
- Beam Angle: Innovative optics allow switching between 60, 90, and 110-degree light distributions.
- Dimming Controls: Standard 0-10V dimming capabilities enable advanced building energy savings.
- Surge Defense: Built-in 6KV surge protection safeguards components from unexpected grid spikes.
- Housing Material: Heavy-duty die-cast aluminum construction with a premium bronze finish.
Typical Applications
- Building perimeters
- Loading docks
- Facility exteriors
- Pathways
- Storefronts
Performance & Light Output
Producing up to 9,193 lumens, the adjustable 60, 90, or 110-degree beam ensures tailored site coverage. It features an 80 CRI and a 50,000-hour lifespan.
Electrical & Controls
Powered by a 120-347V driver, it provides 0-10V dimming, >0.9 power factor, and <20 percent THD. It includes 6KV surge protection.
Construction & Durability
Built with die-cast aluminum, a bronze finish, and a clear borosilicate lens. It features IP65 and IK08 ratings, operating from -40 to 122 degrees F.
Installation & Mounting
Designed for secure wall mounting. Compatible with an optional cutoff shield (65-1503) and protective steel cage (65-1502), sold separately.
What's Included
- LED Wall Pack
- Hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I adjust the beam angle on this Satco|Nuvo wall pack?
Can I adjust the beam angle on this Satco|Nuvo wall pack?
Can I change the wattage on this fixture?
Can I change the wattage on this fixture?
What input voltage does this LED wall pack accept?
What input voltage does this LED wall pack accept?
Is the glass lens durable against impacts?
Is the glass lens durable against impacts?
Are there accessories available for this wall pack?
Are there accessories available for this wall pack?
