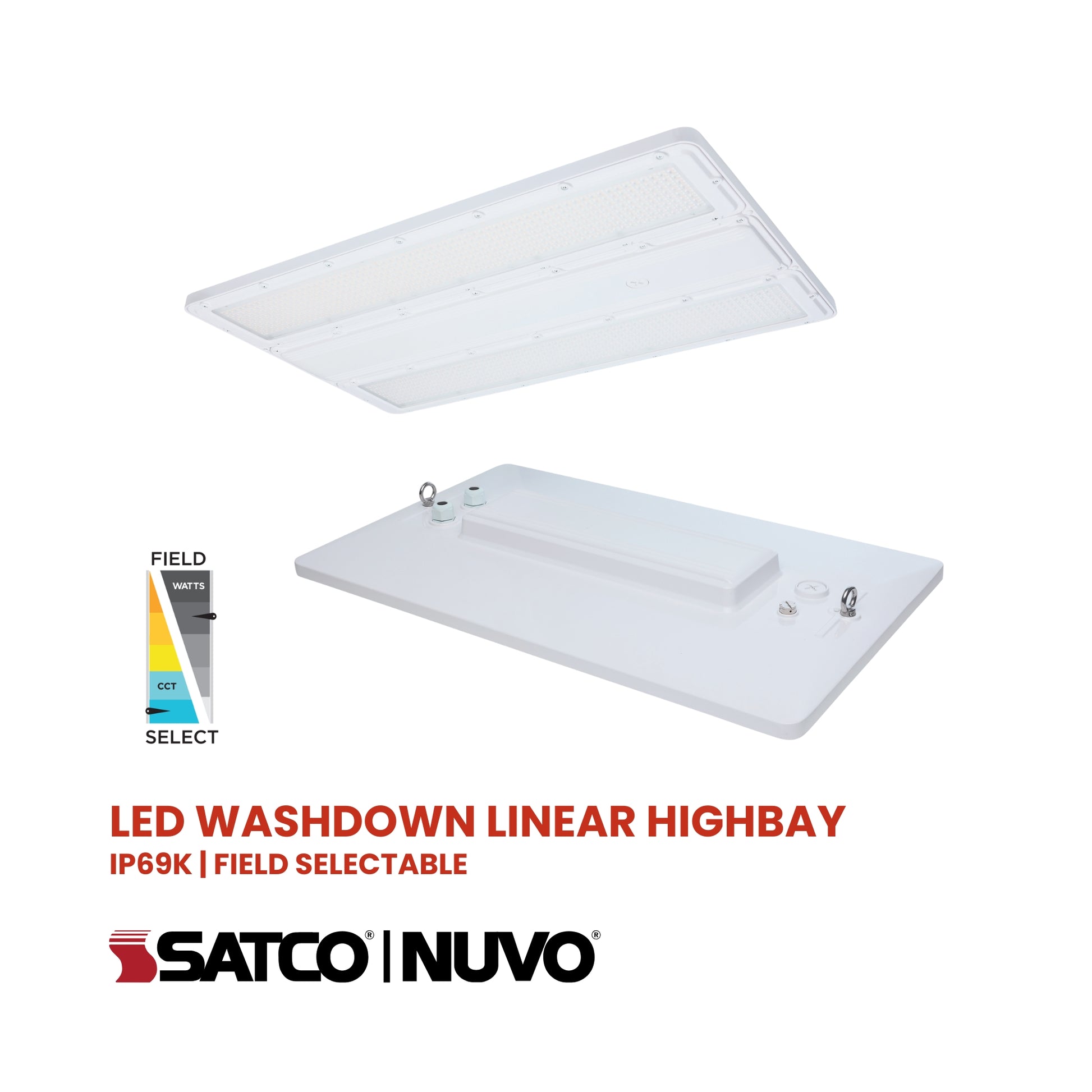

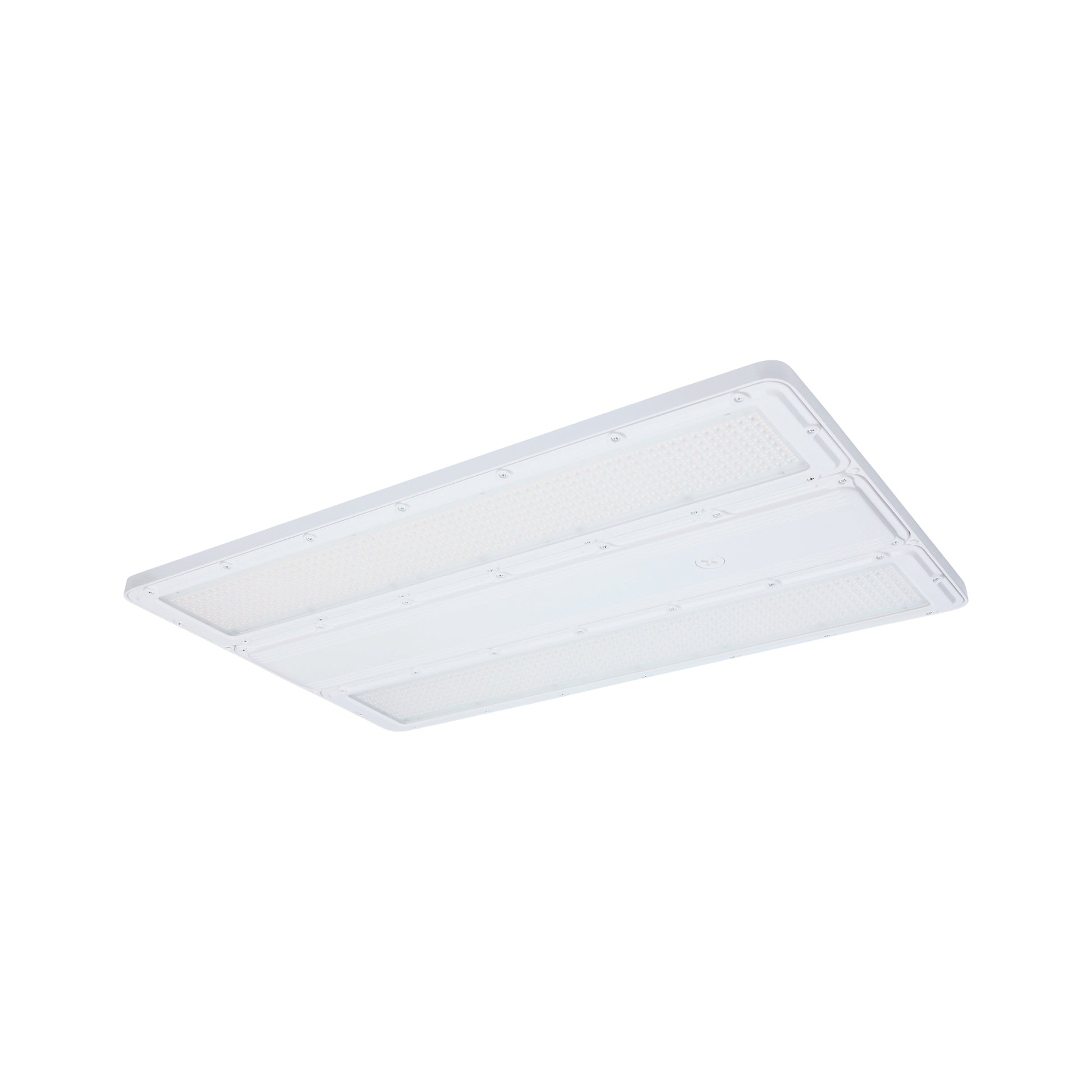

Satco 65-1173 IP69K Washdown Field Selectable Linear High Bay — 320/295/255W Selectable — 3000K/4000K/5000K — 120-347V — White

The Satco 65-1173 is a commercial IP69K washdown linear high bay engineered to deliver up to 51,000 lumens with field-adjustable 320W / 295W / 255W power settings and switchable 3000K / 4000K / 5000K color temperatures. Operating on 120-347V electrical systems with 0–10V continuous dimming, this luminaire provides reliable, energy-efficient illumination for harsh conditions. Built with an IP69K wet location rating and UL Listing, it is qualified for commercial utility rebates under DLC Premium standards and features an IK10 impact-resistant polycarbonate lens engineered for agricultural and food processing facilities.

Key Features

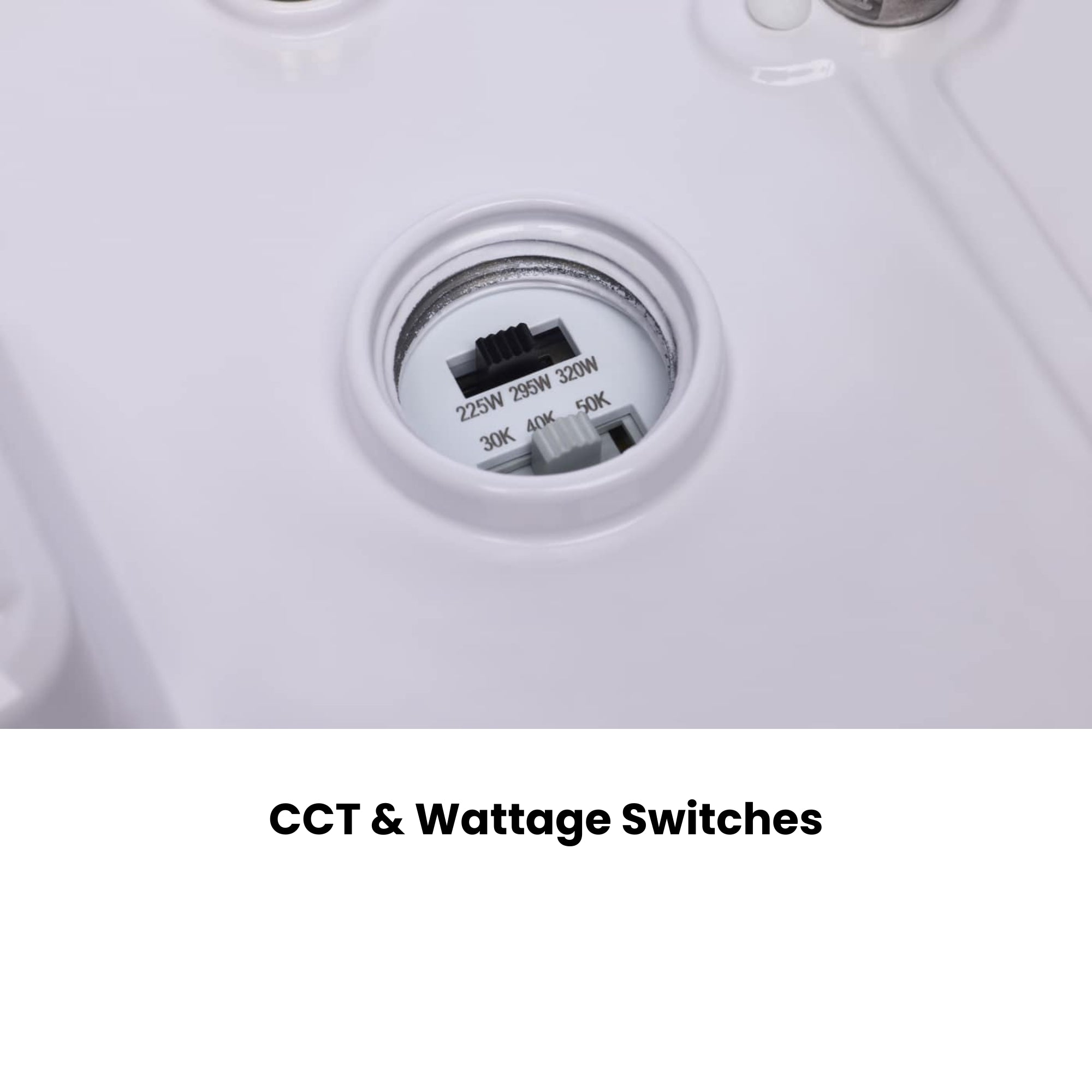

• Selectable Wattage: 320W / 295W / 255W — field-adjustable via integrated switches
• Maximum Lumen Output: 51,000 lm at maximum wattage setting
• Peak Efficacy: Up to 169 lm/W for high-efficiency commercial operation
• CRI: 80 color rendering
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via integrated switches
• Lens & Optics: IK10 impact-resistant polycarbonate (PC) lens with a 90° beam angle
• Dimming: 0–10V continuous dimming standard
• Voltage: Universal 120-347V AC, 50/60Hz constant current driver
• Location Rating: UL Listed for wet locations; IP69K ingress rated for thermal washdown
• Operating Temperature: −40°F (−40°C) to 131°F (55°C) ambient operating range
• Certifications: NSF Approved, DLC Premium, UL Listed, RoHS Compliant
• Rated Life: 50,000 hours functional life
• Warranty: 5-year limited warranty — Satco
• Sensor Compatibility: Integrated 3.5mm auxiliary port accepts plug-and-play waterproof controls

Performance & Light Output

At 320W, the fixture delivers up to 51,000 lm (169 lm/W max efficacy). Output scales proportionally at 295W and 255W settings. CRI is 80 across all configurations. Rated functional life is 50,000 hours.

Smart & Control Features

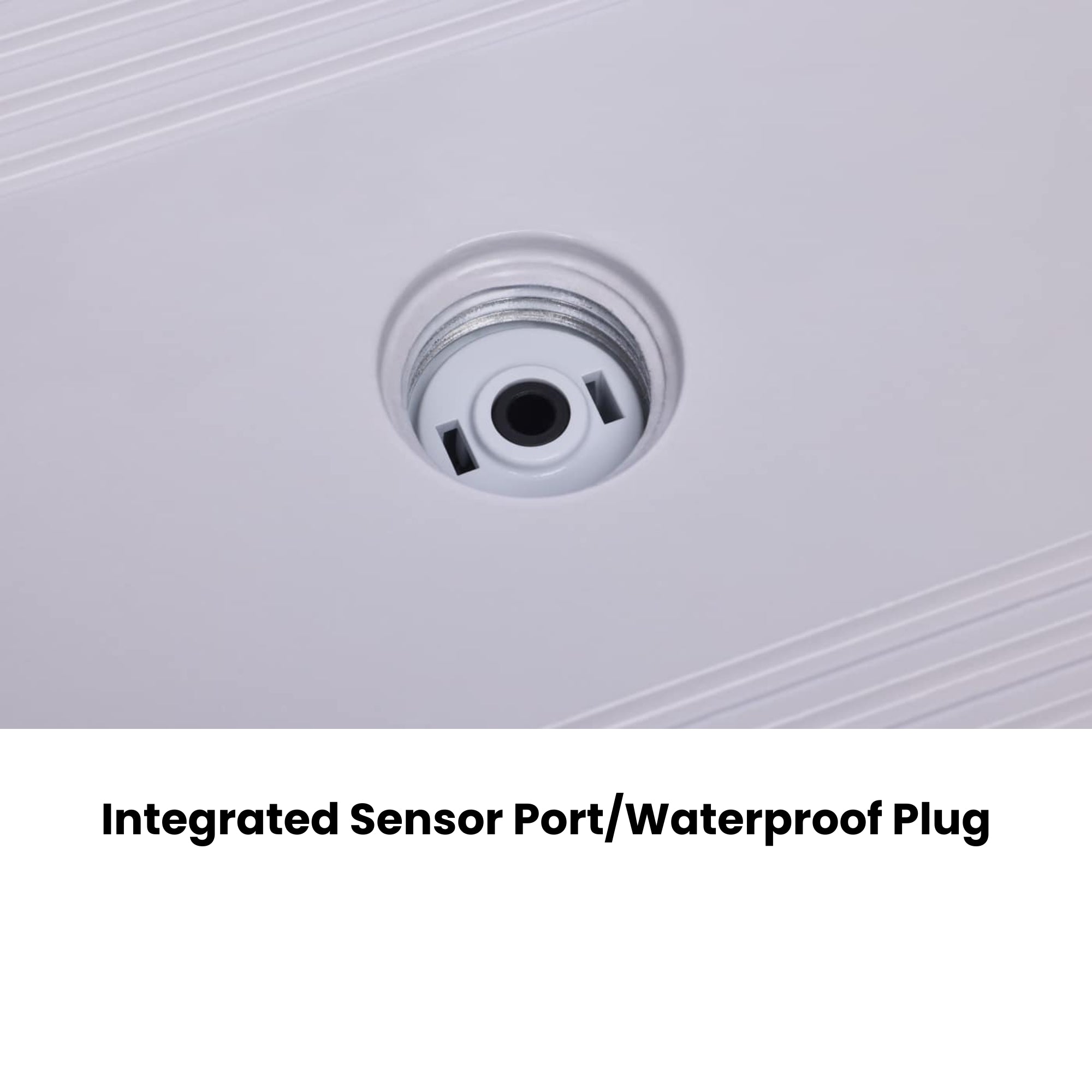

The 65-1173 features an integrated low-voltage 3.5mm auxiliary control receptacle supporting modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
• Sensor Compatibility (Accessory): Accepts field-installable sensors directly into the integrated waterproof port.

Compatible plug-and-play sensors include the Satco 12-Meter PIR Sensor (catalog # 86-238) and 15-Meter Microwave Sensor (catalog # 86-239) — sold separately. Field sensor adjustments must be managed using the required handheld programming remote (catalog # 86-237, sold separately).

Electrical

Powered by a constant current driver operating on 120-347V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads. RoHS compliant.

Construction

Housing & Thermal: Die-cast aluminum housing engineered to function as a high-efficiency passive heatsink, dissipating heat away from LED arrays and internal driver circuits to preserve lumen maintenance across the 50,000-hour rated lifespan.

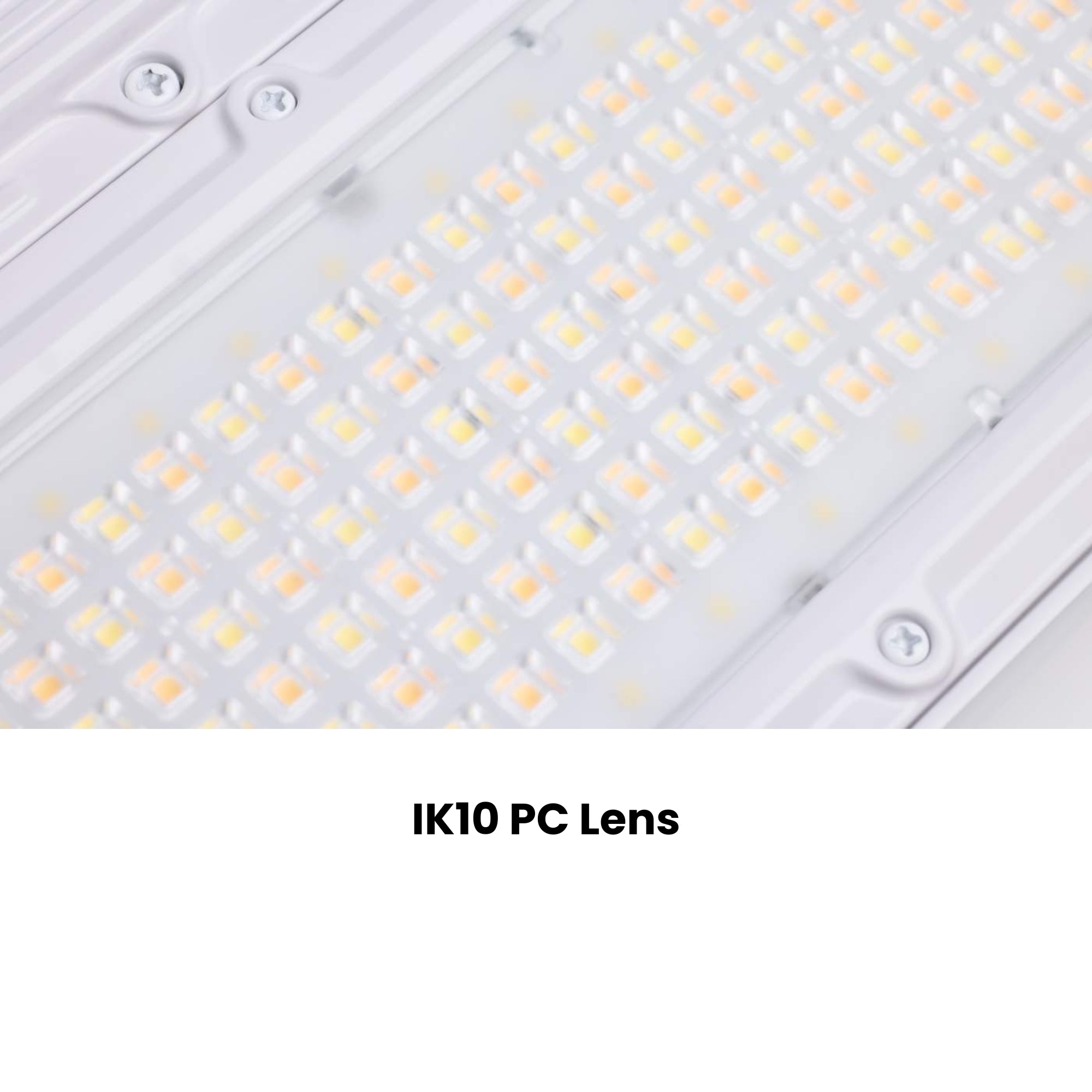

Lens & Optics: Equipped with an IK10 impact-resistant polycarbonate (PC) lens delivering a 90° beam angle.

Finish: Commercial white finish formulated for high resistance against surface wear in demanding industrial facilities.

Environmental Sealing: IP69K rated and UL Listed for wet locations, providing a robust barrier resistant to high-pressure thermal washdowns and moisture ingress. Ambient operating temperature range: −40°F (−40°C) to 131°F (55°C).

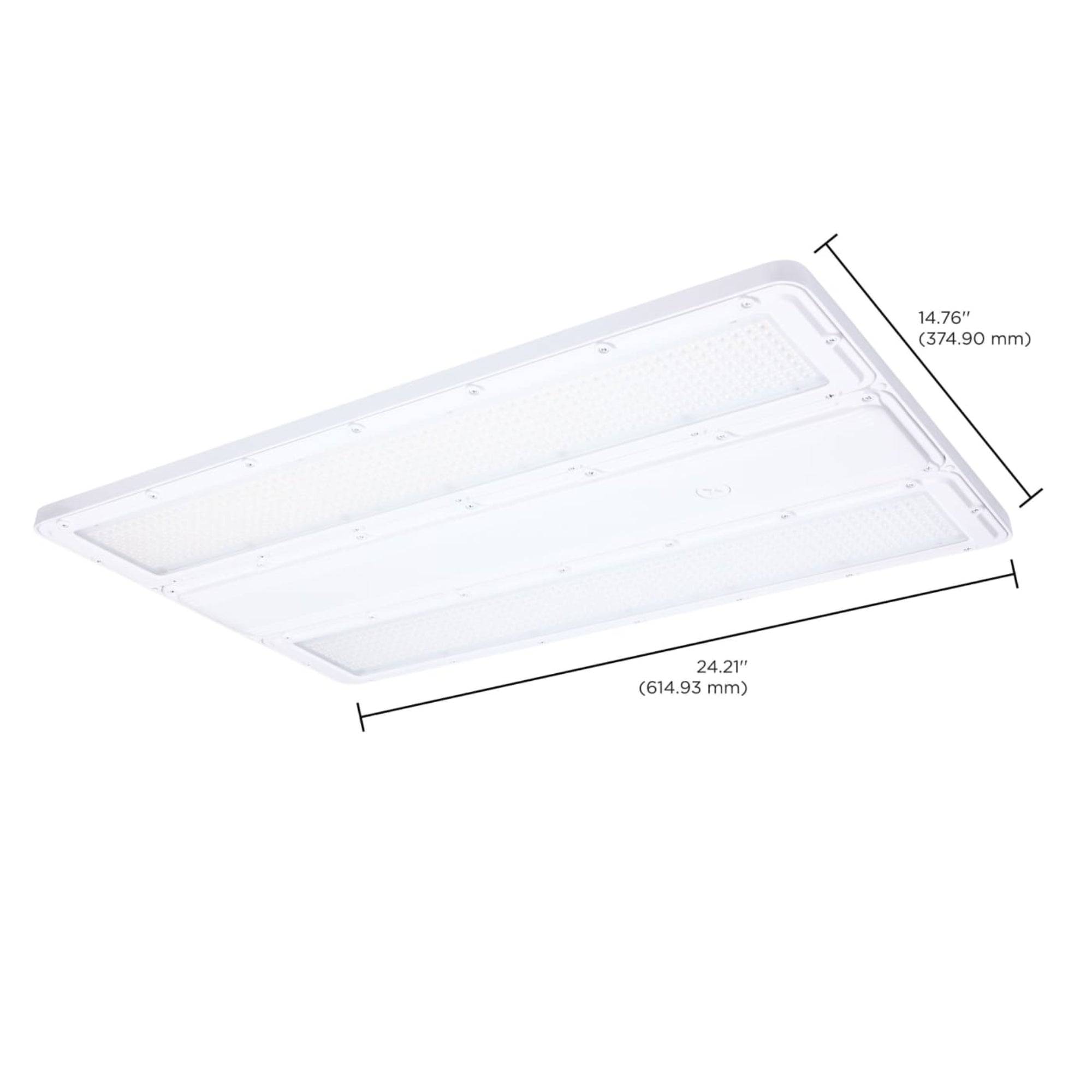

Dimensions & Weight: 24.21" L × 14.76" W × 2.44" H. Fixture weight: 15.60 lbs.

Installation & Mounting

Standard Hardware: Ships standard with a 41" suspension kit for quick overhead installation.

Mounting Options: Direct surface or rigid mounting supported via a dedicated yoke mount bracket kit, sold separately.

Accessories (Sold Separately):

• Mounting Brackets: 65-1175 (Yoke Mount, White Finish)
• Wire Guards: 65-1177 (NSF Rated Wire Guard)
• Emergency Battery Backup: 65-1178 (Add-On Emergency Battery, IP69K, 120-347V)
• Sensors & Controls: 86-238 (PIR Sensor) | 86-239 (Microwave Sensor) | 86-237 (Programming Remote)

Certifications & Rebates

• IP69K Rated: Certified to withstand high-pressure, high-temperature thermal washdowns.
• NSF Approved: Certified for sanitation requirements in commercial kitchens and food processing plants.
• DLC Premium: Qualifies for maximum commercial lighting utility rebate programs nationwide (Search ID: S-PQLQMV).
• UL Listed: Certified for wet locations standards for commercial luminaires.
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals.

Typical Applications

• Food Processing Plants — NSF approval and IP69K thermal washdown rating ensure safe operation during rigorous sanitation procedures.
• Agricultural Facilities — sealed IP69K die-cast enclosure protects critical components from dust, debris, and moisture ingress.

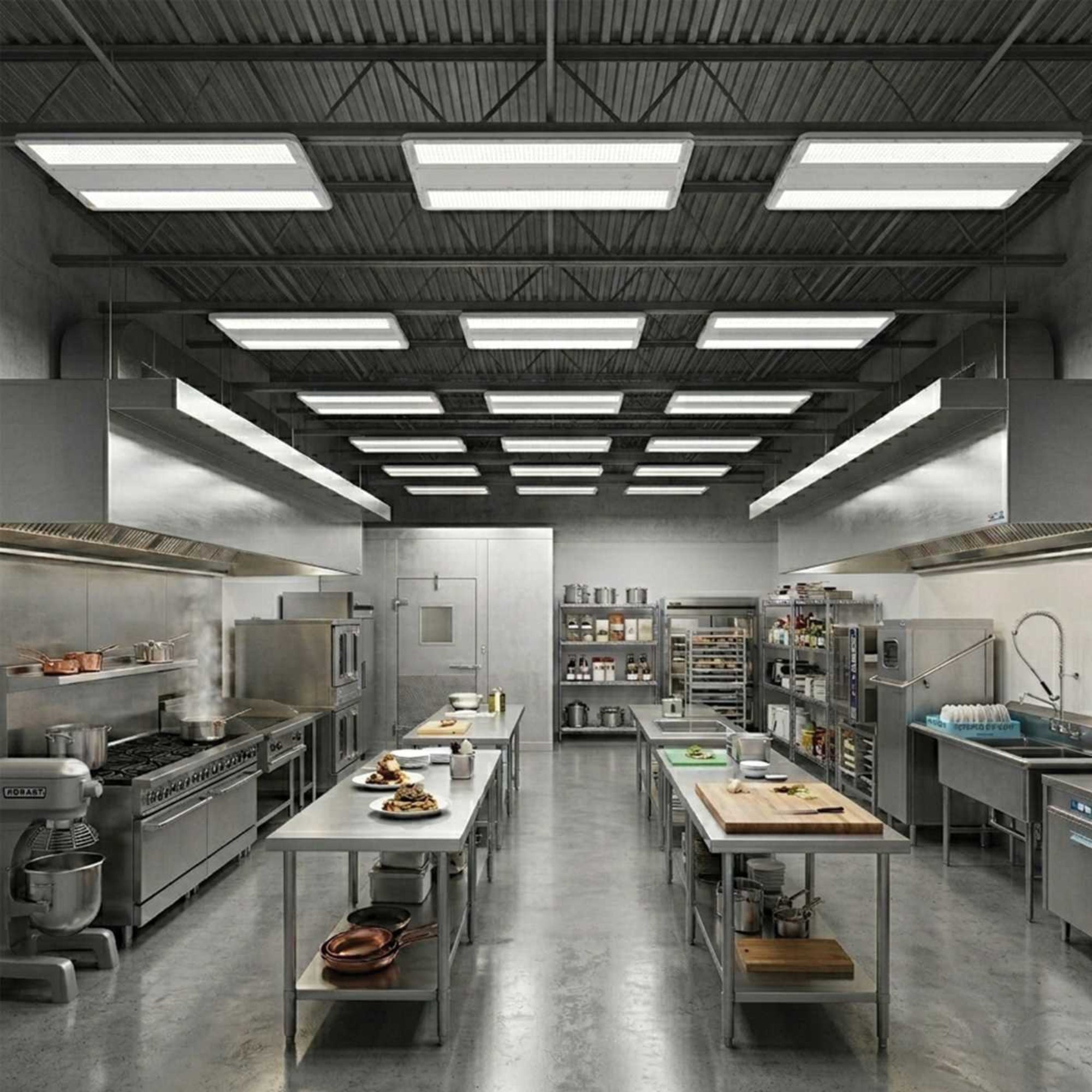

• Commercial Kitchens — high-performance 90° illumination paired with easy-to-clean polycarbonate lenses supports safe food preparation environments.
• Industrial Manufacturing — IK10 impact-resistant lens prevents accidental shattering in heavy-duty workspaces.
• Storage Unit Facilities — field-adjustable wattage settings provide customized light levels for varying ceiling heights.

What's Included

• Satco 65-1173 Linear LED High Bay — White
• 41" suspension kit hardware
• Installation and operation instructions
