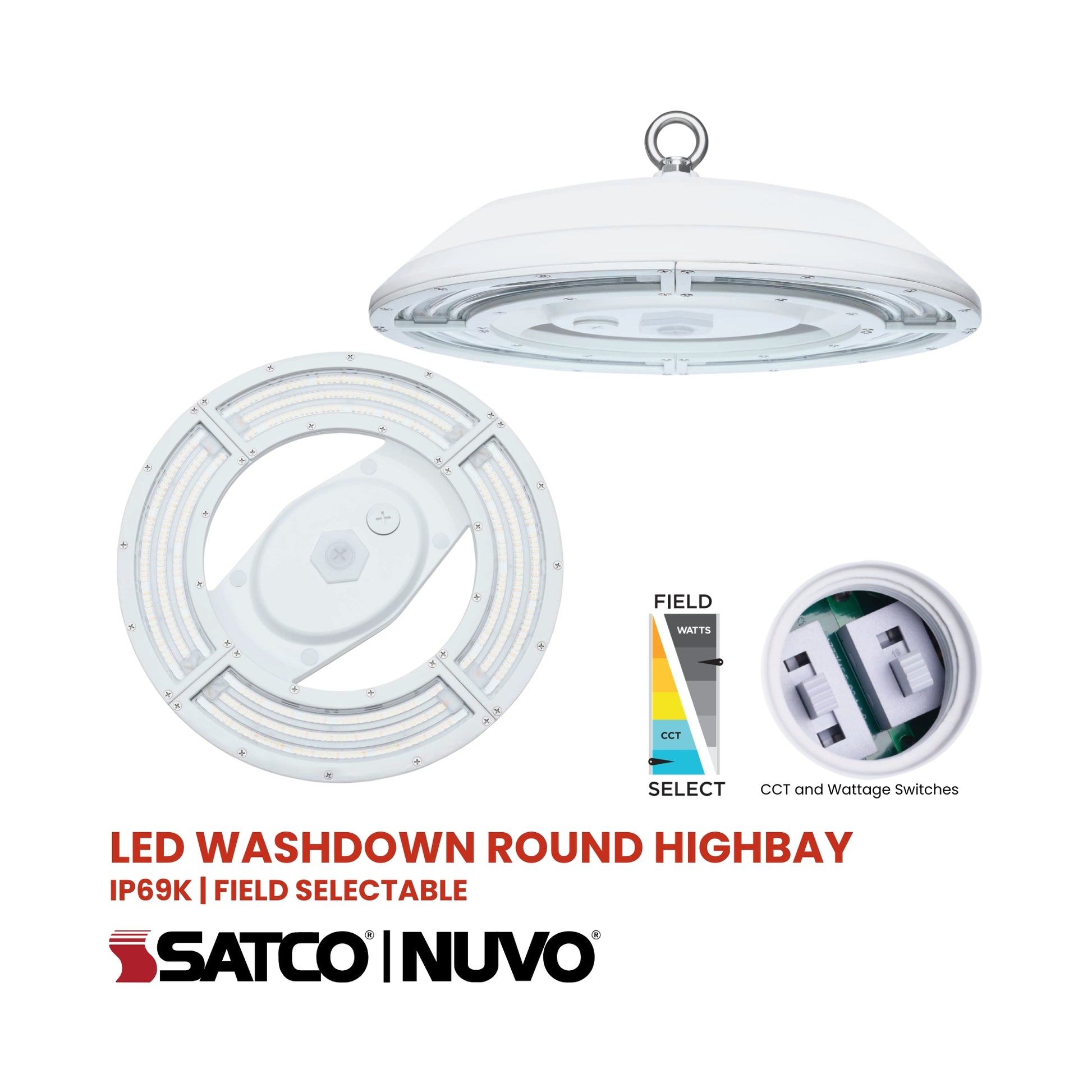

Satco 65-1161 IP69K Washdown Field Selectable UFO High Bay — 200/150/100W Selectable — 4000K/5000K — 277-480V — White
Available in stock (100)
About this item
About this item
- Output & Efficiency: Field-adjustable 200W / 150W / 100W power settings deliver up to 30,000 lumens at 150 lm/W, replacing conventional high bay fixtures.
- Washdown Ready: Sealed to IP69K and NSF Approved for rigorous high-pressure, high-temperature sanitation in food processing and agricultural facilities.
- Selectable Color Temperature: Integrated switch allows on-site selection between 4000K or 5000K without rewiring.
- Controls & Automation: Features an integrated 3.5mm AUX sensor port compatible with plug-and-play PIR occupancy sensors.
- Rebates & Durability: Certified DLC Premium for utility rebate qualification nationwide, UL Listed for wet locations, and features an IK10 impact-resistant lens.
Description
Description
Satco 65-1161 IP69K Washdown Field Selectable UFO High Bay — 200/150/100W Selectable — 4000K/5000K — 277-480V — White

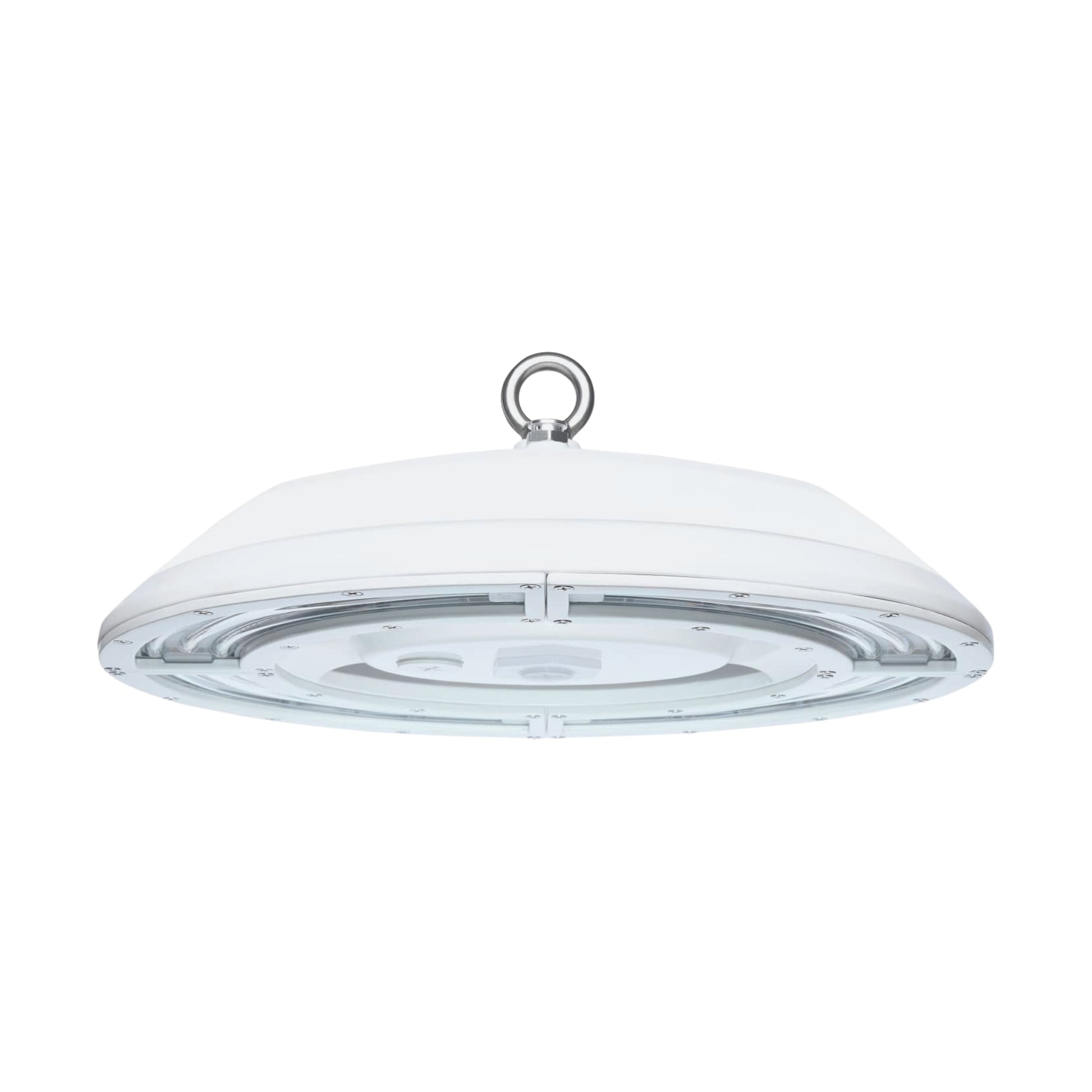

The Satco 65-1161 is a rugged, commercial UFO LED high bay engineered for demanding industrial and hygienic environments. Delivering up to 30,000 lumens with field-adjustable 200W / 150W / 100W wattage settings and switchable 4000K / 5000K color temperatures, this luminaire provides precise lighting control across sanitation-sensitive applications. Operating on 277-480V electrical systems with 0–10V continuous dimming, it provides an energy-efficient replacement for conventional HID fixtures. Built with an IP69K washdown rating and NSF Approval alongside a UL Listing, it is qualified for commercial utility rebates under DLC Premium standards and withstands high-pressure, high-temperature wash-down procedures.
Key Features

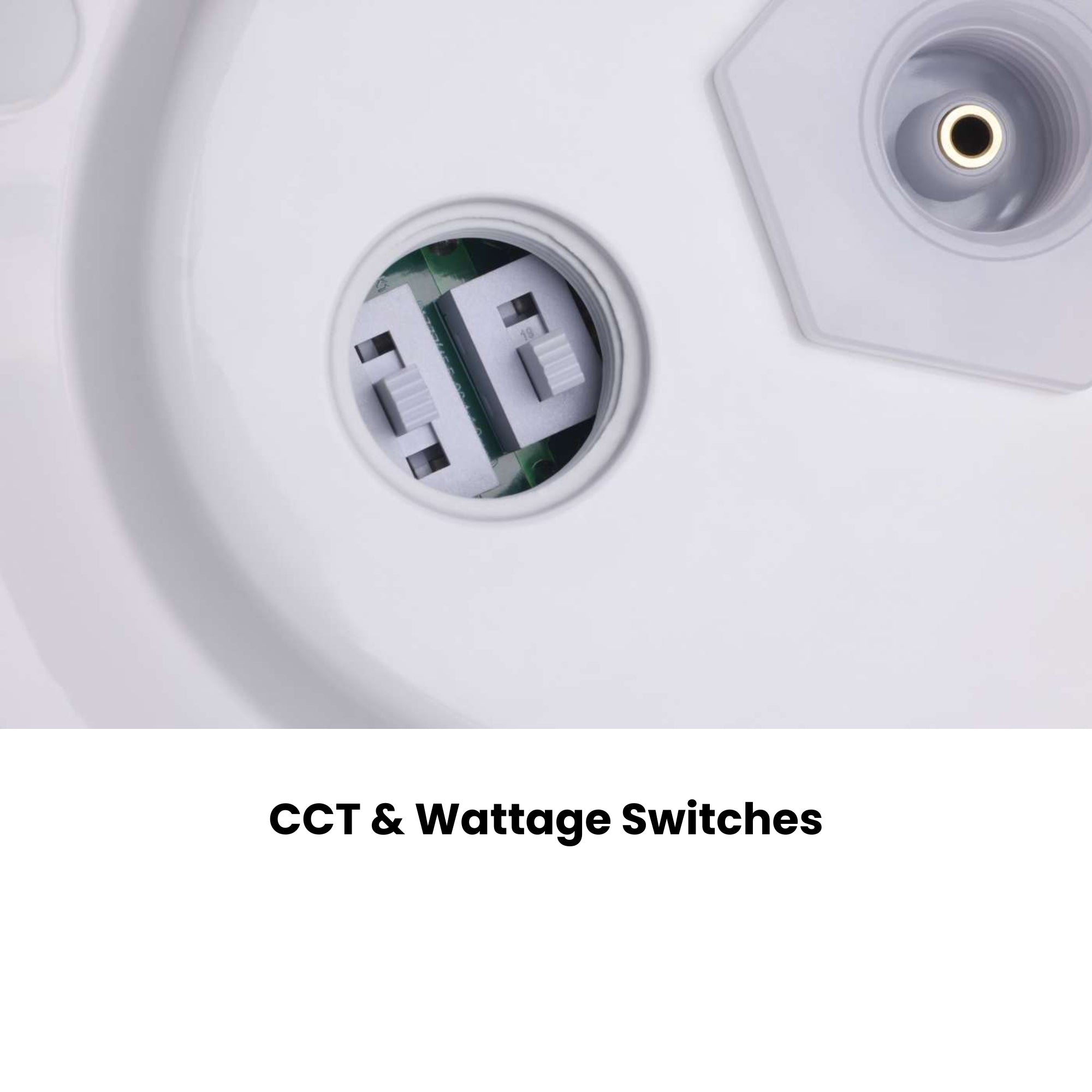

- Selectable Wattage: 200W / 150W / 100W — field-adjustable via onboard switch
- Wattage Equivalency: Replaces conventional HID high bay fixtures for direct energy savings
- Maximum Lumen Output: 30,000 lm at 200W
- Peak Efficacy: Up to 150 lm/W for high-efficiency commercial operation
- CRI: 80 color rendering
- Selectable CCT: 4000K / 5000K — field-adjustable via onboard switch
- Lens & Optics: Polycarbonate (PC) lens with an 85° beam angle and IK10 impact resistance
- Dimming: 0–10V continuous dimming standard
- Voltage: 277-480V AC, 50/60Hz
- Location Rating: UL Listed for wet locations; IP69K rated for extreme washdown environments
- Operating Temperature: −40°F (−40°C) to 122°F (50°C) ambient range
- Certifications: NSF Approved, DLC Premium, UL Listed, IK10 Impact Rated, RoHS Compliant, ICES-005
- Rated Life: 50,000 hours
- Warranty: 5-year warranty — Satco
- Sensor Compatibility: Integrated 3.5mm AUX sensor port (Note: Adding a sensor alters the IP rating)
Performance & Light Output
| Wattage | Total Lumens | Efficacy |
|---|---|---|
| 200W | 30,000 lm | Up to 150 lm/W |
| 150W | 22,500 lm | Up to 150 lm/W |
| 100W | 15,000 lm | Up to 150 lm/W |
Rated life 50,000 hours. Delivers direct energy reduction compared to traditional high-intensity discharge systems.
Smart & Control Features
The 65-1161 supports modular sensing and automated facility lighting control:
- 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.

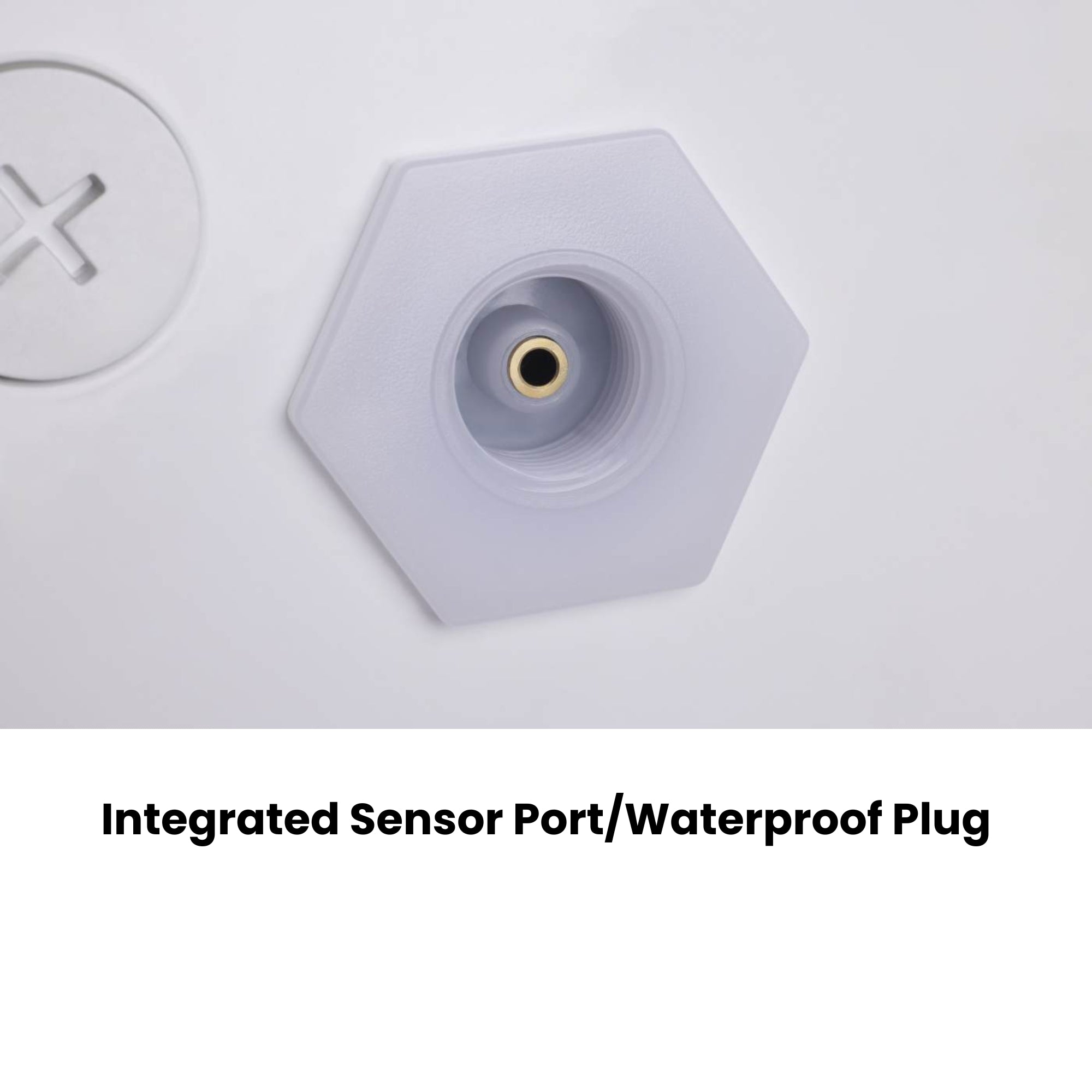

- Sensor Compatibility (Accessory): Accepts field-installable PIR occupancy sensors via the integrated 3.5mm AUX port. Please note: installing an external sensor alters the luminaire's IP69K washdown rating.
Compatible plug-and-play sensors include the 86-238 (12-meter PIR) and 86-239 (15-meter PIR) — sold separately. Field sensor adjustments can also be managed using an optional handheld programming remote (catalog # 86-237, sold separately).
Electrical
Powered by a constant current driver operating on 277-480V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads. Factory-equipped with a 6-foot Class-1 whip featuring a waterproof connector. RoHS compliant.
Construction

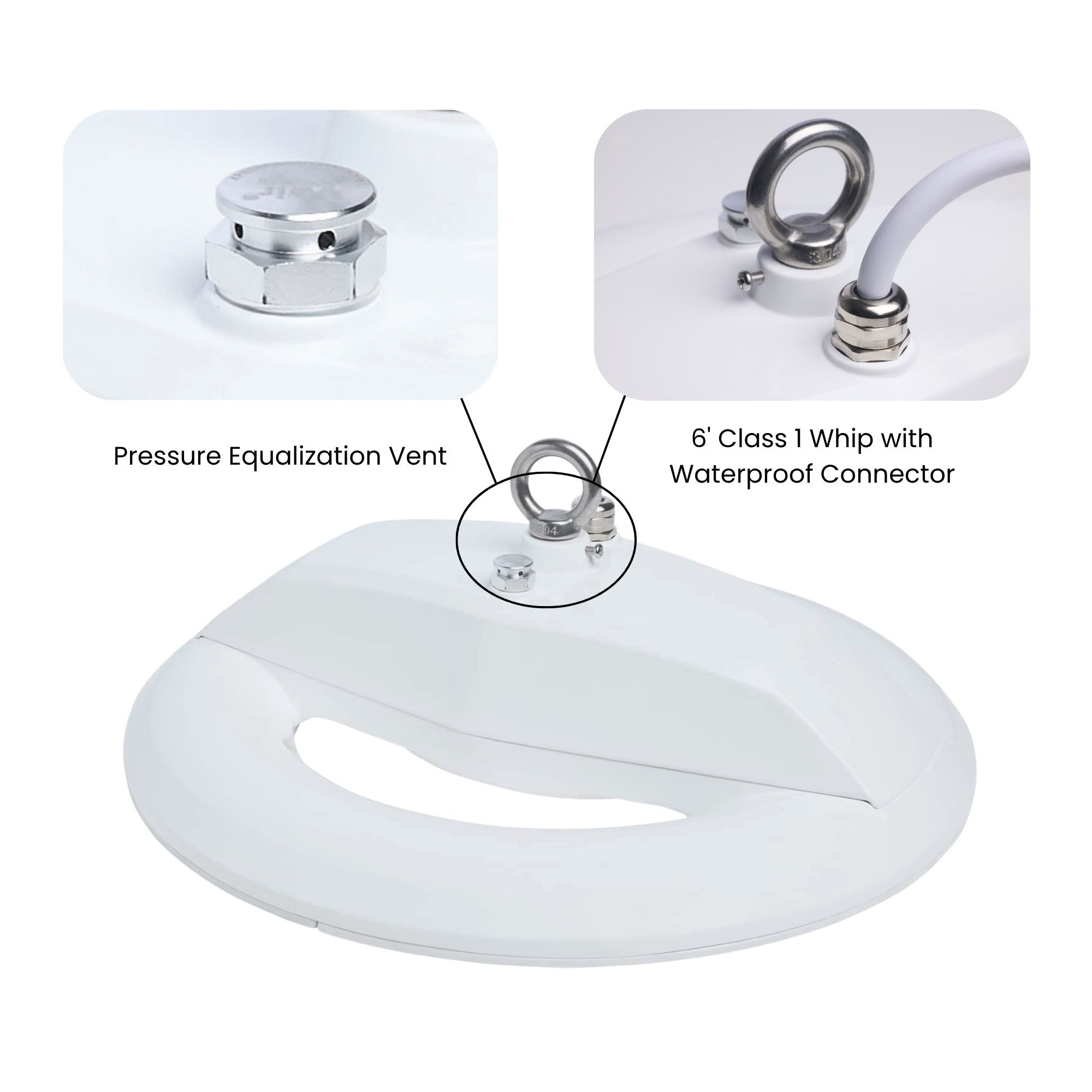

Housing & Thermal: Durable die-cast aluminum housing engineered for maximum thermal dissipation, featuring an integrated pressure equalization vent to preserve internal component integrity during extreme temperature shifts.

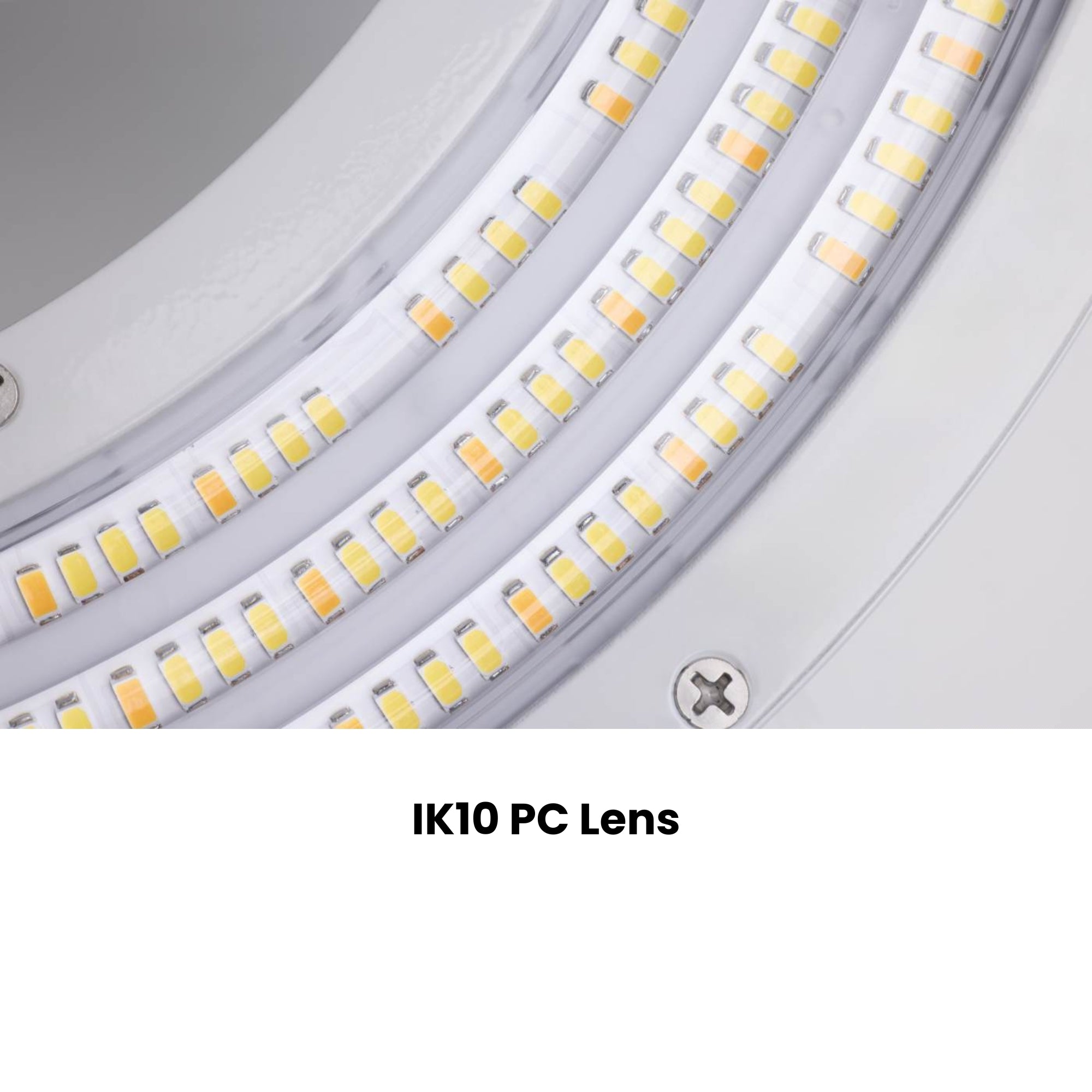

Lens & Optics: Features a durable IK10 impact-resistant polycarbonate (PC) lens delivering an 85° beam angle.
Finish: Commercial finish in White.
Environmental Sealing: IP69K rated and UL Listed for wet locations, providing a sealed barrier resistant to high-pressure, high-temperature washdown procedures. Ambient operating temperature range: −40°F (−40°C) to 122°F (50°C).

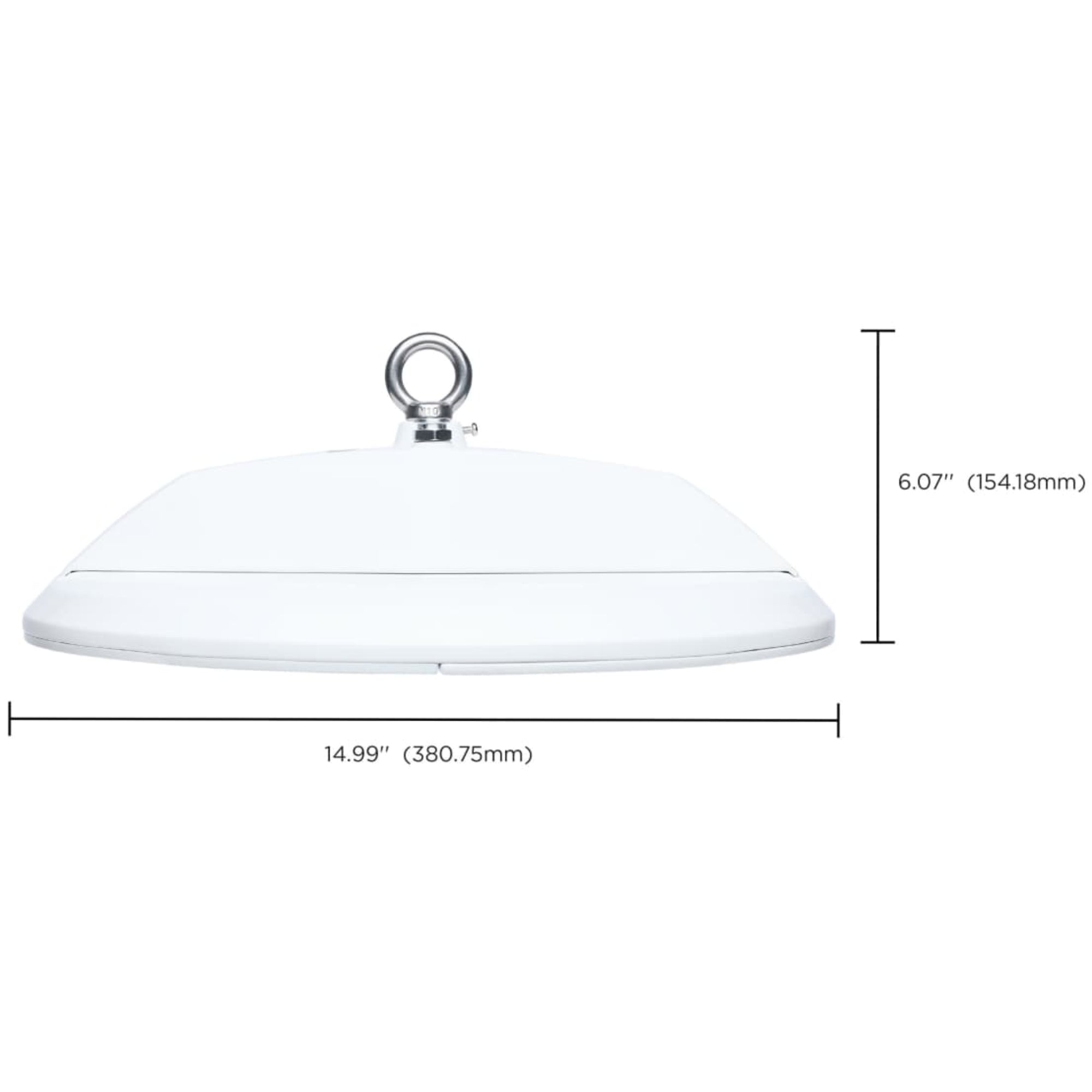

Dimensions & Weight: 14.99" Dia × 6.07" H. Fixture weight: 10.58 lbs.
Installation & Mounting

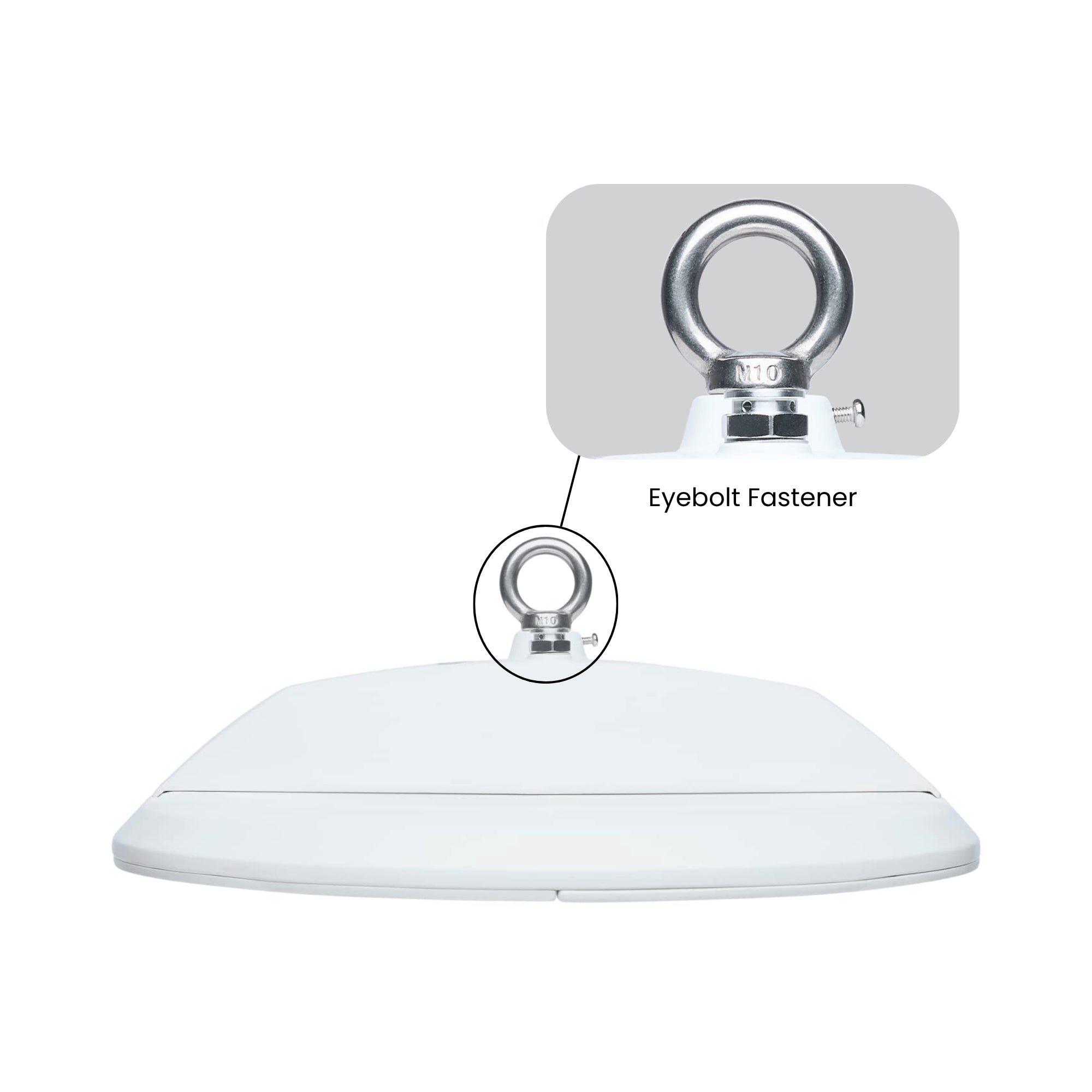

Standard Hardware: Ships standard with a heavy-duty eyebolt fastener (loop/hook) for quick suspension mounting.
Mounting Options: Compatible with rigid pendant mounting via an NPT adapter.
Wiring: Includes a factory-installed 6-foot Class-1 whip with a waterproof connector.
Accessories (Sold Separately):
- Sensors & Controls: 86-238 (PIR Sensor, 12 Meter) | 86-239 (PIR Sensor, 15 Meter) | 86-237 (Programming Remote)
Certifications & Rebates
- IP69K Washdown: Certified to withstand high-pressure and high-temperature cleaning
- NSF Approved: Certified for splash zones and food processing environments
- DLC Premium: Qualifies for utility rebates (searchable on designlights.org under code S-XP81BV)
- UL Listed: Certified for wet locations per UL standards for commercial luminaires
- RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
- FCC Part 15: Meets requirements of ICES-005 issue 5 class A for use in commercial applications

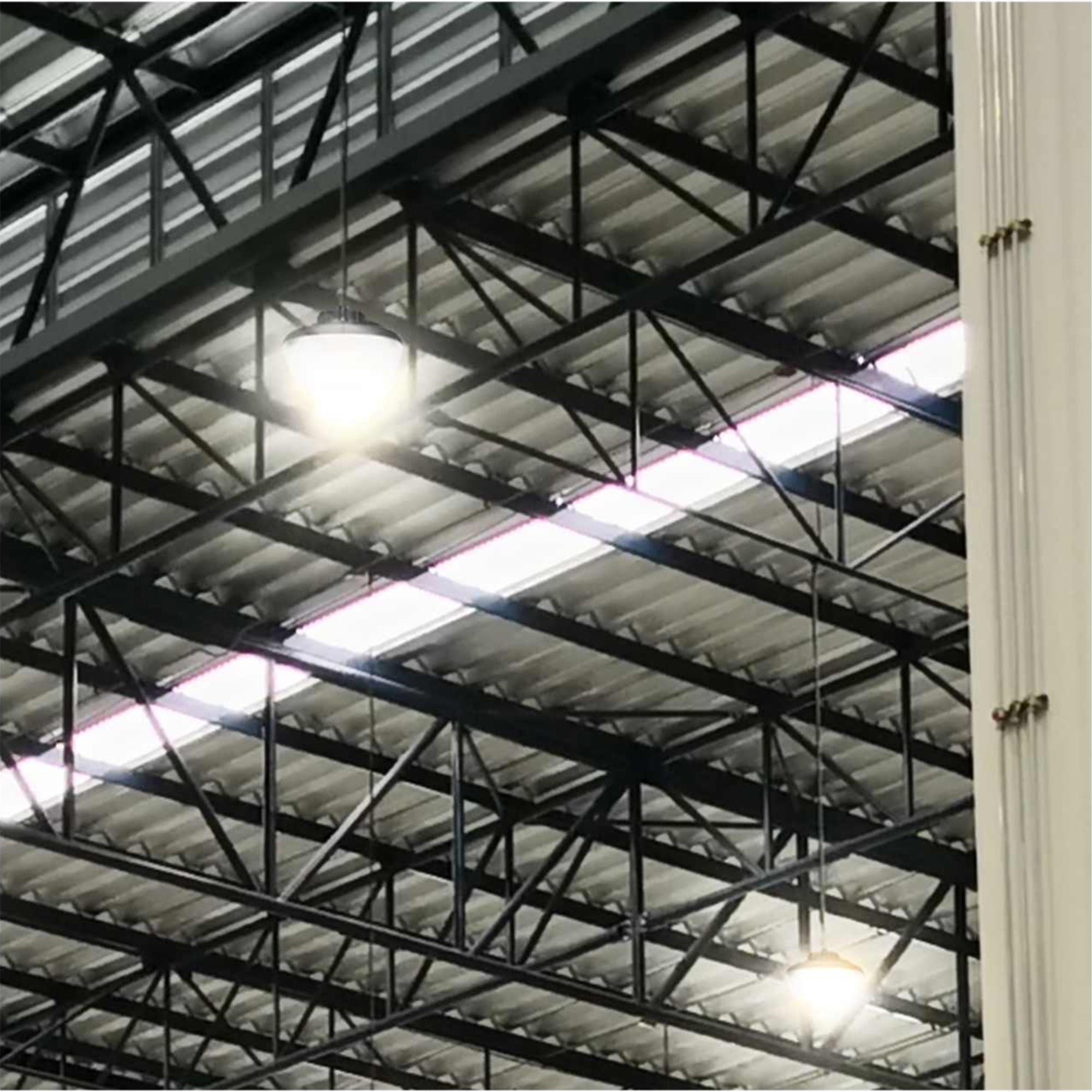

Typical Applications
- Food Processing Plants — NSF certification and IP69K sealing support strict sanitation and hose-down requirements
- Agriculture & Farm Buildings — sealed enclosure protects against corrosive dust and moisture
- Commercial Kitchens — IP69K rating allows for aggressive high-temperature cleaning
- Industrial Manufacturing Facilities — IK10 impact-resistant PC lens provides robust durability against mechanical impacts
What's Included
- Satco 65-1161 IP69K Washdown UFO LED High Bay — White
- Eyebolt fastener
- Factory-installed 6-foot Class-1 whip with waterproof connector
- Installation and operation instructions
