65-1040 Field Selectable Linear High Bay — 200/150/100W Selectable — 3500K/4000K/5000K — White
Available in stock (156)
About this item
About this item
- Output & Equivalency: Field-adjustable 200W / 150W / 100W power settings deliver up to 30,000 lumens, replacing legacy fluorescent and HID fixtures.
- Form Factor: Features a rugged steel construction with a 120° polystyrene lens for broad, even light distribution.
- Selectable Color Temperature: Integrated switch allows on-site selection between 3500K, 4000K, or 5000K without rewiring.
- Controls & Automation: Engineered with multiple 1/2" knockouts designed to easily accept field-installed PIR and microwave sensors.
- Rebates & Ingress: Certified DLC Premium for utility rebate qualification nationwide and UL Listed for damp locations.
We process payments securely and do not store credit card information.
Description
Description

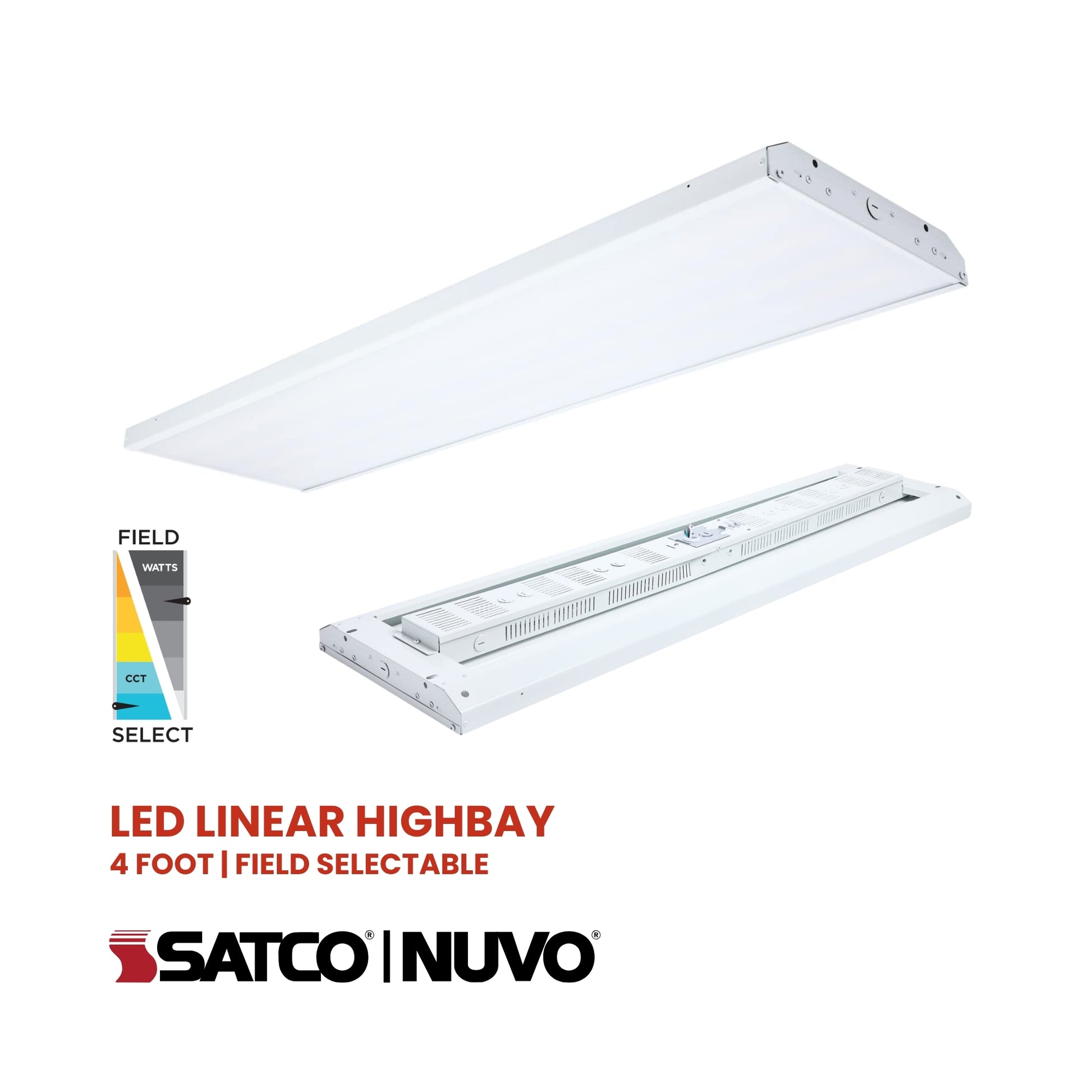

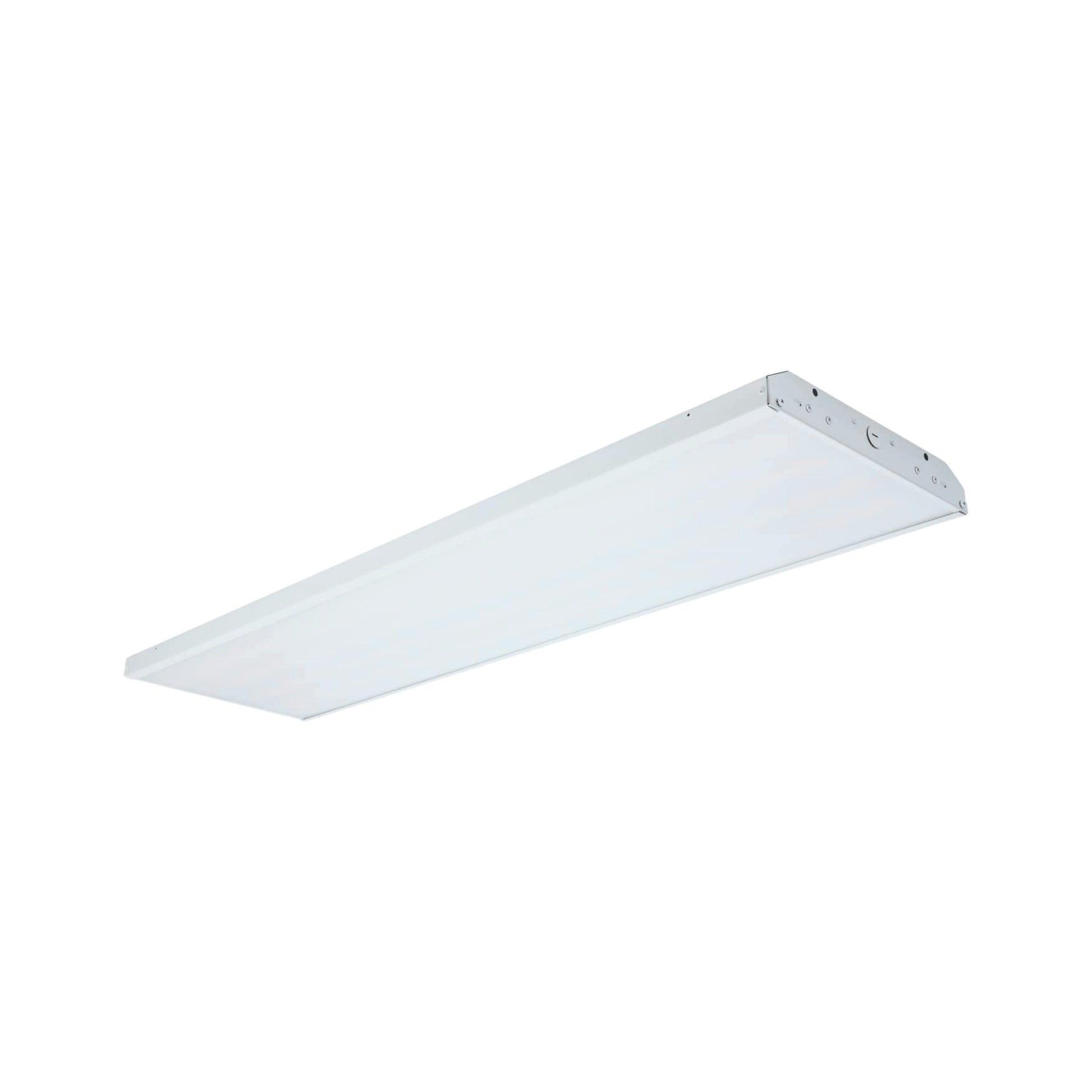

Satco 65-1040 Field Selectable Linear High Bay — 200/150/100W Selectable — 3500K/4000K/5000K — White
The Satco 65-1040 is a commercial LED linear high bay engineered to deliver up to 30,000 lumens with field-adjustable 200W / 150W / 100W power settings and switchable 3500K / 4000K / 5000K color temperatures. Operating on 120-277V electrical systems with 0–10V continuous dimming, this luminaire provides energy-efficient replacement for legacy fixtures. Built with an IP20 damp location rating and UL Listing, it is qualified for commercial utility rebates under DLC Premium standards and features multiple knockouts for easy sensor integration.
Key Features
- Selectable Wattage: 200W / 150W / 100W — field-adjustable via onboard switch
- Wattage Equivalency: Replaces legacy HID and fluorescent fixtures for direct energy savings
- Maximum Lumen Output: 30,000 lm at 200W
- Peak Efficacy: Up to 150 lm/W for high-efficiency commercial operation
- CRI: 80 color rendering across all settings
- Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch
- Lens & Optics: Polystyrene lens delivering a 120° wide beam angle for even distribution
- Dimming: 0–10V continuous dimming standard
- Voltage: Universal 120-277V AC, 50/60Hz
- Location Rating: UL Listed for damp locations; IP20 ingress rated
- Operating Temperature: −4°F (−20°C) to 104°F (40°C) ambient range
- Certifications: DLC Premium, UL Listed, RoHS Compliant, FCC/ICES-005
- Rated Life: L70 50,000 hours
- Warranty: 5-year warranty — Satco
Performance & Light Output
| Wattage | Total Lumens | Efficacy | Legacy Equivalent |
|---|---|---|---|
| 200W | 30,000 lm | Up to 150 lm/W | Replaces HID/Fluorescent |
| 150W | 22,500 lm | Up to 150 lm/W | - |
| 100W | 15,000 lm | Up to 150 lm/W | - |
CRI 80 across all configurations. Rated life 50,000 hours (L70). Delivers direct energy reduction compared to traditional high-intensity discharge and fluorescent systems.
Smart & Control Features
The 65-1040 features multiple 1/2" knockouts supporting modular sensing and automated facility lighting control:
- 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.
- Sensor Compatibility (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the built-in knockout routing without opening the internal driver compartment.
Compatible plug-and-play sensors include the 86-211 (PIR Sensor) and 86-202R (Microwave Sensor) — sold separately. Field sensor adjustments for the microwave model can also be managed using an optional handheld remote (catalog # 86-214, sold separately).
Electrical
Powered by a constant current driver operating on 120-277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes. RoHS compliant.
Construction

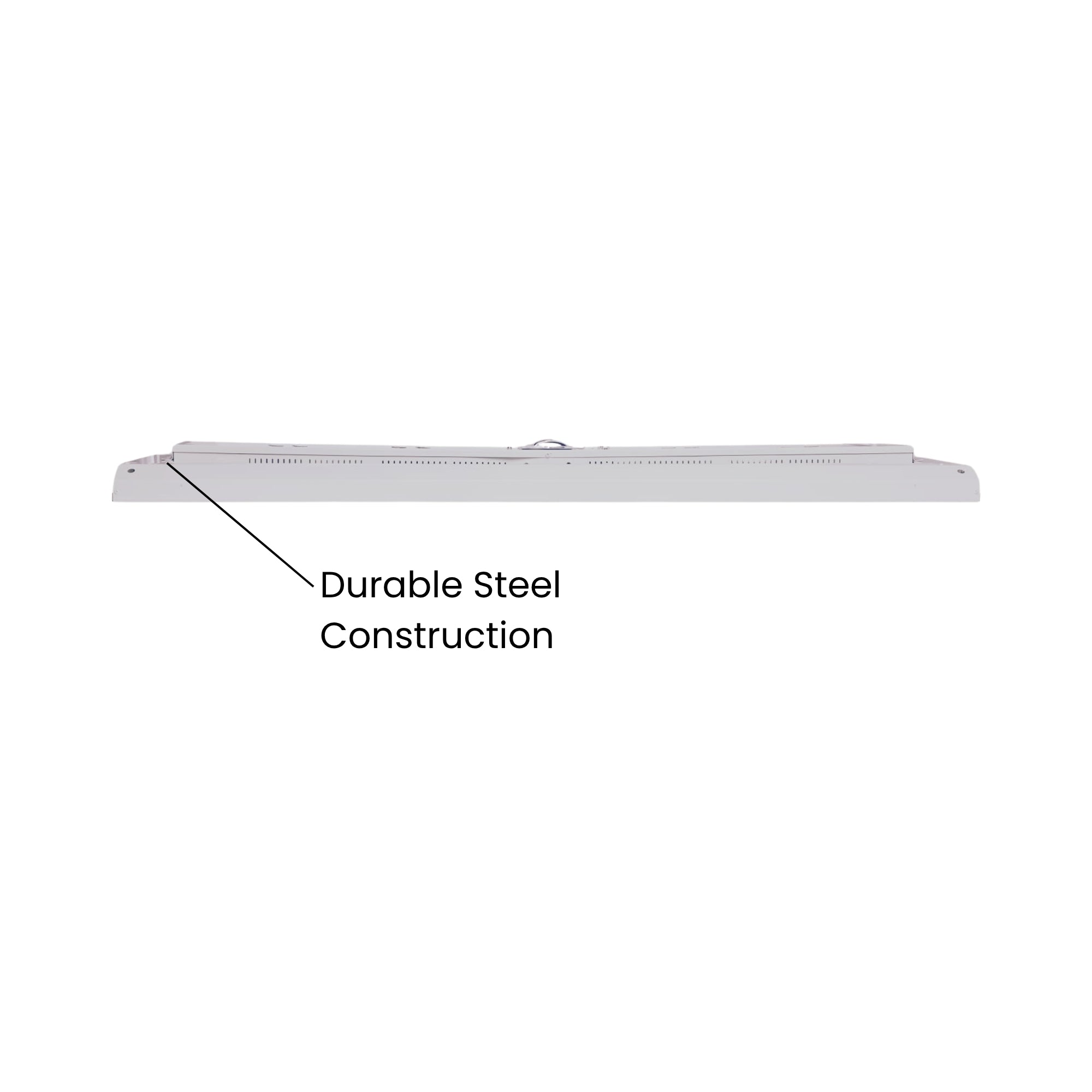

Housing & Thermal: Rugged steel housing engineered for reliable installation in commercial and industrial settings. The design functions as a passive heatsink, dissipating heat away from LED arrays to preserve lumen maintenance.

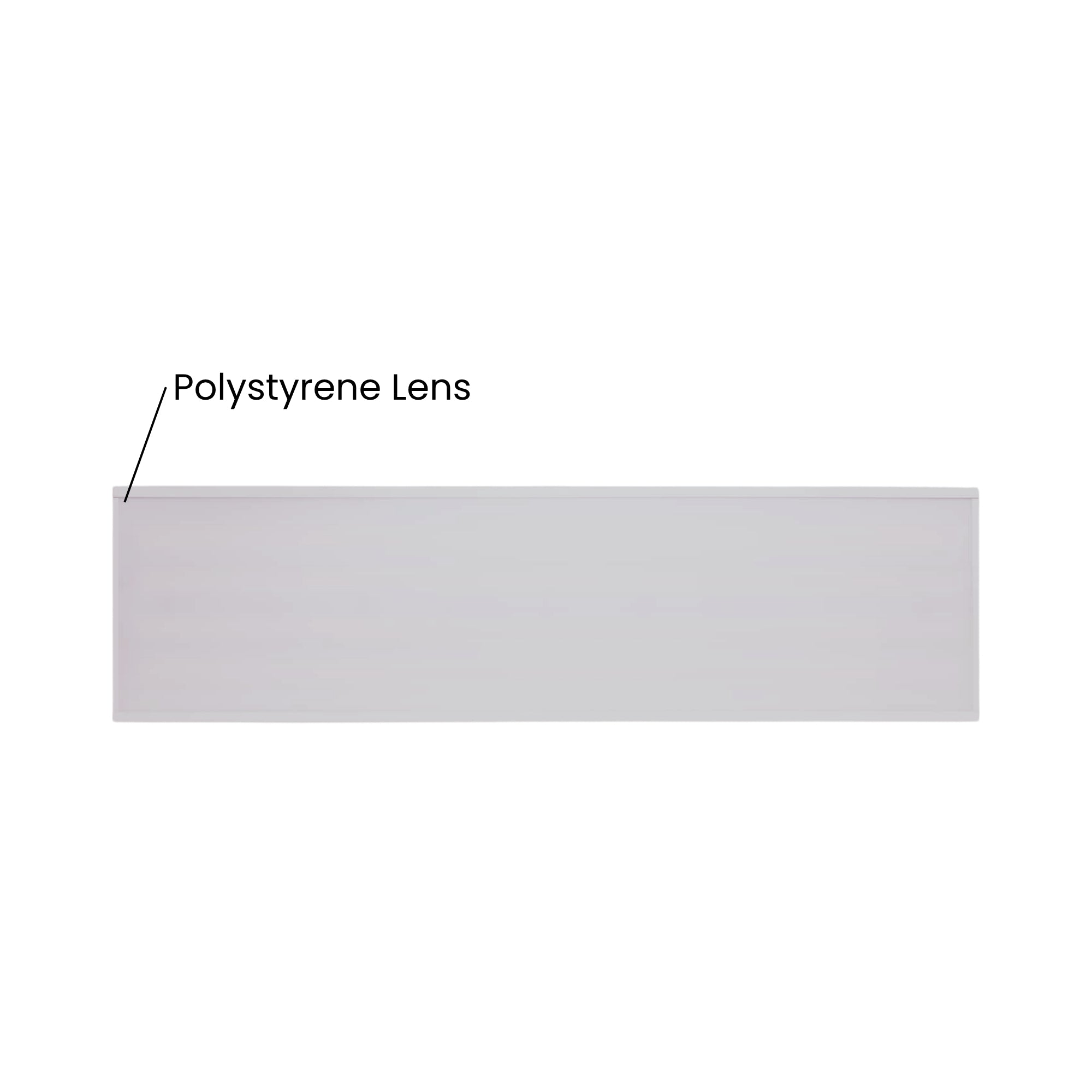

Lens & Optics: Features a durable polystyrene (PS) lens delivering a 120° beam distribution.
Finish: Commercial finish in White.
Environmental Sealing: IP20 rated and UL Listed for damp locations. Ambient operating temperature range: −4°F (−20°C) to 104°F (40°C).

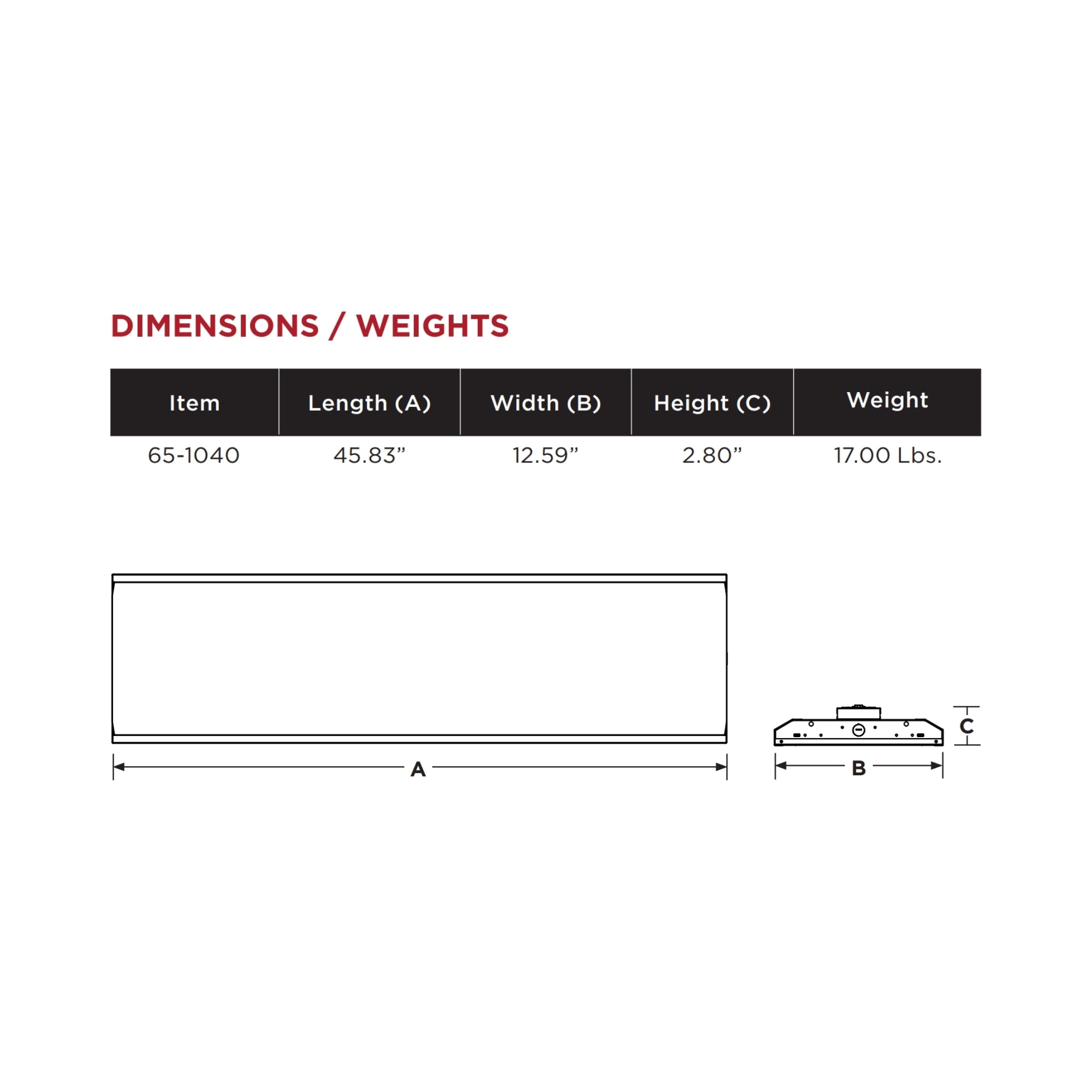

Dimensions & Weight: 45.83" L × 12.59" W × 2.80" H. Fixture weight: 17.00 lbs.
Installation & Mounting
Standard Hardware: Ships standard with a 4-foot suspension kit and V-clips for quick suspension installation.
Accessories (Sold Separately):
- Wire Guards: 65-500 (Protective Wire Guard for 4ft)
- Sensors & Controls: 86-211 (PIR Sensor, 120-277V) | 86-202R (Microwave Sensor, 120-277V) | 86-214 (Programming Remote)
Certifications & Rebates
- DLC Premium: Qualifies for commercial lighting utility rebate programs nationwide (DLC ID: S-NLC5WG)
- UL Listed: Certified for damp locations per UL standards for commercial luminaires
- FCC Part 15, Class A: Certified for commercial and industrial electromagnetic interference immunity (ICES-005)
- RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
Typical Applications

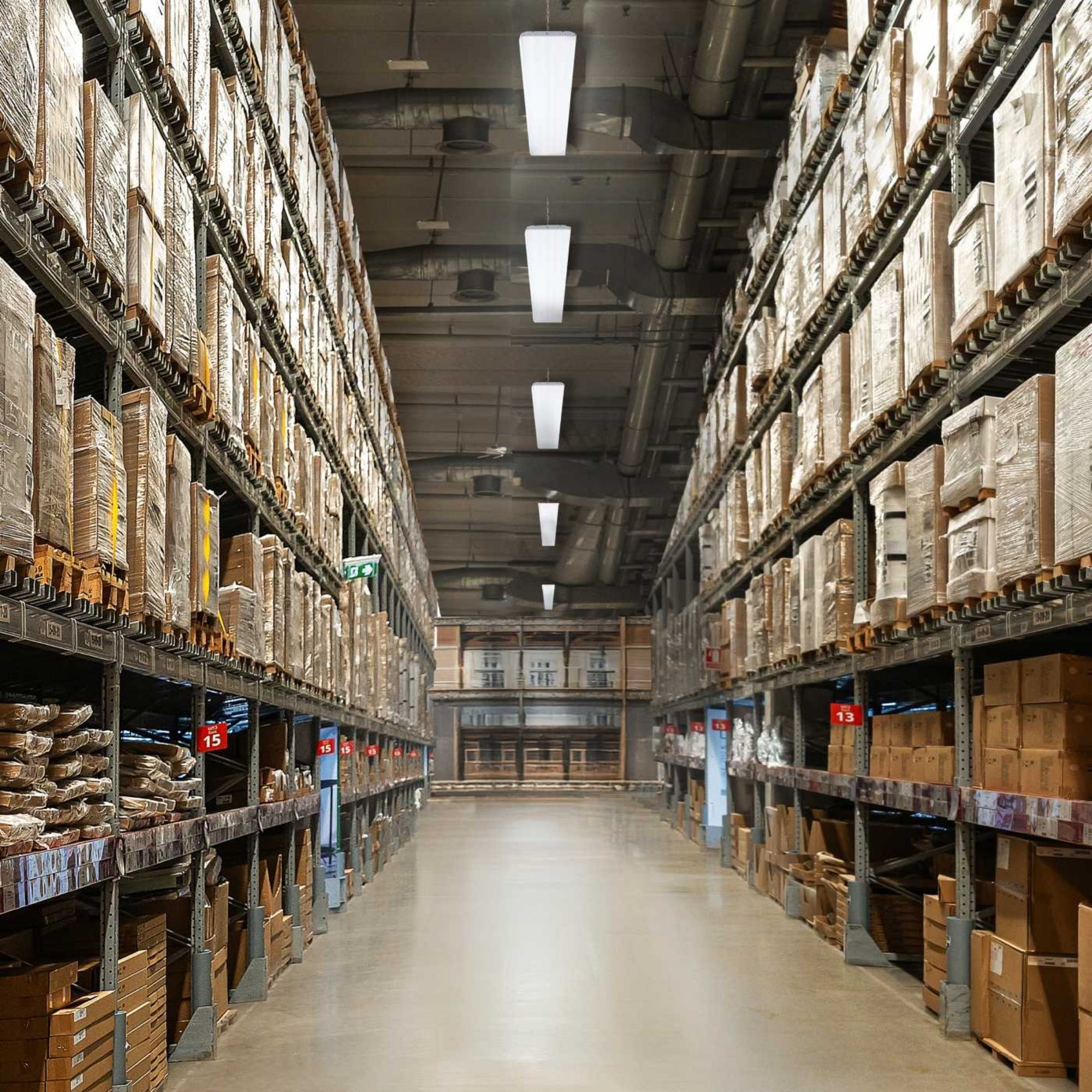

- Open Warehouse Floors — 120° wide optic provides broad, uniform footcandle distribution across large racking aisles and open spaces
- Covered Loading Docks & Retail Corridors — UL Damp Location listing protects against airborne moisture and dust in partially exposed environments
- Unconditioned Warehouses — −4°F (−20°C) minimum ambient temperature rating supports reliable ignition in freezing environments
- Precision Assembly & Workshops — selectable 3500K/4000K/5000K CCT ensures consistent color rendering for visual task accuracy
What's Included
- Satco 65-1040 Field Selectable Linear LED High Bay — White
- 4-foot suspension kit and V-clips
- Installation and operation instructions
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the Satco 65-1040 be installed in wet environments?
Can the Satco 65-1040 be installed in wet environments?

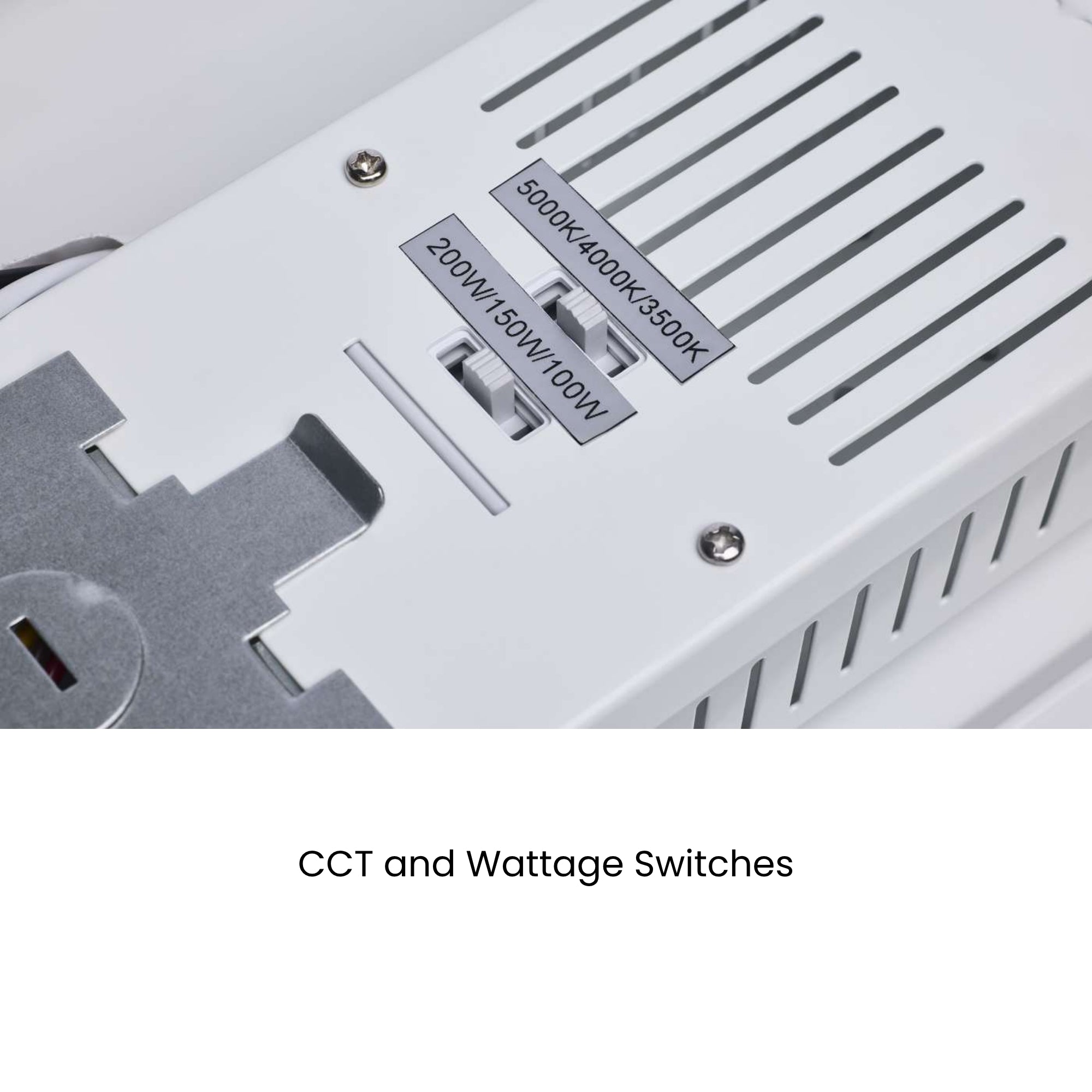

How do you adjust the wattage and color temperature on the fixture?
