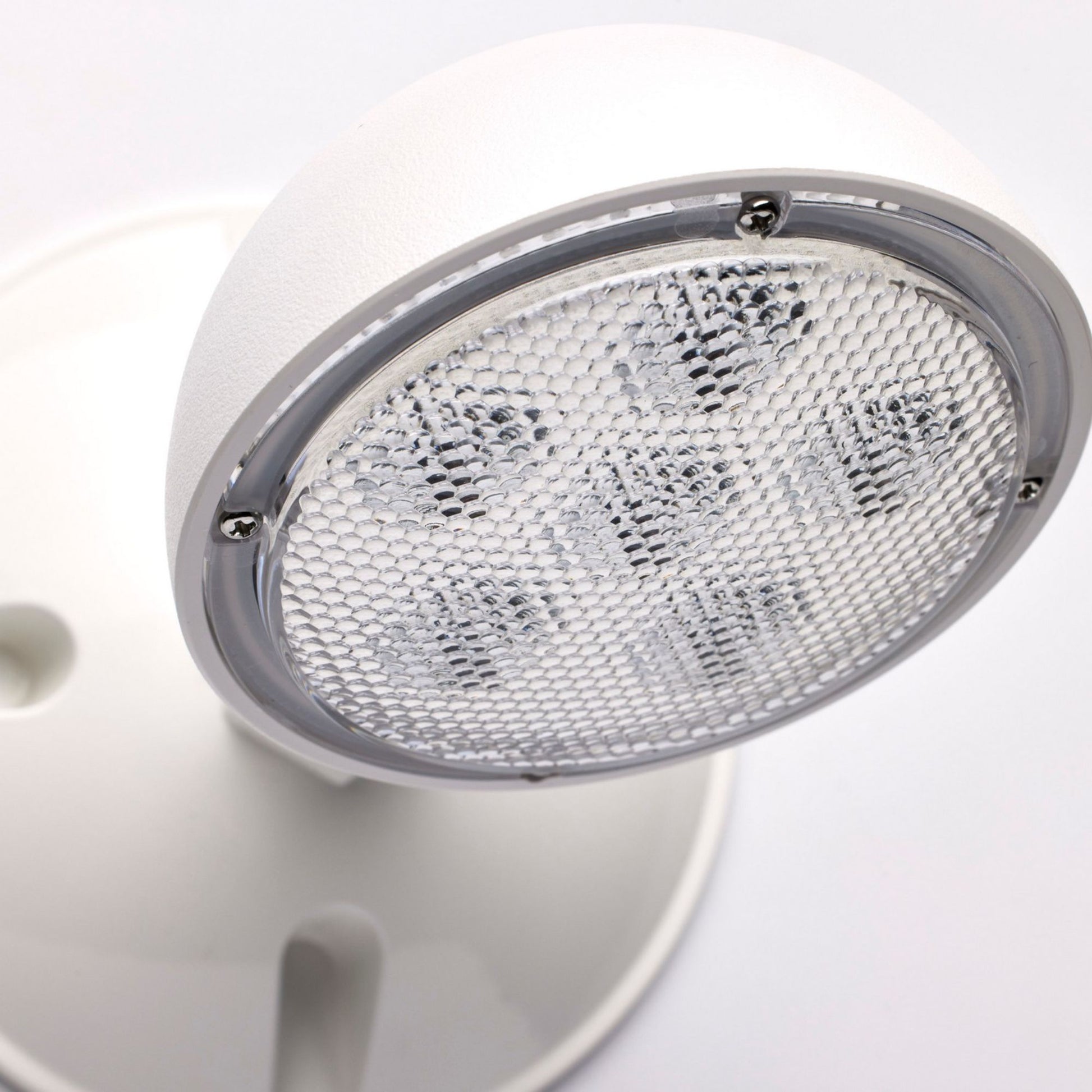

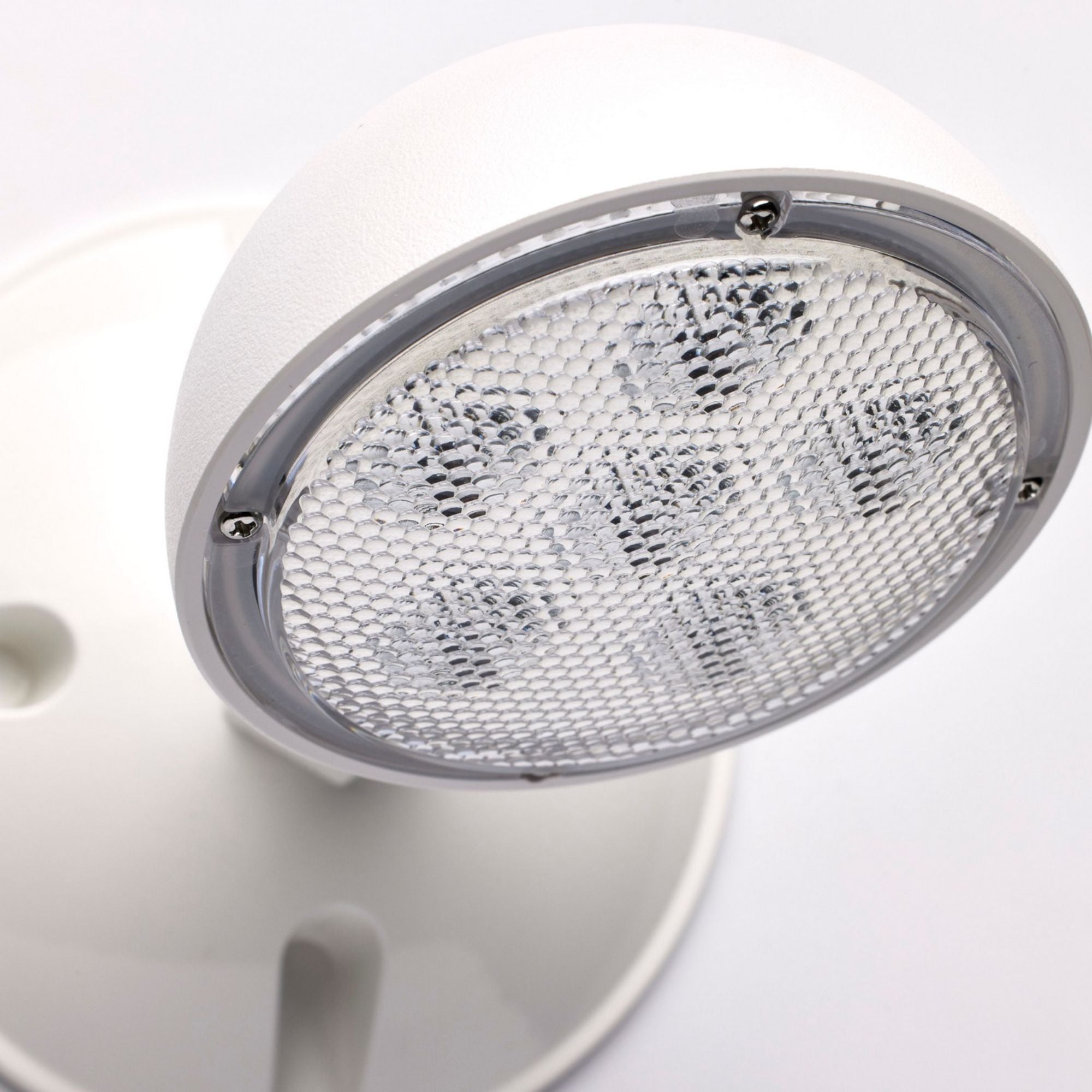

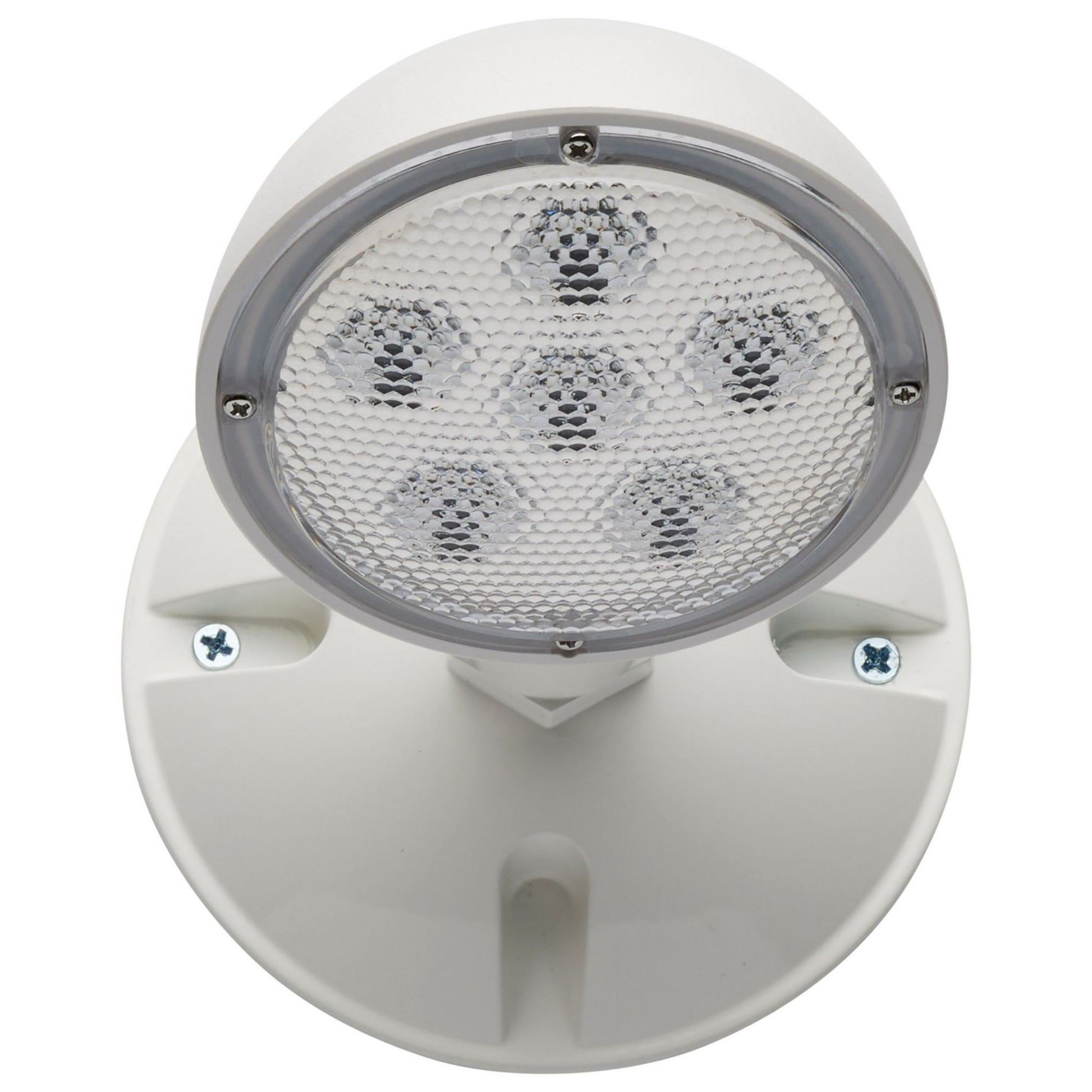

Satco Remote Head Light — 1W Emergency Lighting Solution

The Satco 67-136 is a remote emergency light designed for low-voltage applications, offering1Wpower and100 lumensof light output. This single-head fixture iswet rated, making it suitable for both indoor and outdoor installations. It operates on a3.6V/12Vsystem and features awhite finish. A battery is not included; it operates on the battery of the fixture it is related to for reliable emergency lighting.

Key Features

• Integrated LED:The fixture includes an integrated LED light source delivering 6000K color temperature for crisp visibility.
• Power Source:Battery is not included; it operates on the battery of the fixture it is related to.
• Thermoplastic Housing:Constructed from durable thermoplastic material (UL94V-0 rated) for enhanced longevity.
• Surge Protection:Built-in 3KV surge protection safeguards against voltage spikes.
• Operating Temperature:Functions effectively in harsh temperatures ranging from -25°C to +50°C.
• Polycarbonate Lens:Features a clear polycarbonate lens for optimal light distribution.
• Non-Dimmable:Designed for consistent light output without dimming capabilities.
• cULus Certified:Meets cULus certification standards and is RoHS and FCC compliant for safety and performance.

Typical Applications

• Emergency exits
• Outdoor pathways
• Parking garages
• Building perimeters
• Industrial facilities

Performance & Light Output

This fixture provides a light output of 100 lumens with a CRI of 70+ at 6000K, ensuring adequate visibility in emergency situations. The integrated LED technology offers reliable performance with a long lifespan.

Electrical & Controls

Designed for a3.6V/12Vinput, this non-dimmable emergency light operates by utilizing the battery of the connected primary fixture for uninterrupted operation during power outages. It includes 3KV surge protection.

Construction & Durability

The housing is made from thermoplastic material, rated UL94V-0 for flame retardancy. The fixture iswet location ratedand suitable for demanding indoor and outdoor environments, with an expanded operating temperature range of -25°C to +50°C.

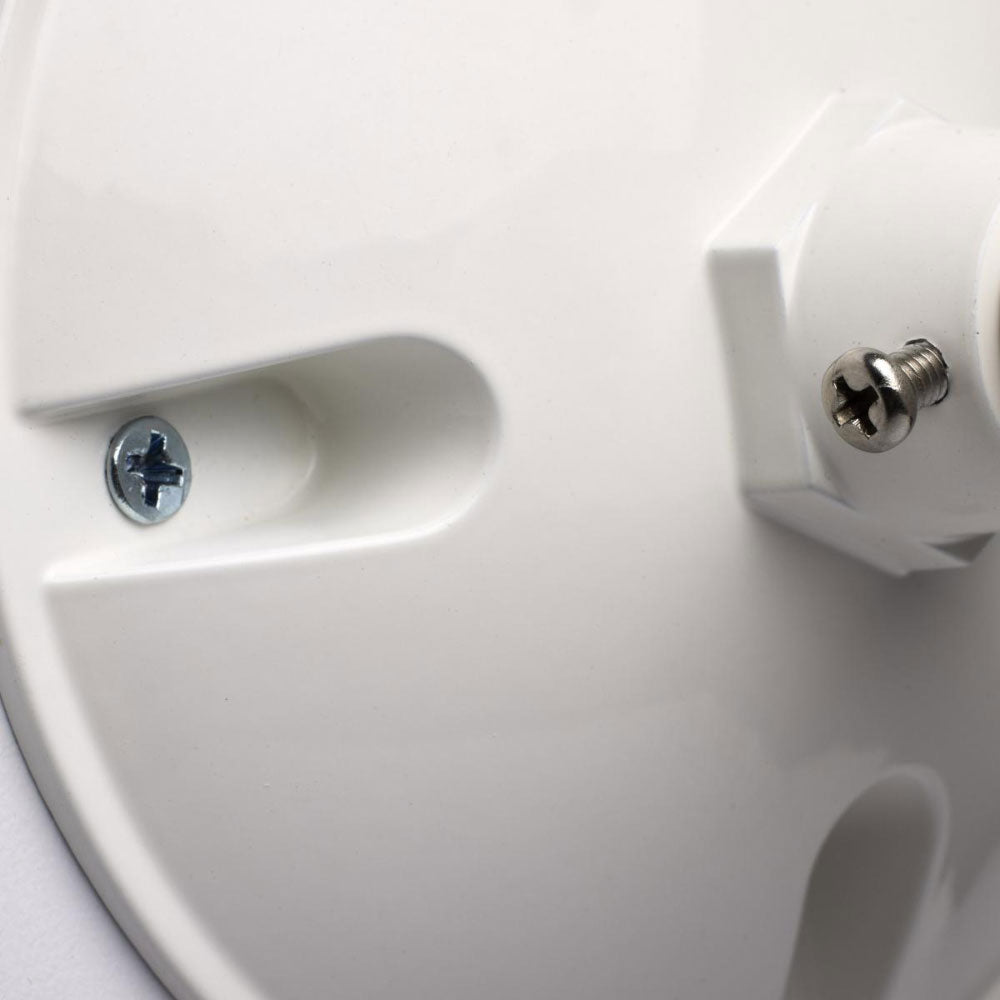

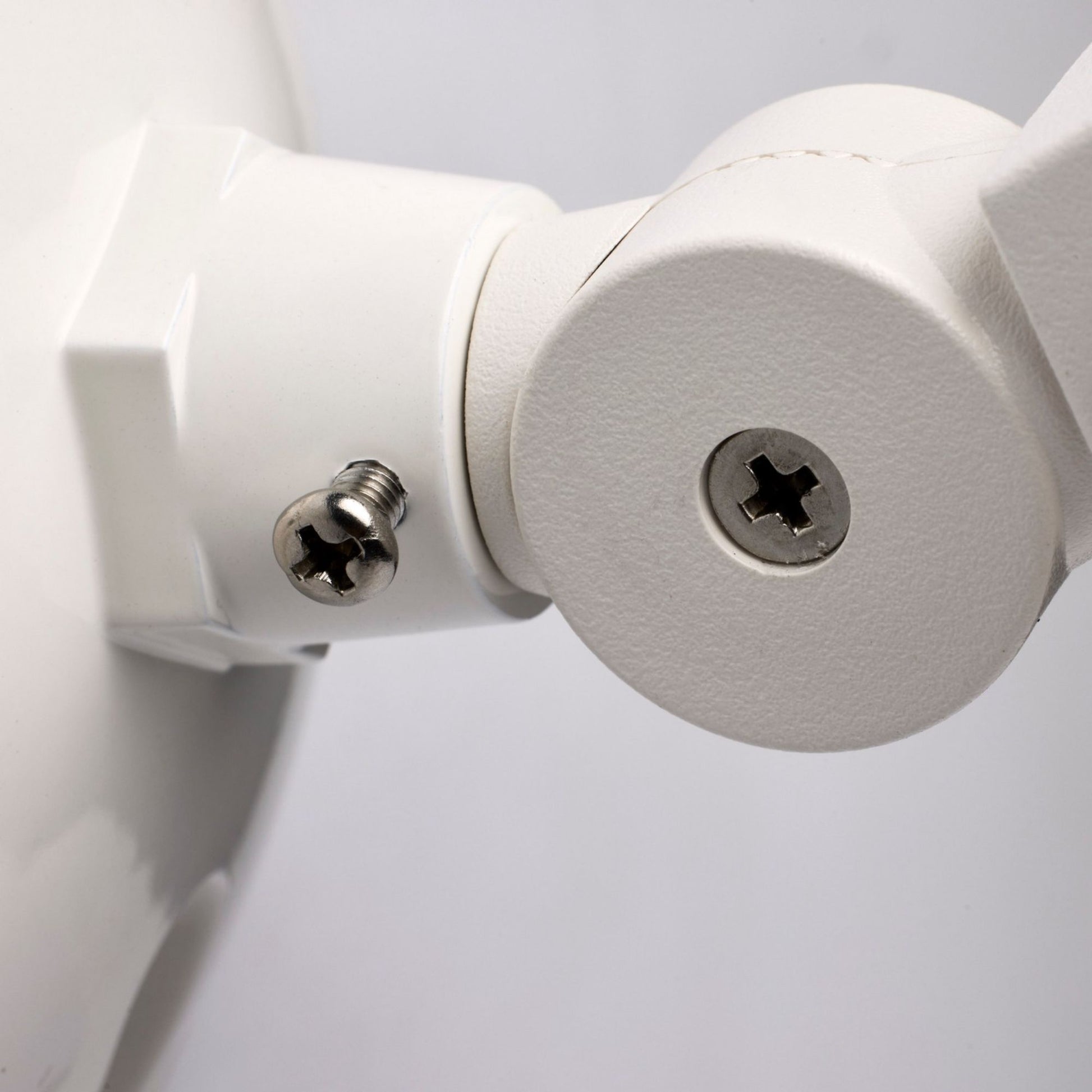

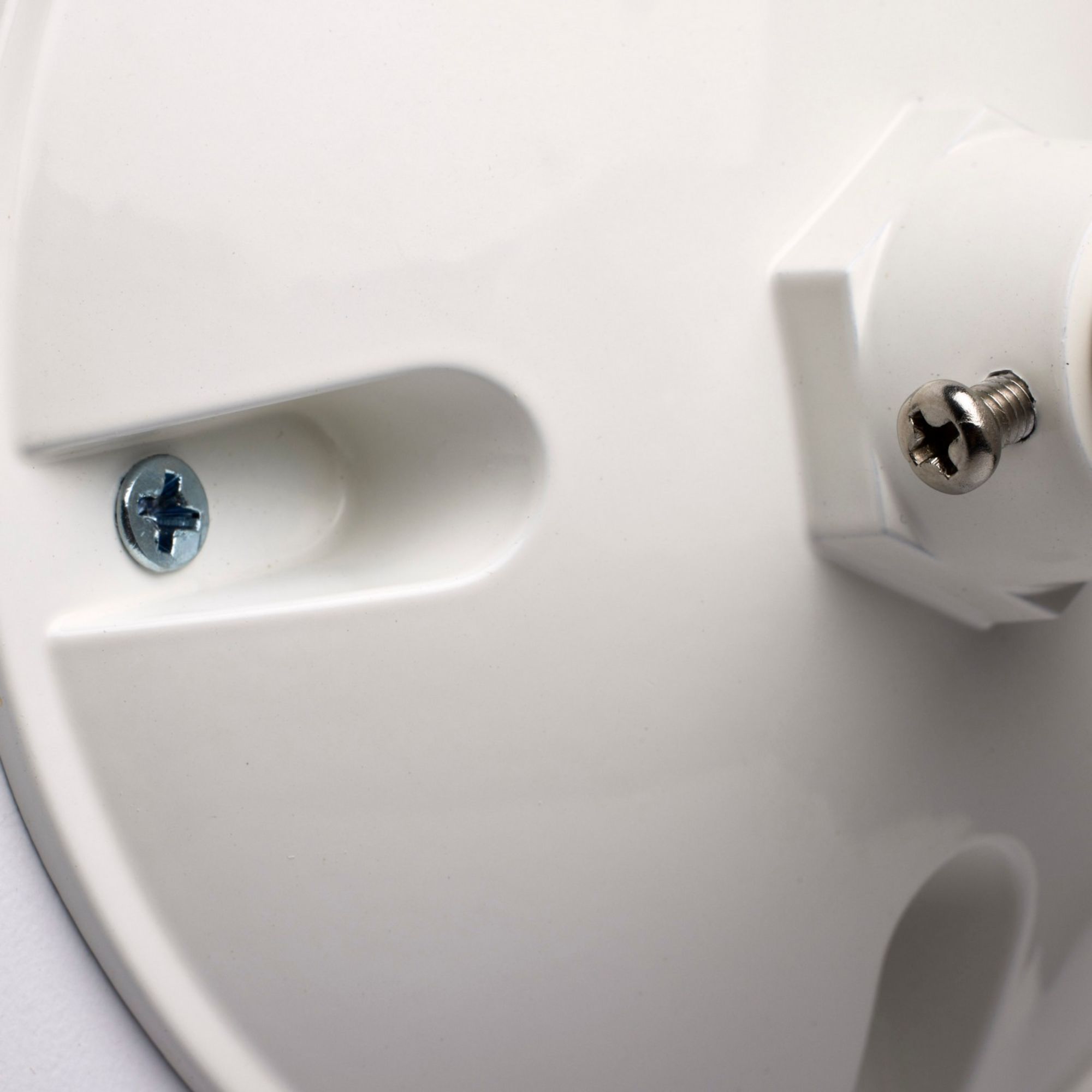

Installation & Mounting

Includes mounting hardware and accessories for straightforward universal ceiling or wall installation. The fixture is designed for easy integration into existing low-voltage emergency lighting systems.

What's Included

• Remote head light fixture
• Mounting hardware
• Installation accessories
