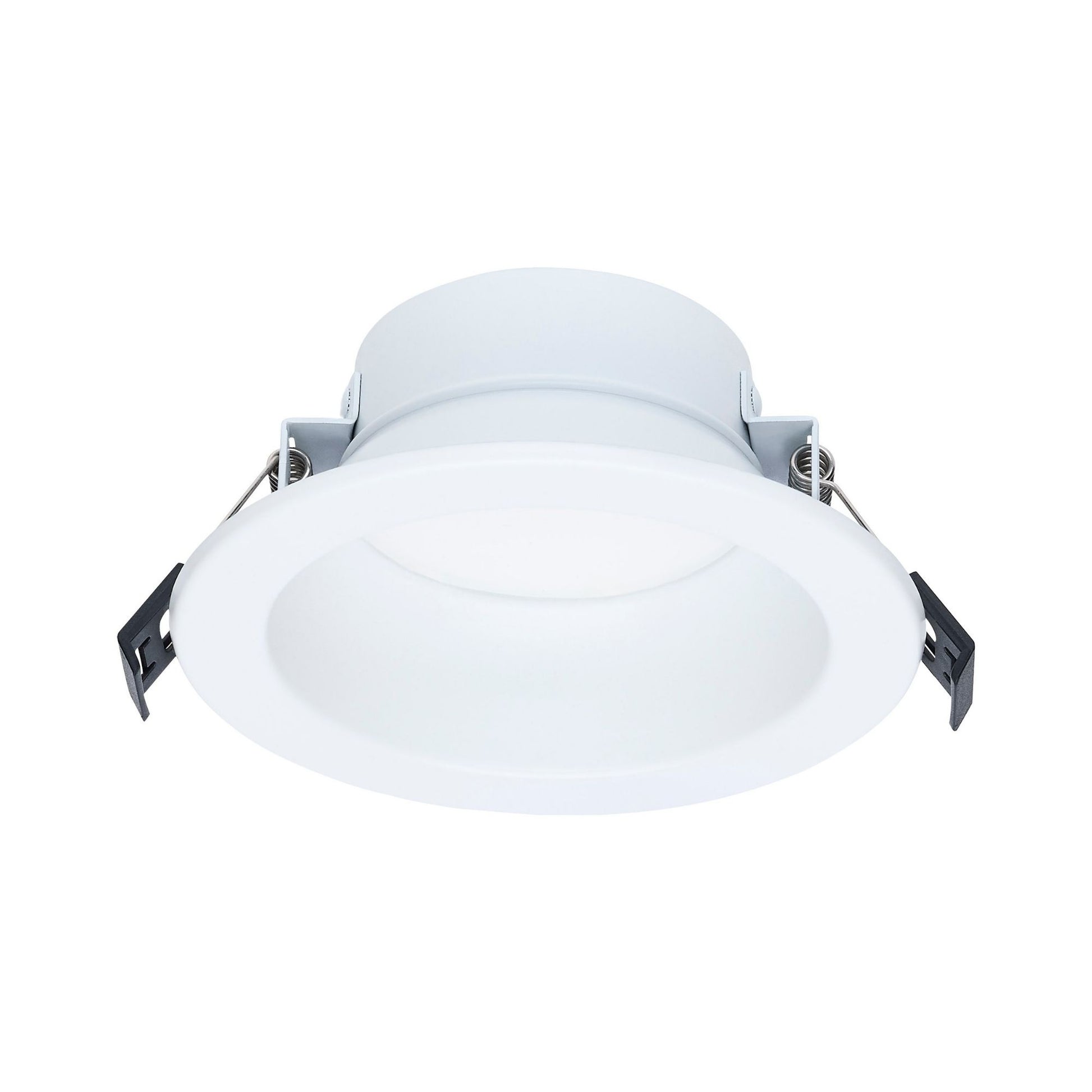

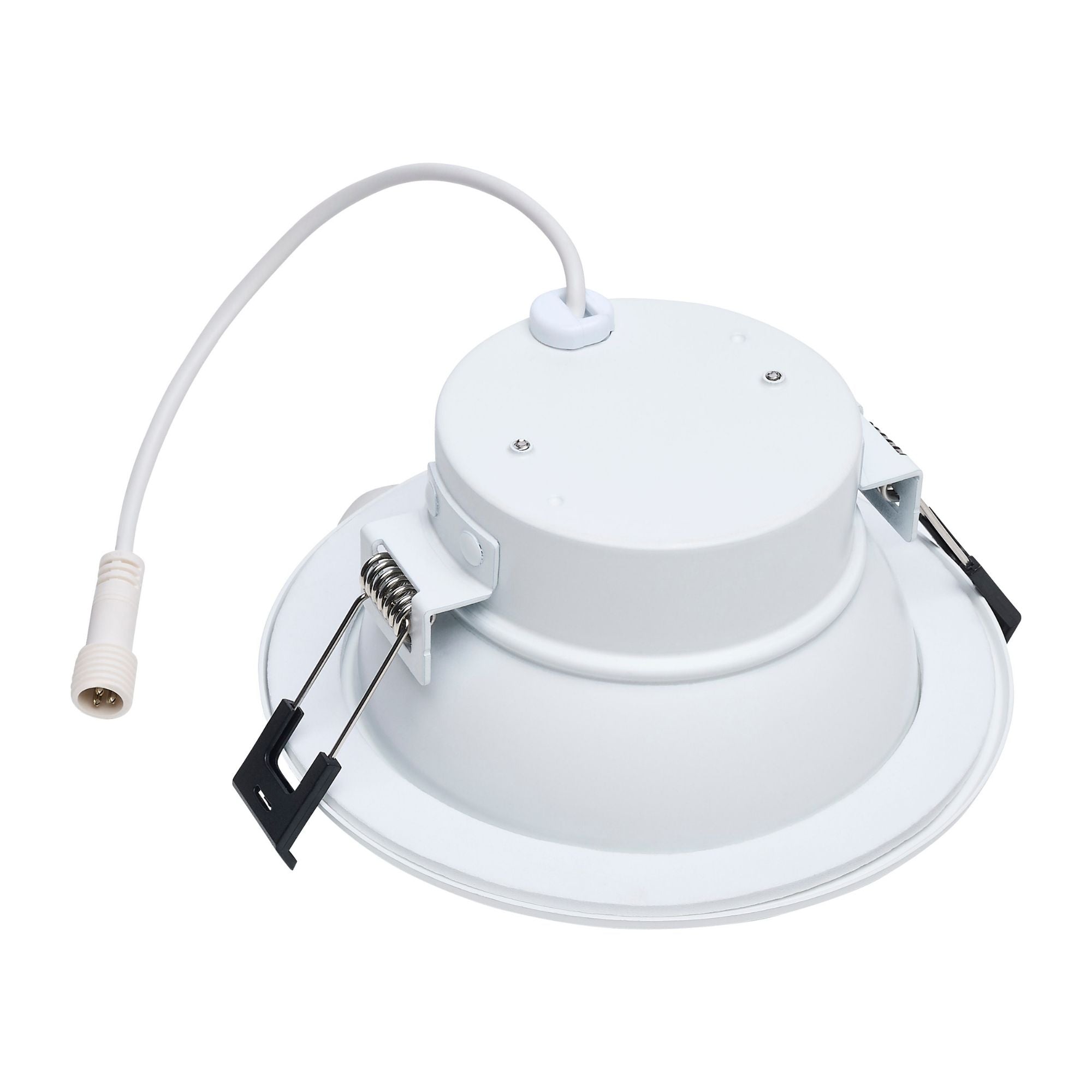

4-inch white recessed LED downlight retrofit with round trim and black spring clips
Retail box with white 4-inch round commercial LED downlight retrofit, recessed trim

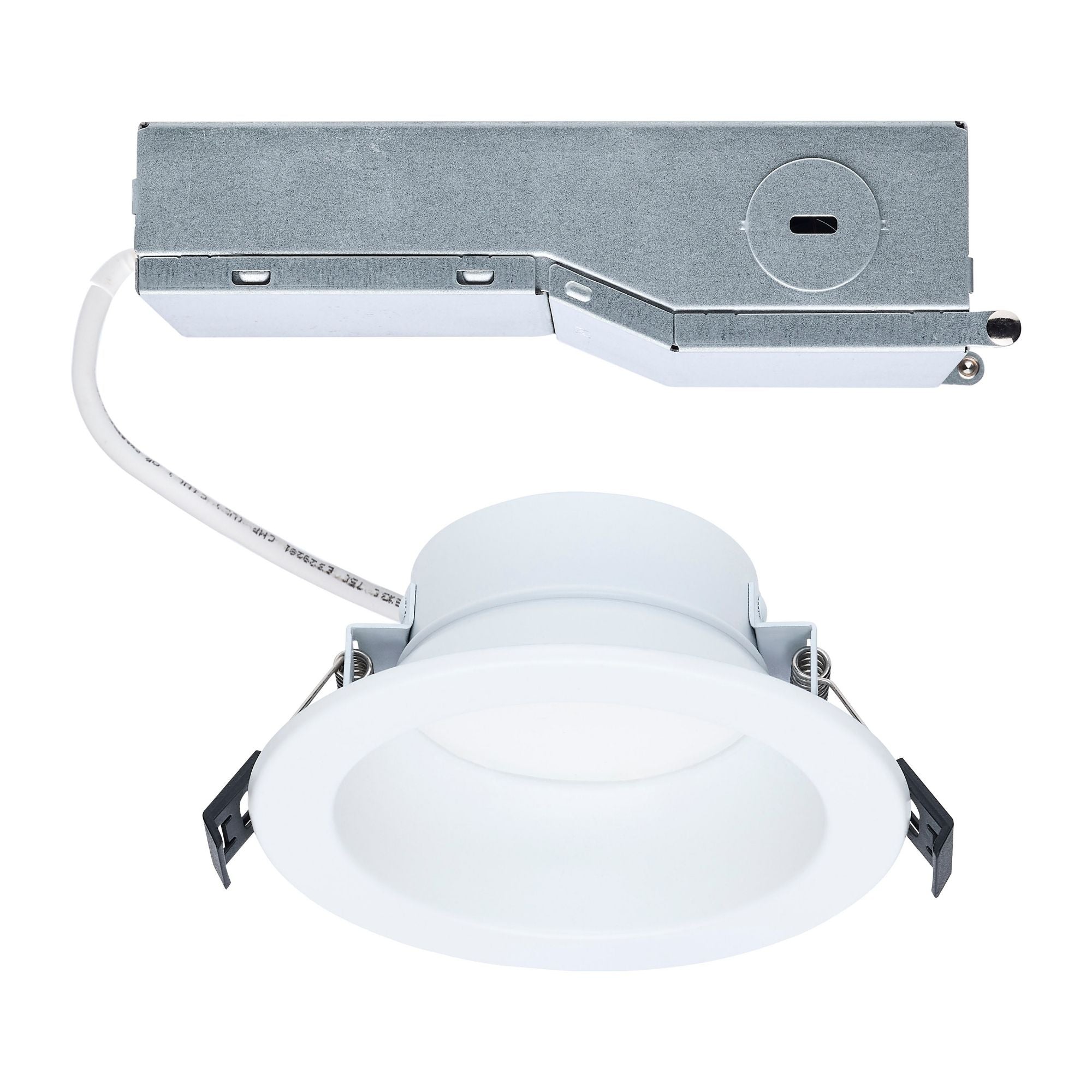

White recessed LED downlight retrofit with metal driver housing and mounting bracket
White round recessed LED downlight trim with central circular diffuser
White recessed LED downlight retrofit with attached power cord and mounting clips

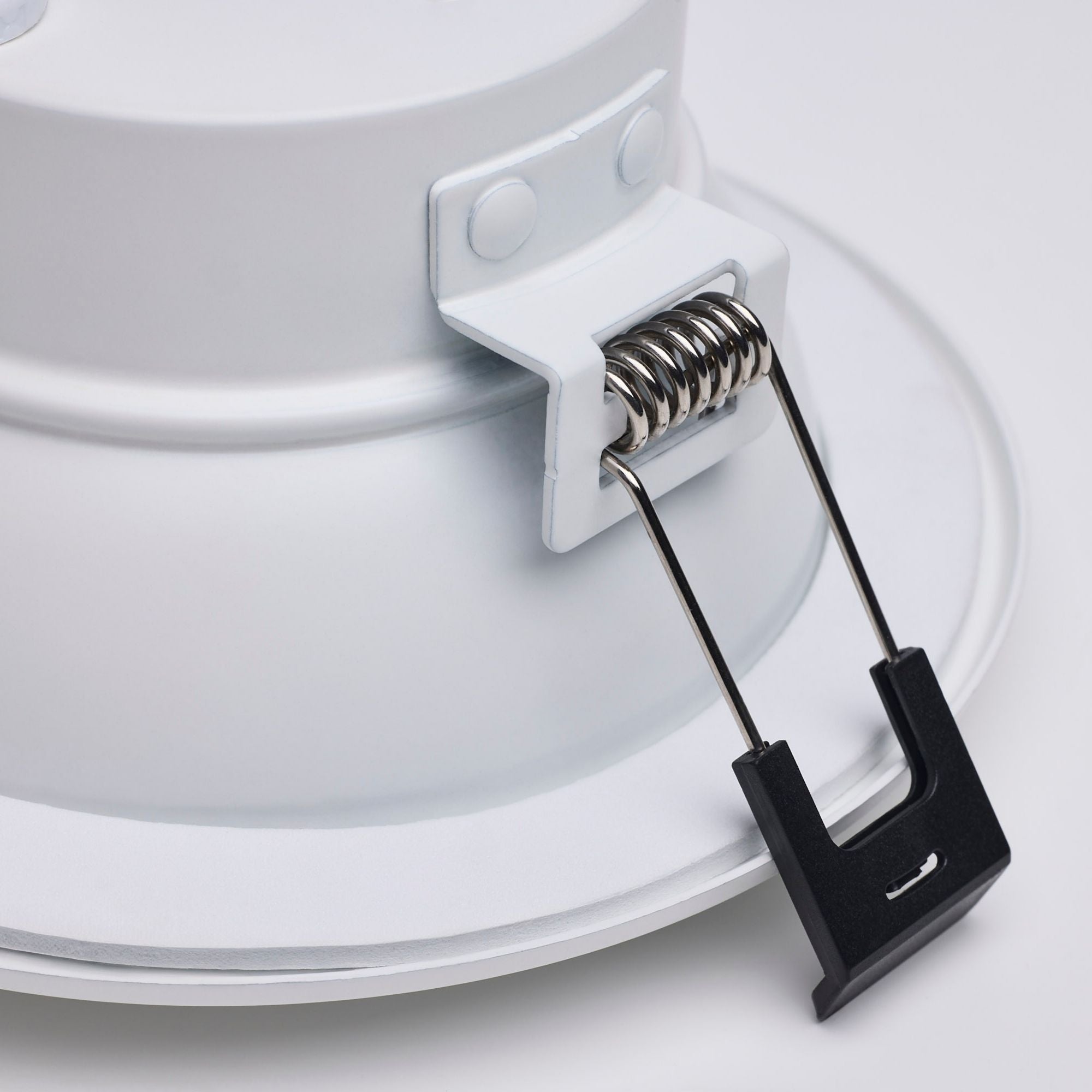

Close-up of spring contact and wiring on a white recessed LED downlight retrofit
Metal driver housing for LED downlight with white wire and black connector openings

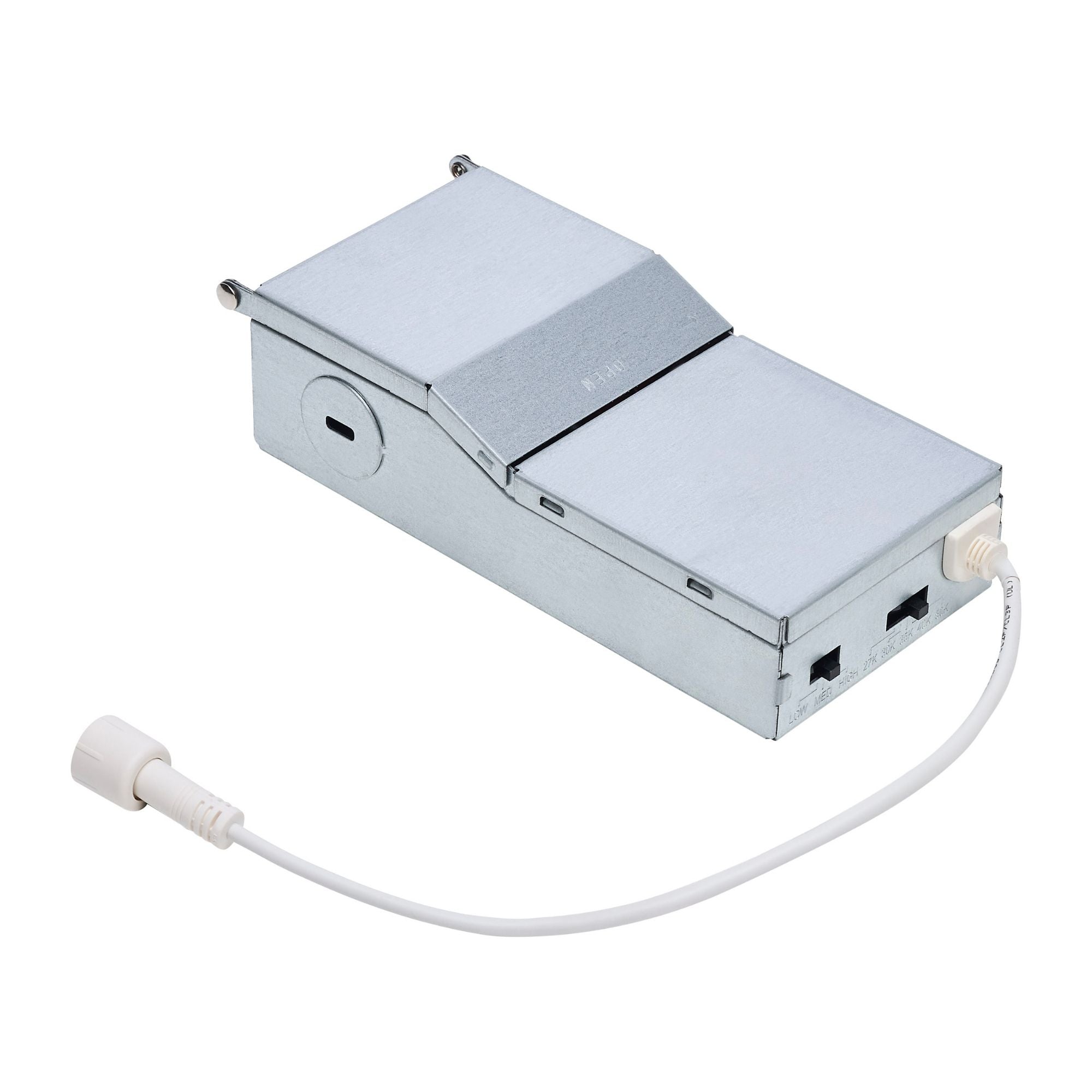

Metal LED driver module with white wire pigtail and mounting bracket, angled view
Open metal LED driver module with internal wiring and mounting bracket, top view
Retail box showing white 4-inch round commercial LED downlight retrofit
4-inch round commercial downlight with white trim, lens, and spring installation clips
Downlight packaging showing selectable CCT color temperatures: warm to cool white

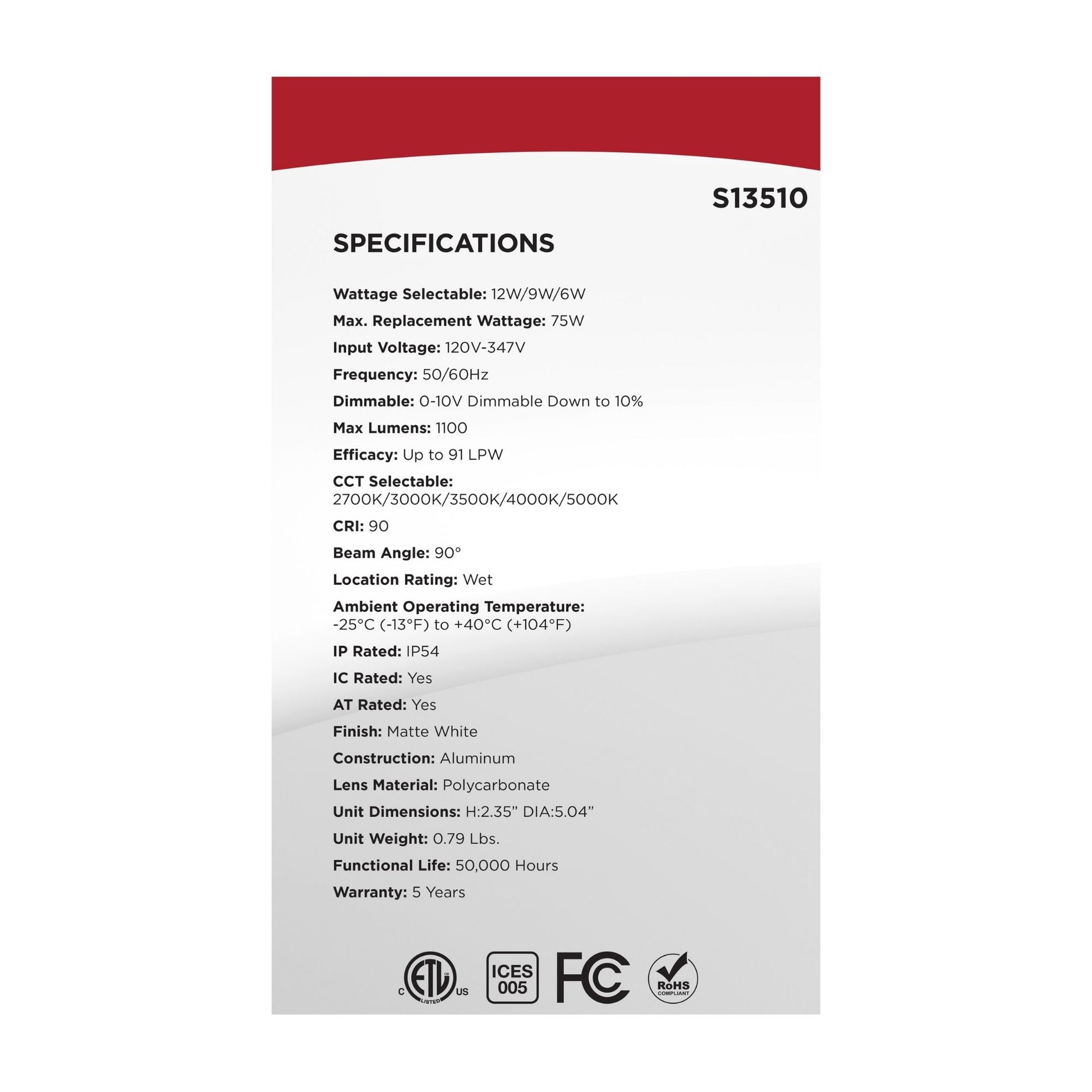

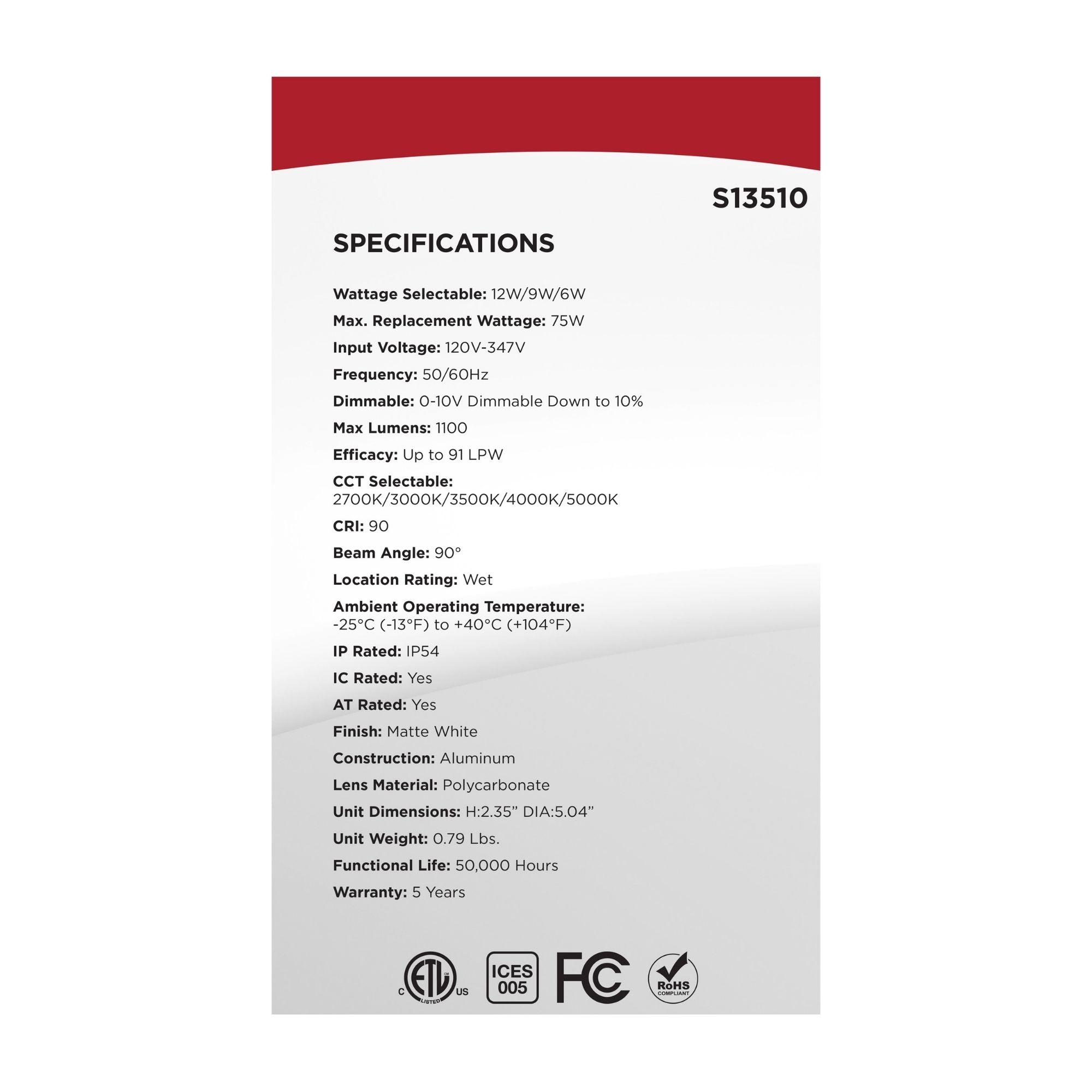

Downlight product specifications panel with electrical and compliance details
4-inch round commercial downlight performance graphic with wattage, CCT, and lumen info
Retail box for a 4-inch round commercial downlight with remote driver and field-selectable features
4-inch round recessed downlight with mounting bracket and labeled dimensions

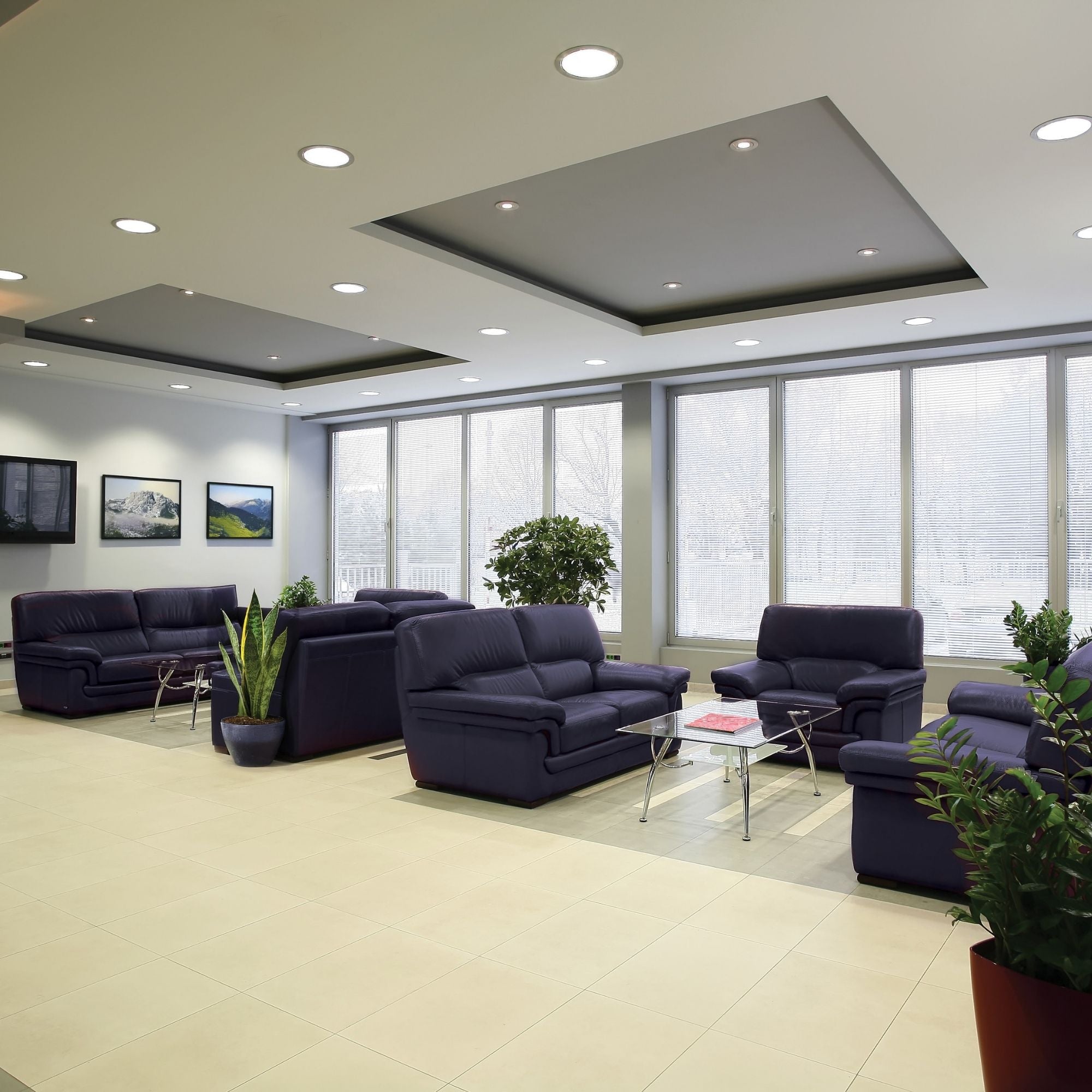

Office room with recessed ceiling downlights lighting the seating area
4-inch white recessed LED downlight retrofit with round trim and black spring clips
Retail box with white 4-inch round commercial LED downlight retrofit, recessed trim
White recessed LED downlight retrofit with metal driver housing and mounting bracket
White round recessed LED downlight trim with central circular diffuser
White recessed LED downlight retrofit with attached power cord and mounting clips
Close-up of spring contact and wiring on a white recessed LED downlight retrofit
Metal driver housing for LED downlight with white wire and black connector openings
Metal LED driver module with white wire pigtail and mounting bracket, angled view
Open metal LED driver module with internal wiring and mounting bracket, top view
Retail box showing white 4-inch round commercial LED downlight retrofit
4-inch round commercial downlight with white trim, lens, and spring installation clips
Downlight packaging showing selectable CCT color temperatures: warm to cool white
Downlight product specifications panel with electrical and compliance details
4-inch round commercial downlight performance graphic with wattage, CCT, and lumen info
Retail box for a 4-inch round commercial downlight with remote driver and field-selectable features
4-inch round recessed downlight with mounting bracket and labeled dimensions
Office room with recessed ceiling downlights lighting the seating area

SATCO S13510 4 in Commercial LED Downlight Retrofit Performer Series 12W Selectable CCT 120V-347V Matte White

Vendor: SATCO|NUVO

SKU: S13510

$34.95
$0.00
Shipping calculated at checkout.
Size: 4"

Available in stock (503)

Must be ordered in quantities of .

About this item
  • 4 in Round Commercial LED Downlight Retrofit — IC Rated / Wet Rated / IP54 / Air Tight: Integrated LED; aluminum construction; fits 4 in nominal housing; FT6 cable between remote driver and lighting head; matte frosted polycarbonate lens; matte white finish; flicker free

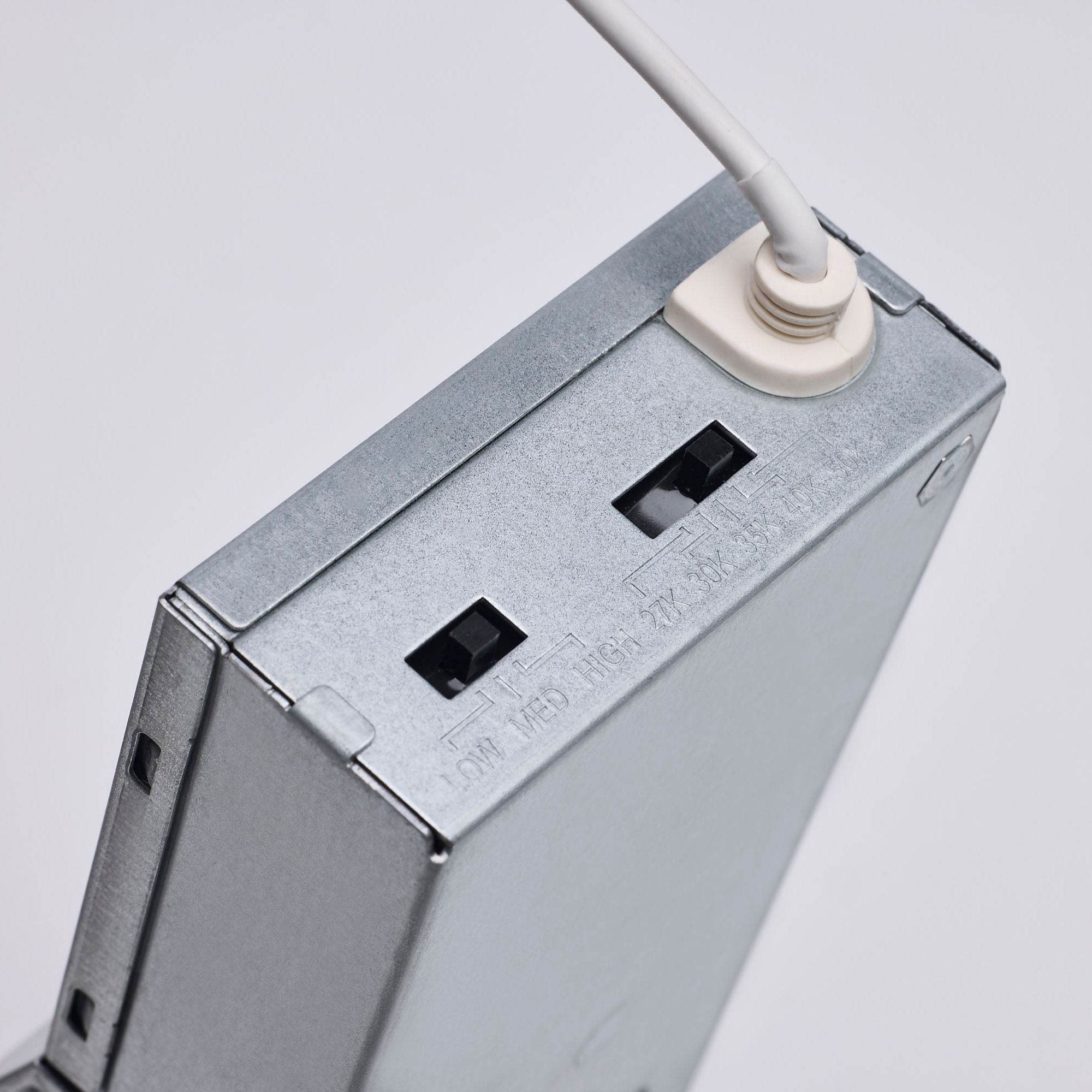

  • Field-Selectable CCT & Wattage: 2700K / 3000K / 3500K / 4000K / 5000K; 12W / 9W / 6W; CRI 90+; 90° beam angle
  • Up to 1100 lm / 91 LPW: Replaces 75W incandescent / 18W fluorescent; L70: 50,000 hrs; built-in 2KV surge protection; THD <30%; PF >0.9
  • 0-10V Dimmable to 10%: 120V–347V | 50/60Hz | Op temp: -13°F to +104°F (-25°C to +40°C)
  • ENERGY STAR / Title 24 / cETLus Listed: ICES 005; FCC; RoHS; 5-year warranty; remote driver for shallow plenum applications
View More Details

Description

SATCO S13510 4 in Round Commercial LED Downlight Retrofit — Performer Series / 12W/9W/6W Selectable / up to 1100 lm / Selectable CCT / 120V–347V / Matte White

The SATCO S13510 is a 4 in round commercial LED downlight retrofit from the SATCO Performer Series. Delivering up to 1100 lm at 12W (up to 91 LPW) with field-selectable wattage (12W/9W/6W) and CCT (2700K/3000K/3500K/4000K/5000K). Aluminum construction with matte frosted polycarbonate lens. FT6 cable between remote driver and lighting head for shallow plenum installations. IC rated, airtight, IP54, and wet rated. 0-10V dimmable to 10%. Operates on 120V–347V. Built-in 2KV surge protection. ENERGY STAR certified. California Title 24 compliant. cETLus Listed. Flicker free. 5-year warranty. L70: 50,000 hours. Replaces 75W incandescent / 18W fluorescent. Default wattage: 12W. Default CCT: 3000K.

Key Features

  • Selectable Wattage: 12W (1100 lm) / 9W (900 lm) / 6W (650 lm)
  • Max Light Output: 1100 lm
  • Efficacy: Up to 91 LPW
  • Beam Angle: 90°
  • Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
  • Default Settings: 12W | 3000K
  • CRI: 90+

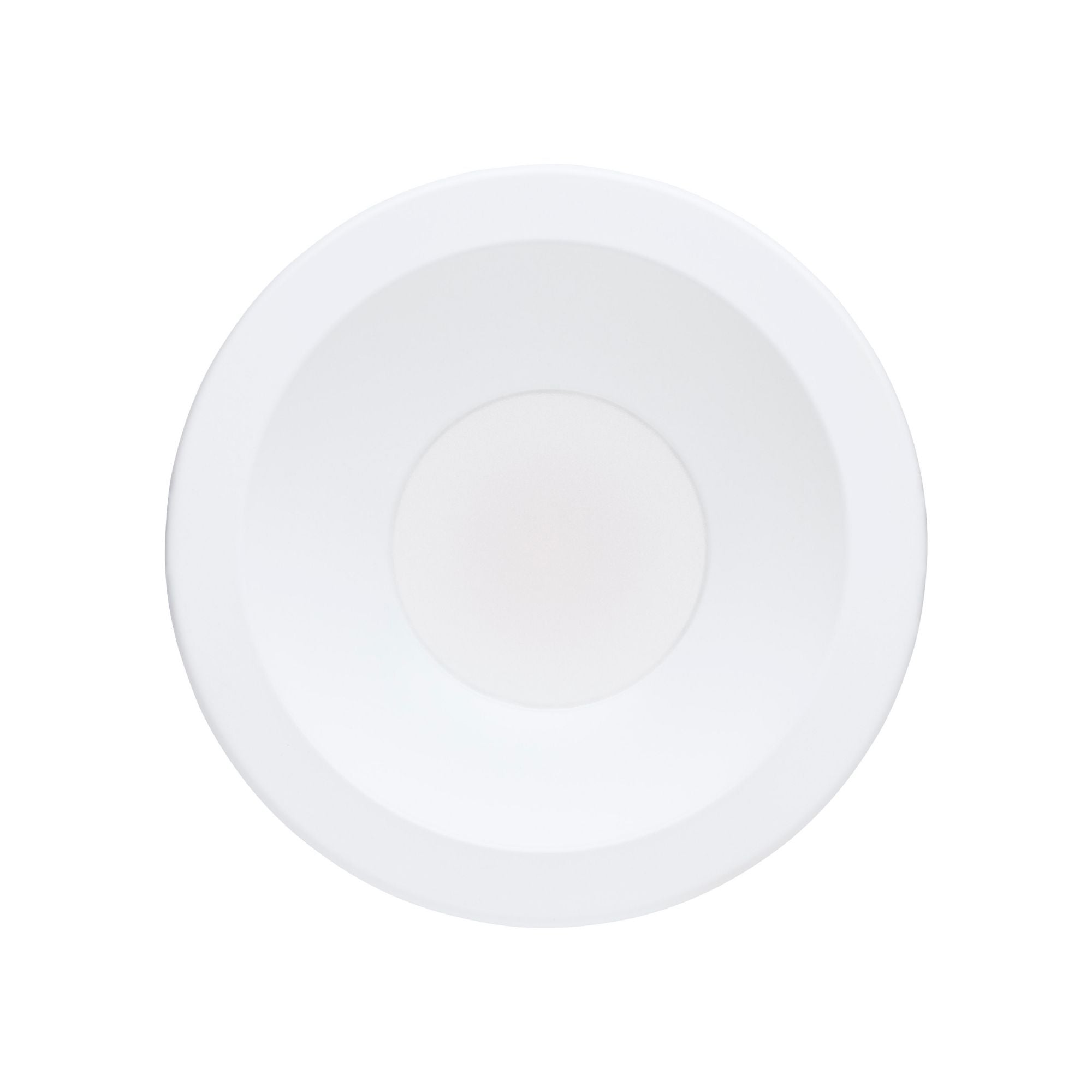

  • Construction: Aluminum | Lens: Matte frosted polycarbonate
  • Finish: Matte white

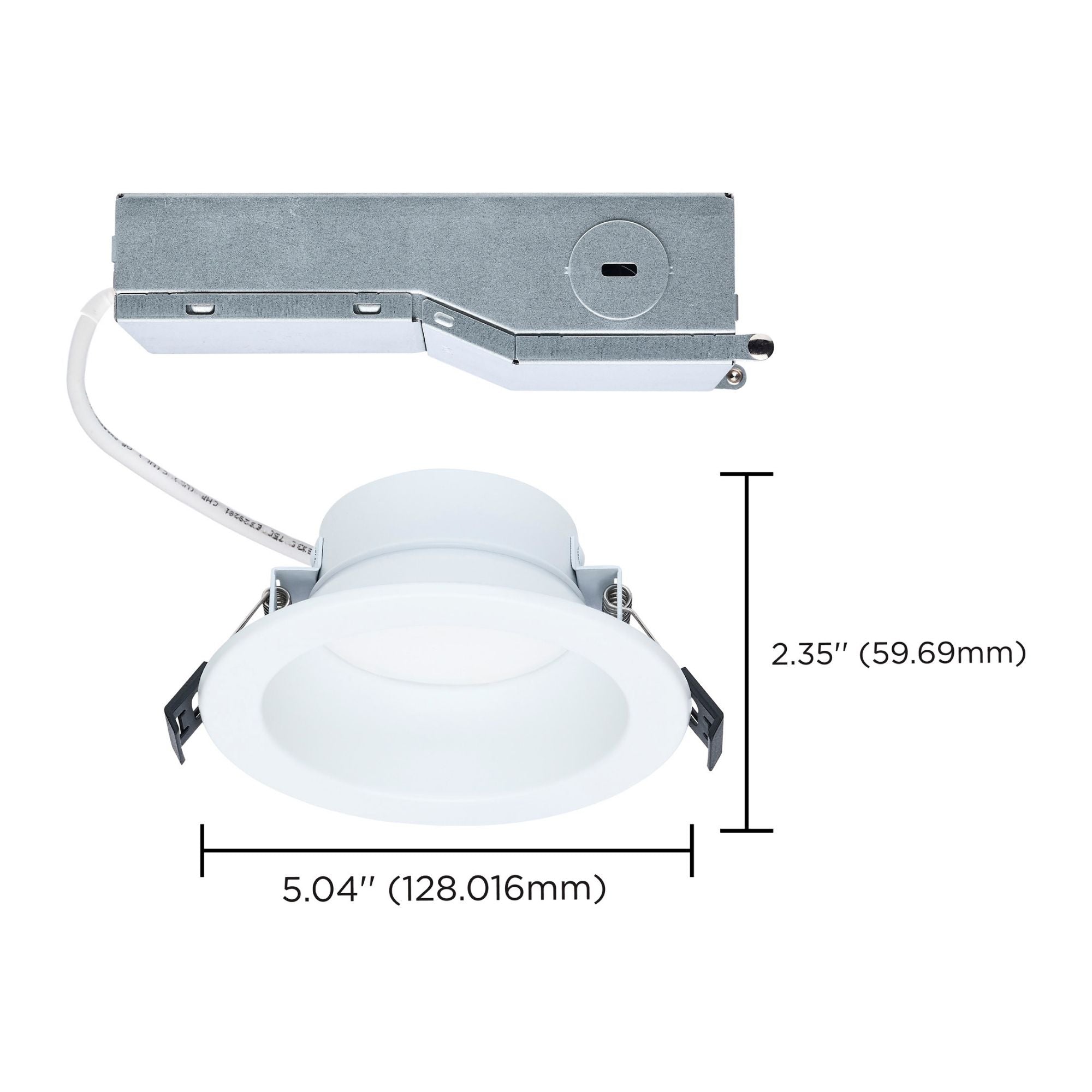

  • Nominal Size: 4 in | Diameter: 5.04 in | Mounting height: 2.5 in
  • Input Voltage: 120V–347V | 50/60Hz
  • Dimming: 0-10V | Down to 10%

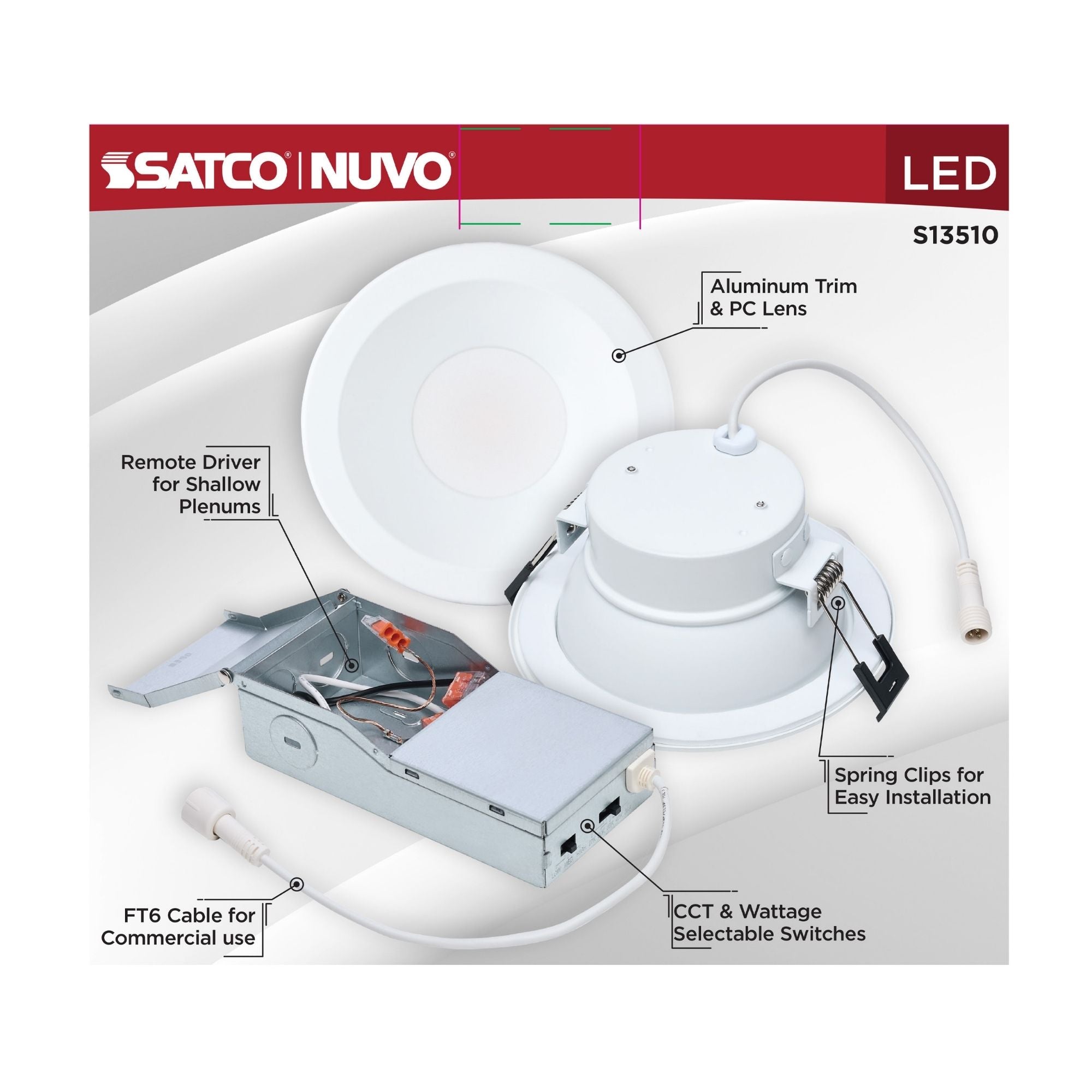

  • Driver: Remote driver with FT6 cable (for shallow plenum applications)
  • Power Factor: >0.9 | THD: <30% | Surge Protection: 2KV
  • IC Rating: Yes
  • Air Tight: Yes
  • IP Rating: IP54
  • Environment: Wet rated | Indoor and Outdoor
  • Flicker Free: Yes
  • Replaces: 75W incandescent | 18W fluorescent
  • Weight: 1.07 lbs
  • Lifespan: 50,000 hours L70 | Warranty: 5-year
  • Certifications: ENERGY STAR Certified | CA Title 24 Compliant | cETLus Listed | ICES 005 | FCC | RoHS

Construction & Aesthetics

Size: 4 in nominal | Diameter: 5.04 in | Mounting height: 2.5 in | Finish: Matte white | Lens: Matte frosted polycarbonate | Construction: Aluminum. Field-installable trim accessories available separately in clear/white, clear, and black finishes. For 6 in and 8 in Performer Series versions, see SATCO S13511 and S13512.

Light Output & Performance

The SATCO S13510 delivers up to 1100 lm at 12W (up to 91 LPW) with CRI 90+ and a 90° beam angle. Wattage and lumen output are field-selectable: 12W (1100 lm) / 9W (900 lm) / 6W (650 lm). CCT independently selectable: 2700K–5000K. Default wattage: 12W. Default CCT: 3000K. Flicker free. L70 lifespan is 50,000 hours.

Electrical & Installation

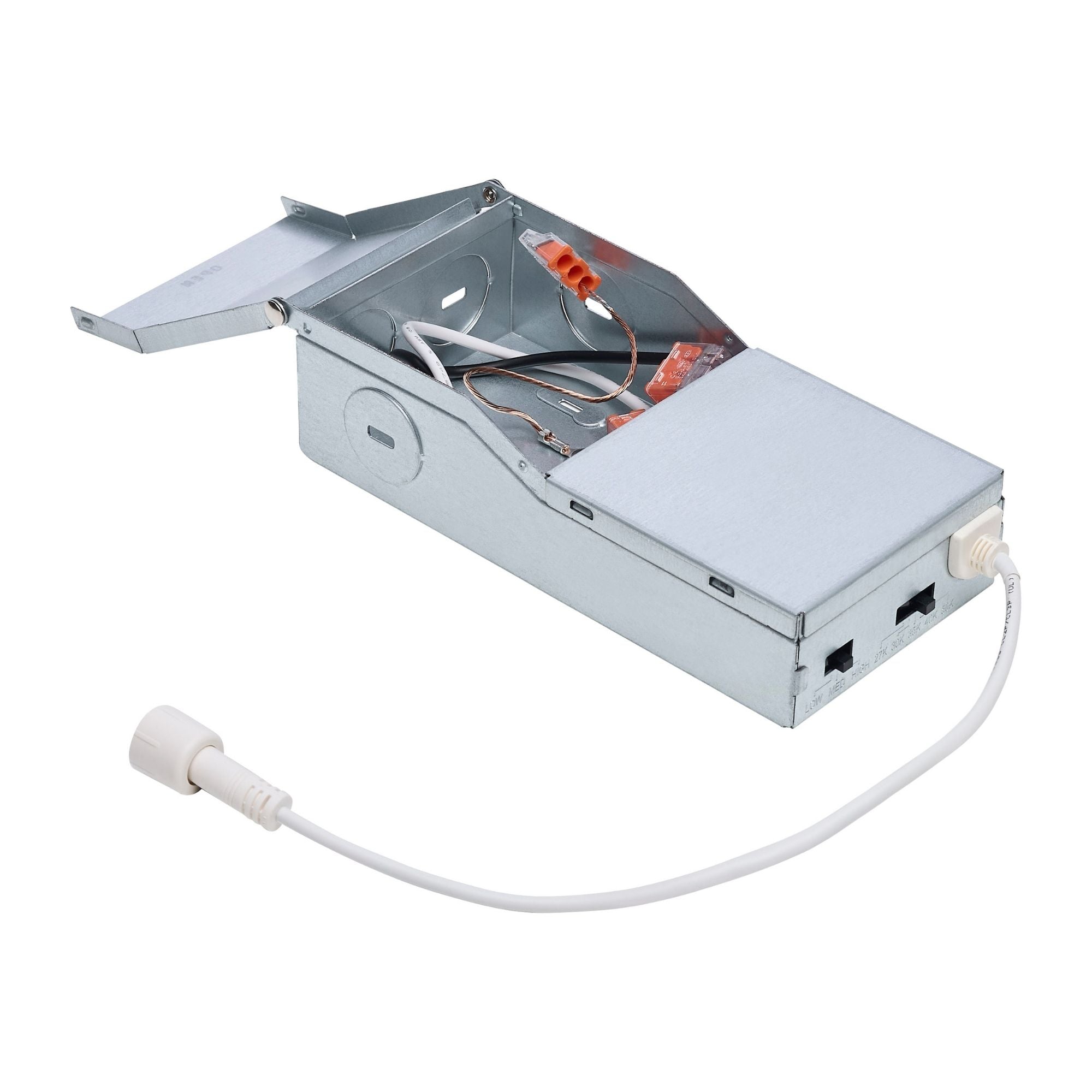

The SATCO S13510 operates on 120V–347V at 50/60Hz with 0-10V dimming to 10%. Remote driver with FT6 cable allows driver placement in shallow plenum spaces where integrated drivers cannot fit. PF >0.9; THD <30%; built-in 2KV surge protection. IC rated and airtight. Mounts down only.

Field-Installable Trim Accessories (Sold Separately)

  • 4 in Round Commercial DL Trim — Clear/White: SATCO S13520
  • 4 in Round Commercial DL Trim — Clear: SATCO S13521
  • 4 in Round Commercial DL Trim — Black: SATCO S13522
  • 4 in Round Goof Ring — White: SATCO S13540
  • 4 in Asymmetric Mounting Plate — New Construction: SATCO 80-865
  • Hanger Bar Kit for Asymmetrical Plates: SATCO 80-997
  • 4 in Mounting Plate with Hanger Bars — New Construction: SATCO 80-943
  • 4 in Mounting Plate for Stud/Joist — New Construction: SATCO 80-950

Typical Applications

  • Commercial office spaces and conference rooms
  • Hospitality lobbies, guest rooms, and corridors
  • Retail environments and showrooms
  • Healthcare facilities
  • Covered outdoor commercial areas
  • Any application requiring 347V compatibility or shallow plenum installation

What’s Included

  • SATCO S13510 4 in round commercial LED downlight retrofit (matte white)
  • Remote driver with FT6 cable

Specifications

Dimensions

Length/Depth
5.04 in
Width/Diameter
5.04 in
Height
2.35 in
Weight
0.79 lb

Documents

Style & Materials

Finish
Matte White
Material
Aluminum
Style
Transitional
Shape
Round

Characteristics & Features

Lamp Source
LED
Base Type
Integrated
Bulb Included
Yes
Bulb
Integrated LED
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
1100

Electrical Information

Voltage
120-347V
Total Wattage
12W
Bulb Wattage
12W

Item Details

MPN
S13510
Brand
SATCO|NUVO
Catalog Number
12WLED/CDL/4/RD/FS/RND
UPC
045923135101

Warranty & Certifications

Product Warranty
5-Years
Lamp Life
50000 hours
Product Rating
Wet

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What locations is the SATCO S13510 rated for?
Yes — the SATCO S13510 is wet rated, IC rated for direct contact with ceiling insulation, airtight, and IP54 rated. It is suitable for indoor and outdoor commercial applications including covered outdoor areas, offices, hospitality spaces, and retail environments.

What dimming method does the SATCO S13510 support?
Yes — the SATCO S13510 is 0-10V dimmable down to 10%. It operates on 120V–347V, making it compatible with standard US commercial power as well as Canadian 347V systems.

What is the FT6 cable on the SATCO S13510 used for?
Yes — the SATCO S13510 includes an FT6-rated cable between the remote driver and the lighting head, allowing the driver to be mounted remotely in shallow plenum spaces where a traditional integrated driver would not fit. This makes it well suited for commercial installations with space constraints above the ceiling.

What is the difference between the SATCO S13510, S13511, and S13512?
Yes — all three are Performer Series commercial LED downlight retrofits with identical electrical and compliance specs. The difference is size and output: S13510 is 4 in (up to 1100 lm, 12W, replaces 75W), S13511 is 6 in (up to 2000 lm, 24W, replaces 100W), and S13512 is 8 in (up to 2500 lm, 30W, replaces 125W).

What trim and mounting accessories are available for the SATCO S13510?
Yes — the following field-installable accessories are available separately: S13520 (4 in round commercial DL trim, clear/white finish), S13521 (4 in round commercial DL trim, clear finish), S13522 (4 in round commercial DL trim, black finish), S13540 (4 in round goof ring, white finish), 80-865 (4 in asymmetric mounting plate for new construction), 80-997 (hanger bar kit for asymmetrical plates), 80-943 (4 in mounting plate with hanger bars for new construction), 80-950 (4 in mounting plate for stud/joist mounting for new construction).
