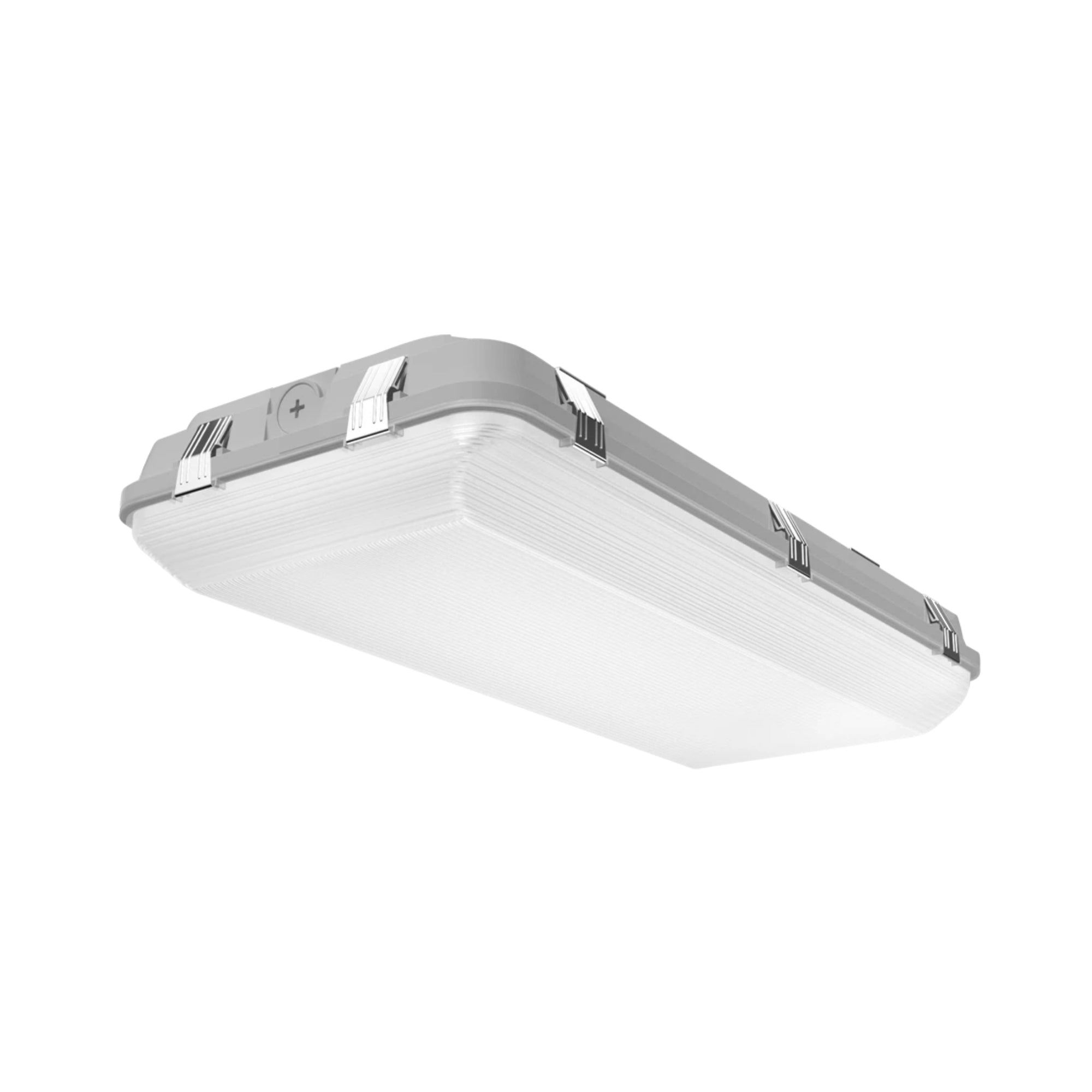

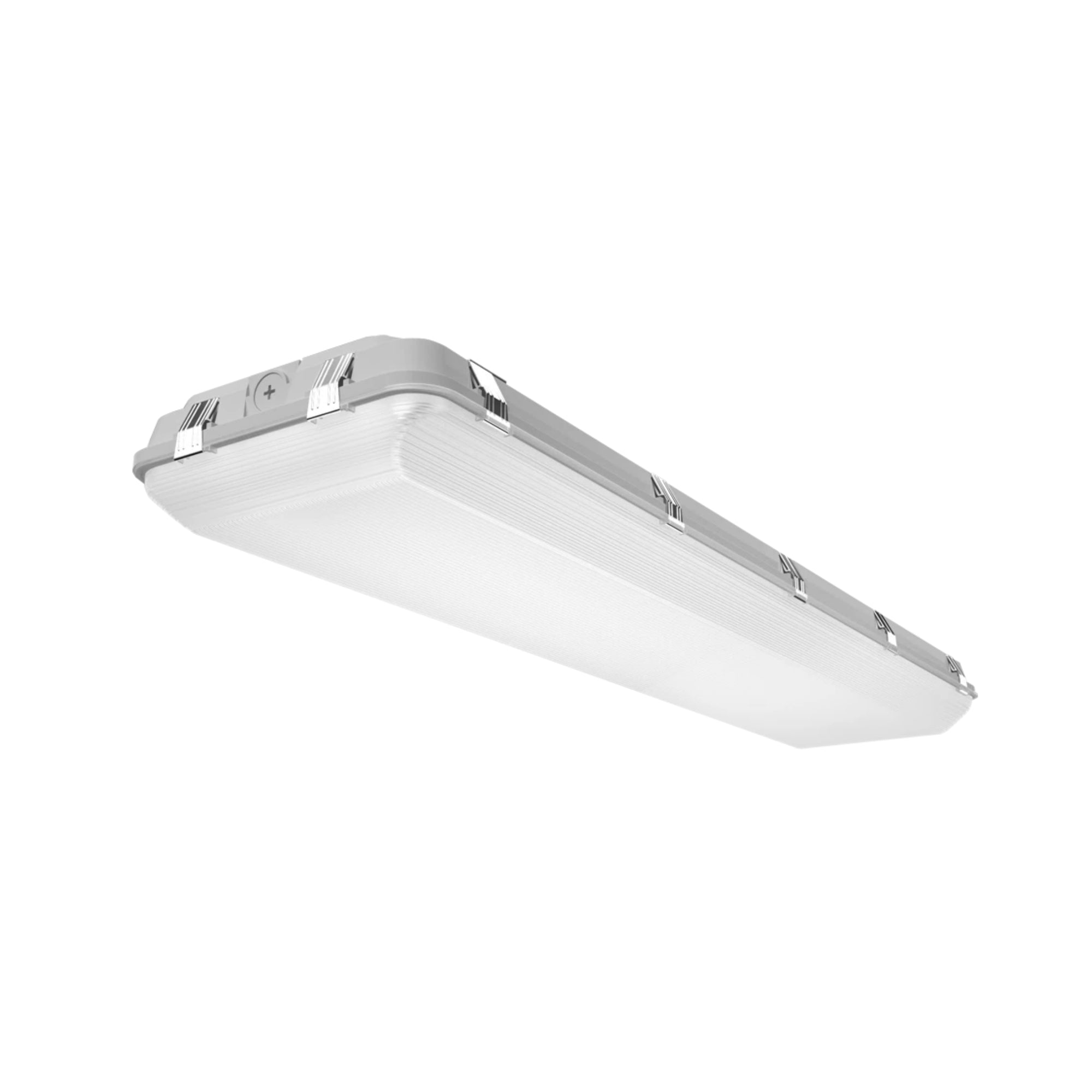

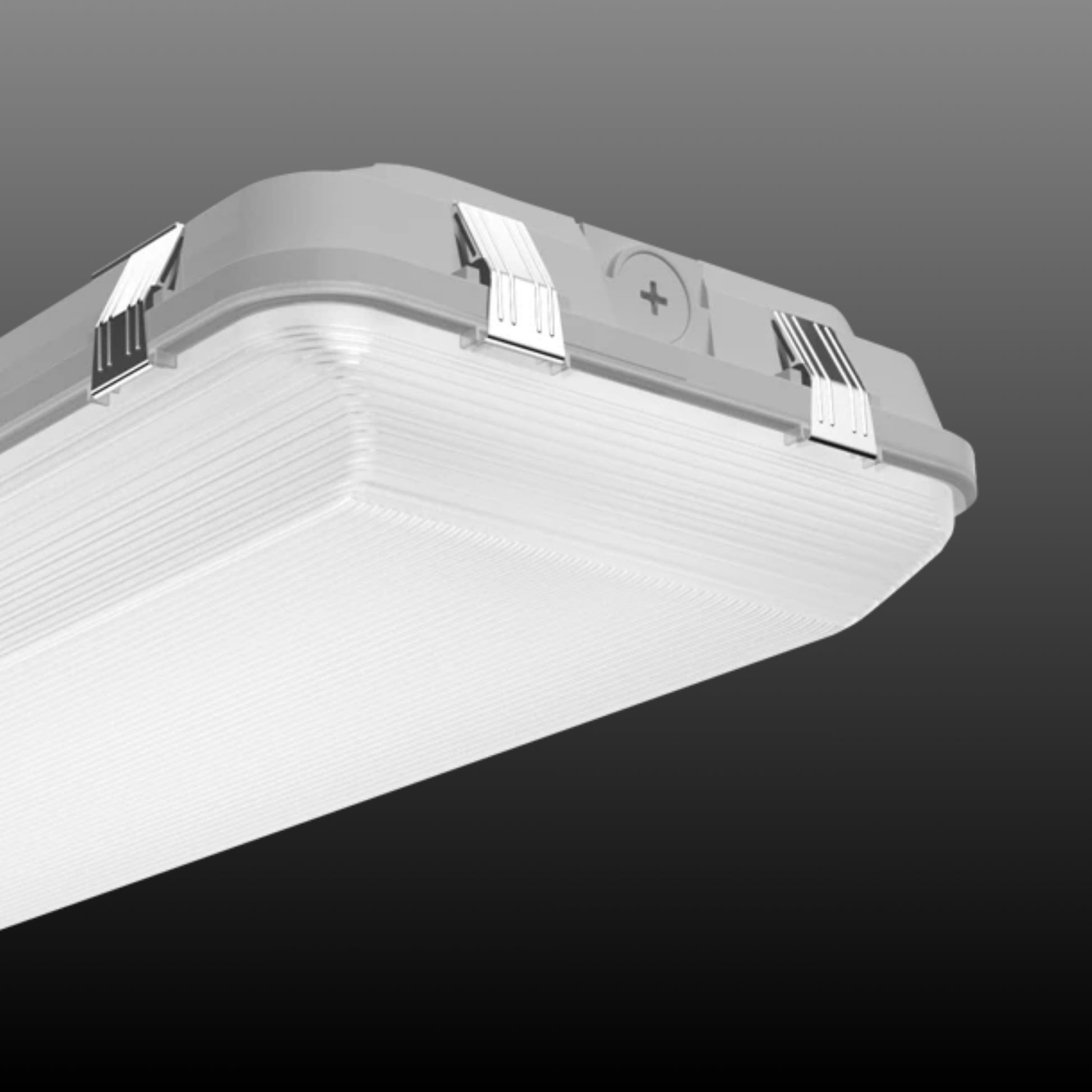

RAB WHALE Field-Adjustable Linear Washdown Vapor Tight — 2ft / 4ft — Gray
The RAB WHALE is a family of field-adjustable linear washdown vapor tight fixtures available in 2-foot and 4-foot formats, each in standard and high-output (/H) variants. All models are UL Listed for Wet Locations, IP67 rated, IK09 impact resistant, NSF Certified, DLC Premium listed, and rated for 100,000 hours with a 5-year RAB warranty. Standard operating voltage: 120–277V / 50–60Hz with 0–10V dimming to 10%. Surge protection: Ringwave LN4kV / LN-GND 6kV.
Key Features
- Selectable Wattage — All Models: WHALE2: 90/75/60W · WHALE2H: 135/100/70W · WHALE4: 160/140/120W · WHALE4H: 265/225/145W. Factory defaults: WHALE2 90W · WHALE2H 135W · WHALE4 160W · WHALE4H 265W.
- Maximum Lumen Output: WHALE2: 14,327 lm · WHALE2H: 19,460 lm · WHALE4: 24,462 lm · WHALE4H: 38,081 lm (all at max wattage / 4000K).
- Peak Efficacy: WHALE2: 163 lm/W · WHALE2H: 164 lm/W · WHALE4: 164.6 lm/W · WHALE4H: 163 lm/W.
- CRI: WHALE2: 85–86 · WHALE2H: 84–86 · WHALE4: 85–86 · WHALE4H: 84–86. 86 CRI at 4000K across all models.
- Selectable CCT: 3500K / 4000K / 5000K — factory default 4000K · all models.
- Dimming: 0–10V to 10% — all models.
- Voltage: 120–277V — all models.
- Location Rating: UL Wet Location · IP67 · IK09 · NSF Certified — all models.
- Operating Temperature: −40°F (−40°C) to +104°F (+40°C) standard. Battery backup (/E) cold-start: 32°F (0°C); max ambient with backup: 140°F (60°C).
- Rated Life: 100,000 hours (L70).
- Warranty: 5-year RAB limited warranty.
- Surge Protection: Ringwave LN4kV / LN-GND 6kV.
Performance & Light Output
WHALE2 (2ft, 90/75/60W): At 90W: 13,221 / 14,327 / 13,866 lm (3500K/4000K/5000K). Peak: 163 lm/W at 90W/4K. CRI: 85–86.
WHALE2H (2ft, 135/100/70W): At 135W: 17,908 / 19,460 / 18,823 lm. Peak: 164 lm/W at 135W/4K. CRI: 84–86.
WHALE4 (4ft, 160/140/120W): At 160W: 23,775 / 24,462 / 23,848 lm. At 140W: 20,738 / 21,313 / 20,866 lm. At 120W: 17,991 / 18,434 / 18,197 lm. Peak: 164.6 lm/W at 120W/4K. CRI: 85–86.
WHALE4H (4ft, 265/225/145W): At 265W: 36,983 / 38,081 / 37,710 lm. At 225W: 32,217 / 33,135 / 32,912 lm. At 145W: 21,705 / 21,860 / 21,989 lm. Peak: 163 lm/W at 265W/4K. CRI: 84–86. All voltages: 120–277V. Rated life: 100,000 hours (L70).
Options & Suffixes
- BLANK — No option (base model)
- /E — 90-minute battery backup (auto-activates on power loss; cold-start 32°F/0°C; max ambient 140°F/60°C)
- /MVS — Microwave occupancy sensor (50 ft. max height, 50 ft. detection diameter)
- /PIR — Passive infrared occupancy sensor (40 ft. max height, 40 ft. detection diameter)
- /LCBS — Lightcloud Blue PIR sensor (Bluetooth Mesh, no hub)
- /LCBS/MVS — Lightcloud Blue microwave sensor
- /MVS/E — Microwave sensor + battery backup
- /PIR/E — PIR sensor + battery backup
- /LCBS/E — Lightcloud Blue PIR + battery backup
- /LCBS/MVS/E — Lightcloud Blue microwave + battery backup
Dimensions
- WHALE2 / WHALE2H: 25 5/8″ L × 12 1/8″ W × 4 1/4″ H (no sensor) · 27 3/4″ L × 12 1/8″ W × 2 1/8″ H (with sensor) · 11.6 lbs
- WHALE4 / WHALE4H: 49 1/4″ L × 12 1/8″ W × 4 1/4″ H (no sensor) · 51 3/8″ L × 12 1/8″ W (with sensor) · 23.37 lbs
Certifications & Rebates
- UL Listed: Wet Location · All models.
- NSF Certified: Food preparation areas.
- IP67 · IK09: All models.
- IESNA LM-79 & LM-80 tested.
- DLC Premium — WHALE2: Stairwell S-YHRHQR · High-bay S-6J5K4S.
- DLC Premium — WHALE2H: Stairwell S-DC3JVX · High-bay S-WZCD7L.
- DLC Premium — WHALE4: Stairwell S-P3YF6D · High-bay S-WX78XF.
- DLC Premium — WHALE4H: Stairwell S-3M6RH4 · High-bay S-LQ560N.
- Search at designlights.org to verify utility rebate eligibility by application and territory.
- RoHS Compliant. Mercury-free, UV-free.
Accessories (Sold Separately)
- MSR1 (UPC: 192552026055) — Multi-sensor remote control IP20 — required for adjusting non-Lightcloud sensor settings
What’s Included
- RAB WHALE Linear Washdown Vapor Tight fixture (model and size as ordered) — Gray
- Stainless steel surface-mount brackets and v-hooks
