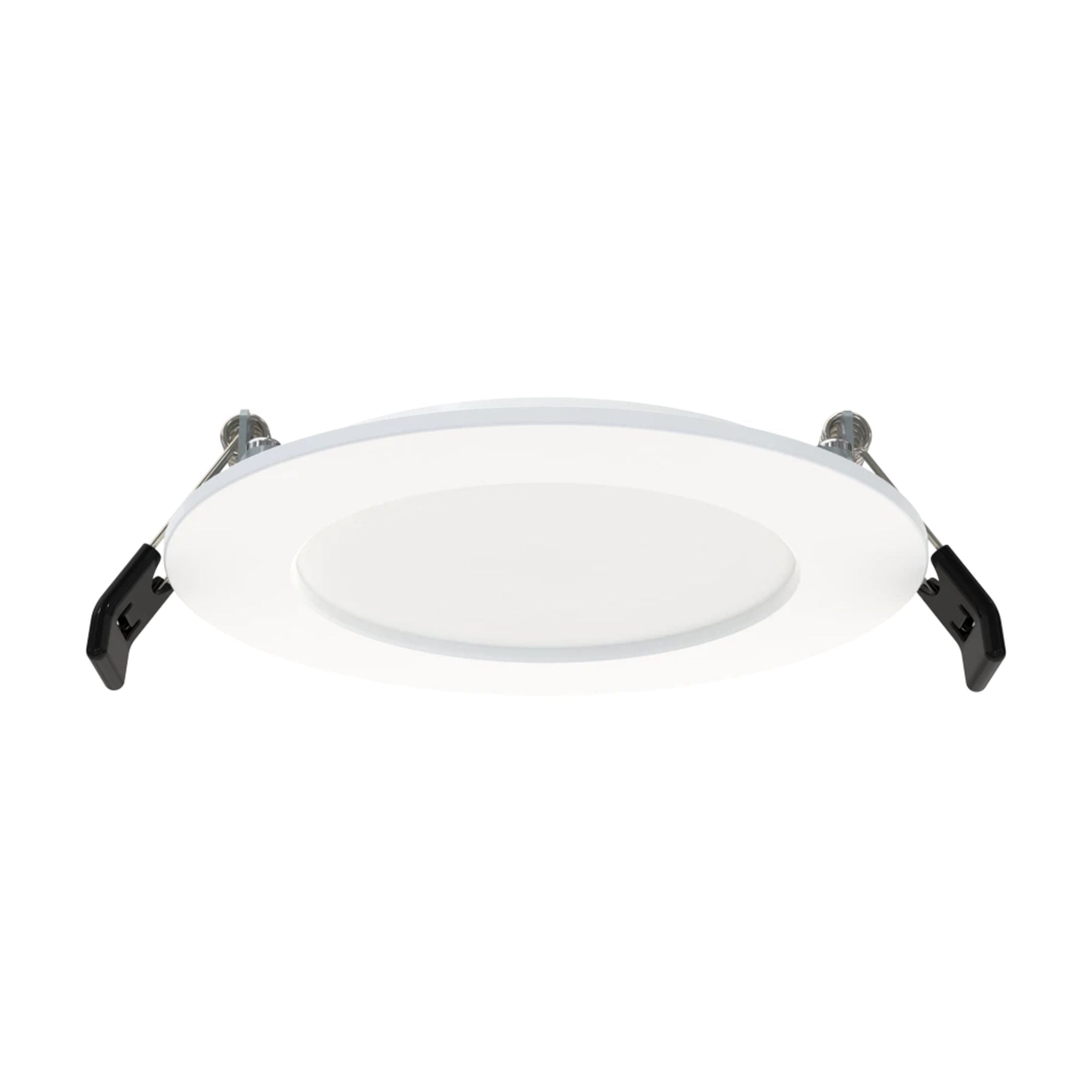

4 in round LED downlight with smooth white trim and black mounting brackets
4 in round recessed downlight with smooth white trim and black mounting clips
4 in. baffle round downlight with white trim and black mounting clips

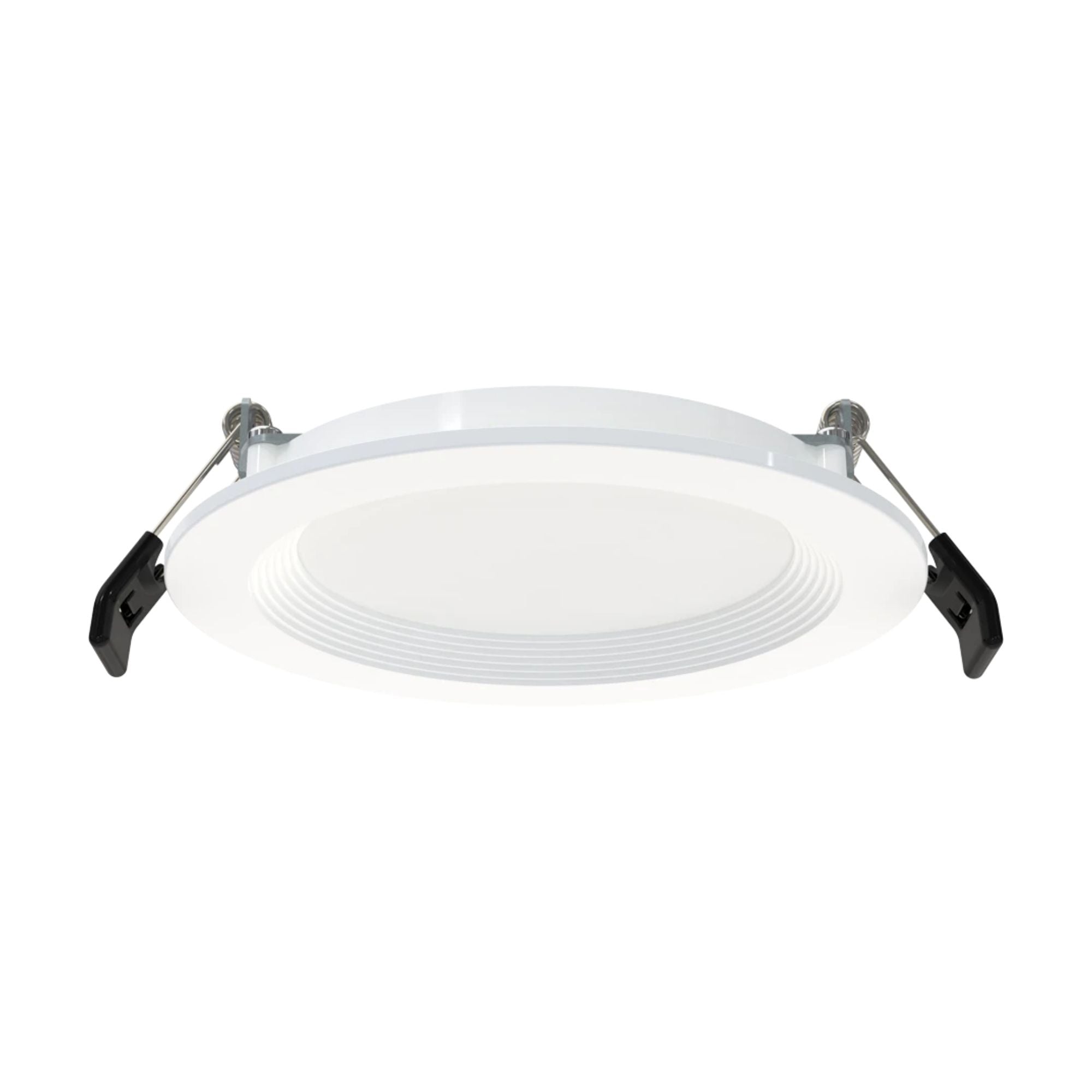

4 in round baffle downlight with white trim and black spring brackets

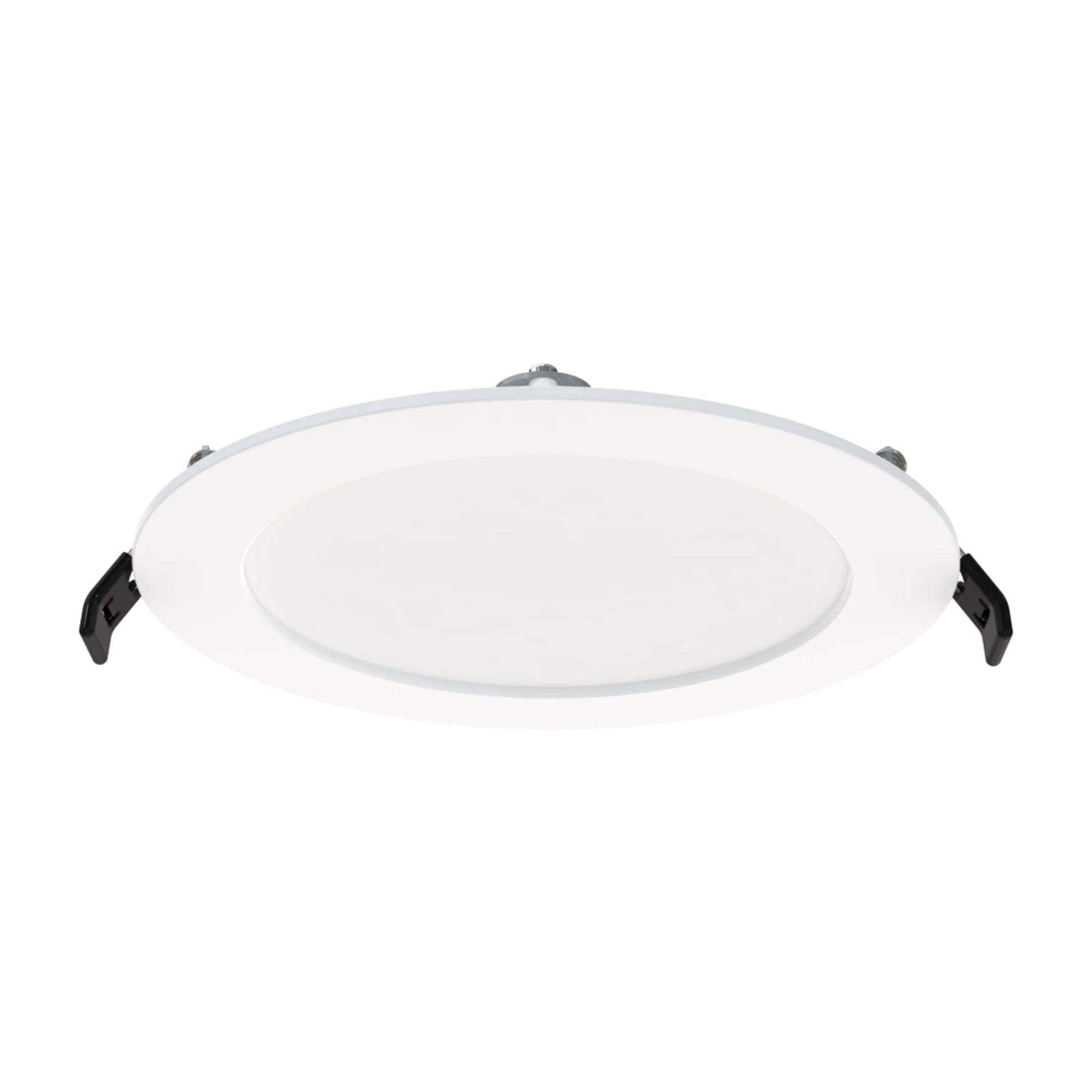

White 6 in smooth round downlight with adjustable mounting clips
6 in smooth round recessed downlight with white trim and black spring clips
6-inch white baffle round downlight with recessed trim and black mounting clips

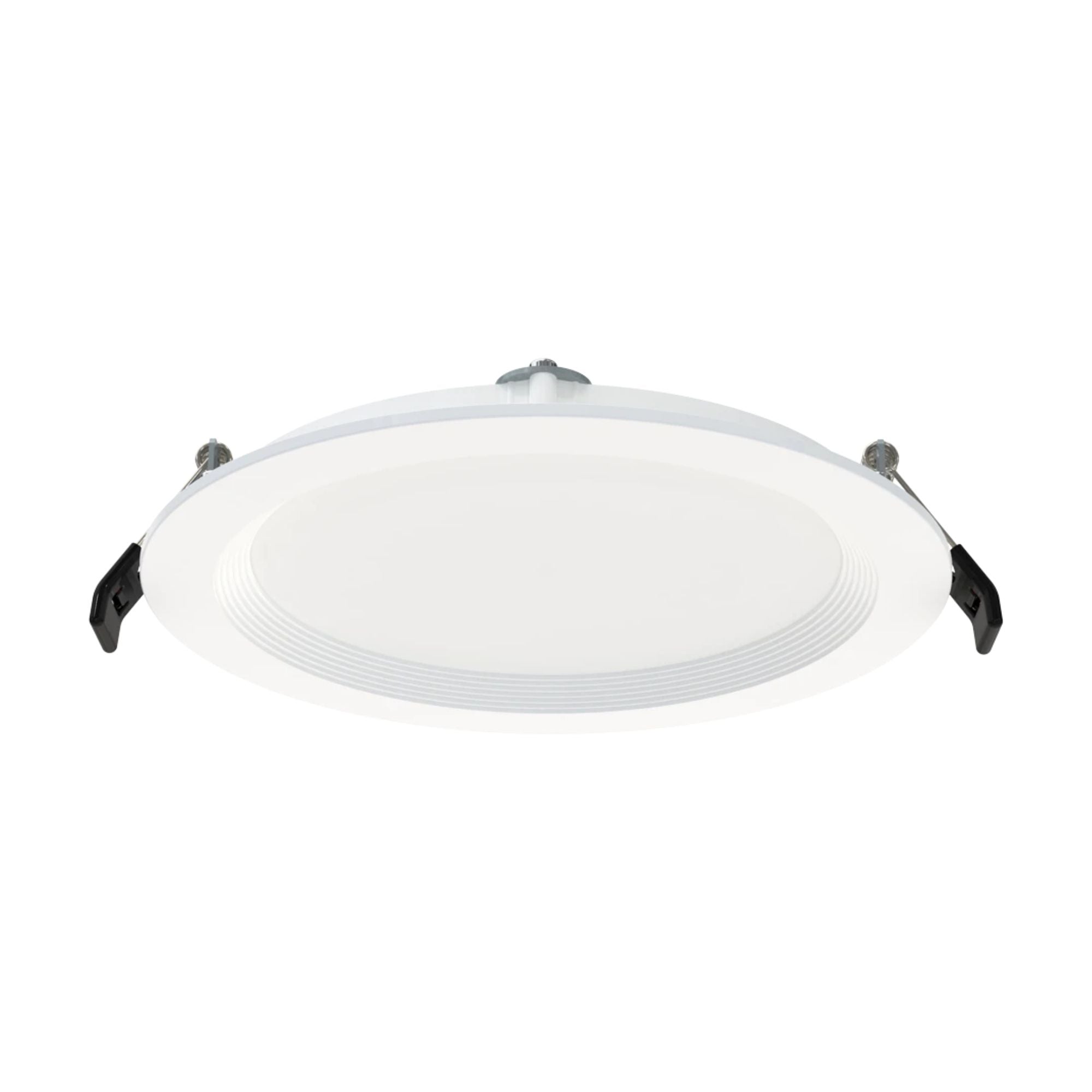

6-inch baffle round downlight with white trim, recessed ceiling fixture
4 in LED downlight trim with spring clips and compact gray driver housing

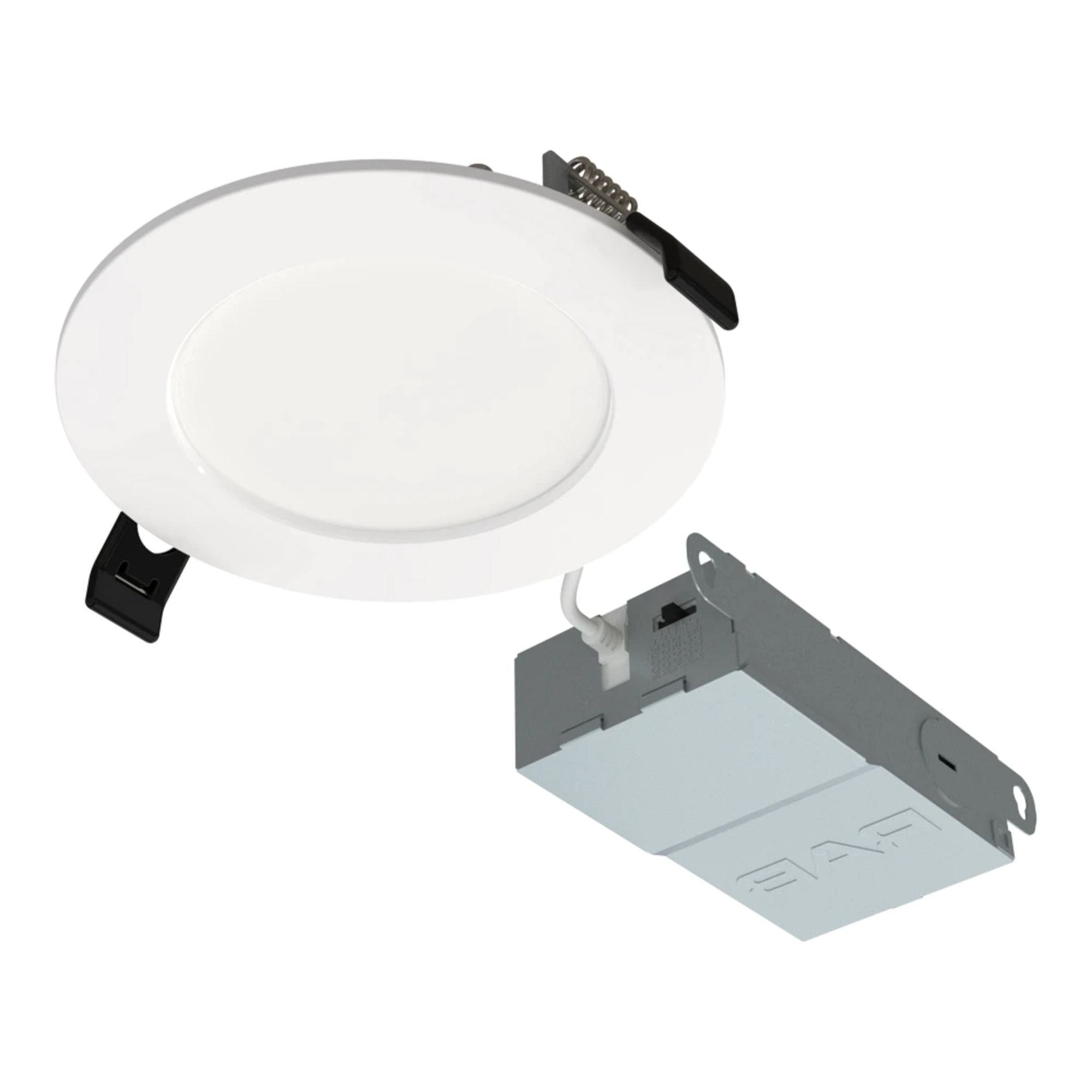

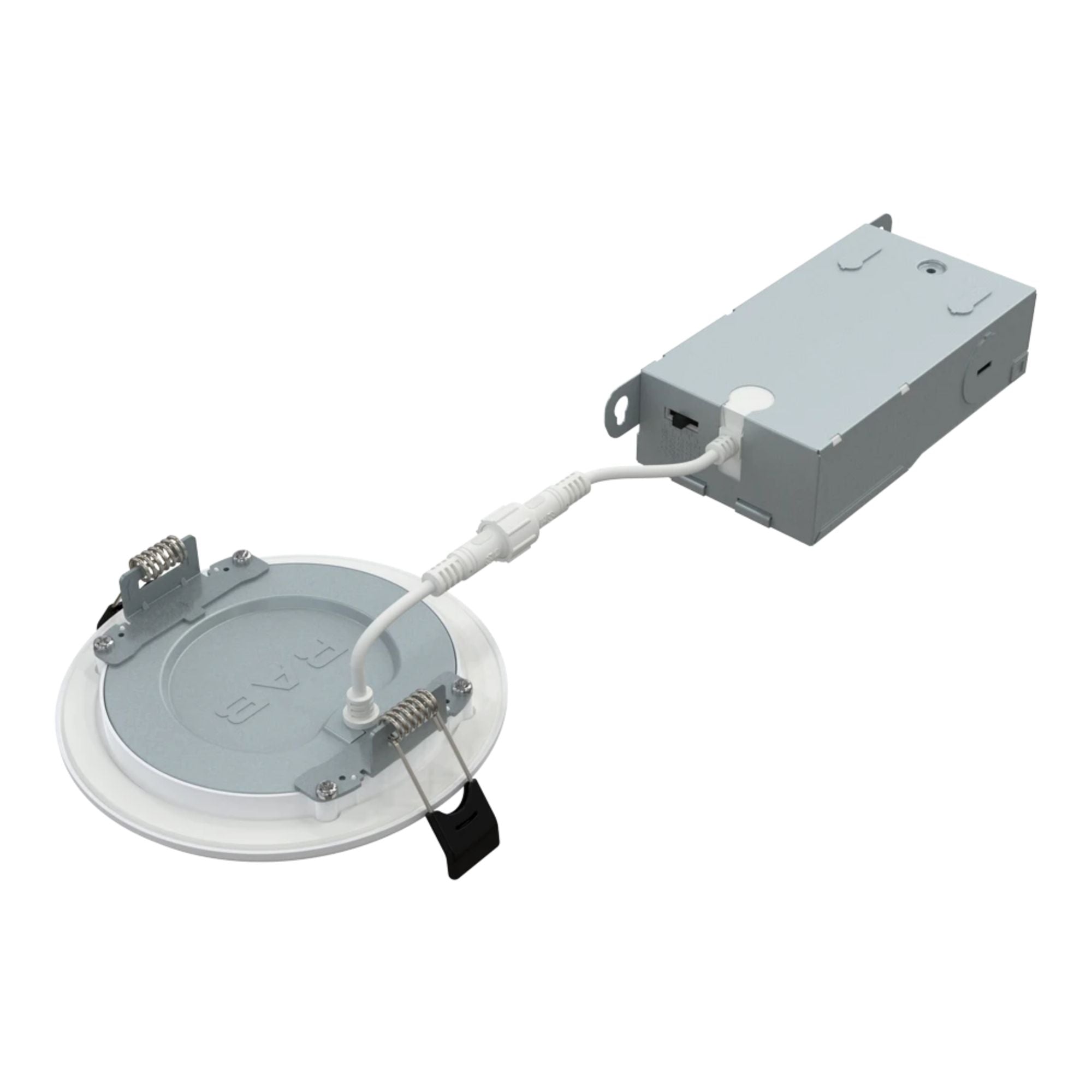

LED downlight module with white trim ring, driver housing, and connector cable

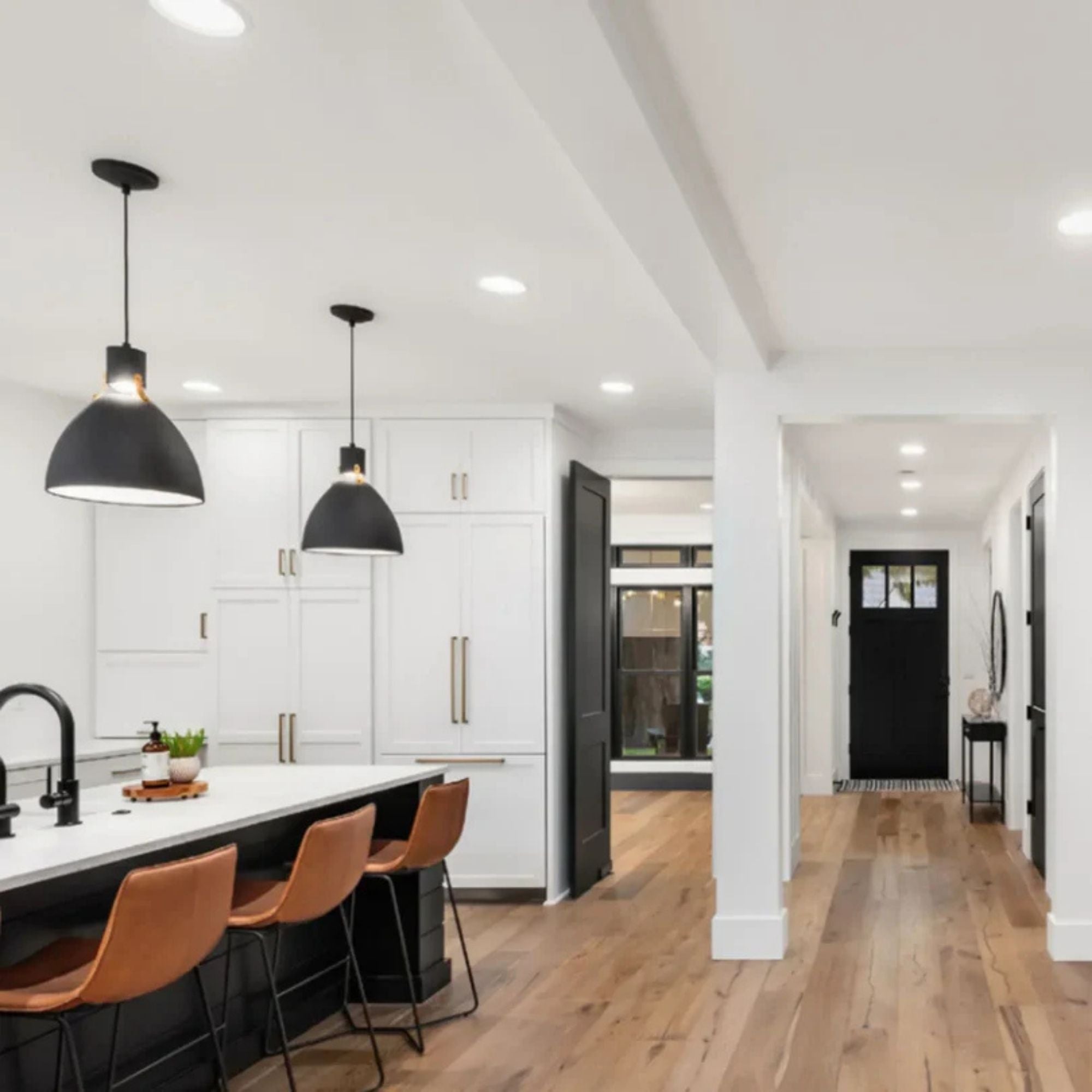

Ceiling LED downlight installed in a modern kitchen with smooth white trim
4 in round LED downlight with smooth white trim and black mounting brackets
4 in round recessed downlight with smooth white trim and black mounting clips
4 in. baffle round downlight with white trim and black mounting clips
4 in round baffle downlight with white trim and black spring brackets
White 6 in smooth round downlight with adjustable mounting clips
6 in smooth round recessed downlight with white trim and black spring clips
6-inch white baffle round downlight with recessed trim and black mounting clips
6-inch baffle round downlight with white trim, recessed ceiling fixture
4 in LED downlight trim with spring clips and compact gray driver housing
LED downlight module with white trim ring, driver housing, and connector cable
Ceiling LED downlight installed in a modern kitchen with smooth white trim

RAB WFR34 4 6 in Canless LED Wafer Downlight Smooth Baffle Selectable CCT 120V White

Vendor: RAB Lighting

SKU: WFR34-4

$15.00
$0.00
Shipping calculated at checkout.
Size: 4"
Trim Type: Smooth
Quantity: Single

Available in stock (100)

  • Estimated delivery: Oct 26 - Oct 30
  • Free Shipping Over $99
  • 60 Days Returns
Must be ordered in quantities of .
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

RAB WFR34 4 & 6 in Round Canless LED Wafer Downlight — Smooth & Baffle / Selectable CCT / 9–13W / TRIAC/ELV / 120V / White

The RAB WFR34 series is a canless LED wafer downlight available in four configurations: 4 in and 6 in, smooth and baffle trim. Each fixture includes a pre-wired remote driver/junction box — no recessed housing required. Field-adjustable CCT via dip switch: 2700K, 3000K, 3500K, 4000K, or 5000K. All models are TRIAC/ELV dimmable to 10%, wet rated, IC rated, CRI 90, R9 >50. CA T24 JA8 Compliant. UL Listed. TAA Compliant. 3-year limited warranty. L70: 30,000 hours. Available as single units or contractor bulk packs of 12.

Model Selection Guide

  • WFR34-4 — 4 in | Smooth | Single unit | 9W | 547–653 lm | cert DLW0146(WFR34-4)
  • WFR34-4/BP — 4 in | Smooth | Bulk pack of 12 | 9W | 547–653 lm
  • WFR34-4B — 4 in | Baffle | Single unit | 9W | 535–631 lm | cert DLW0147(WFR34-4B)
  • WFR34-4B/BP — 4 in | Baffle | Bulk pack of 12 | 9W | 535–631 lm
  • WFR34-6 — 6 in | Smooth | Single unit | 13W | 897–1040 lm | cert DLW0148(WFR34-6)
  • WFR34-6/BP — 6 in | Smooth | Bulk pack of 12 | 13W | 897–1040 lm
  • WFR34-6B — 6 in | Baffle | Single unit | 13W | 865–990 lm | cert DLW0149(WFR34-6B)
  • WFR34-6B/BP — 6 in | Baffle | Bulk pack of 12 | 13W | 865–990 lm

Key Features

  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K — field adjustable via dip switch at installation
  • CRI: 90 | R9: >50 | Beam Angle: 110°
  • Dimming: TRIAC/ELV — dims to 10%. See RAB Dimmer Compatibility List. No 0-10V support.
  • Voltage: 120V / 60Hz
  • Power Factor: 0.9 | THD: <20% | Flicker: <30%
  • Color Consistency: <5-step MacAdam (2700K/5000K); <7-step (3000/3500/4000K)
  • Finish: White | Lens: Frosted polycarbonate | Construction: Plastic + Metal
  • Driver/J-box: Aluminum, captive hinged cover, 2-in/2-out + (2) ground, integral keyhole mounting slots, quick disconnect
  • Ratings: Wet rated, IC rated, not airtight — not for direct contact with spray foam insulation
  • Certifications: CA T24 JA8 Compliant, CEC Lawful for Sale in CA, UL Listed, TAA Compliant, NEC Compliant (Sec. 410.16), FCC Compliant, RoHS Compliant, IESNA LM-79/LM-80 Tested
  • Lifespan & Warranty: 30,000 hours L70 — 3-year limited warranty (light output, driver, paint finish)

Construction & Design

Round, white finish, frosted polycarbonate diffuser, plastic and metal construction. Available in smooth and baffle trim styles. Dead front non-metallic trim; aluminum back plate for heat dissipation. Wet rated and IC rated. Not airtight. Not for use in direct contact with spray foam insulation. Remote driver/J-box includes quick disconnect for tool-free fixture removal.

Light Output & Performance

4 in models deliver 535–653 lm at 9W (varies by trim and CCT), CRI 90, R9 >50, 110° beam. 6 in models deliver 865–1040 lm at 13W (varies by trim and CCT), CRI 90, R9 >50, 110° beam. Selectable CCT 2700K–5000K via dip switch. L70: 30,000 hours.

Electrical & Installation

120V / 60Hz. TRIAC/ELV dimming to 10% — consult RAB Dimmer Compatibility List. PF 0.9; THD <20%; flicker <30%; op temp: -20°C (-4°F) to +40°C (+104°F). Canless — no recessed housing required. Mounts directly to building structure or new construction frame via integral keyhole slots. Mounting frames sold separately.

Compatible Accessories (Sold Separately)

  • 4–6 in Goof Ring Round White: RAB WFRL-GOOF-4R-6R-W
  • 6–8 in Goof Ring Round White: RAB WFRL-GOOF-6R-8R-W
  • 4 in Color Trim Round Black Smooth: RAB WFRL-TRIM-4R-BS
  • 4 in Color Trim Round Bronze Smooth: RAB WFRL-TRIM-4R-BRS
  • 4 in Color Trim Round Brushed Nickel Smooth: RAB WFRL-TRIM-4R-BNS
  • 6 in Color Trim Round Black Smooth: RAB WFRL-TRIM-6R-BS
  • 6 in Color Trim Round Bronze Smooth: RAB WFRL-TRIM-6R-BRS
  • 6 in Color Trim Round Brushed Nickel Smooth: RAB WFRL-TRIM-6R-BNS
  • 3–4–5–6 in Mounting Plate w/Nailer Bar: RAB DLPLATE/WFR3456NB
  • 3–4–5–6 in Mounting Plate: RAB DLPLATE/WFR3456
  • 4 in Mounting Plate w/Nailer Bar & Drywall Collar: RAB DLPLATE/WFR4/NB/CL
  • 4 in Mounting Plate: RAB DLPLATE/WFR4
  • 6 in Mounting Plate w/Nailer Bar & Drywall Collar: RAB DLPLATE/WFR6/NB/CL
  • 6 in Mounting Plate: RAB DLPLATE/WFR6

Typical Applications

  • Residential new construction and remodel
  • Bathrooms, kitchens, and wet locations
  • Living areas, bedrooms, and hallways
  • Multi-family and light commercial applications

What’s Included

  • RAB WFR34 canless LED wafer downlight with remote driver/J-box (white) — in selected size, trim style, and pack quantity

Frequently Asked Questions

What location rating do the RAB WFR34 downlights carry?
Yes — all RAB WFR34 models are wet location rated and IC rated for direct contact with air-permeable insulation. They are not airtight certified and not for use in direct contact with spray foam insulation. Suitable for dry, damp, and wet environments.

Are the RAB WFR34 downlights compatible with standard wall dimmers?
Yes — all RAB WFR34 models support TRIAC/ELV dimming and dim to 10% on compatible systems. Consult RAB’s Dimmer Compatibility List for approved dimmers. They do not support 0-10V dimming.

Do the RAB WFR34 downlights require a recessed housing for installation?
No — all RAB WFR34 models are canless wafer downlights that include a pre-wired remote driver/junction box. No recessed housing is required. They mount directly to a building structure or new construction mounting frame via integral keyhole slots. Mounting frames are sold separately.

What is the difference between smooth and baffle trim on the RAB WFR34?
Yes — smooth trim (WFR34-4, WFR34-6) features a flat interior for a clean, architectural look. Baffle trim (WFR34-4B, WFR34-6B) features a ribbed interior that reduces glare, making it ideal for living areas and bedrooms. Both trim styles are available in single units and bulk packs of 12.

Are the RAB WFR34 downlights California Title 24 JA8 compliant?
Yes — all RAB WFR34 models can be used to conform with the requirements of California Title 24 Part 6 (JA8 compliant). Cert model numbers: DLW0146(WFR34-4) for smooth 4 in, DLW0147(WFR34-4B) for baffle 4 in, DLW0148(WFR34-6) for smooth 6 in, DLW0149(WFR34-6B) for baffle 6 in. All models are also CEC Lawful for Sale in California, UL Listed, TAA Compliant, FCC Compliant, and RoHS Compliant.
