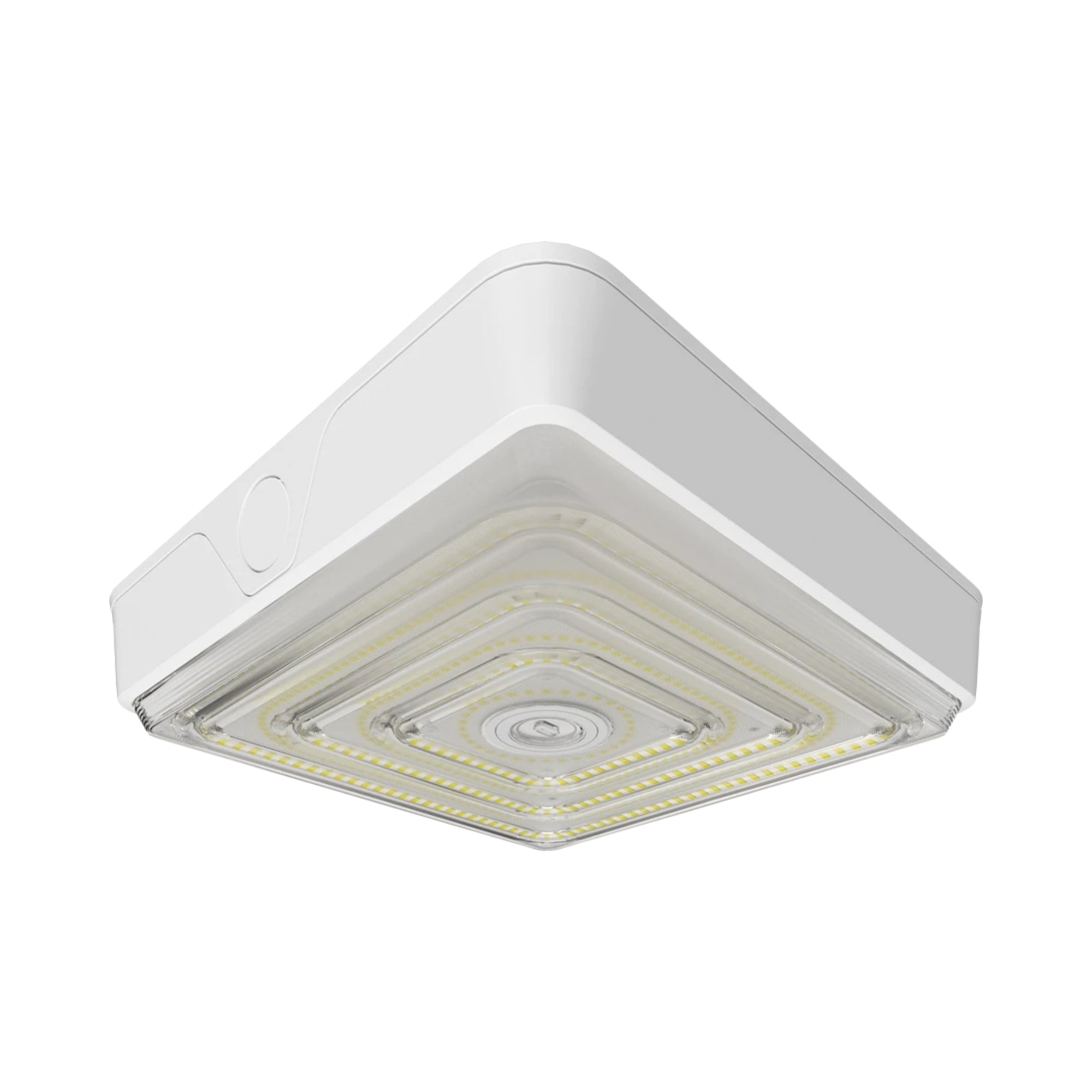

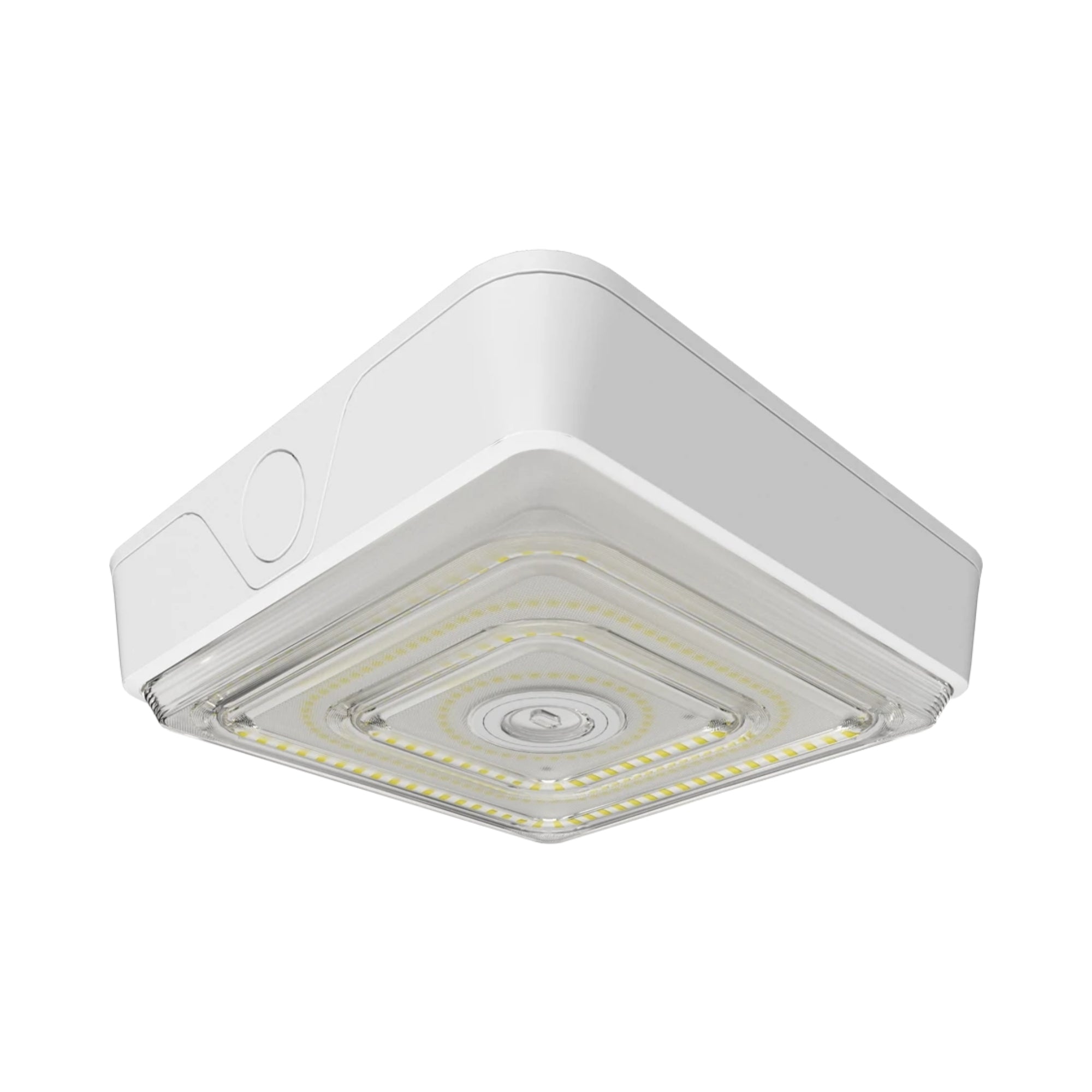

RAB VAN40/VAN40W/VAN75/VAN75W Field Adjustable LED Canopy Light Selectable Wattage & Optics 120-277V Bronze/White
Available in stock (100)
-
Estimated delivery: Jul 12 - Jul 18
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB VAN40 / VAN40W / VAN75 / VAN75W Field-Adjustable LED Canopy Light — Selectable Wattage, Optics & CCT Series
The RAB VAN40 and VAN75 are professional-grade, field-configurable LED canopy lights engineered for commercial parking garages, gas station canopies, and covered entryways. Available in 40W (selectable 20W/30W/40W) and 75W (selectable 40W/55W/75W) configurations with a universal 120-277V driver and finish choices of Bronze or White, the VAN series delivers up to 11,247 lumens at up to 153 lm/W efficacy. Field-switchable optics (tight canopy or wide garage distribution) and selectable CCT (3000K/4000K/5000K) allow on-site configuration without rewiring or ordering a new fixture.
Key Features
- Field-Selectable Wattage: VAN40 adjustable to 20W or 30W; VAN75 adjustable to 40W or 55W — dial in the right output on-site.
- Switchable Optics: Field-configurable tight canopy or wide garage light distribution via external switch — no tools or internal wiring required.
- Selectable CCT: Choose 3000K (warm), 4000K (neutral), or 5000K (daylight) in the field via external switch.
- Housing Material: Precision die-cast aluminum with durable bronze or white powder coat finish.
- Environmental Rating: IP66 rated — fully sealed against dust and high-pressure water jets.
- Impact Rating: IK08 rated — protected against 5 joules of impact for high-abuse environments.
- Surge Protection: Built-in 6kV surge suppression for reliable performance on commercial power grids.
- Dimming Protocol: Standard 0-10V continuous dimming compatible with automated controls.
- Sensor Ready: Integrated sensor port for optional PIR20 or MVS20 motion sensors (sold separately) — no fixture modification required.
- Lifespan: 100,000-hour L70 rated lifespan.
- Operating Temperature: Rated up to 122°F (50°C).
- Warranty: 10-year limited warranty.
Typical Applications
- Commercial parking garages and multi-level parking structures.
- Gas station canopies and covered fueling plazas.
- Exterior entryways and secure perimeter walkways.
- High-abuse public transit stations and terminals.
- General commercial overhead canopy lighting.
Performance & Light Output
All VAN models deliver selectable 3000K/4000K/5000K color temperature with 83–85 CRI for accurate color rendering in covered outdoor environments. Efficacy reaches up to 153 lm/W on the 75W model.
- VAN40 / VAN40W — 40W / 120-277V: up to 5,696 lumens | 142 lm/W | 9.88″ × 9.88″ × 2.56″ H
- VAN75 / VAN75W — 75W / 120-277V: up to 11,247 lumens | 153 lm/W | 11.81″ × 11.81″ × 2.56″ H
Field-Selectable Wattage
External wattage switches allow contractors and facility managers to reduce power consumption on-site without replacing the fixture. The VAN40 can be set to 20W (2,687 lm) or 30W; the VAN75 can be set to 40W or 55W. This flexibility supports phased energy reduction programs and simplifies inventory management across multi-site projects.
Switchable Optics
The VAN series features a field-switchable optical assembly accessible via an external switch. Select tight canopy distribution for focused downlighting in low-ceiling canopy applications, or wide garage distribution for broader coverage in open parking structures — all without opening the fixture or modifying wiring.
Electrical & Controls
Each fixture is equipped with a high-performance 120-277V universal driver providing reliable constant-current power regulation across standard commercial grids. Standard 0-10V dimming enables integration with occupancy sensors and daylight harvesting systems. Built-in 6kV surge protection and an integrated auxiliary power supply ensure stable operation. The integrated sensor port supports optional PIR20 and MVS20 motion sensors for advanced lighting management without fixture modification.
Construction & Durability
The VAN series housing is constructed from precision die-cast aluminum sealed with EPDM gaskets and protected by a polycarbonate lens, achieving an IP66 rating for complete protection against dust and water ingress. The IK08 impact rating (5 joules) guards against vandalism and mechanical stress in high-traffic environments. Operating temperature is rated up to 122°F (50°C). Dimensions: VAN40 — 9.88″ L × 9.88″ W × 2.56″ H; VAN75 — 11.81″ L × 11.81″ W × 2.56″ H.
Installation & Mounting
Designed for direct surface mounting in canopy and garage ceiling applications. Includes a retrofit ceiling mounting plate to simplify and expedite installation. External switches for wattage, CCT, and optics allow full on-site configuration without internal wiring adjustments.
What's Included
- RAB VAN Field-Adjustable LED Canopy Light Fixture
- Retrofit Ceiling Mounting Plate
