RAB T17FA Field-Adjustable LED Troffer — 2×2 / 1×4 / 2×4 — 3500K/4000K/5000K — White
The RAB T17FA series are field-adjustable LED troffers available in three sizes — 2×2, 1×4, and 2×4 — with field-selectable wattage and field-selectable color temperature (3500K, 4000K, or 5000K). The 2×2 and 1×4 models offer 40/30/20W selectable; the 2×4 offers 50/40/30W selectable. All models support 0–10V dimming (10–100%), operate on 120–277V, are rated for damp locations, and are DLC Listed. Each size is available with factory-installed battery backup (/E) providing 90 minutes of emergency illumination at 120V or 277V. Backed by a 5-year limited warranty. Ships at maximum wattage and 4000K default.
Key Features
- Selectable Wattage (2×2 & 1×4): Field-selectable 40W, 30W, or 20W. Ships at 40W. No rewiring required.
- Selectable Wattage (2×4): Field-selectable 50W, 40W, or 30W. Ships at 50W. No rewiring required.
- Selectable CCT: 3500K, 4000K (default), or 5000K — field-adjustable at the fixture without tools. Complies with ANSI C78.377-2017.
- Maximum Lumen Output: T17FA-2X2 — 5,038 lm · T17FA-1X4 — 5,142 lm · T17FA-2X4 — 6,521 lm (all at 4000K max wattage).
- Peak Efficacy: T17FA-2X2 — 144.5 lm/W · T17FA-1X4 — 147.2 lm/W · T17FA-2X4 — 147.3 lm/W.
- CRI: 81–85 (varies by size, CCT, and wattage).
- Dimming: 0–10V continuous dimming, range 10–100%. Requires separate 0–10V DC dimming circuit. Driver: Class 2, Class P, Constant Current.
- Voltage: 120–277V, 50/60Hz. Surge protection: Ring-wave 2.5kV.
- Location Rating: UL Listed — Damp Location Rated.
- IP Rating: IP20.
- Operating Temperature: −20°C to 45°C (−4°F to 113°F). Min. starting temp with battery: 0°C (32°F).
- Certifications: UL Listed — DLC Listed — IESNA LM-79 & LM-80 tested — RoHS. Mercury-free. UV-free.
- Rated Life: 100,000 hours (L70, IES LM-80 / TM-21).
- Warranty: 5-year limited warranty covering light output, driver performance, and paint finish.
- Battery Backup (/E): Factory-installed 90-minute emergency backup at 120V or 277V on power failure. Min. starting temp: 0°C (32°F). Max ambient with battery: 45°C (113°F). Select “Yes” under Battery Backup to order /E variants.
Performance & Light Output — T17FA-2X2 & T17FA-1X4
Lumen output per wattage and CCT per spec sheet. LLF = Emergency Light Loss Factor.
| Model | Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens | Peak lm/W | LLF |
|---|---|---|---|---|---|---|
| T17FA-2X2 | 40W | 4,613 lm | 5,038 lm | 4,820 lm | 137.7 | 0.31 |
| T17FA-2X2 | 30W | 3,777 lm | 4,079 lm | 3,960 lm | 141.6 | 0.38 |
| T17FA-2X2 | 20W | 2,757 lm | 2,933 lm | 2,889 lm | 144.5 | 0.50 |
| T17FA-1X4 | 40W | 4,705 lm | 5,142 lm | 4,930 lm | 140.5 | 0.31 |
| T17FA-1X4 | 30W | 3,863 lm | 4,168 lm | 4,046 lm | 144.2 | 0.38 |
| T17FA-1X4 | 20W | 2,812 lm | 2,989 lm | 2,959 lm | 147.2 | 0.50 |
Performance & Light Output — T17FA-2X4
| Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens | Peak lm/W | LLF |
|---|---|---|---|---|---|
| 50W | 6,080 lm | 6,521 lm | 6,193 lm | 138.7 | 0.25 |
| 40W | 5,201 lm | 5,540 lm | 5,301 lm | 143.2 | 0.28 |
| 30W | 4,031 lm | 4,243 lm | 4,103 lm | 147.3 | 0.36 |
CRI: 81–85 (varies by size, CCT, and wattage). Rated life: L70 100,000 hours (IES LM-80 / TM-21). Tested per IESNA LM-79 & LM-80.
Electrical
Driver: Class 2, Class P, Constant Current. Input voltage: 120–277V, 50/60Hz. Surge protection: Ring-wave 2.5kV. Dimming: 0–10V continuous, range 10–100% — requires separate 0–10V DC dimming circuit. Battery backup (/E models): 90 minutes at 120V or 277V on power failure; min. starting temp: 0°C (32°F); max ambient: 45°C (113°F). Mercury-free. UV-free. RoHS-compliant components.
Power factor and THD by size:
- T17FA-2X2: PF 99.5% / 97.2% (120V / 277V) · THD 7.9% / 3.4%
- T17FA-1X4: PF 99.4% / 96.7% (120V / 277V) · THD 7.8% / 3.9%
- T17FA-2X4: PF 99.3% / 97.1% (120V / 277V) · THD 11.2% / 3.9%
Construction
Housing: Aluminum frame and cold rolled steel back housing.
Lens: Frosted Polystyrene (PS).
Reflector: Powder-coated sheet metal.
Finish: White. Formulated for high durability and long-lasting color.
Environmental & Safety: UL Listed — Damp Location Rated — IP20.
Dimensions & Weight by Size:

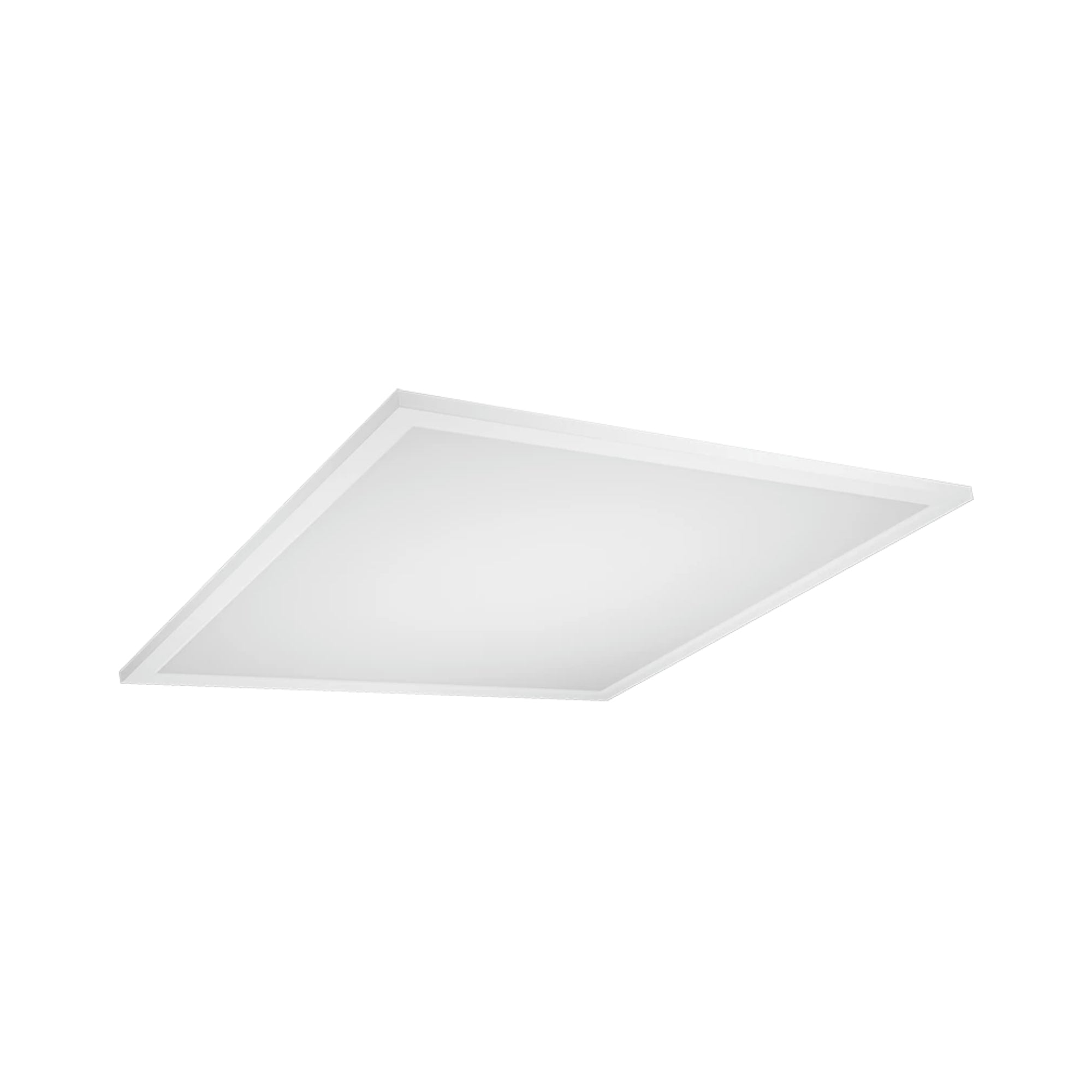

- 2×2: 23¾″ L × 23¾″ W × 1⅜″ H — 3.97 lbs

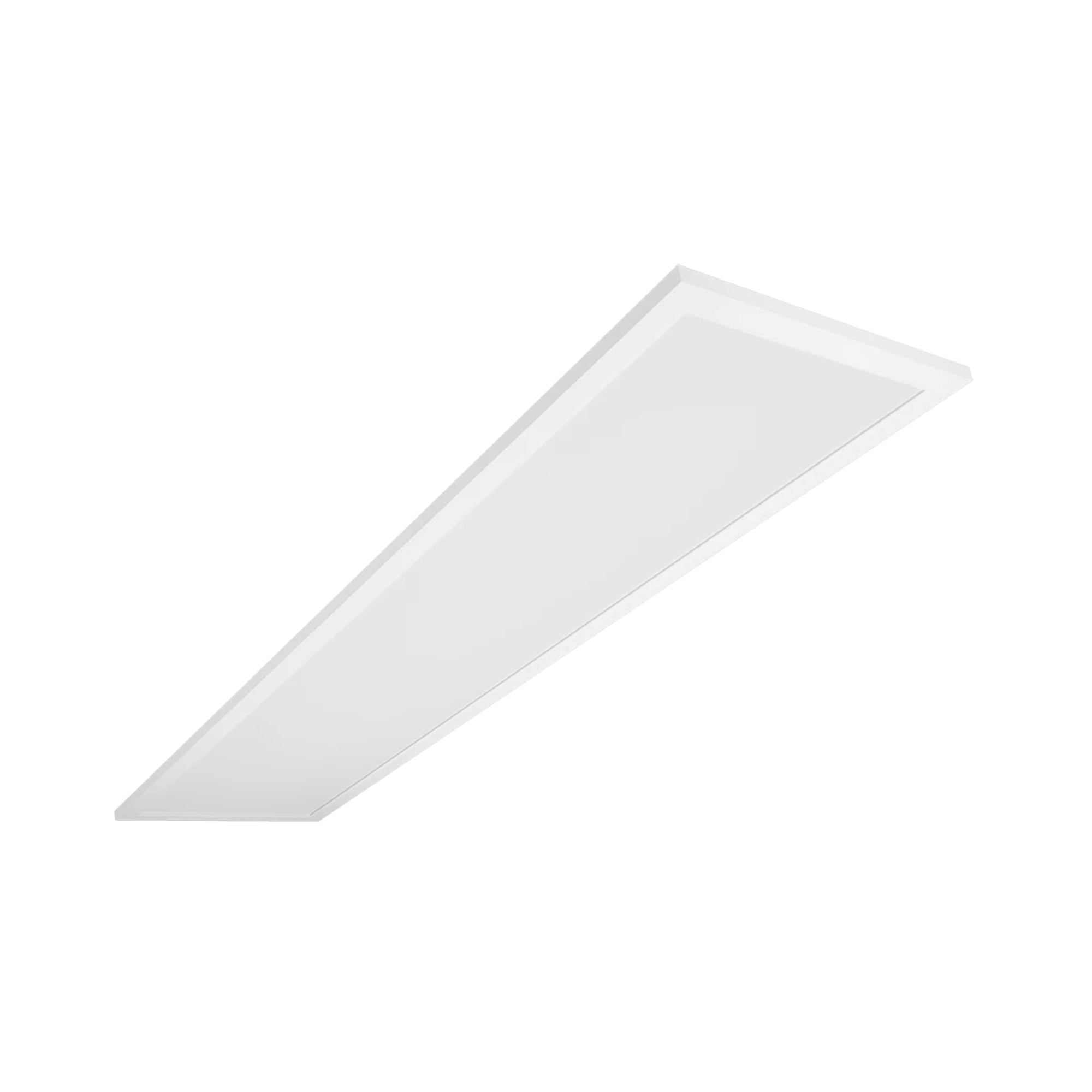

- 1×4: 47¾″ L × 11¹⁵⁄₁₆″ W × 1⅜″ H — 4.19 lbs

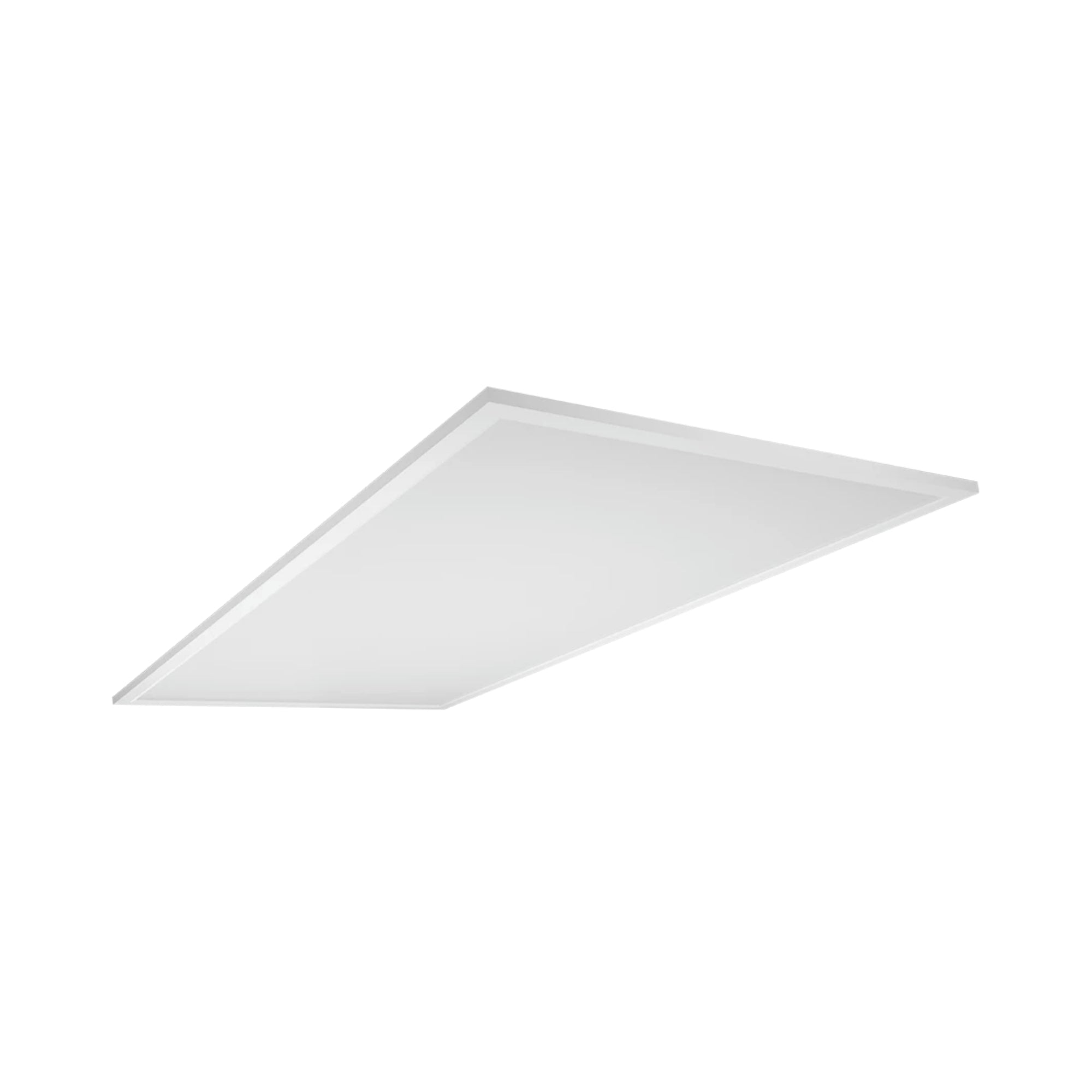

- 2×4: 47¾″ L × 23¾″ W × 1⅜″ H — 7.28 lbs
Installation & Mounting
Standard Mounting: Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
Optional Mounting Accessories (Sold Separately):
- RMKPANEL2X2 / RMKPANEL1X4 / RMKPANEL2X4 — LPANEL Recessed Mounting Kits, White
- SMKEZPAN2X2 / SMKEZPAN1X4 / SMKEZPAN2X4 — EZPAN Surface Mounting Kits, White
Certifications & Rebates
- UL Listed — Damp Location Rated
- DLC Listed — T17FA-2X2: DLC ID S-ZZ33KP
- DLC Listed — T17FA-1X4: DLC ID S-5M6KDV
- DLC Listed — T17FA-2X4: DLC ID S-GVLCC7
- All three sizes eligible for rebates from DLC Member Utilities. Visit designlights.org and search the applicable DLC ID to verify eligibility with your utility provider.
- IESNA LM-79 & LM-80 Tested
- RoHS Compliant
Typical Applications
- Corporate offices and open-plan workspaces — field-selectable wattage and CCT allow on-site tuning without re-ordering; one listing covers all three sizes with and without battery backup
- Government and institutional facilities — DLC Listed across all sizes; /E battery backup option for egress lighting compliance
- Healthcare and clinical environments — damp location rated with CRI 81–85 for consistent illumination in exam rooms, corridors, and restrooms
- Educational facilities — 2×2, 1×4, and 2×4 formats cover standard T-grid ceiling systems; CCT and wattage selectable for varied classroom requirements
- Fluorescent retrofit projects — replaces 2-lamp and 4-lamp F32T8 troffers; /E option simplifies emergency lighting compliance; 5-year warranty and L70 100,000-hour rated life
What’s Included
- RAB T17FA LED troffer fixture (size per selection) — White
- Factory-installed battery backup module (Battery Backup: Yes selections only)
