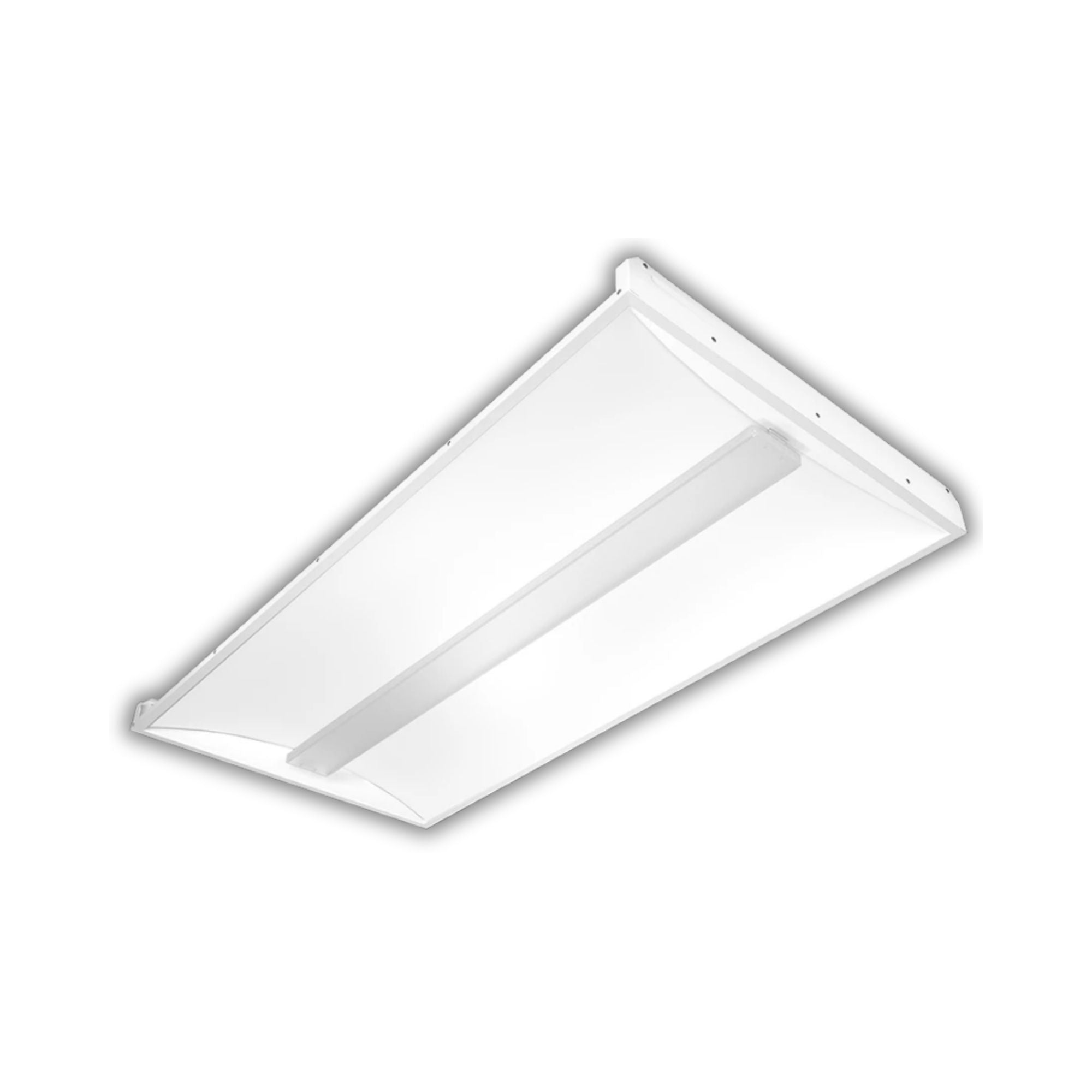

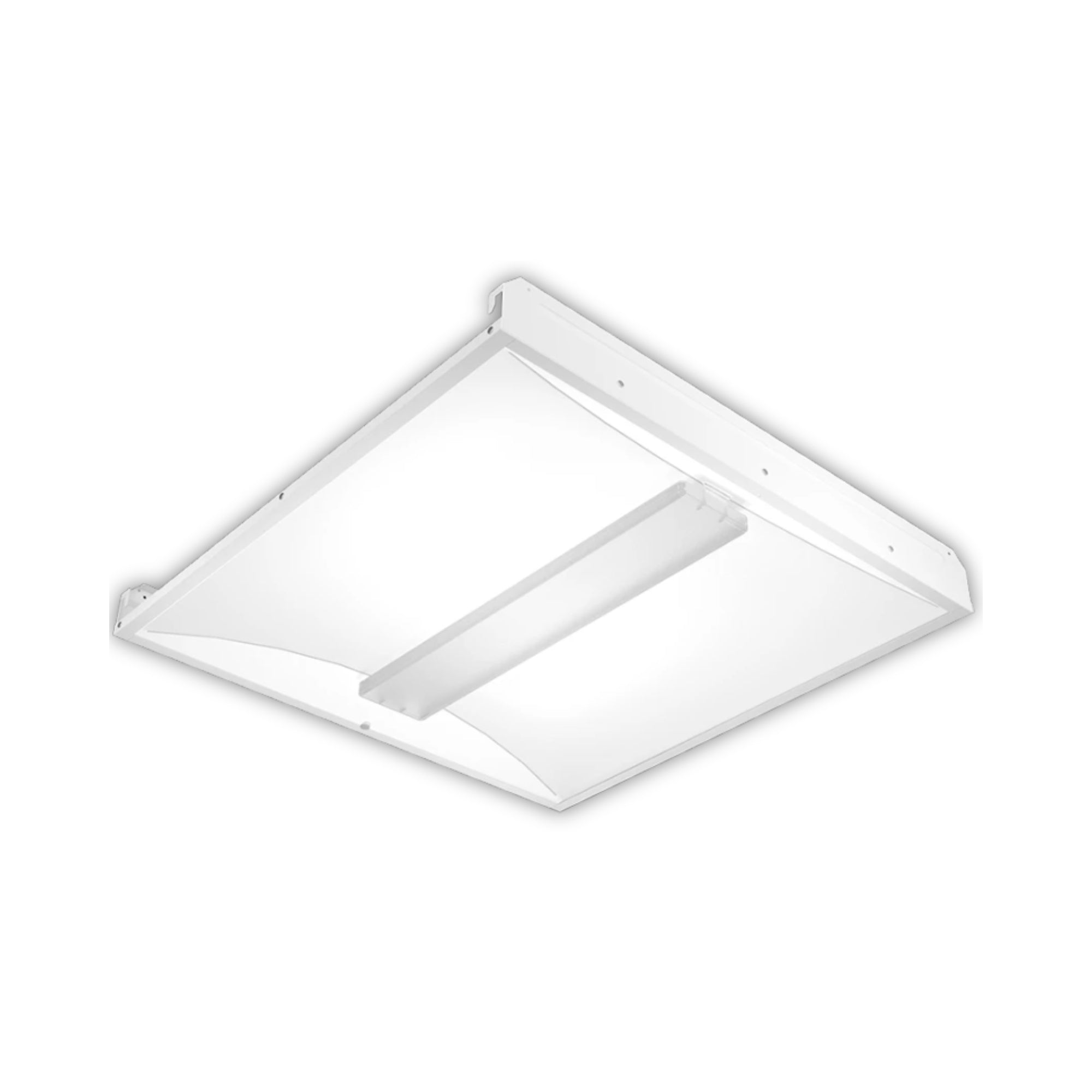

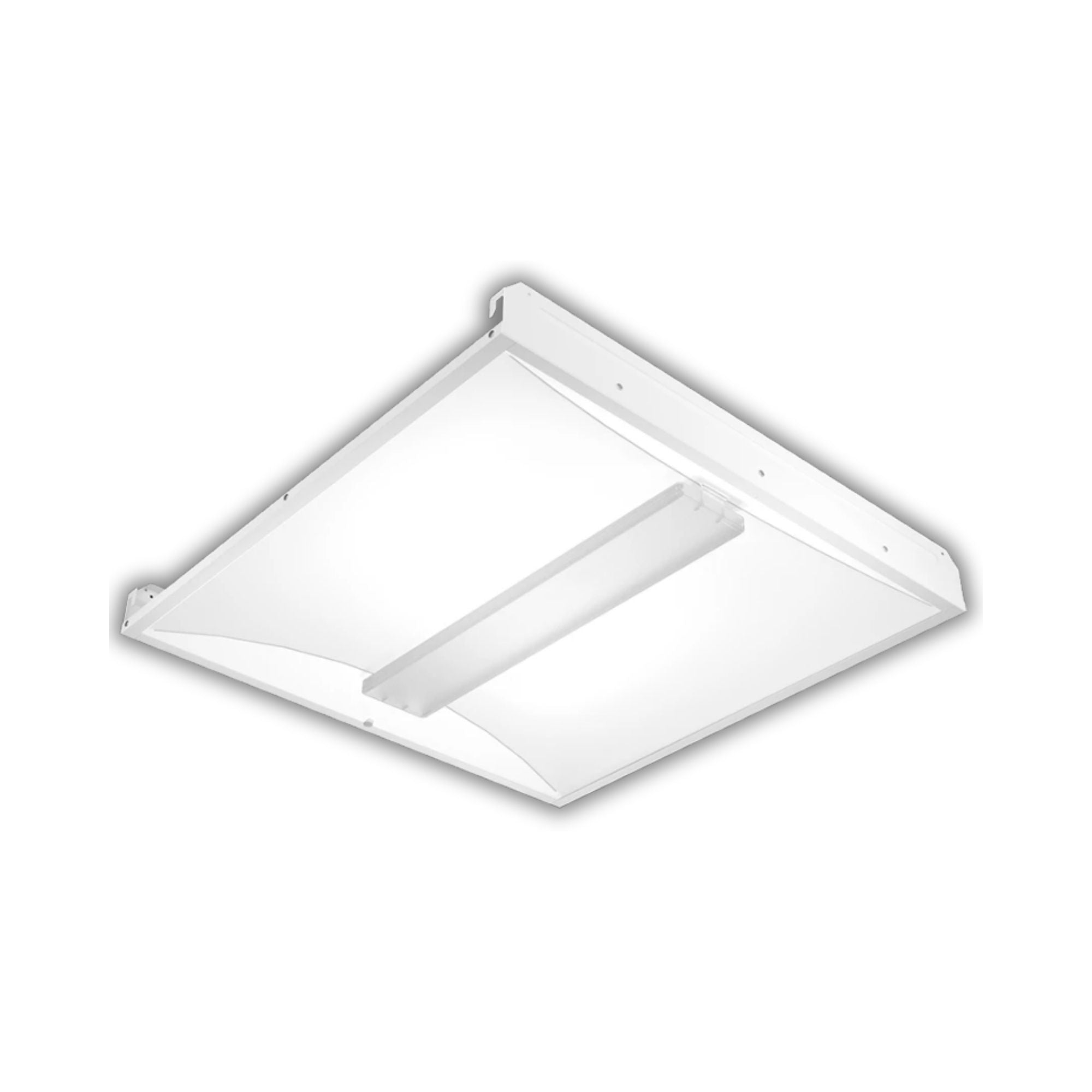

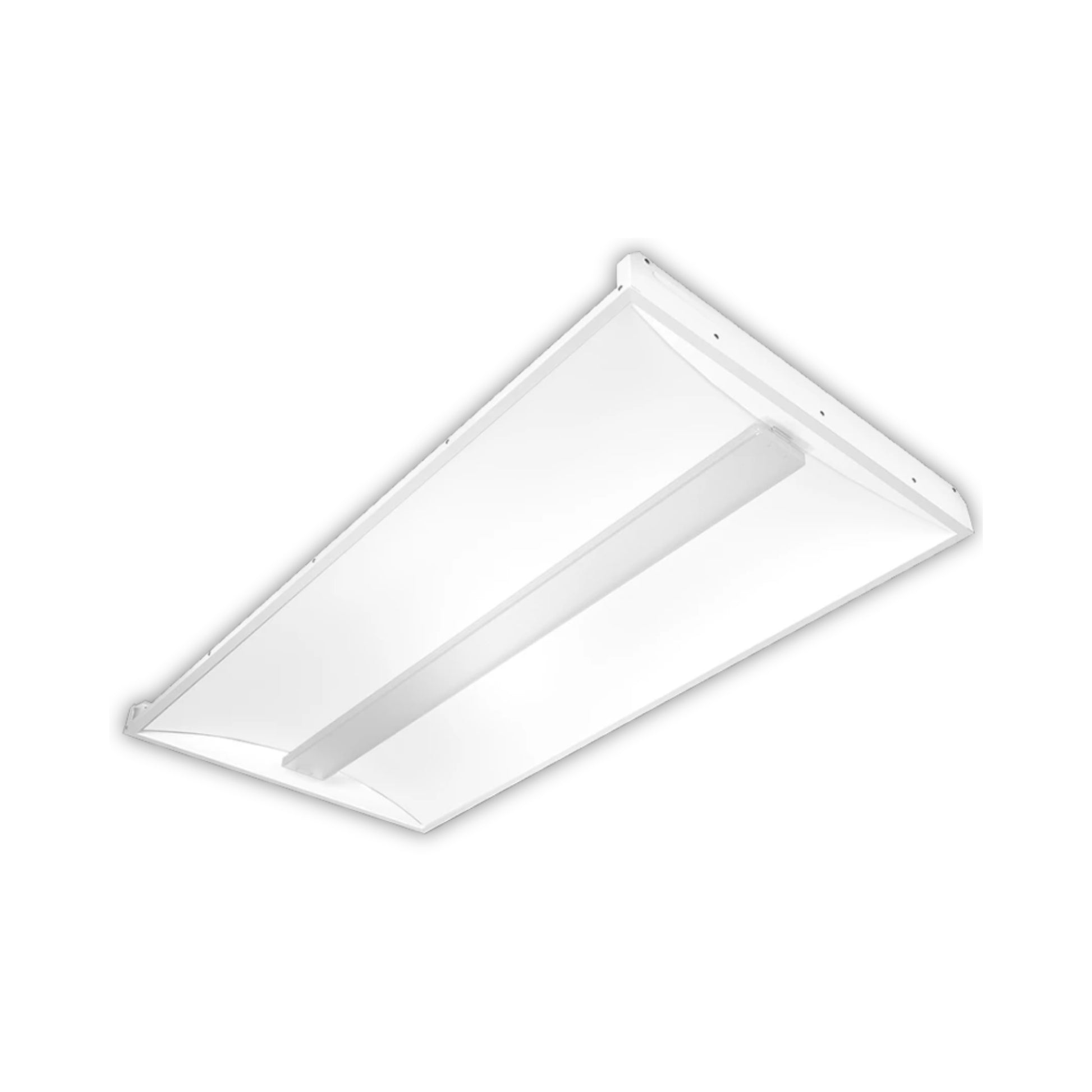

RAB SWISHFA-ISLAND Field-Adjustable LED Island Center Basket Troffer — 49W / 39W / 29W / 19W Selectable — White
Available in stock (100)
-
Estimated delivery: Oct 19 - Oct 23
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB SWISHFA-ISLAND Field-Adjustable LED Island Center Basket Troffer — 2×2 & 2×4 — 49W / 39W / 29W / 19W Selectable — White
The SWISHFA-ISLAND family delivers field-adjustable LED island center basket troffers in two sizes — 2×2 (SWISHFA-ISLAND2X2) and 2×4 (SWISHFA-ISLAND2X4) — with selectable wattage and selectable CCT of 3500K and 4000K, field-adjustable at the fixture without rewiring. The 2×2 delivers up to 4,408 lumens at 39W (factory default: 29W @ 4000K); the 2×4 delivers up to 5,561 lumens at 49W (factory default: 39W @ 4000K). Both operate on 120–277V with 0-10V dimming to 10%, are UL Listed for dry and damp locations, and are DLC Listed — individual SKU qualification (Standard or Premium) varies by configuration; refer to the DLC Qualified Products List at designlights.org and search by model number to confirm qualification status prior to specification or purchase. Battery backup (/E) variants available — select Size and Battery Backup option above. Backed by a 5-year warranty.
Key Features
- Selectable Wattage — Field-Adjustable: 2×2: 39W / 29W / 19W (default 29W) · 2×4: 49W / 39W / 29W (default 39W). Selector switch on fixture body — no rewiring required.
- Maximum Lumen Output: 2×2: 4,408 lm at 39W / 4000K · 2×4: 5,561 lm at 49W / 4000K.
- Peak Efficacy: 2×2: 126.1 lm/W at 19W / 4000K · 2×4: 125.5 lm/W at 29W / 4000K.
- CRI: 84 at 19W (2×2 only); 83 across all other wattage and CCT settings.
- Selectable CCT — 3500K / 4000K: Field-adjustable via selector switch. Factory default: 4000K. No lamp change or fixture replacement required.
- Battery Backup Option (/E): Factory-integrated 90-minute emergency backup — switches automatically upon loss of normal power. Wired for 120–277V. Meets NEC emergency lighting duration requirements.
- Dimming: 0-10V continuous dimming, dims to 10%.
- Voltage & Driver: Class 2 constant current driver, 120–277V AC, 50/60Hz.
- Location Rating: UL Listed — suitable for dry and damp locations. IC Rated. CCEA Compliant.
- Operating Temperature: Cold weather start rated to -20°C (-4°F).
- Certifications: UL Listed | DLC Listed | CCEA Compliant | IC Rated | RoHS Compliant.
- Rated Life: 100,000 hours per IES LM-80 / TM-21.
- Warranty: 5-year limited warranty covering light output, color stability, driver performance, and fixture finish.
- Control & Sensor Options: Factory-configured suffixes available — /LC · /LCS · /LCB · /MVS · and combination /E emergency backup variants. See individual SKU listings for full suffix matrix.
Performance & Light Output
2×2 (SWISHFA-ISLAND2X2):
At 19W: 2,274 lm (3500K / 123.1 lm/W), 2,274 lm (4000K / 126.1 lm/W)
At 29W: 3,373 lm (3500K / 120.9 lm/W), 3,446 lm (4000K / 123.8 lm/W)
At 39W: 4,303 lm (3500K / 116.5 lm/W), 4,408 lm (4000K / 119.4 lm/W)
2×4 (SWISHFA-ISLAND2X4):
At 29W: 3,537 lm (3500K / 123.4 lm/W), 3,579 lm (4000K / 125.5 lm/W)
At 39W: 4,623 lm (3500K / 120.1 lm/W), 4,699 lm (4000K / 122.6 lm/W)
At 49W: 5,484 lm (3500K / 116.5 lm/W), 5,561 lm (4000K / 118.8 lm/W)
CRI: 84 at 19W (2×2 only); 83 across all other settings. Rated life: 100,000 hours per IES LM-80 / TM-21.
Smart & Control Features
Both SWISHFA-ISLAND sizes support factory-configured control and sensor options, selected at time of order via model suffix. See individual SKU listings for full availability by size:
- (Blank) — Standard: 0-10V dimming only; no additional controls.
- /LC — Lightcloud® Controller: Wireless network controller for Lightcloud mesh lighting control system.
- /LCS — Lightcloud® Sensor: Integrated occupancy/vacancy sensor with Lightcloud mesh control.
- /LCB — Lightcloud® Blue Sensor: Bluetooth-enabled Lightcloud sensor for wireless mesh commissioning.
- /MVS — Microwave Occupancy Sensor: Integrated microwave sensor for occupancy-based dimming. MVSREM remote sold separately.
- /E — Battery Backup: 90-minute emergency backup, wired 120–277V.
- Combination suffixes: /LC/E · /LCS/E · /MVS/E · /LCB/E.
All control options are factory-configured — select the required suffix at time of order. MVSREM remote accessory available for field adjustment of microwave sensor settings on /MVS models.
Electrical
Class 2 constant current driver, 120–277V AC, 50/60Hz. 0-10V dimming, dims to 10%. Mercury-free, UV-free, RoHS compliant. /E models: emergency battery backup wired for 120–277V.
Construction
Housing: sheet metal and extruded aluminum, white painted finish. Lens: frosted polystyrene for uniform, glare-controlled light distribution. Reflector: high-reflectance white aluminum. UL Listed for dry and damp locations. IC Rated.
2×2 dimensions: 23-11/16″ L × 23-11/16″ W × 2-25/32″ H · Weight: 9.9 lb
2×4 dimensions: 47-5/16″ L × 23-3/4″ W × 2-25/32″ H · Weight: 15.2 lb
Installation & Mounting
Mounts recessed into standard T-grid ceiling system. /E models: emergency backup wiring connects to line-voltage feed — follow local electrical code for emergency egress lighting requirements. Suitable for commercial interiors at standard floor-to-ceiling heights of 8–14 ft. Optional accessories sold separately:
- SMKPANEL2X2 — LPanel 2×2 Surface Mounting Kit, White
- RMKPANEL2X2 — LPanel 2×2 Recessed Mounting Kit, White
- SMKPANEL2X4 — LPanel 2×4 Surface Mounting Kit, White
- RMKPANEL2X4 — LPanel 2×4 Recessed Mounting Kit, White
- MVSREM — Remote for Microwave Sensor (/MVS models)
Certifications & Rebates
UL Listed — suitable for dry and damp locations. DLC Listed — individual SKU qualification (Standard or Premium) varies by configuration. Refer to the DLC Qualified Products List (QPL) at designlights.org and search by model number (SWISHFA-ISLAND2X2 or SWISHFA-ISLAND2X4) to confirm qualification status prior to specification or purchase. CCEA Compliant. IC Rated. RoHS Compliant. 5-year warranty per rablighting.com/warranty.
Typical Applications
- Office & Conference Rooms: Selectable 3500K/4000K CCT adapts to task lighting and presentation environments in a single family SKU without fixture replacement.
- Educational Facilities: Damp-rated construction and field-adjustable wattage allow specification across classrooms, corridors, and common areas from a single family.
- Healthcare & Clinical Spaces: CRI up to 84 and selectable CCT support accurate visual assessment and patient comfort across exam and waiting areas.
- Life-Safety & Egress-Required Spaces: /E battery backup variants meet NEC 90-minute emergency lighting requirements without a separate emergency fixture.
- Institutional Renovations: 120–277V universal voltage and selectable wattage simplify drop-in retrofits across mixed electrical infrastructure without driver replacement.
What's Included
- 1× RAB SWISHFA-ISLAND Field-Adjustable LED Island Center Basket Troffer — White (size and battery backup option selected above)
- Mounting hardware for T-grid recessed installation
- Integrated 90-minute emergency battery backup module — factory-installed (/E models only)
