RAB SWISHFA Field-Adjustable Center Basket LED Troffer — 1x4 / 2x2 / 2x4 — 19-49W Selectable — Standard & Battery Backup — White

The RAB SWISHFA is a field-adjustable center-basket LED troffer available in three sizes — 1x4 (SWISHFA1X4-D10), 2x2 (SWISHFA2X2-D10), and 2x4 (SWISHFA2X4-D10) — and in both Standard and Battery Backup (-E2) configurations. All models feature field-selectable wattage, selectable 3500K / 4000K / 5000K CCT, and 0-10V dimming on a universal 120-277V input. Output ranges up to 5,882 lumens with peak efficacy reaching 166.0 lm/W. All models are UL Listed and DLC 5.1 Qualified for utility rebate eligibility. Battery Backup models include an integrated 90-minute emergency system for NEC/IBC-compliant egress lighting.

RAB SWISHFA Key Features

• Field-Selectable Wattage: 1x4 & 2x2: 39W / 29W / 19W; 2x4: 49W / 39W / 29W — set on-site via integrated driver switch without rewiring
• Selectable CCT: 3500K / 4000K / 5000K field-adjustable via on-driver switch; factory default 4000K
• Maximum Lumen Output: Up to 5,882 lm (2x4 at 49W / 4000K); up to 5,668 lm (1x4 at 39W / 4000K); up to 4,913 lm (2x2 at 39W / 4000K)
• Peak Efficacy: Up to 166.0 lm/W (1x4 at 19W / 4000K)
• CRI: 83–86 across all models and CCT settings
• Dimming: 0-10V continuous, dims to 10%; requires separate 0-10V DC dimming circuit
• Input Voltage: 120-277V, 50/60Hz — Class 2, Constant Current driver
• Battery Backup (-E2 models): Integrated emergency battery operates LED for 90 minutes upon power failure; built-in test button and indicator light; wired for 120-277V
• Location Rating: 1x4 & 2x2: UL Listed for dry and damp locations; 2x4: UL Listed for damp locations
• Certifications: UL Listed · FCC Compliant · RoHS Compliant · IESNA LM-79 & LM-80 · DLC 5.1 Qualified
• Rated Life: 100,000 hours (IES LM-80 / -21 calculations)
• Warranty: RAB 5-year limited — light output, driver performance, and paint finish

Size & Configuration Options

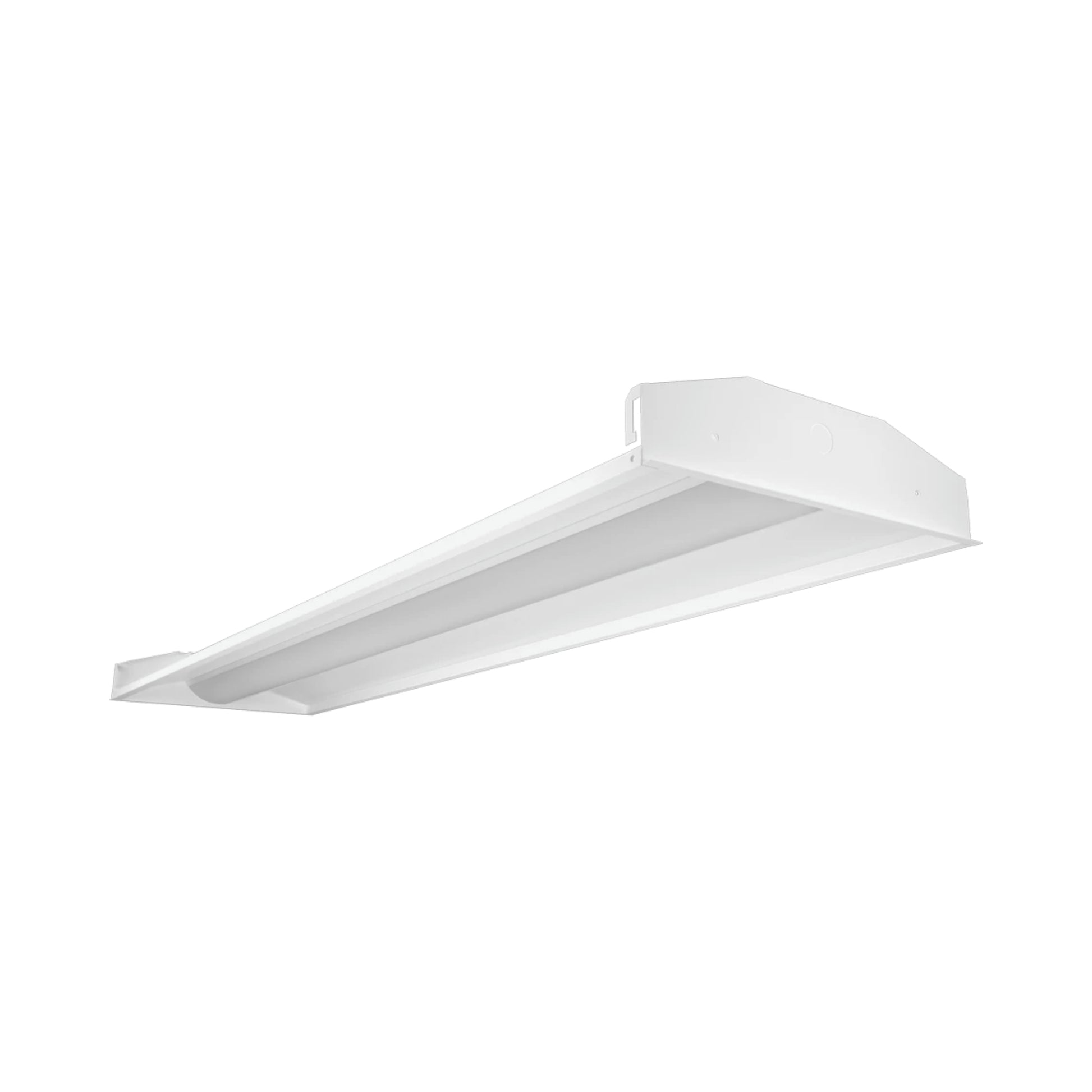

• 1x4 — Standard (SWISHFA1X4-D10): 39W / 29W / 19W selectable — up to 5,668 lm — 47¾" × 11 15/16" × 3" — 10.2 lbs
• 1x4 — Battery Backup (SWISHFA1X4-D10-E2): Same output — 11.4 lbs — 90-min emergency system with test button

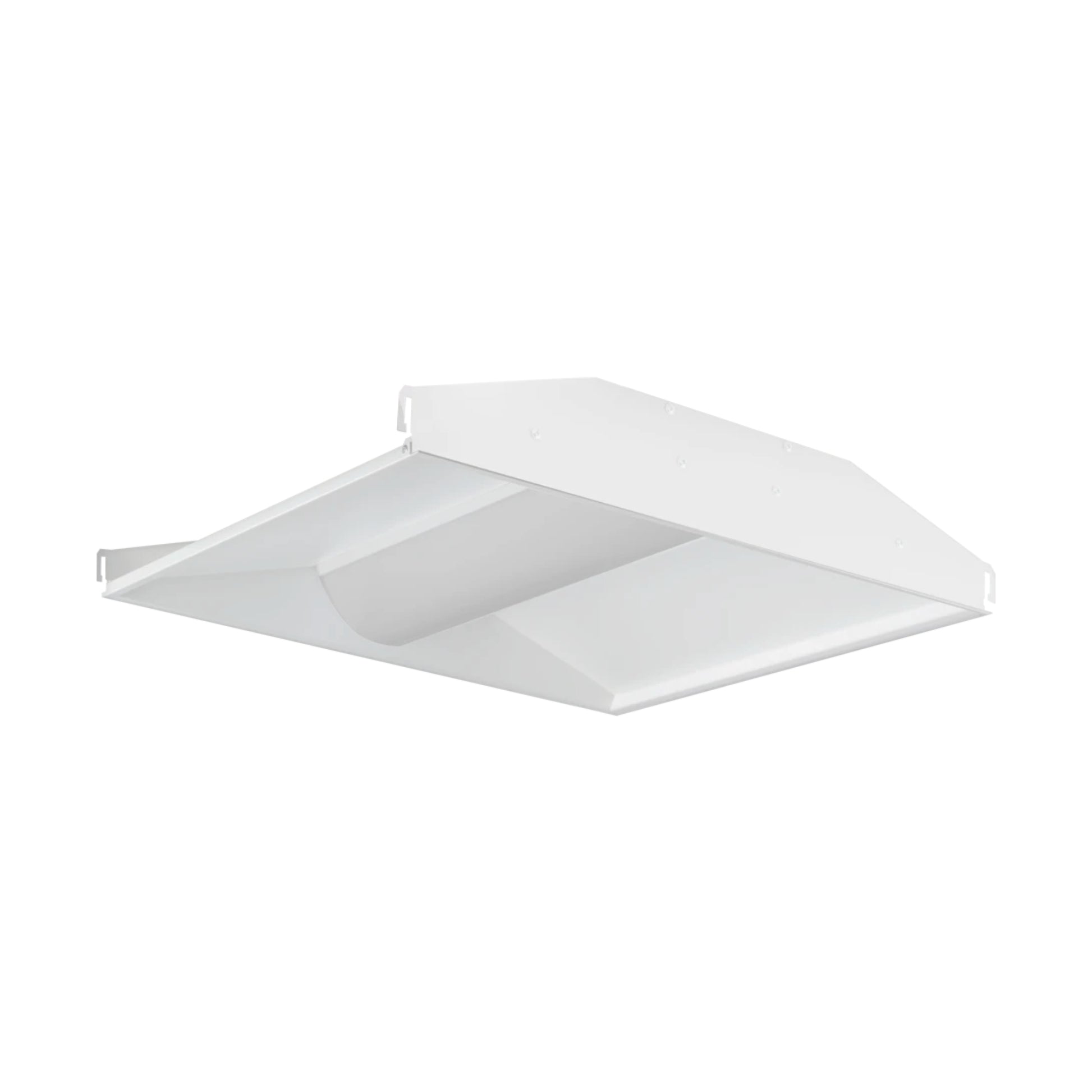

• 2x2 — Standard (SWISHFA2X2-D10): 39W / 29W / 19W selectable — up to 4,913 lm — 23¾" × 23¾" × 4⅛" — 9.2 lbs
• 2x2 — Battery Backup (SWISHFA2X2-D10-E2): Same output — 10.9 lbs — 90-min emergency system with test button

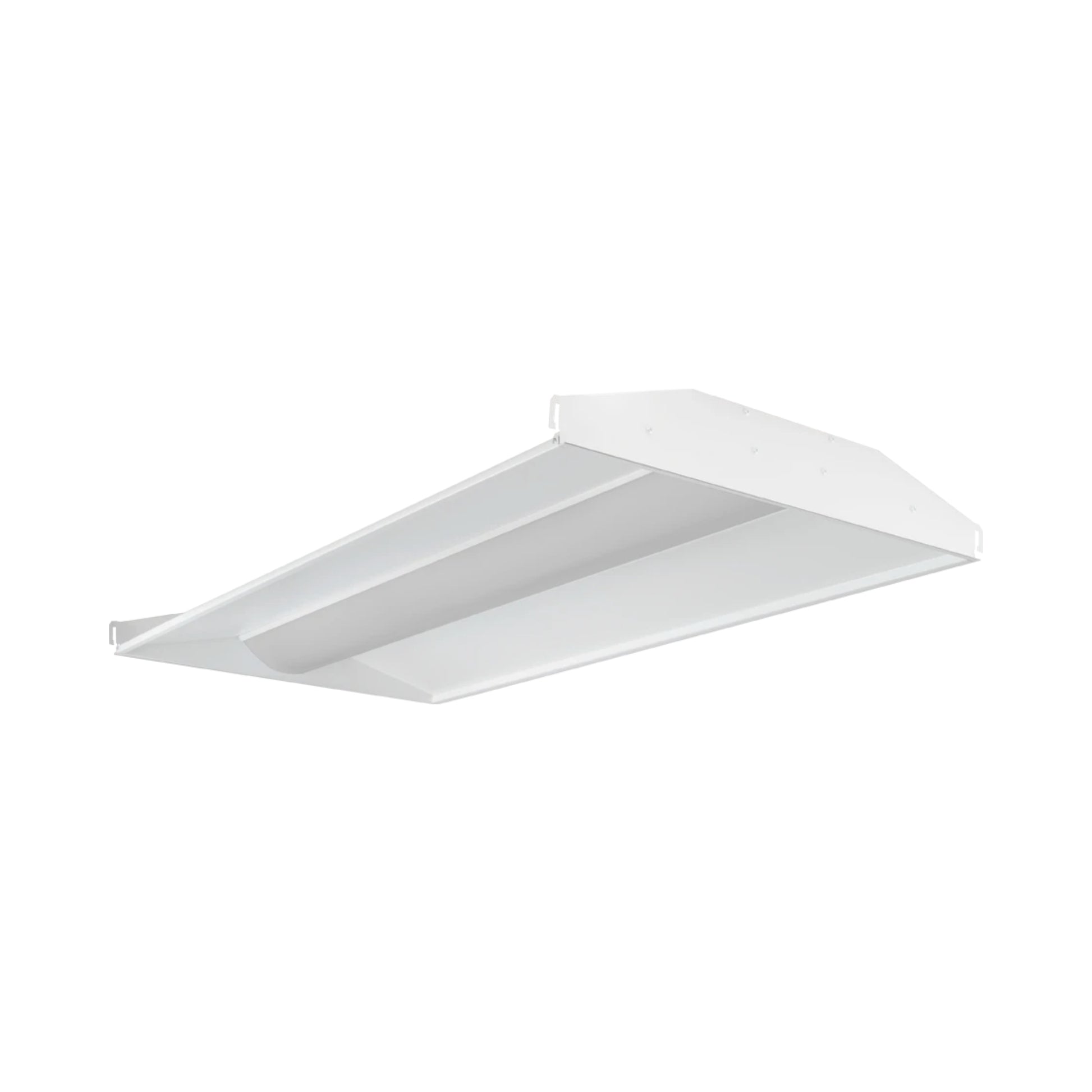

• 2x4 — Standard (SWISHFA2X4-D10): 49W / 39W / 29W selectable — up to 5,882 lm — 47¾" × 23¾" × 4" — 19.2 lbs
• 2x4 — Battery Backup (SWISHFA2X4-D10-E2): Same output — 20.9 lbs — 90-min emergency system with test button

Performance & Light Output

All SWISHFA models deliver high-efficacy output through a frosted polystyrene lens for smooth, uniform, glare-free illumination. Peak efficacy reaches 166.0 lm/W (1x4 at 19W / 4000K) and maximum output reaches 5,882 lm (2x4 at 49W / 4000K). CRI ranges from 83 to 86 across all models. Rated life is 100,000 hours per IES LM-80 and -21 calculations.

90-Minute Battery Backup (-E2 Models)

Battery Backup models include a factory-integrated emergency battery that automatically activates during a power failure, operating the fixture for a minimum of 90 minutes to support safe building evacuation. A built-in test button and indicator light allow routine compliance testing without external equipment. These models comply with NEC and IBC emergency egress lighting requirements. An unswitched hot supply line must be connected to maintain battery charge.

Electrical & Controls

Each model is powered by a Class 2, Constant Current driver operating on 120-277V AC, 50/60Hz with integral surge protection (DM 2kV / CM 4kV). All configurations include 0-10V dimming leads (dims to 10%) for compatibility with daylight harvesting sensors and commercial energy management systems. Mercury-free, UV-free, RoHS compliant.

Construction

Sheet metal housing with white powder coat finish. Frosted polystyrene lens for smooth, uniform light distribution. Metal reflector with high-reflectance white finish. All models designed for drop-in installation into standard T-bar ceiling grids using integral bend-over mounting clips.

Installation & Mounting

All models install into standard T-bar ceiling grids using integral bend-over grid clips — no additional hardware required. Support wire holes provided for code-compliant ceiling anchoring. Battery Backup models require an unswitched hot supply line for proper battery charging. Optional surface and recessed mounting kits available separately for hard ceiling installations.

Certifications & Rebates

UL Listed (1x4 & 2x2: dry and damp; 2x4: damp). FCC Compliant (Part 15). RoHS Compliant. IESNA LM-79 & LM-80 Tested. DLC 5.1 Qualified — all models eligible for utility rebates from DLC Member Utilities. DLC IDs: 1x4: visit designlights.org and search SWISHFA1X4 · 2x2: PD0NA0YP · 2x4: P7UHVBH0. Smart Shift DLC IDs: 1x4: S-73GYQS · 2x2: S-YMPRVZ · 2x4: S-6GZ77F.

Typical Applications

• Commercial Office Spaces: Three size options cover every bay configuration — 1x4 for narrow bays, 2x2 for column-limited grids, 2x4 for standard open-plan layouts.
• Educational Facilities: Selectable CCT allows administrators to tune color temperature for classrooms, corridors, or libraries without re-ordering fixtures.
• Healthcare Facilities: UL damp rating and high CRI (83–86) support clinical environments requiring clean, accurate illumination.
• Retail Environments: High-efficacy output reduces operating costs across all fixture sizes while maintaining high-quality merchandise lighting.
• Egress Corridors & Stairwells: Battery Backup (-E2) models provide 90-minute emergency runtime for NEC/IBC-compliant egress lighting without additional fixtures.
• Retrofit & New Construction: Drop-in T-bar installation with selectable wattage and CCT simplifies specification and reduces SKU count across multi-zone projects.

What's Included

• RAB SWISHFA Center Basket LED Troffer — White (size and configuration as selected)
• Pre-installed driver assembly
• Integral T-grid mounting clips
• Emergency battery backup unit with test button and indicator light (Battery Backup models only)
