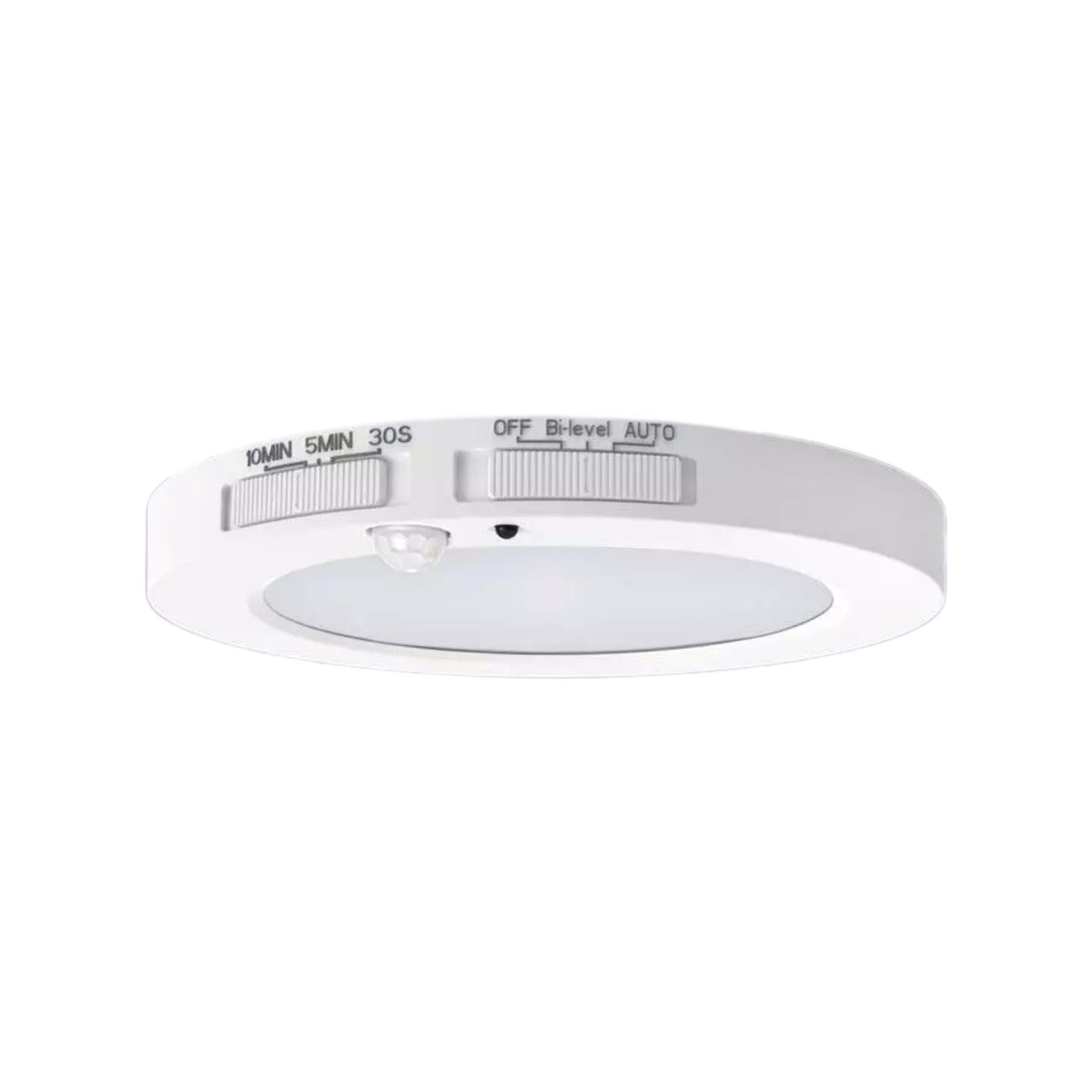

RAB SUMO PIR Round LED Surface Mounts — White, 5.5 to 9 in, Selectable CCT
The RAB SUMO PIR family brings integrated LED surface-mount lighting together with a PIR motion sensor and photocell. Choose SUMO-R-5/PIR, SUMO-R-7/PIR or SUMO-R-9/PIR for the size and output suited to your installation. Smooth white round bodies and frosted diffusers provide an understated ceiling appearance, while adjustable sensor modes automate nighttime illumination.
Key Features
- 5.5 in Model: SUMO-R-5/PIR, 10W, 850 nominal lumens and 0.5 lb
- 7 in Model: SUMO-R-7/PIR, 14W, 1,150 nominal lumens and 0.7 lb
- 9 in Model: SUMO-R-9/PIR, 18W, 1,500 nominal lumens and 1.1 lb
- Integrated Controls: PIR motion sensor, photocell and adjustment DIP switches
- Motion Modes: Auto, Bi-Level and Off; default Auto
- Hold Times: 30 seconds, 5 minutes or 10 minutes; default 30 seconds
- Sensor Coverage: 13 ft detection diameter at the specified 6.5 ft maximum mounting height
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K; default 3000K
- Color and Distribution: 90 CRI and 110-degree beam; 7 in and 9 in sheets specify ±10 degrees
- Electrical: Constant-current 120V 60Hz driver; non-dimmable; power factor at least 0.9 and flicker at most 30%
- Construction and Listings: White plastic enclosure, frosted polycarbonate diffuser, indoor dry/damp suitability, UL listing, ENERGY STAR certification, FCC and RoHS compliance; non-IC and non-airtight
- Service Life: 50,000-hour L70 life, five-year warranty and -4°F to 104°F operating range
Construction & Design
Each model combines a smooth white plastic enclosure with a frosted polycarbonate diffuser that spreads light evenly. Round sizes are 5.5, 7 and 9 in, with respective sheet-listed weights of 0.5, 0.7 and 1.1 lb. Select the size that fits the mounting location and required output rather than treating the models as identical.
Light Output & Performance
SUMO-R-5/PIR delivers 850 nominal lumens at 10W; SUMO-R-7/PIR delivers 1,150 nominal lumens at 14W; SUMO-R-9/PIR delivers 1,500 nominal lumens at 18W. All three offer five selectable CCTs from 2700K to 5000K and 90 CRI, with a default setting of 3000K. Integrated LEDs provide general illumination with a 110-degree beam and a rated 50,000-hour L70 life.
Electrical & Installation
The family uses surface mounting on a compatible junction box and operates on 120V at 60Hz. All three models are non-dimmable; sensor-controlled bi-level operation does not provide external dimmer compatibility. Observe the specified 6.5 ft maximum sensor mounting height, with a 13 ft detection diameter at that height. Use indoors in dry or damp environments; these fixtures are non-IC and non-airtight.
Auto mode: The light remains off during the day and without motion at night. Nighttime motion activates 100% brightness, followed by shutoff after the selected hold time expires.
Bi-Level mode: Nighttime motion activates 100% brightness. After the selected hold time expires, output drops to 50% for another selected hold-time interval before turning off. The light remains off during the day.
Off mode: Motion detection is disabled. Select a 30-second, 5-minute or 10-minute hold time; Auto mode and 30 seconds are the defaults.
The individual sheets identify California Title 24 Part 6 conformity capability and TAA compliance with Cambodia as the country of manufacture.
Typical Applications
- Indoor utility and laundry spaces within the sensor mounting-height limit
- Low-ceiling indoor circulation areas
- Indoor storage and service spaces
- Damp indoor areas suited to automatic motion lighting
What's Included
- One selected-size white RAB SUMO PIR fixture with integrated LEDs, driver, motion sensor, photocell and adjustment switches
