RAB Lighting SLIM17 Angle-Adjustable LED Wall Pack — 15W / 30W / 50W / 80W, Selectable CCT, 120-277V, Bronze

The RAB Lighting SLIM17 is a slim, high-performance angle-adjustable LED wall pack engineered to deliver precise, adaptable perimeter illumination across commercial and industrial building exteriors. Available in 15W (1,904lm), 30W (3,813lm), 50W (7,477lm), and 80W (12,364lm) configurations, all models feature a field-adjustable head that tilts from 0° (full cutoff) to 90° in 15-degree increments — meeting dark sky requirements or functioning as a directional floodlight. Selectable 3000K/4000K/5000K CCT, an integrated button photocell, and a 0-10V dimming driver are standard across the entire family. DLC Premium Listed (15W and 30W) for utility rebate eligibility.

RAB SLIM17 Features

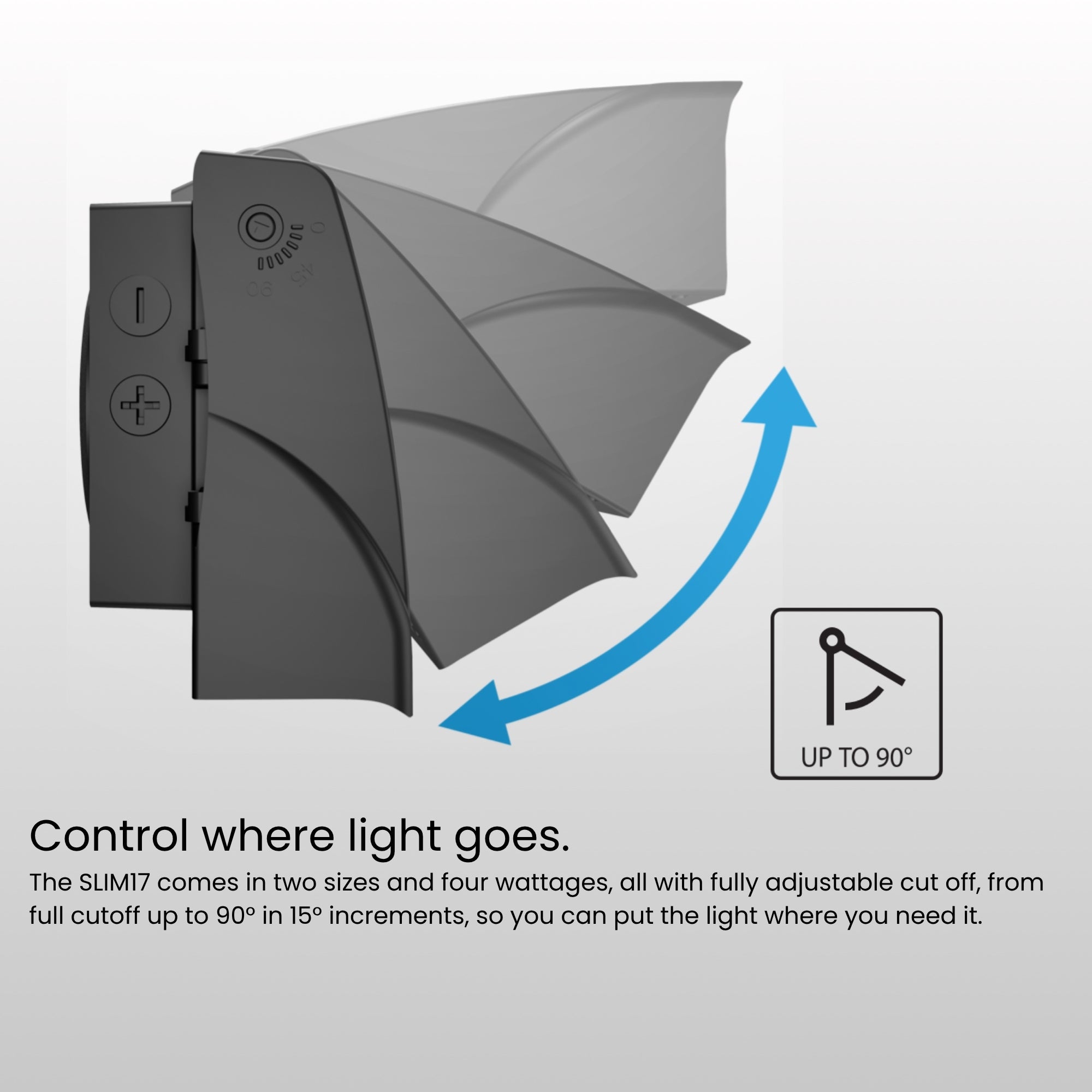

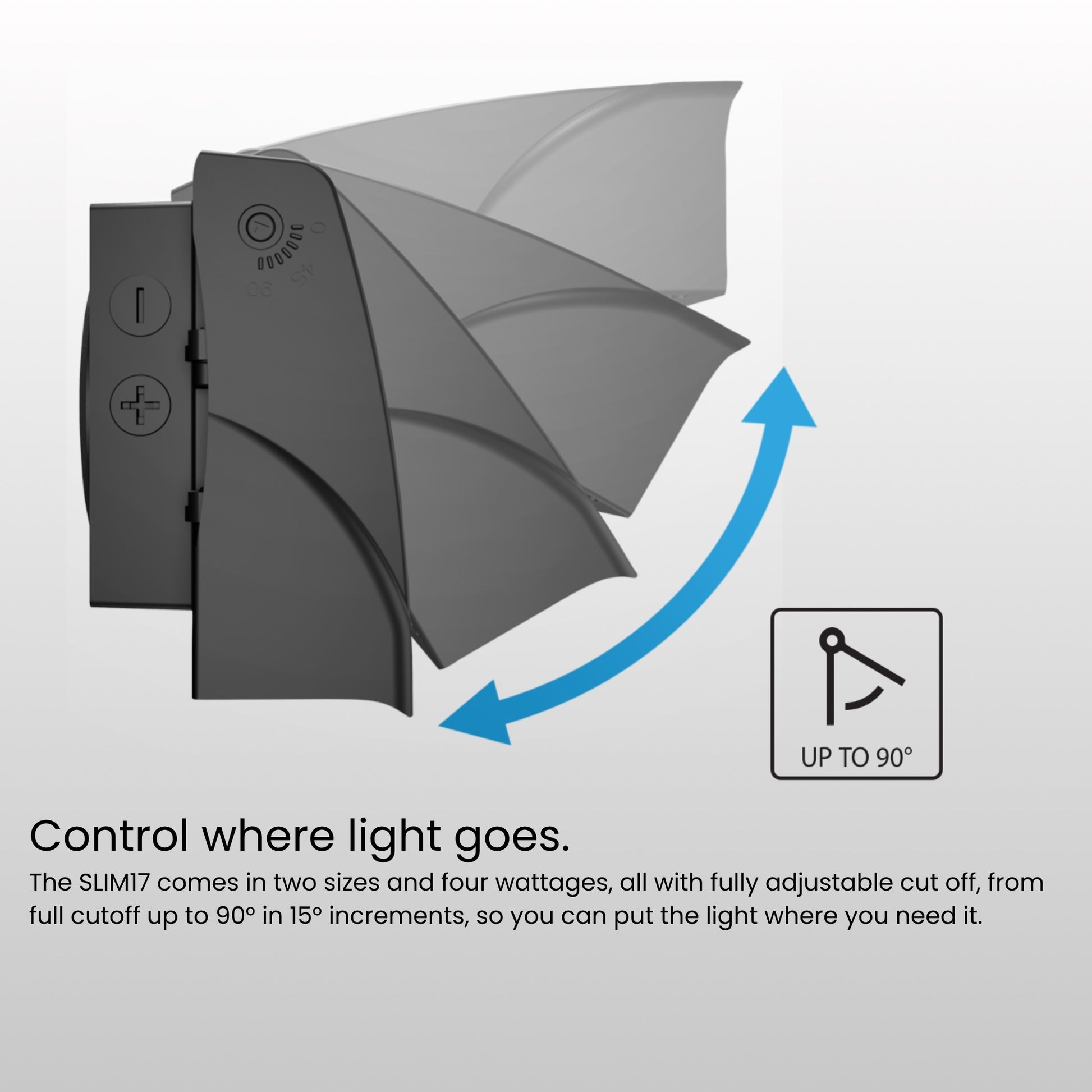

• Angle-Adjustable Head: Tilts from 0° (full cutoff / dark sky compliant) to 90° in precise 15-degree increments — adaptable from a strict cutoff wall pack to a directional floodlight without changing fixtures.

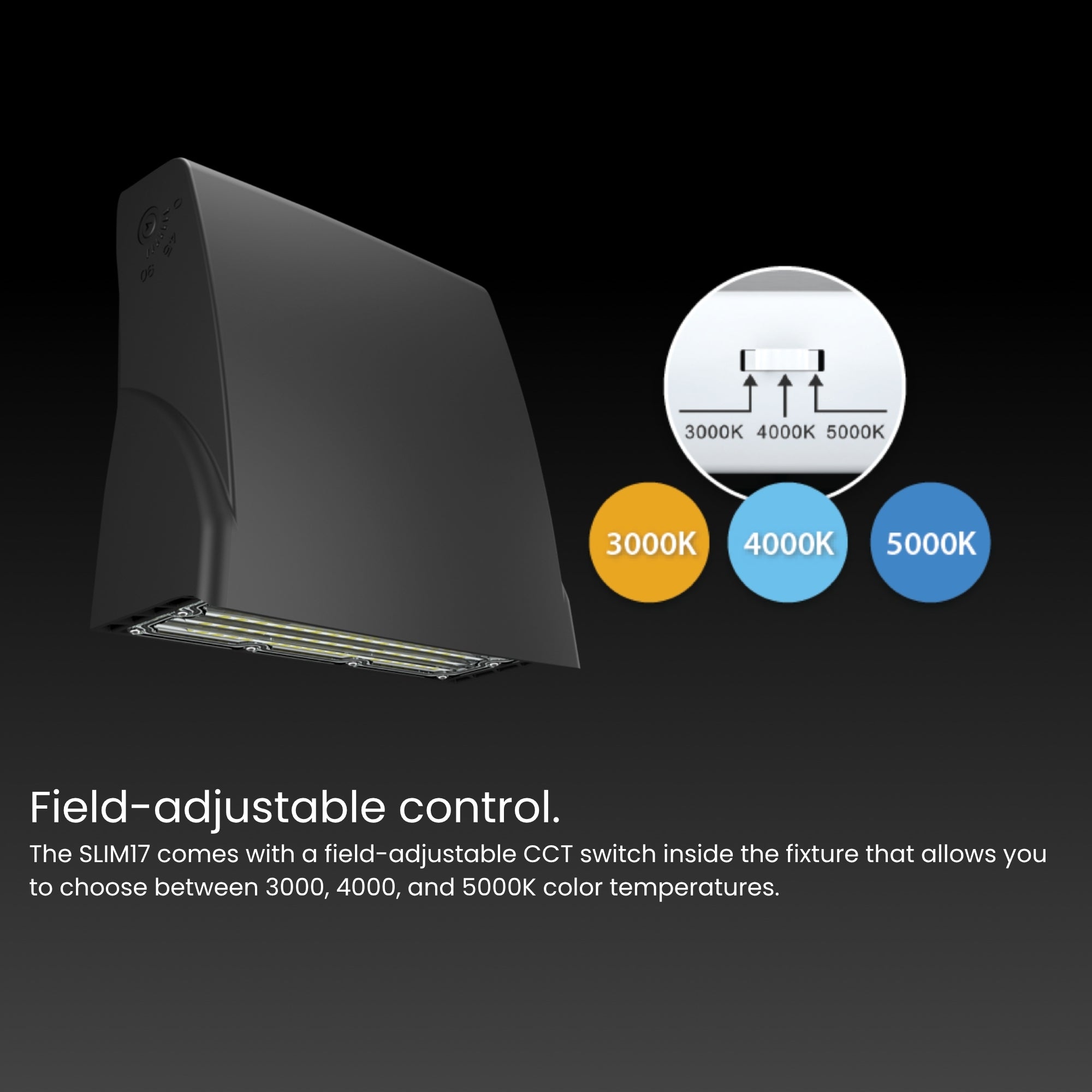

• Selectable CCT: Field-adjustable 3000K, 4000K, and 5000K color temperatures via on-fixture switch — set during installation to match existing site lighting or architectural requirements.
• Four Wattage Options: Choose 15W, 30W, 50W, or 80W to match the exact illumination level required — from compact entryways to large building perimeters.
• High Efficacy: Delivers up to 159.8 LPW (50W) across the range, with >80 CRI on all models.
• DLC Premium Listed: 15W and 30W models qualify for utility rebates and energy savings programs.

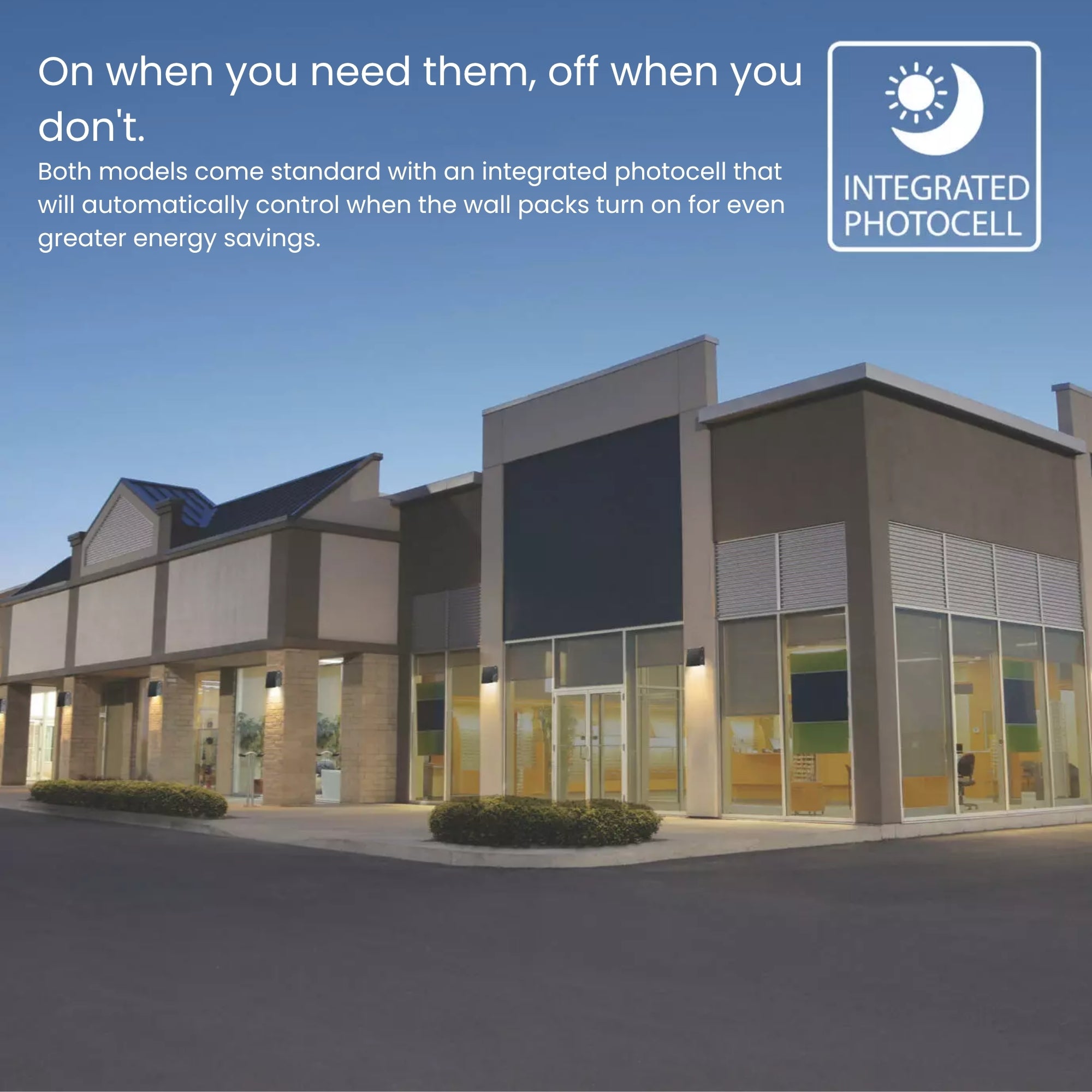

• Integrated Photocell: Factory-installed 120-277V button photocell for automated dusk-to-dawn operation — no external sensor required.
• 0-10V Dimming: Class 2 driver dims to 10% on all models for advanced energy management.
• Universal Voltage: 120-277V input compatible with standard commercial and industrial electrical systems.
• Rugged Construction: Precision die-cast aluminum housing, IP65 wet location rated, IK07 impact rated.
• Surge Protection: Built-in 2.5kV–6kV surge protection guards against power transients.
• 100,000-Hour Lifespan: L70-rated LED life with a 5-year warranty virtually eliminates maintenance over the fixture’s service life.
• Slim Profile: Compact form factor with hinged wiring access and conduit entries on back, sides, top, and bottom for flexible installation.

Wattage Options

Select the output level that matches your application and mounting height:

• 15W — 1,904 lumens (up to 136.2 LPW): Ideal for entryways, man doors, and compact building perimeters. Replaces 70W Metal Halide. DLC Premium Listed.
• 30W — 3,813 lumens (up to 134 LPW): Suited for mid-size building facades and walkways. Replaces 175W Metal Halide. DLC Premium Listed.
• 50W — 7,477 lumens (up to 159.8 LPW): High-output option for larger perimeters, parking structure walls, and loading docks. CRI 83-85.
• 80W — 12,364 lumens: Maximum output for large commercial and industrial building exteriors and security lighting at greater mounting heights.

CCT Options: All models offer 3000K (warm white), 4000K (neutral white — default), and 5000K (daylight) — selectable on-site via dipswitch.

Typical Applications

• Commercial and industrial building perimeters and facades.
• Security and pathway lighting.
• Entryways, man doors, and outdoor corridors.
• Parking structure walls and loading docks.
• Dark sky compliant installations (head at 0° full cutoff).
• Directional floodlighting (head tilted to 90°).

Performance & Light Output

All SLIM17 configurations deliver high-efficacy output with >80 CRI and selectable 3000K/4000K/5000K color temperature. The angle-adjustable head provides full flexibility — at 0° the fixture operates as a strict full-cutoff wall pack meeting dark sky requirements; tilted to 90° it functions as a directional floodlight. The 100,000-hour L70 lifespan dramatically reduces re-lamping and maintenance costs versus legacy 70W–400W HID wall packs.

Electrical & Controls

Each model is powered by a constant current Class 2 driver operating on 120-277V AC. All configurations include a 0-10V dimming interface (dims to 10%) and an integrated 120-277V button photocell for automated dusk-to-dawn energy management. Surge protection ranges from 2.5kV to 6kV depending on model, guarding internal components against power transients common on exterior circuits.

Construction & Durability

The precision die-cast aluminum housing is finished in a durable bronze powder coat and fitted with a clear polycarbonate lens. IP65 rated for complete protection against dust and water ingress in wet locations, and IK07 impact rated for resistance to physical strikes. The fixture operates reliably in extreme ambient temperatures from -40°F to 122°F (-40°C to 50°C).

Installation & Mounting

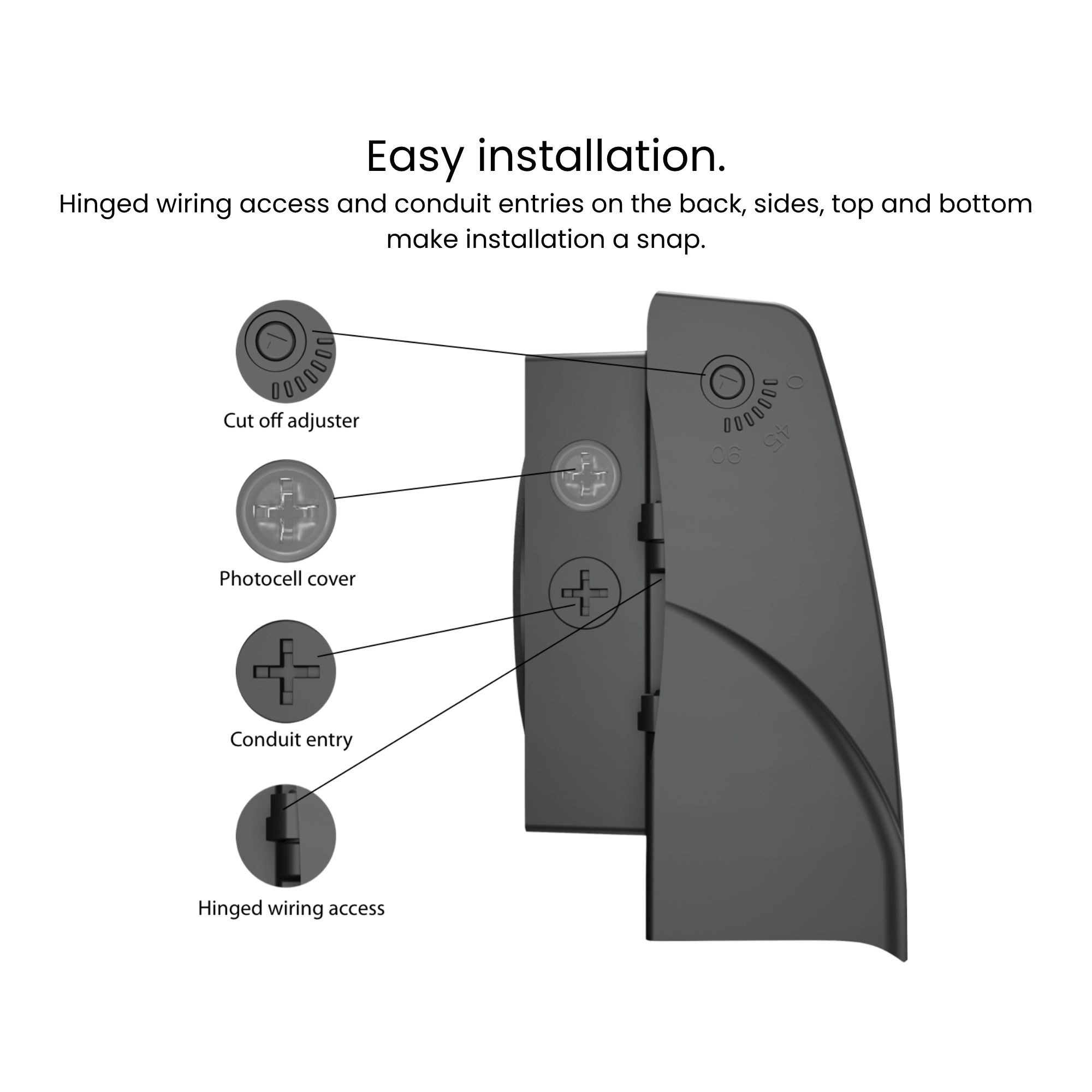

Designed for straightforward surface wall mounting, the SLIM17 backplate features hinged wiring access and conduit entries on the back, sides, top, and bottom to accommodate surface wiring or recessed junction box configurations. The integrated photocell and on-fixture CCT dipswitch eliminate the need for external sensors or additional wiring during commissioning. The adjustable head locks securely at any 15-degree increment.

What’s Included

• RAB SLIM17 Angle-Adjustable LED Wall Pack — Bronze (wattage selected above)
• Integrated Button Photocell
