RAB SEAL Field-Adjustable, Linear Washdown Vapor Tight — 25–100W Selectable — 3500K/4000K/5000K — Gray

The RAB SEAL is a family of field-adjustable linear washdown vapor tight fixtures available in 2-foot, 4-foot, and 8-foot lengths, each with field-selectable wattage and CCT via onboard switches. Operating on 120–277V / 50–60Hz with 0–10V dimming to 10%, every SEAL fixture is UL Listed for Wet Locations, IP66 rated, NEMA 4X corrosion-resistant, and NSF Certified for food-safe environments. All sizes are DLC Listed, backed by a 5-year warranty, and rated for 100,000 hours. Battery backup (/E) variants are available for all three sizes for egress code compliance.

Key Features

• Selectable Wattage: Each size offers three field-adjustable wattage steps via onboard switch — no tools or rewiring required. SEAL2: 25/20/15W. SEAL4: 50/40/30W. SEAL8: 100/80/60W.
• Wattage Equivalency: Replaces legacy fluorescent vapor tight fixtures. SEAL2 (25W) replaces 2-lamp T8; SEAL4 (50W) replaces 2-lamp T8 or T5HO; SEAL8 (100W) replaces 4-lamp T8 or T5HO — at a fraction of the energy.
• Maximum Lumen Output: SEAL2: up to 3,400 lm. SEAL4: up to 6,800 lm. SEAL8: up to 13,700 lm.
• Peak Efficacy: Up to 142 lm/W (SEAL2 & SEAL4 at max wattage / 4000K); up to 137 lm/W (SEAL8 at 100W / 4000K).
• CRI: 80 CRI across all sizes, wattage steps, and CCT settings.
• Selectable CCT: Field-adjustable 3500K / 4000K / 5000K via onboard switch on all sizes — no re-ordering required.
• Lens & Optics: Diffuse polycarbonate lens for low-glare, even light distribution across all sizes.
• Dimming Protocol: 0–10V continuous dimming down to 10% on all sizes — requires separate 0–10V DC dimming circuit.
• Voltage & Driver: 120–277V / 50–60Hz; constant-current Class 2 driver on all sizes.
• Location Rating: UL Listed for Wet Locations · IP66 ingress protection · NEMA 4X corrosion resistance · NSF Certified — suitable for food processing, washdown, outdoor, and submerged-spray environments.
• Emergency Battery Backup (/E variants): Integrated 90-minute battery backup available on SEAL2/E, SEAL4/E, and SEAL8/E — supports NFPA 101 and IBC egress lighting requirements.
• Operating Temperature: Cold-start rated to −40°C (−40°F); maximum ambient +40°C (+104°F) on all sizes.
• Certifications: UL Listed (Wet) · UL 94 5VA · IP66 · NEMA 4X · NSF · FCC Part 15 · IES LM-79 & LM-80 · DLC Listed · RoHS Compliant.
• Rated Life: 100,000 hours (L70) based on IES LM-80 and TM-21 calculations — all sizes.
• Warranty: 5-year RAB limited warranty covering light output, driver performance, and paint finish.
• Surge Protection: 2.5kV on all sizes.

Performance & Light Output

SEAL2 (25/20/15W): At 25W: 3,300 lm / 5000K · 3,400 lm / 4000K · 3,250 lm / 3500K. At 20W: 2,700 / 2,780 / 2,660 lm. At 15W: 2,070 / 2,130 / 2,040 lm. Peak: 142 lm/W at 25W/4000K.

SEAL4 (50/40/30W): At 50W: 6,000 lm / 5000K · 6,800 lm / 4000K · 6,500 lm / 3500K. At 40W: 5,400 / 5,560 / 5,320 lm. At 30W: 4,140 / 4,260 / 4,080 lm. Peak: 142 lm/W at 50W/4000K.

SEAL8 (100/80/60W): At 100W: 13,300 lm / 5000K · 13,700 lm / 4000K · 13,100 lm / 3500K. At 80W: 10,800 / 11,120 / 10,640 lm. At 60W: 8,340 / 8,580 / 8,770 lm. Peak: 137 lm/W at 100W/4000K.

All sizes: 80 CRI. Rated life: 100,000 hours (L70). Voltage: 120–277V.

Smart & Control Features

All SEAL fixtures include built-in 0–10V dimming. Optional sensor and wireless control suffixes are available across all sizes:

• /PIR: Passive infrared occupancy sensor — max 40 ft. mounting height, 40 ft. detection diameter.
• /MVS: Microwave occupancy sensor — max 50 ft. mounting height, 50 ft. detection diameter.
• /LCBS: Lightcloud Blue PIR sensor — Bluetooth Mesh, programmable via mobile app, no hub required.
• /LCBS/MVS: Lightcloud Blue microwave sensor — Bluetooth Mesh, programmable via mobile app, no hub required.
• /E: 90-minute emergency battery backup — auto-activates on power loss, supports NFPA 101 and IBC egress requirements.
• Combined suffixes (/PIR/E, /MVS/E, /LCBS/E, /LCBS/MVS/E) available for sensor + emergency backup in a single fixture.

Lightcloud Blue compatible interior DLC system: N1XMLOEATBA; exterior: NHCZ2BIA17L. Non-LCB sensor settings adjustable via MSR1 Remote.

Electrical

Constant-current Class 2 driver · 120–277V / 50–60Hz · Surge protection: 2.5kV · Dimming: 0–10V to 10% · Mercury-free, UV-free, RoHS compliant.

Construction

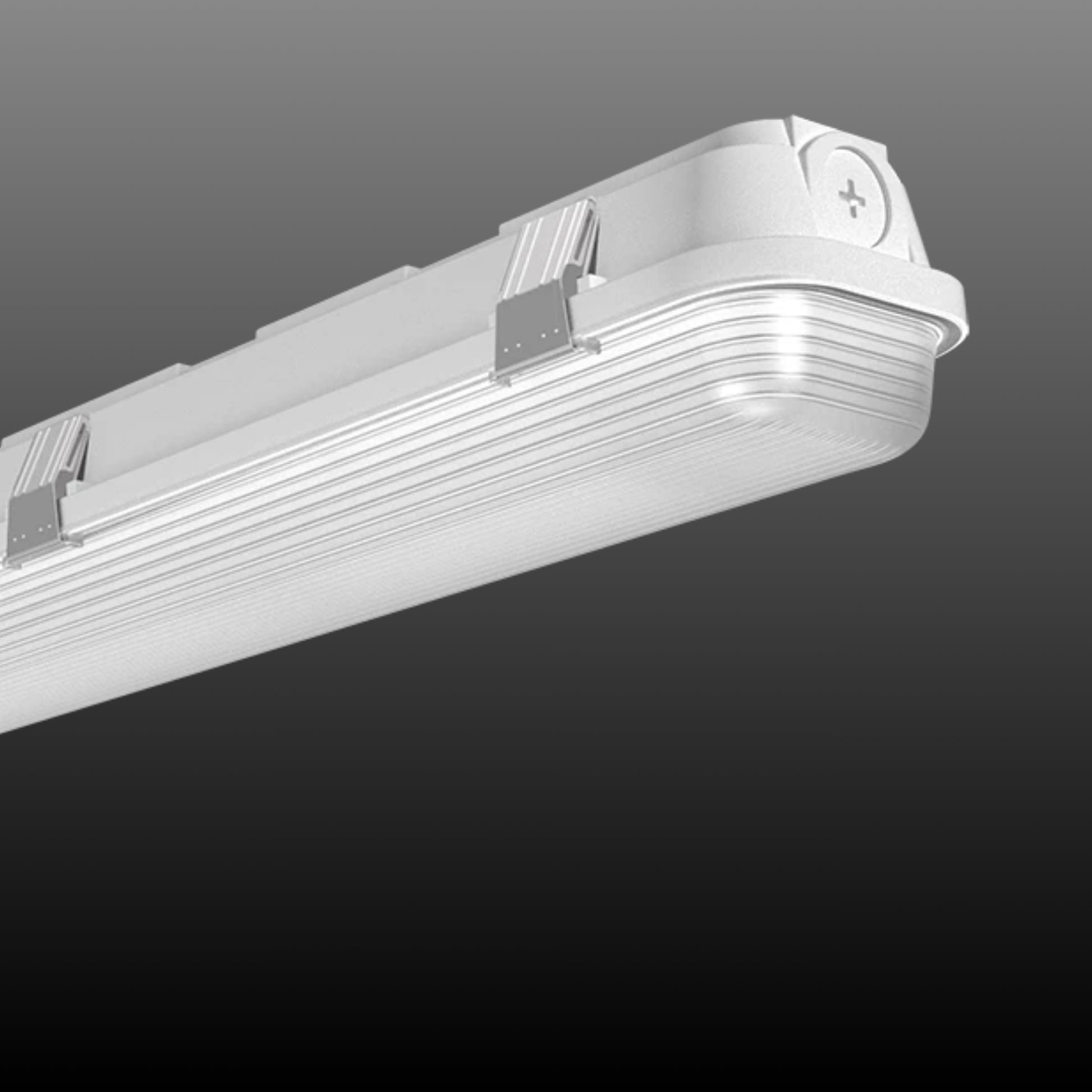

Housing & Thermal: Impact-resistant polycarbonate housing with stainless steel door clips and high-temperature silicone gaskets. 1/2″ NPS opening for conduit and bushing/cord entry. Note: polycarbonate is affected by cleaning agents or liquids containing partial solvents such as low molecular weight aldehydes, ethers, ketones, esters, aromatic hydrocarbons, and perchlorinated hydrocarbons.

Lens & Optics: Diffuse polycarbonate lens. Cold-rolled steel reflector.

Finish: Gray — formulated for high durability and long-lasting color.

Environmental & Safety: IP66 · NEMA 4X · UL Listed Wet · UL 94 5VA · NSF Certified · Operating temp: −40°C to +40°C.

Dimensions & Weight:

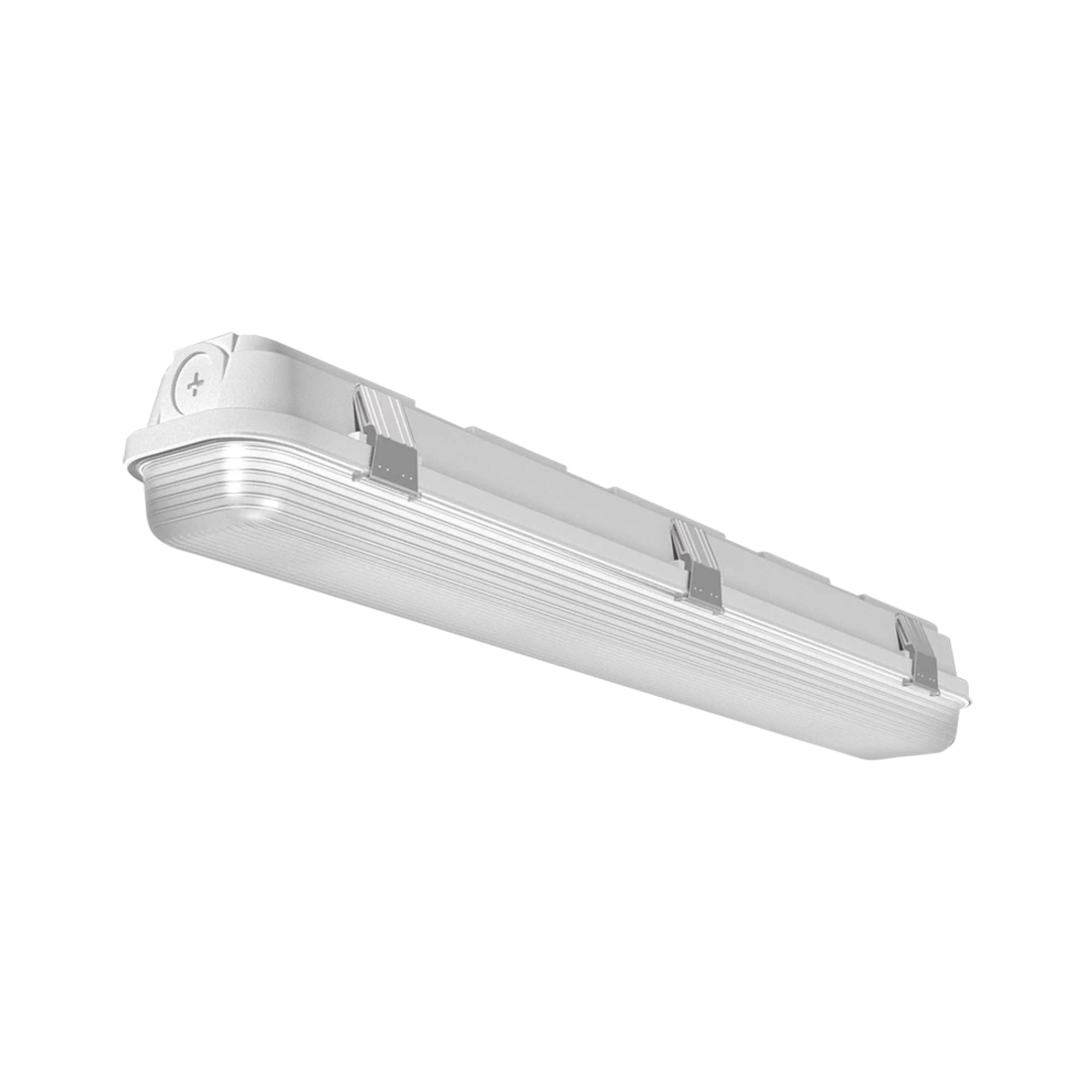

• SEAL2: 25 5/8″ L × 4 1/2″ W × 3 3/4″ H · 4.0 lbs
• SEAL4: 49 5/8″ L × 4 1/2″ W × 3 3/4″ H · 6.5 lbs

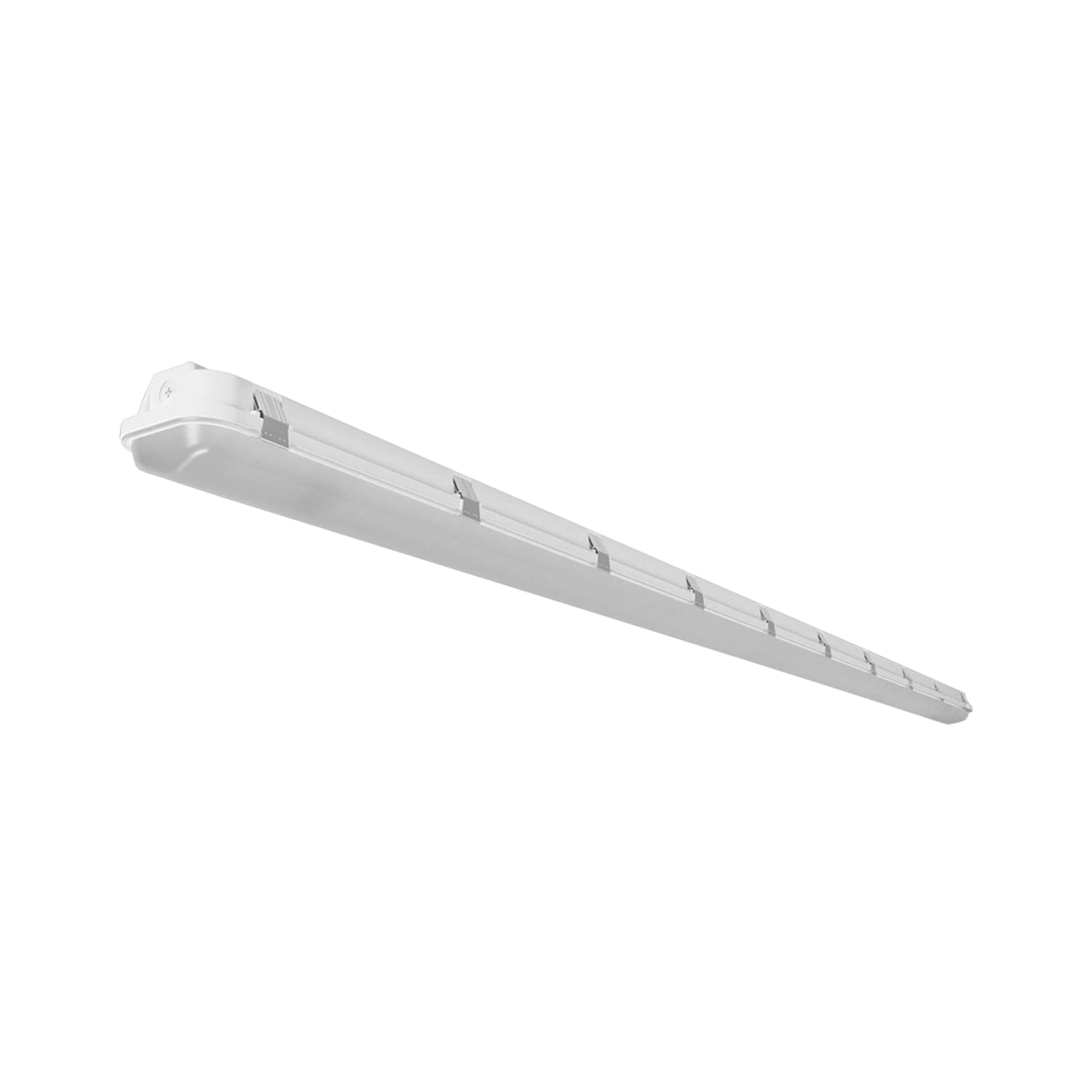

• SEAL8: 101 3/4″ L × 5 1/8″ W × 3 13/16″ H · 14.9 lbs

Installation & Mounting

Standard Hardware: Stainless steel snap brackets (surface mount) and V-Hook brackets (suspended mount) included with all sizes. Tether cables provided.

Wiring: 1/2″ NPS opening for conduit or cord entry. 0–10V dimming requires a separate 0–10V DC circuit.

Accessories (sold separately):

• ANGSEAL — Angled surface bracket 2-pack for 2ft/4ft fixtures
• ANGSEAL8 — Angled surface bracket 2-pack for 8ft fixtures
• JBSEAL — Junction box mounting bracket for 2ft/4ft fixtures
• MSR1 Remote — Sensor programming remote for non-Lightcloud Blue sensor variants

Certifications & Rebates

• UL Listed: Wet Location.
• UL 94: 5VA flame classification.
• NSF Certified: Public Health and Safety — food preparation areas.
• FCC: Part 15 compliant.
• NEMA 4X: Corrosion resistant.
• IESNA LM-79 & LM-80 tested.
• DLC Listed: SEAL2 — S-2WR1TU · SEAL4 — S-5HVM3O · SEAL8 — S-PEIZB4. Search at designlights.org to verify utility rebate eligibility by territory.
• RoHS Compliant.

Typical Applications

• Food Processing & Commercial Kitchens: NSF Certified and IP66 rated for direct washdown and sanitation hose-down.
• Cold Storage & Freezer Rooms: −40°C cold-start rating enables reliable illumination in sub-freezing environments.
• Car Washes & Wash Bays: IP66 and NEMA 4X resist sustained water spray and chemical exposure.
• Egress Corridors & Exit Paths: /E battery backup variants satisfy NFPA 101 and IBC 90-minute emergency illumination requirements.
• Parking Garages, Agricultural & Industrial Washdown Areas: Durable construction and 100,000-hour lifespan reduce maintenance in demanding, hard-to-access locations.

What’s Included

• RAB SEAL Field-Adjustable, Linear Washdown Vapor Tight fixture (size per selection) — Gray
• Stainless steel snap brackets (surface mount)
• V-Hook brackets (suspended mount)
• Tether cables
