RAB R34/BP Round Retrofit Downlight 12-Pack Selectable CCT 120V White 4 in 6 in Smooth Baffle
Available in stock (100)
-
Estimated delivery: Sep 22 - Sep 26
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB R34/BP Round Retrofit Downlight 12-Pack — 4 in 7W / 6 in 10W / Selectable CCT / 120V / White / Smooth & Baffle
The RAB R34/BP is a contractor 12-pack series of round retrofit downlights in white finish, available in 4 in (7W, 700 lm) and 6 in (10W, 900 lm) sizes and smooth and baffle trim styles. All models feature field-selectable CCT via dip switch (2700K through 5000K), wet rating, TRIAC/ELV dimming to 10%, California Title 20 compliance, and TAA compliance. Ideal for contractor and multi-fixture residential or commercial retrofit projects.
Series Overview

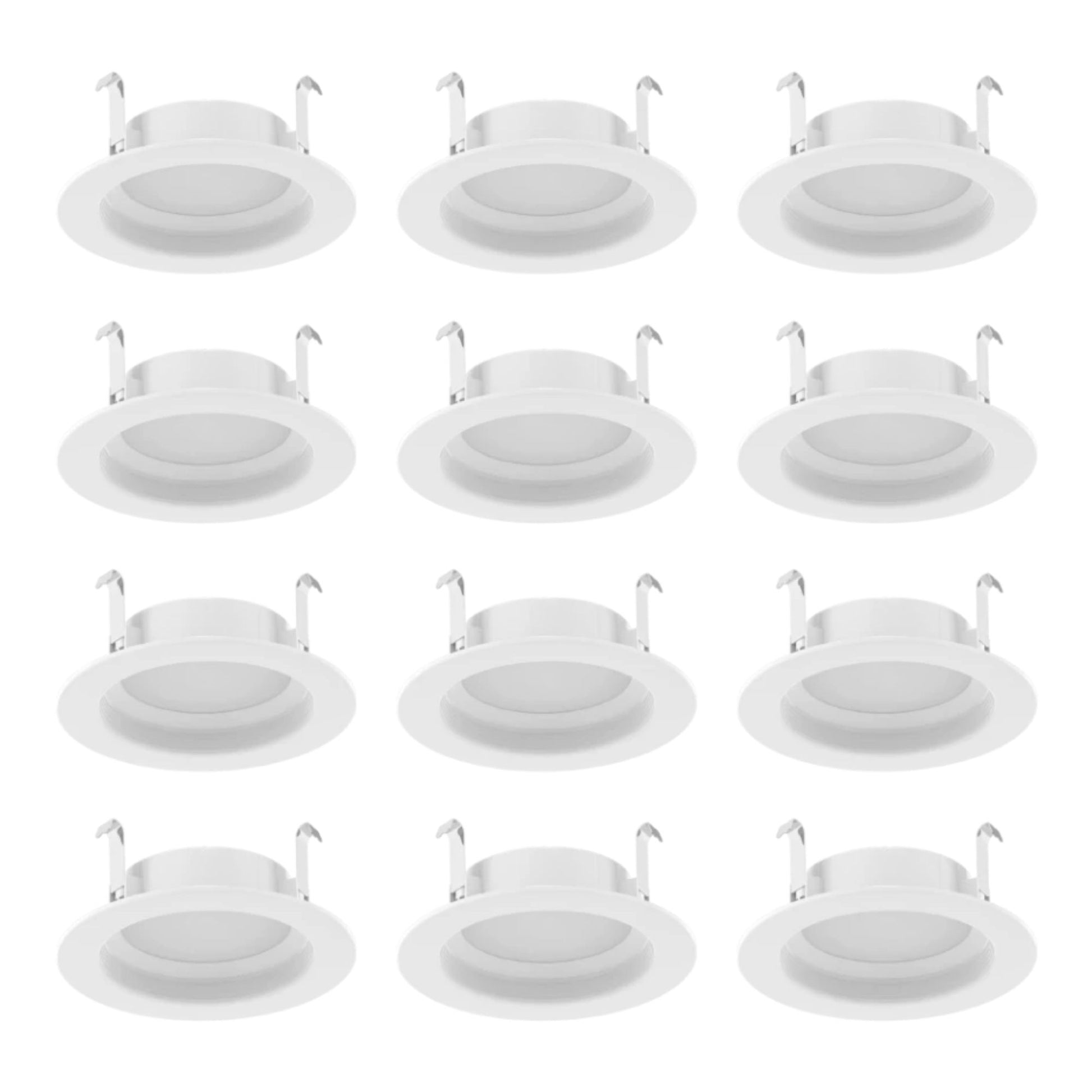

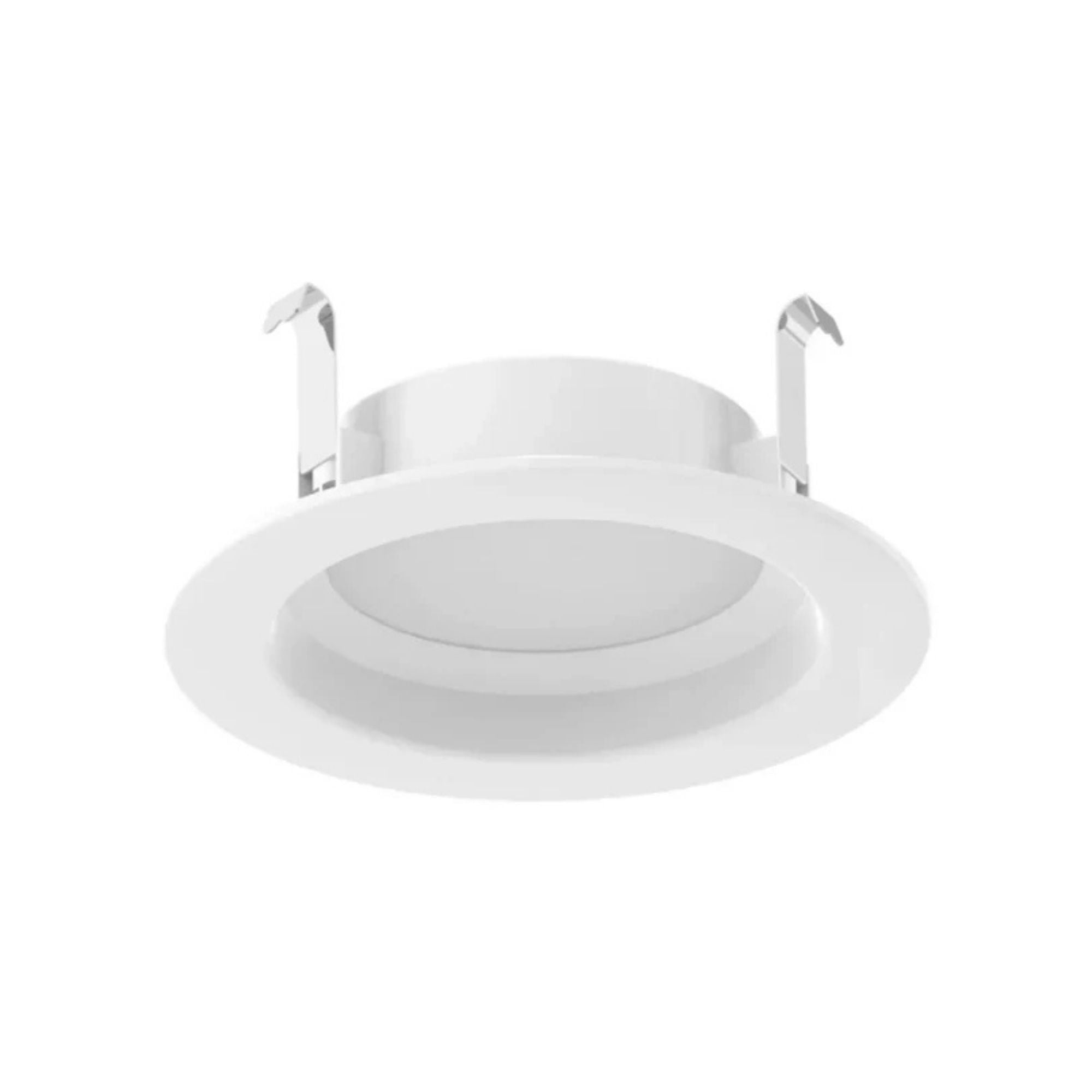

- R34-4/BP (4 in / Smooth / White): 7W | 700 lm | 93 lm/W | 90 CRI | 80mA | Friction clips | 4 in housings | Title 20: DLR0141(R34-4)

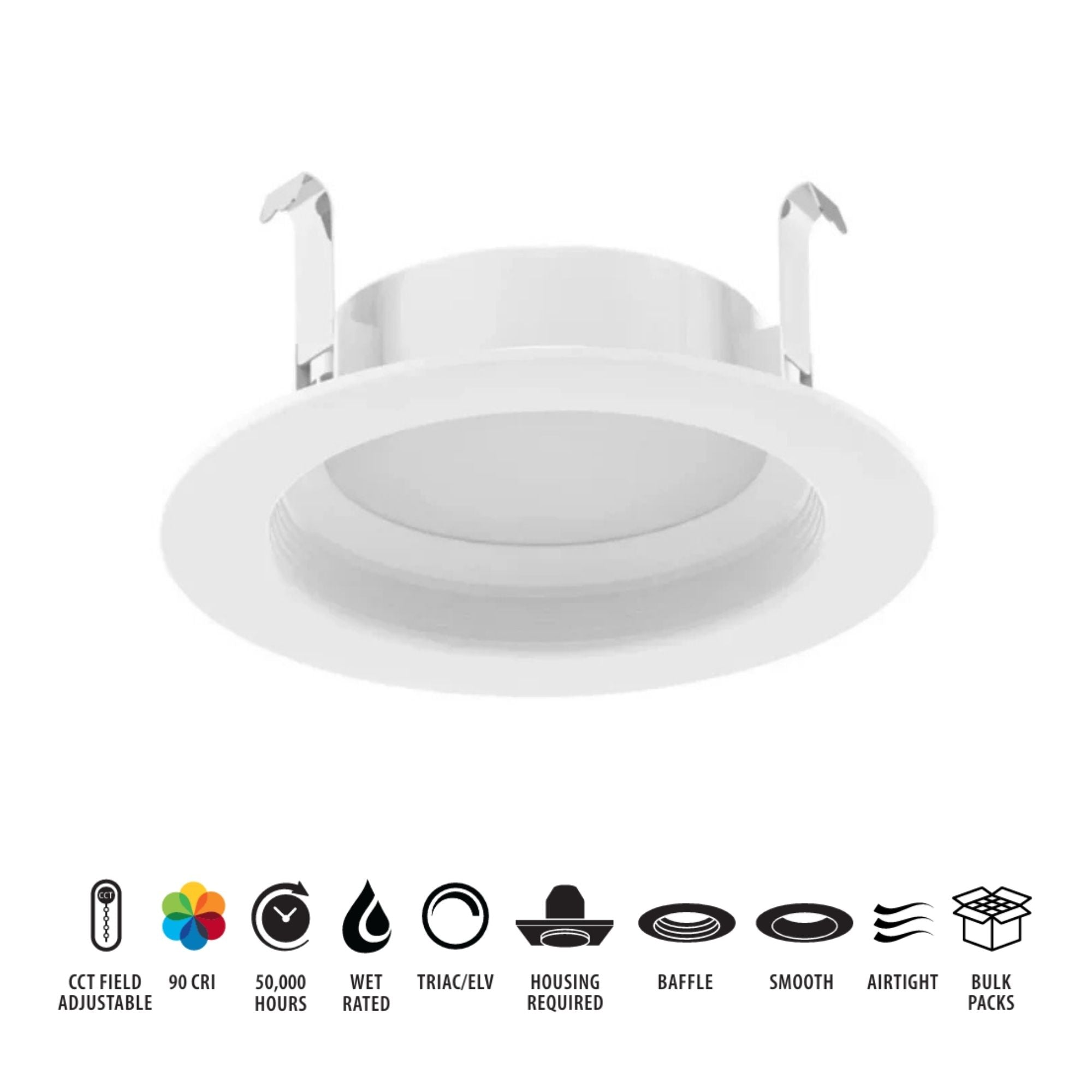

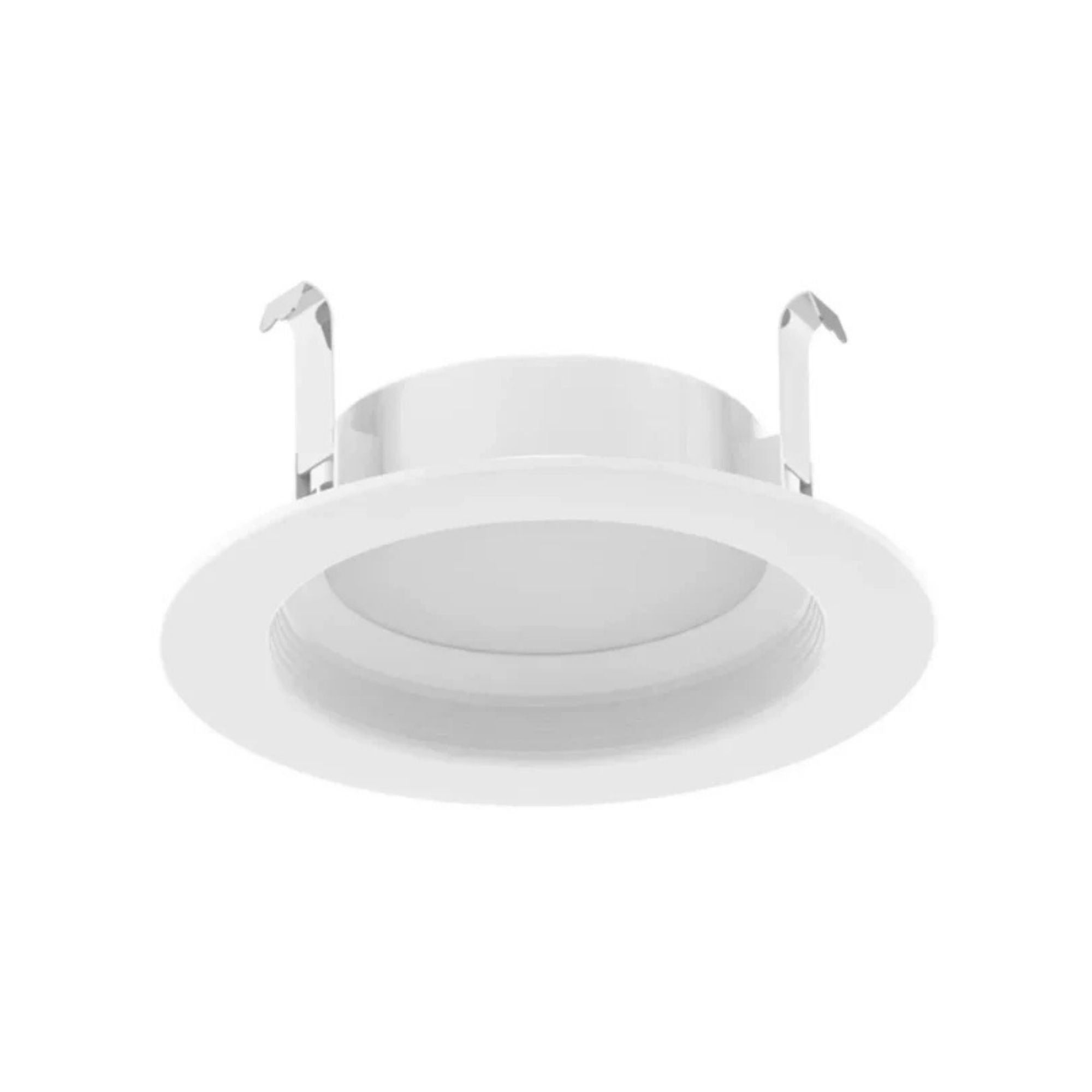

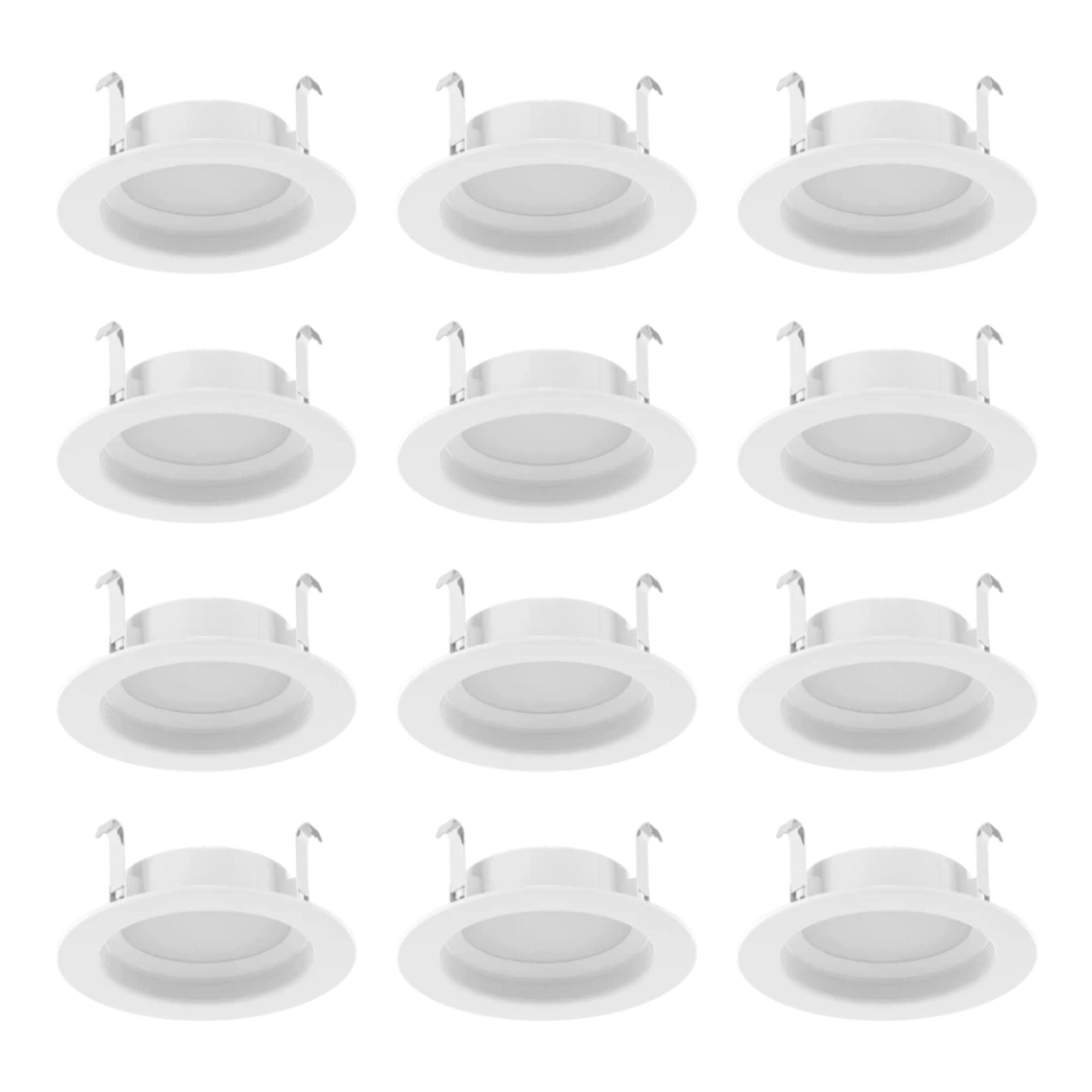

- R34-4B/BP (4 in / Baffle / White): 7W | 700 lm | 93 lm/W | 90 CRI | 80mA | Friction clips | 4 in housings | Title 20: DLR0142(R34-4B)

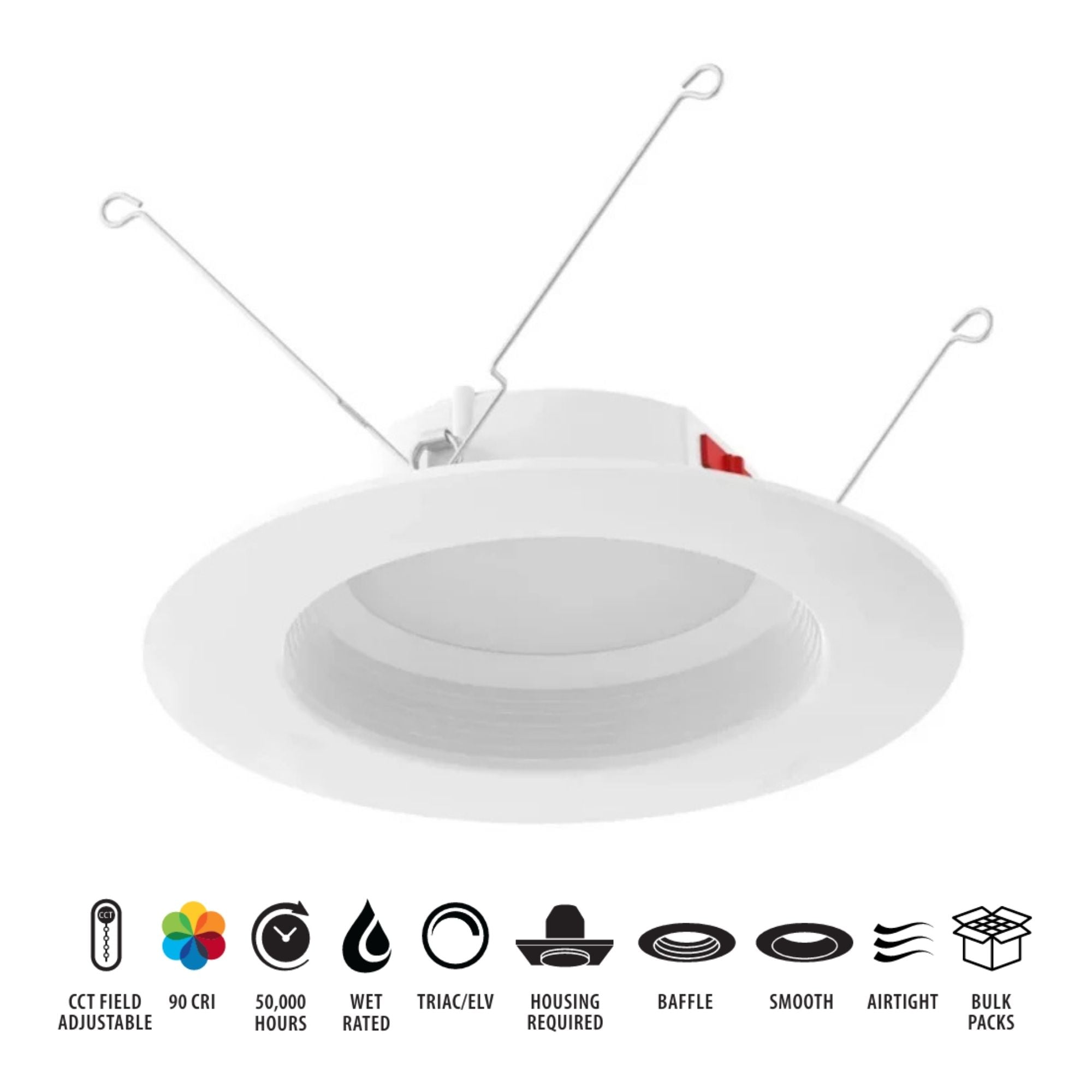

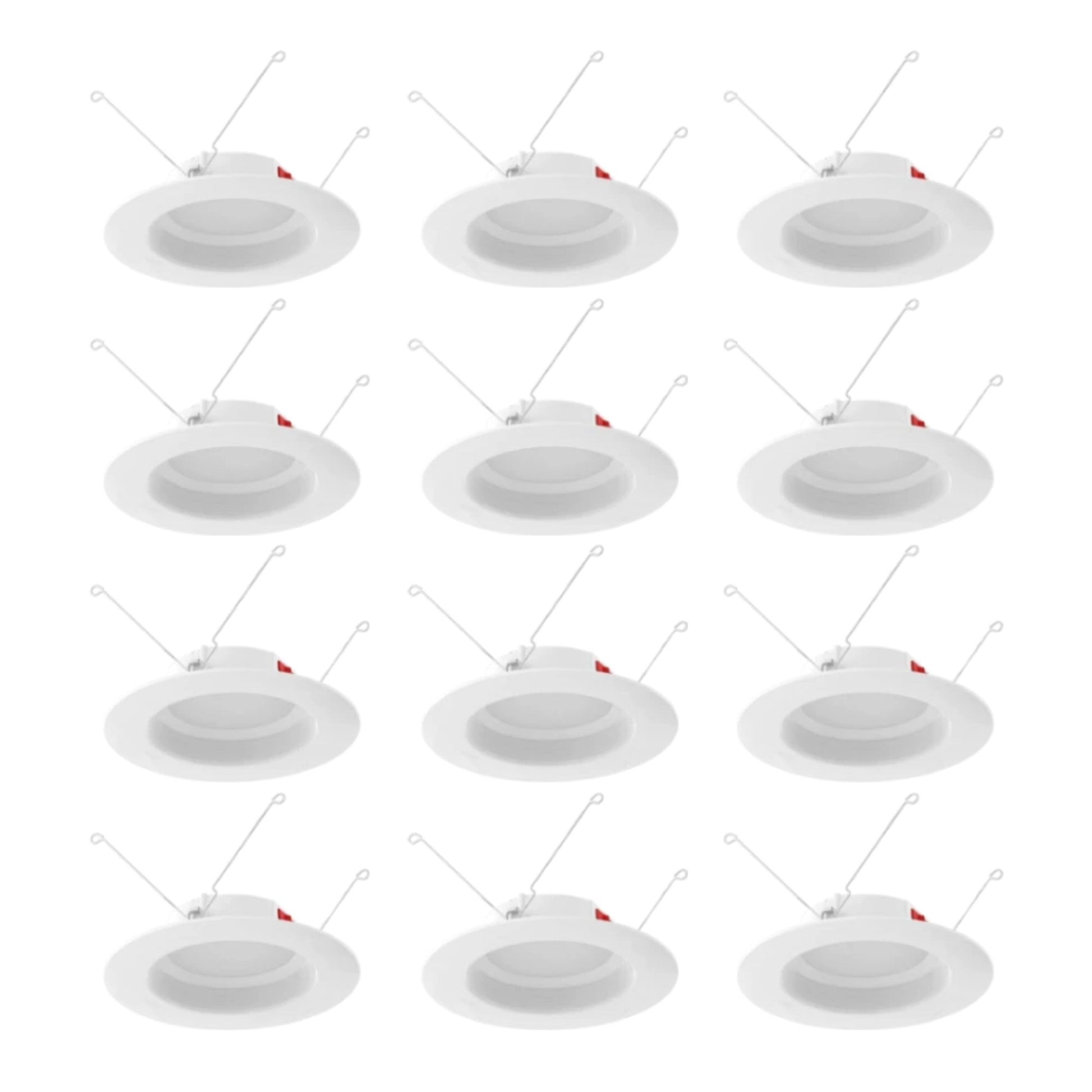

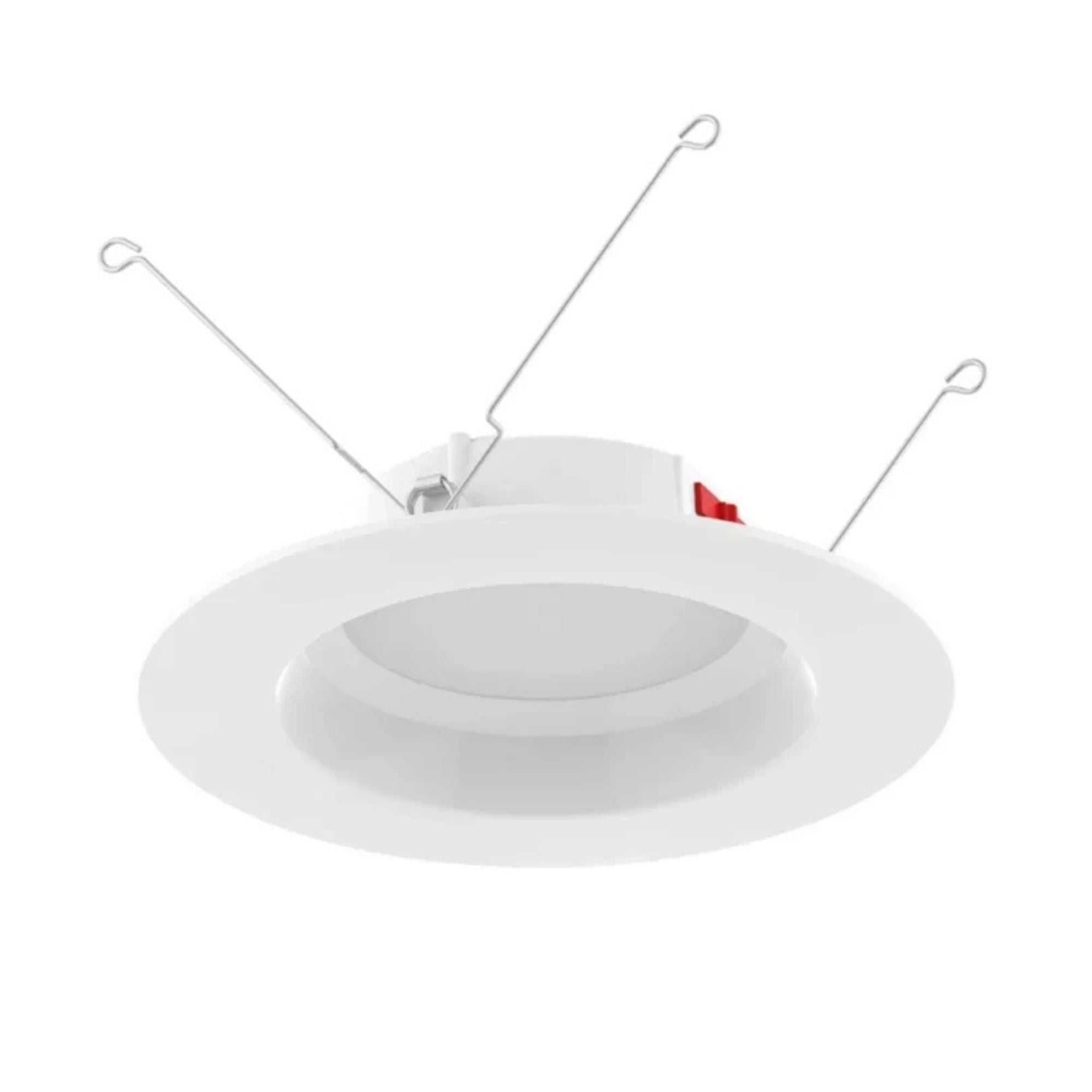

- R34-6/BP (6 in / Smooth / White): 10W | 900 lm | 90 lm/W | 90 CRI | 100mA | V-springs | 5 in or 6 in housings | Title 20: DLR0143(R34-6)

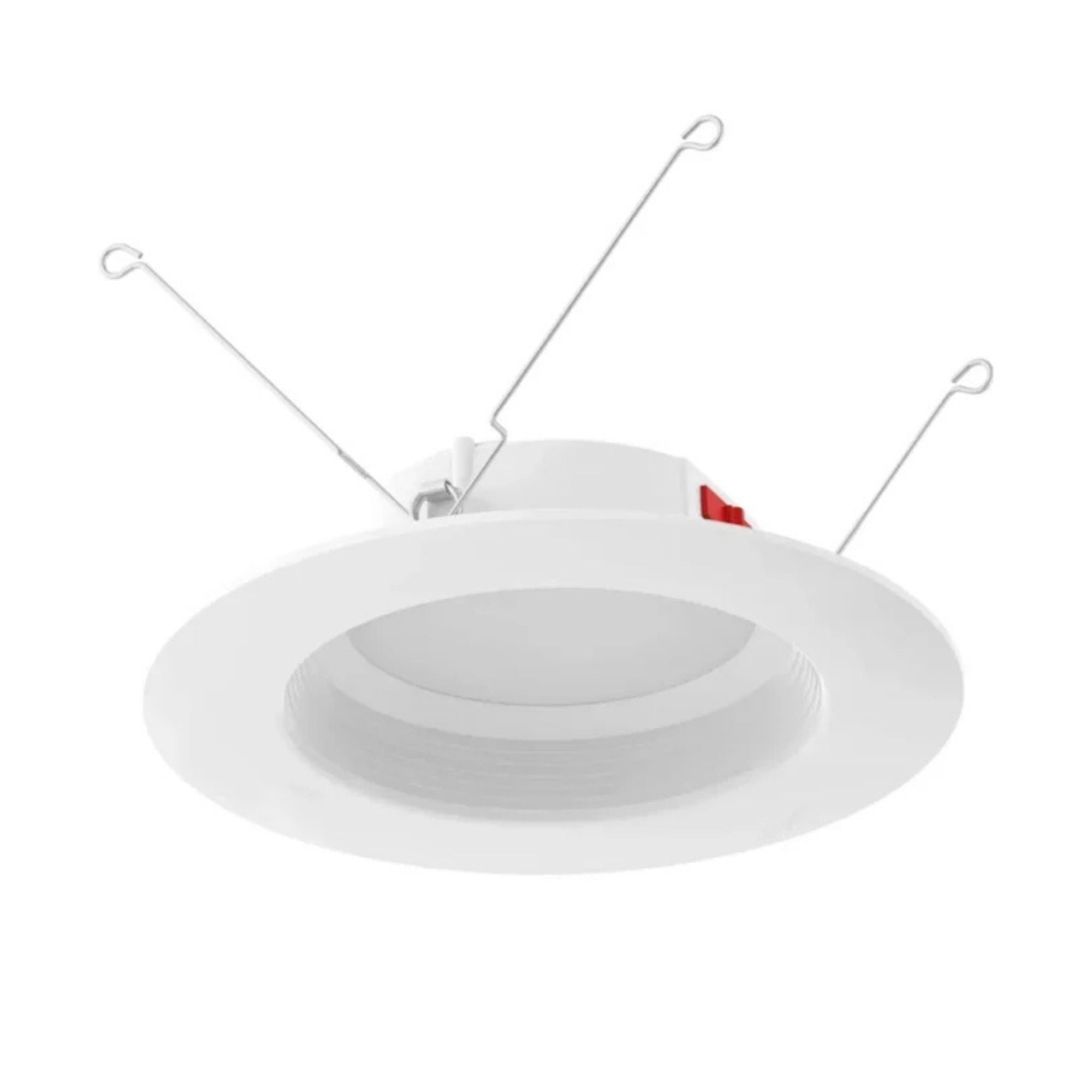

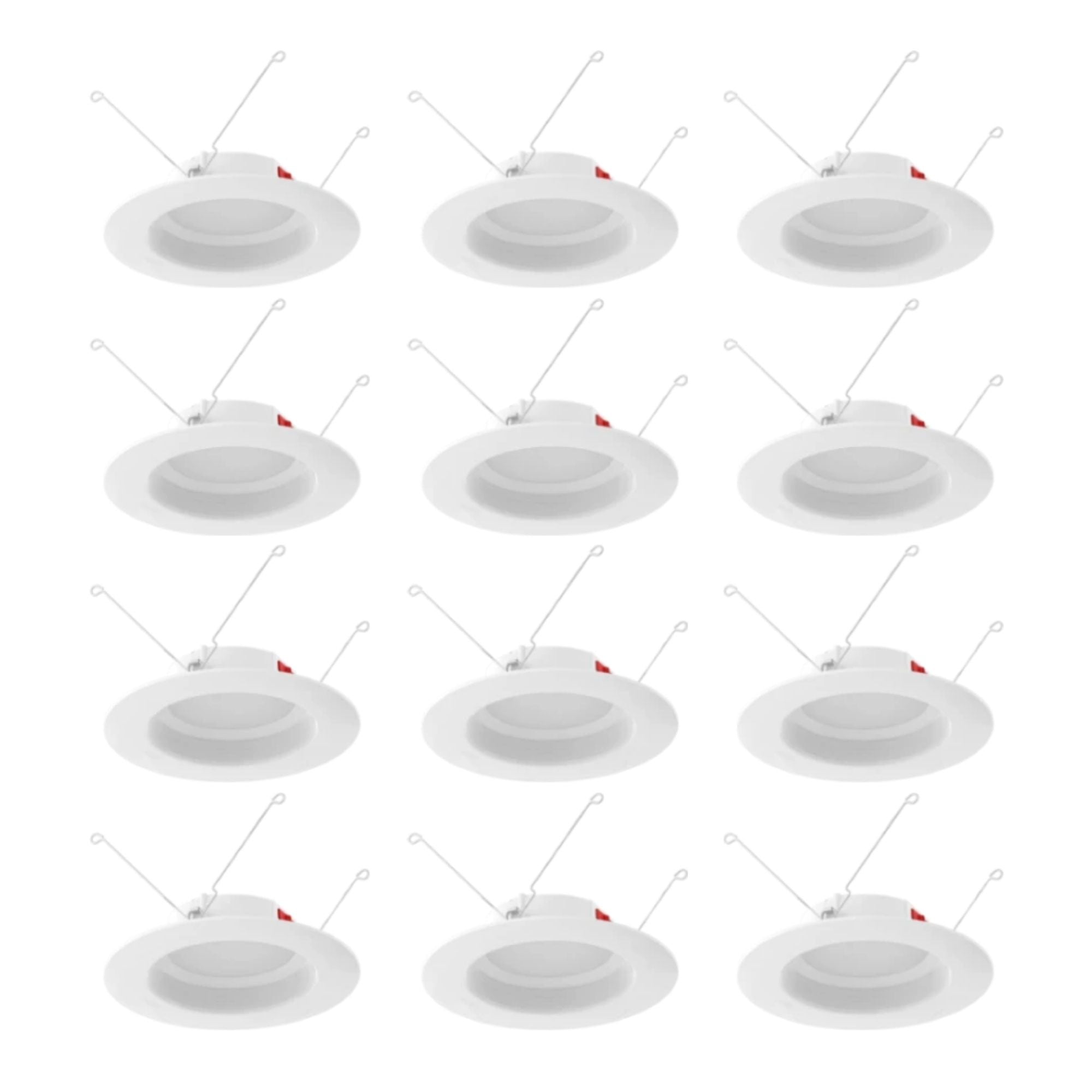

- R34-6B/BP (6 in / Baffle / White): 10W | 900 lm | 90 lm/W | 90 CRI | 100mA | V-springs | 5 in or 6 in housings | Title 20: DLR0144(R34-6B)
Key Features (All Models)
- Pack Quantity: 12 units per pack
- Finish: White | Frosted polycarbonate lens diffuser | Injection-molded impact-resistant non-conductive plastic
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
- Beam Angle: 90° | CRI: 90 | R9 >50 | <4-step MacAdam Ellipse | Color stability ≤200K over 5 years
- Dimming: TRIAC/ELV dimmable to 10% at 120V — see RAB Dimmer Compatibility List | Not for emergency applications
- Environment: Wet rated | IC depends on housing | Not Air Tight | Op temp: -4°F to 104°F
- Driver: Constant Current | THD: <100% | Flicker: <30% | 120V only
- Certifications: UL Classified | ENERGY STAR v2.2 | Title 20 compliant | CEC: Lawful for CA | TAA Compliant | NEC Sec. 410.16 | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
- Note: Not Title 24 JA8 compliant. Not DLC listed. L70 lifespan varies by model (N/A on some).
- Warranty: 5-year no-compromise warranty
Light Output & Performance
The 4 in models deliver 700 lm at 7W (93 lm/W), replacing 60W incandescent. The 6 in models deliver 900 lm at 10W (90 lm/W), replacing 75W halogen. All models have a CRI of 90 with R9 >50 and <4-step MacAdam Ellipse binning for consistent fixture-to-fixture color uniformity across all five CCT settings.
Electrical & Installation
All models operate at 120V with a constant current driver. 4 in models draw 80mA and mount via friction clips into most standard 4 in recessed can housings. 6 in models draw 100mA and mount via fully captured V-springs into most standard 5 in or 6 in recessed can housings. All include an E26 Edison base adapter. IC rating depends on the recessed housing used. TRIAC/ELV dimmable to 10%. Not for emergency applications.
Compatible Accessories
- 4 in New Construction Housings: NDCANIC4R/E26 (standard) | SNDCANIC4R (shallow) | FRCANIC4R/E26 (fire-rated)
- 6 in New Construction Housings: NDCANIC6R/E26 (standard) | SNDCANIC6R (shallow) | FRCANIC6R/E26 (fire-rated)
- 4 in Color Trims — Smooth: DLTRIM/R34-4-B | DLTRIM/R34-4-BN | DLTRIM/R34-4-BRZ
- 4 in Color Trims — Baffle: DLTRIM/R4RB-B-L | DLTRIM/R4RB-BN-L | DLTRIM/R4RB-BRZ-L
- 4 in Color Trims — Smooth (RS): DLTRIM/R4RS-B-L | DLTRIM/R4RS-BN-L | DLTRIM/R4RS-BRZ-L
- 6 in Color Trims — Smooth: DLTRIM/R34-6-B | DLTRIM/R34-6-BN | DLTRIM/R34-6-BRZ | DLTRIM/R6RS-B | DLTRIM/R6RS-BN | DLTRIM/R6RS-BRZ
- 6 in Color Trims — Baffle: DLTRIM/R6RB-B | DLTRIM/R6RB-BN | DLTRIM/R6RB-BRZ
Typical Applications
- Contractor and multi-fixture retrofit projects replacing 60W incandescent (4 in) or 75W halogen (6 in)
- Residential and light commercial general lighting
- Budget-conscious projects requiring CCT flexibility across 2700K–5000K
- Wet-rated applications: bathrooms, covered outdoor areas
- California Title 20 and TAA compliant installations
