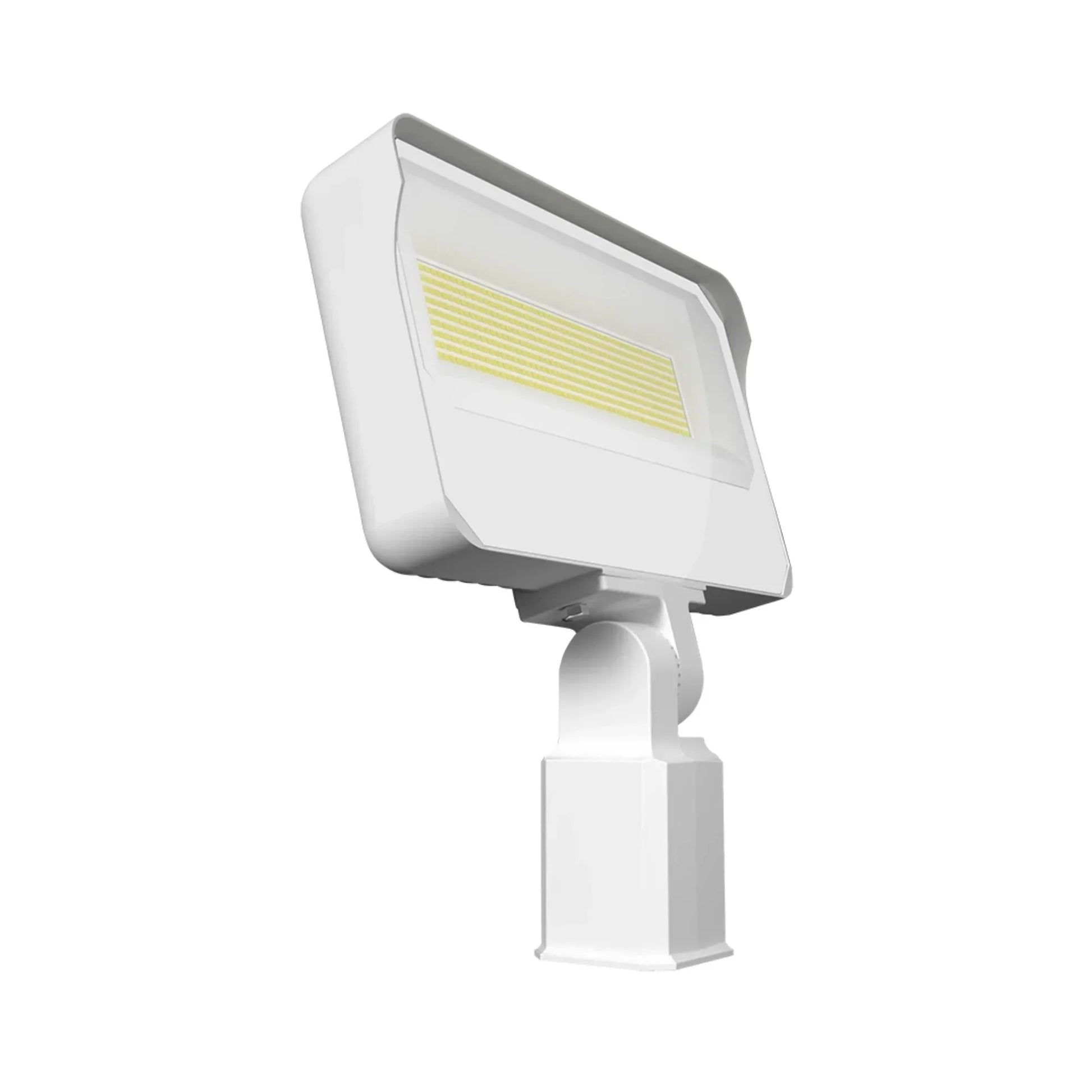

RAB X34XXLW Ultra-Economy Field-Adjustable Floodlight — 160W, Selectable CCT & Power, Slipfitter Mount, Photocell, 120-277V, White

The RAB X34XXLW is a high-output, extra-large LED flood light in a clean white finish, designed to provide massive illumination with field-adjustable versatility. This powerful fixture produces up to 24,168 lumens and gives installers complete on-site control with selectable wattage (160W, 140W, 120W) and tunable color temperatures (3000K, 4000K, 5000K). It utilizes a wide 7H x 7V NEMA beam spread, making it an ideal solution for lighting up large building perimeters, expansive landscapes, and parking areas. Operating on a 120-277V driver, the X34XXLW includes an integrated, selectable On/Off photocell for automated dusk-to-dawn energy savings. Constructed from precision die-cast aluminum with a tempered glass lens, the IP65-rated X34XXLW is built to endure harsh outdoor environments while delivering a 100,000-hour rated lifespan.

Key Features

• Wattage: Field adjustable to 160W, 140W, or 120W (defaults to 160W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Delivered Lumens: Up to 24,168 lumens depending on selected settings.
• Efficacy: Performance levels up to 165.3 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Photocell: Integrated 120-277V selectable On/Off photocell included.
• Environmental Ratings: IP65 rated, suitable for wet locations.
• Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product ID: S-AOKIJL).
• Warranty: 5-Year limited warranty.

Typical Applications

• Large building perimeters and white architectural facades
• Expansive parking lots and auto dealerships
• Industrial yards and wide outdoor storage areas
• General high-output exterior security lighting

Performance & Light Output

The X34XXLW provides exceptionally bright and uniform light with a maximum output of 24,168 lumens. The wide 7H x 7V beam spread ensures broad coverage for large areas. With its long-life LEDs rated for 100,000 hours, maintenance costs are significantly reduced over the fixture's long operational life.

Electrical & Controls

This large fixture features a constant current driver and 2kV surge protection to ensure stable operation on 120-277V systems. The integrated photocell provides immediate energy savings with dusk-to-dawn functionality.

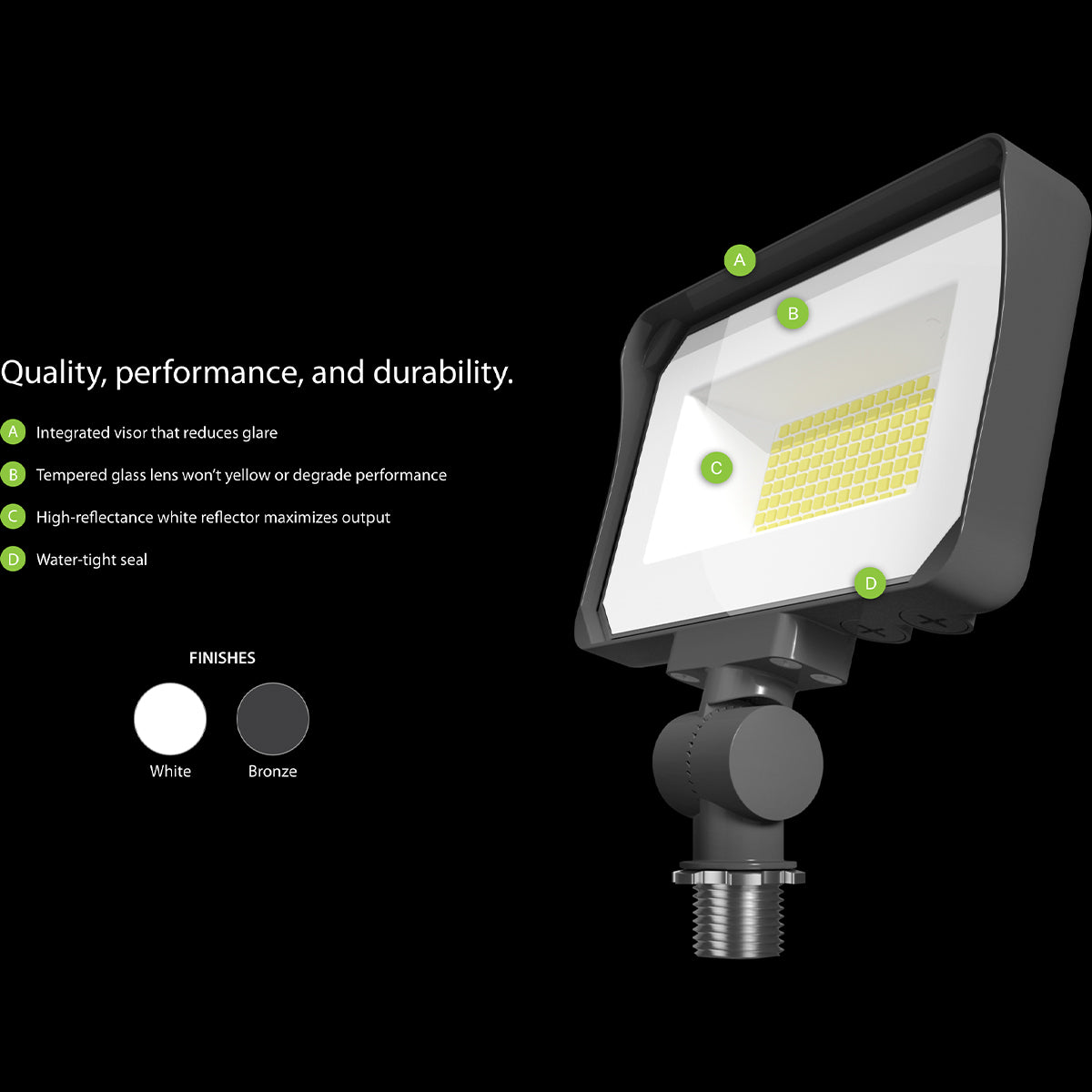

Construction & Durability

Built for the elements, the X34XXLW features a precision die-cast aluminum housing finished in a durable white. The tempered glass lens and high-quality construction ensure an IP65 rating against dust and moisture. It safely operates in extreme temperatures ranging from -40°F up to 104°F.

Installation & Mounting

This model includes an integrated, robust slipfitter mount. The mount features a tilt increment of 10°, allowing for precise directional aiming when installed on standard poles or tenons.

What's Included

• RAB X34XXLW LED Field-Adjustable Floodlight (White)
• Integrated Slipfitter Mount
• Integrated Selectable On/Off Photocell
