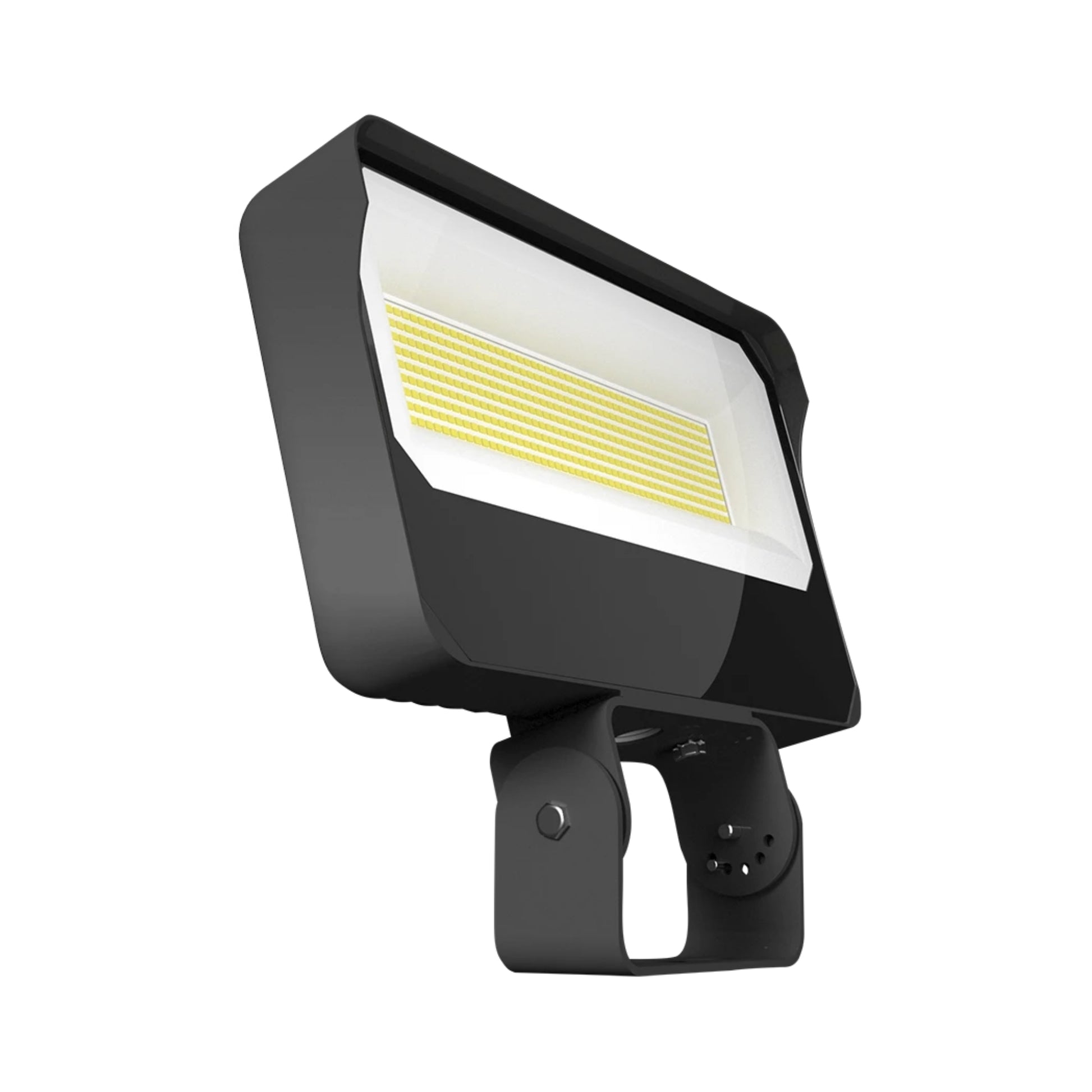

RAB X34XXLT Ultra-Economy Field-Adjustable Floodlight — 160W, Selectable CCT & Power, Trunnion Mount, Photocell, 120-277V, Bronze

The RAB X34XXLT is a high-output, ultra-economy LED flood light engineered to provide massive illumination with field-adjustable versatility. This powerful fixture produces up to 24,168 lumens and gives installers complete on-site control with selectable wattage (160W, 140W, 120W) and color temperature (3000K, 4000K, 5000K). It provides a smooth, uniform 7H x 7V NEMA beam spread that is ideal for lighting up large building walls, architectural facades, and signage. Operating on a 120-277V driver, the X34XXLT includes 0-10V dimming and an integrated selectable On/Off photocell for automated dusk-to-dawn energy savings. Housed in rugged precision die-cast aluminum with a durable tempered glass lens and an IP65 rating, the X34XXLT is built to withstand extreme weather and deliver up to 100,000 hours of reliable lighting.

Key Features

• Wattage: Field adjustable to 160W, 140W, or 120W (defaults to 160W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Delivered Lumens: Maximum of 24,168 lumens at 160W (4000K).
• Efficacy: Performance levels up to 165.3 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Photocell: Integrated 120-277V selectable On/Off photocell included.
• Environmental Ratings: IP65 rated, suitable for wet locations and mounting within 4ft of the ground.
• Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product ID: S-AOKIJL).
• Warranty: 5-Year limited warranty.

Typical Applications

• Large building facades and walls
• Large-scale billboard and signage lighting
• Industrial perimeters and landscape accents
• General high-output exterior security lighting

Performance & Light Output

The X34XXLT provides exceptionally bright and uniform light with a maximum output of 24,168 lumens. The wide 7H x 7V beam spread ensures broad coverage for large architectural surfaces. With its long-life LEDs rated for 100,000 hours, maintenance requirements are minimized throughout the product's lifespan.

Electrical & Controls

This high-wattage fixture features a constant current driver and 2kV surge protection to maintain stability on 120-277V power systems. The integrated photocell allows for automated control based on daylight, and the fixture supports standard 0-10V dimming.

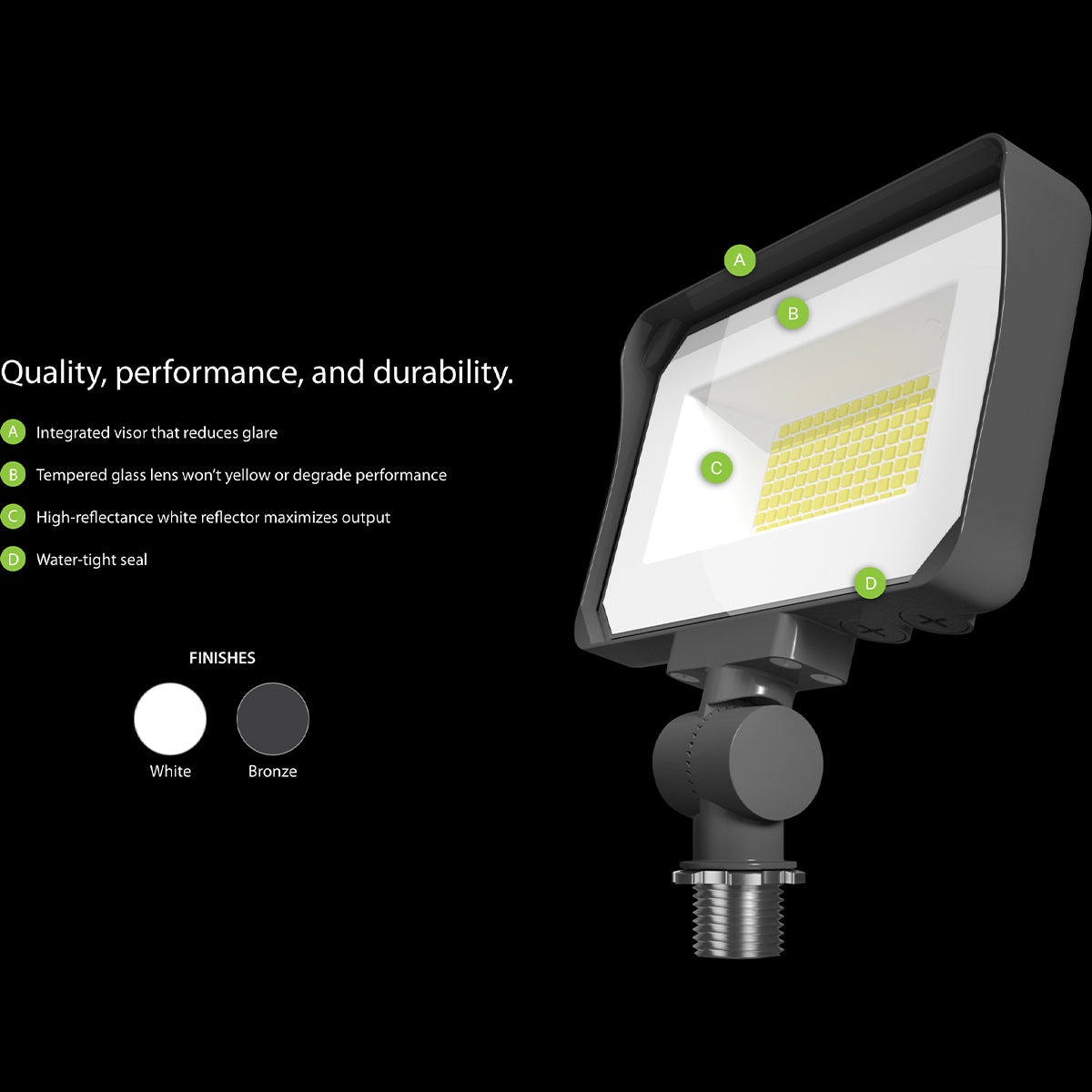

Construction & Durability

Engineered for the elements, the X34XXLT features a precision die-cast aluminum housing finished in a durable bronze. The tempered glass lens and silicone gaskets ensure a rigorous IP65 rating against dust and moisture. It is designed to operate safely in extreme cold and heat, from -40°F (-40°C) to 104°F (40°C).

Installation & Mounting

This model includes a heavy-duty trunnion mount for secure installation on flat surfaces like walls or ground foundations. The trunnion mount allows for tilt adjustments in 30° increments, ensuring the light can be precisely angled for optimal distribution.

What's Included

• RAB X34XXLT LED Field-Adjustable Floodlight (Bronze)
• Integrated Trunnion Mount
• Integrated Selectable On/Off Photocell
