RAB X34XSW Ultra-Economy Field-Adjustable Floodlight — 16W, Selectable CCT & Power, Knuckle Mount, 120-277V, White

The RAB X34XSW is an ultra-economy, compact LED flood light designed to deliver bright, customizable illumination in a small footprint. This highly versatile fixture produces up to 2,353 lumens and gives installers complete control with field-adjustable wattage (16W, 13W, 10W) and color temperature (3000K, 4000K, 5000K) directly on the fixture. It provides a smooth, uniform 7H x 7V NEMA beam spread that is ideal for lighting up landscapes, signs, and small exterior areas. Operating on a 120 or 277V non-dimming driver, the X34XSW focuses on efficiency and ease of use. Housed in rugged precision die-cast aluminum with a durable tempered glass lens and an IP65 rating, the white X34XSW is built to withstand extreme weather and deliver up to 100,000 hours of reliable lighting.

Key Features

• Wattage: Field adjustable to 16W, 13W, or 10W (defaults to 16W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Delivered Lumens: Up to 2,353 lumens depending on selected settings.
• Efficacy: Highly efficient performance up to 150.6 Lumens Per Watt (LPW).
• Voltage: 120 or 277V AC @ 50/60Hz, non-dimming.
• Beam Spread: NEMA 7H x 7V wide distribution.
• Environmental Ratings: IP65 rated for dust and water, UL Listed for wet locations.
• Compliance & Certifications: RoHS Compliant, DLC Standard Listed (Product Code: S-P1Q64R).
• Warranty: 5-Year limited warranty.

Typical Applications

• Landscape and small signage lighting
• Residential and small commercial exteriors
• Walkways and building perimeters
• Compact exterior security lighting

Performance & Light Output

The X34XSW delivers consistent lumen output across its adjustable settings, reaching a maximum of 2,353 lumens at the 16W setting. The wide 7H x 7V beam spread ensures a generous wash of light for general-purpose applications. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture drastically reduces maintenance requirements over its life.

Electrical & Controls

This compact floodlight operates on a reliable 120 or 277V AC non-dimming driver. It features built-in surge protection of 2kV to guard against power irregularities. Note: The X34XS series does not include dimming capabilities or an integrated photocell.

Construction & Durability

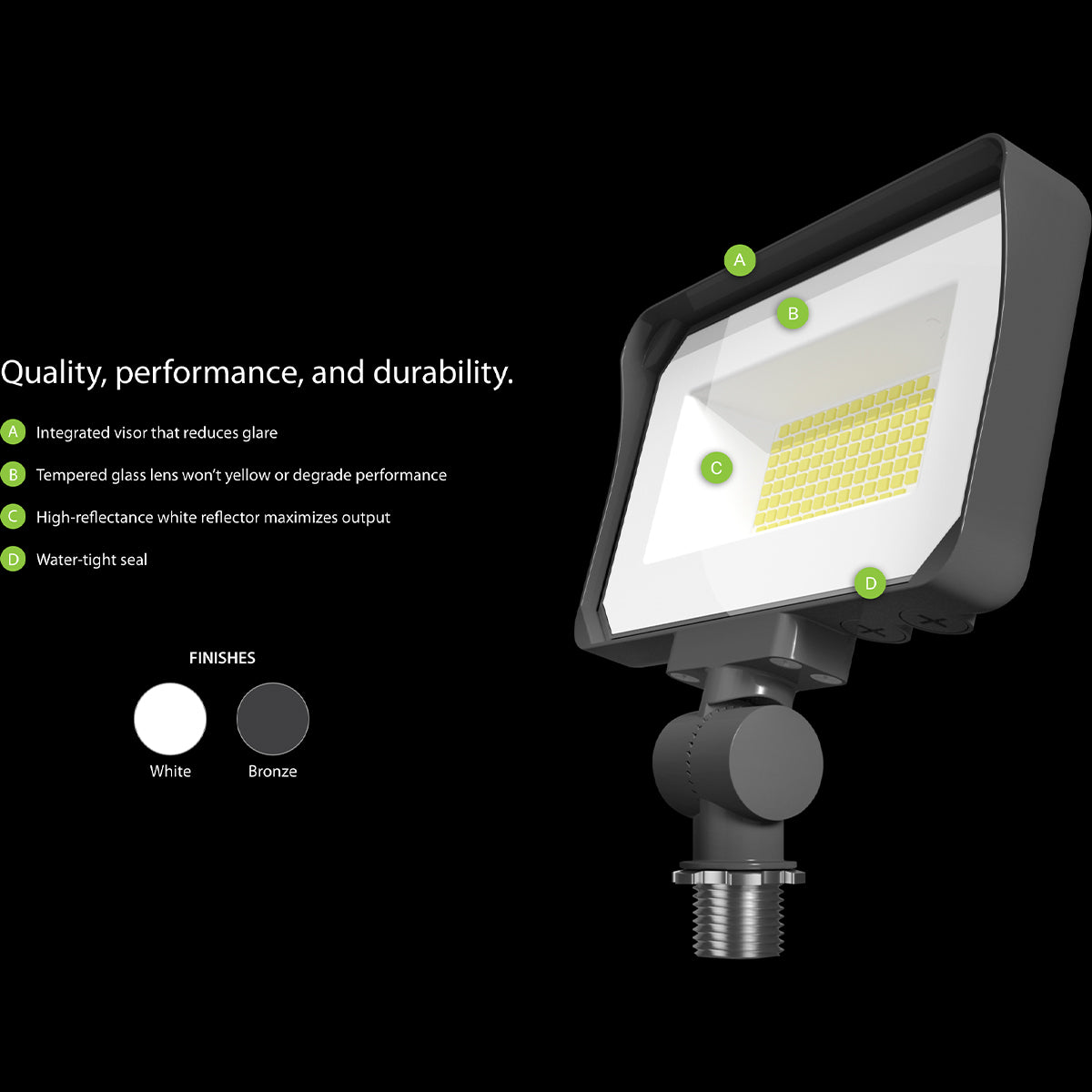

Engineered to endure the elements, the X34XSW is constructed with a precision die-cast aluminum housing and a heavy-duty tempered glass lens. The fixture is fully sealed to achieve an IP65 rating, ensuring it remains protected against dust and low-pressure water jets. It operates safely in extreme cold weather starting down to -40°F (-40°C) and handles ambient temperatures up to 104°F (40°C).

Installation & Mounting

The X34XSW features a highly versatile knuckle mount, allowing for quick, easy installation and precise tilting to aim the light exactly where it is needed. It is also suitable for mounting within 4 feet of the ground.

What's Included

• RAB X34XSW LED Field-Adjustable Floodlight (White)
• Integrated Knuckle Mount
