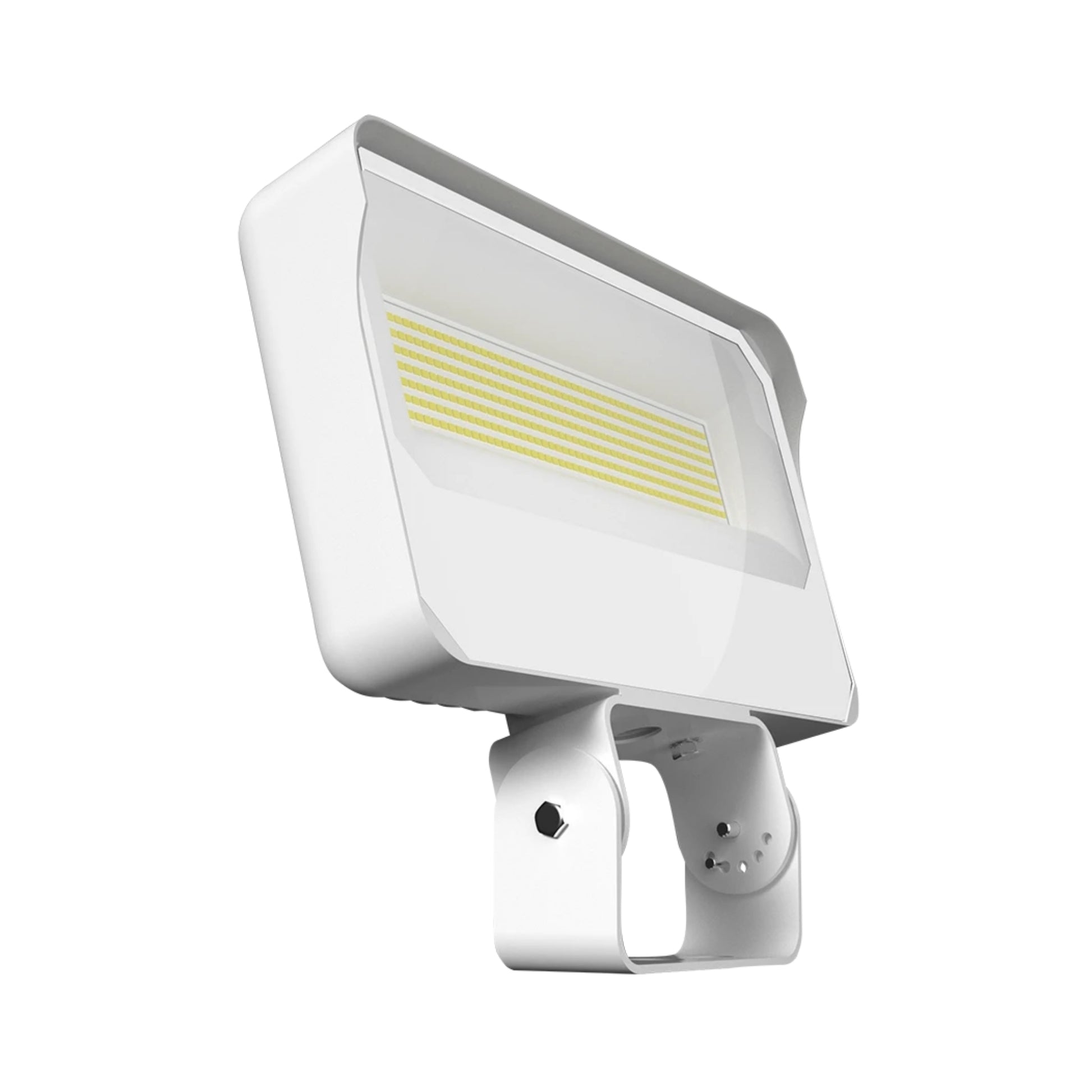

RAB X34XLTW Ultra-Economy Field-Adjustable Floodlight — 130W, Selectable CCT & Power, Trunnion Mount, Photocell, 120-277V, White

The RAB X34XLTW is a high-output, extra-large LED flood light in a clean white finish, designed to provide massive, customizable illumination with exceptional efficiency. This highly versatile fixture produces up to 20,065 lumens and gives installers complete on-site control with selectable wattage (130W, 110W, 95W) and color temperature (3000K, 4000K, 5000K). It provides a smooth, uniform 7H x 7V NEMA beam spread that is ideal for lighting up building perimeters, large architectural facades, and signage. Operating on a 120-277V driver, the X34XLTW includes 0-10V dimming and an integrated selectable On/Off photocell for maximum energy savings. Housed in rugged precision die-cast aluminum with a durable tempered glass lens and an IP65 rating, the white X34XLTW is built to withstand extreme weather and deliver up to 100,000 hours of reliable lighting.

Key Features

• Wattage: Field adjustable to 130W, 110W, or 95W (defaults to 130W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Delivered Lumens: Up to 20,065 lumens at 130W (4000K).
• Efficacy: Performance levels up to 162.5 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Photocell: Integrated 120-277V selectable On/Off photocell included.
• Environmental Ratings: IP65 rated, suitable for wet locations and mounting within 4ft of the ground.
• Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product ID: S-2HQ7D4).
• Warranty: 5-Year limited warranty.

Typical Applications

• White-themed architectural facades and building walls
• Large-scale billboard and signage lighting
• Industrial perimeters and landscape accents
• General high-output exterior security lighting

Performance & Light Output

The X34XLTW provides exceptionally bright and uniform light with a maximum output of 20,065 lumens. The wide 7H x 7V beam spread ensures broad coverage for large architectural surfaces. With its long-life LEDs rated for 100,000 hours, maintenance requirements are minimized throughout the product's lifespan.

Electrical & Controls

This high-wattage fixture features a constant current driver and 2kV surge protection to maintain stability on 120-277V power systems. The integrated photocell allows for automated control based on daylight, and the fixture supports standard 0-10V dimming.

Construction & Durability

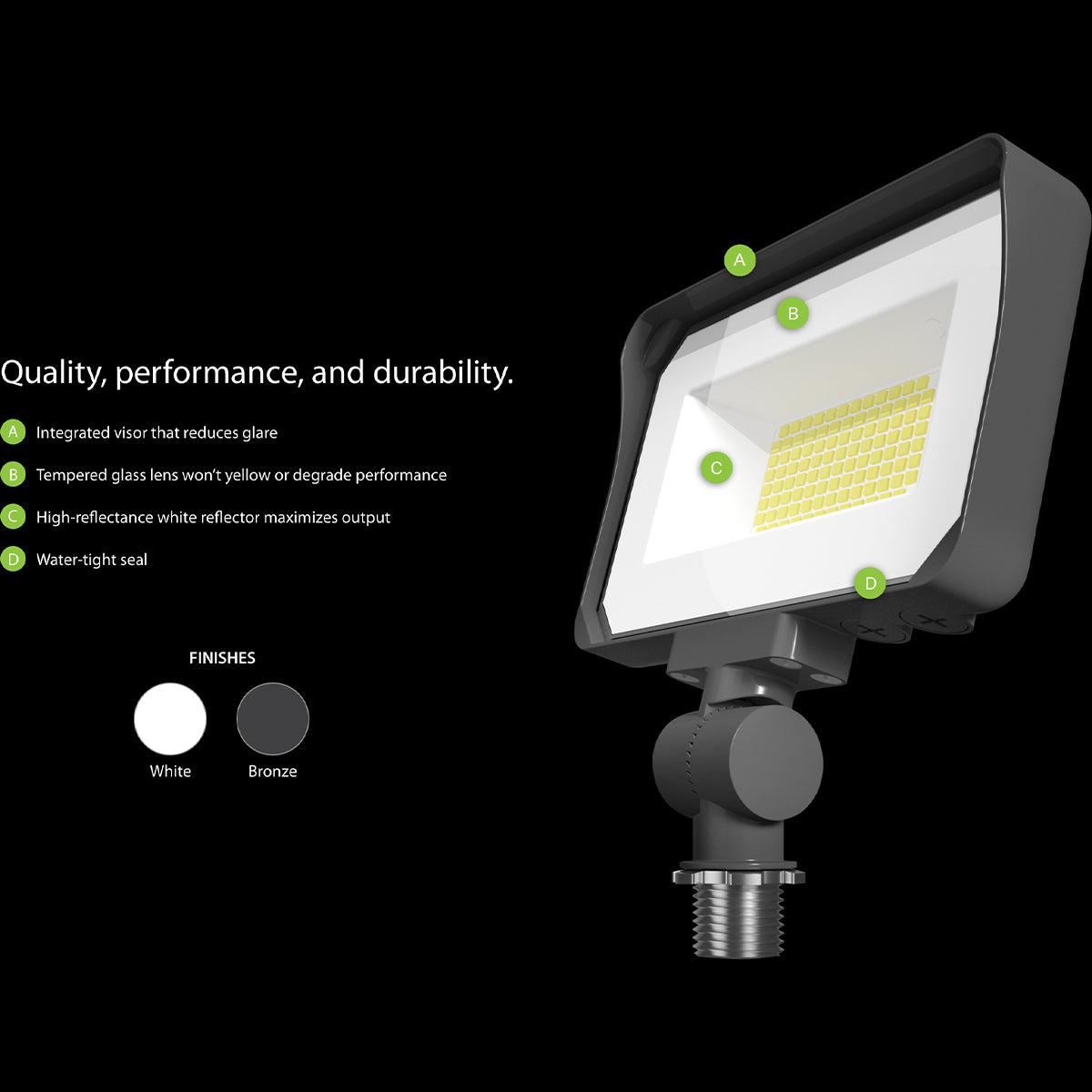

Engineered for the elements, the X34XLTW features a precision die-cast aluminum housing finished in a durable white. The tempered glass lens and silicone gaskets ensure a rigorous IP65 rating against dust and moisture. It is designed to operate safely in extreme cold and heat, from -40°F (-40°C) to 104°F (40°C).

Installation & Mounting

This model includes a heavy-duty white trunnion mount for secure installation on flat surfaces like walls or ground foundations. The trunnion mount allows for tilt adjustments in 30° increments, ensuring the light can be precisely angled for optimal distribution.

What's Included

• RAB X34XLTW LED Field-Adjustable Floodlight (White)
• Integrated Trunnion Mount
• Integrated Selectable On/Off Photocell
