RAB X34XL Ultra-Economy Field-Adjustable Floodlight — 130W, Selectable CCT & Power, Slipfitter Mount, Photocell, 120-277V, Bronze

The RAB X34XL is a high-output, extra-large LED flood light engineered to provide massive illumination with field-adjustable versatility. This powerful fixture produces up to 20,065 lumens and gives installers complete on-site control with selectable wattage (130W, 110W, 95W) and tunable color temperatures (3000K, 4000K, 5000K). It utilizes a wide 7H x 7V NEMA beam spread, making it an ideal solution for lighting up building perimeters, large landscapes, and expansive parking areas. Operating on a 120-277V driver, the X34XL includes 0-10V dimming and an integrated, selectable On/Off photocell for automated dusk-to-dawn energy savings. Constructed from rugged precision die-cast aluminum with a tempered glass lens, the IP65-rated X34XL is built to endure harsh outdoor environments while delivering a 100,000-hour rated lifespan.

Key Features

• Wattage: Field adjustable to 130W, 110W, or 95W (defaults to 130W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Delivered Lumens: Up to 20,065 lumens at 4000K.
• Efficacy: Performance levels up to 162.5 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Dimming: 0-10V dimming down to 10%.
• Photocell: Integrated 120-277V selectable On/Off photocell included.
• Beam Spread: NEMA 7H x 7V wide distribution.
• Environmental Ratings: IP65 rated for dust and water, UL Listed for wet locations.
• Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product ID: S-2HQ7D4).
• Warranty: 5-Year limited warranty.

Typical Applications

• Large building perimeters and facades
• Parking lots and auto dealerships
• Industrial yards and wide outdoor storage areas
• General high-output exterior security lighting

Performance & Light Output

The X34XL delivers consistent lumen output across its adjustable settings, reaching an impressive maximum of 20,065 lumens at the 130W 4000K setting. The wide 7H x 7V beam spread ensures a generous wash of light for large-scale applications. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture drastically reduces maintenance requirements over its life.

Electrical & Controls

This extra-large floodlight operates on a reliable 120-277V AC driver featuring standard 0-10V dimming capabilities. It features built-in surge protection of 2kV to guard against power irregularities. Additionally, it includes an integrated, selectable On/Off photocell to enable automated dusk-to-dawn operation.

Construction & Durability

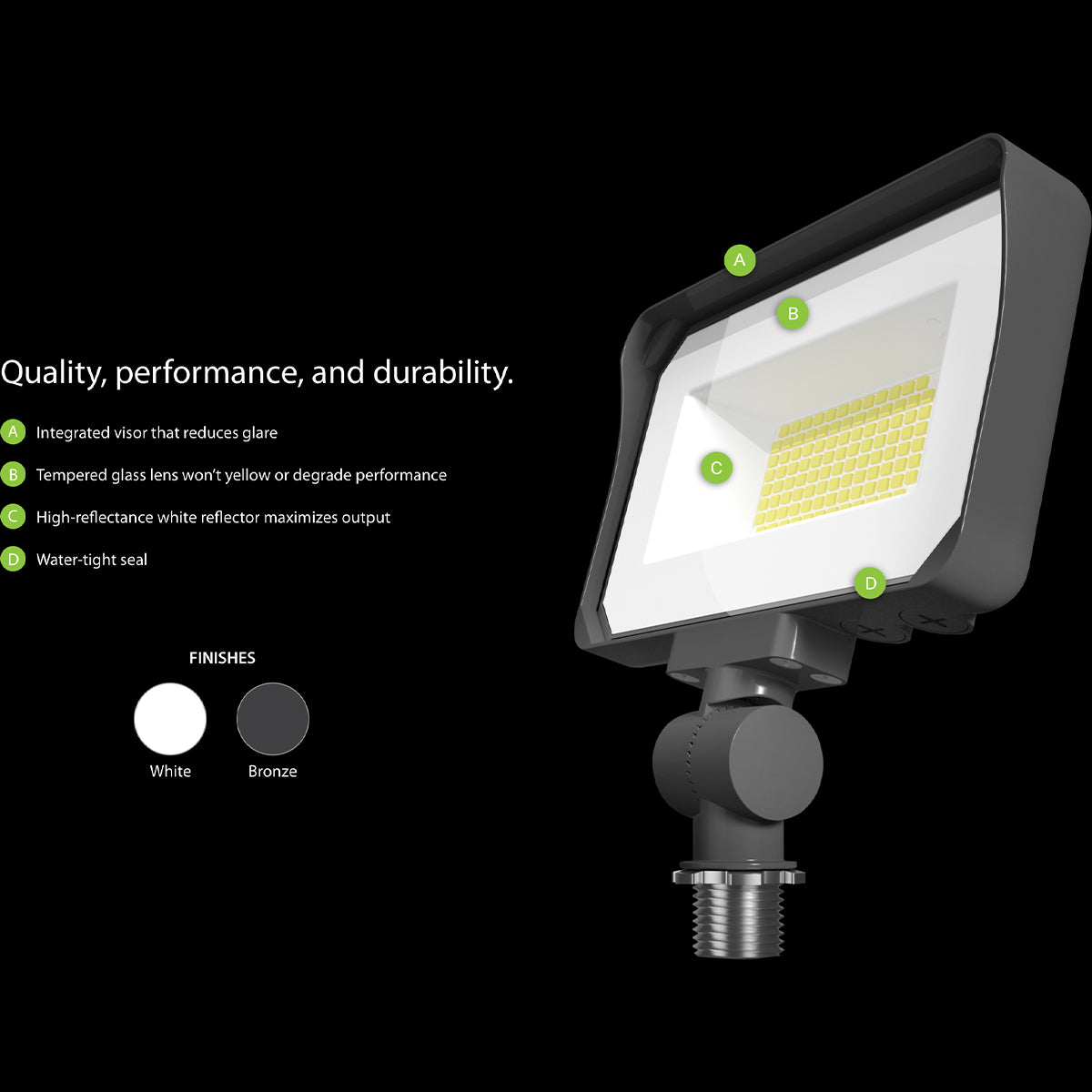

Engineered to endure the elements, the X34XL is constructed with a precision die-cast aluminum housing and a heavy-duty tempered glass lens. The fixture is fully sealed to achieve an IP65 rating, ensuring it remains protected against dust and low-pressure water jets. It operates safely in extreme cold weather starting down to -40°F (-40°C) and handles ambient temperatures up to 104°F (40°C).

Installation & Mounting

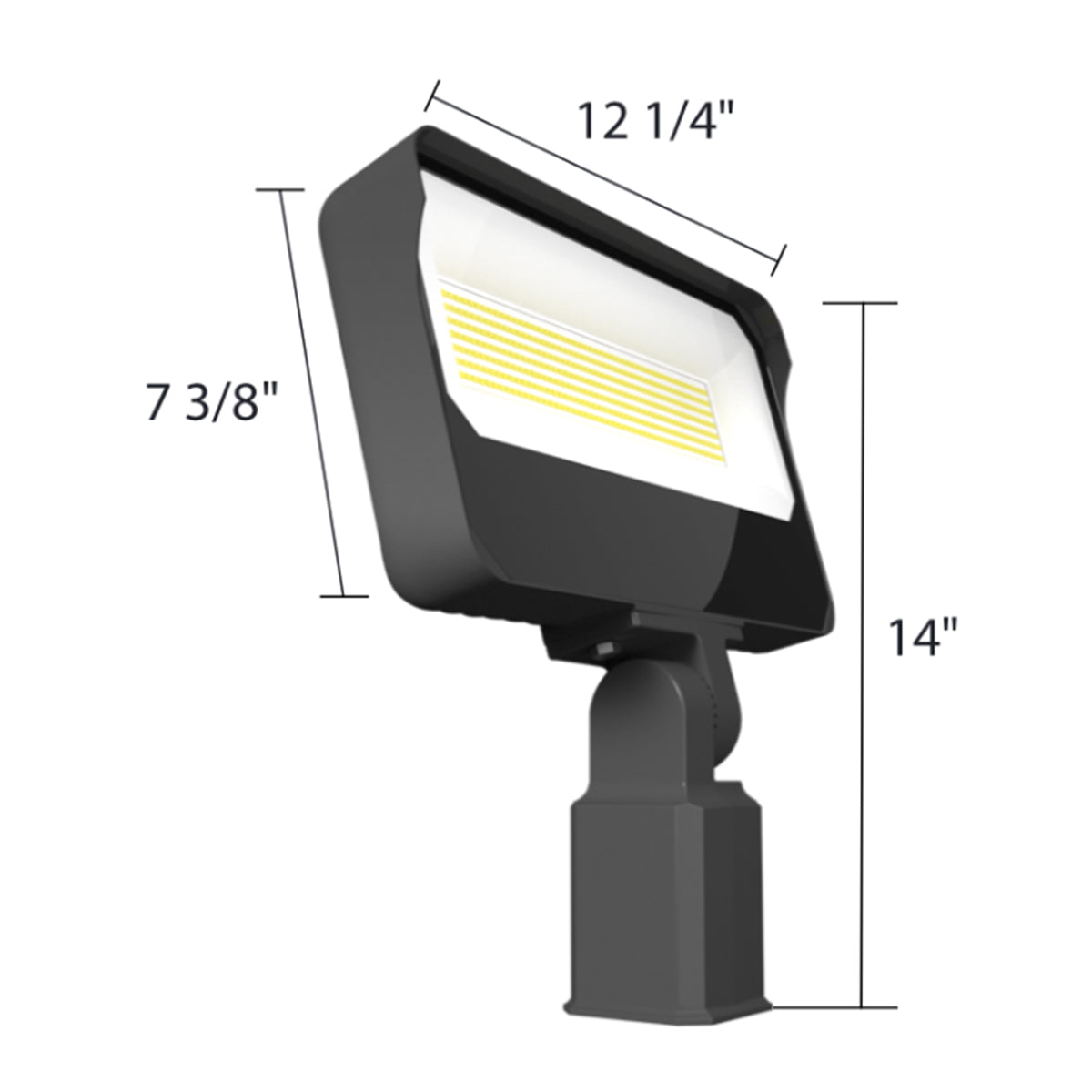

The X34XL is equipped with a robust slipfitter mount that allows for tilt adjustments in 10° increments, enabling quick, easy installation and precise aiming over standard poles or tenons.

What's Included

• RAB X34XL LED Field-Adjustable Floodlight (Bronze)
• Integrated Slipfitter Mount
• Integrated Selectable On/Off Photocell
