Description

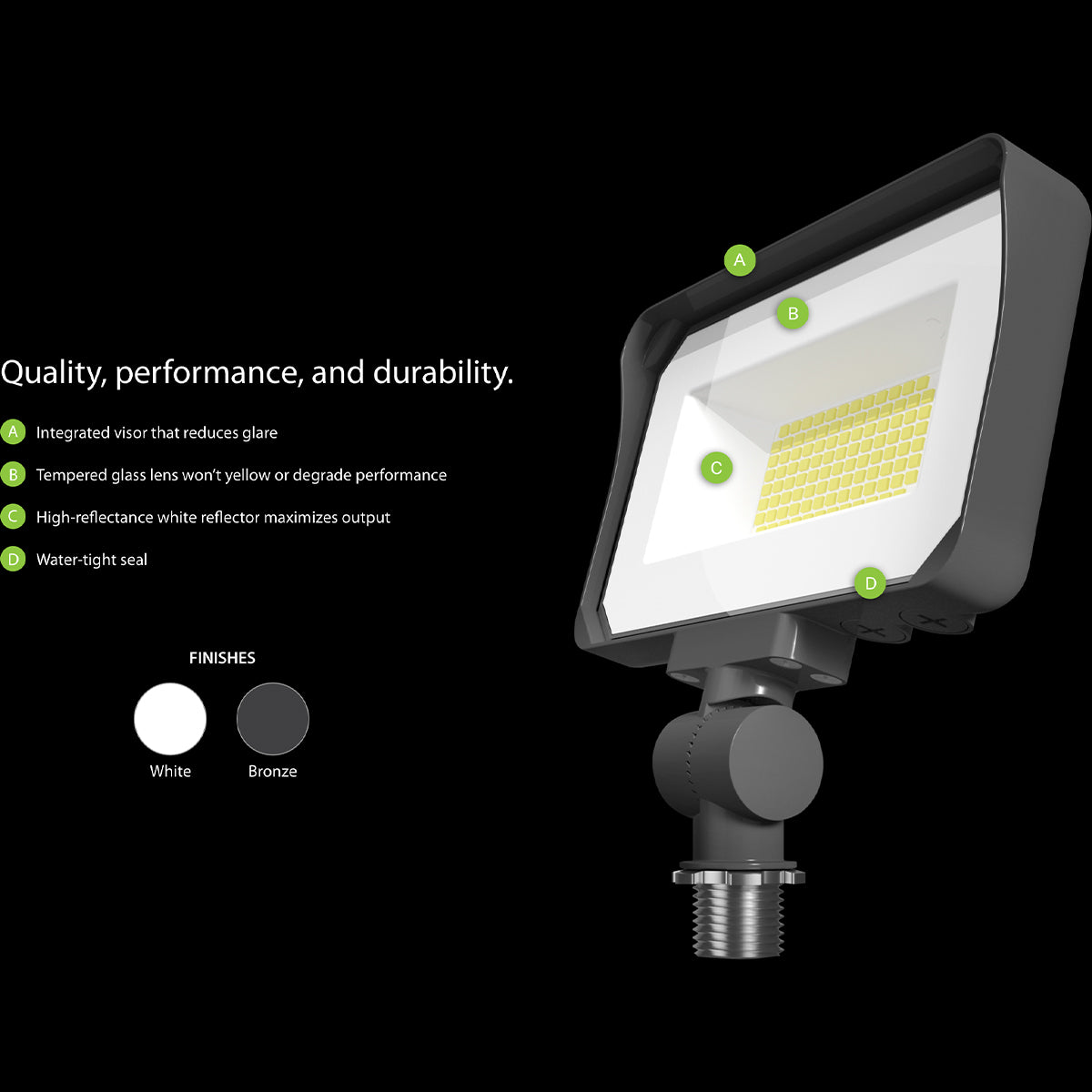

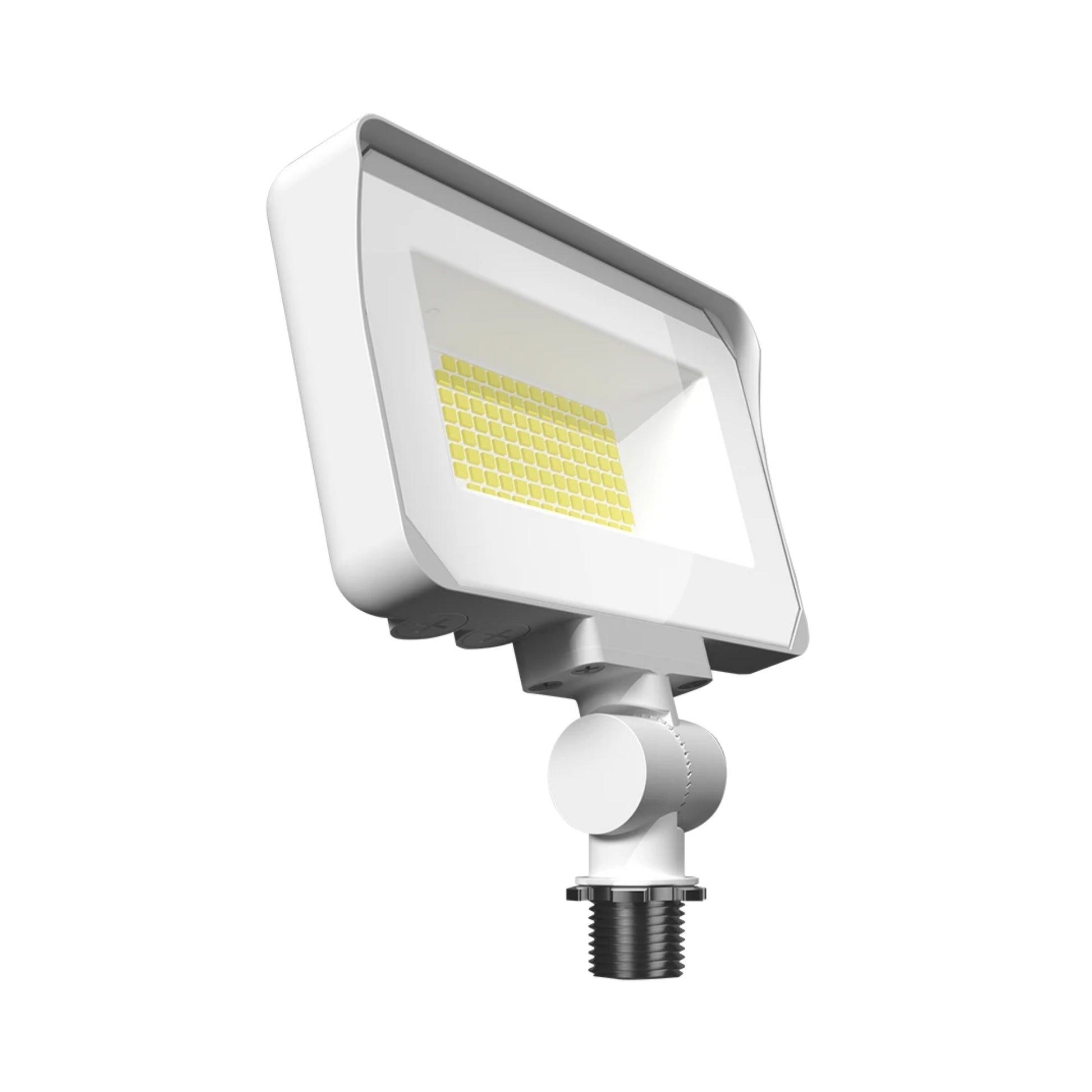

The RAB X34SW is designed for a wide range of general-purpose applications, from residential landscapes to commercial properties. Its NEMA beam spread of 7H x 7V provides focused illumination where you need it most, while the knuckle mount allows for easy installation Illuminate your outdoor spaces with precision using the RAB X34SW LED flood light - the ultimate solution for versatile, energy-efficient lighting. The RAB X34SW is designed for a wide range of general-purpose applications, from residential landscapes to commercial properties. The combination of a glass lens and polycarbonate reflector ensures optimal light distribution and durability. This eco-friendly fixture is mercury and UV-free, with RoHS-compliant components, making it a sustainable choice for environmentally conscious consumers. Whether you're lighting a driveway, parking lot, or building facade, the RAB X34SW delivers reliable, high-quality illumination that stands the test of time.

Specifications

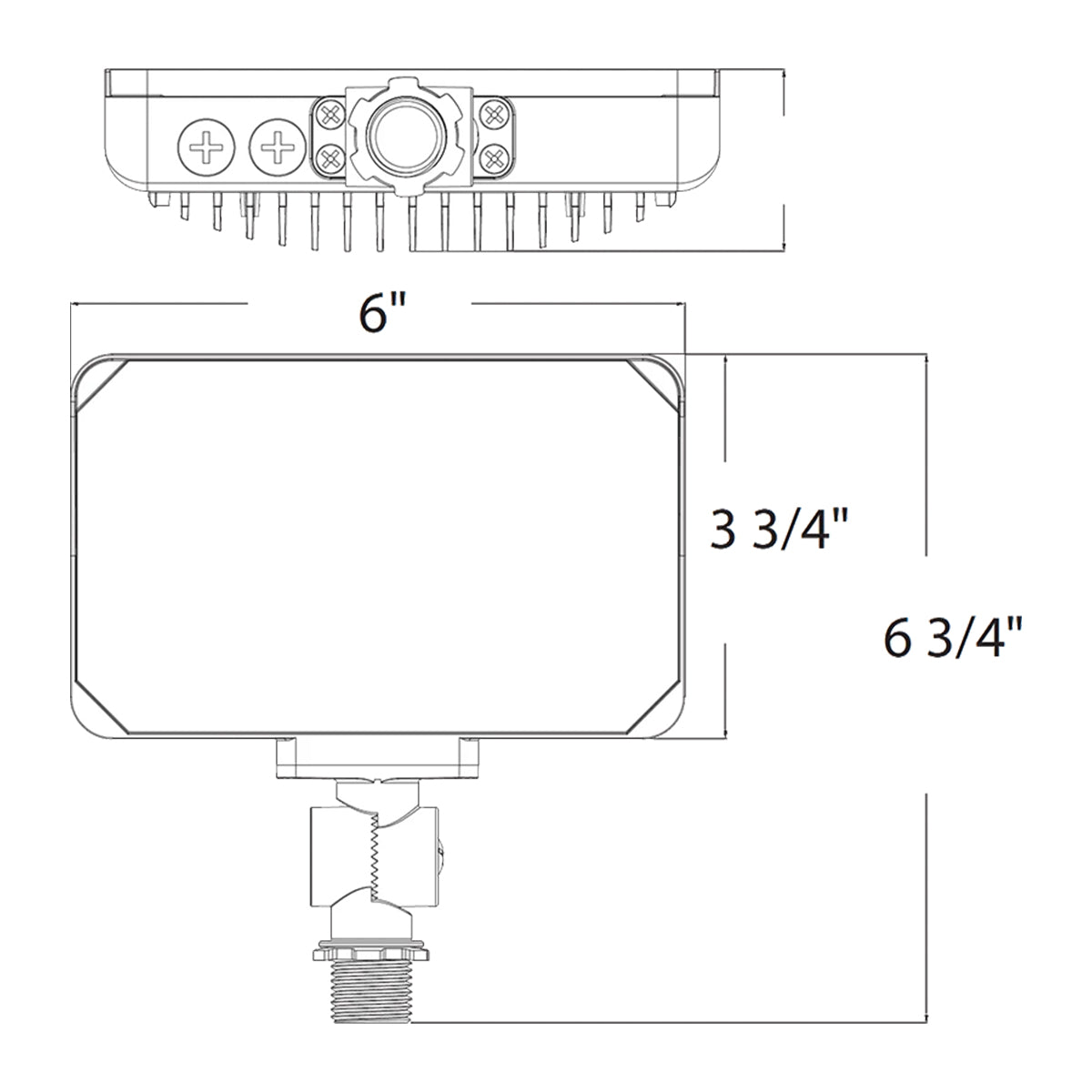

Dimensions

Length/Depth
6 in
Width/Diameter
1.75 in
Height
6.75 in
Weight
1.25 lb

Style & Materials

Material
Aluminum
Mounting Type
Knuckle mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
84 CRI
Delivered Lumens
5000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
35W

Item Details

SKU
X34SW
Brand
RAB Lighting
Family
X34 Field Adjustable Floodlight
UPC
192552033152

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
