RAB X34M Ultra-Economy Field-Adjustable Floodlight — 65W, Selectable CCT & Power, Knuckle Mount, 120/277V, Bronze

The RAB X34M is an ultra-economy, mid-sized LED flood light designed to deliver bright, customizable illumination in a compact footprint. This highly versatile fixture produces up to 9,718 lumens and gives installers complete control with field-adjustable wattage (65W, 55W, 45W) and color temperature (3000K, 4000K, 5000K) directly on the fixture. It provides a smooth, uniform 7H x 7V NEMA beam spread that is ideal for lighting up landscapes, signs, and building perimeters. Operating on a 120 or 277V non-dimming driver, the X34M focuses on maximum efficiency and ease of use. Housed in rugged precision die-cast aluminum with a durable tempered glass lens and an IP65 rating, the X34M is built to withstand extreme weather and deliver up to 100,000 hours of reliable lighting.

Key Features

• Wattage: Field adjustable to 65W, 55W, or 45W (defaults to 65W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Delivered Lumens: Up to 9,718 lumens depending on selected settings.
• Efficacy: Highly efficient performance up to 166.2 Lumens Per Watt (LPW).
• Voltage: 120 or 277V AC @ 50/60Hz, non-dimming.
• Beam Spread: NEMA 7H x 7V wide distribution.
• Environmental Ratings: IP65 rated for dust and water, UL Listed for wet locations.
• Compliance & Certifications: RoHS Compliant, DLC Standard Listed (Product Code: S-MZAHRW).
• Warranty: 5-Year limited warranty.

Typical Applications

• Landscape and signage lighting
• Residential and commercial exteriors
• Walkways and building perimeters
• Exterior security lighting

Performance & Light Output

The X34M delivers consistent lumen output across its adjustable settings, reaching a maximum of 9,718 lumens at the 65W 4000K setting. The wide 7H x 7V beam spread ensures a generous wash of light for general-purpose applications. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture drastically reduces maintenance requirements over its life.

Electrical & Controls

This mid-sized floodlight operates on a reliable 120 or 277V AC non-dimming driver. It features built-in surge protection of 2kV to guard against power irregularities. Note: The X34M model does not include dimming capabilities or an integrated photocell.

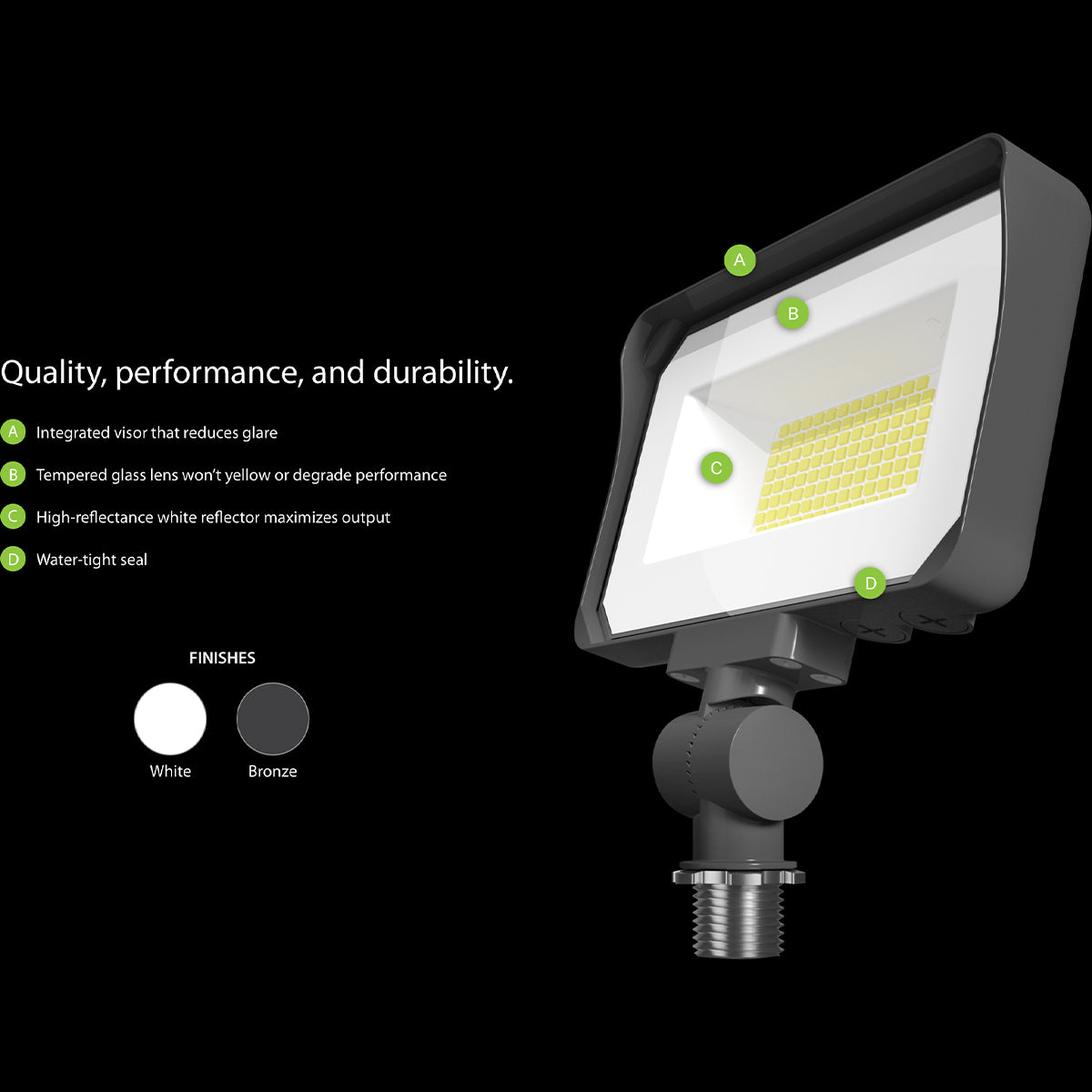

Construction & Durability

Engineered to endure the elements, the X34M is constructed with a precision die-cast aluminum housing and a heavy-duty tempered glass lens. The fixture is fully sealed to achieve an IP65 rating, ensuring it remains protected against dust and low-pressure water jets. It operates safely in extreme cold weather starting down to -40°F (-40°C) and handles ambient temperatures up to 104°F (40°C).

Installation & Mounting

The X34M features a highly versatile knuckle mount, allowing for quick, easy installation and precise tilting to aim the light exactly where it is needed. It is also suitable for mounting within 4 feet of the ground.

What's Included

• RAB X34M LED Field-Adjustable Floodlight (Bronze)
• Integrated Knuckle Mount
