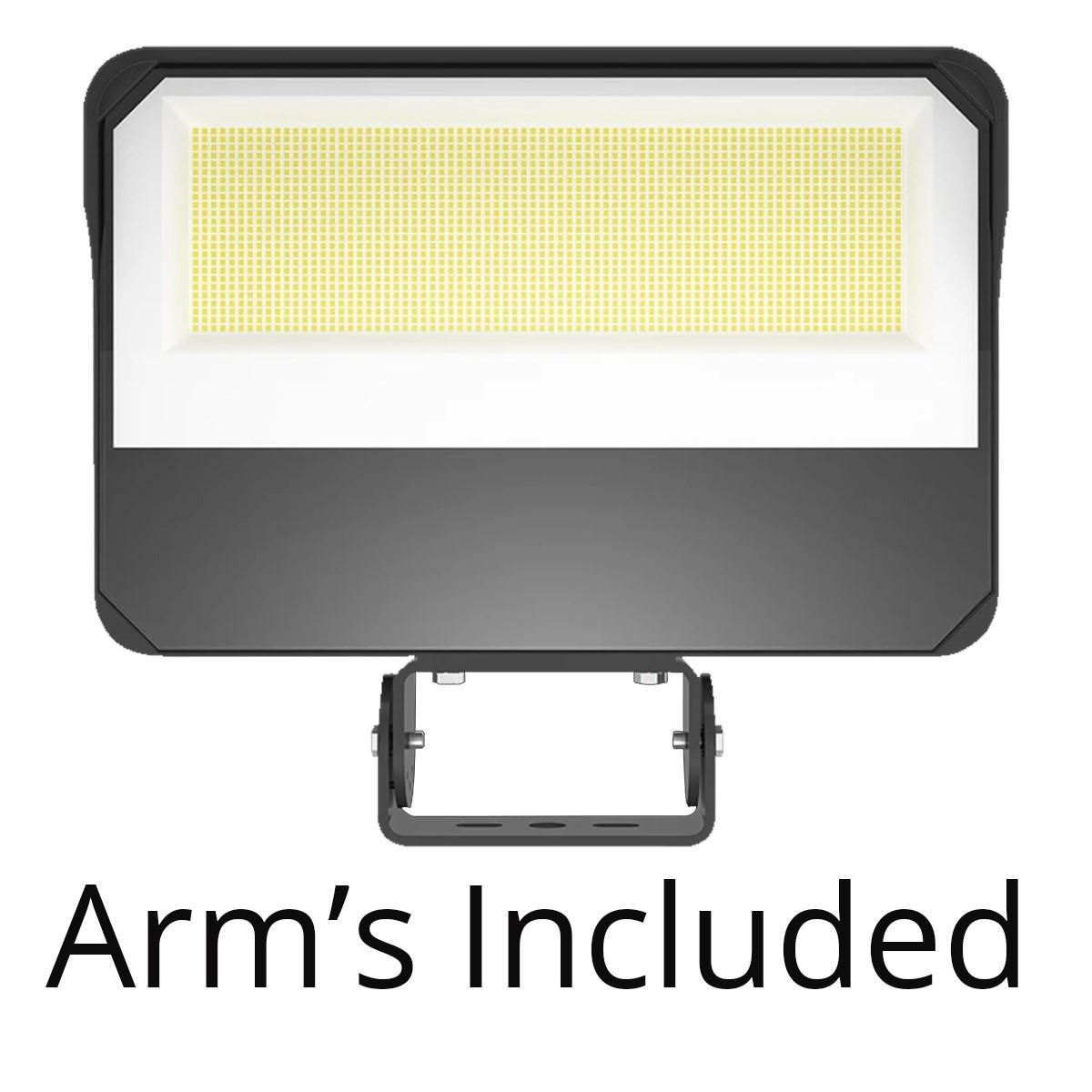

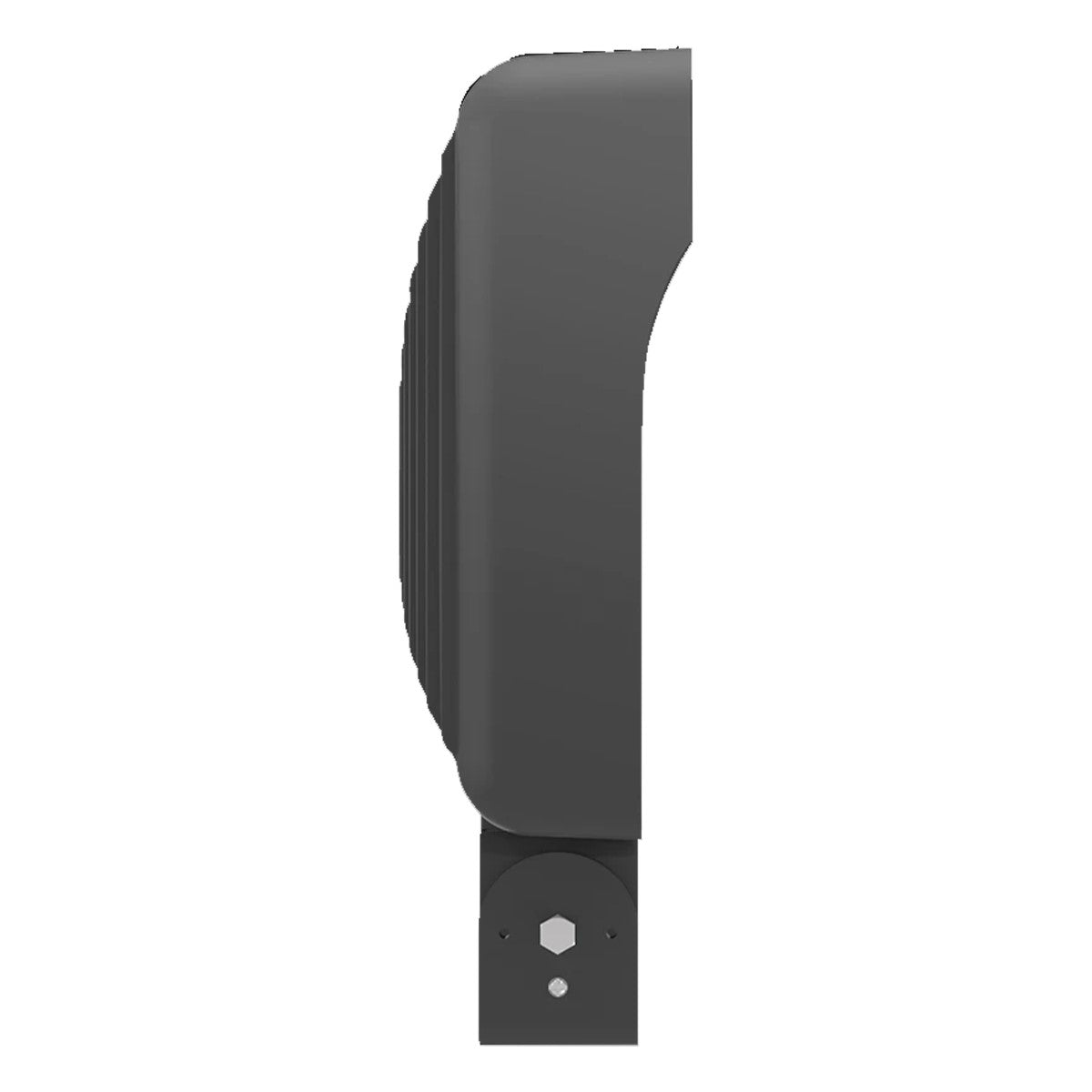

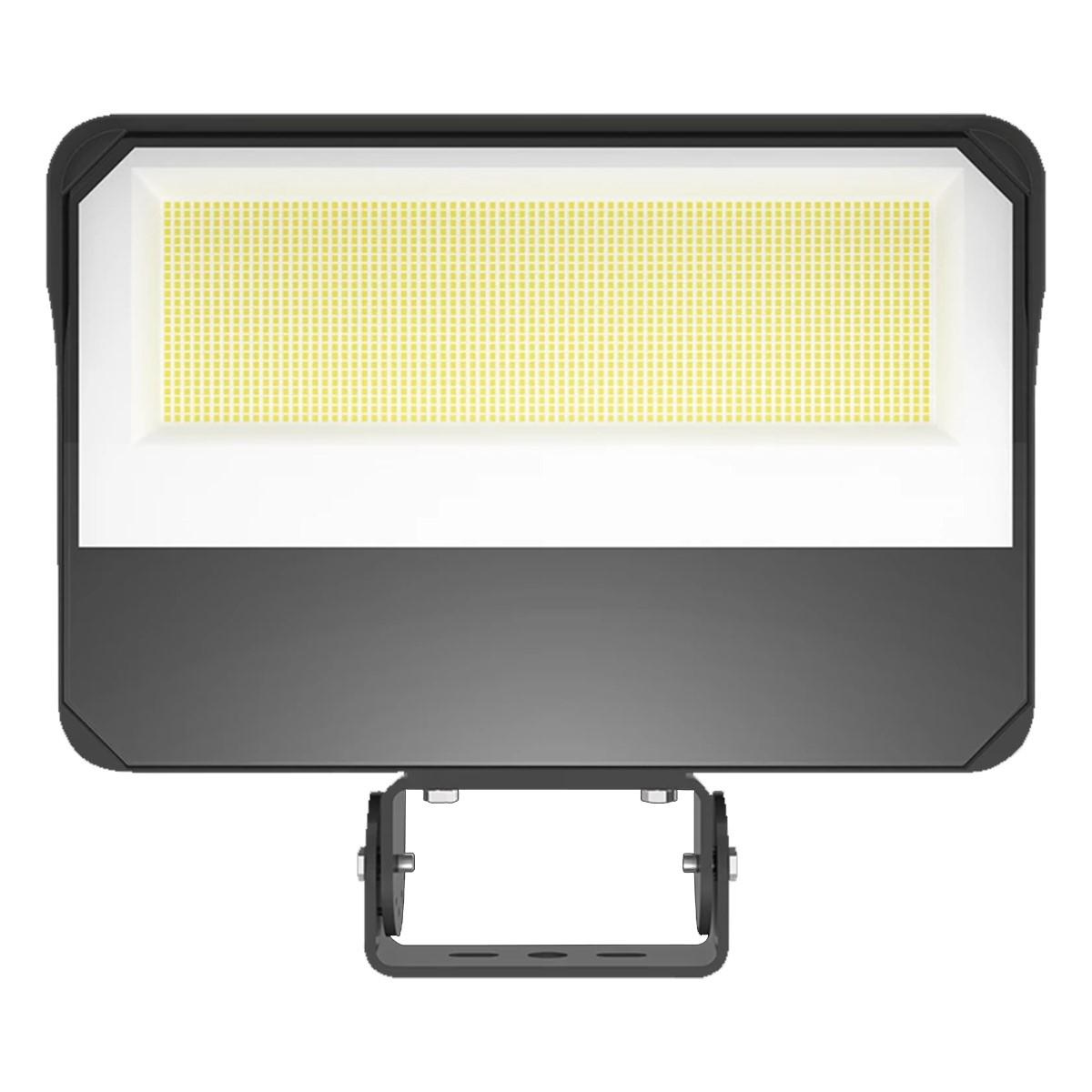

RAB X34-450T Ultra-Economy, High-Output Floodlight — 450W, Selectable CCT & Power, Trunnion Mount, Photocell, 120-277V, Bronze

The RAB X34-450T is an ultra-economy, high-output LED flood light engineered to deliver massive illumination and exceptional versatility. This exceptionally powerful fixture produces up to 68,262 lumens and allows installers to seamlessly adjust the wattage (50%, 75%, 100%) and color temperature (3000K, 4000K, 5000K) directly on the job site. It provides a wide, uniform 7H x 7V NEMA beam spread that is perfect for illuminating large architectural facades and wide exterior areas. Operating on a 120-277V universal driver, it features 0-10V dimming down to 10% and an integrated photocell that can be easily enabled or disabled with a switch for automated energy savings. With a rugged IP66-rated die-cast aluminum housing and a versatile trunnion mount, the X34-450T is the ultimate floodlight for demanding commercial and industrial building exteriors.

Key Features

• Wattage: Field adjustable to 450W (100%), 337.5W (75%), or 225W (50%).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K.
• Delivered Lumens: Up to 68,262 lumens depending on selected settings.
• Efficacy: Ultra-efficient performance up to 173.2 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Dimming: 0-10V dimming standard, dimming down to 10%.
• Photocell: Integrated photocell included with an enable/disable switch.
• Environmental Ratings: IP66 rated for dust and water, UL Listed for wet locations.
• Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product Code: S-HX4CSO).
• Warranty: 5-Year limited warranty.

Typical Applications

• Large building perimeters and facades
• Auto dealerships and expansive parking lots
• Industrial exteriors, ground-level uplighting, and loading docks
• High-output general purpose exterior security lighting

Performance & Light Output

The X34-450T delivers highly consistent lumen output across all color temperature settings. With a massive output of 68,262 lumens at its full 450W setting, it provides brilliant illumination while maintaining DLC Premium levels of energy efficiency. The wide 7H x 7V beam spread ensures smooth, far-reaching light distribution. Boasting a 50,000-hour rated LED lifespan based on TM-21 calculations, this fixture dramatically reduces long-term maintenance costs.

Electrical & Controls

This fixture operates on a 120-277V AC input and features robust built-in surge protection of 4kV. It provides immediate energy savings straight out of the box with an integrated photocell for dusk-to-dawn operation, which can be easily enabled or disabled via a physical switch if you prefer manual or centralized control. It also supports 0-10V dimming for seamless integration with advanced lighting control systems.

Construction & Durability

Engineered to withstand harsh environments, the X34-450T features a heavy-duty die-cast aluminum housing finished in a durable bronze. The fixture is tightly sealed, earning it a rigorous IP66 rating against severe dust and powerful water jets. The tough tempered glass lens protects the high-efficacy LEDs, and the fixture safely operates in extreme cold weather starting down to -40°F (-40°C) and ambient temperatures up to 104°F (40°C).

Installation & Mounting

This high-output model features a heavy-duty trunnion mount designed for highly secure installation on flat surfaces such as walls, ceilings, or ground pads. The trunnion mount offers an adjustable tilt angle in 30° increments, allowing for sturdy aiming and directing of the light beam.

What's Included

• RAB X34-450T LED Field-Adjustable Floodlight (Bronze)
• Integrated Trunnion Mount
• Integrated Photocell with Enable/Disable Switch
