Description

Introducing the RAB X22-80, the ultimate solution for all your flood lighting needs. With its sleek bronze finish and durable aluminum housing, this commercial-grade flood light is not only built to last but also adds a touch of sophistication to any outdoor space. The RAB X22-80 features a versatile design, offering both knuckle and trunnion/yoke mount options for easy installation and positioning. Whether you need to illuminate a parking lot, sports field, or building façade, this flood light has got you covered. One of the standout features of the RAB X22-80 is its adjustable wattage capability. With a range of 50/60/70/80 watts, you have the flexibility to customize the intensity of your lighting according to your specific requirements. Say goodbye to one-size-fits-all solutions and enjoy the freedom to tailor your lighting setup for optimal visibility and energy efficiency. Equipped with an impressive 13000 lumens output, the RAB X22-80 ensures bright and clear illumination, even in large outdoor areas. No more dimly-lit spaces or compromised safety. Let this flood light brighten up your surroundings and provide peace of mind. Not only does the RAB X22-80 excel in performance, but it also offers convenient features that make it a top choice for professionals. The integrated photocell, complete with an on/off switch, automatically adjusts the light based on ambient conditions. This means you can enjoy hassle-free operation without having to manually control the lighting every day. Additionally, the RAB X22-80 is equipped with 0-10V dimming compatibility, allowing you to further fine-tune the brightness level as needed. Whether you want to create a cozy ambiance or require maximum visibility during nighttime activities, this flood light gives you full control over your lighting environment. With its optical field adjustability options of 55, 75, and 90 degrees, the RAB X22-80 ensures precise beam placement and coverage. This means you can direct the light exactly where it's needed most, minimizing wasted energy and maximizing effectiveness. The RAB X22-80 operates at a voltage range of 120-277V, making it suitable for a wide range of applications. Furthermore, it offers selectable CCT (Correlated Color Temperature) options of 3000K, 4000K, and 5000K. This allows you to choose the perfect lighting tone that complements your space and creates the desired atmosphere. Don't settle for mediocre flood lights that leave you wanting more. Upgrade to the RAB X22-80 and experience unparalleled performance, versatility, and convenience. Illuminate your outdoor spaces with confidence and enjoy exceptional lighting that ticks all the boxes.

Specifications

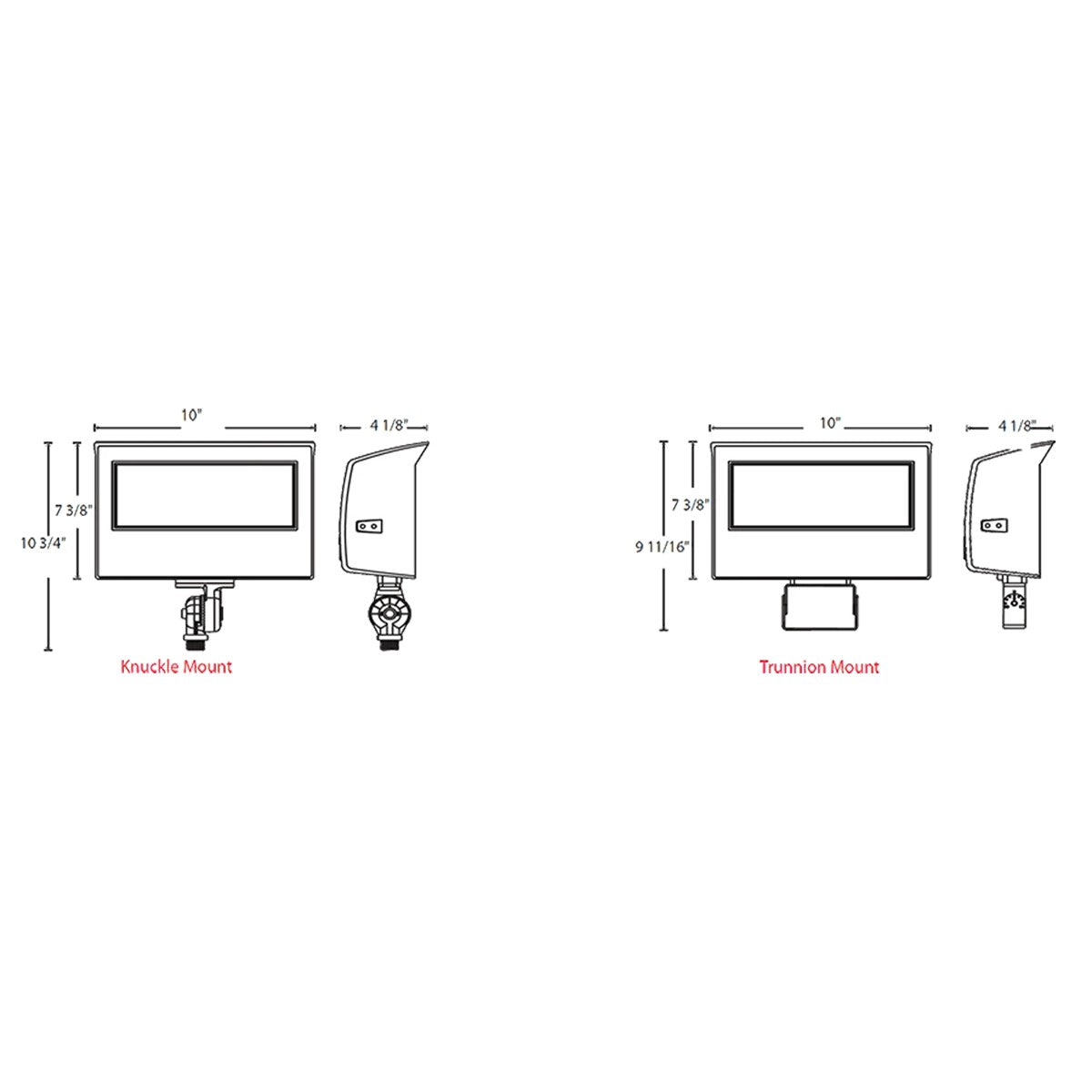

Dimensions

Length/Depth
10 in
Width/Diameter
4.13 in
Height
10.75 in
Weight
5.52 lb

Style & Materials

Material
Aluminum
Mounting Type
Knuckle mount, Trunnion/Yoke mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
84 CRI
Delivered Lumens
13000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
80W

Item Details

SKU
X22-80
Brand
RAB Lighting
Family
X22 5-Way Selectable Floodlight
UPC
192552032766

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
