RAB X22-420 5-Way Selectable Floodlight — 420W, Selectable CCT & Beam Angle, 7-Pin Receptacle, Slipfitter/Trunnion Mount, 120-277V, Bronze

The RAB X22-420 is a premium, highly versatile 5-way selectable LED flood light engineered for true flexibility and high efficiency. This incredibly powerful fixture produces up to 64,206 lumens and allows installers to seamlessly adjust the wattage (420W, 380W, 340W, 300W) and color temperature (3000K, 4000K, 5000K) directly on the job site. It provides even more control with field-adjustable optics, allowing you to select between three different beam angles (90°, 75°, 55°) to perfectly shape your light distribution. Operating on a 120-277V universal driver, it features 0-10V dimming and comes with a 7-Pin receptacle, shorting cap, and a 3-pin twistlock photocell for advanced control. With a rugged IP65-rated die-cast aluminum housing and two included mounting kits (slipfitter and trunnion), the X22-420 is the ultimate ultra-efficient floodlight for massive commercial and industrial applications.

Key Features

• Wattage: Field adjustable to 420W, 380W, 340W, or 300W (defaults to 420W).
• Selectable CCT: Tunable white 3000K, 4000K, and 5000K (defaults to 4000K).
• Selectable Beam Angle: Optical field adjustability between 90°, 75°, and 55° (defaults to 90°).
• Delivered Lumens: Up to 64,206 lumens depending on selected settings.
• Efficacy: Ultra-efficient performance up to 163.4 Lumens Per Watt (LPW).
• Voltage: 120-277V AC @ 50/60Hz.
• Dimming: 0-10V dimming standard, dimming down to 10%.
• Controls: Includes a 7-Pin receptacle, shorting cap, and a 3-pin twistlock photocell.
• Environmental Ratings: IP65 rated for dust and water, UL Listed for wet locations.
• Compliance & Certifications: RoHS Compliant, DLC Premium Listed (Product Code: S-RKBJ2L).
• Warranty: 5-Year limited warranty.

Typical Applications

• Landscape and signage lighting
• Large building perimeters and facades
• Expansive parking lots and industrial exteriors
• High-output general purpose exterior security lighting

Performance & Light Output

The X22-420 delivers consistent, high-quality lumen output across all color temperature settings. With a massive output of 64,206 lumens at its 420W setting, it provides brilliant illumination while maintaining DLC Premium levels of energy efficiency. The optical field adjustability allows you to narrow or widen the beam spread to fit the exact application. Boasting a 100,000-hour rated LED lifespan based on TM-21 calculations, this fixture dramatically reduces long-term maintenance costs.

Electrical & Controls

This fixture operates on a 120-277V AC input and features robust built-in surge protection (L/N-PE: 6kV, L-N: 6kV). The 420W version comes with a 7-Pin receptacle, shorting cap, and a 3-pin twistlock photocell for advanced control compatibility out of the box. It also supports 0-10V dimming for integration with compatible dimming systems.

Construction & Durability

Engineered to withstand harsh environments, the X22-420 features a precision die-cast aluminum housing and a tempered glass lens finished in a durable bronze. The fixture is completely sealed with silicone gaskets, earning it an IP65 rating against dust and water. It safely operates in extreme cold weather starting down to -22°F (-30°C) and ambient temperatures up to 122°F (50°C).

Installation & Mounting

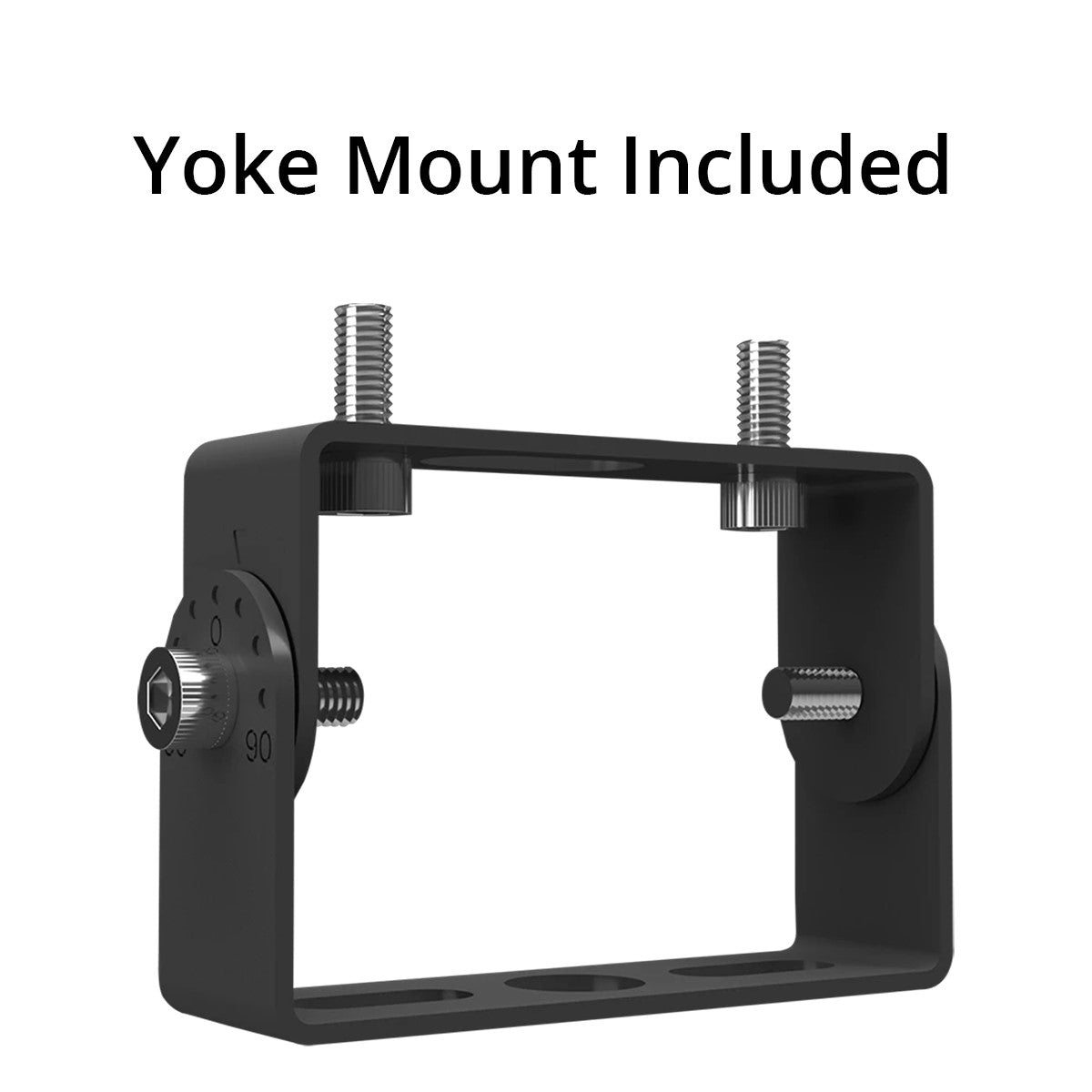

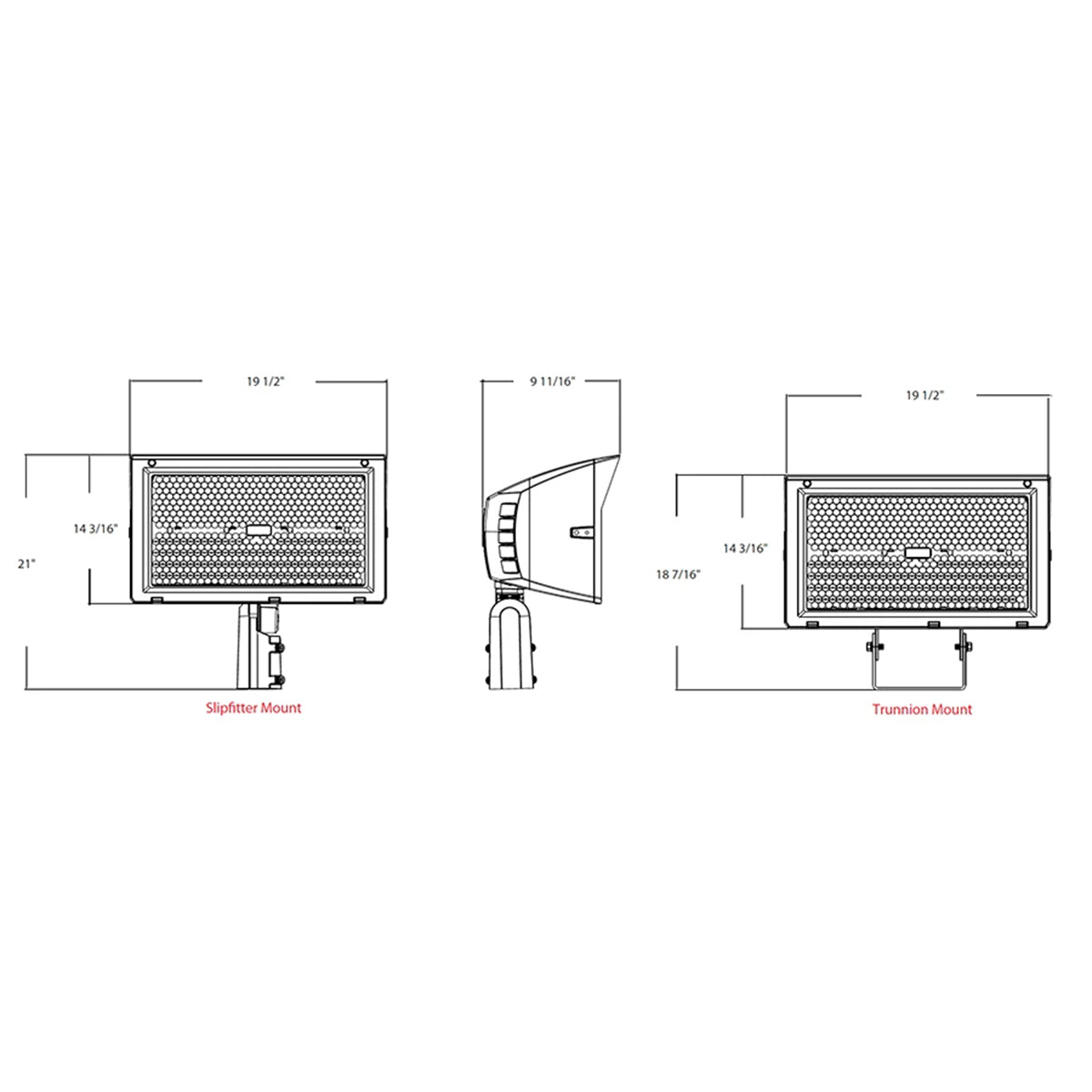

Designed to reduce SKU inventory and simplify installation, this heavy-duty 420W model comes standard with two complete mounting kits in the box: a slipfitter mount installed, and an included trunnion mount.

What's Included

• RAB X22-420 LED Field-Adjustable Floodlight (Bronze)

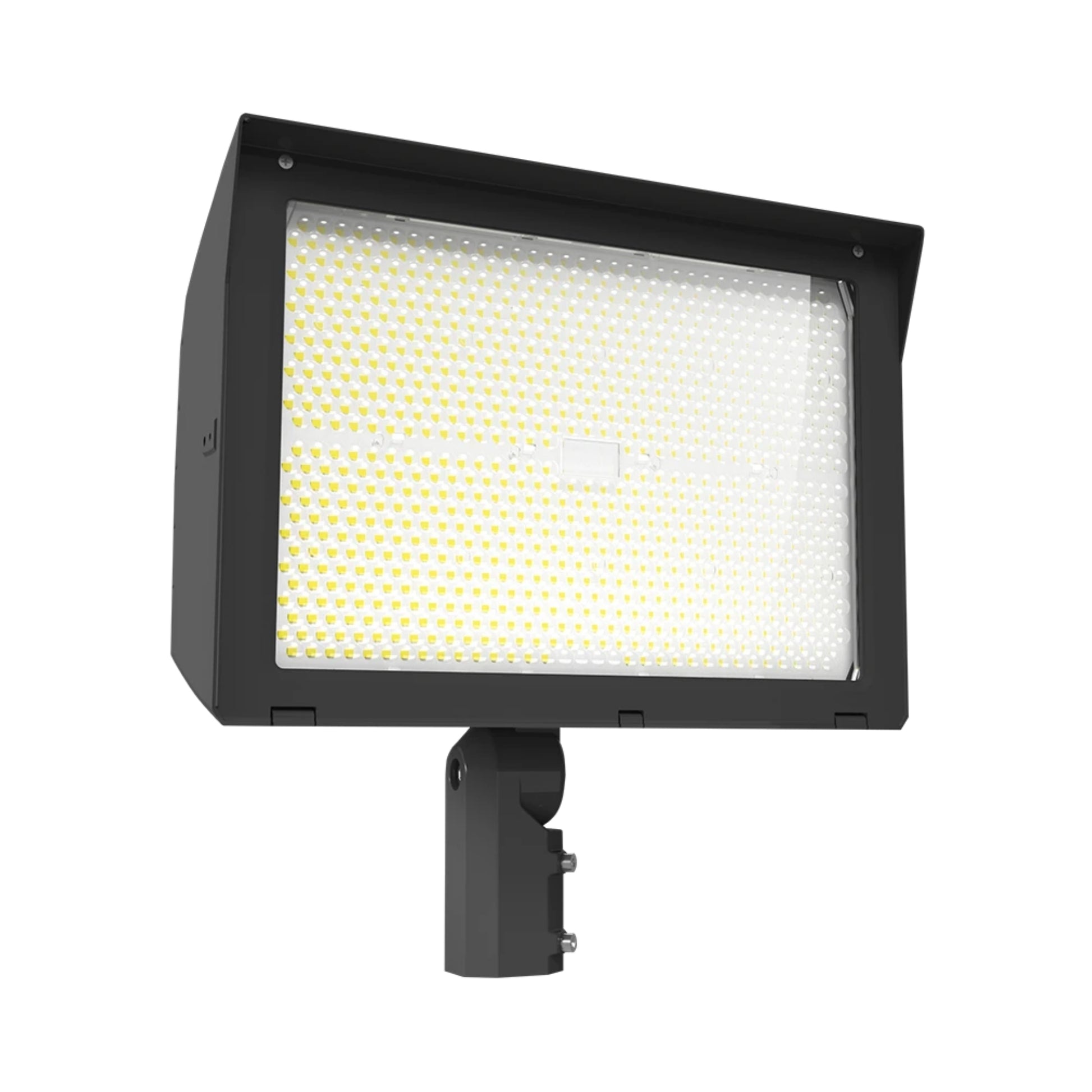

• Slipfitter Mount (Pre-Installed)

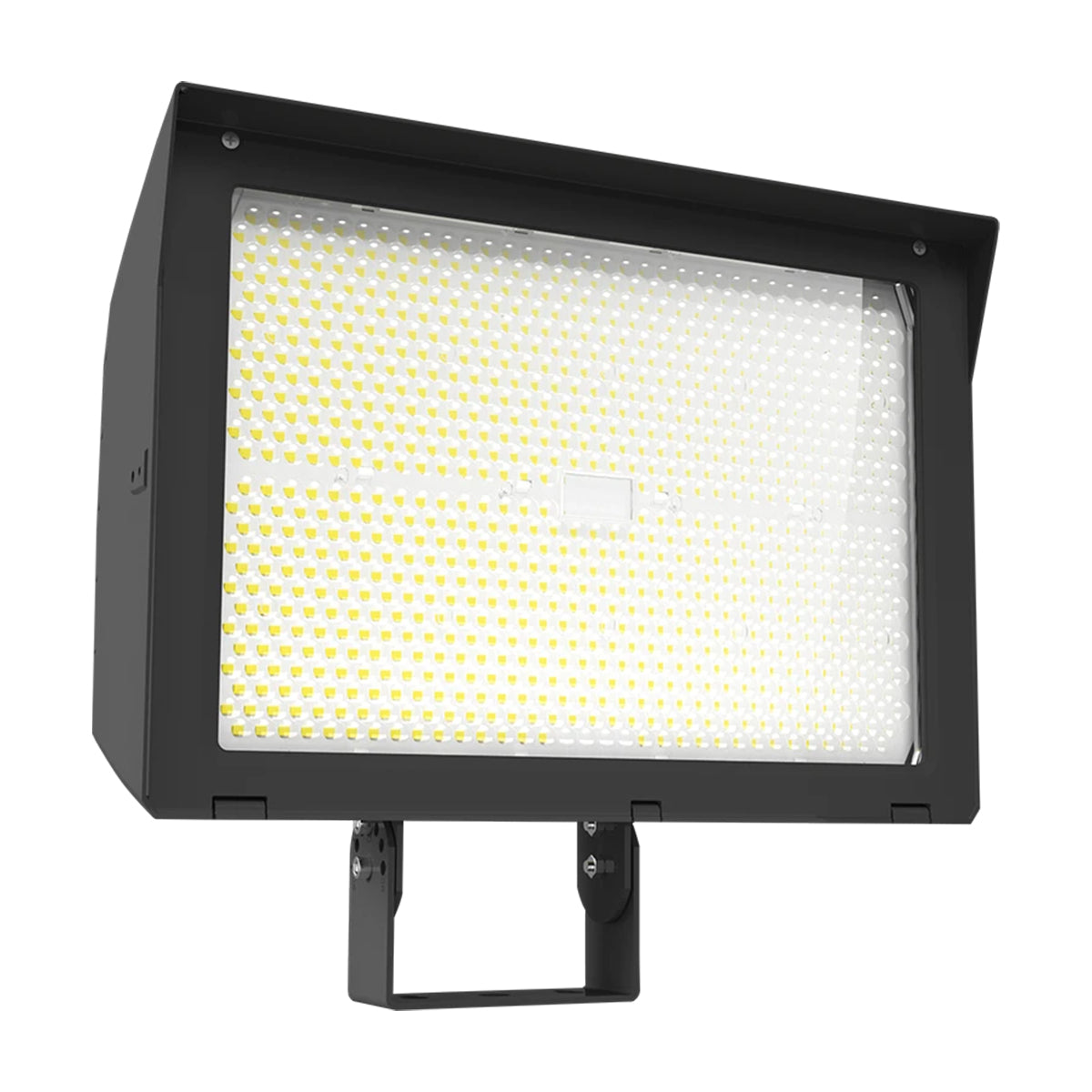

• Trunnion Mount Kit
• 7-Pin Receptacle, Shorting Cap & 3-Pin Twistlock Photocell
