Description

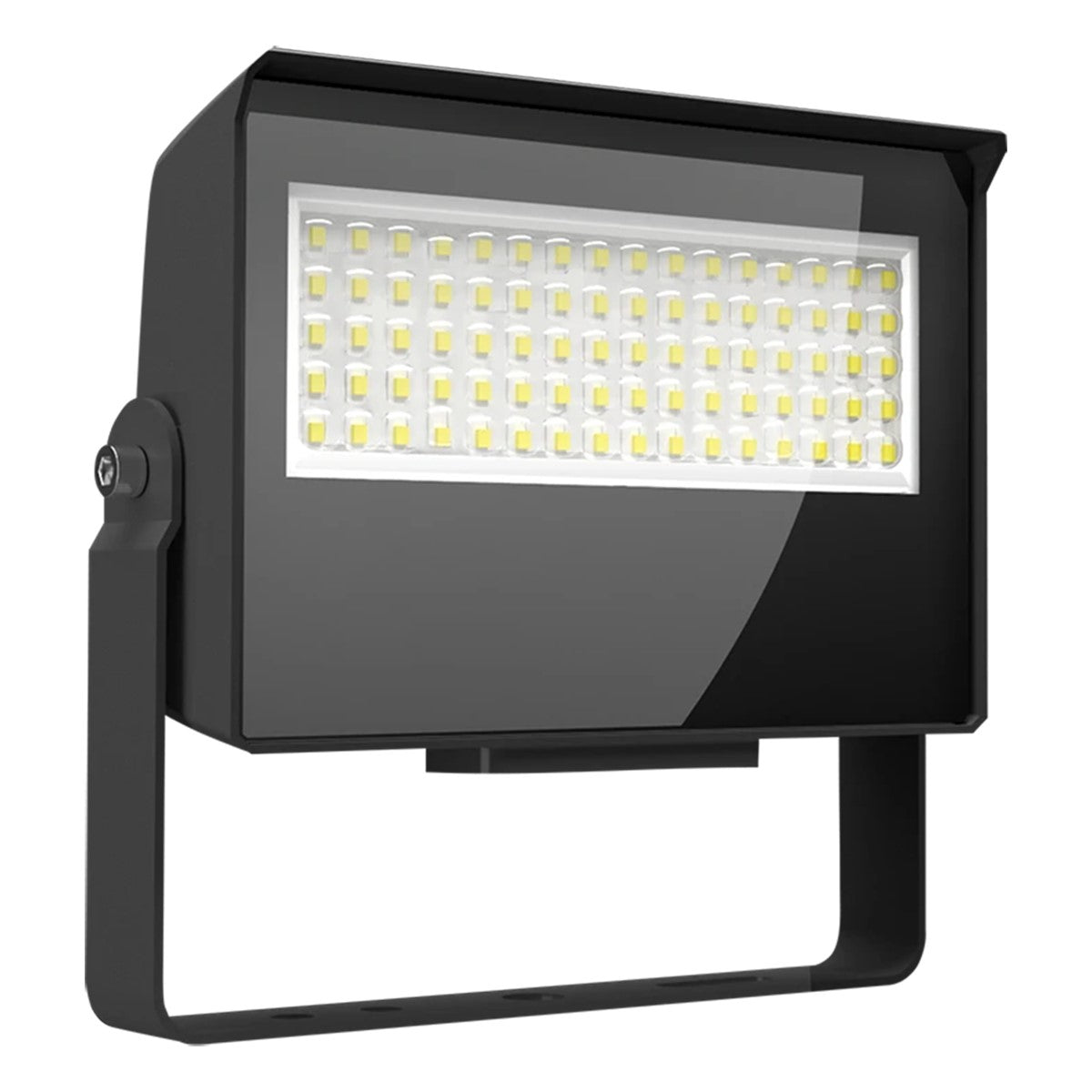

Introducing the RAB X22-35 Flood Lights – the perfect solution for all your commercial lighting needs. With its sleek bronze finish and durable aluminum housing, this floodlight not only provides exceptional performance but also adds a touch of sophistication to any outdoor space. Designed for versatility, the RAB X22-35 features both a knuckle mount and trunnion/yoke mount, allowing you to effortlessly adjust and position the light in any desired direction. Its adjustable wattage options of 20, 25, 30, and 35 watts provide customizable lighting solutions to suit your specific requirements. Illuminate your surroundings with an impressive brightness of 5000 lumens, ensuring optimal visibility even in the darkest of nights. The selectable CCT (Correlated Color Temperature) feature allows you to choose between three different color temperatures – 3000K, 4000K, and 5000K – so you can create the perfect ambiance for any occasion. Experience full control over your lighting with the 0-10V dimmable function. Adjust the brightness levels according to your preference or specific lighting needs. The integrated photocell included with an on/off switch ensures effortless automation by automatically turning the lights on at dusk and off at dawn. The RAB X22-35 takes customization to a whole new level with its optical field adjustability feature. Choose between three different beam angles – 55, 75, and 90 degrees – to precisely direct the light where it's needed most. Whether you're highlighting architectural elements or illuminating large areas, this floodlight has got you covered. With its high-quality construction and cutting-edge technology, the RAB X22-35 Flood Lights guarantee long-lasting performance and energy efficiency. Its 120-277V voltage range ensures compatibility with a wide range of electrical systems. Enhance your outdoor spaces with the RAB X22-35 Flood Lights – the epitome of style, functionality, and reliability. Illuminate your surroundings with confidence while enjoying the benefits of superior performance and exceptional durability.

Specifications

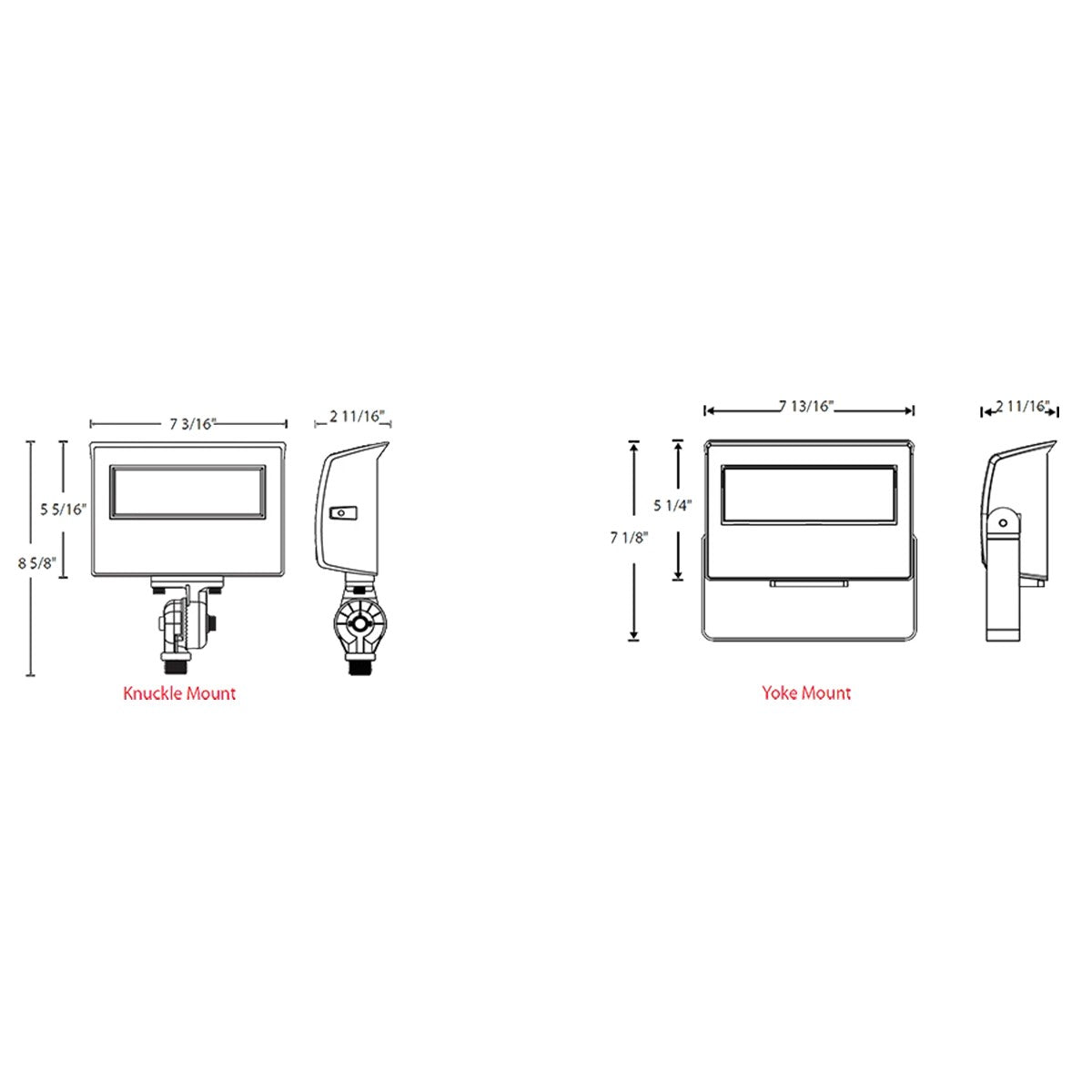

Dimensions

Length/Depth
7.19 in
Width/Diameter
2.69 in
Height
8.63 in
Weight
2.51 lb

Style & Materials

Material
Aluminum
Mounting Type

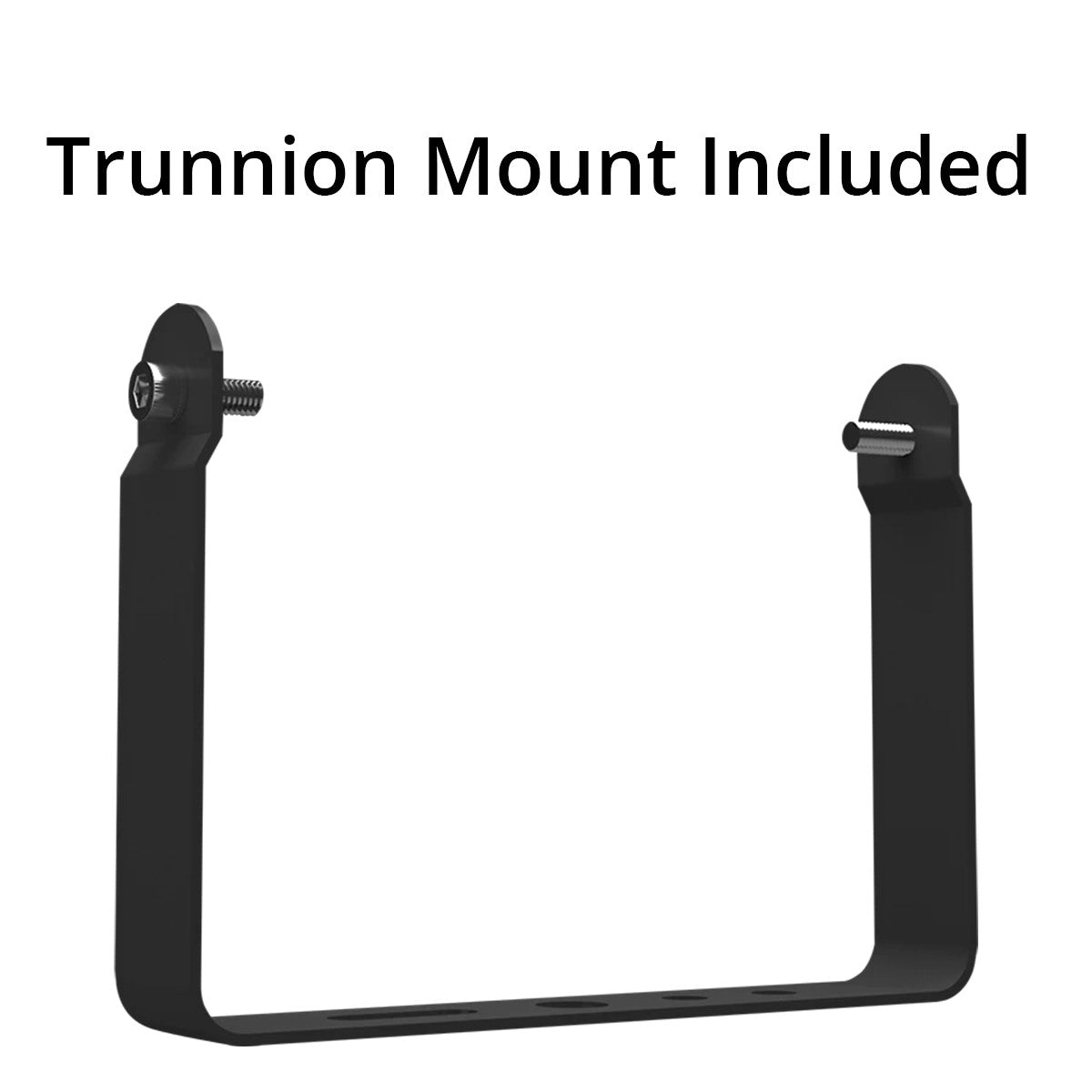

Knuckle mount, Trunnion/Yoke mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
84 CRI
Delivered Lumens
5000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
35W

Item Details

SKU
X22-35
Brand
RAB Lighting
Family
X22 5-Way Selectable Floodlight
UPC
192552032742

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
