Description

Introducing the RAB X22-320, the ultimate solution for all your commercial flood lighting needs. With its sleek bronze finish and durable aluminum housing, this flood light not only provides superior illumination but also adds a touch of elegance to any outdoor space. Designed for versatility, the RAB X22-320 offers multiple mounting options, including slipfitter mount and trunnion/yoke mount, allowing you to easily install it in various locations. Its adjustable wattage feature allows you to customize the brightness according to your specific requirements, with options ranging from 200 to 320 watts. Say goodbye to dark corners and hello to a brilliantly lit area with an impressive 46,000 lumens. Not only does the RAB X22-320 offer exceptional brightness, but it also provides flexibility in terms of color temperature. Choose between three selectable CCT options - 3000K, 4000K, or 5000K - to achieve the desired ambiance for your space. Whether you prefer warm and cozy or bright and vibrant lighting, this flood light has got you covered. Enhancing convenience and energy efficiency, the RAB X22-320 features 0-10V dimmable technology. Adjust the brightness level effortlessly to create the perfect atmosphere for any occasion. Additionally, its integrated photocell comes with an on/off switch, ensuring automatic operation based on natural light levels. With optical field adjustability offering three different beam angles - 55, 75, and 90 degrees - you can easily direct the light exactly where you need it most. Illuminate large open spaces or focus on specific areas with precision and ease. The RAB X22-320 is not just a flood light; it's a game-changer in outdoor lighting solutions. It combines functionality, durability, and aesthetics in one superior product. So why settle for ordinary when you can elevate your outdoor lighting experience with the RAB X22-320?

Specifications

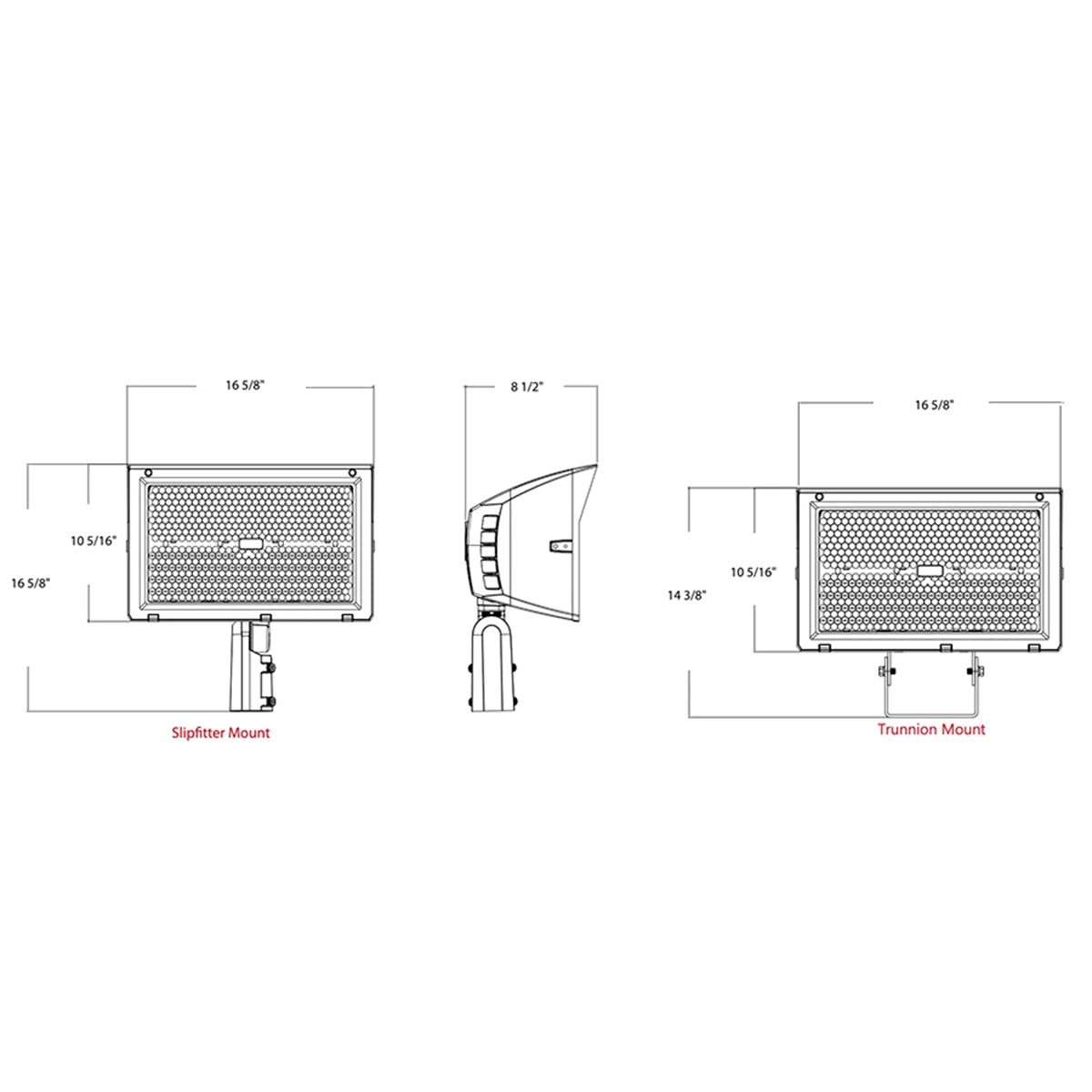

Dimensions

Length/Depth
16.63 in
Width/Diameter
8.5 in
Height
16.63 in
Weight
20.7 lb

Style & Materials

Material
Aluminum
Mounting Type

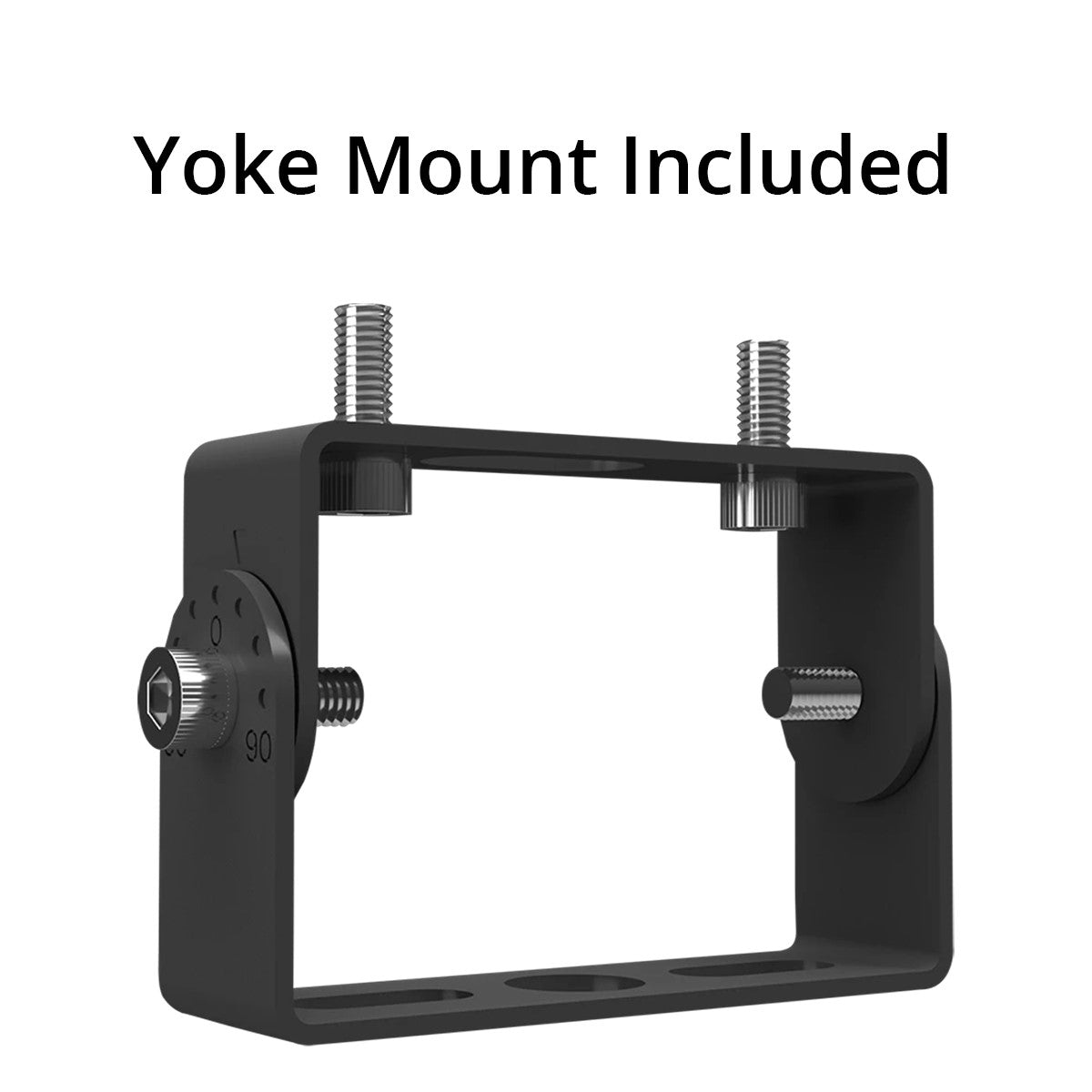

Slipfitter mount, Trunnion/Yoke mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
83 CRI
Delivered Lumens
46000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
320W

Item Details

SKU
X22-320
Brand
RAB Lighting
Family
X22 5-Way Selectable Floodlight
UPC
192552036634

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
