Description

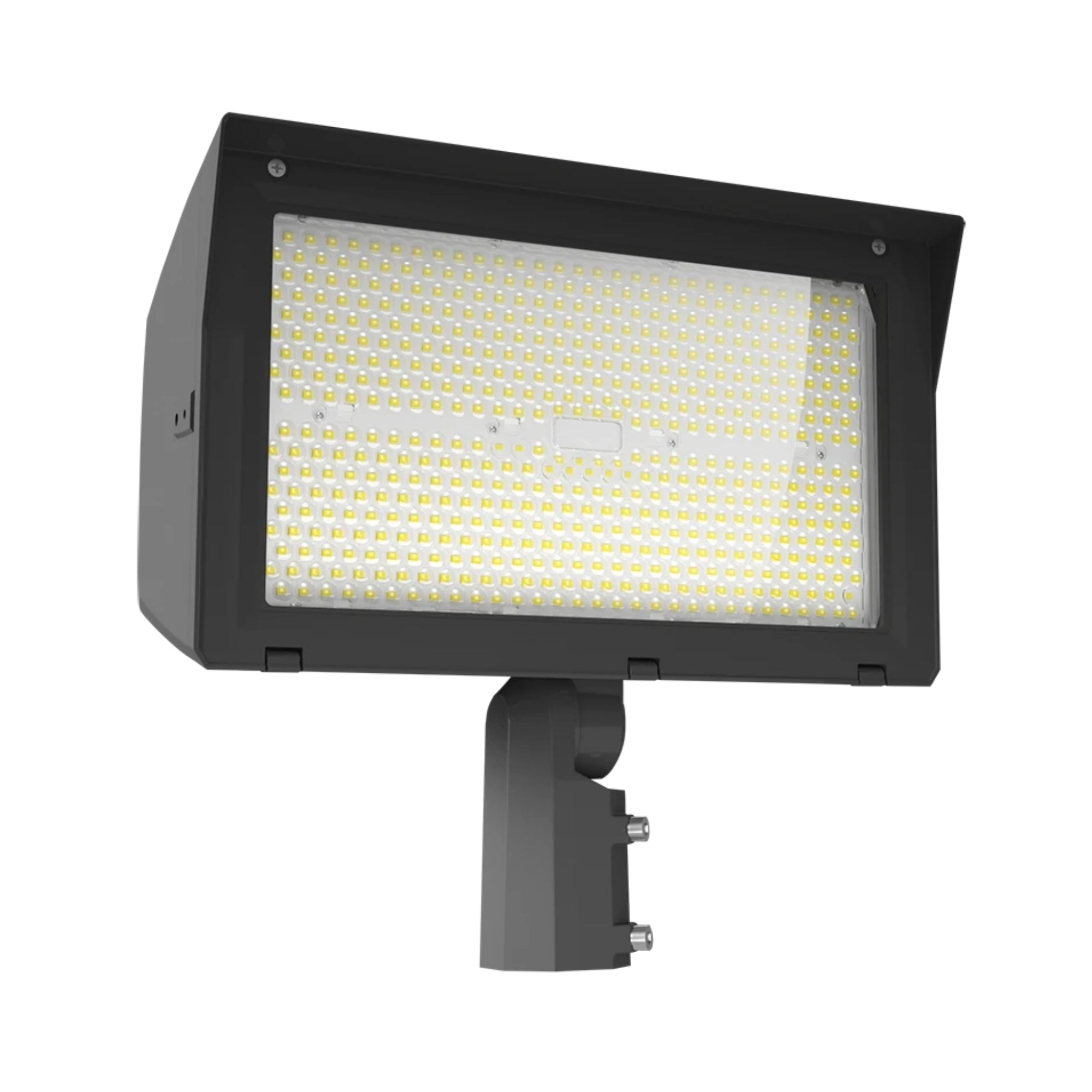

Introducing the RAB X22-250, the ultimate solution for all your flood lighting needs. Designed with unparalleled performance and durability, this commercial flood light is bound to exceed your expectations. Its sleek bronze finish and sturdy aluminum housing not only add a touch of sophistication to any outdoor space but also ensure long-lasting reliability. With multiple mounting options available, including slipfitter mount and trunnion/yoke mount, the RAB X22-250 offers versatility in installation. Whether you need to illuminate large areas or focus light on specific targets, this flood light has got you covered. One of the standout features of the RAB X22-250 is its adjustable wattage capability. With a range of 160, 190, 220, and 250 watts, you have complete control over the brightness and energy consumption of your lighting setup. And with an impressive 36,000 lumens, this flood light provides brilliant illumination that will ensure visibility and safety in any outdoor setting. Not only does the RAB X22-250 offer exceptional performance, but it also provides flexibility in color temperature selection. With selectable CCT options of 3000K, 4000K, and 5000K, you can easily customize the lighting to suit your specific requirements. For added convenience and energy savings, this flood light is equipped with 0-10V dimmable technology. Adjust the brightness according to your needs and create the perfect ambiance for any occasion. Additionally, the integrated photocell includes an on/off switch, allowing for automated operation based on ambient light levels. The RAB X22-250 goes above and beyond with its optical field adjustability. Choose between three different beam angles - 55 degrees, 75 degrees, and 90 degrees - to precisely direct the light exactly where you want it. This level of control ensures maximum efficiency by reducing wasted light and minimizing glare. With its cutting-edge design and advanced features, the RAB X22-250 is perfect for commercial spaces such as parking lots, stadiums, warehouses, and outdoor venues. It meets all your flood lighting needs while providing energy-efficient illumination that will last for years to come. Illuminate your surroundings with confidence using the RAB X22-250. Upgrade your outdoor lighting setup today and experience unmatched performance and durability.

Specifications

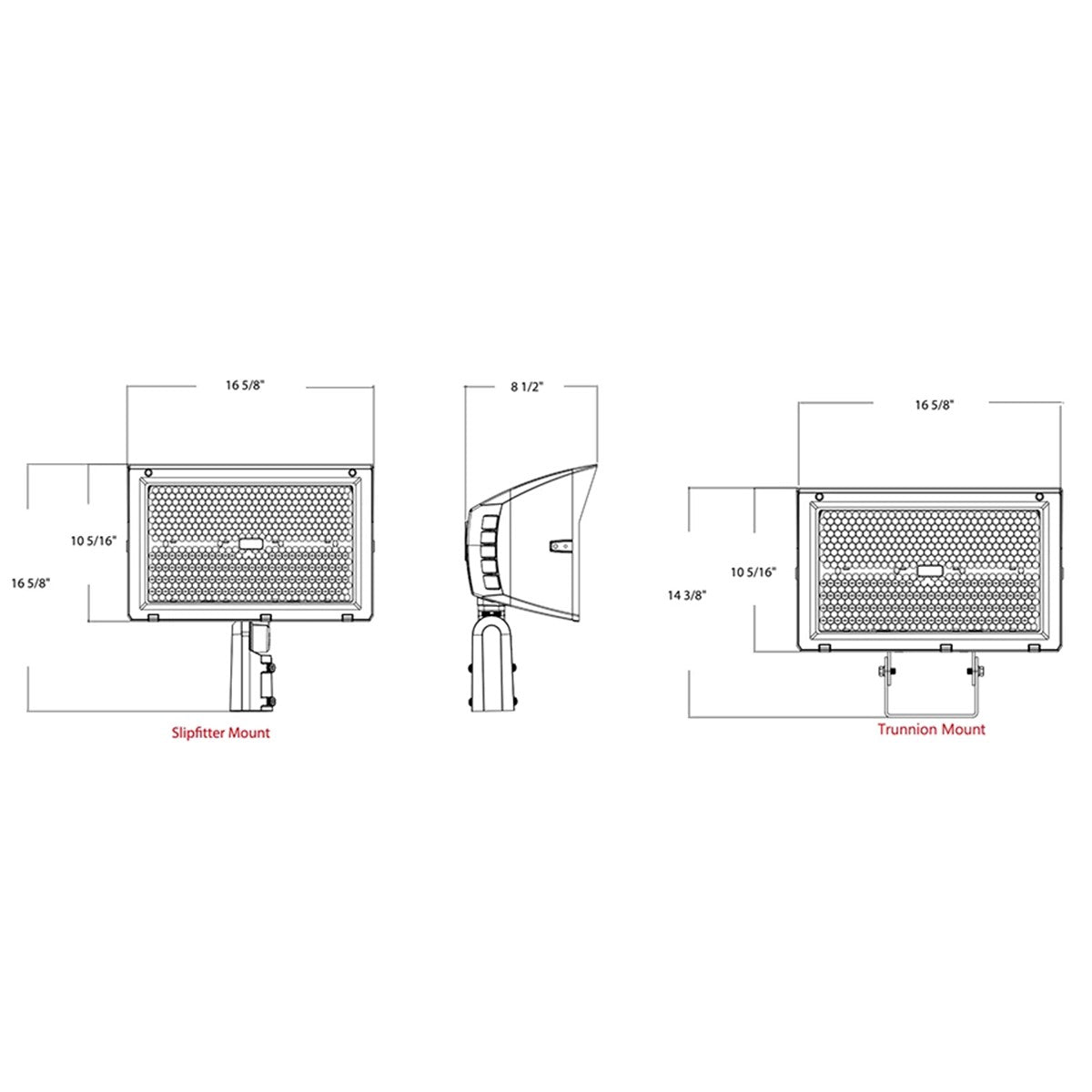

Dimensions

Length/Depth
16.63 in
Width/Diameter
8.5 in
Height
16.63 in
Weight
20.7 lb

Style & Materials

Material
Aluminum

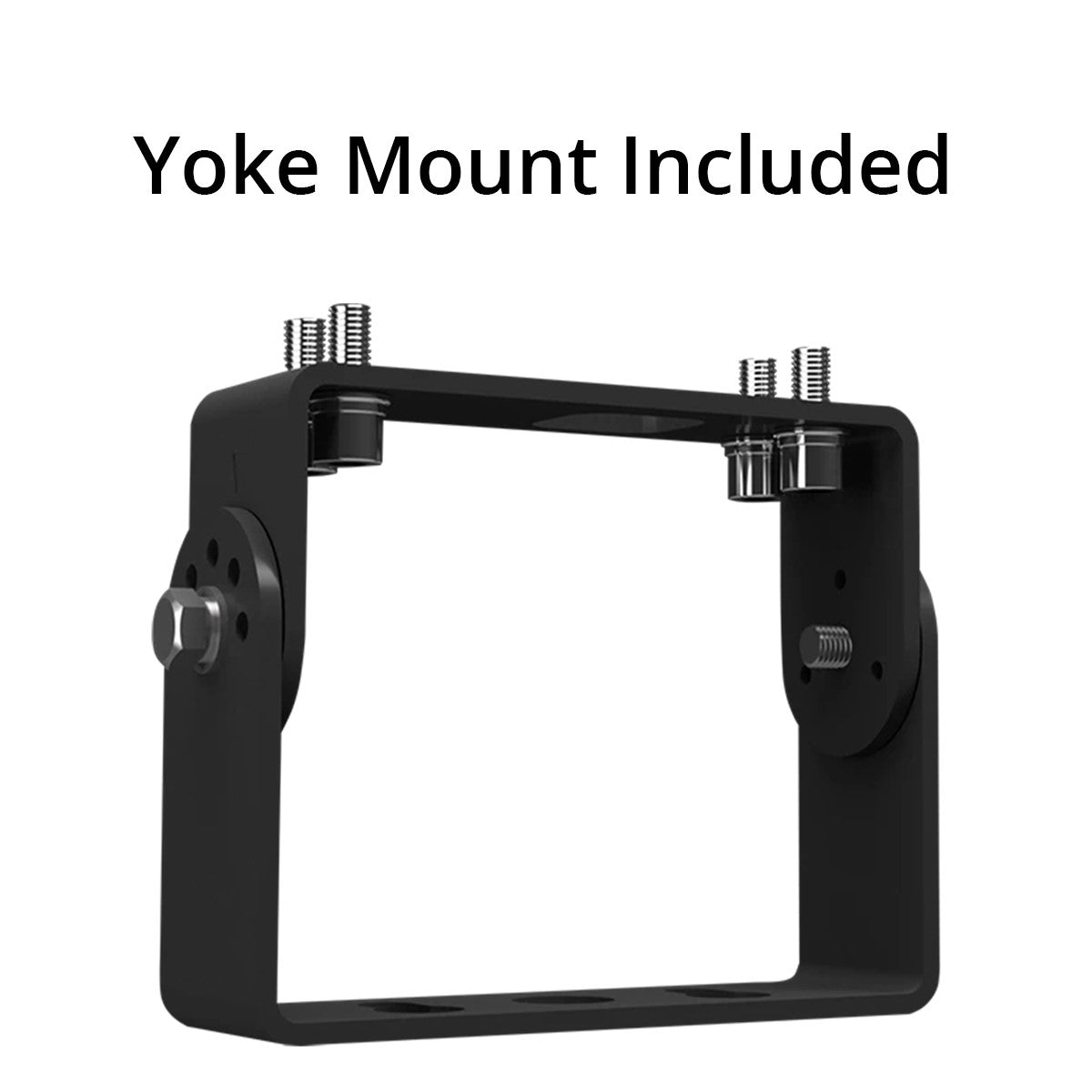

Mounting Type

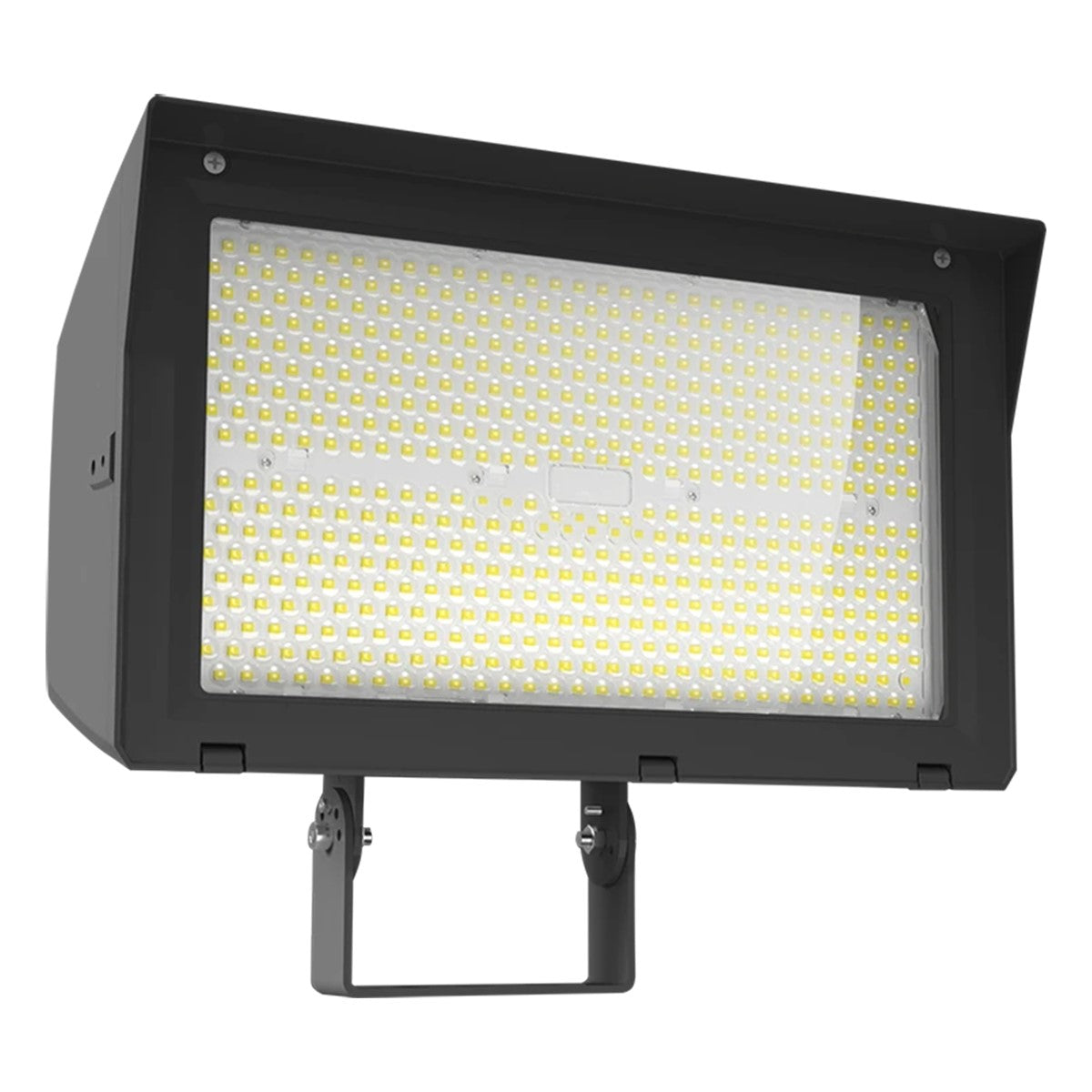

Slipfitter mount, Trunnion/Yoke mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
84 CRI
Delivered Lumens
36000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
250W

Item Details

SKU
X22-250
Brand
RAB Lighting
Family
X22 5-Way Selectable Floodlight
UPC
192552036597

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
