Description

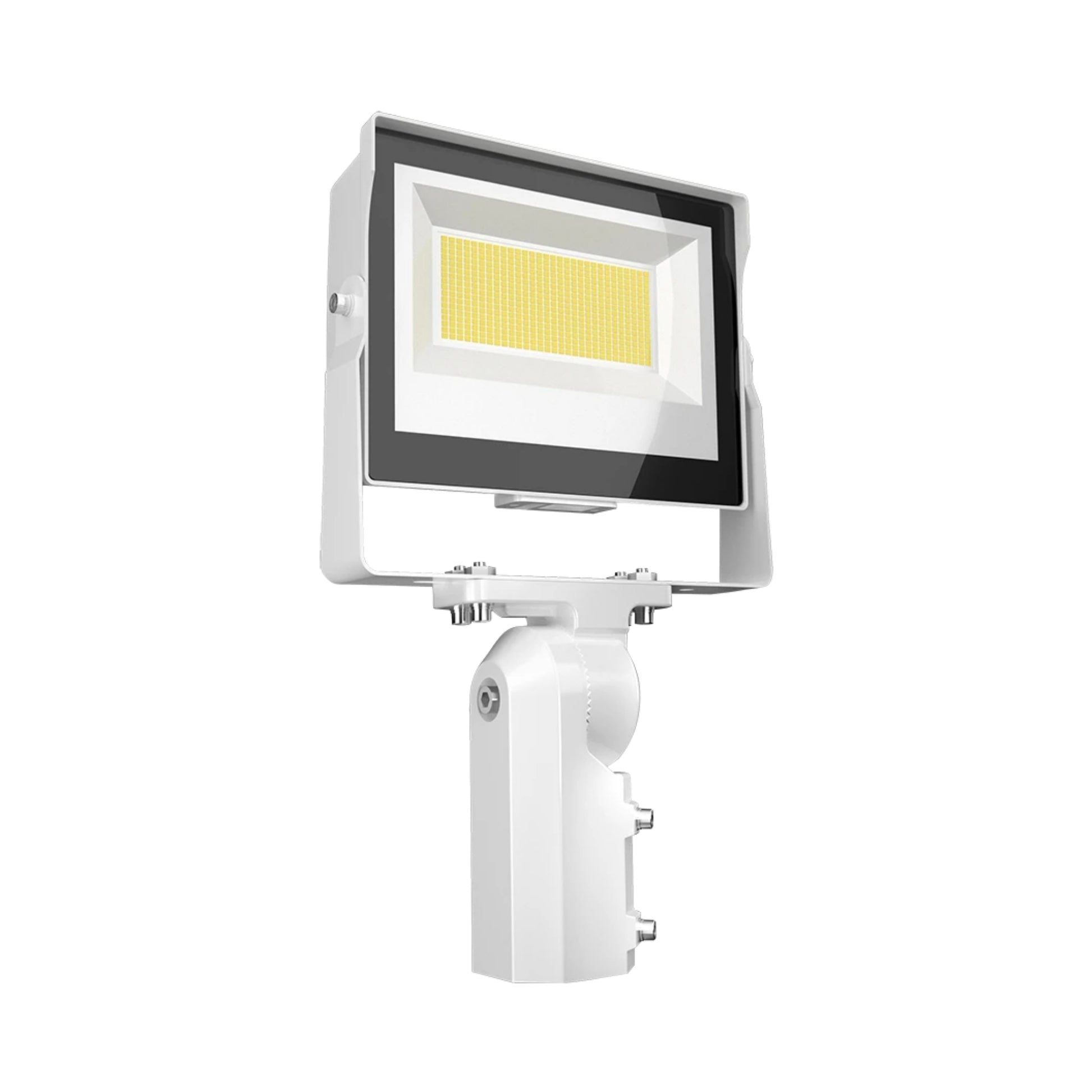

The RAB LED X17XFU80SFW is a cost effective solution for LED flood lighting. This flood light emits up to 11509 with a selectable color temperature (30K/40K/50K) while using up to 80 watts. This LED flood light is ideal for replacing [] watt metal halide fixture. Moreover, This flood light is great for illuminating yards, driveways, signage, patios, warehouses as well as for security applications.

Specifications

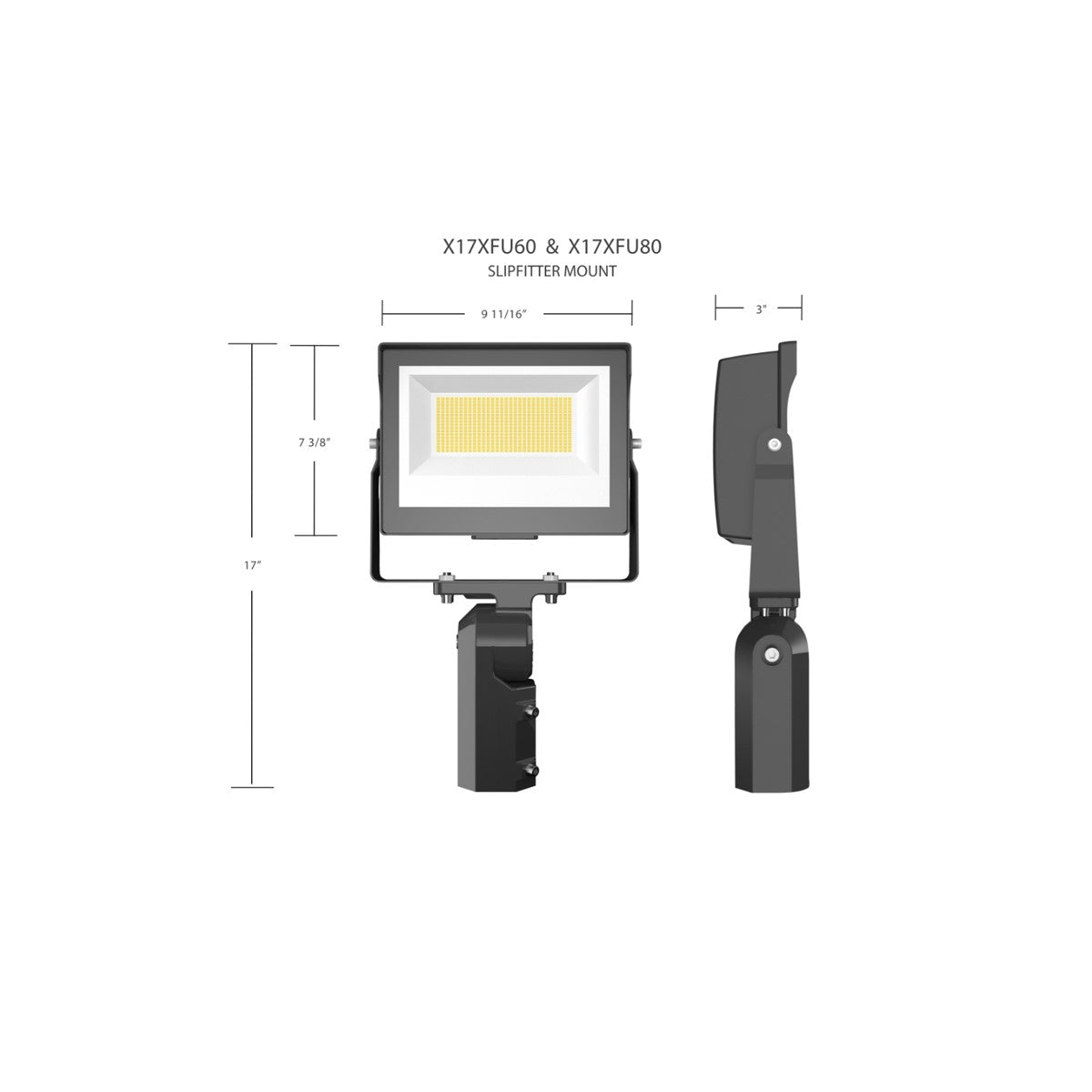

Dimensions

Length/Depth
9.69 in
Width/Diameter
3 in
Height
16.94 in
Weight
5.1 lb

Style & Materials

Material
Aluminum
Mounting Type
Slipfitter mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
85 CRI
Delivered Lumens
11500
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
80W

Item Details

SKU
X17XFU80SFW
Brand
RAB Lighting
Family
X17 Field-Adjustable Floodlight
UPC
192552004145

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated, Wet Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
