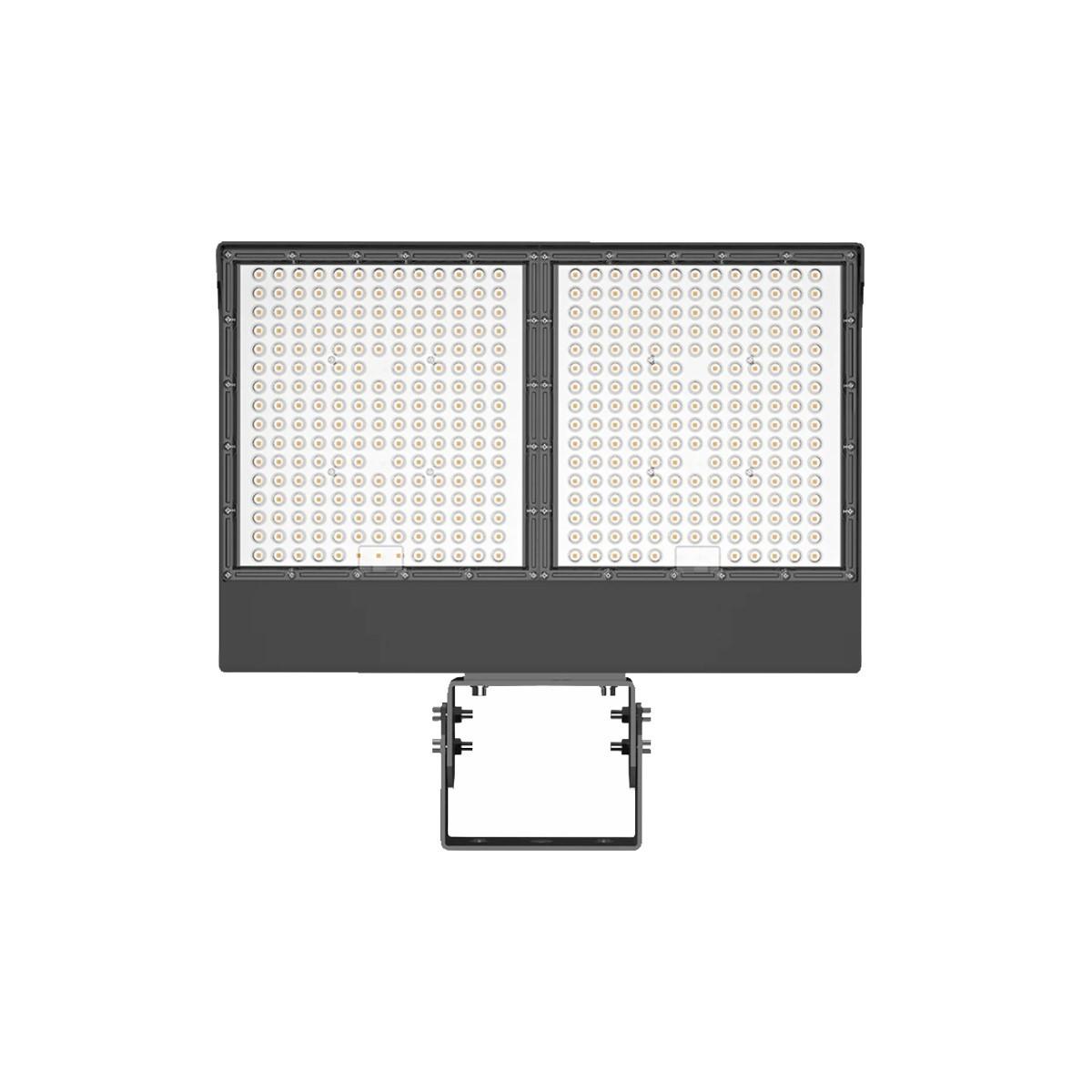

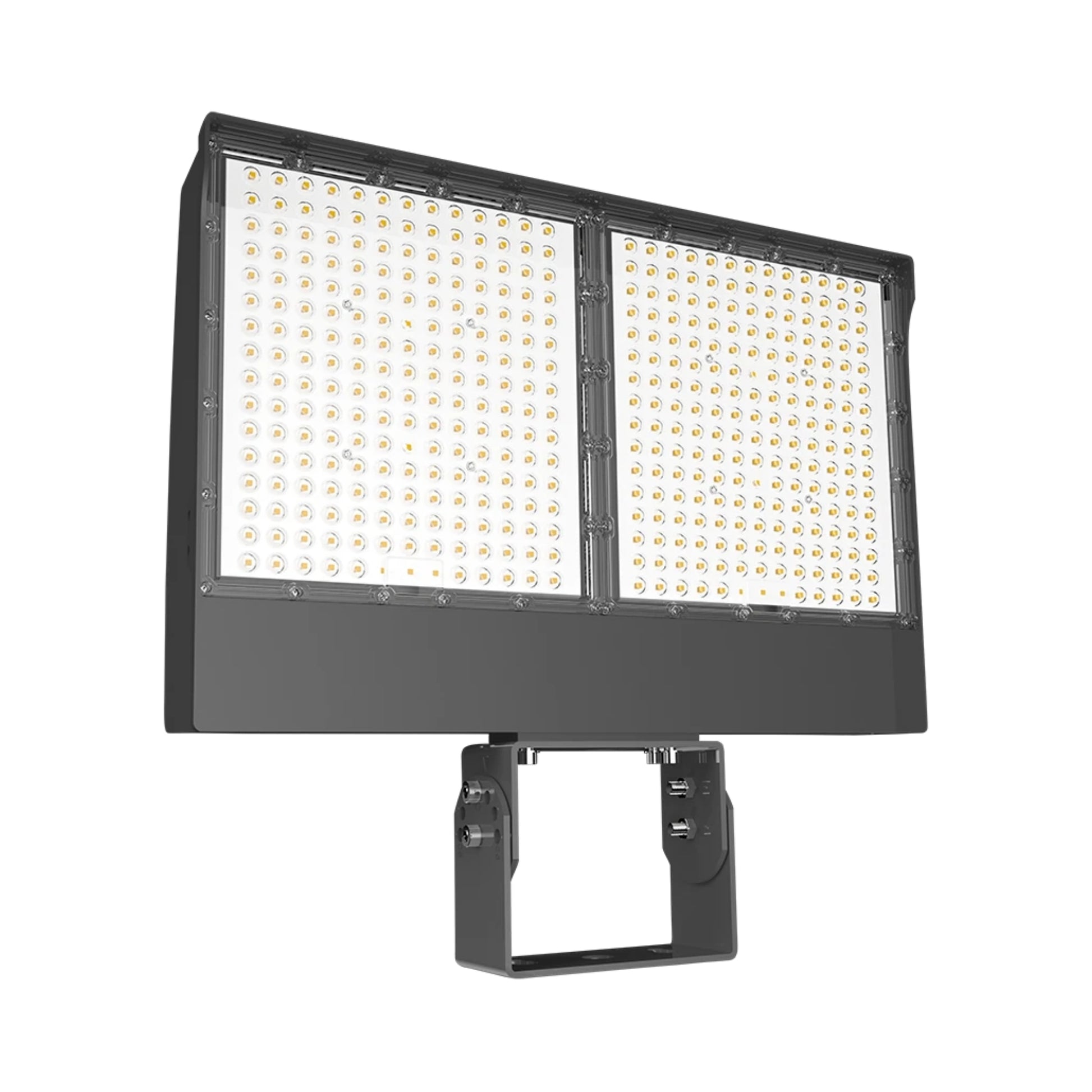

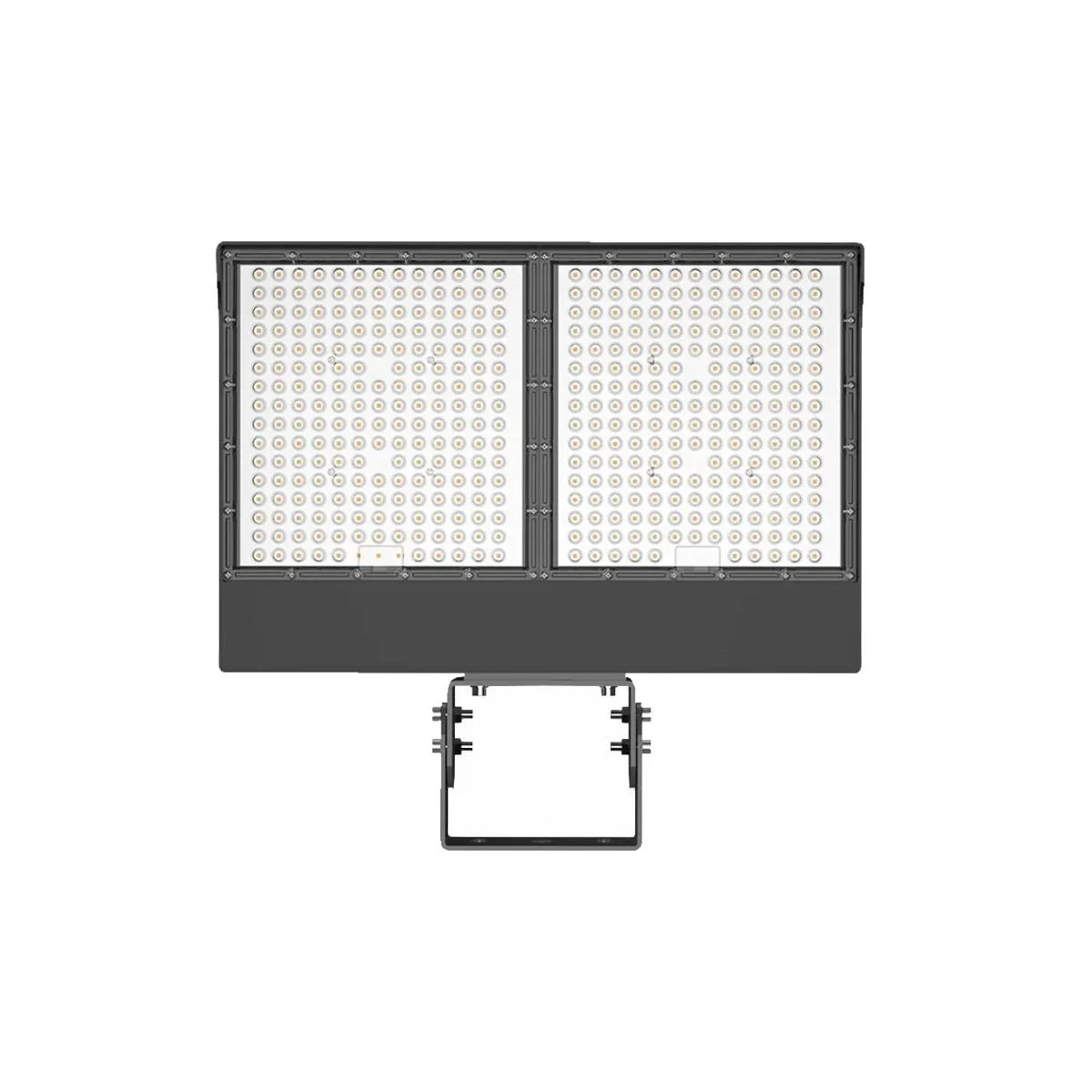

RAB X17XFU330T/PCT Field-Adjustable Floodlight — 330W, Selectable CCT & Power, Trunnion Mount, Photocell, 120-277V, Bronze

The RAB X17XFU330T/PCT is a highly efficient, large field-adjustable LED flood light designed to deliver massive illumination with incredible on-site versatility. Engineered to replace 1,000W metal halide fixtures, this powerful luminaire produces up to 49,131 lumens and allows installers to easily toggle between three high-output power levels (330W, 250W, 175W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 6V beam spread, providing a broad, powerful wash of light ideal for large building perimeters, expansive landscapes, and commercial signage. Operating on a 120-277V driver, this model comes fully equipped with a Twistlock photocell for automated dusk-to-dawn energy savings and includes a shorting cap for added control options. Built for longevity, the X17XFU330T/PCT is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is the perfect long-term solution for professional-grade exterior lighting.

Key Features

• Wattage: 3-Way field adjustable to 330W, 250W, or 175W (factory default 330W).
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
• Photocell: 120-277V Twistlock photocell and shorting cap included.
• NEMA Type: Wide NEMA 7H x 6V beam spread.
• Mounting Type: Trunnion mount that rotates in 30° increments.
• Delivered Lumens: Up to 49,131 lumens at the highest 330W setting.
• Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
• Warranty: 5-Year limited warranty.

Typical Applications

• Large building perimeters and facade illumination
• Expansive landscape, patio, and yard lighting
• Large commercial signage and billboards
• General high-output exterior area and security lighting

Performance & Light Output

The X17XFU330T/PCT provides high-intensity, uniform light with an incredible maximum output of 49,131 lumens and an efficacy of up to 175.6 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours (based on LM-80 results and TM-21 calculations), this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a Class 1 constant current driver and robust surge protection (10 kV common mode, 6 kV differential mode), the X17XFU330T/PCT is built for exceptionally stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the included twistlock photocell to automate daylight operation.

Construction & Durability

The fixture features a rugged precision die-cast aluminum housing and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.

Installation & Mounting

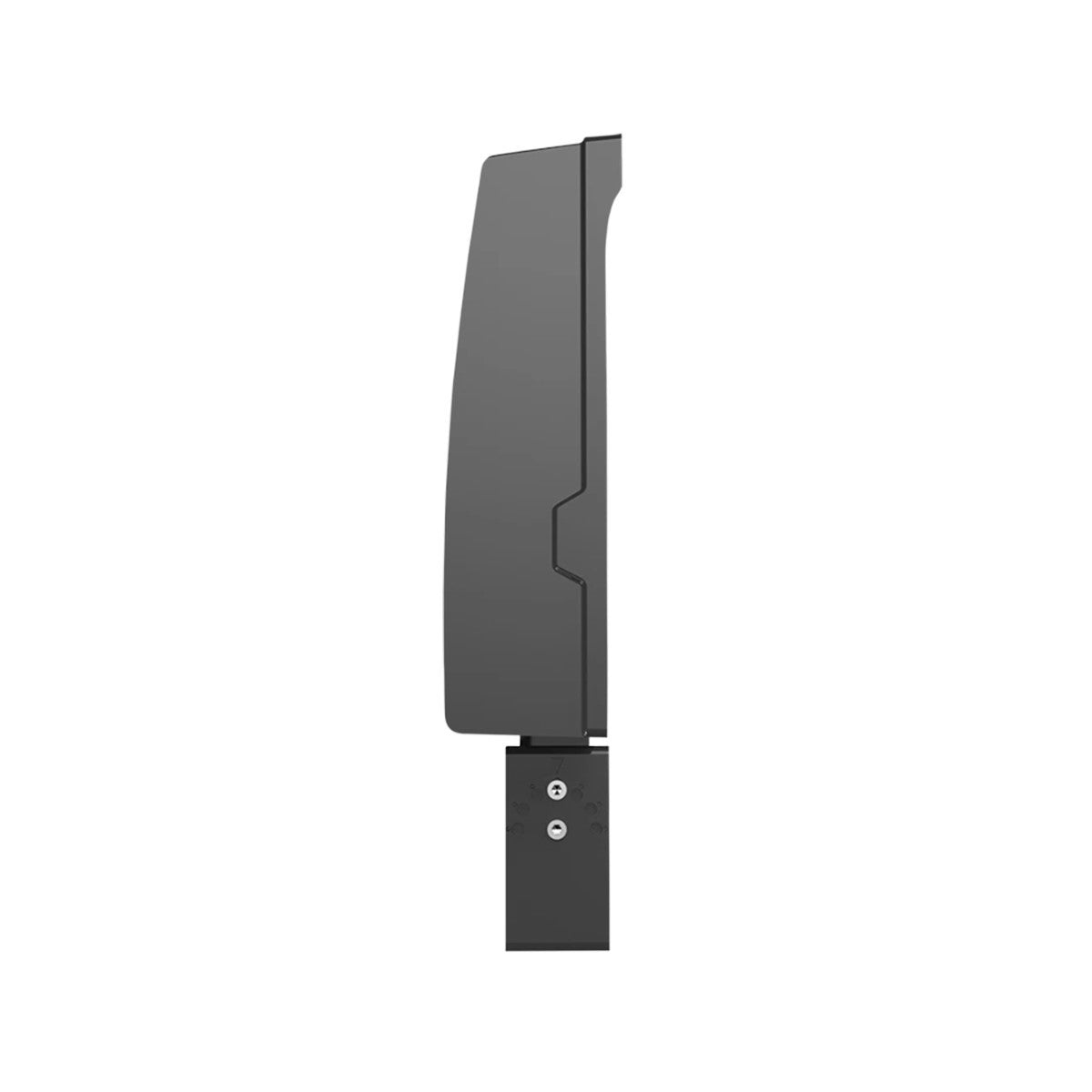

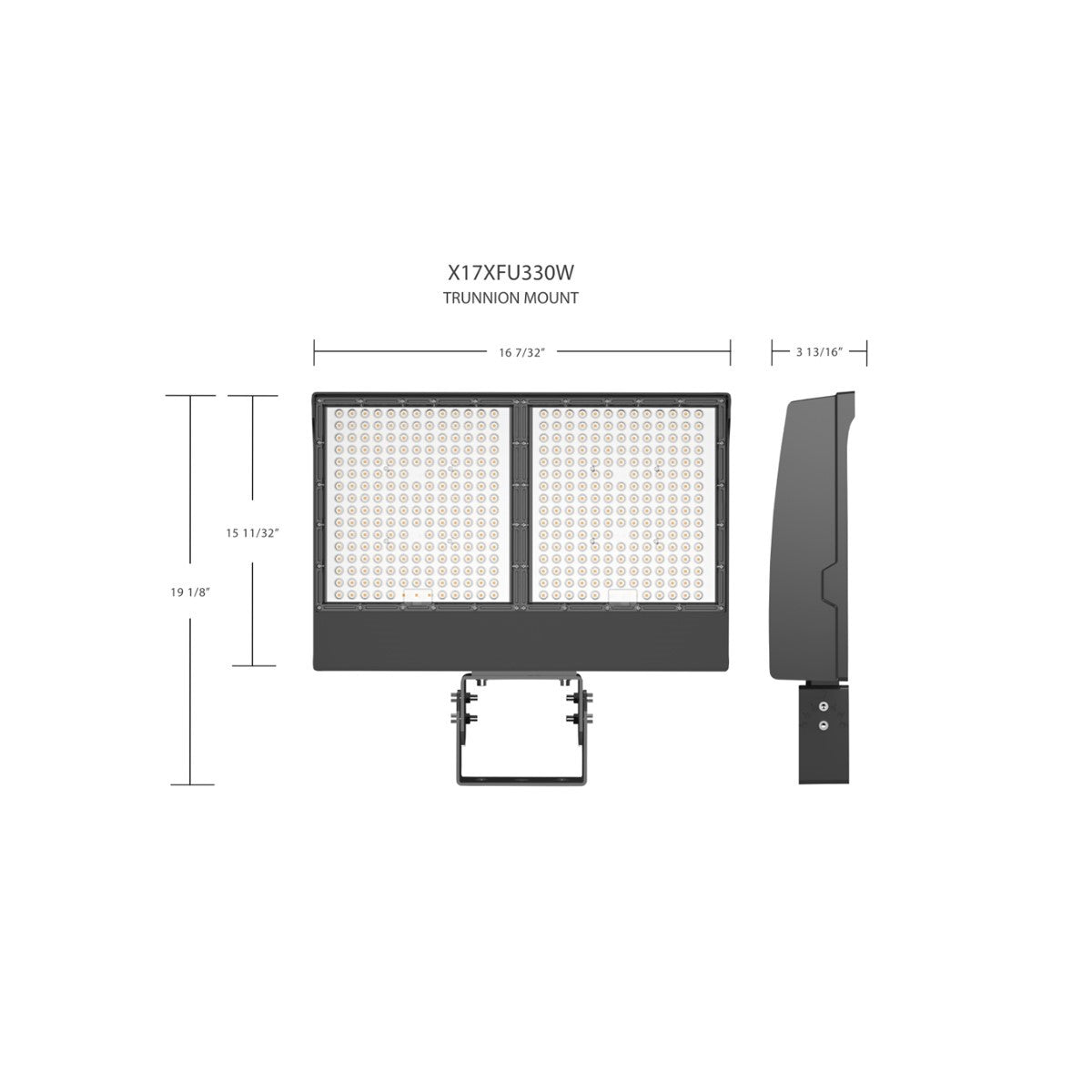

This model includes an integrated heavy-duty trunnion mount, ideal for secure installations on flat surfaces like walls, ceilings, or ground bases. The mount features a 30° tilt increment for very precise light aiming.

What's Included

• RAB X17XFU330T/PCT LED Field-Adjustable Floodlight
• Integrated Trunnion Mount
• 120-277V Twistlock Photocell
• Shorting Cap
• 5-Year Manufacturer Warranty
