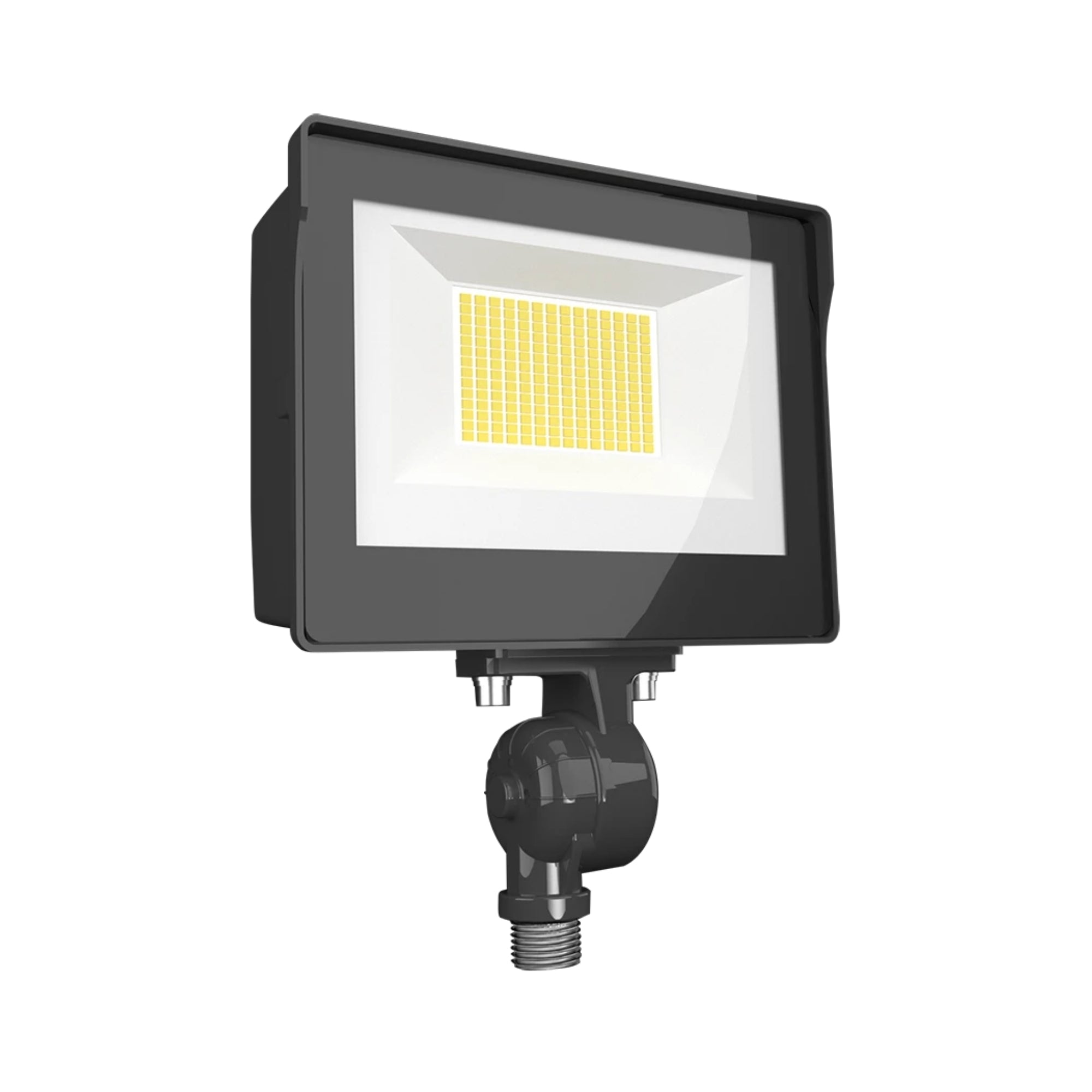

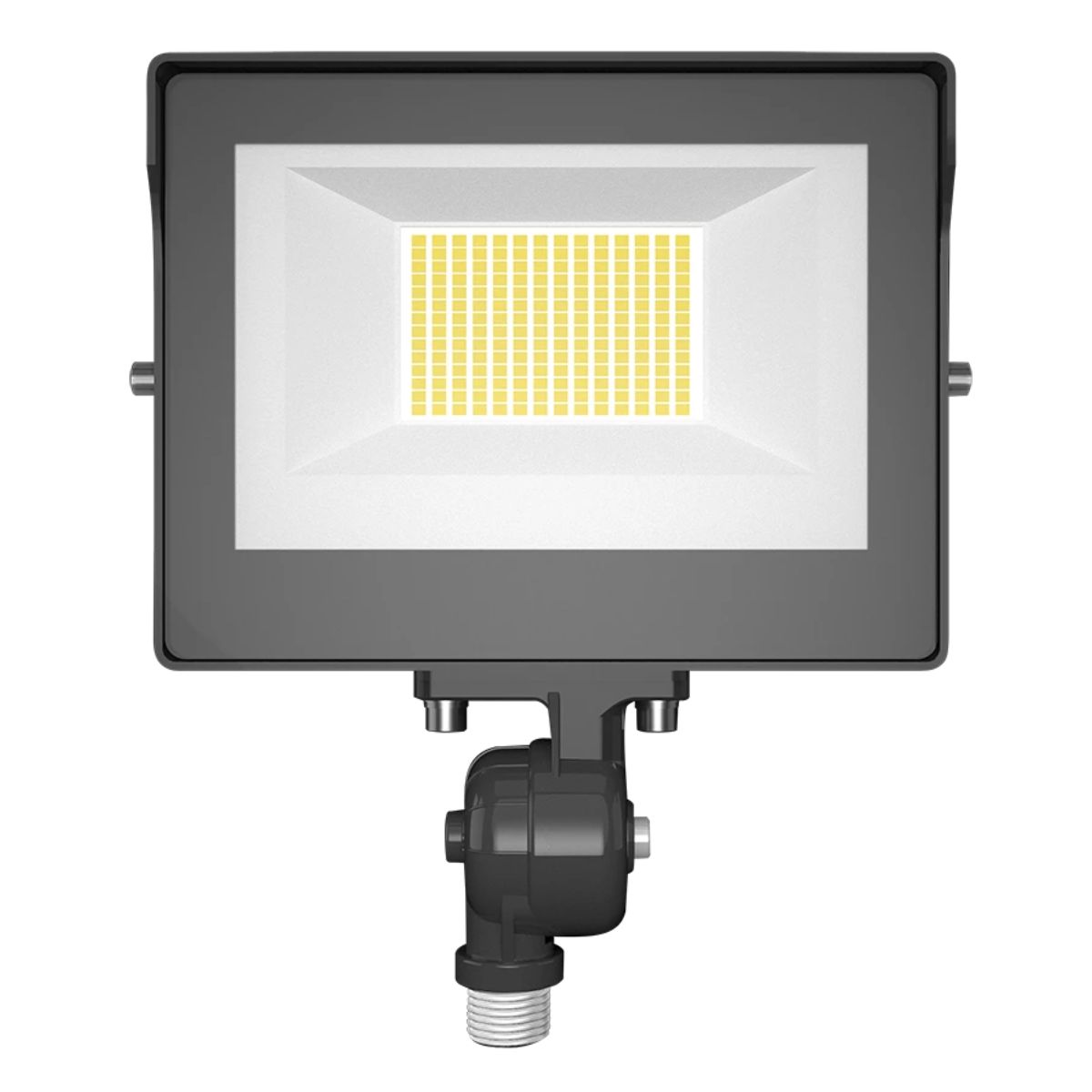

RAB X17FA35 Field-Adjustable Floodlight — 35W, Selectable CCT, Knuckle Mount, Photocell, 120-277V, Bronze

The RAB X17FA35 is an ultra-economy, 2-way field-adjustable LED flood light designed to deliver bright illumination with excellent on-site versatility. Replacing traditional 150W metal halide fixtures, this compact luminaire produces up to 5,031 lumens at just 35W and allows installers to easily toggle between three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, small landscapes, and architectural accents. Operating on a 120-277V driver, this model comes fully equipped with a selectable photocell that can be easily turned on or off for automated dusk-to-dawn energy savings. Built for longevity, the X17FA35 is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.

Key Features

• Wattage: Fixed 35W (replaces 150W MH).
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
• Photocell: Integrated 120-277V selectable photocell (can be turned on/off).
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Robust knuckle mount with a 180° adjustable swivel arm and 10° tilt increments.
• Delivered Lumens: Up to 5,031 lumens at the 4000K setting.
• Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
• Warranty: 5-Year limited warranty.

Typical Applications

• Building perimeters and facade illumination
• Small landscape, patio, and yard lighting
• Commercial signage and architectural accents
• General exterior area and security lighting

Performance & Light Output

The X17FA35 provides high-intensity, uniform light with a maximum output of 5,031 lumens and an efficacy of up to 148.1 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours (based on LM-80 results and TM-21 calculations), this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a Class 1 constant current driver and robust 6kV surge protection, the X17FA35 is built for exceptionally stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated selectable photocell to automate daylight operation.

Construction & Durability

The fixture features a rugged precision die-cast aluminum housing and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.

Installation & Mounting

This model includes an integrated robust knuckle mount, ideal for secure installations on standard junction boxes or landscape posts. The mount features a 180° swivel arm and rotates in 10° increments for very precise light aiming.

What's Included

• RAB X17FA35 LED Field-Adjustable Floodlight
• Integrated Knuckle Mount
• Integrated Selectable Photocell
• 5-Year Manufacturer Warranty
