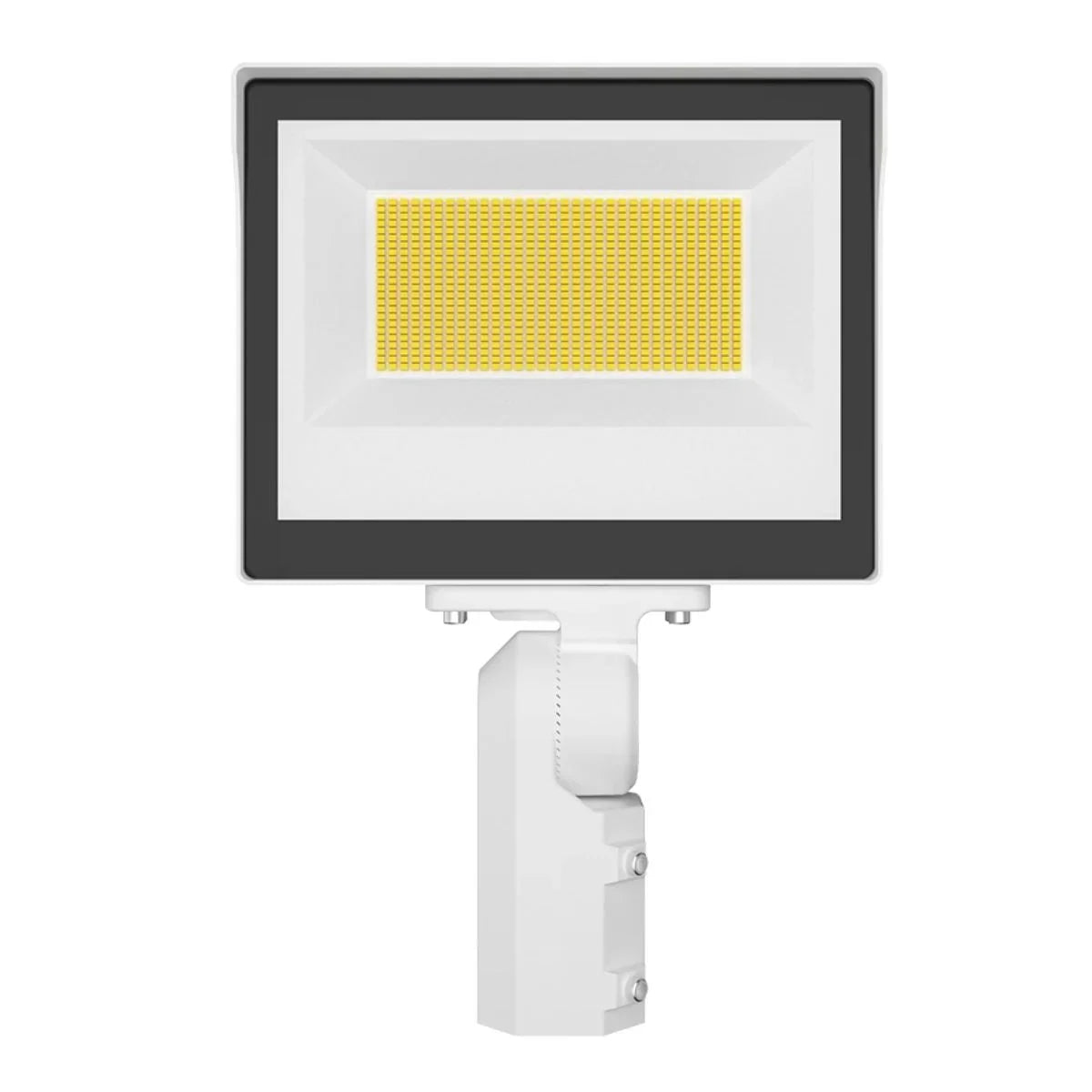

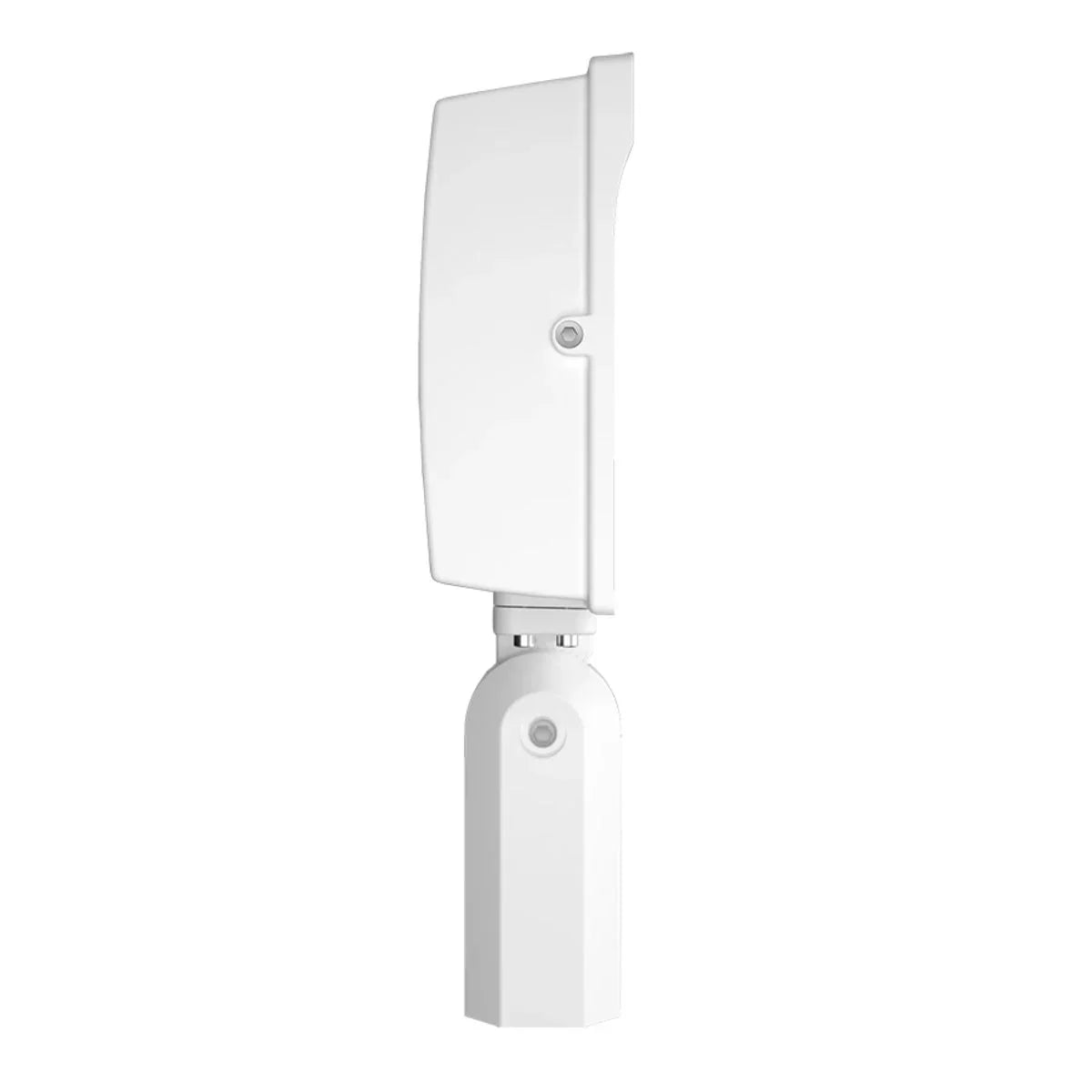

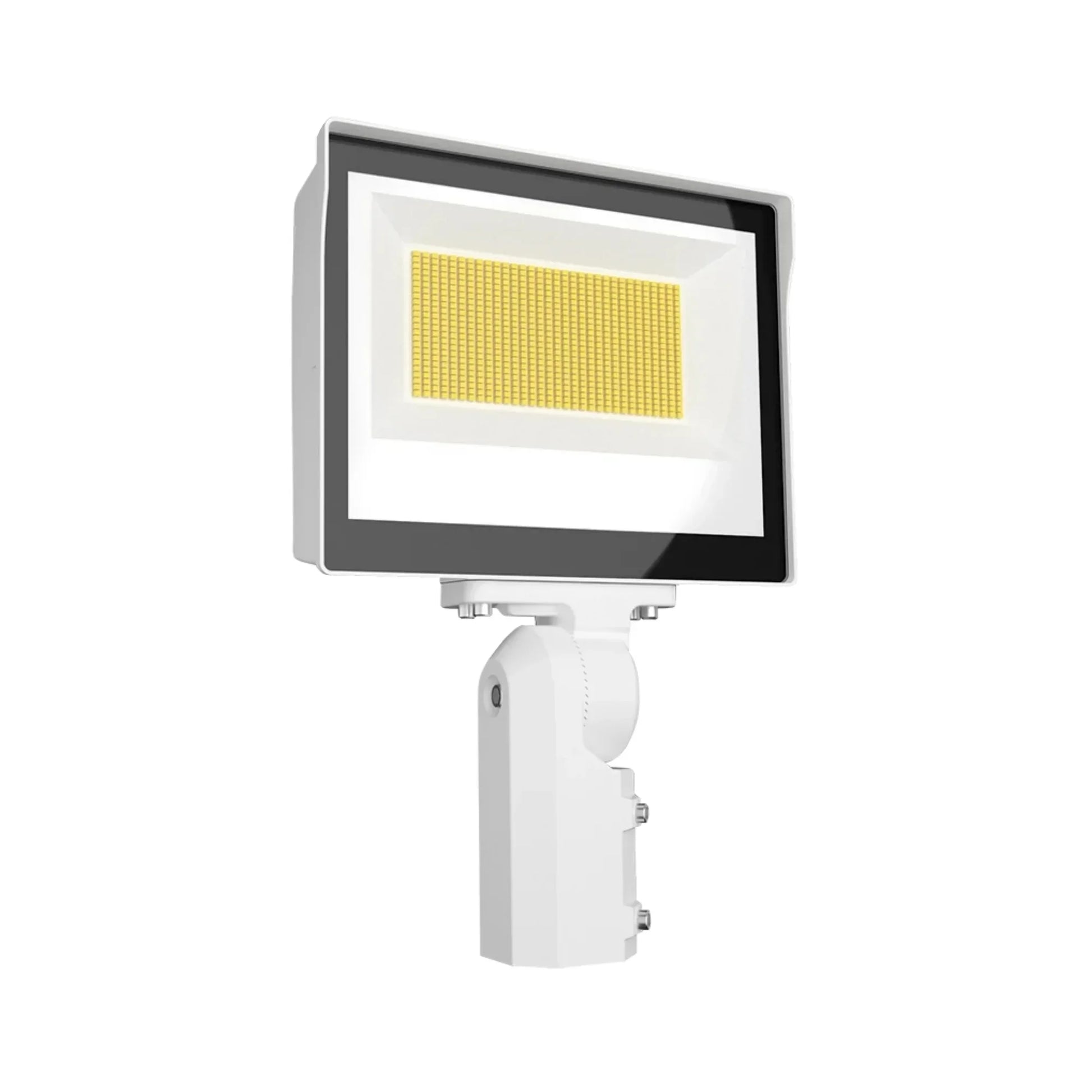

RAB X17FA140SFW/480 Field-Adjustable Floodlight — 140W, Selectable CCT, Slipfitter Mount, Photocell, 480V, White

The RAB X17FA140SFW/480 is an ultra-economy, 2-way field-adjustable LED flood light in a clean white finish, engineered for high-voltage commercial and industrial applications. Operating exclusively on 480V systems, this powerful luminaire produces up to 21,264 lumens at 140W and allows installers to easily toggle between three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, large landscapes, and architectural accents. This model comes fully equipped with a selectable photocell that can be easily turned on or off for automated dusk-to-dawn energy savings. Built for longevity, the X17FA140SFW/480 is housed in precision die-cast aluminum with a tempered glass lens and earns an IP65 rating for durability against the elements. With a 5-year limited warranty and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.

Key Features

• Wattage: Fixed 140W.
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
• Photocell: Integrated selectable photocell (can be turned on/off).
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Slipfitter mount with 180° pivot for 2 3/8" tenons.
• Delivered Lumens: Up to 21,264 lumens at the 4000K setting on 480V.
• Environmental Ratings: IP65 rated for dust and water; UL Listed for wet locations.
• Warranty: 5-Year limited warranty.

Typical Applications

• White-themed industrial building perimeters requiring 480V power
• Expansive landscape, patio, and yard lighting
• Commercial signage and architectural accents
• General exterior area and security lighting

Performance & Light Output

The X17FA140SFW/480 provides high-intensity, uniform light with a maximum output of 21,264 lumens and an efficacy of up to 154.9 lm/W. Its advanced optical design ensures excellent color consistency. With long-life surface-mount LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a Class 2 constant current driver designed specifically for 480V systems, the X17FA140SFW/480 is built for exceptionally stable high-voltage performance. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated selectable photocell to automate daylight operation.

Construction & Durability

The fixture features a rugged precision die-cast aluminum housing finished in white and a tempered glass lens. Its IP65 rating confirms total protection against dust and water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.

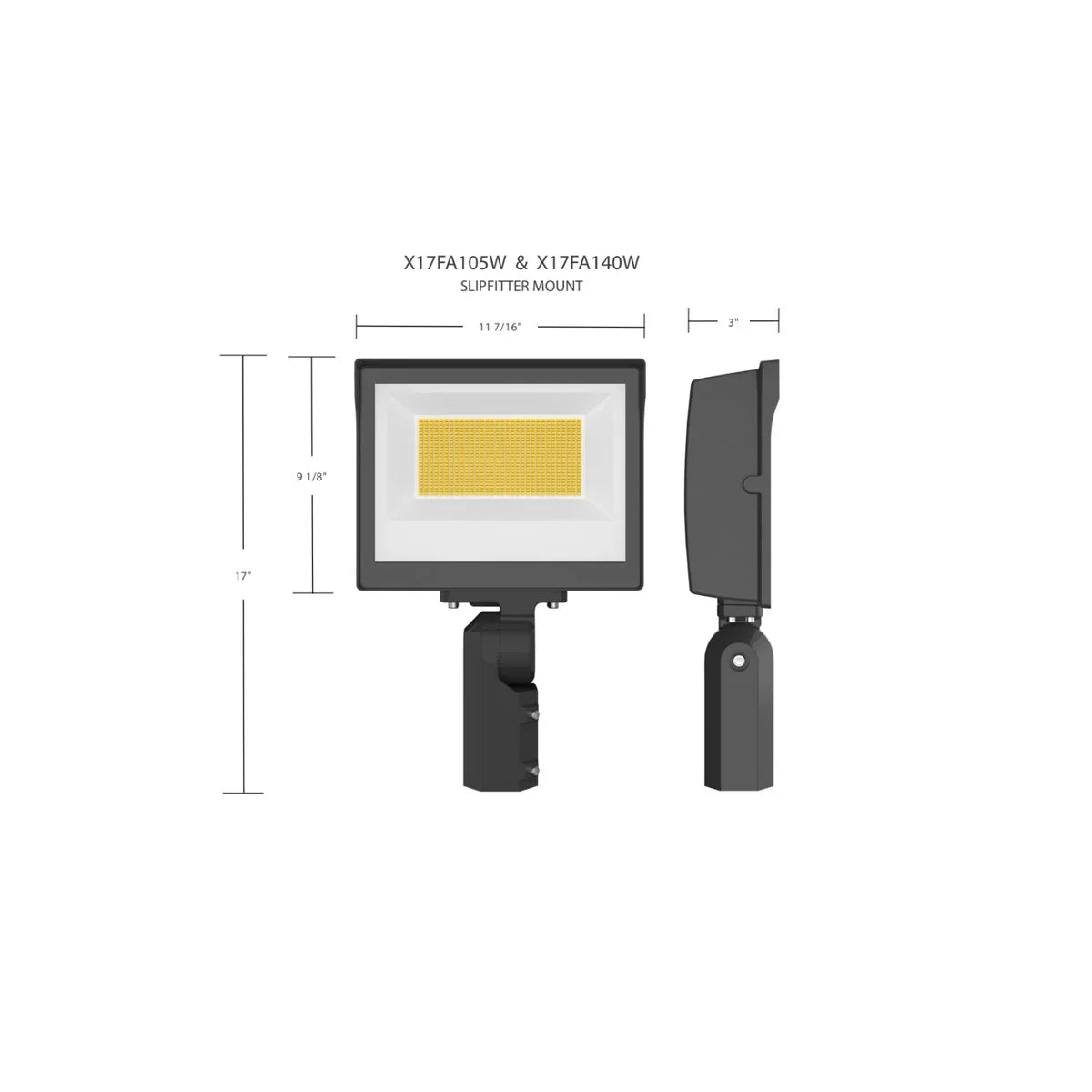

Installation & Mounting

This model includes an integrated heavy-duty slipfitter mount, ideal for secure installations on standard 2 3/8" tenons. The mount features a 180° pivot for very precise light aiming.

What's Included

• RAB X17FA140SFW/480 LED Field-Adjustable Floodlight (White, 480V)
• Integrated Slipfitter Mount
• Integrated Selectable Photocell
