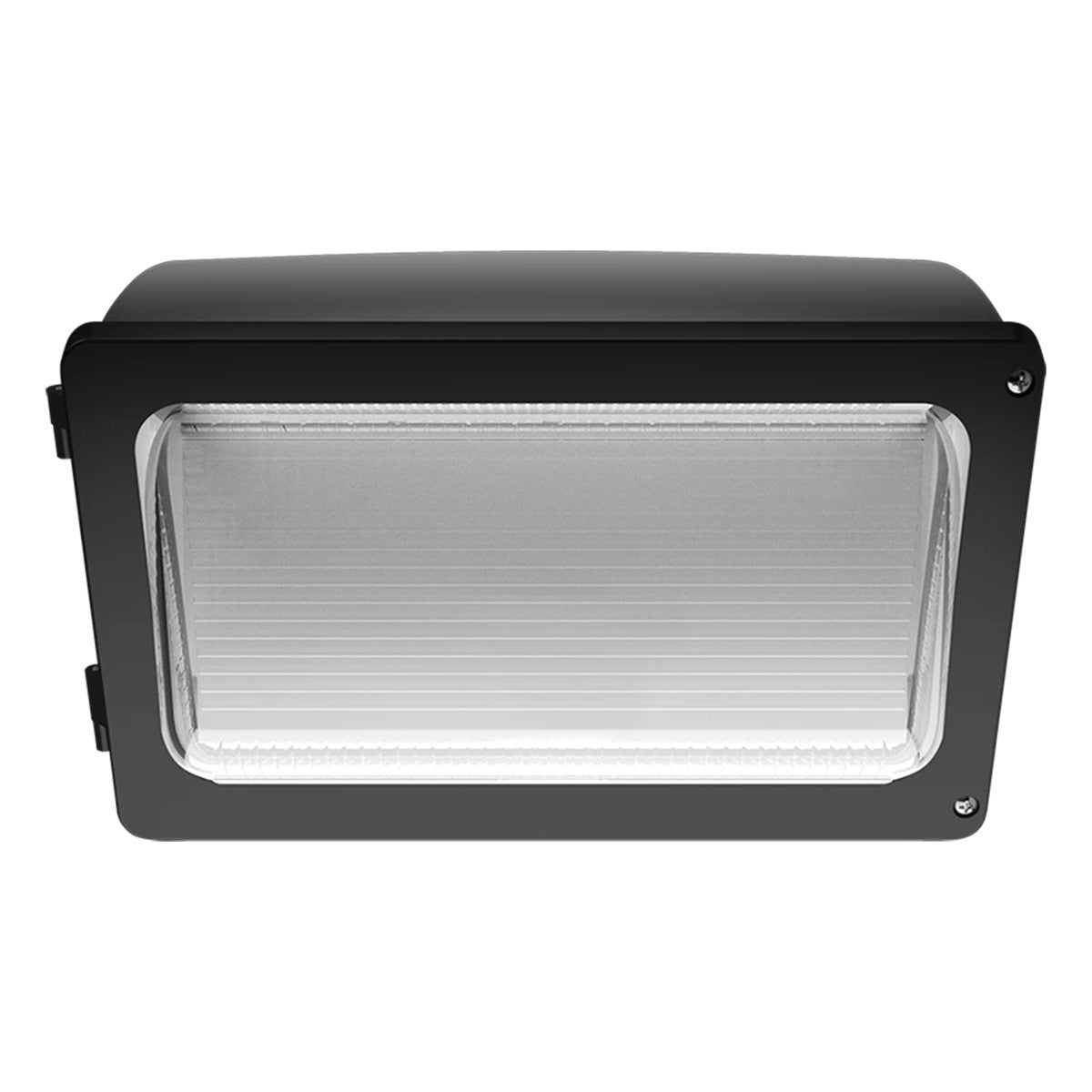

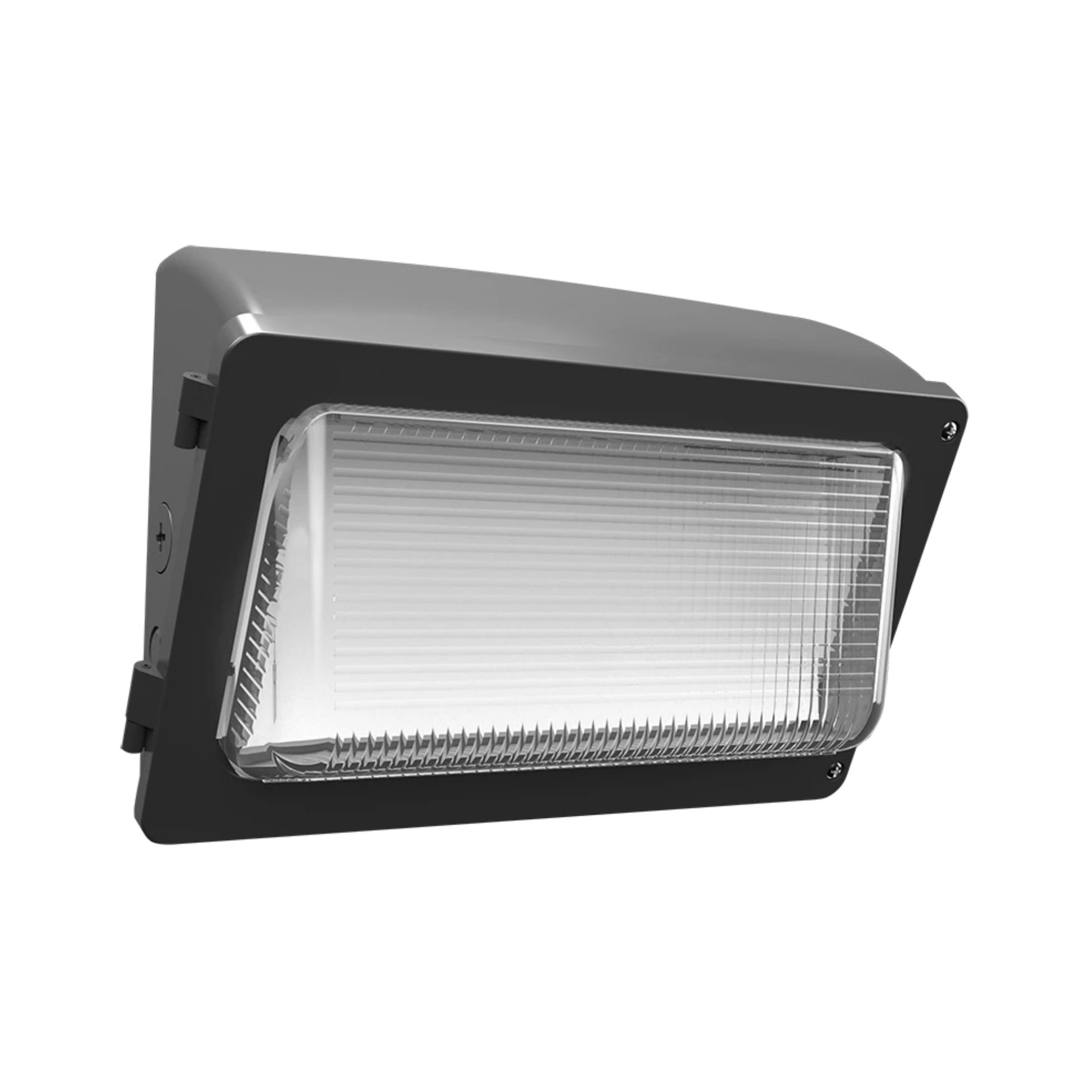

RAB WPX2 Field-Adjustable Traditional LED Wall Pack — 80W/60W/40W Selectable — 3000K/4000K/5000K — Bronze

The RAB WPX2 is a commercial field-adjustable traditional LED wall pack and premium wall pack engineered to deliver up to 11,353 lumens across field-adjustable 80W/60W/40W power settings (80W factory default) and switchable 3000K/4000K/5000K color temperatures (4000K factory default). Operating on 120-277V electrical systems with 0-10V dimming down to 10%, this forward-throw perimeter luminaire delivers peak efficacy up to 152.6 lm/W while qualifying for DLC 5.1 Premium utility rebates and Trade Agreements Act (TAA) compliance. Built with a weatherproof IP65 precision die-cast aluminum housing and door frame in a Bronze finish with high-temperature silicone gasketing, this UL wet-location luminaire includes a 14.00" W x 9.25" H side-hinged backplate that covers legacy HID wall stains with conduit entries on the back, sides, top, and bottom and features a borosilicate glass lens, an internal aluminum reflector, an integrated selectable on/off photocell, and 4kV (4/4kV) surge protection.

Key Features

• Selectable Wattage: 80W / 60W / 40W (80W factory default)
• Maximum Lumen Output: Up to 11,353 lm
• Peak Efficacy: Up to 152.6 lm/W
• CRI: 82-84
• Selectable CCT: 3000K / 4000K / 5000K (4000K factory default)
• Color Consistency: 7-step MacAdam Ellipse binning
• Lens & Optics: Prismatic borosilicate glass lens with internal aluminum reflector
• Photocell & Controls: Integrated selectable on/off photocell; Lightcloud (/LC), Lightcloud Blue (/LCB), and Microwave Sensor (/MVS) options available
• Dimming: 0-10V continuous dimming (dims down to 10%)
• Voltage & Surge Protection: 120-277V AC, 50/60Hz; 4kV (4/4kV) surge protection
• Location & Body Rating: UL Listed Wet Location; IP65
• Operating Temperature: -40°F (-40°C) to 104°F (40°C)
• Certifications: DLC 5.1 Premium (S-QGK4HV), UL Listed, IP65 Rated, TAA Compliant, BAA Available Upon Request, RoHS Compliant
• Rated Life: L70 100,000 hours
• Warranty: 10-year no-compromise warranty covering light output, color stability, driver performance, paint finish, and labor - RAB

Performance & Light Output

At 80W (Factory Default) (79W at 3000K; 76.6W at 4000K; 79.3W at 5000K): 10,592 lm (3000K / 134.1 lm/W / 82 CRI), 11,353 lm (4000K / 148.2 lm/W / 84 CRI), and 11,042 lm (5000K / 139.2 lm/W / 83 CRI).

At 60W (57.5W at 3000K; 56W at 4000K; 57.8W at 5000K): 8,052 lm (3000K / 140.0 lm/W / 82 CRI), 8,463 lm (4000K / 151.1 lm/W / 84 CRI), and 8,386 lm (5000K / 145.1 lm/W / 83 CRI).

At 40W (40W at 3000K; 39.3W at 4000K; 40.1W at 5000K): 5,789 lm (3000K / 144.7 lm/W / 83 CRI), 5,996 lm (4000K / 152.6 lm/W / 84 CRI), and 5,982 lm (5000K / 149.2 lm/W / 83 CRI).

Engineered with long-life, high-efficacy surface-mount LEDs delivering CRI 82-84 across all configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

Engineered with a durable borosilicate glass lens and internal aluminum reflector delivering a standard forward-throw LED wall pack optical distribution. The prismatic borosilicate glass refractor resists thermal shock, yellowing, and UV degradation while covering legacy 14.00" W x 9.25" H HID wall pack footprints with wide outward and downward perimeter security illumination.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Factory-installed selectable on/off photocell provides automatic dusk-to-dawn operation or can be switched off for manual wall-switch and timer control.
• 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.
• Smart & Occupancy Sensor Options: Available in factory-configured Microwave Occupancy Sensor (/MVS, 8–15 ft mounting height, 10–23 ft detection range), Lightcloud Blue Bluetooth Mesh (/LCB), and Lightcloud Enterprise (/LC) wireless network control models (DLC system IDs N1XMLOEATBA Interior / NHCZ2BIA17L Exterior).

For sensor-equipped models, compatible commissioning remote MSR1 (for adjusting standby dimming level, standby time, and daylight threshold) and Lightcloud Enterprise Gateway/Hub are sold separately.

Electrical

Powered by a Constant Current, Class 2 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 99.2%–99.7% at 120V (84.8%–95.0% at 277V) and Total Harmonic Distortion (THD) of 2.0%–2.5% at 120V (3.0%–12.0% at 277V). Integrated 4kV (4/4kV) surge protection safeguards internal electronics against utility line transients and lightning strikes. Includes pre-wired 0-10V dimming leads (dims down to 10%) and a factory-installed selectable on/off photocell.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Precision die-cast aluminum housing and hinged door frame with engineered passive convection cooling.

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

Environmental Sealing: IP65 weatherproof rated for dust and water protection and UL Listed for wet locations with high-temperature silicone gasketing. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

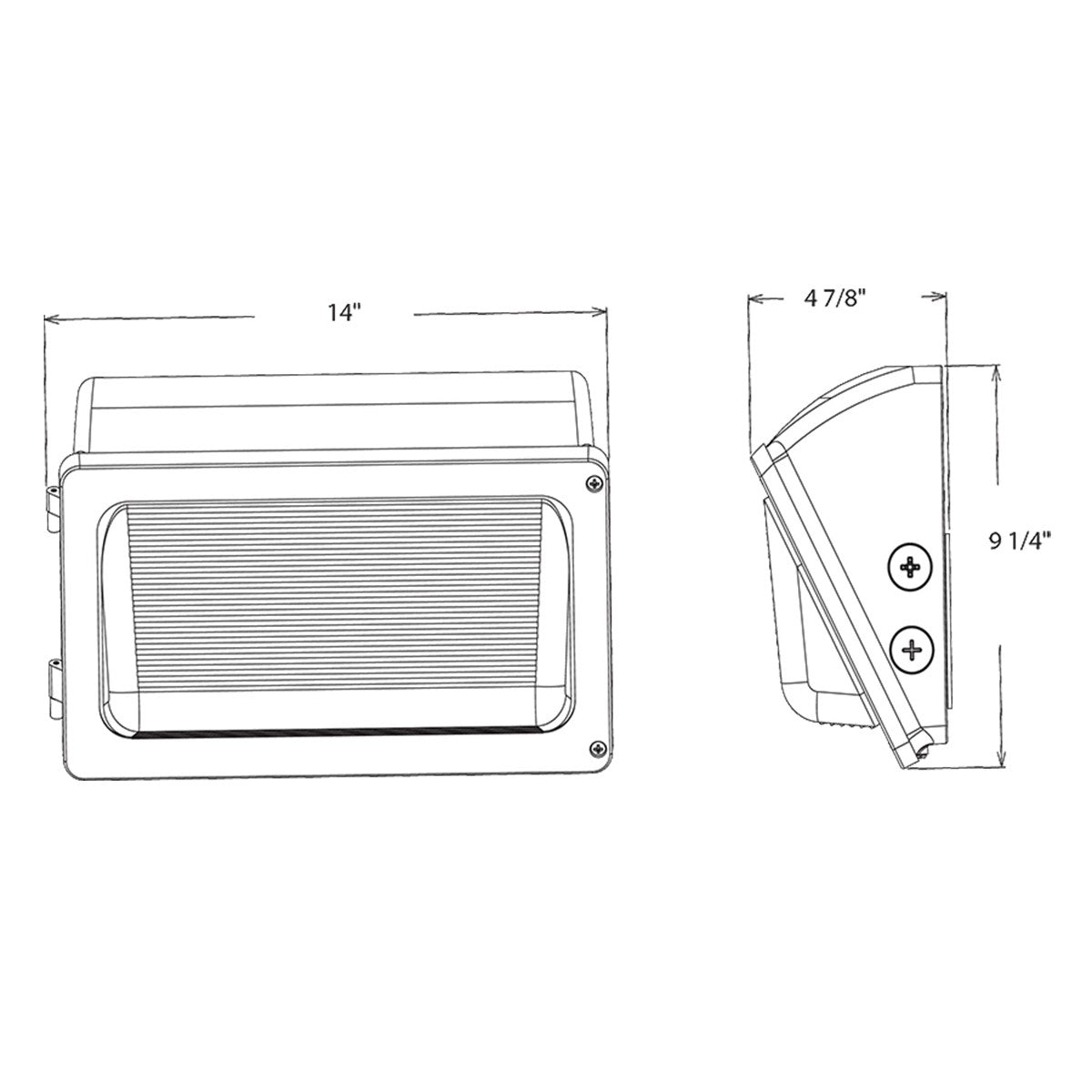

Dimensions & Weight: 14.00" W x 9.25" H x 4.88" D (14" W x 9 1/4" H x 4 7/8" D). Fixture weight: 9.5 lbs.

Installation & Mounting

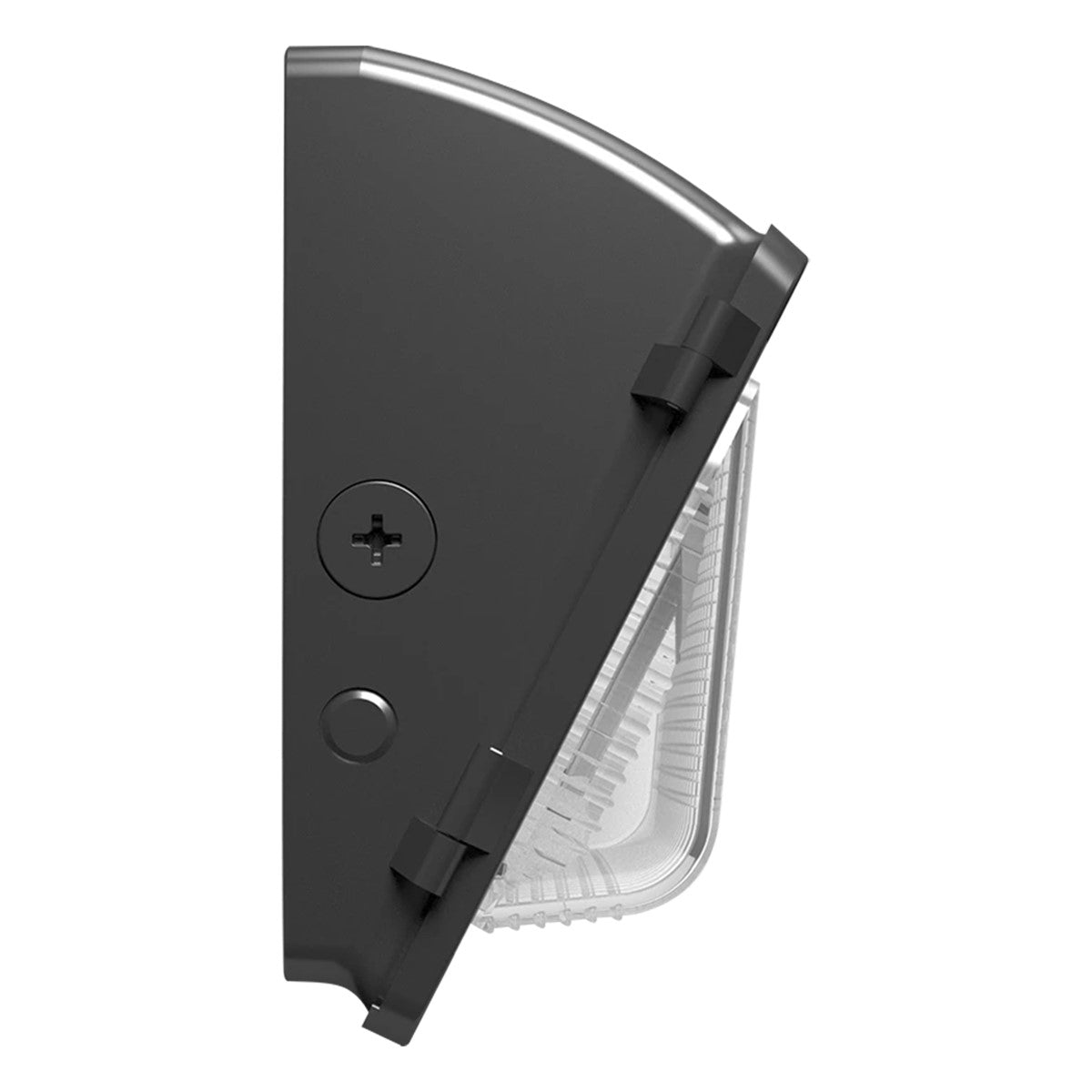

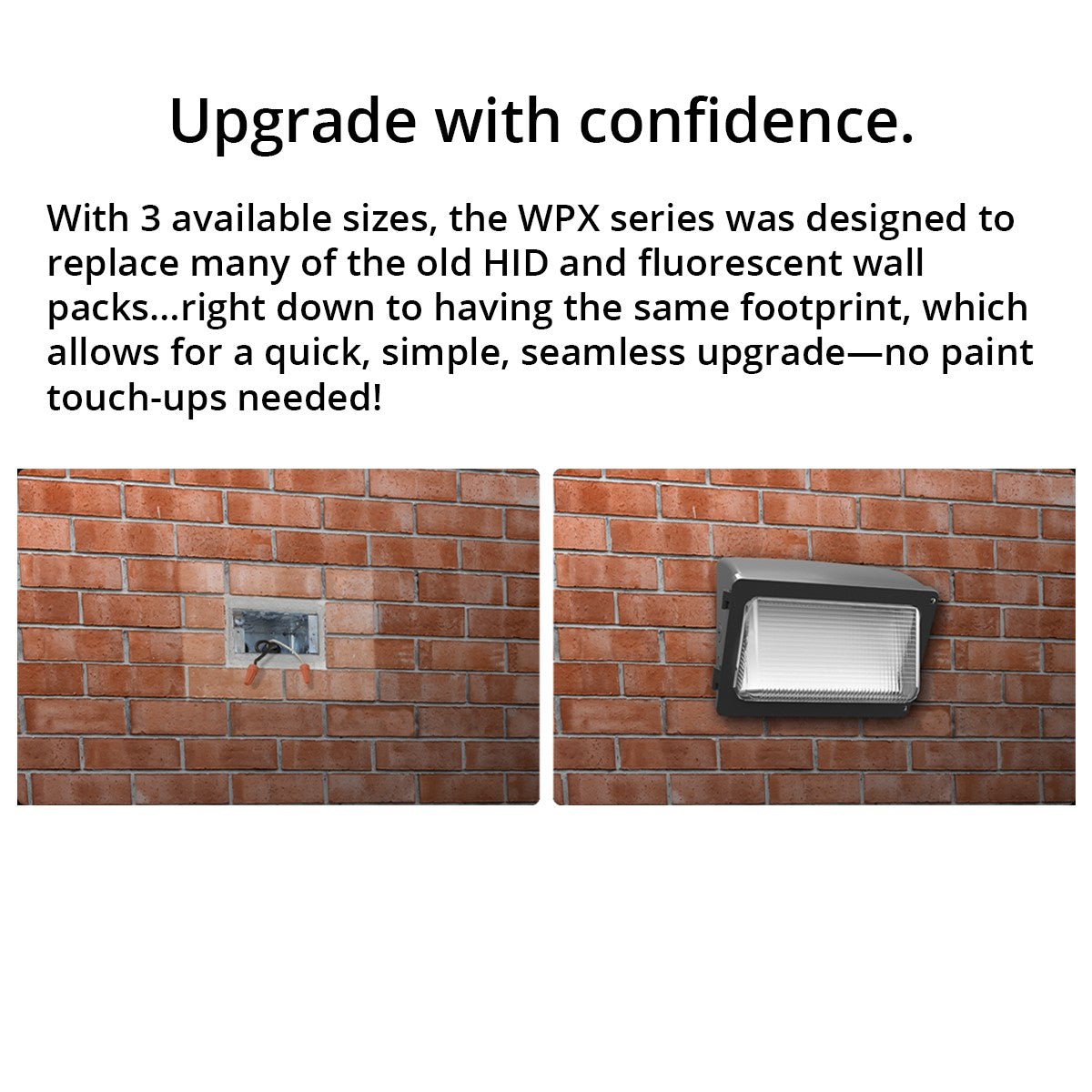

Mounting Hardware: 14.00" W x 9.25" H x 4.88" D precision die-cast aluminum backplate covers legacy HID wall stains over standard junction boxes or direct wall surfaces and features a side-hinged door frame for hands-free wiring access.

Conduit & Wiring Access: Threaded conduit entries on the back, sides, top, and bottom accommodate flexible surface or recessed conduit routing.

Accessories (Sold Separately):

• Sensors & Controls: MSR1 (Multi-sensor remote control for adjusting sensor standby dimming, standby time, and daylight threshold on /MVS models) and Lightcloud Gateway/Hub (for /LC enterprise systems)

Certifications & Rebates

• DLC 5.1 Premium: Qualifies for utility rebates (searchable on designlights.org under code S-QGK4HV)
• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• IP65 Rated: Ingress protection rating of IP65 for dust and water
• TAA Compliant: Complies with the Trade Agreements Act (TAA) for federal, military, and municipal schedule procurement
• BAA Compliant Option: Available to be manufactured compliant with the Buy American Act (BAA) upon request
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Building Entrances, Exits & Egress Doorways - Selectable 80W/60W/40W output and integrated on/off photocell automate dusk-to-dawn perimeter doorway illumination
• Commercial Perimeter Walls & Alleyways - Prismatic borosilicate glass lens and IP65 silicone-gasketed die-cast aluminum housing resist weather and UV yellowing
• Federal, Military & Municipal Facilities - Trade Agreements Act (TAA) compliance, BAA option, DLC 5.1 Premium certification (Code S-QGK4HV), and 10-year no-compromise warranty with labor meet government specification standards
• Loading Docks & Warehouse Exteriors - Multi-volt 120-277V Class 2 driver with 4kV surge protection and 0.66A max current at 120V (0.30A at 277V) supports high fixture counts per branch circuit
• Industrial & Cold-Storage Perimeters - Reliable -40°F (-40°C) cold-weather starting to 104°F (40°C) ambient rating and back, side, top, and bottom conduit entries simplify exterior retrofit installations

What's Included

• RAB WPX2 Field-Adjustable Wall Pack - Bronze
• Pre-installed selectable on/off photocell
• Installation hardware and operation manual
