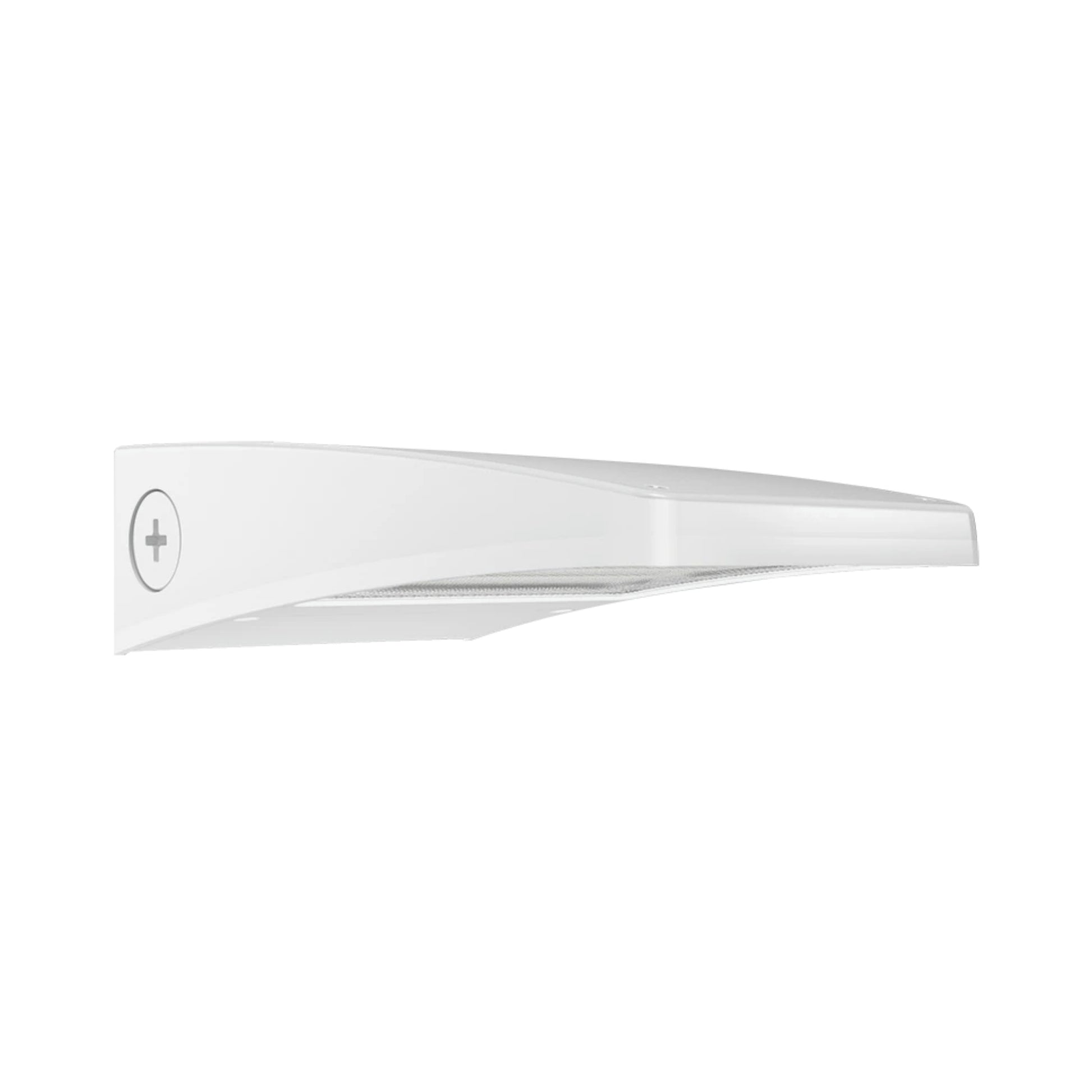

RAB Lighting LPACK Small LED Wall Pack — 13/10/6W Selectable

The WPLEDSW is a compact, full cutoff LED wall pack designed to modernize commercial exteriors. Delivering up to 1,720 lumens, it features field-adjustable 13/10/6W power settings and operates efficiently on a universal 120-277V electrical input. Finished in a clean commercial white, this fixture easily meets strict zoning requirements while maximizing energy savings through its built-in selectable photocell.

Key Features

• Cutoff Classification: Full cutoff, zero-uplight design emitting no light above 90 degrees.

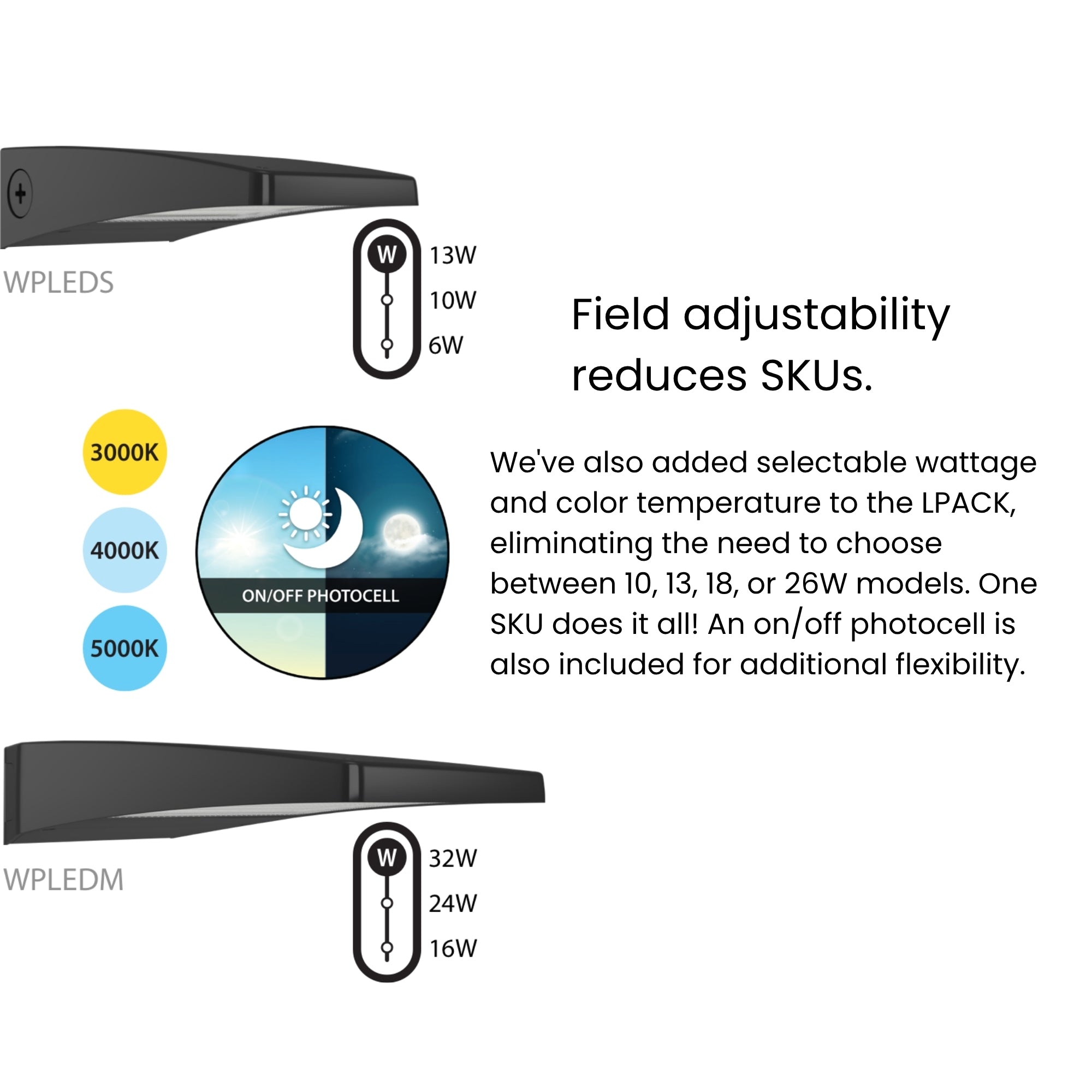

• Wattage Selectable: Field-adjustable between 13W, 10W, and 6W to strictly tailor energy consumption.
• CCT Selectable: Switchable color temperatures of 3000K, 4000K, and 5000K to match site requirements.
• Voltage: Operates efficiently across a universal 120-277V electrical input range.
• Dimming: Includes a 0-10V dimming driver capable of smoothly dimming down to 10 percent.
• Photocell: Features an integrated dusk-to-dawn photocell with an easily accessible on/off switch.
• Surge Protection: Built-in 2kV line-to-line and 4kV line-to-ground surge protection.
• Lifespan: Rated for a 100,000-hour LED lifespan based on IES LM-80 results.
• BUG Rating: Achieves a B1 U0 G1 or B0 U0 G1 rating for precise downward light control.

Typical Applications

• Commercial building perimeters and facades.
• High-traffic pedestrian walkways and tight alleys.
• Industrial facility exterior security lighting.
• Parking structure walls and stairwells.
• Observatories and strict dark sky compliance zones.

Performance & Light Output

This high-performance fixture delivers up to 1,720 lumens with an outstanding efficacy of up to 148.3 LPW. It utilizes a high-reflection polycarbonate reflector and an acrylic lens to optimize downward light distribution without creating glare. The surface-mount LEDs maintain an 83-84 CRI for accurate color rendering and are engineered to sustain superior lumen output over a 100,000-hour rated L70 lifespan.

Electrical & Controls

Powered by a robust constant current Class 2 driver, the unit operates seamlessly on a universal 120-277V electrical input. It comes standard with a 0-10V dimming interface that reliably dims down to 10 percent, maximizing energy savings during off-peak hours. The system includes an integrated 120-277V photocell for automated dusk-to-dawn operation, while built-in surge protection safeguards internal components from job site power spikes.

Construction & Durability

The compact housing is constructed from rugged die-cast aluminum finished in a crisp commercial white formulated for long-lasting color. Tightly sealed against the elements, the fixture is UL Listed for wet locations. It reliably operates in extreme ambient temperatures ranging from -40°F up to 104°F without performance degradation.

Installation & Mounting

Designed for straightforward surface wall mounting, the fixture provides a secure and stable attachment to commercial building exteriors. It includes an integrated junction box to simplify the mounting process and accommodate various electrical routing requirements.

What's Included

• Small LED Wall Pack (White Finish)
• Integrated Selectable Photocell
