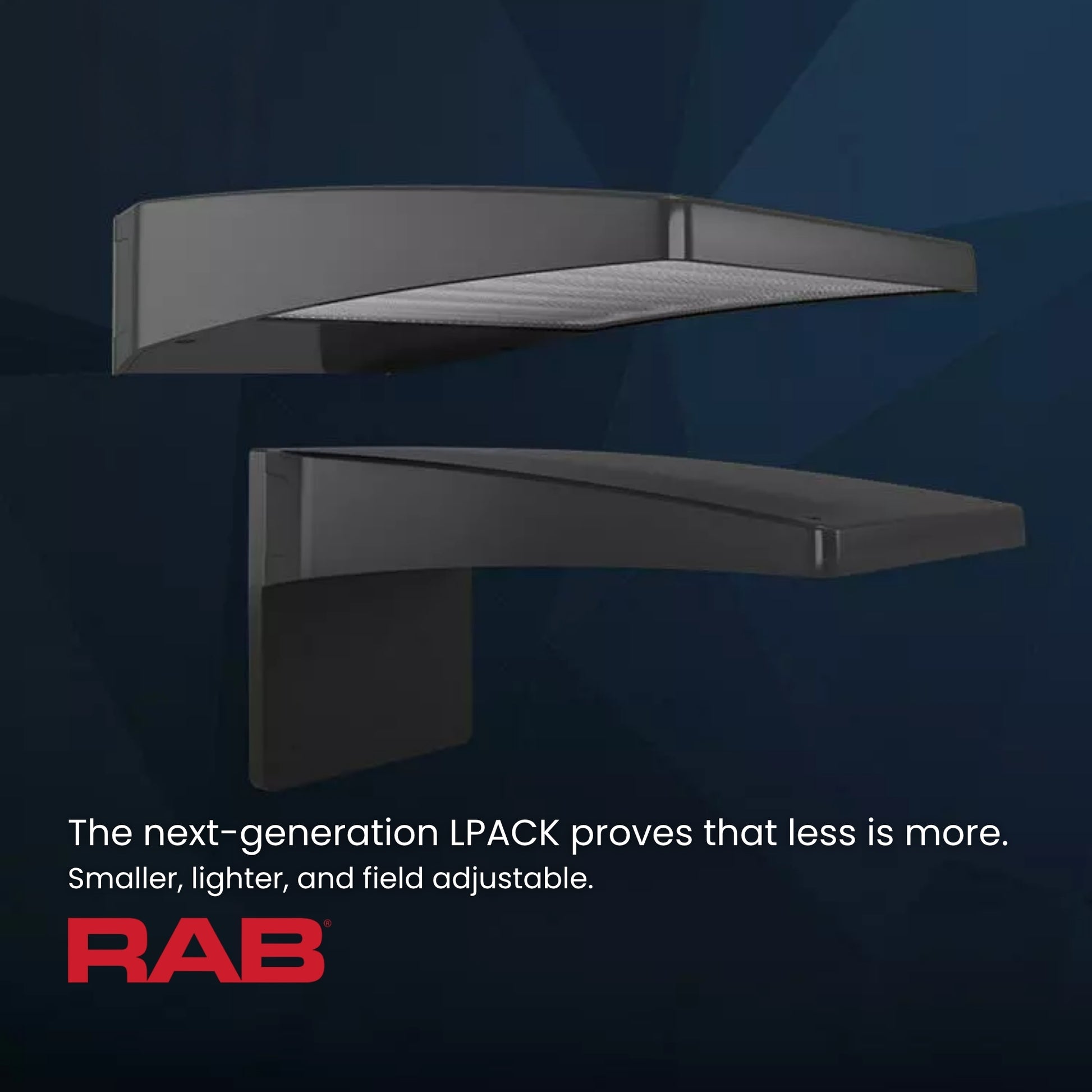

RAB WPLEDS LPACK Small LED Wall Pack 1,720 Lumens 6/10/13W Selectable 30K/40K/50K 120-277V Photocell Bronze
Out of stock
About this item
About this item

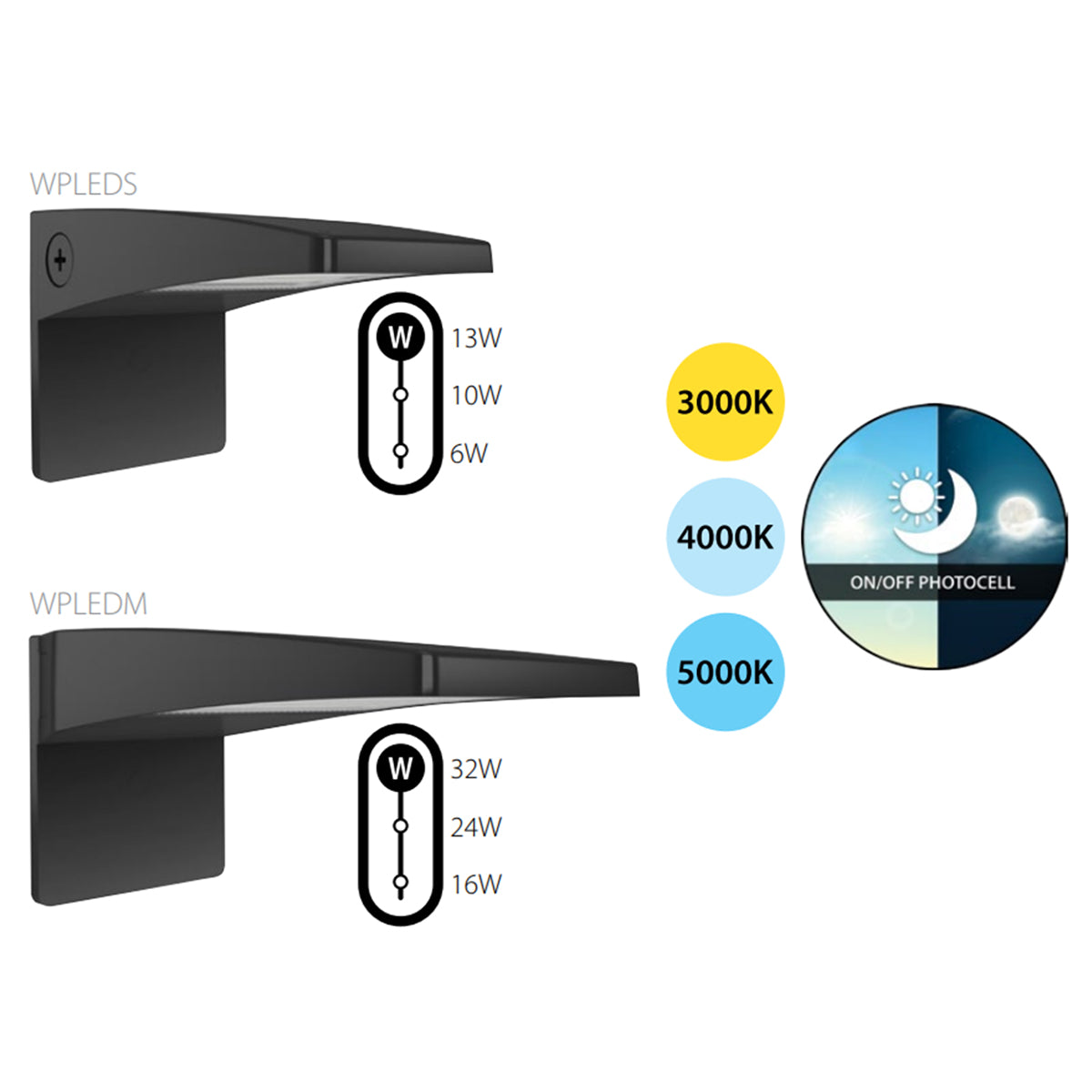

- Selectable Output: Field-adjustable 6W / 10W / 13W delivering up to 1,720 lumens in a highly compact, architectural footprint.

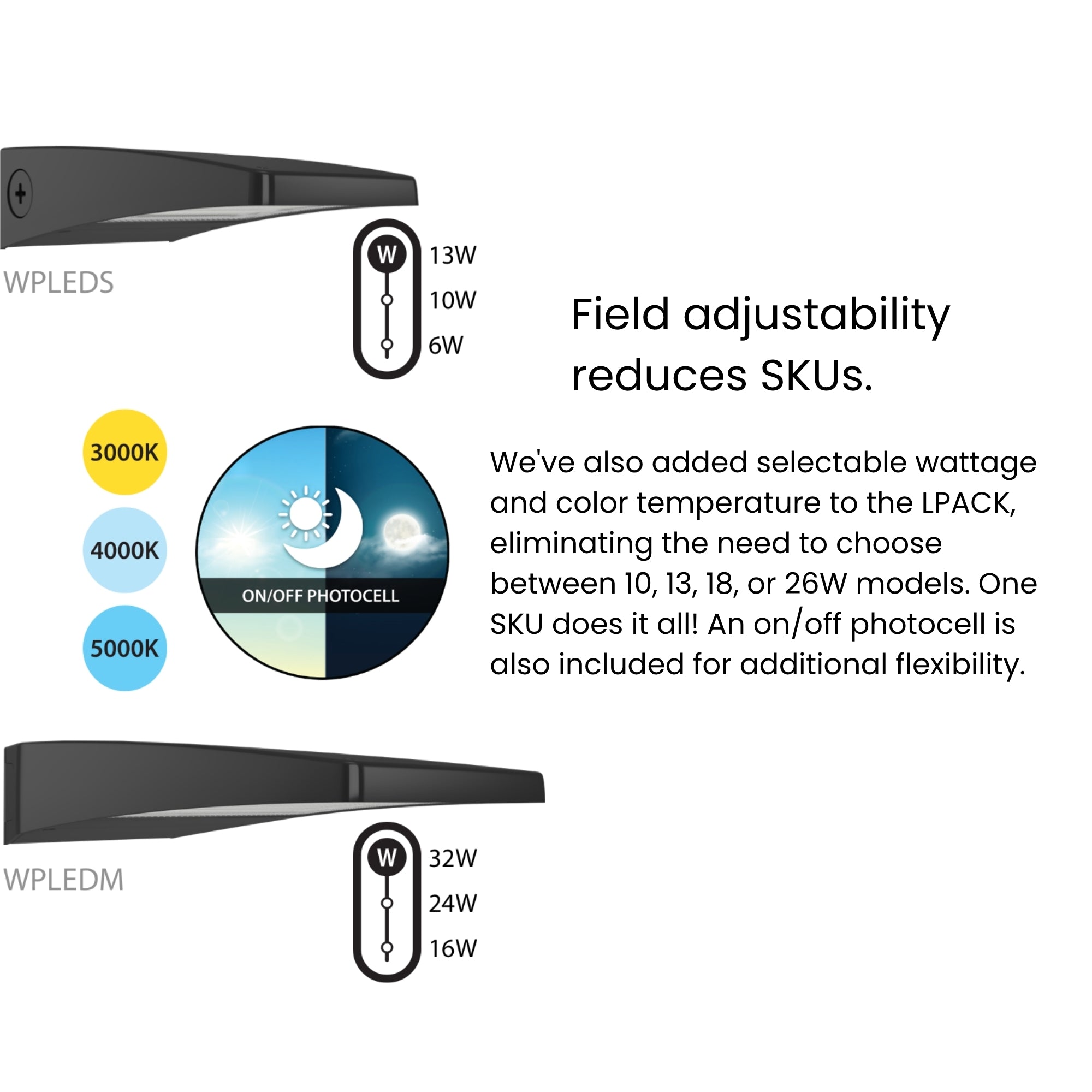

- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture during installation.
- Integrated Photocell: Comes factory-equipped with a built-in 120-277V selectable on/off photocell for automated, hands-free dusk-to-dawn operation and maximum energy savings.
- Full Cutoff Optics: Allows for conformance to the IDA's fully shielding requirement, emitting zero light above 90 degrees to eliminate glare and light trespass.
- Rugged Construction: Precision die-cast aluminum housing finished in bronze with a durable acrylic lens, carrying a UL Listed wet location rating for superior outdoor protection.
We process payments securely and do not store credit card information.
Description
Description

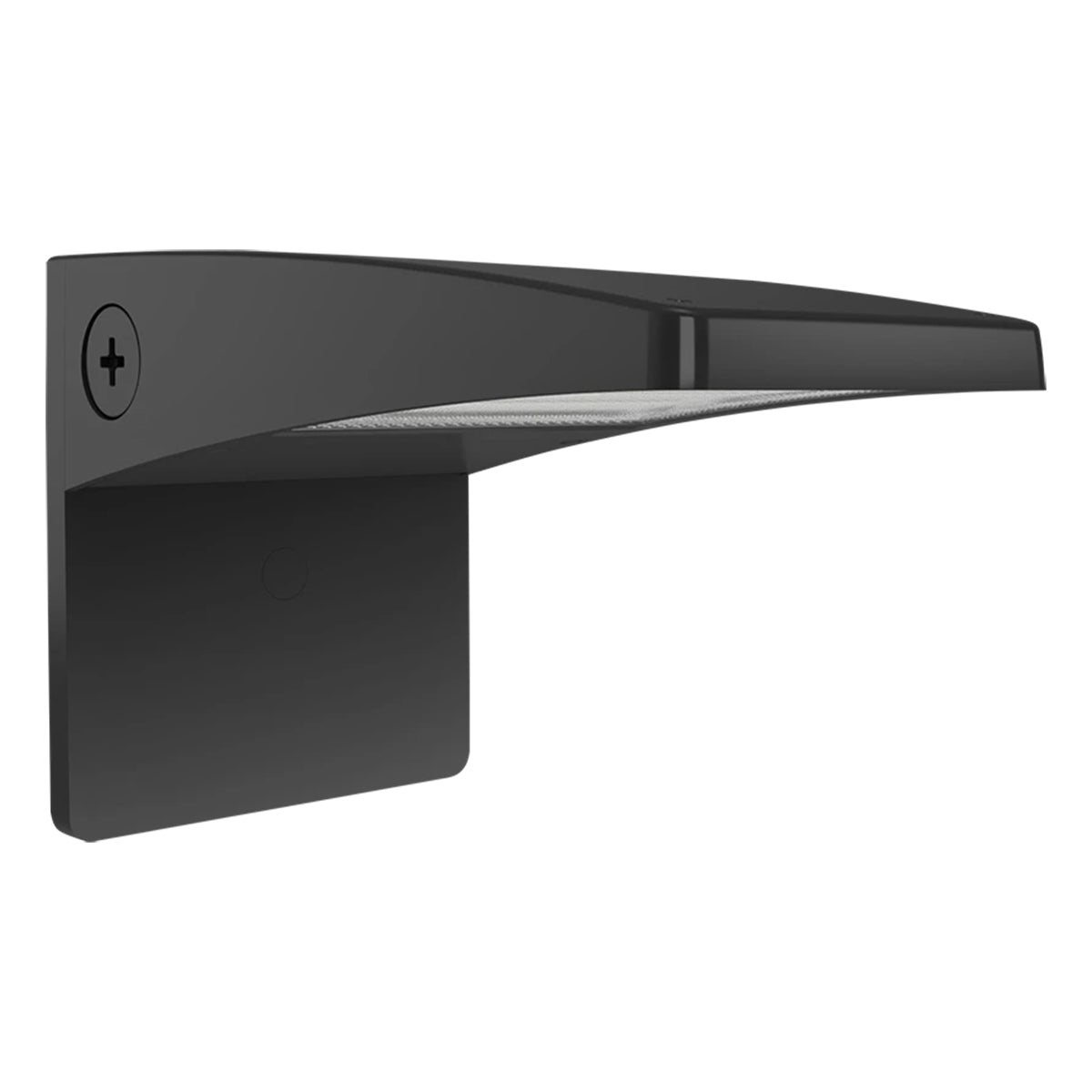

RAB WPLEDS LPACK Small Field-Adjustable LED Wall Pack — 6-13W Selectable, 120–277V, Bronze
The RAB WPLEDS is an ultra-compact and versatile small LED wall pack delivering up to 1,720 lumens with field-selectable 6W/10W/13W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this bronze-finished luminaire features full cutoff optics and an integrated selectable on/off photocell to provide tailored, automated dusk-to-dawn security lighting without polluting the night sky. Built with a Wet Location rating and a premium die-cast aluminum housing, it delivers an adaptable, architectural lighting solution explicitly designed for commercial and residential exteriors, entryways, and building perimeters.
Key Features
- Wattage: 6W / 10W / 13W Selectable (10W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 833 to 1,720 lumens (up to 148.3 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Optics: Full cutoff design (0% uplight)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 83-84
- Environmental Ratings: UL Listed for Wet Locations
- Certifications: DLC Listed, UL Listed, RoHS Compliant, Trade Agreements Act (TAA) Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and man doors
- Commercial and residential exteriors
- Dark-sky friendly zones
Performance & Light Output
This compact wall pack provides highly efficient downlight illumination ranging from 833 to 1,720 lumens depending on the selected wattage and color temperature, achieving an outstanding efficacy of up to 148.3 lumens per watt. Installers can easily match existing site lighting by toggling between warm white, cool white, and daylight. The fixture features a strict full cutoff design, meaning it emits zero light above the 90-degree horizontal plane, making it ideal for dark-sky friendly applications. The high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance over its lifespan.
Electrical & Controls
This fixture operates on a constant current, Class 2 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate). To maximize energy savings, the WPLEDS includes a discreet, integrated photocell with a selectable on/off switch, enabling hands-free dusk-to-dawn operation without the need for external timers or networked controls.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing paired with a highly durable acrylic lens and a high-reflection polycarbonate reflector. Finished in a long-lasting bronze color, it carries a UL Listed rating for complete protection against dust and water ingress in wet locations. The fixture operates reliably in extreme temperatures, starting safely in cold environments down to -40°C (-40°F) and handling ambient heat up to 40°C (104°F).
Installation & Mounting
The WPLEDS series is engineered for quick and straightforward installation. The housing features an integrated j-box and an optional wall plate is included to ensure seamless and secure mounting over existing electrical boxes or direct wall applications.
What's Included
- RAB WPLEDS Small LED Wall Pack (Bronze)
- Optional Wall Plate
- Integrated Selectable Photocell
Specifications
Specifications

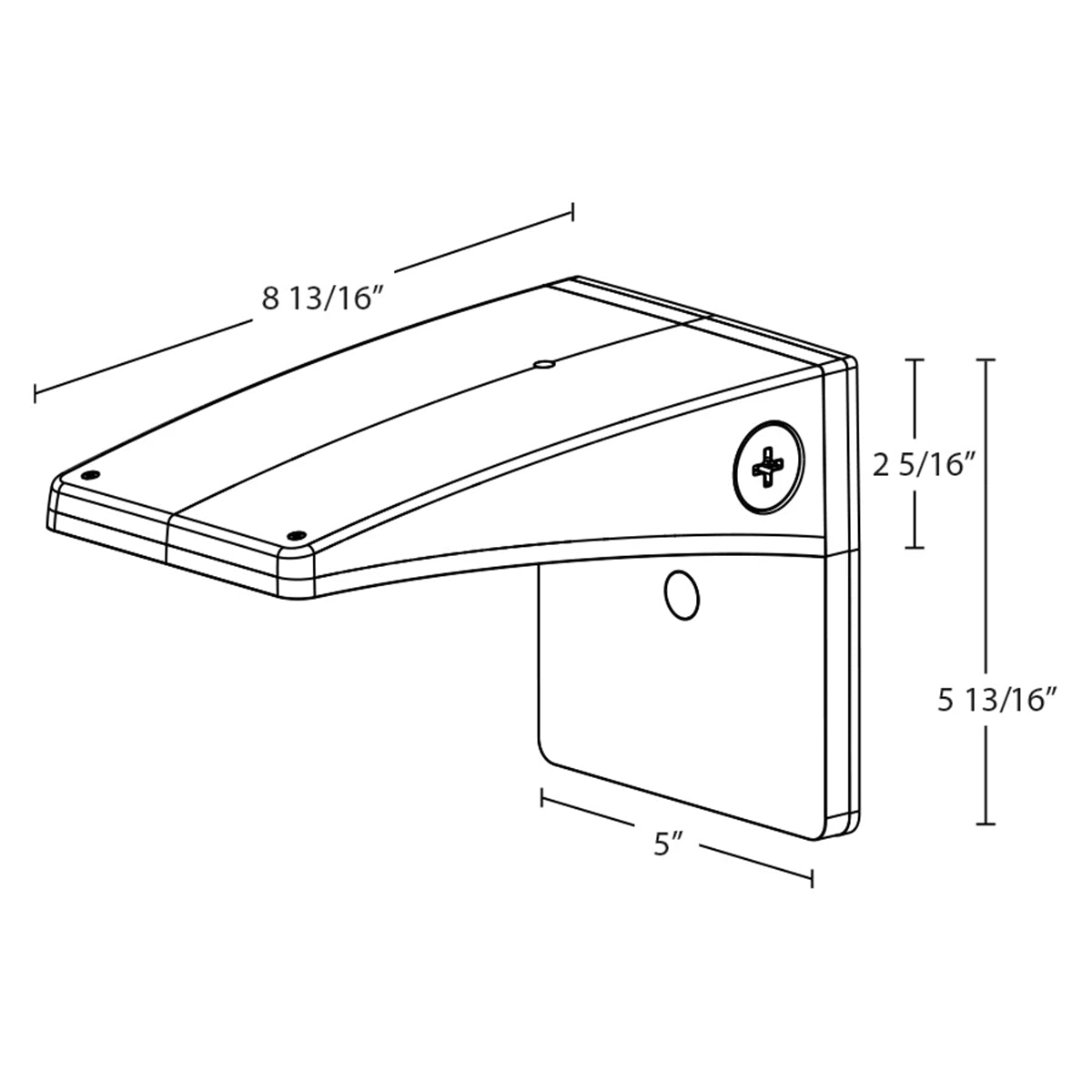

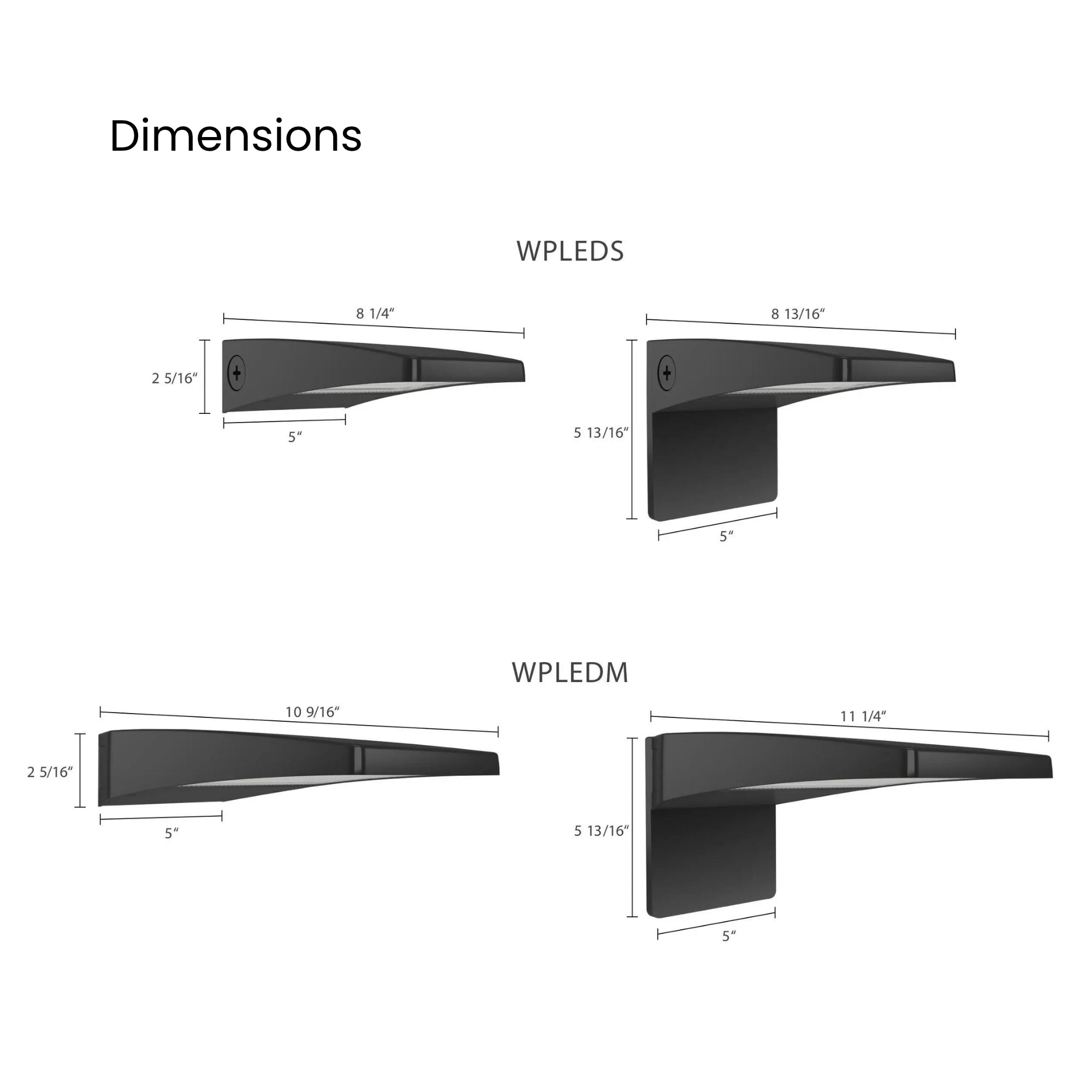

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
This fixture operates on a universal 120–277V driver. It is also equipped with standard 0–10V dimming capabilities (dimming down to 10%).
This fixture operates on a universal 120–277V driver. It is also equipped with standard 0–10V dimming capabilities (dimming down to 10%).
Does this fixture come with a dusk-to-dawn sensor?
Does this fixture come with a dusk-to-dawn sensor?
Yes, the WPLEDS comes standard with an integrated photocell. It also features a selectable on/off switch so you can choose whether or not to use the automated dusk-to-dawn functionality.
Yes, the WPLEDS comes standard with an integrated photocell. It also features a selectable on/off switch so you can choose whether or not to use the automated dusk-to-dawn functionality.
Is the RAB WPLEDS suitable for wet and harsh environments?
Is the RAB WPLEDS suitable for wet and harsh environments?
Yes, it is UL Listed for wet locations to provide reliable protection against the elements, and it utilizes a rugged precision die-cast aluminum housing alongside a durable acrylic lens for long-lasting outdoor performance.
Yes, it is UL Listed for wet locations to provide reliable protection against the elements, and it utilizes a rugged precision die-cast aluminum housing alongside a durable acrylic lens for long-lasting outdoor performance.
