RAB WPLEDMW LPACK Medium LED Wall Pack 4,151 Lumens 16/24/32W Selectable 30K/40K/50K 120-277V Photocell White
Available in stock (100)
About this item
About this item

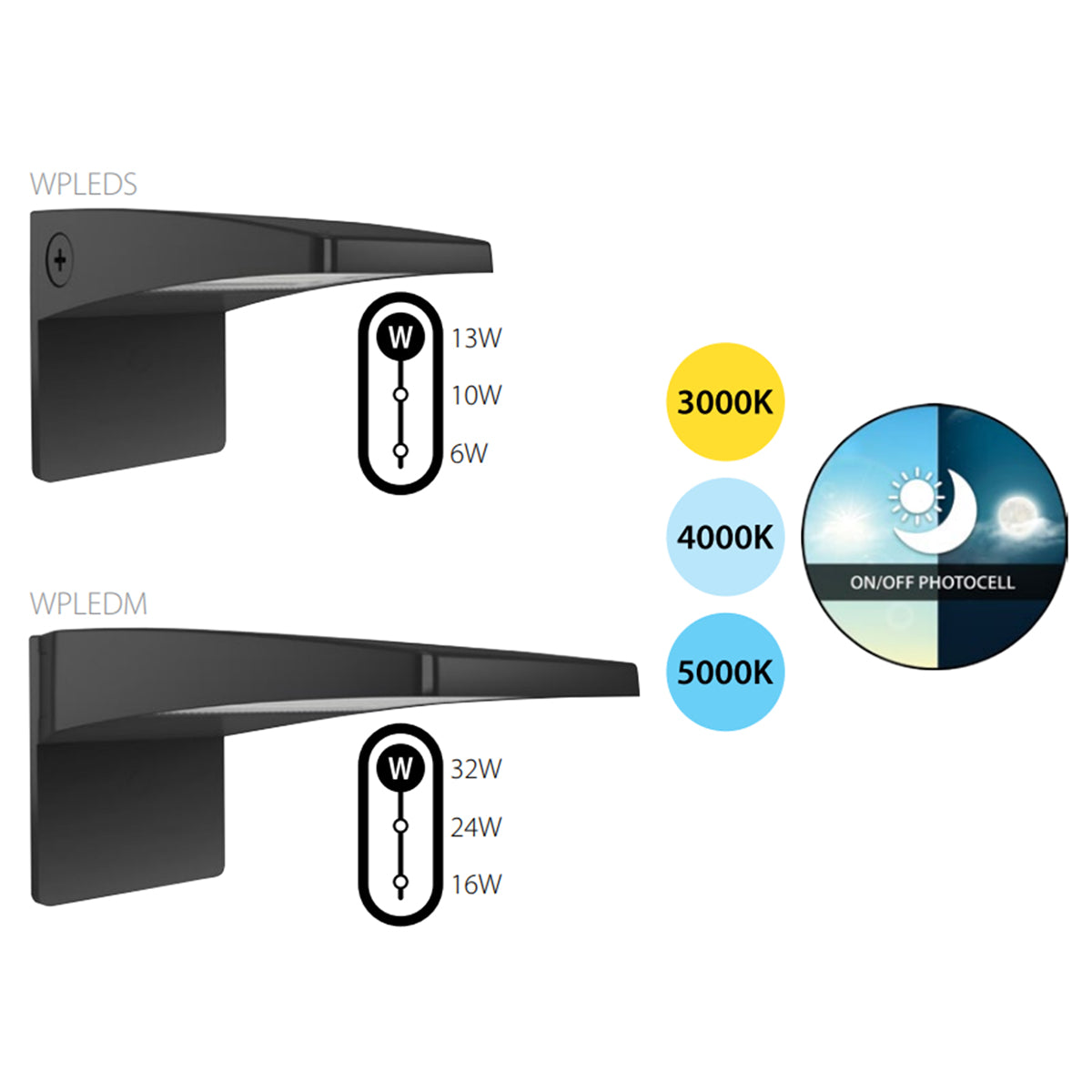

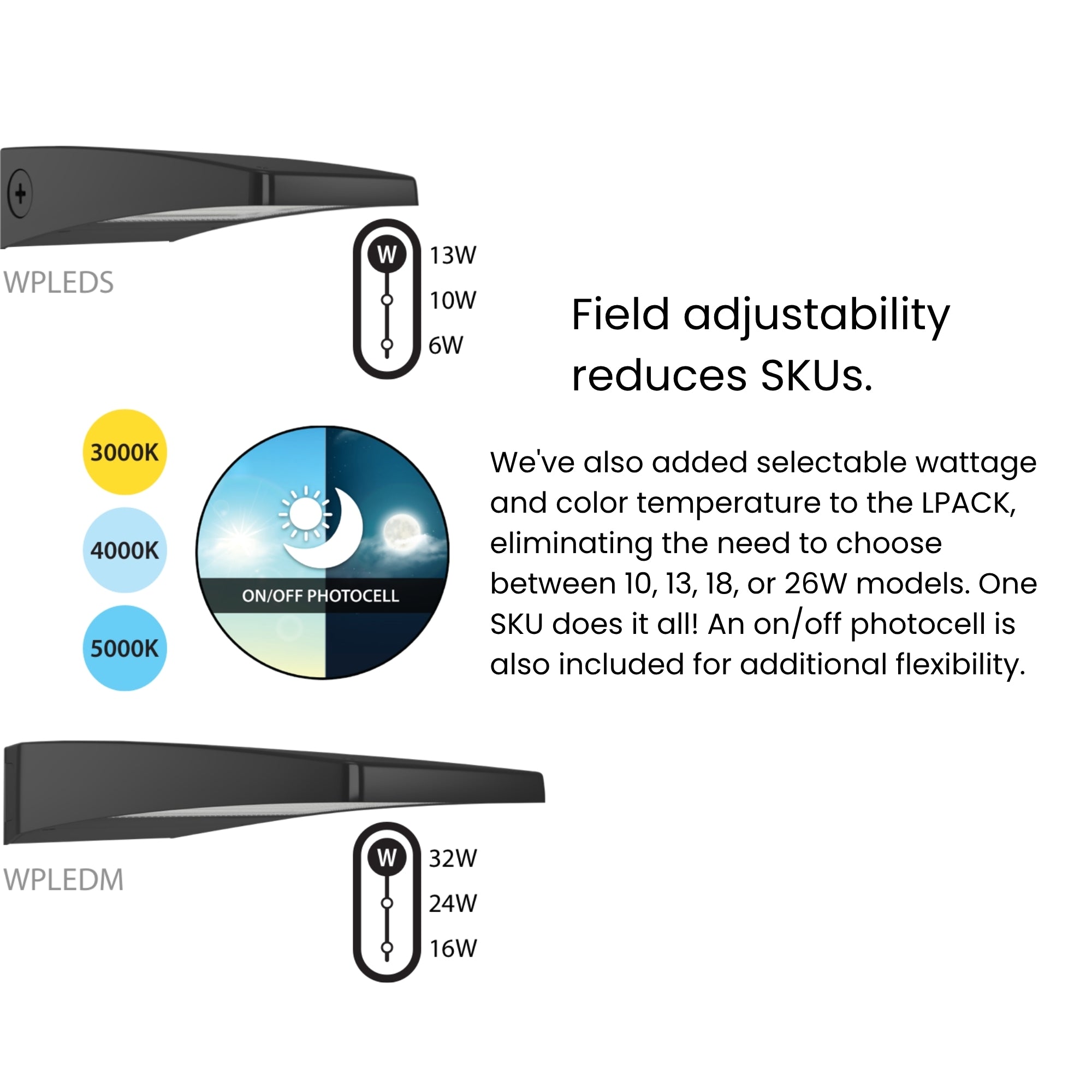

- Selectable Output: Field-adjustable 16W / 24W / 32W delivering up to 4,151 lumens, providing an ultra-efficient replacement for up to 175W traditional metal halide fixtures.
- Selectable CCT: Easily switch between warm 3000K, neutral 4000K, or daylight 5000K color temperatures directly on the fixture during installation.
- Integrated Photocell: Comes factory-equipped with a built-in 120-277V selectable on/off photocell for automated, hands-free dusk-to-dawn operation and maximum energy savings.
- Full Cutoff Optics: Designed to meet IDA's fully shielding requirements, emitting zero light above 90 degrees to eliminate glare and light trespass while protecting the night sky.

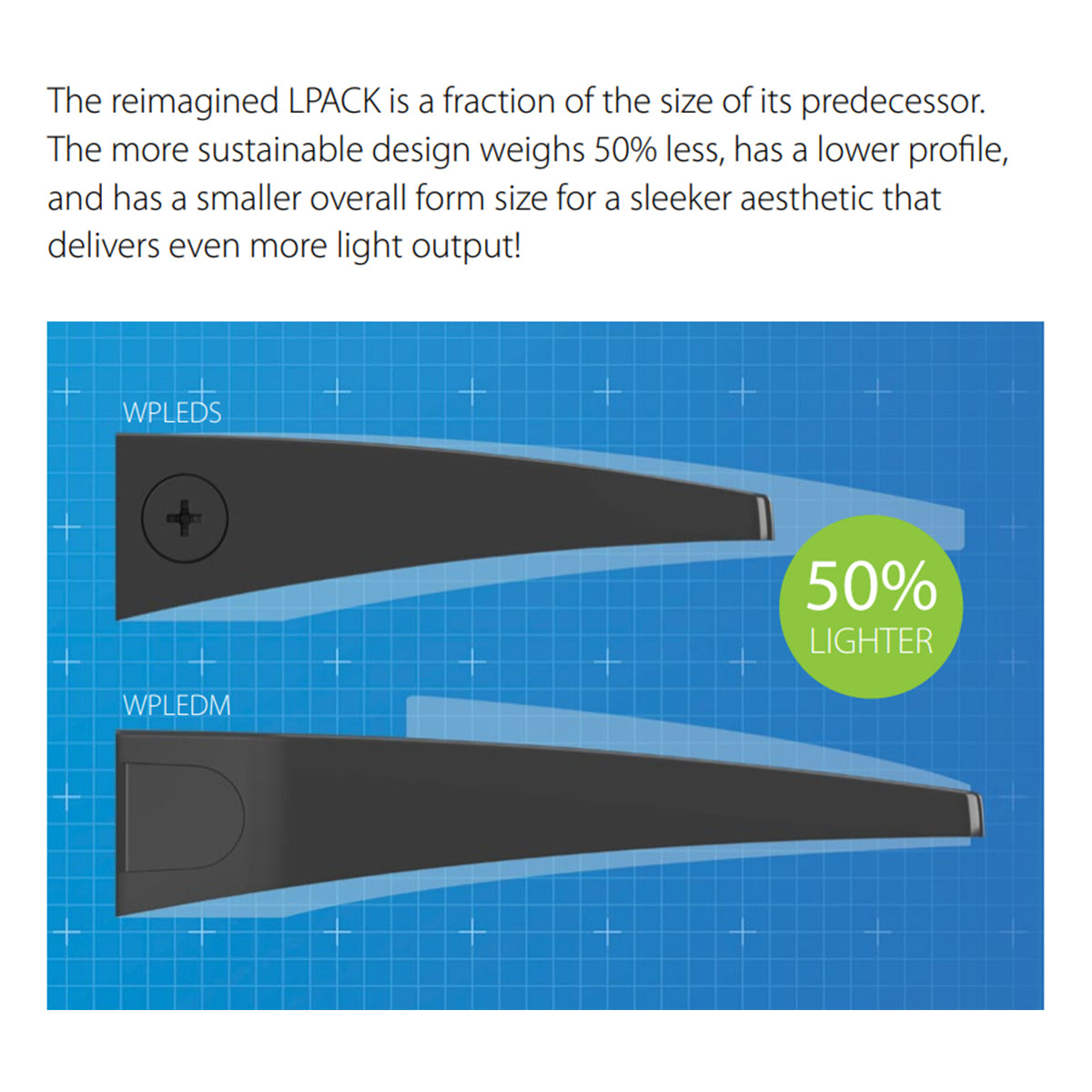

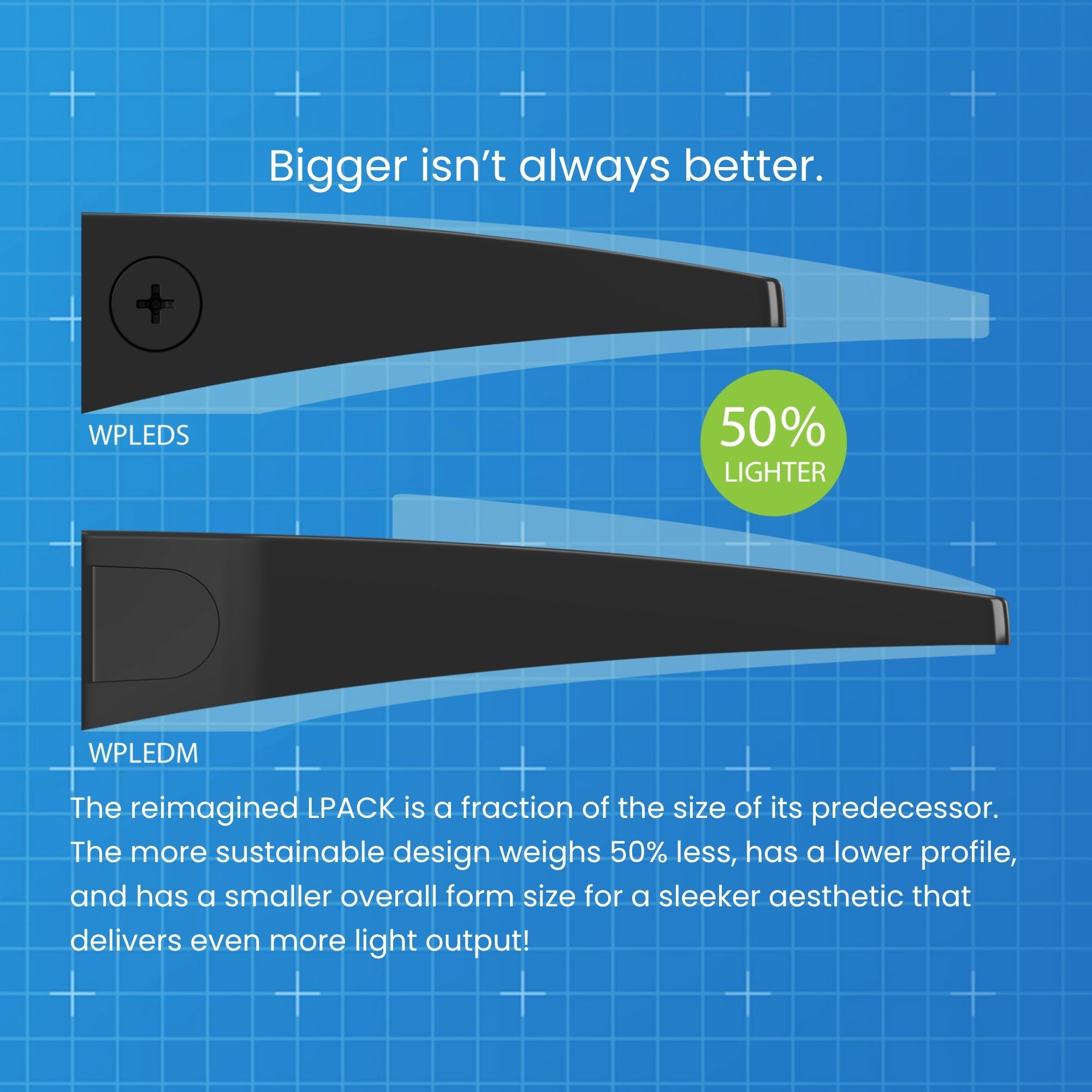

- Rugged Construction: Redesigned die-cast aluminum housing is 50% lighter and more compact than previous models, carrying a UL Listed wet location rating for superior outdoor protection.
We process payments securely and do not store credit card information.
Description
Description
RAB WPLEDM LPACK Medium Field-Adjustable LED Wall Pack — 16-32W Selectable, 120–277V, White
The RAB WPLEDMW is a compact and highly versatile medium LED wall pack delivering up to 4,151 lumens with field-selectable 16W/24W/32W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V universal driver, this white-finished luminaire features full cutoff optics and an integrated selectable on/off photocell to provide tailored, automated dusk-to-dawn security lighting without polluting the night sky. Built with a Wet Location rating and a redesigned die-cast aluminum housing that is 50% lighter than traditional wall packs, it delivers an adaptable, architectural lighting solution explicitly designed for commercial facades, entryways, and building perimeters.
Key Features
- Wattage: 16W / 24W / 32W Selectable (24W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 2,020 to 4,151 lumens (up to 148.5 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Optics: Full cutoff design (0% uplight)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 82-84
- HID Equivalent: Replaces up to 175W Metal Halide or 150W HPS
- Environmental Ratings: UL Listed for Wet Locations
- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant, Trade Agreements Act (TAA) Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and man doors
- Commercial and residential exteriors
- Dark-sky friendly zones
Performance & Light Output
This contractor-friendly medium wall pack provides highly efficient downlight illumination ranging from 2,020 to 4,151 lumens depending on the selected wattage and color temperature, achieving an outstanding efficacy of up to 148.5 lumens per watt. Installers can easily match existing site lighting by toggling between warm white, cool white, and daylight. The fixture features a strict full cutoff design, meaning it emits zero light above the 90-degree horizontal plane, making it ideal for LEED projects and dark-sky friendly zones. The high-performance LED light engine maintains a highly prolonged rated life of 100,000 hours, virtually eliminating maintenance.
Electrical & Controls
This fixture operates on a constant current, Class 2 120–277V AC driver with standard 0–10V dimming functionality (requires a separate 0-10V DC dimming circuit to operate). The electrical components are protected by 2kV line-to-line and 4kV line-to-ground surge protection. To maximize energy savings, the WPLEDMW includes a discreet, integrated photocell with a selectable on/off switch, enabling hands-free dusk-to-dawn operation without the need for external timers.
Construction & Durability
Engineered for tough outdoor environments, the luminaire features a precision die-cast aluminum housing paired with a durable acrylic lens and a high-reflection polycarbonate reflector. The redesigned housing is significantly more compact and 50% lighter than standard models, reducing shipping weight and installation effort. Finished in a long-lasting white color, it carries a UL Listed rating for complete protection against dust and water ingress in wet locations.
Installation & Mounting
The WPLEDMW series is engineered for quick and straightforward installation. The housing features an integrated j-box for surface mounting, and an optional wall plate is included to ensure a clean finish over various electrical boxes. A unique cleat on the mounting bracket and a hinged wall box allow for simple, quick, hands-free wiring.
What's Included
- RAB WPLEDMW Medium LED Wall Pack (White)
- Optional Wall Plate
- Integrated Selectable Photocell
Specifications
Specifications

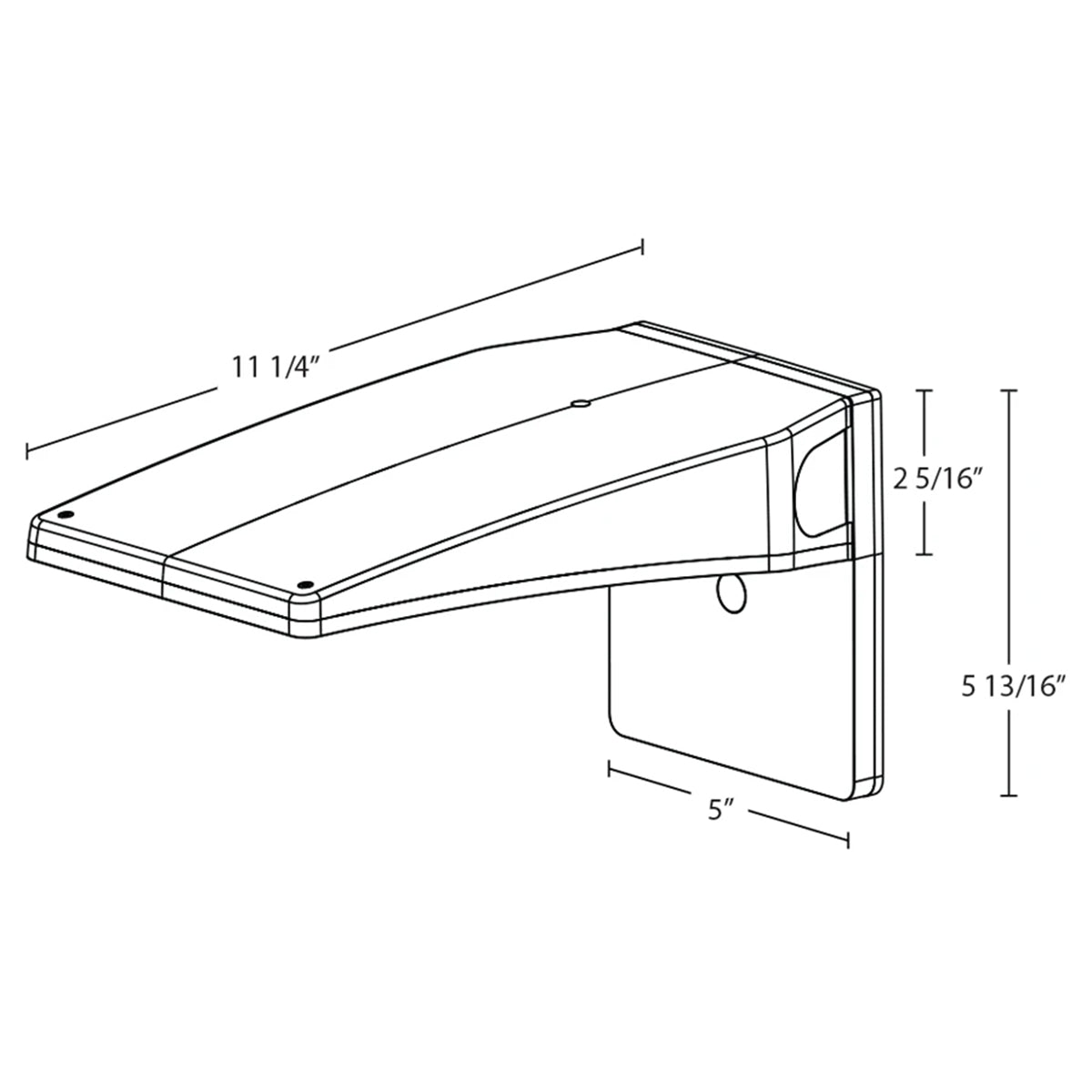

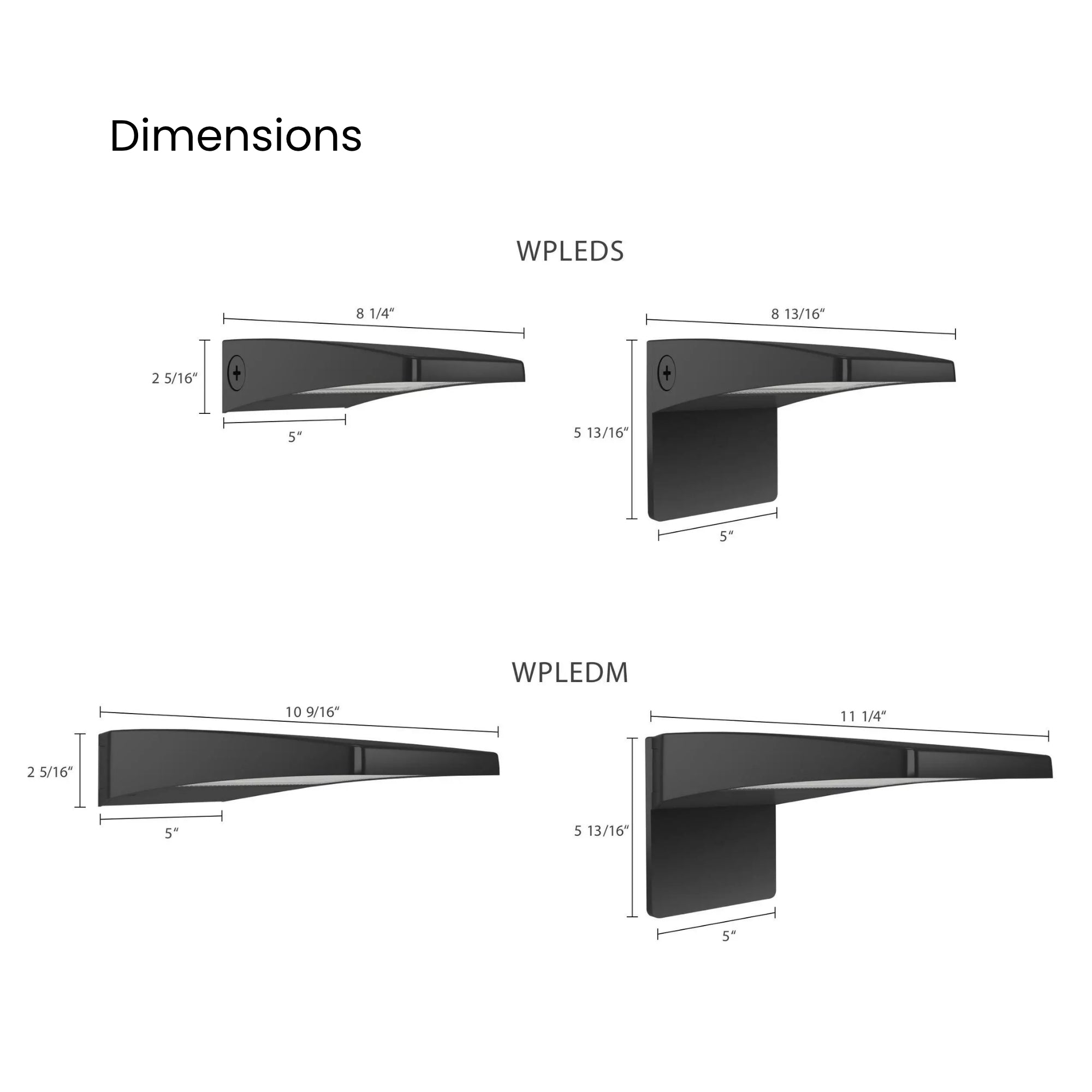

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
A full cutoff optical design means that the fixture emits zero light above the 90-degree horizontal plane. This eliminates upwards glare and light trespass, allowing for conformance to the International Dark-Sky Association's (IDA) fully shielding requirements.
A full cutoff optical design means that the fixture emits zero light above the 90-degree horizontal plane. This eliminates upwards glare and light trespass, allowing for conformance to the International Dark-Sky Association's (IDA) fully shielding requirements.
What voltage does this LED wall pack support?
What voltage does this LED wall pack support?
This fixture operates on a universal 120–277V driver. It is also equipped with standard 0–10V dimming capabilities (dimming down to 10%).
This fixture operates on a universal 120–277V driver. It is also equipped with standard 0–10V dimming capabilities (dimming down to 10%).
Does this fixture come with a dusk-to-dawn sensor?
Does this fixture come with a dusk-to-dawn sensor?
Yes, the WPLEDMW comes standard with an integrated photocell. It also features a selectable on/off switch so you can choose whether or not to use the automated dusk-to-dawn functionality.
Yes, the WPLEDMW comes standard with an integrated photocell. It also features a selectable on/off switch so you can choose whether or not to use the automated dusk-to-dawn functionality.
