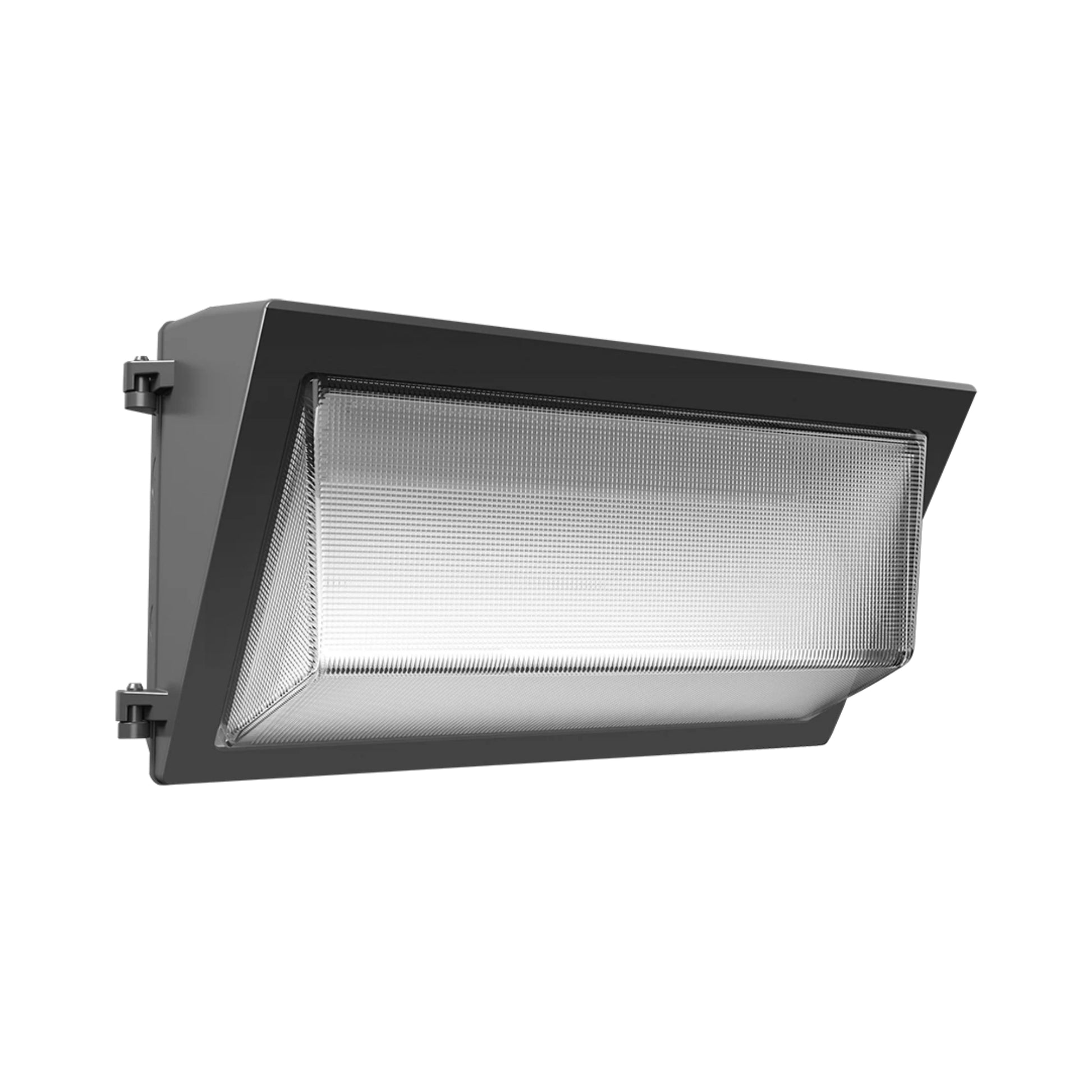

RAB WP3XFU120 Field-Adjustable Traditional LED Wall Pack — 120W/100W/80W Selectable — 3000K/4000K/5000K — Bronze

The RAB WP3XFU120 is a commercial 3-way field-adjustable traditional LED wall pack engineered to deliver up to 16,953 lumens across field-adjustable 120W/100W/80W power settings (120W default) and switchable 3000K/4000K/5000K color temperatures (4000K default). Operating on 120-277V electrical systems with standard 0-10V dimming, this forward-throw perimeter luminaire delivers peak efficacy up to 151 lm/W. Built with a weatherproof IP65 die-cast aluminum body in a Bronze finish and an Effective Projected Area (EPA) of 0.60 ft², this UL wet-location luminaire is rated for mounting within 4 feet of the ground, includes a 17.88" W x 9.31" H side-hinged wall-mount backplate that covers legacy HID wall stains with threaded conduit entries, and features a glass lens, an integrated 120-277V selectable button photocell, and 6kV surge protection.

Key Features

• Selectable Wattage: 120W / 100W / 80W (120W factory default)
• Maximum Lumen Output: Up to 16,953 lm
• Peak Efficacy: Up to 151 lm/W
• CRI: 81-84

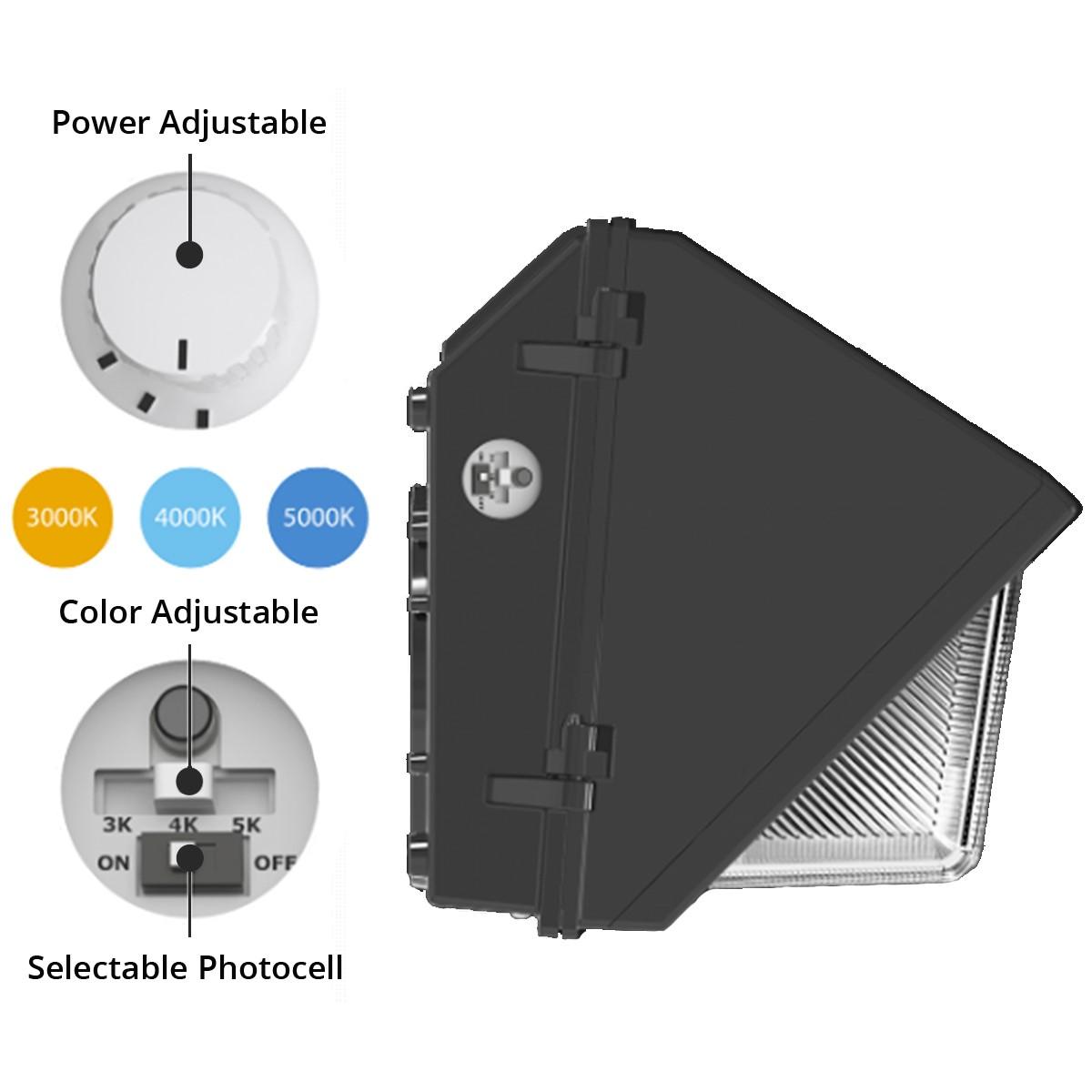

• Selectable CCT: 3000K / 4000K / 5000K (4000K factory default)
• Color Consistency: 7-step MacAdam Ellipse binning; ANSI C78.377-2017 compliant
• Lens & Optics: Forward-throw glass lens
• Photocell & Controls: Integrated 120-277V selectable button photocell
• Dimming: 0-10V continuous dimming
• Voltage & Surge Protection: 120-277V AC, 50/60Hz; 6kV surge protection
• Location & Body Rating: UL Listed Wet Location (suitable for mounting within 4 ft of ground); IP65; 0.60 ft² EPA
• Operating Temperature: -40°F (-40°C) to 122°F (50°C)
• Certifications: UL Listed, IESNA LM-79 & LM-80 tested, RoHS Compliant, BAA Available Upon Request
• Rated Life: L70 60,000 hours
• Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 120W (116.9W at 3000K; 113.8W at 4000K; 117.6W at 5000K): 15,440 lm (3000K / 132 lm/W / 82 CRI), 16,865 lm (4000K / 148 lm/W / 84 CRI), and 16,953 lm (5000K / 144 lm/W / 82 CRI).

At 100W (97.4W at 3000K; 94.8W at 4000K; 98W at 5000K): 12,995 lm (3000K / 133 lm/W / 81 CRI), 14,195 lm (4000K / 150 lm/W / 84 CRI), and 14,269 lm (5000K / 146 lm/W / 81 CRI).

At 80W (78W at 3000K; 75.9W at 4000K; 78.4W at 5000K): 10,500 lm (3000K / 135 lm/W / 81 CRI), 11,470 lm (4000K / 151 lm/W / 84 CRI), and 11,529 lm (5000K / 147 lm/W / 83 CRI).

Engineered with long-life, high-efficacy surface-mount LEDs delivering CRI 81-84 across all configurations. Rated life 60,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

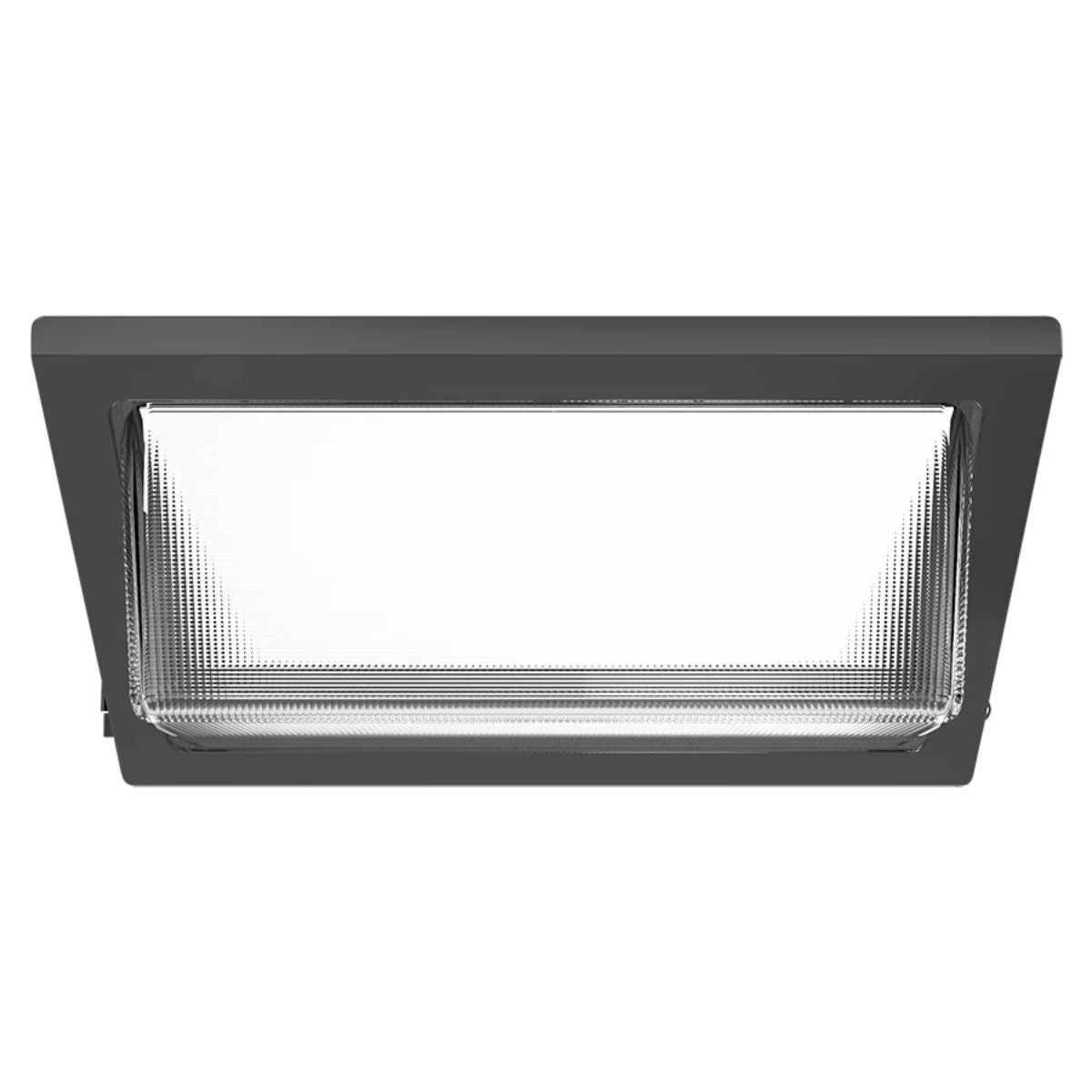

Lens & Optics

Engineered with a durable glass lens delivering a standard forward-throw LED wall pack optical distribution. The prismatic glass refractor projects wide outward and downward perimeter security illumination while covering the wall footprint of legacy HID wall packs without yellowing or UV degradation.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

• Dusk-to-Dawn Photocell (Integrated): Factory-installed 120-277V selectable button photocell provides automatic dusk-to-dawn operation or can be switched off for manual wall-switch and timer control.
• 0-10V Continuous Dimming: Standard 0-10V dimming driver integrates with commercial dimmers, timeclocks, and building automation systems.
• Wireless & Occupancy Sensor Expansion: Compatible with RAB Lightcloud Enterprise (/LC) and Lightcloud Blue (/LCB) wireless mesh systems (DLC N1XMLOEATBA Interior / NHCZ2BIA17L Exterior) as well as Passive Infrared (PIR) and Microwave (MVS) 12VDC occupancy/daylight sensors.

Compatible field-installable sensors and remotes include PIR20 / PIR20B / PIR20/LCB (20 ft diameter detection mounted at 9 ft), MVS20 / MVS20B / MVS20/LCB (20 ft diameter detection mounted at 9 ft), and MSR1 infrared commissioning remote - sold separately.

Electrical

Powered by a Constant Current, Class 1 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 99.0% at 120V and Total Harmonic Distortion (THD) of 5.6% at 120V (8.9% at 277V). Integrated 6kV surge protection safeguards internal electronics against line voltage transients and lightning strikes. Includes pre-wired 0-10V dimming leads and a factory-installed 120-277V selectable button photocell.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Die-cast aluminum housing and hinged front frame with engineered passive convection cooling and an Effective Projected Area (EPA) of 0.60 ft².

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

Environmental Sealing: IP65 weatherproof rated for dust and water protection and UL Listed for wet locations (including mounting within 4 feet of the ground) with high-temperature silicone gaskets. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

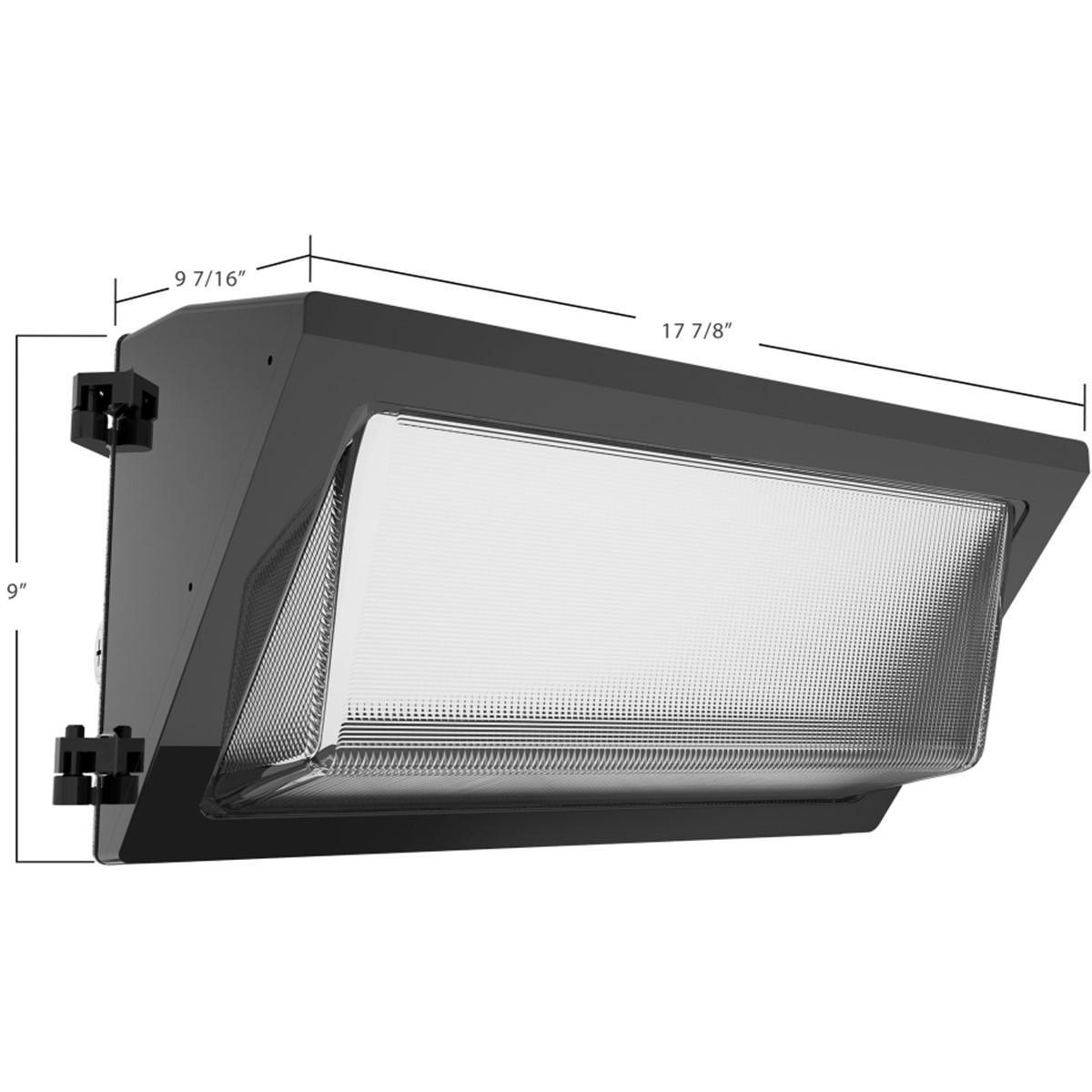

Dimensions & Weight: 17.88" W x 9.31" H x 7.88" D (17 7/8" W x 9 5/16" H x 7 7/8" D). Fixture weight: 11.6 lbs.

Installation & Mounting

Mounting Hardware: 17.88" W x 9.31" H x 7.88" D die-cast aluminum backplate covers legacy HID wall pack footprints and stains over standard junction boxes, features a side-hinged door assembly for hands-free wiring, and is UL approved for installation within 4 feet of the ground.

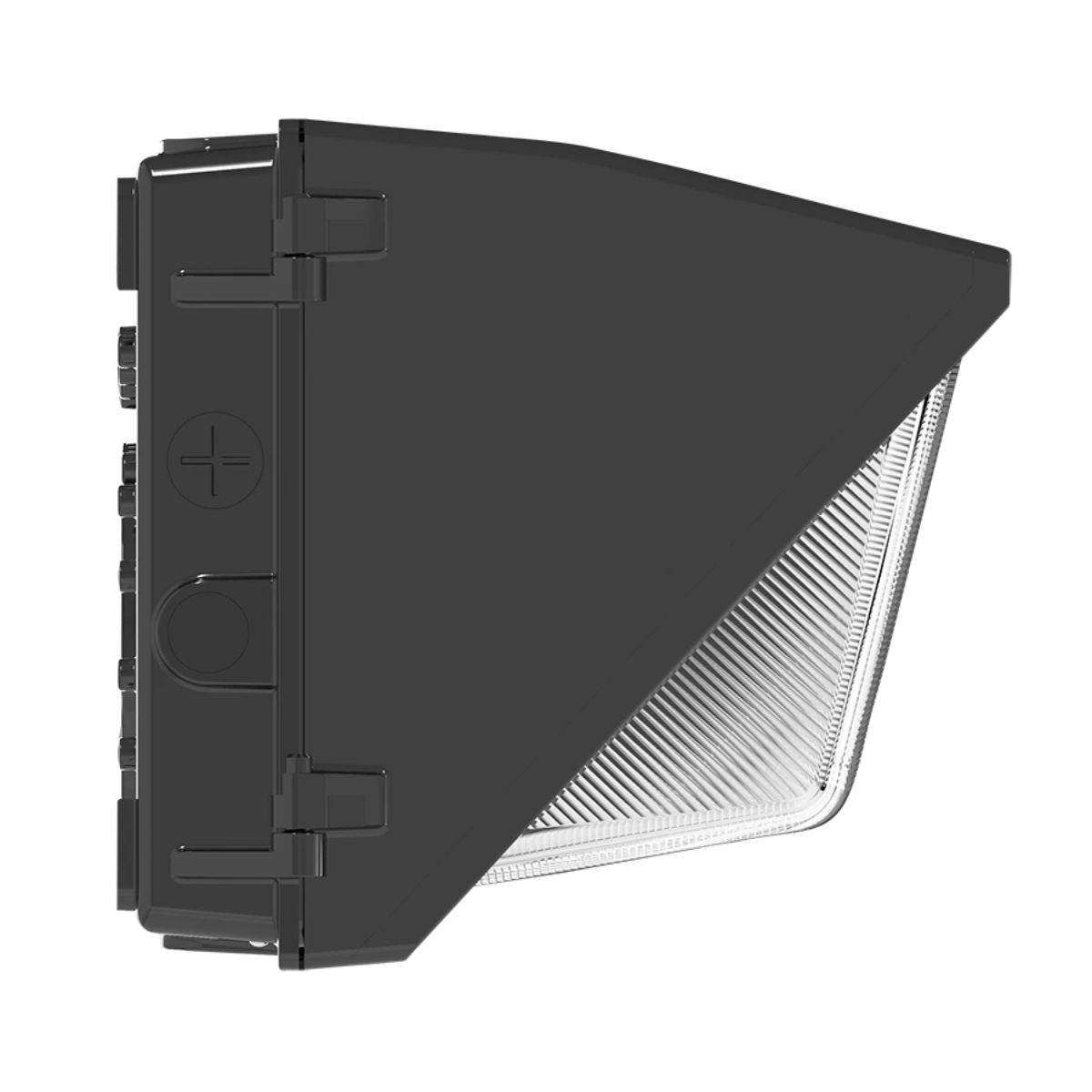

Conduit & Wiring Access: Side-hinged housing swings open for hands-free wiring access and accepts threaded conduit feed entries.

Accessories (Sold Separately):

• Sensors & Controls: PIR20 / PIR20B / PIR20/LCB (12VDC Passive Infrared occupancy sensor, 20 ft diameter at 9 ft mounting height), MVS20 / MVS20B / MVS20/LCB (12VDC Microwave occupancy sensor, 20 ft diameter at 9 ft mounting height), MSR1 (Remote control for adjusting sensor standby dimming, standby time, and daylight threshold), and Lightcloud Gateway/Hub (for /LC enterprise systems)

Certifications & Rebates

• UL Listed: Certified for wet locations and approved for mounting within 4 feet of the ground
• IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards
• BAA Compliant Option: Available to be manufactured compliant with the Buy American Act (BAA) upon request
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Building Entrances, Exits & Egress Doorways - UL approval for mounting within 4 feet of the ground and selectable 120W/100W/80W output suit exterior doorways and entry perimeters
• Commercial Perimeter Walls & Alleyways - Traditional 17.88" x 9.31" footprint covers legacy HID wall pack stains while the glass lens and IP65 silicone-gasketed housing resist weather and UV aging
• Loading Docks & Warehouse Exteriors - Multi-volt 120-277V Class 1 driver with 6kV surge protection and 0.96A max current at 120V (0.44A at 277V) supports long exterior branch circuits
• Industrial & Cold-Storage Perimeters - Reliable -40°F (-40°C) cold-weather starting to 122°F (50°C) maximum ambient rating ensures year-round exterior security operation
• Retail, School & Municipal Exteriors - Integrated selectable button photocell and 0-10V dimming automate dusk-to-dawn security schedules

What's Included

• RAB WP3XFU120 Field-Adjustable Wall Pack - Bronze
• Pre-installed 120-277V selectable button photocell
• Installation hardware and operation manual
