RAB WP3FA150 WP3 Field-Adjustable LED Wall Pack 21,348 Lumens 150W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (198)
About this item
About this item

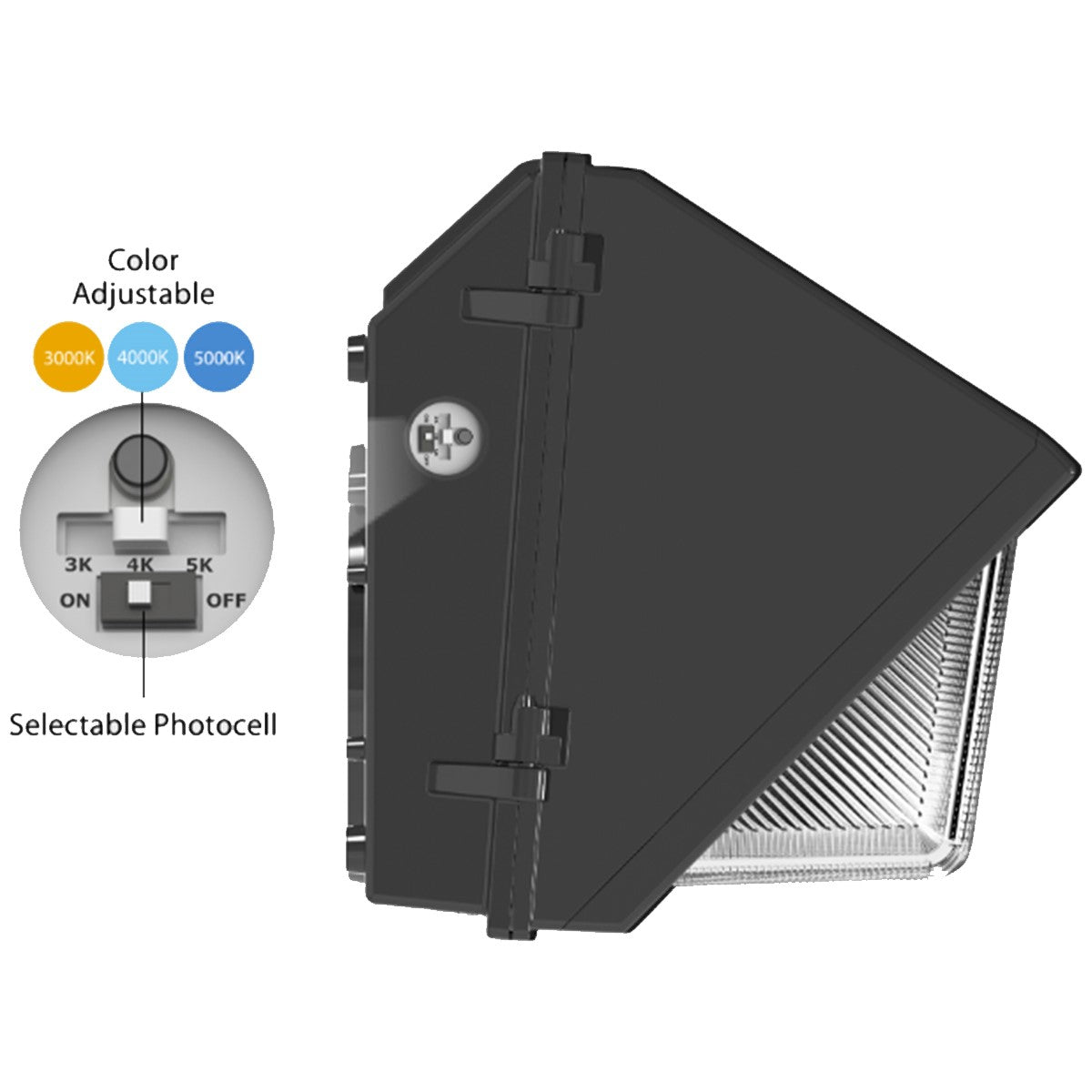

- Selectable CCT: Field-adjustable color temperatures allow you to toggle between warm 3000K, neutral 4000K, or daylight 5000K white light directly on the fixture.
- Integrated Photocell: Comes standard with a built-in 120-277V button photocell for automated dusk-to-dawn operation; includes an on/off switch for optional manual control.
- Ultra-High Output: Delivers a massive 21,348 lumens at 150W, providing a high-efficiency replacement for traditional HID fixtures up to 400W-750W.
- Traditional Footprint: Large-scale design with a precision die-cast aluminum housing and tempered glass lens, ideal for covering "ghosting" or stains from older HID units.
- Industrial Durability: DLC Premium listed with a 100,000-hour LED lifespan and a sealed IP65 rating for reliable, maintenance-free performance in harsh wet locations.
We process payments securely and do not store credit card information.
Description
Description
RAB WP3 Field-Adjustable LED Wall Pack — 150W, 120–277V, Bronze
The RAB WP3FA150 is an ultra-powerful, traditional-style field-adjustable LED wall pack delivering up to 21,348 lumens at 150W. Specifically engineered as a high-output replacement for energy-intensive HID fixtures, this model features adjustable 3000K/4000K/5000K color temperatures to ensure the perfect light tone for large-scale industrial sites. Operating on a universal 120–277V driver, it includes an integrated selectable on/off photocell for automated security lighting. With its rugged die-cast aluminum construction and IP65 Wet Location rating, the WP3FA150 is the ultimate choice for high-mounting applications, loading docks, and high-security perimeters.
Key Features
- Wattage: 150W
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 20,498 to 21,348 lumens (up to 143.2 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 80+
- HID Equivalent: Replaces up to 400W-750W Metal Halide
- Environmental Ratings: IP65 Wet Location rated
- Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications
- Large-scale industrial building perimeters
- Shipping and receiving loading docks
- High-security commercial facades
- High-mounting height area lighting
- Retrofit replacements for large HID glass wall packs
Performance & Light Output
The WP3FA150 provides extreme, high-efficacy illumination ranging from 20,498 to 21,348 lumens depending on the chosen color temperature. Its precision aluminum reflector and prismatic tempered glass lens work together to deliver wide, uniform light distribution across vast outdoor areas. Reaching an efficacy of up to 143.2 lumens per watt, this fixture maximizes light output while minimizing energy consumption. The integrated LEDs are rated for a 100,000-hour lifespan, effectively ending the need for frequent maintenance cycles in difficult-to-reach locations.
Electrical & Controls
This luminaire features a constant current 120–277V AC driver and supports standard 0–10V dimming. The built-in button photocell provides reliable dusk-to-dawn automation, while the internal on/off switch allows contractors to easily disable the sensor when the fixture is controlled by a central building automation system or external timer.
Construction & Durability
Built for the elements, the WP3 series features a precision die-cast aluminum housing with a high-durability bronze finish. High-temperature silicone gaskets maintain an IP65-rated seal against dust and water. The tempered glass lens is designed to resist both thermal shock and physical impact. This fixture is tested for operation in extreme environments, with an operating range of -40°C (-40°F) to 50°C (122°F).
Installation & Mounting
Measuring 17" in width, the WP3FA150's extra-large footprint is perfect for heavy-duty renovations as it easily covers mounting marks and stains left by the largest legacy HID units. The housing provides multiple conduit entries and a standardized knockout pattern for simple installation on 4" junction boxes or direct surface mounting.
What's Included
- RAB WP3FA150 LED Wall Pack (Bronze)
- Integrated Selectable Photocell
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, it comes with a built-in 120-277V photocell. It also includes an on/off switch so the photocell can be disabled if you are using an external control system.
Yes, it comes with a built-in 120-277V photocell. It also includes an on/off switch so the photocell can be disabled if you are using an external control system.
Can I dim the light output?
Can I dim the light output?
Yes, the WP3FA150 is compatible with standard 0-10V dimming controls, allowing for light levels to be adjusted down to 10% for increased energy management.
Yes, the WP3FA150 is compatible with standard 0-10V dimming controls, allowing for light levels to be adjusted down to 10% for increased energy management.
What are the dimensions of the WP3FA150?
What are the dimensions of the WP3FA150?

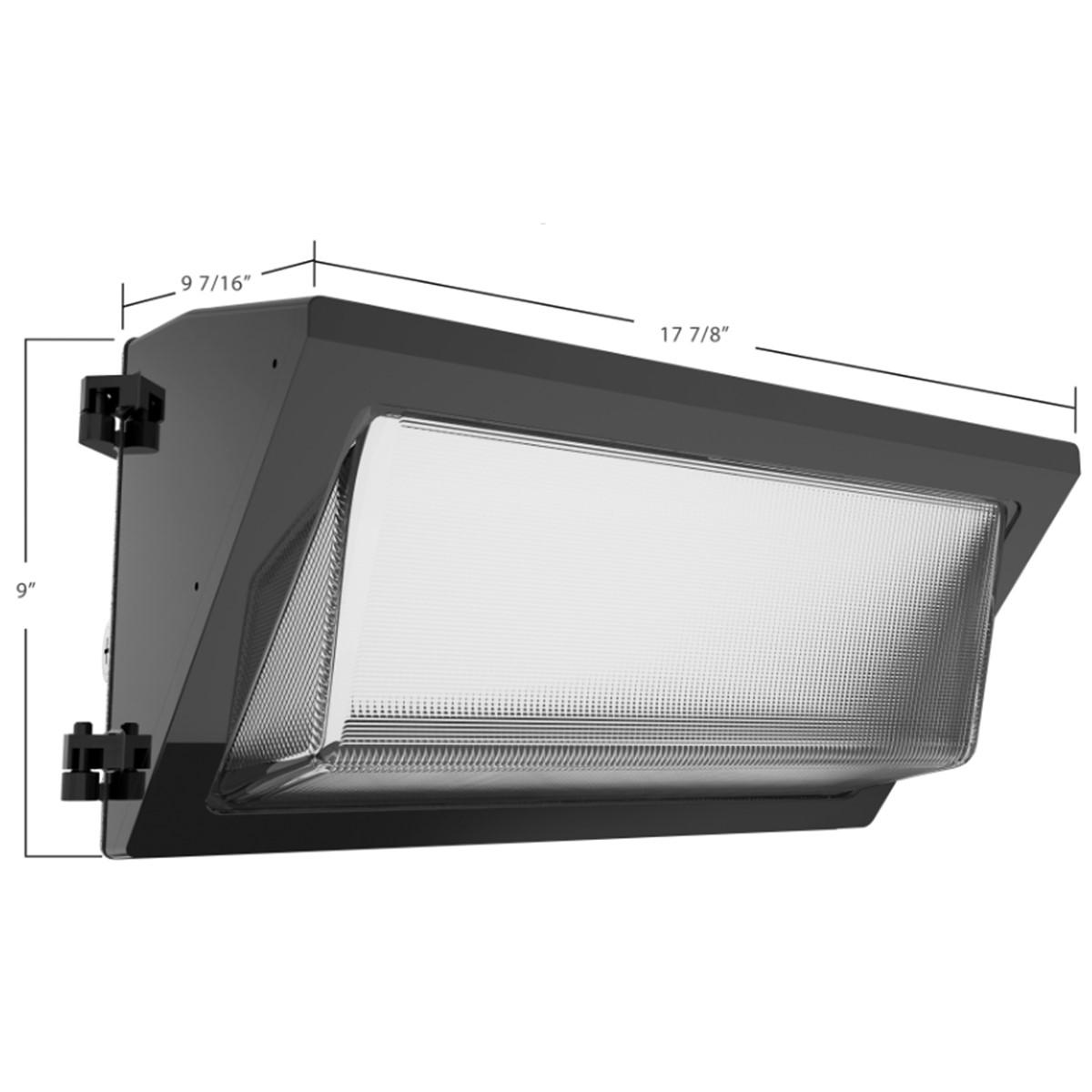

It measures 17" wide and 9" high with a depth of 9". This extra-large, traditional size is specifically designed to cover the footprint of the largest legacy HID glass wall packs.
It measures 17" wide and 9" high with a depth of 9". This extra-large, traditional size is specifically designed to cover the footprint of the largest legacy HID glass wall packs.
