RAB WP2XFU80 WP2 Field-Adjustable Wall Pack 12,028 Lumens 40/60/80W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (200)
About this item
About this item

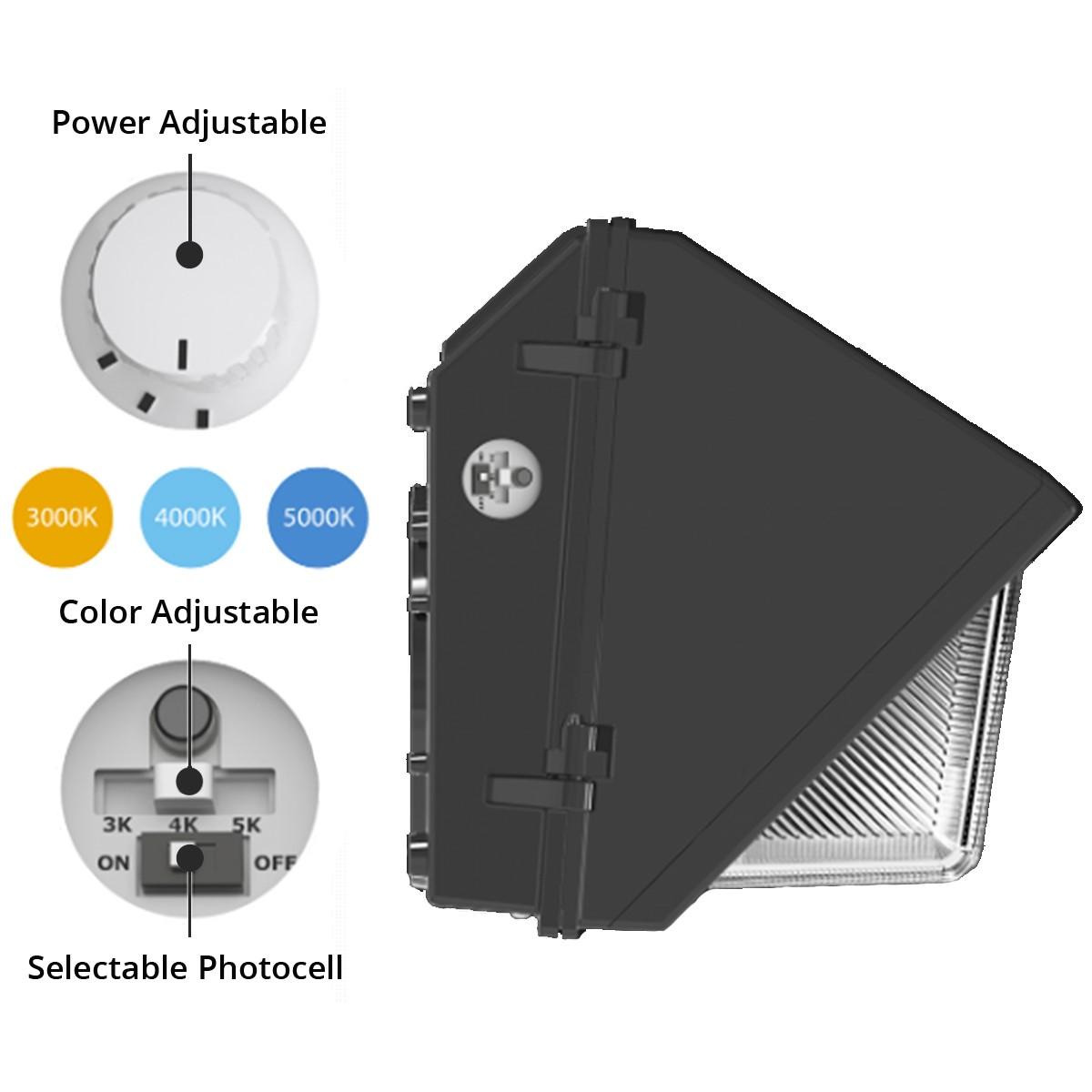

- 3-Way Field Adjustability: Offers ultimate on-site flexibility with selectable wattage (40W/60W/80W) and selectable color temperature (3000K/4000K/5000K).
- High-Intensity Output: Delivers up to 12,028 lumens with an efficacy of up to 154.5 lm/W, providing a high-performance replacement for traditional 400W Metal Halide fixtures.
- Integrated Photocell: Features a built-in 120-277V selectable on/off photocell for automated dusk-to-dawn operation and optimized energy management.
- Superior Longevity: Rated for a 100,000-hour LED lifespan, significantly reducing maintenance cycles and the total cost of ownership.
- Rugged Construction: Precision die-cast aluminum housing finished in bronze with a tempered glass lens, carrying an IP65 rating for superior protection in harsh wet locations.
We process payments securely and do not store credit card information.
Description
Description

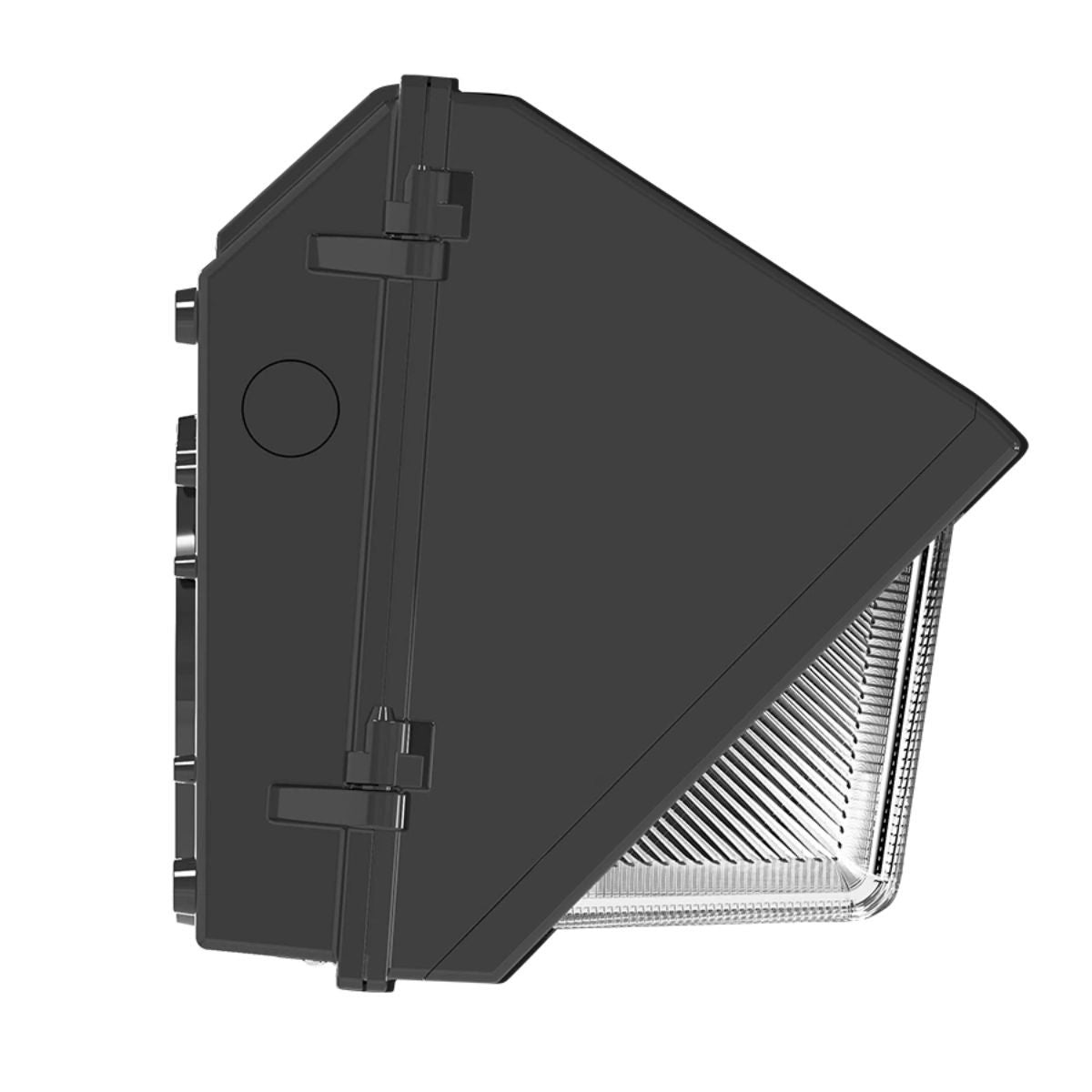

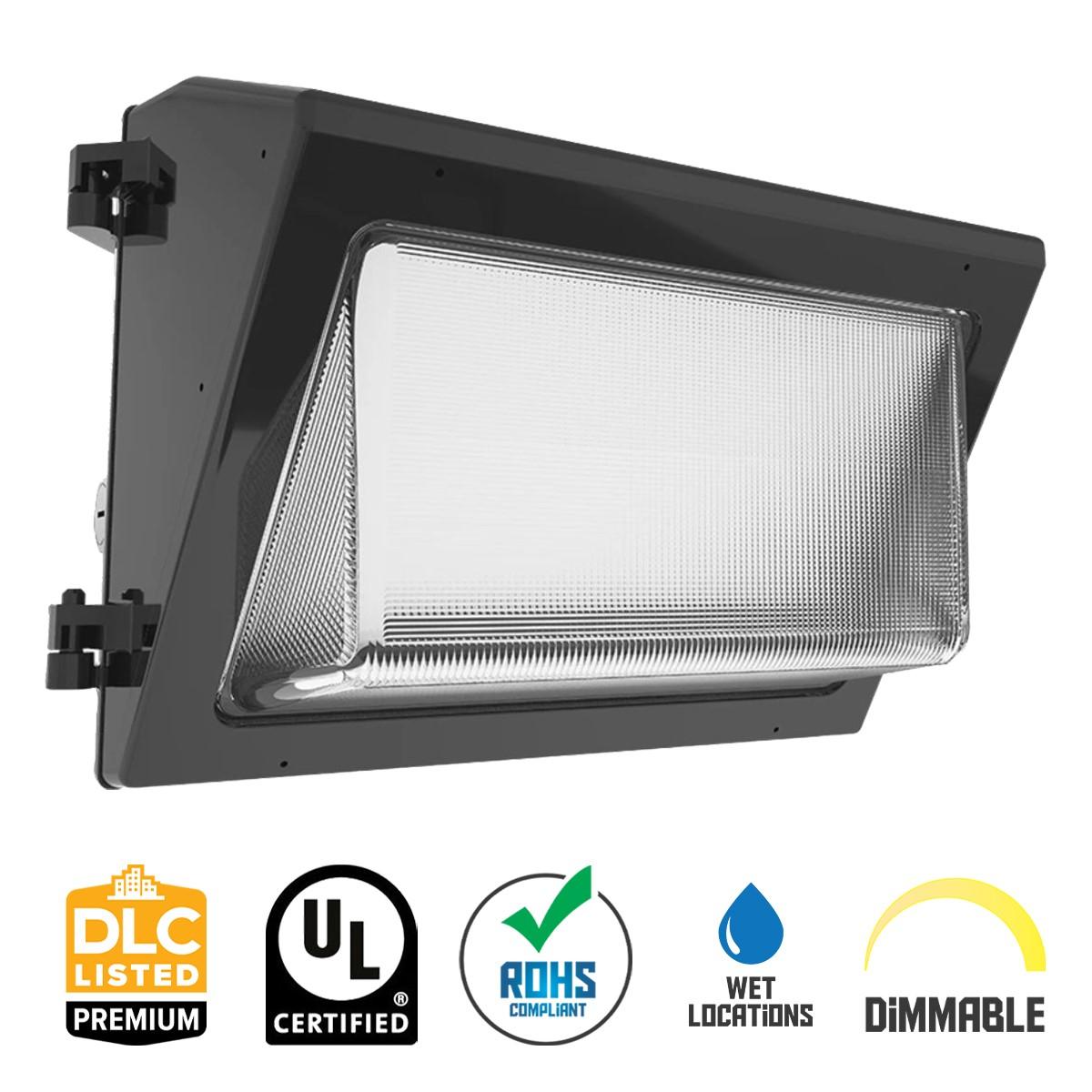

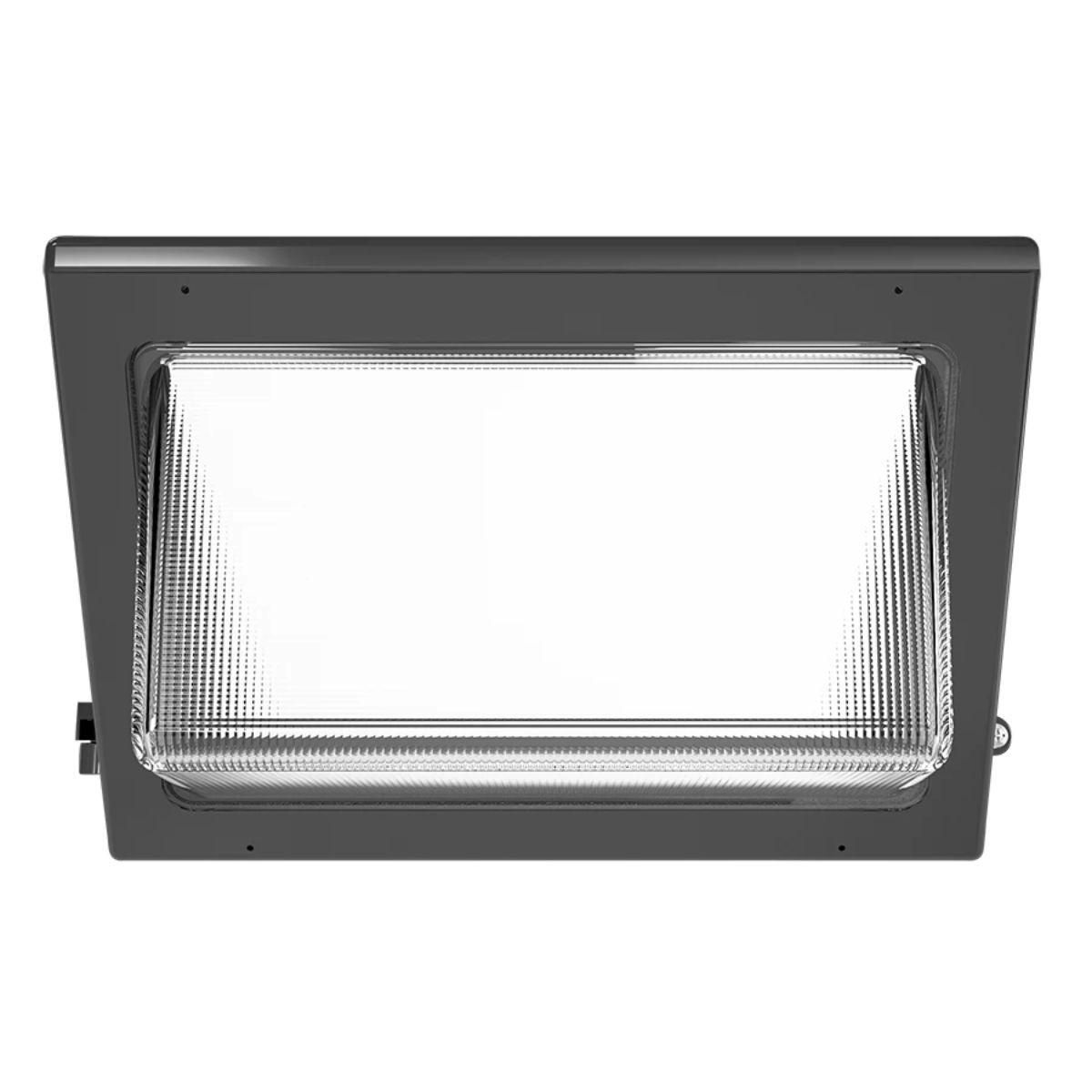

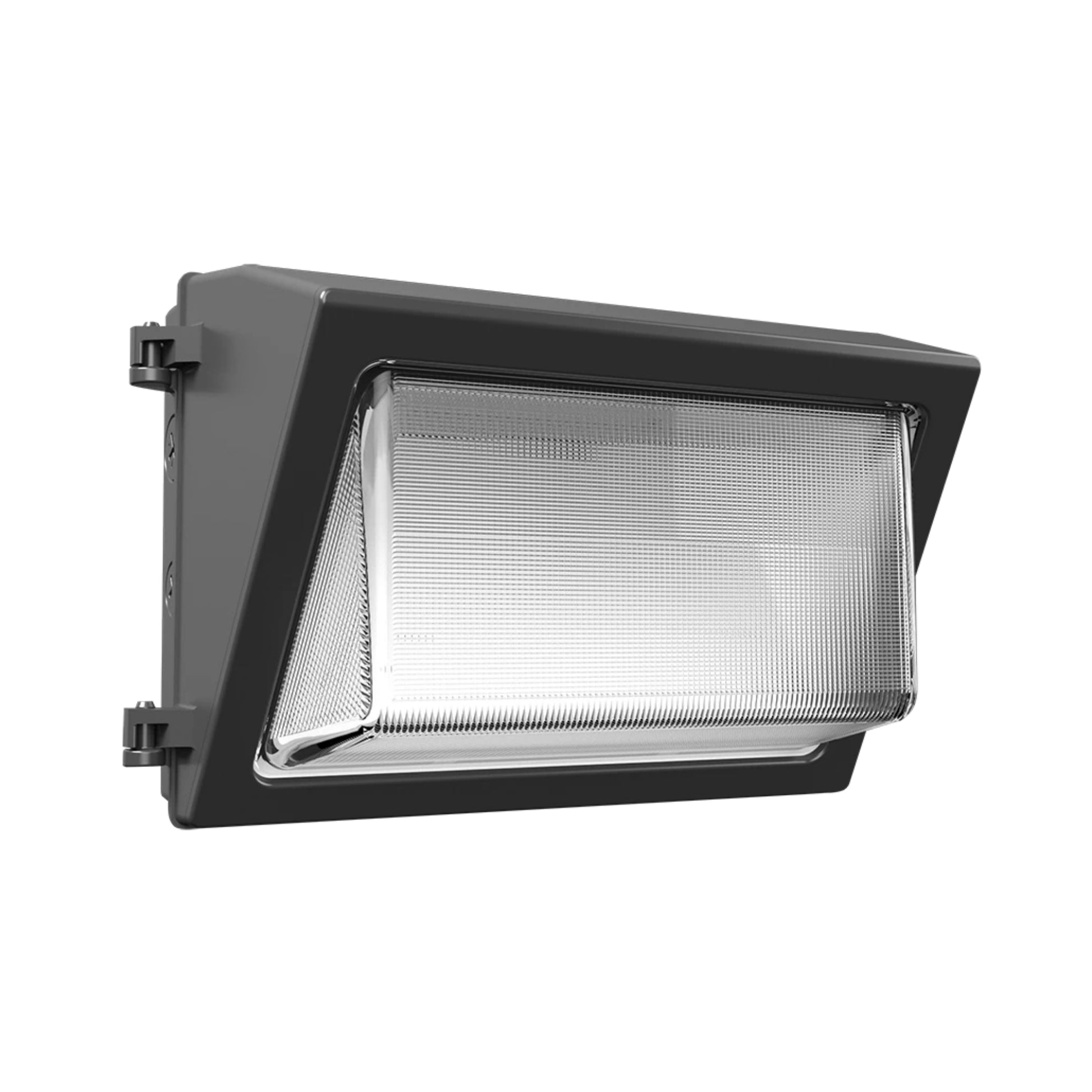

RAB WP2 XFU Field-Adjustable LED Wall Pack — 40-80W Selectable, 120–277V, Bronze
The RAB WP2XFU80 is a powerful and highly adaptable medium field-adjustable LED wall pack delivering up to 12,028 lumens. As the highest-output model in the WP2 XFU series, this luminaire provides 3-way adjustability, allowing installers to toggle between 40W, 60W, or 80W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a 120–277V universal driver, it includes an integrated selectable on/off photocell to ensure automated security lighting. Its IP65 rating and durable die-cast aluminum housing make it the professional choice for tall building facades, loading docks, and high-security perimeters.
Key Features
- Wattage: 40W / 60W / 80W Selectable (80W default)
- Selectable CCT: 3000K / 4000K / 5000K (4000K default)
- Delivered Lumens: 5,966 to 12,028 lumens (up to 154.5 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 82-84
- HID Equivalent: Replaces up to 400W Metal Halide
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)
Typical Applications

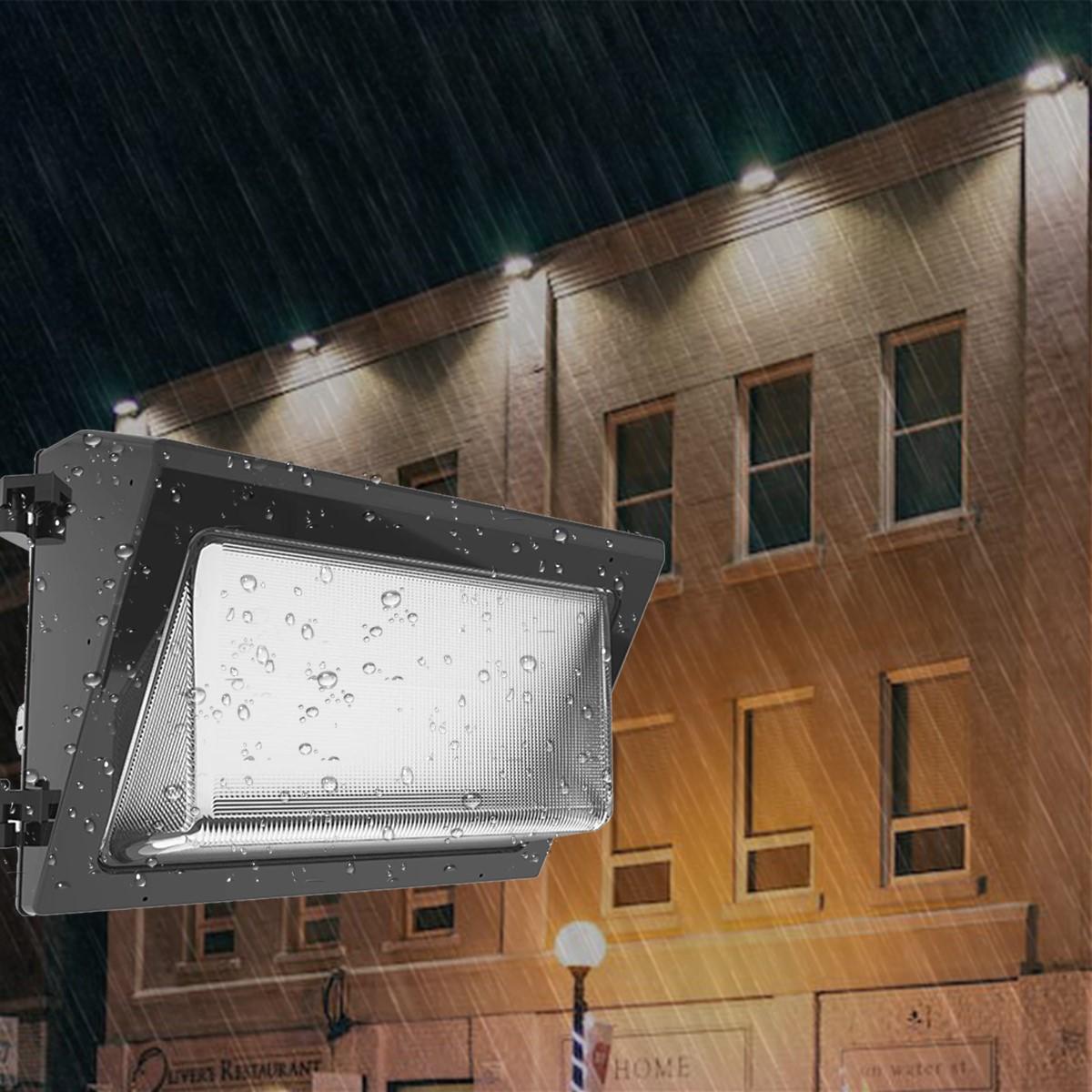

- High-profile building perimeters and facades
- Warehouse loading docks and industrial exteriors
- Commercial security and large-scale pathway lighting
- Parking areas and security checkpoints
Performance & Light Output
The WP2XFU80 provides intense, high-efficacy illumination ranging from 5,966 to 12,028 lumens depending on the chosen settings. With an efficacy reaching up to 154.5 lumens per watt, it serves as a high-performance choice for replacing traditional 400W HID lighting. The use of long-life, surface-mount LEDs ensures a 100,000-hour rated life, providing reliable light for decades with virtually zero maintenance.
Electrical & Controls
This fixture operates on a constant current, Class 1 120–277V AC driver. It includes standard 0–10V dimming capabilities for advanced energy management. The integrated photocell is field-selectable, giving users the choice to use automated dusk-to-dawn sensing or bypass it for manual control via an external switch or building timer system.
Construction & Durability
Constructed for the elements, the WP2XFU80 features a precision die-cast aluminum housing and a tempered glass lens. The bronze finish is formulated for high durability and long-lasting color. It is IP65 rated, protecting it against dust ingress and water spray. The fixture operates reliably in extreme temperatures, starting safely at -40°C (-40°F) and handling high ambient heat up to 50°C (122°F).
Installation & Mounting

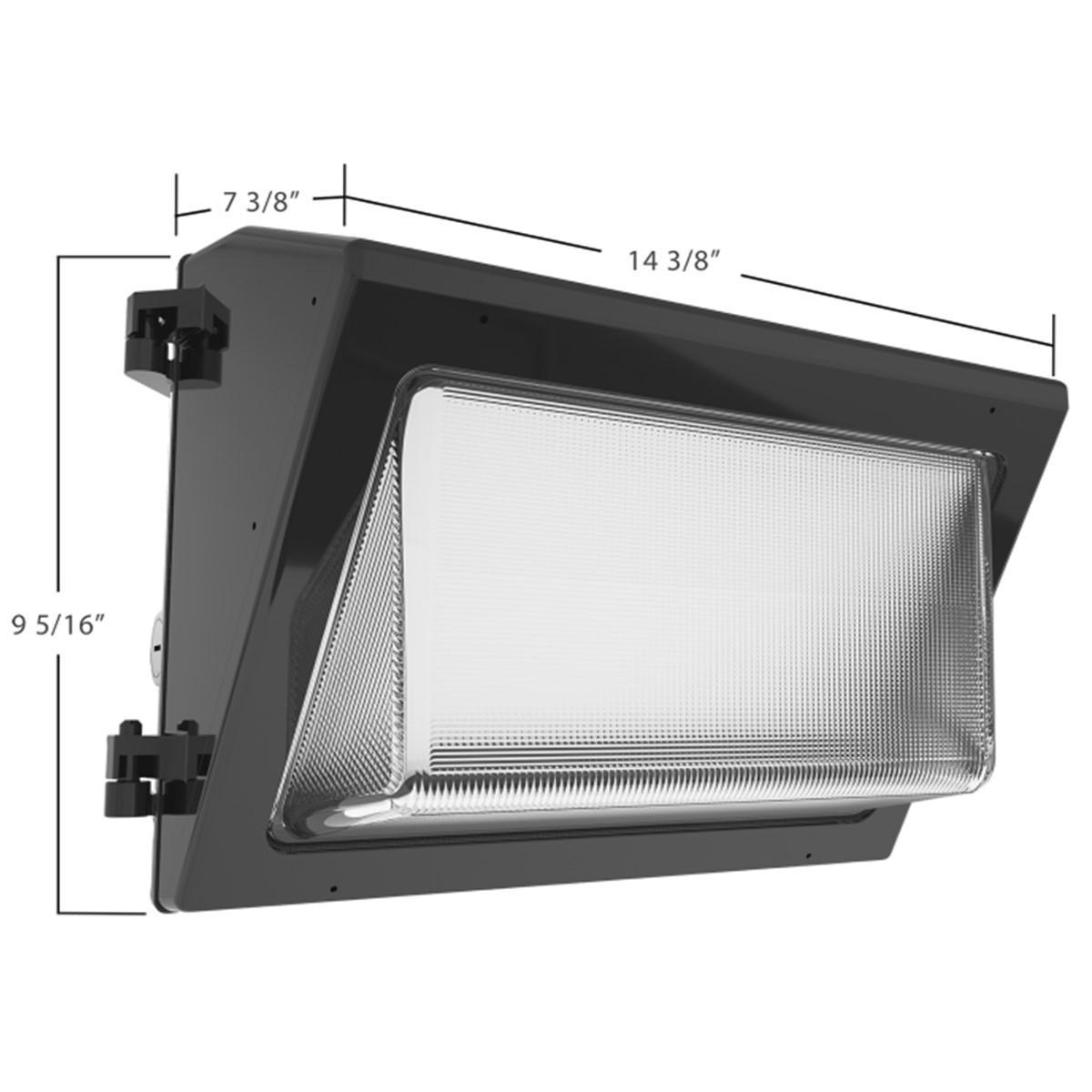

The WP2XFU80 is designed for traditional wall mounting and serves as a direct replacement for legacy medium-to-large HID fixtures. Its 8.4 lb design and traditional footprint ensure a clean installation that covers unsightly marks or "ghosting" from previous fixtures on exterior building surfaces.
What's Included
- RAB WP2XFU80 LED Wall Pack (Bronze)
- Integrated Selectable Photocell
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, the integrated 120-277V photocell includes an on/off switch, allowing you to choose between automated dusk-to-dawn operation or manual control.
Yes, the integrated 120-277V photocell includes an on/off switch, allowing you to choose between automated dusk-to-dawn operation or manual control.
What traditional lighting does this replace?
What traditional lighting does this replace?
The WP2XFU80 is designed to replace traditional Metal Halide fixtures up to 400W. (80W replaces 400W, 60W replaces 250W, and 40W replaces 175W).
The WP2XFU80 is designed to replace traditional Metal Halide fixtures up to 400W. (80W replaces 400W, 60W replaces 250W, and 40W replaces 175W).
Is the RAB WP2XFU80 dimmable?
Is the RAB WP2XFU80 dimmable?
Yes, the fixture comes standard with a 0-10V dimming driver, which allows for smooth dimming down to 10% with a compatible 0-10V dimmer.
Yes, the fixture comes standard with a 0-10V dimming driver, which allows for smooth dimming down to 10% with a compatible 0-10V dimmer.
