RAB WP2 XFU Field-Adjustable LED Wall Pack — 20-40W Selectable, 120–277V, Bronze

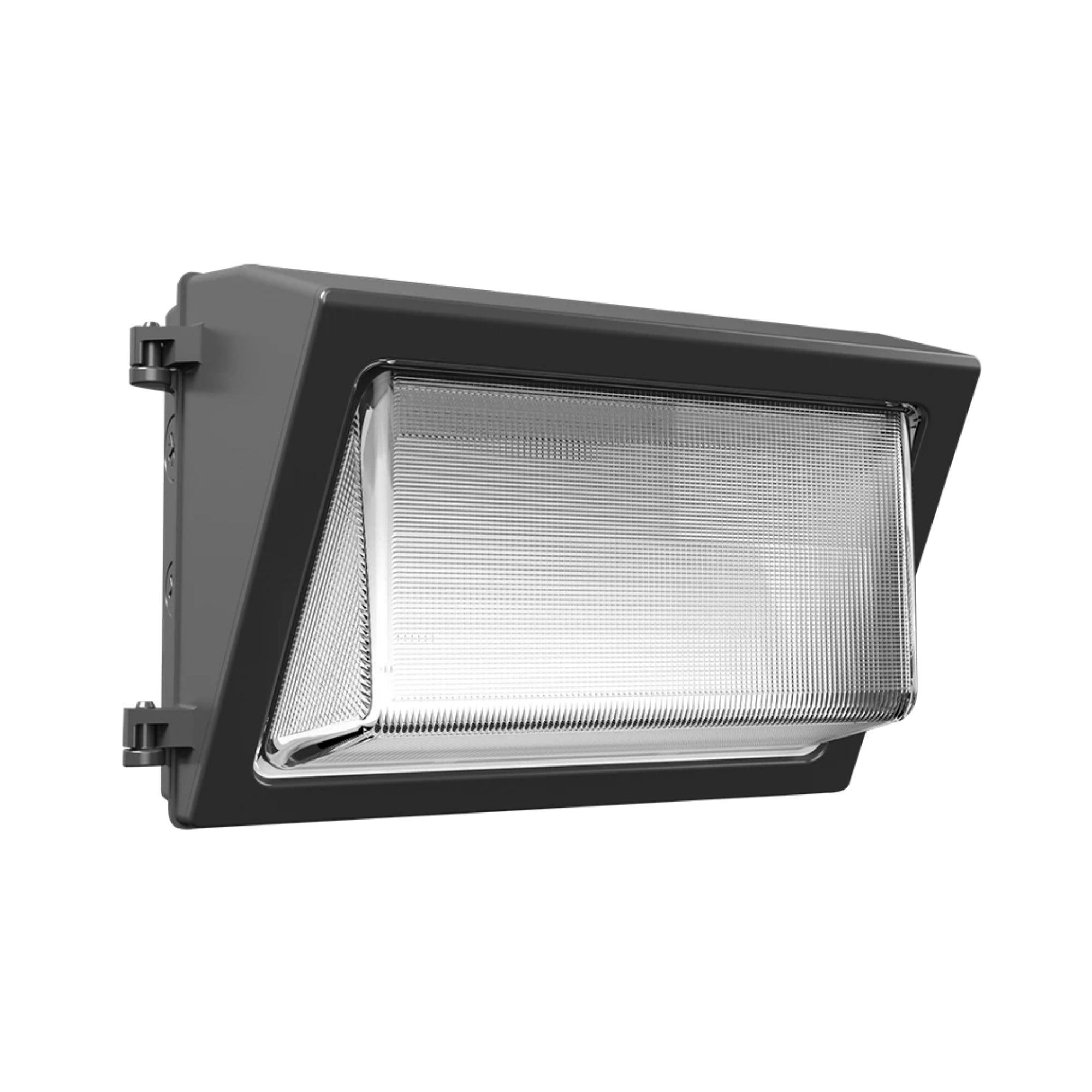

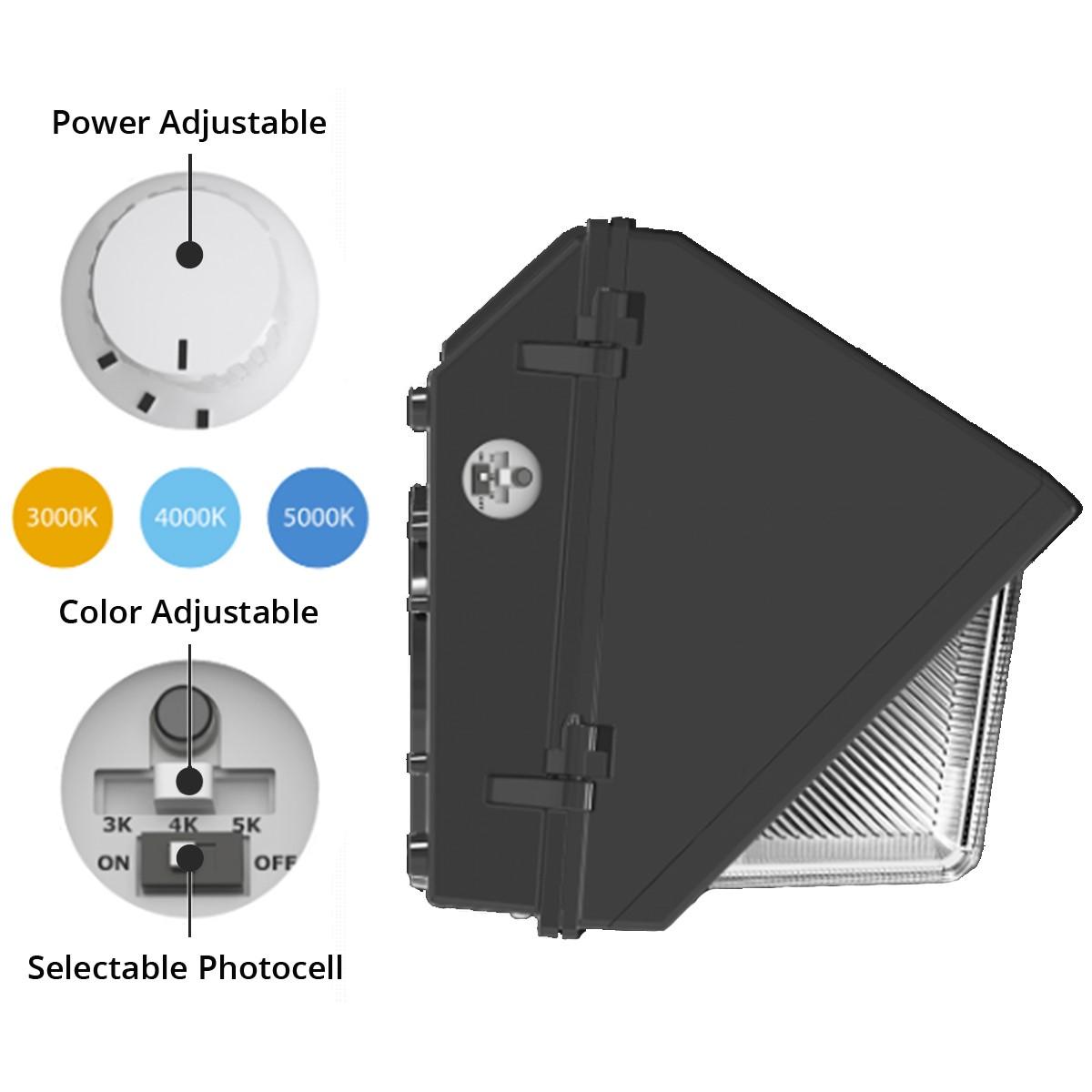

The RAB WP2XFU40 is a highly adaptable and efficient medium field-adjustable LED wall pack delivering up to 6,108 lumens. As part of the XFU series, this luminaire provides 3-way adjustability, allowing installers to toggle between 20W, 30W, or 40W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a 120–277V universal driver, it includes an integrated selectable on/off photocell to ensure automated security lighting. Its IP65 rating and rugged die-cast aluminum housing make it a professional-grade choice for building facades, warehouse perimeters, and loading docks.

Key Features

• Wattage: 20W / 30W / 40W Selectable (40W default)
• Selectable CCT: 3000K / 4000K / 5000K (4000K default)
• Delivered Lumens: 2,982 to 6,108 lumens (up to 154.5 LPW)
• Voltage: 120–277V input
• Dimming: 0–10V dimming standard (dims down to 10%)
• Controls: Integrated 120-277V selectable on/off photocell included
• CRI: 82-84
• HID Equivalent: Replaces up to 175W Metal Halide
• Environmental Ratings: IP65 rated for Wet Locations

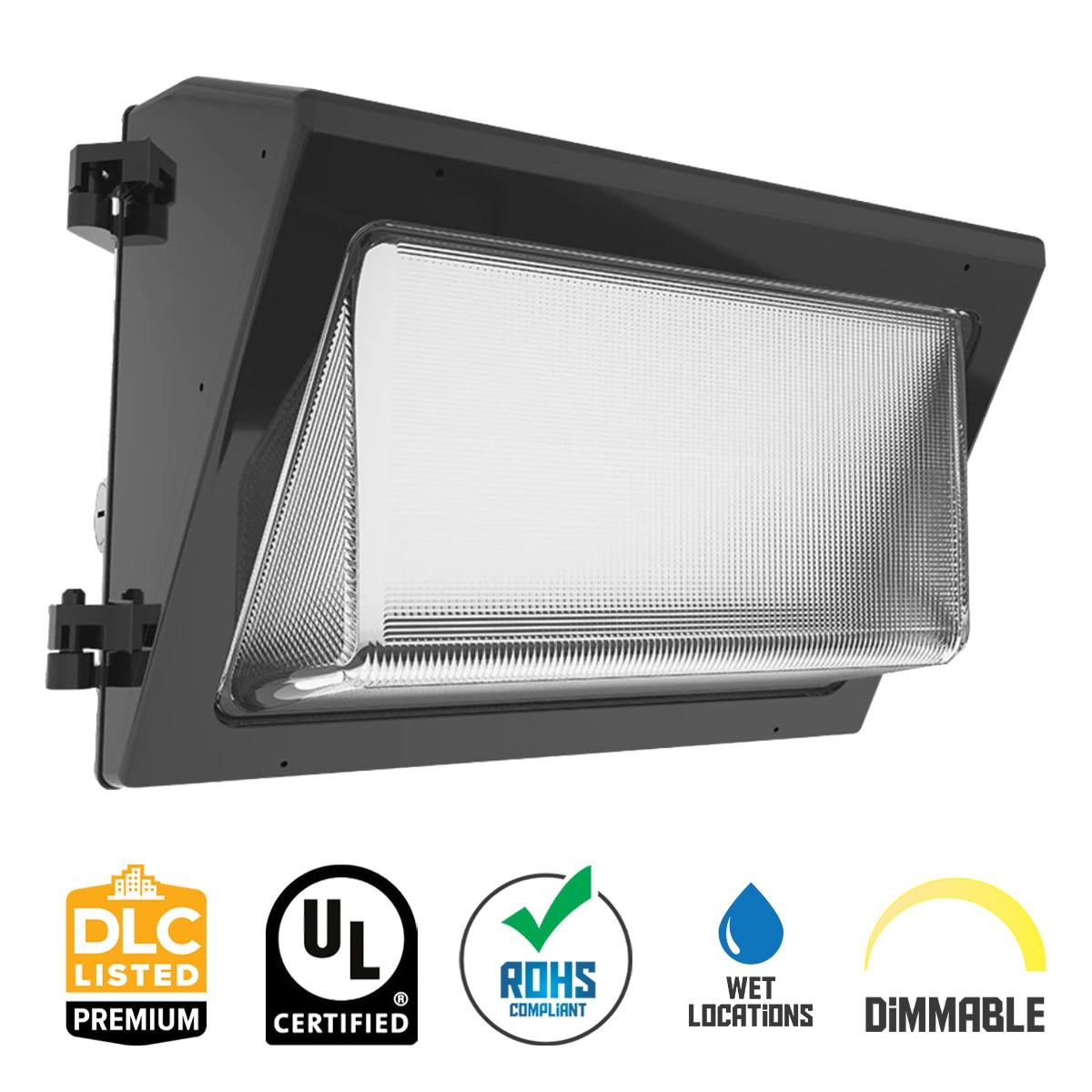

• Certifications: UL Listed, RoHS Compliant
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Commercial building perimeters
• Loading docks and warehouse facades
• Security and pathway lighting
• Entryways and parking areas

Performance & Light Output

The WP2XFU40 provides high-efficacy illumination ranging from 2,982 to 6,108 lumens depending on the selected settings. With an efficacy reaching up to 154.5 lumens per watt, it is one of the most efficient options for replacing traditional HID lighting. The fixture utilizes long-life, surface-mount LEDs to ensure a 100,000-hour rated life, providing reliable light for years with virtually zero maintenance requirements.

Electrical & Controls

This fixture features a constant current, Class 1 120–277V AC driver. It includes standard 0–10V dimming capabilities for tailored light levels. The integrated photocell is field-selectable, providing the flexibility to use automated dusk-to-dawn sensing or bypass it for manual control via an external switch or central building timer.

Construction & Durability

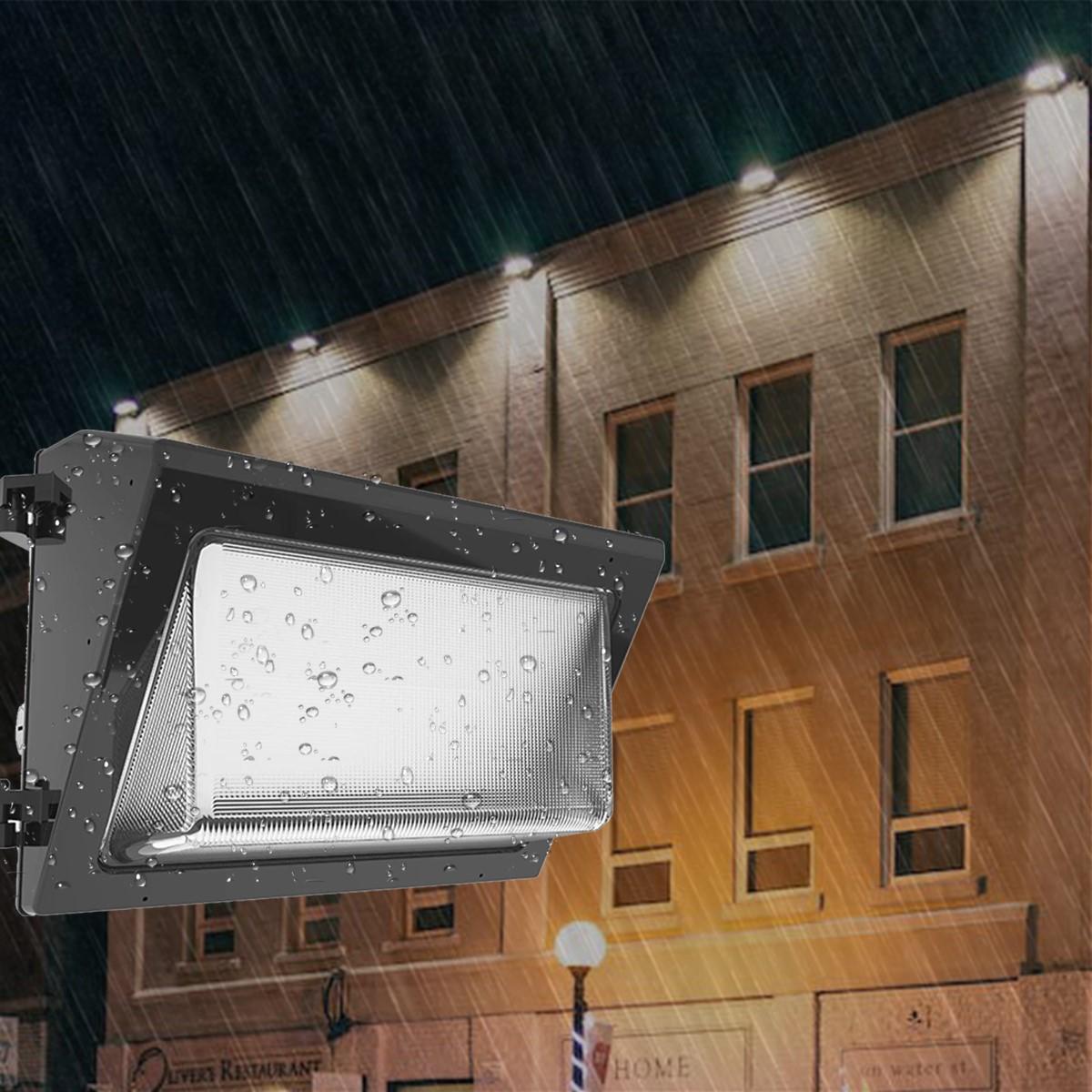

Designed for long-term outdoor use, the WP2XFU40 features a precision die-cast aluminum housing and a durable tempered glass lens. The housing is finished in a high-durability bronze formulated for long-lasting color. It is IP65 rated, ensuring complete protection against dust and water spray. The fixture is also rated for a wide ambient temperature range, from -40°C (-40°F) to 53°C (127°F) depending on the power setting.

Installation & Mounting

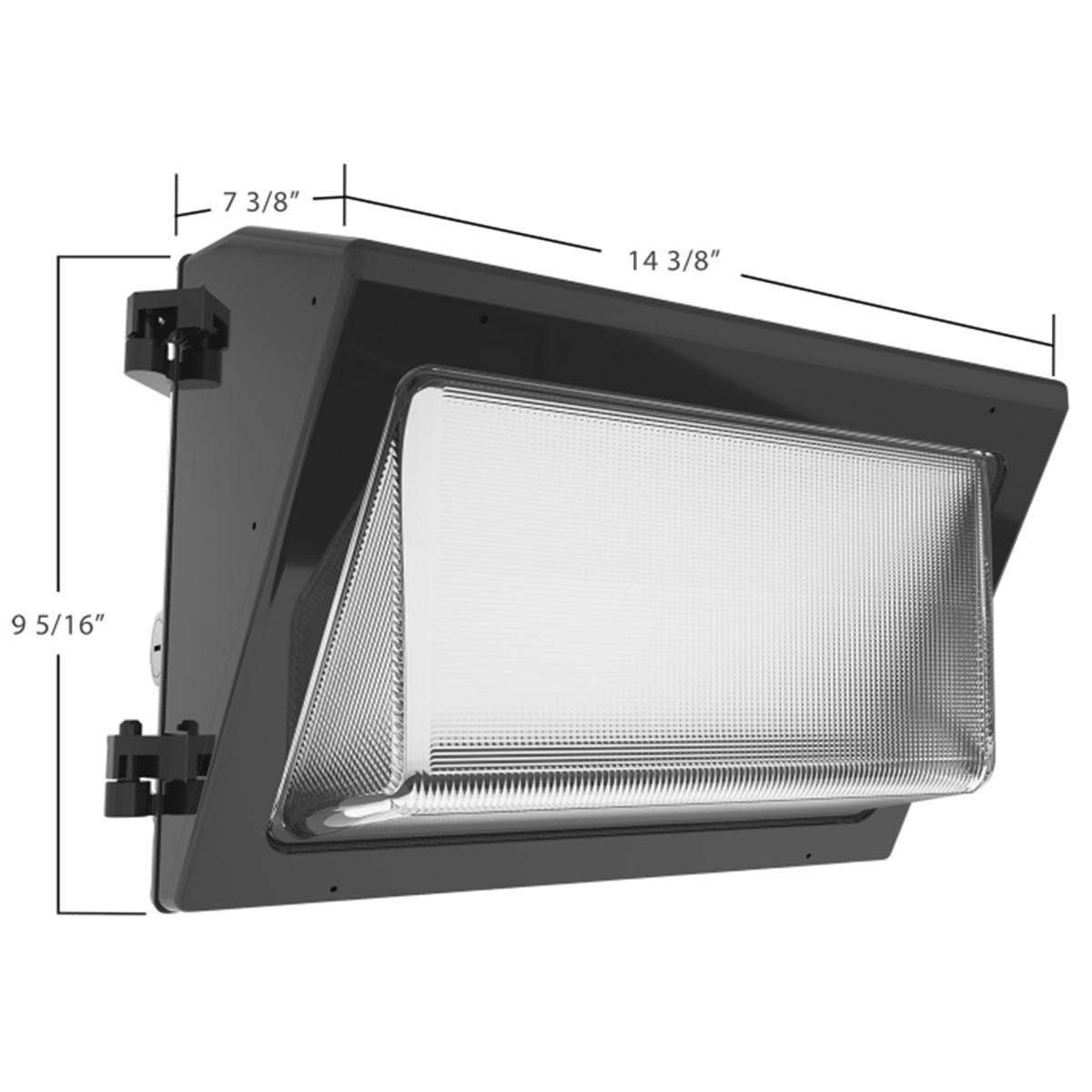

The WP2XFU40 is designed for traditional wall mounting and serves as a direct replacement for legacy medium-sized HID fixtures. Its 8.4 lb design and standard mounting pattern facilitate a quick and secure installation on a variety of outdoor commercial surfaces.

What's Included

• RAB WP2XFU40 LED Wall Pack (Bronze)
• Integrated Selectable Photocell
