RAB WP2 XFU Field-Adjustable LED Wall Pack — 60-100W Selectable, 120–277V, Bronze

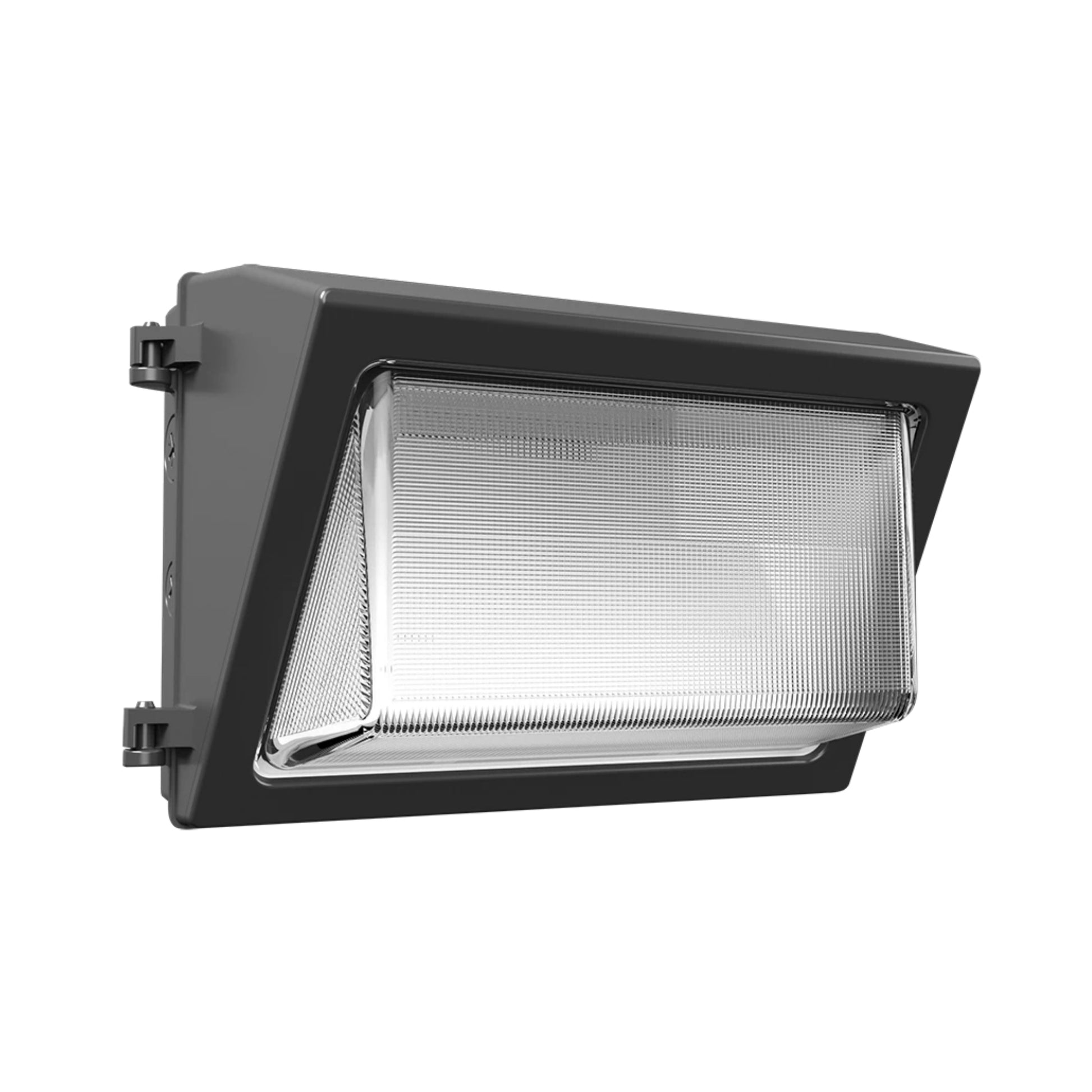

The RAB WP2XFU100 is an ultra-high-output, versatile medium-to-large field-adjustable LED wall pack delivering up to 15,364 lumens. As the most powerful model in the WP2 XFU family, this luminaire provides 3-way adjustability, allowing installers to select between 60W, 80W, or 100W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a 120–277V universal driver, it includes an integrated selectable on/off photocell to ensure automated security lighting. Its IP65 rating and durable die-cast aluminum housing make it an ideal choice for high-mounting applications, industrial facades, and high-security building perimeters.

Key Features

• Wattage: 60W / 80W / 100W Selectable (100W default)
• Selectable CCT: 3000K / 4000K / 5000K (4000K default)
• Delivered Lumens: 8,970 to 15,364 lumens (up to 158.4 LPW)
• Voltage: 120–277V input
• Dimming: 0–10V dimming standard (dims down to 10%)
• Controls: Integrated 120-277V selectable on/off photocell included
• CRI: 82-84
• HID Equivalent: Replaces up to 400W Metal Halide
• Environmental Ratings: IP65 rated for Wet Locations

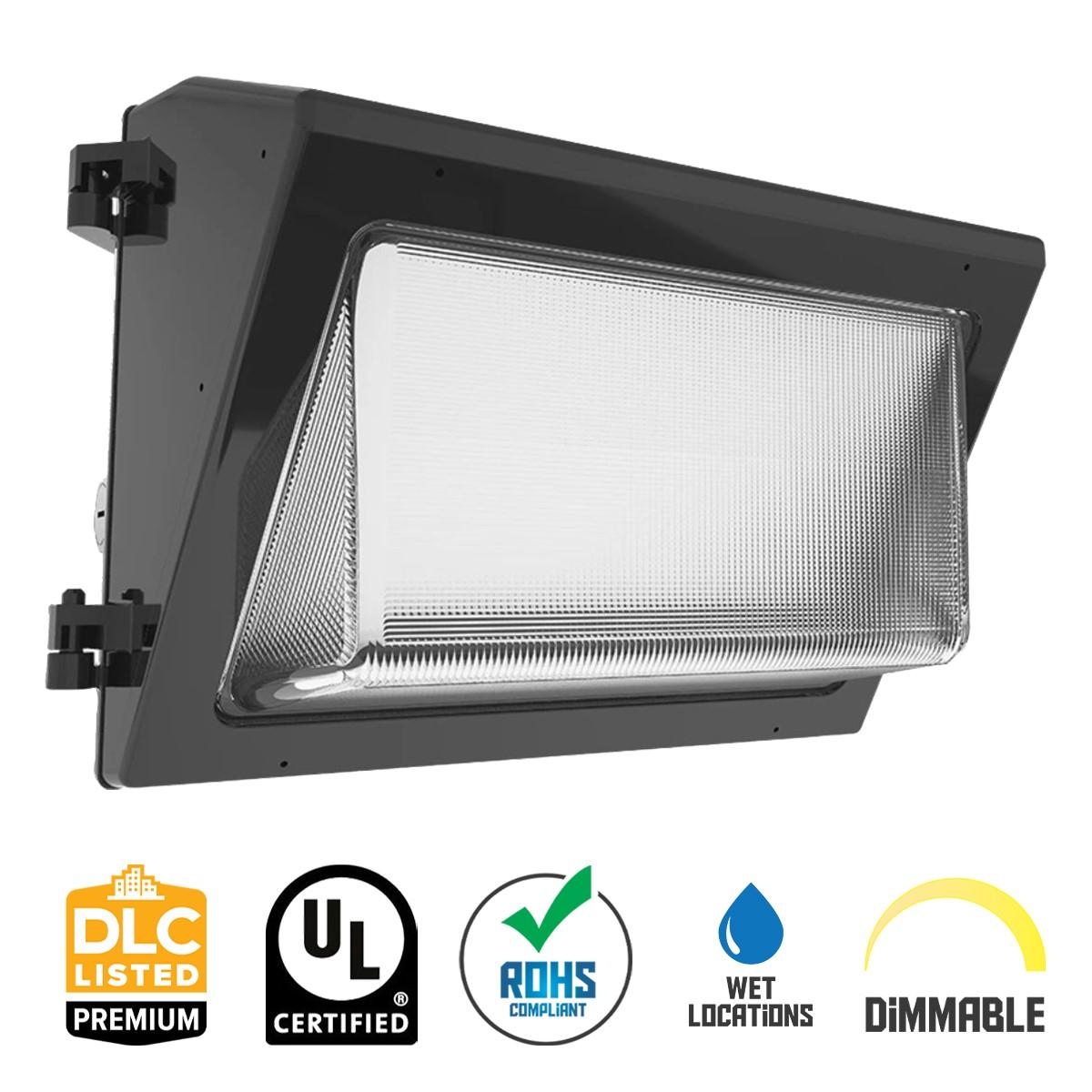

• Certifications: UL Listed, RoHS Compliant
• Estimated Life: 100,000 hours (L70)

Typical Applications

• High-profile building perimeters and facades
• Warehouse loading docks and industrial parks
• Security and pathway lighting for large commercial areas
• High-mounting height applications requiring massive light output

Performance & Light Output

The WP2XFU100 provides extreme illumination ranging from 8,970 to 15,364 lumens depending on the selected settings. With an efficacy reaching up to 158.4 lumens per watt, it is one of the most efficient high-output wall packs on the market. The use of long-life, surface-mount LEDs ensuring a 100,000-hour rated life means this fixture will provide reliable, maintenance-free light for decades.

Electrical & Controls

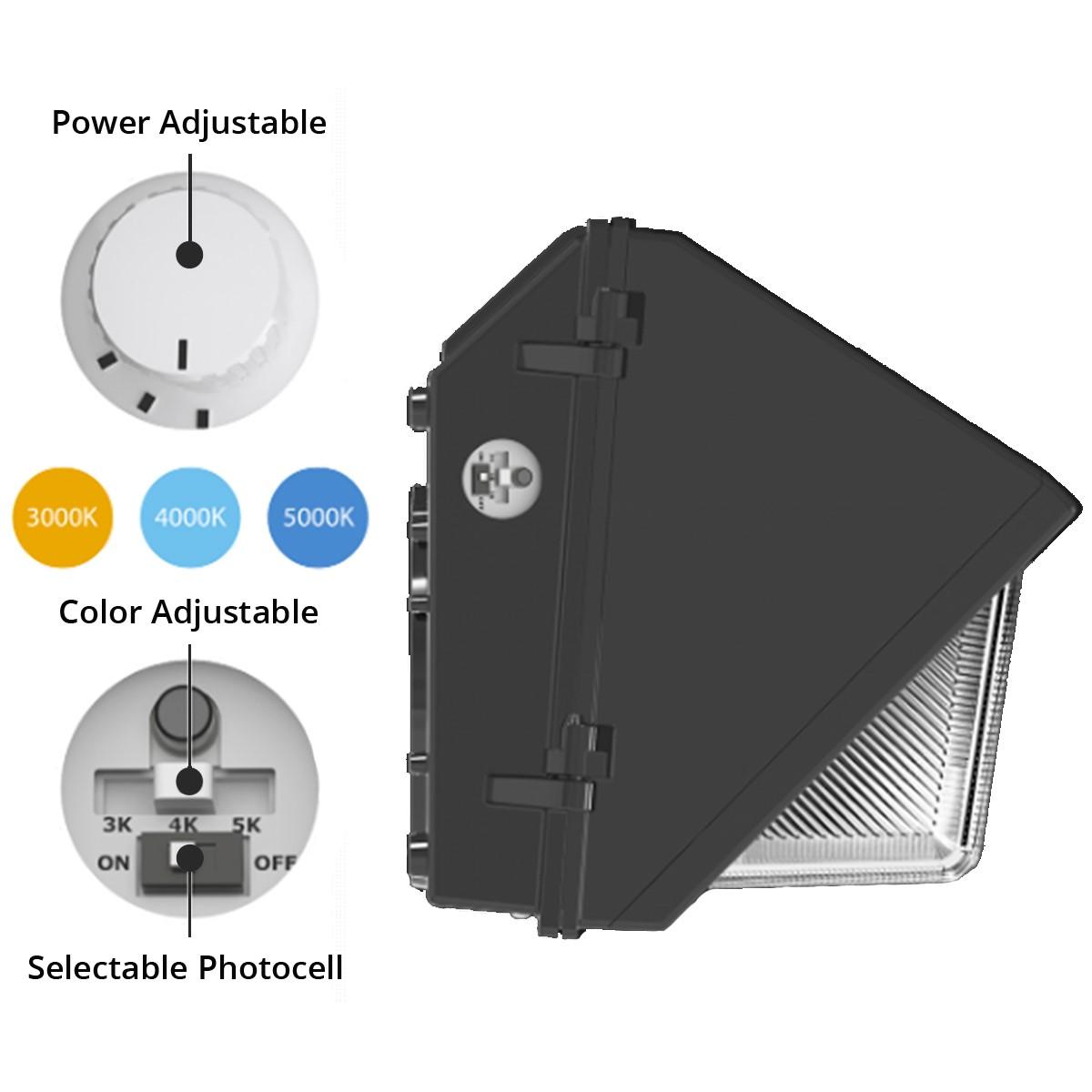

This fixture features a constant current, Class 1 120–277V AC driver with standard 0–10V dimming. The integrated photocell is field-selectable via an on/off switch, allowing users to choose between automated dusk-to-dawn operation or manual control via a separate switch or building automation system.

Construction & Durability

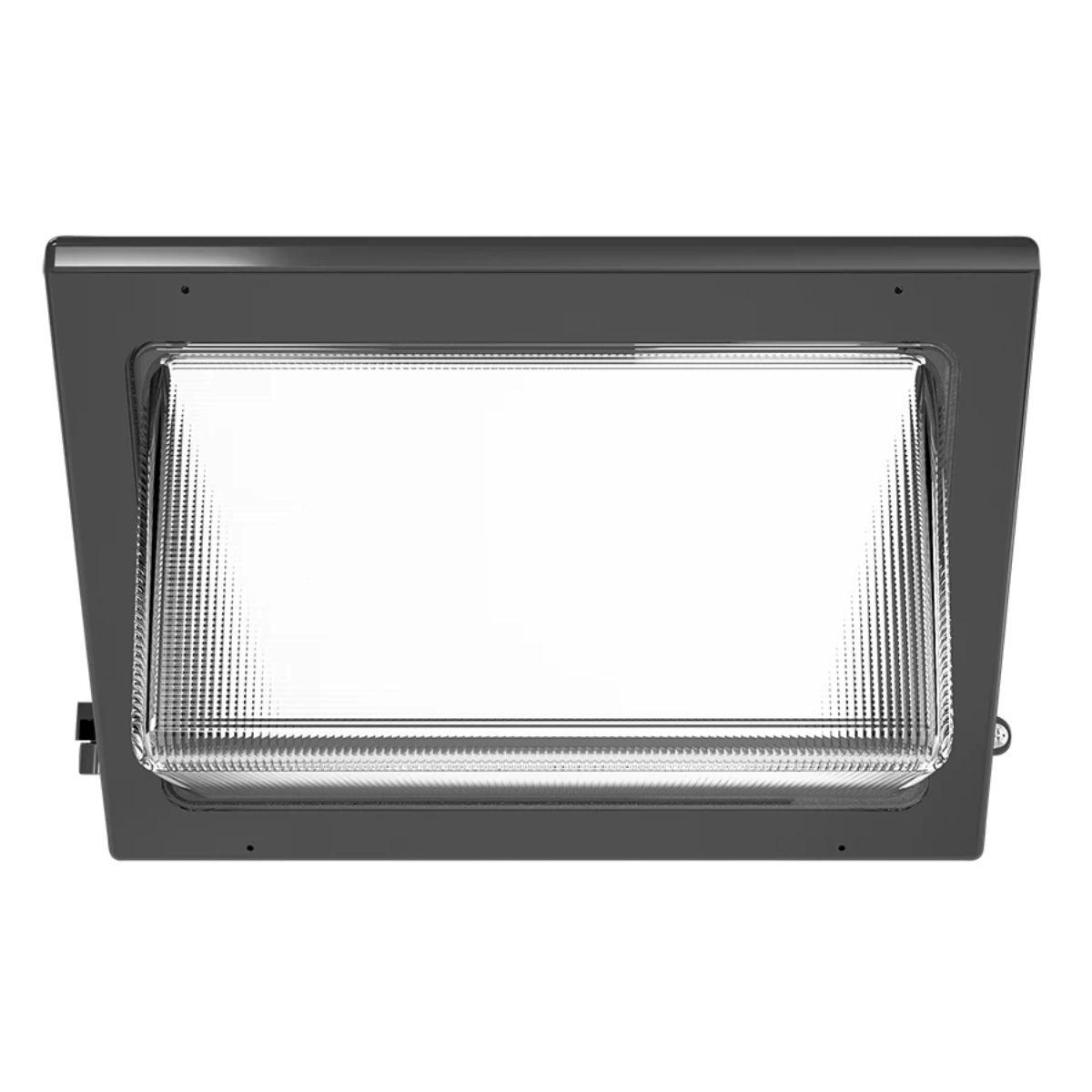

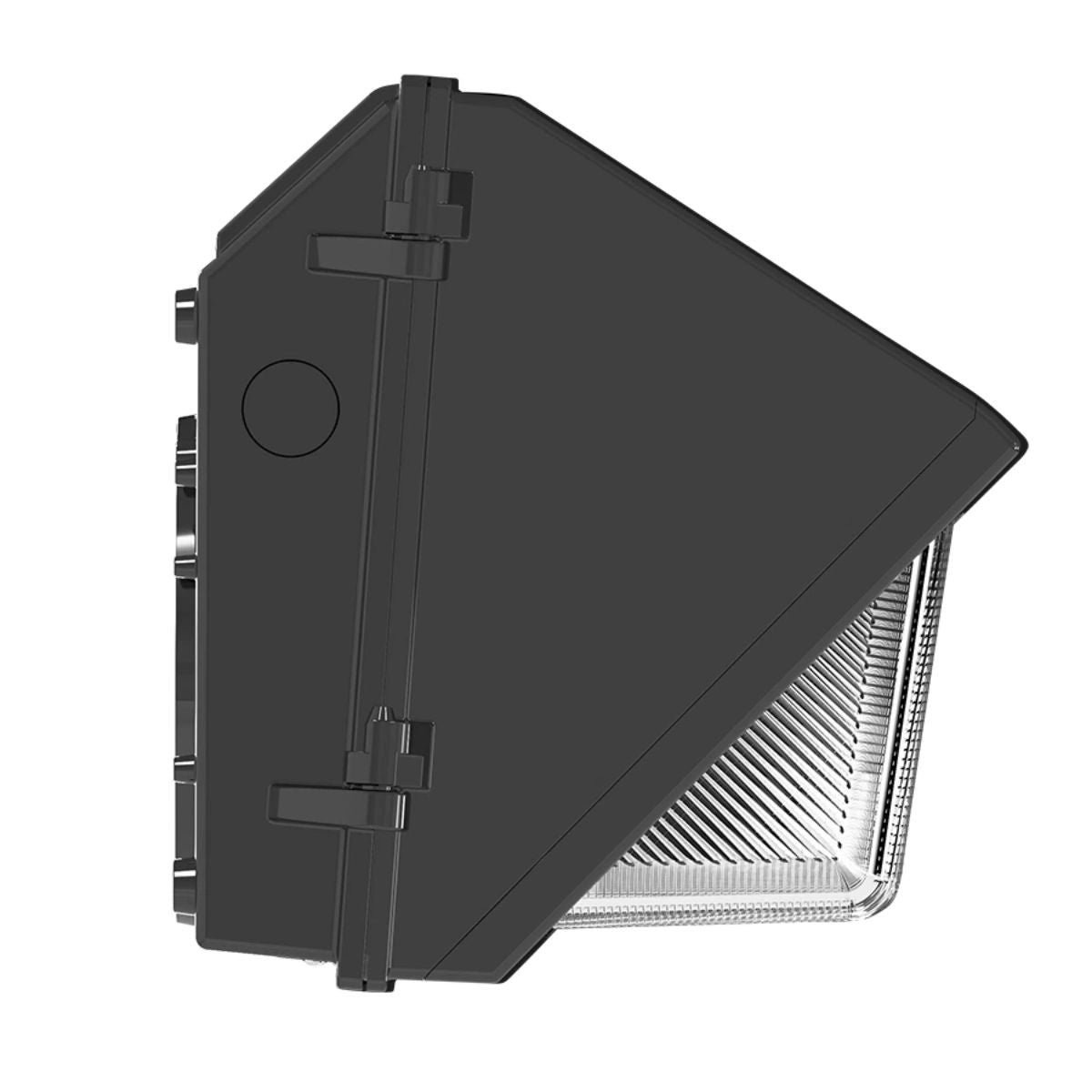

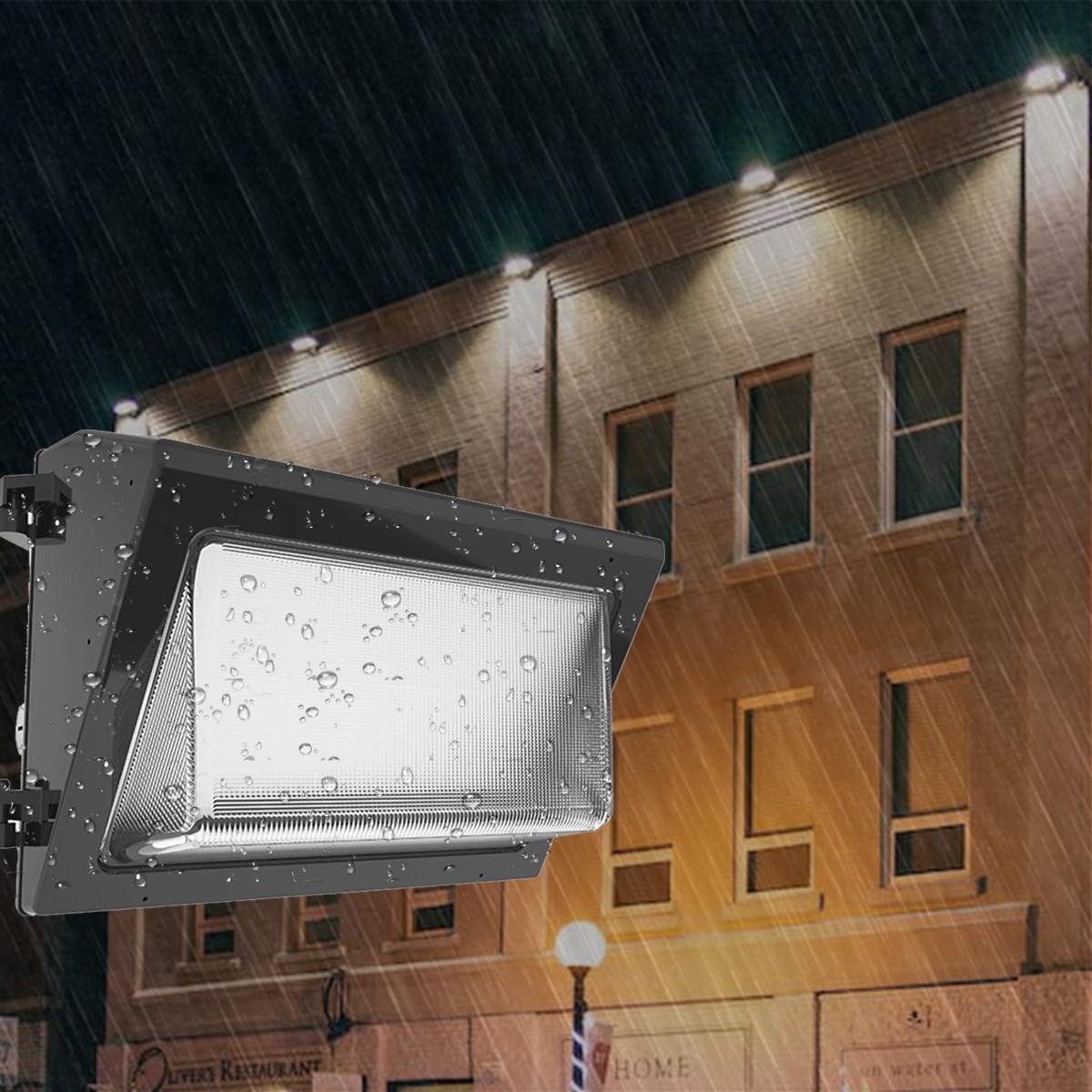

Built for durability in harsh environments, the WP2XFU100 features a precision die-cast aluminum housing and a tempered glass lens. The bronze finish is formulated for high durability and long-lasting color. It is IP65 rated, ensuring complete protection against dust and water ingress. The fixture is also designed for extreme weather, with a cold-weather starting temperature of -40°C (-40°F).

Installation & Mounting

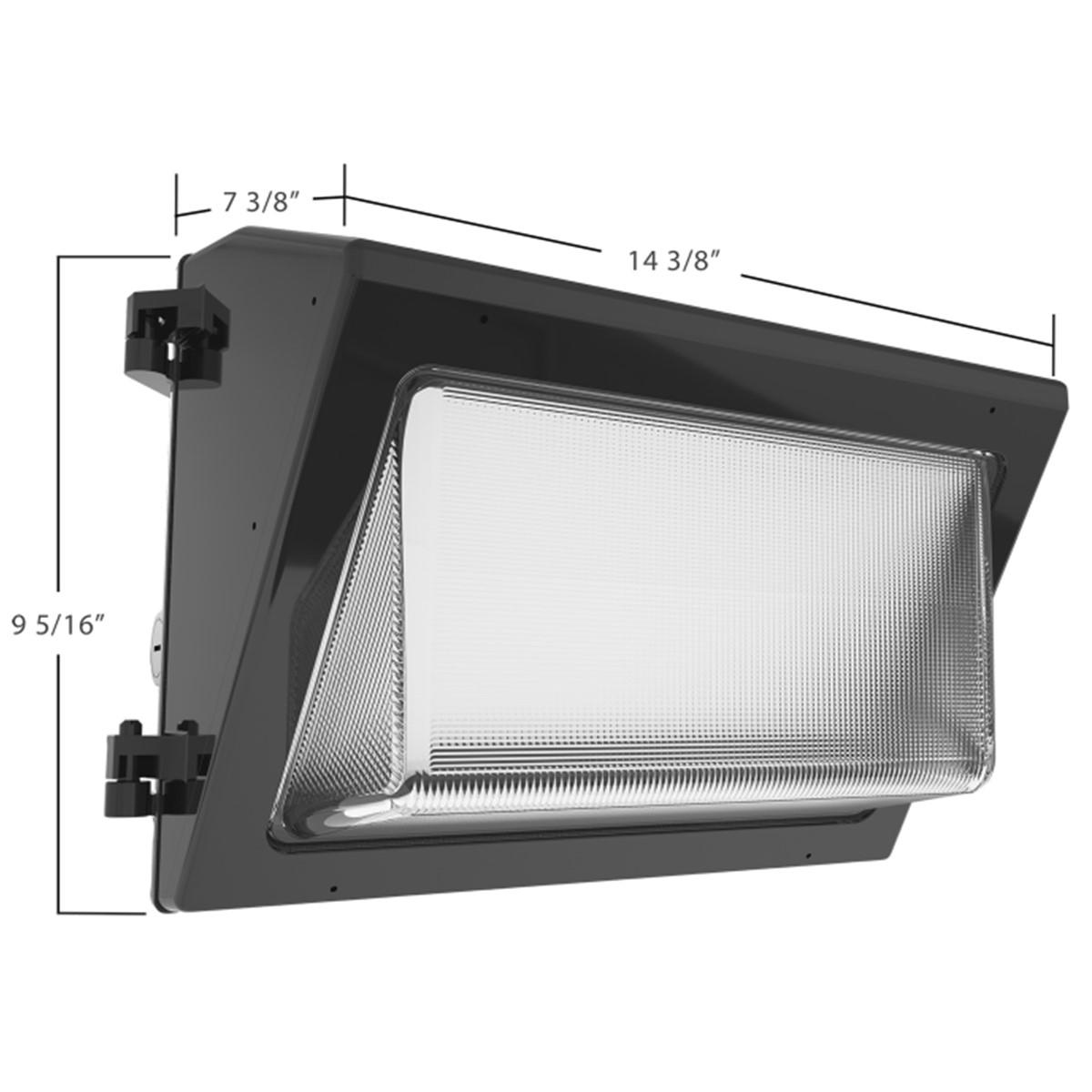

Designed for traditional wall mounting, the WP2XFU100 serves as a powerful replacement for legacy 400W HID fixtures. Its 8.4 lb design and traditional footprint ensure a clean installation that covers unsightly marks or stains from previous fixtures on exterior building surfaces.

What's Included

• RAB WP2XFU100 LED Wall Pack (Bronze)
• Integrated Selectable Photocell
