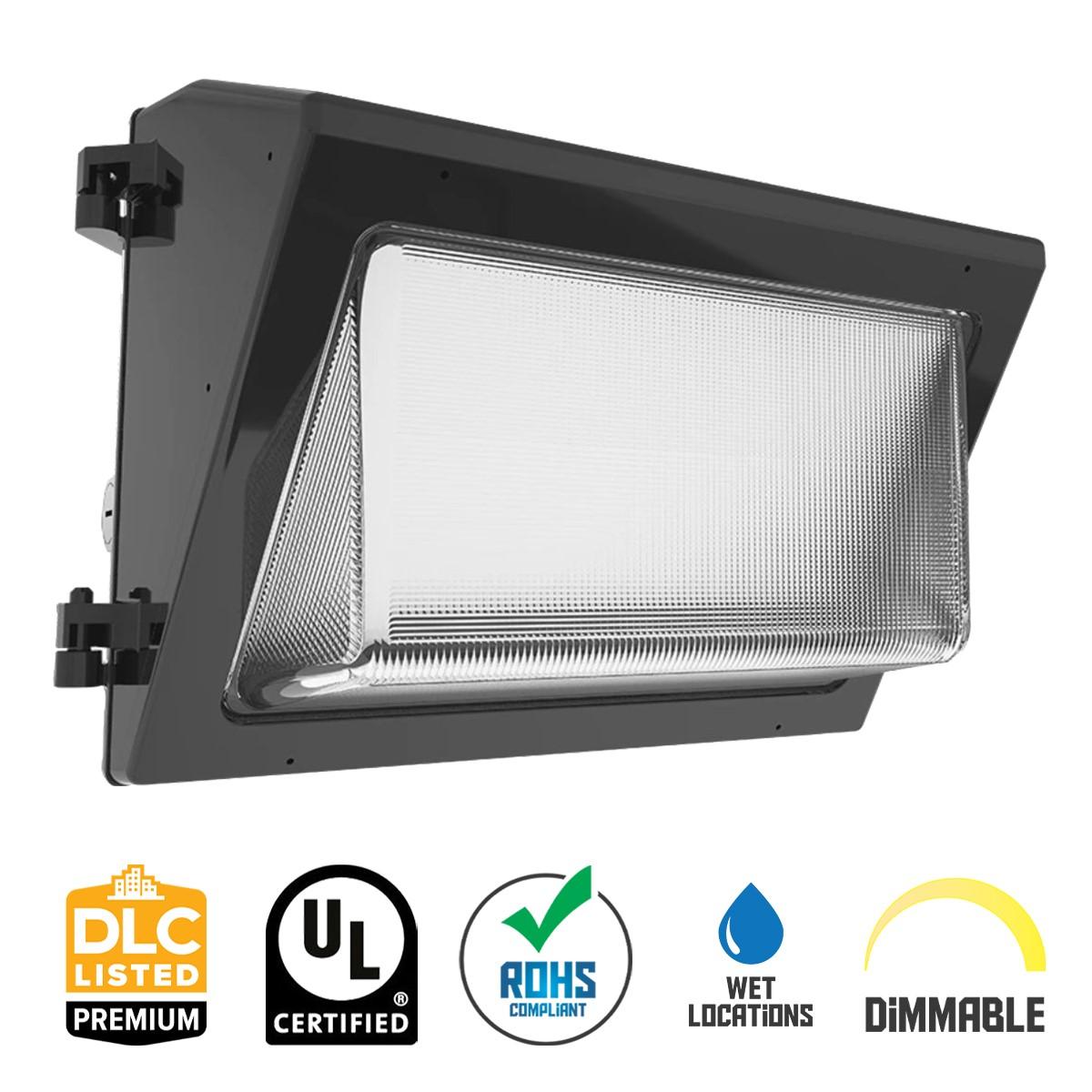

RAB WP2FA80 Field-Adjustable Traditional LED Wall Pack — 80W — 3000K/4000K/5000K — Bronze

The RAB WP2FA80 is a commercial field-adjustable traditional LED wall pack engineered to deliver up to 11,606 lumens at 80W across switchable 3000K/4000K/5000K color temperatures. Operating on 120-277V electrical systems with 0-10V dimming down to 10%, it replaces legacy fixtures up to 400W Metal Halide while qualifying for DLC Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body in a Bronze finish, this UL wet-location luminaire includes a 14.25" W x 8.63" H side-hinged wall-mount backplate that covers legacy 400W HID wall stains with threaded side conduit knockouts, and features a non-yellowing tempered glass lens and an integrated 120-277V selectable on/off photocell.

Key Features

• Wattage: 80W (79.5W at 3000K; 77.3W at 4000K; 79.2W at 5000K)
• Wattage Equivalency: Replaces up to 400W Metal Halide
• Maximum Lumen Output: Up to 11,606 lm
• Peak Efficacy: Up to 150.1 lm/W
• CRI: 80-83 (80 at 3000K / 83 at 4000K / 82 at 5000K)
• Selectable CCT: 3000K / 4000K / 5000K
• Color Consistency: 7-step MacAdam Ellipse binning
• Lens & Optics: Forward-throw tempered glass lens
• Photocell & Controls: Integrated 120-277V selectable on/off photocell
• Dimming: 0-10V continuous dimming (dims down to 10%)
• Voltage: 120-277V AC, 50/60Hz
• Location & Body Rating: UL Listed Wet Location; IP65
• Operating Temperature: -40°F (-40°C) to 122°F (50°C)
• Certifications: DLC Premium Listed, UL Listed, IESNA LM-79 & LM-80 tested, RoHS Compliant, BAA Available Upon Request
• Rated Life: L70 100,000 hours
• Warranty: 5-year limited warranty covering light output, driver performance, and paint finish - RAB

Performance & Light Output

At 80W (79.5W at 3000K; 77.3W at 4000K; 79.2W at 5000K — replaces 400W Metal Halide): 11,079 lm (3000K / 139.4 lm/W / 80 CRI), 11,606 lm (4000K / 150.1 lm/W / 83 CRI), and 11,296 lm (5000K / 142.6 lm/W / 82 CRI).

Engineered with long-life, high-efficiency surface-mount LEDs delivering CRI 80-83 across all configurations. Rated life 100,000 hours (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

Engineered with a durable tempered glass lens delivering a standard forward-throw LED wall pack optical distribution. The prismatic glass refractor projects wide outward and downward perimeter security illumination while covering the medium-profile wall footprint of legacy 400W Metal Halide wall packs without yellowing or UV degradation.

Smart & Control Features

Engineered for automated exterior operation and commercial lighting control integration:

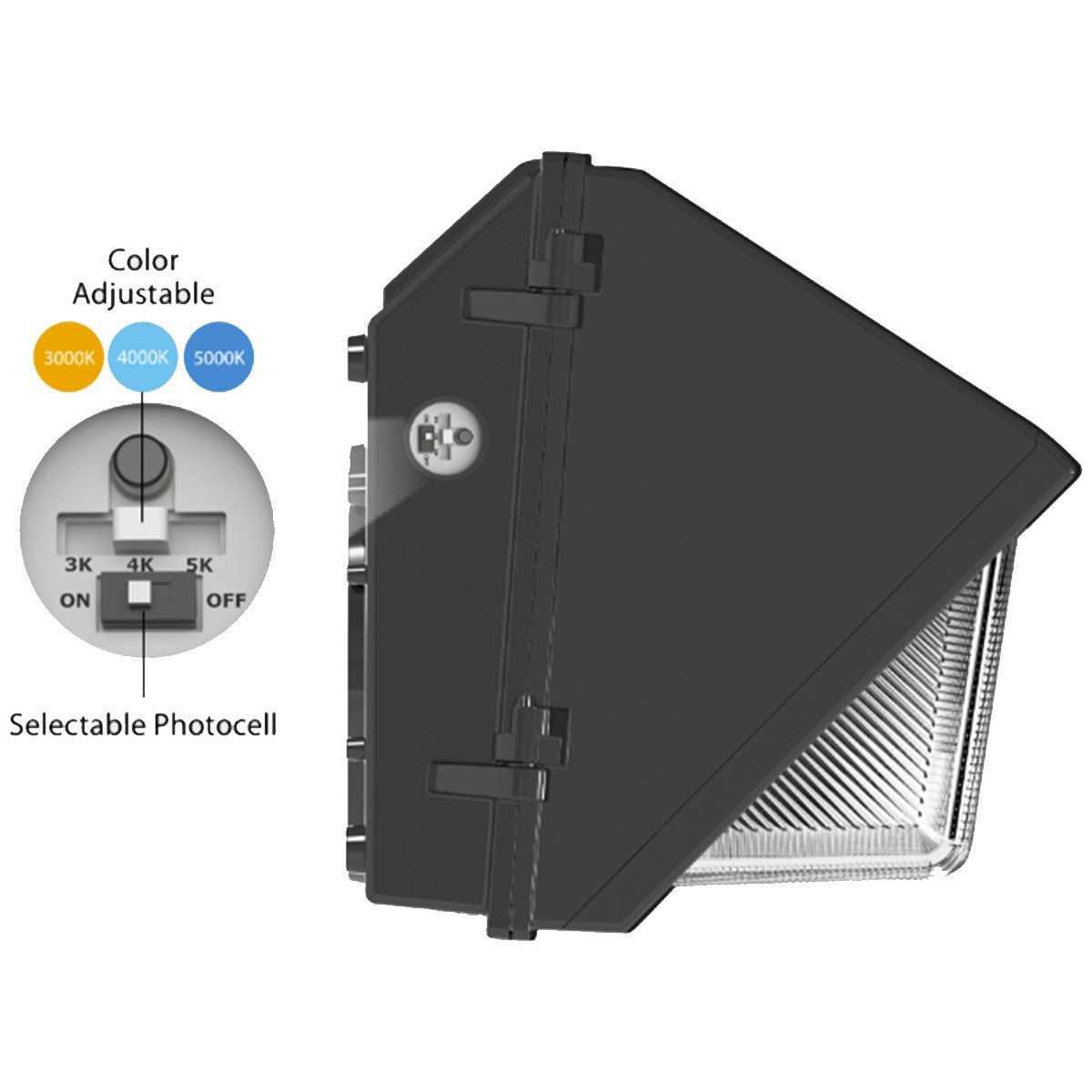

• Dusk-to-Dawn Photocell (Integrated): Factory-installed 120-277V selectable photocell can be turned on for automatic dusk-to-dawn operation or switched off for manual wall-switch and timeclock control.
• 0-10V Continuous Dimming: Driver includes dimming control wiring for 0-10V dimming systems (requires separate 0-10V DC dimming circuit) and dims smoothly down to 10%.
• Wireless Control Option: Available in Lightcloud (/LC) wireless network control configurations.

Electrical

Powered by a Constant Current, Class 1 driver operating on 120-277V AC at 50/60Hz with a Power Factor of 99% at 120V (96% at 277V) and Total Harmonic Distortion (THD) of 13.55% at 120V (8.51% at 277V). Includes pre-wired 0-10V dimming leads (dims down to 10%) and a factory-installed 120-277V selectable on/off photocell.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

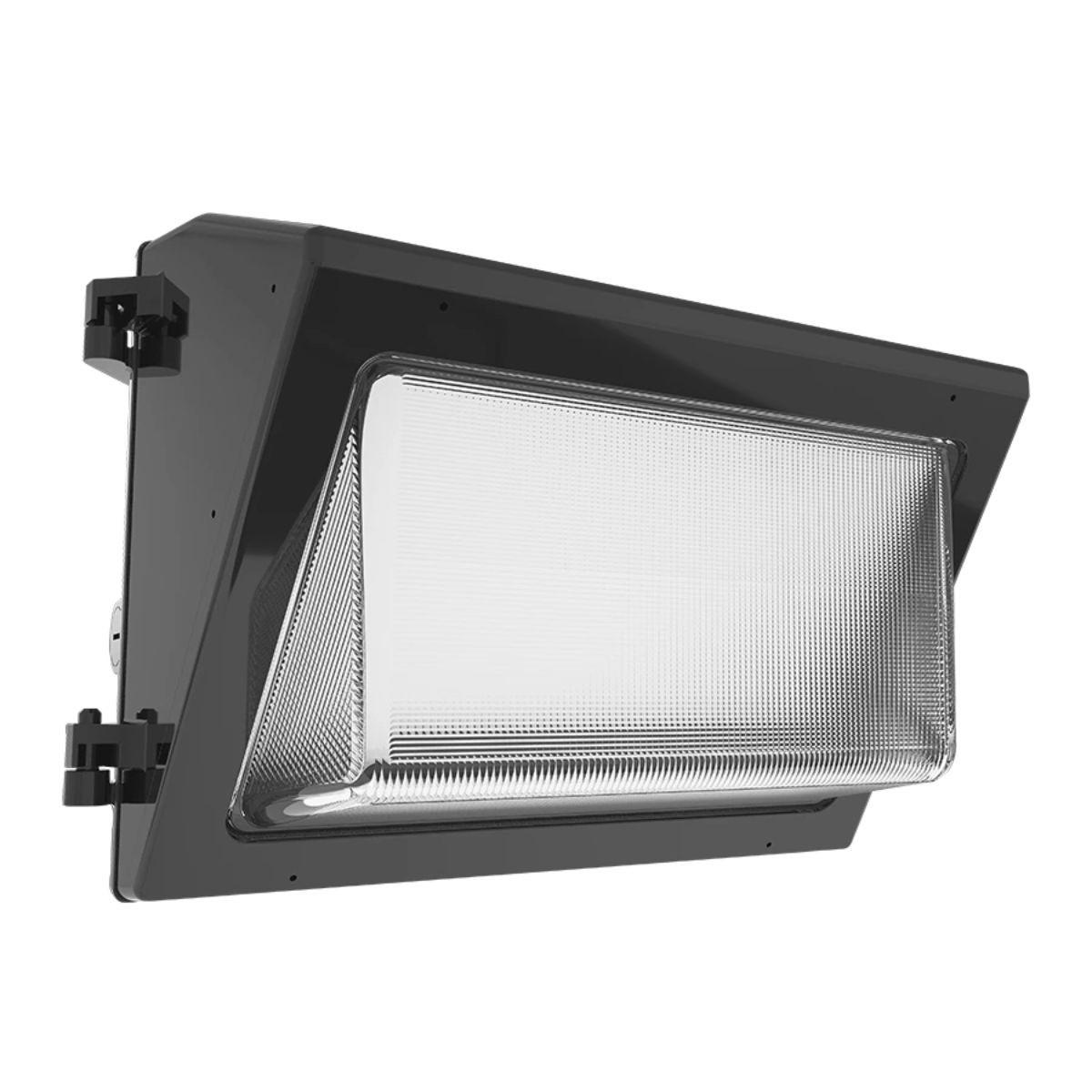

Housing & Thermal: Die-cast aluminum housing and side-hinged front frame with engineered passive convection cooling.

Finish: High-durability Bronze powder-coat finish formulated for long-lasting color and weather resistance.

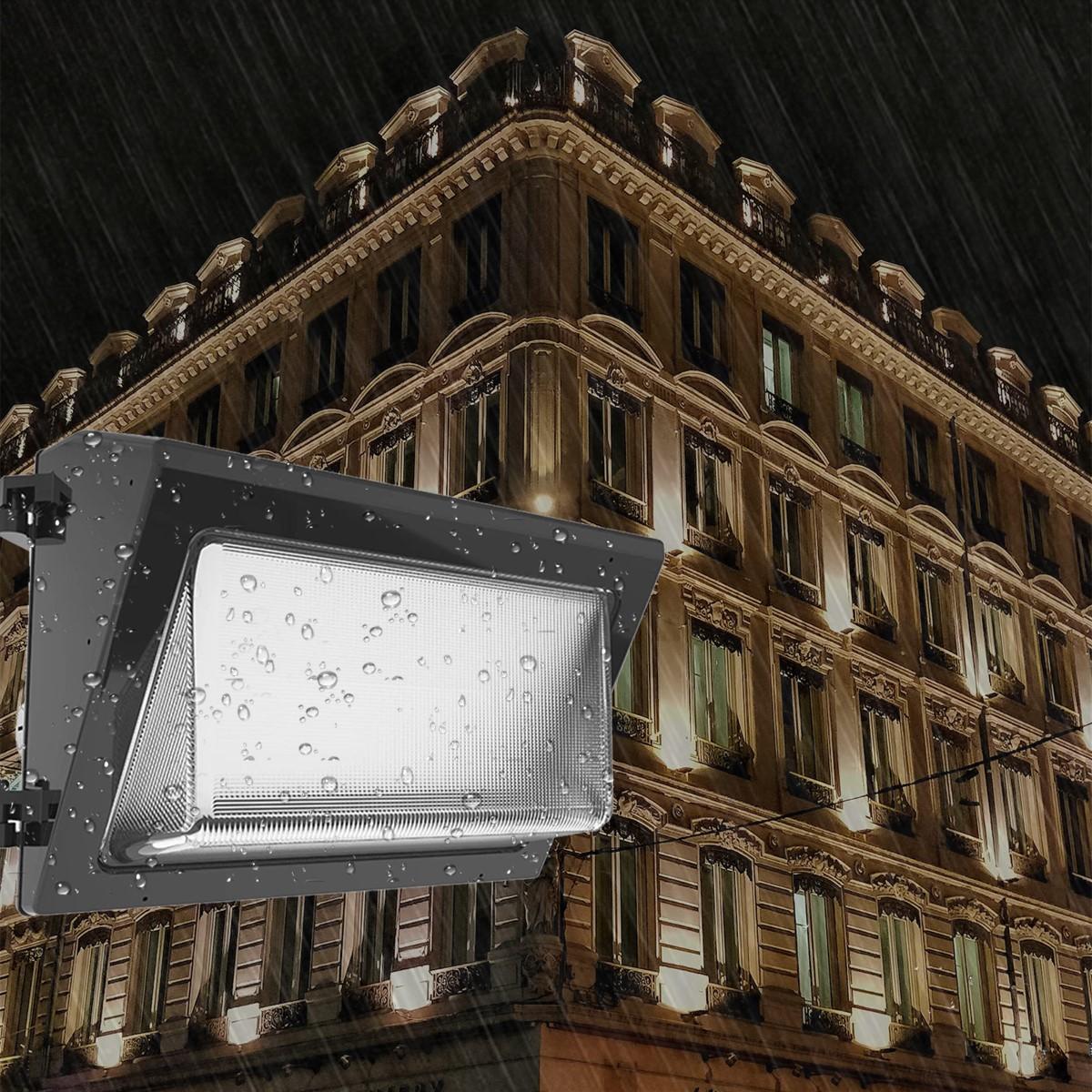

Environmental Sealing: IP65 weatherproof rated for dust and water protection and UL Listed for wet locations. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

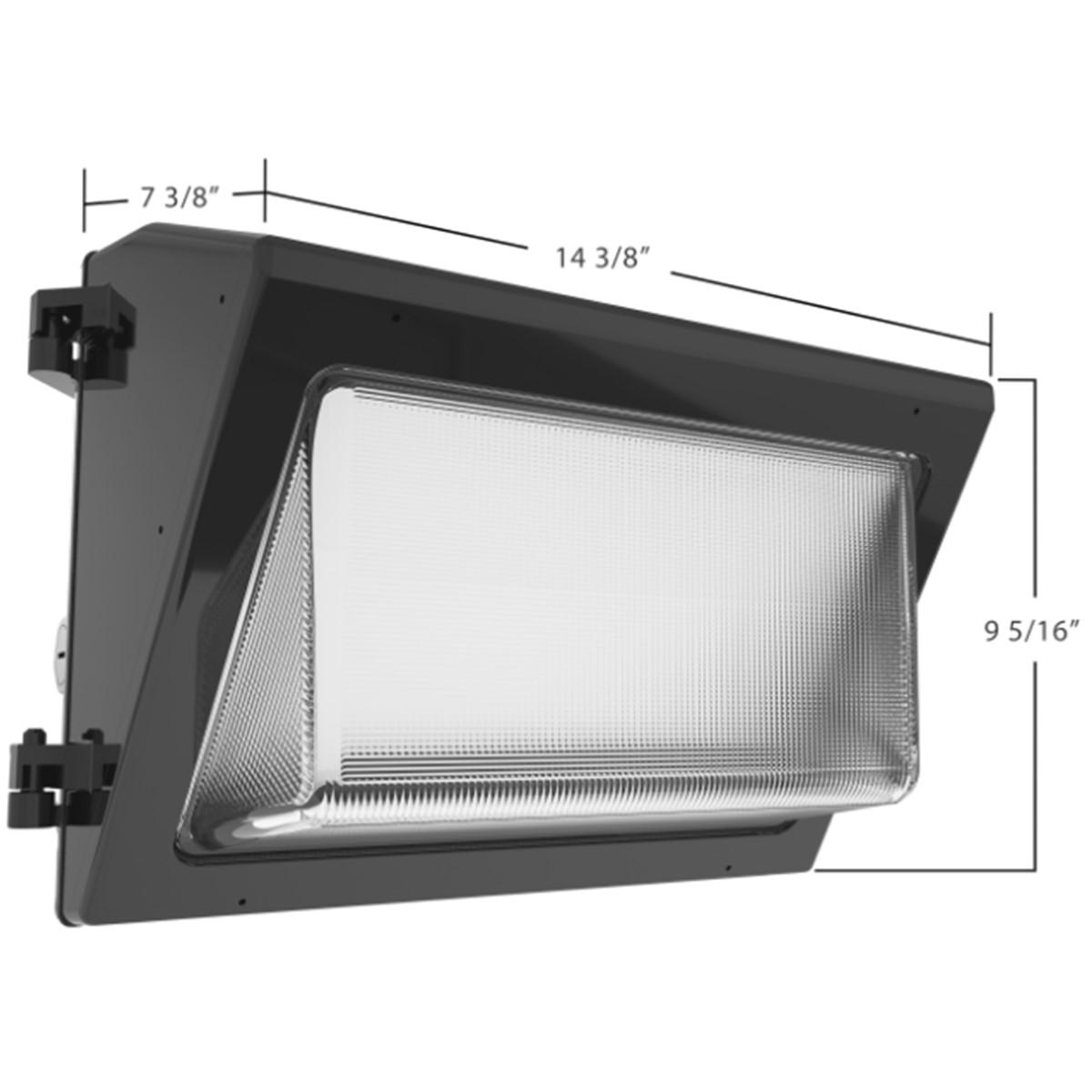

Dimensions & Weight: 14.25" W x 8.63" H x 6.50" D (14 1/4" W x 8 5/8" H x 6 1/2" D). Fixture weight: 7.9 lbs.

Installation & Mounting

Mounting Hardware: 14.25" W x 8.63" H x 6.50" D die-cast aluminum backplate with side-hinged door assembly mounts directly over standard junction boxes for hands-free wiring while covering medium-profile legacy HID wall footprints.

Conduit & Wiring Access: Side-hinged housing swings open for hands-free wiring access and features threaded side conduit knockouts.

Certifications & Rebates

• DLC Premium Listed: Qualifies for commercial lighting utility rebate programs nationwide
• UL Listed: Certified for wet locations per UL outdoor luminaire standards
• IESNA LM-79 & LM-80 Tested: Tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards
• BAA Compliant Option: Available to be manufactured compliant with the Buy American Act (BAA) upon request
• RoHS Compliant: Mercury and UV free with RoHS-compliant components

Typical Applications

• Building Entrances, Exits & Egress Doorways - Up to 11,606 lumens and an integrated selectable on/off photocell provide automated dusk-to-dawn security illumination above commercial doorways
• Commercial Perimeter Walls & Alleyways - Medium-profile 14.25" x 8.63" footprint covers legacy 400W Metal Halide wall pack stains while the tempered glass lens and IP65 housing resist weather and UV aging
• Loading Docks & Warehouse Exteriors - Multi-volt 120-277V Class 1 driver with 0.65A max current at 120V (0.30A at 277V) supports high fixture counts per branch circuit
• Industrial & Cold-Storage Perimeters - Reliable -40°F (-40°C) cold-weather starting to 122°F (50°C) maximum ambient rating ensures year-round exterior security operation
• Retail, School & Municipal Campuses - DLC Premium listing and 100,000-hour L70 lifespan maximize utility rebate returns and reduce maintenance costs

What's Included

• RAB WP2FA80 Field-Adjustable Wall Pack - Bronze
• Pre-installed 120-277V selectable on/off photocell
• Installation hardware and operation manual
