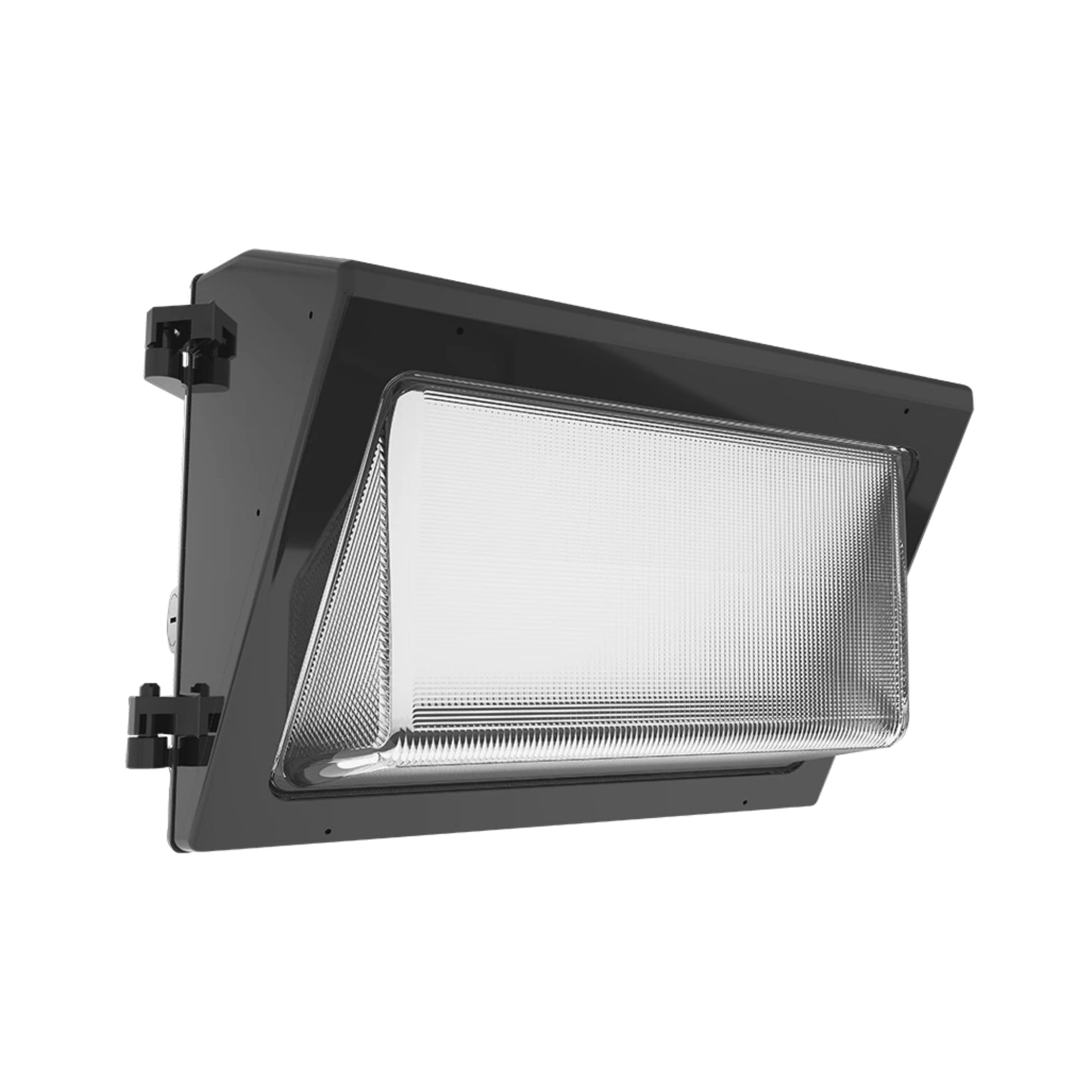

RAB WP2 Field-Adjustable LED Wall Pack — 29W, 120–277V, Bronze

The RAB WP2FA29 is a high-performance, traditional-style field-adjustable LED wall pack delivering up to 4,350 lumens at 29W. Designed to replace older 125W Metal Halide fixtures, this model features adjustable 3000K/4000K/5000K color temperatures to suit the aesthetic of any commercial or industrial property. Operating on a universal 120–277V driver, it includes an integrated selectable on/off photocell to ensure your facility is safely illuminated from dusk until dawn. With its rugged die-cast aluminum construction and IP65 Wet Location rating, the WP2FA29 is built to withstand harsh outdoor elements while providing superior light uniformity.

Key Features

• Wattage: 29W
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 4,176 to 4,350 lumens (up to 152.5 LPW)
• Voltage: 120–277V input
• Dimming: 0–10V dimming standard (dims down to 10%)
• Controls: Integrated 120-277V selectable on/off photocell included
• CRI: 80+
• HID Equivalent: Replaces up to 125W Metal Halide
• Environmental Ratings: IP65 Wet Location rated

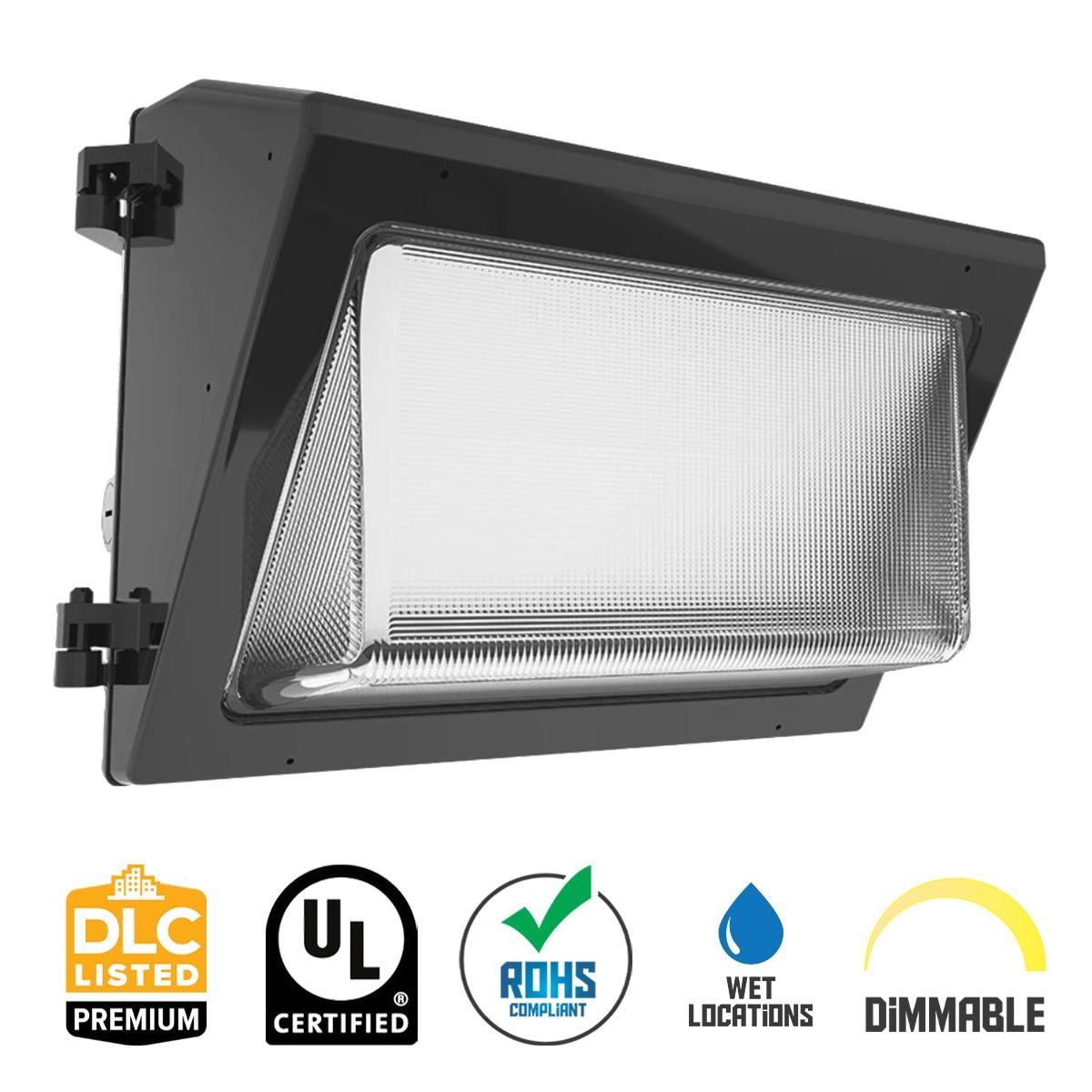

• Certifications: DLC Premium Listed, UL Listed, RoHS Compliant
• Estimated Life: 100,000 hours (L70)

Typical Applications

• Building perimeters and facades
• Security and pathway lighting
• Parking areas and loading docks
• Commercial and industrial exteriors
• HID glass wall pack replacement/renovation

Performance & Light Output

The WP2FA29 provides high-efficacy illumination ranging from 4,176 to 4,350 lumens, depending on the chosen color temperature setting. Its advanced LED engine and aluminum reflector system provide wide, uniform distribution through a prismatic tempered glass lens. This model is exceptionally efficient, reaching up to 152.5 lumens per watt. The long-life LEDs are rated for 100,000 hours, virtually eliminating the need for bulb or ballast changes over the fixture's lifespan.

Electrical & Controls

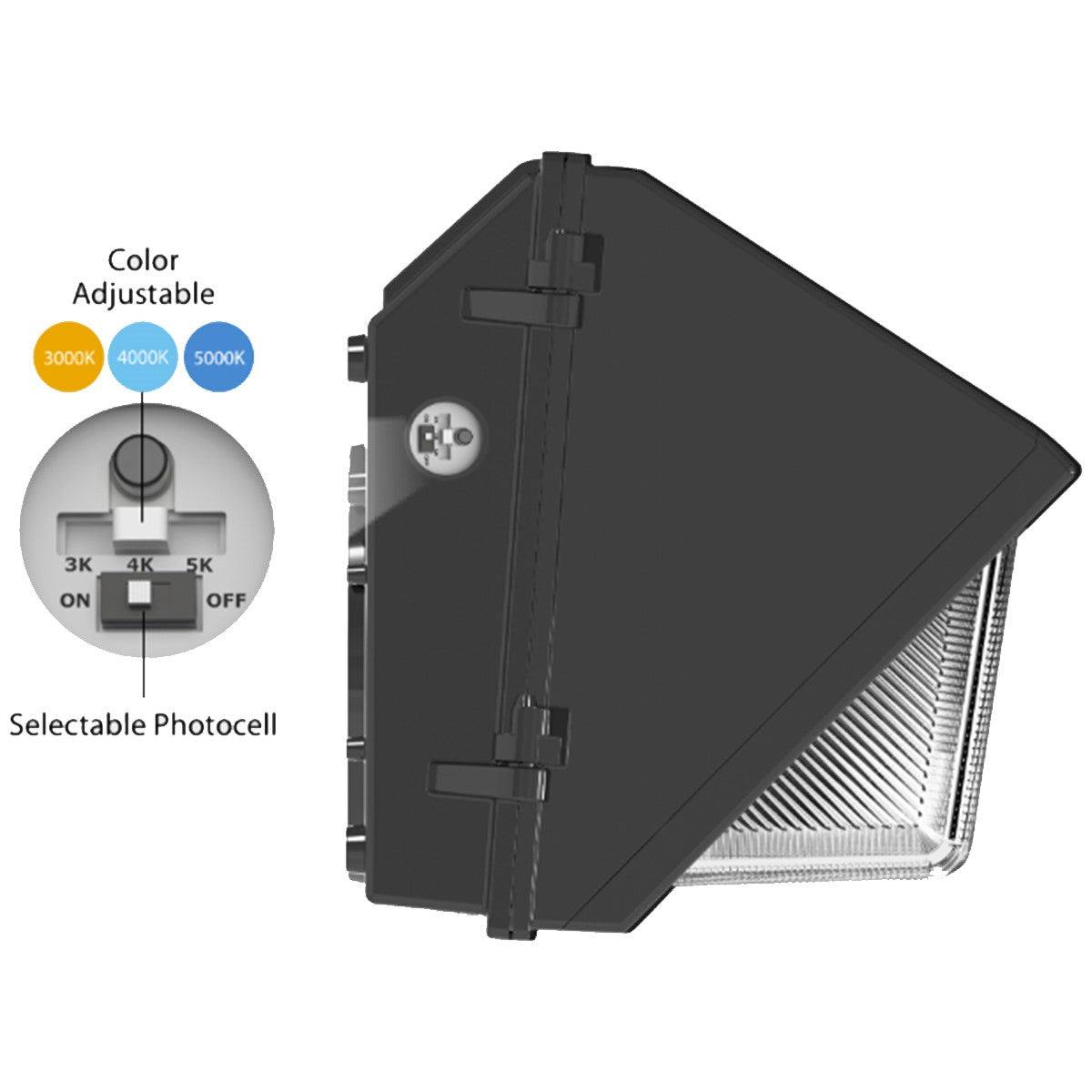

This fixture features a constant current, Class 2 120–277V AC driver. It supports 0–10V dimming and is designed with flicker-free diodes for superior visual comfort. The integrated button photocell offers convenient automated control; however, it can be easily bypassed via an internal on/off switch if the fixture is connected to a separate timer or control system.

Construction & Durability

The WP2 series is built for durability, featuring a heavy-duty die-cast aluminum housing and high-temperature silicone gaskets that ensure an airtight, waterproof seal. The tempered glass lens is heat and impact-resistant, protecting the LEDs from the environment and vandalism. It operates in extreme temperatures ranging from -40°C (-40°F) to 50°C (122°F), making it suitable for any climate.

Installation & Mounting

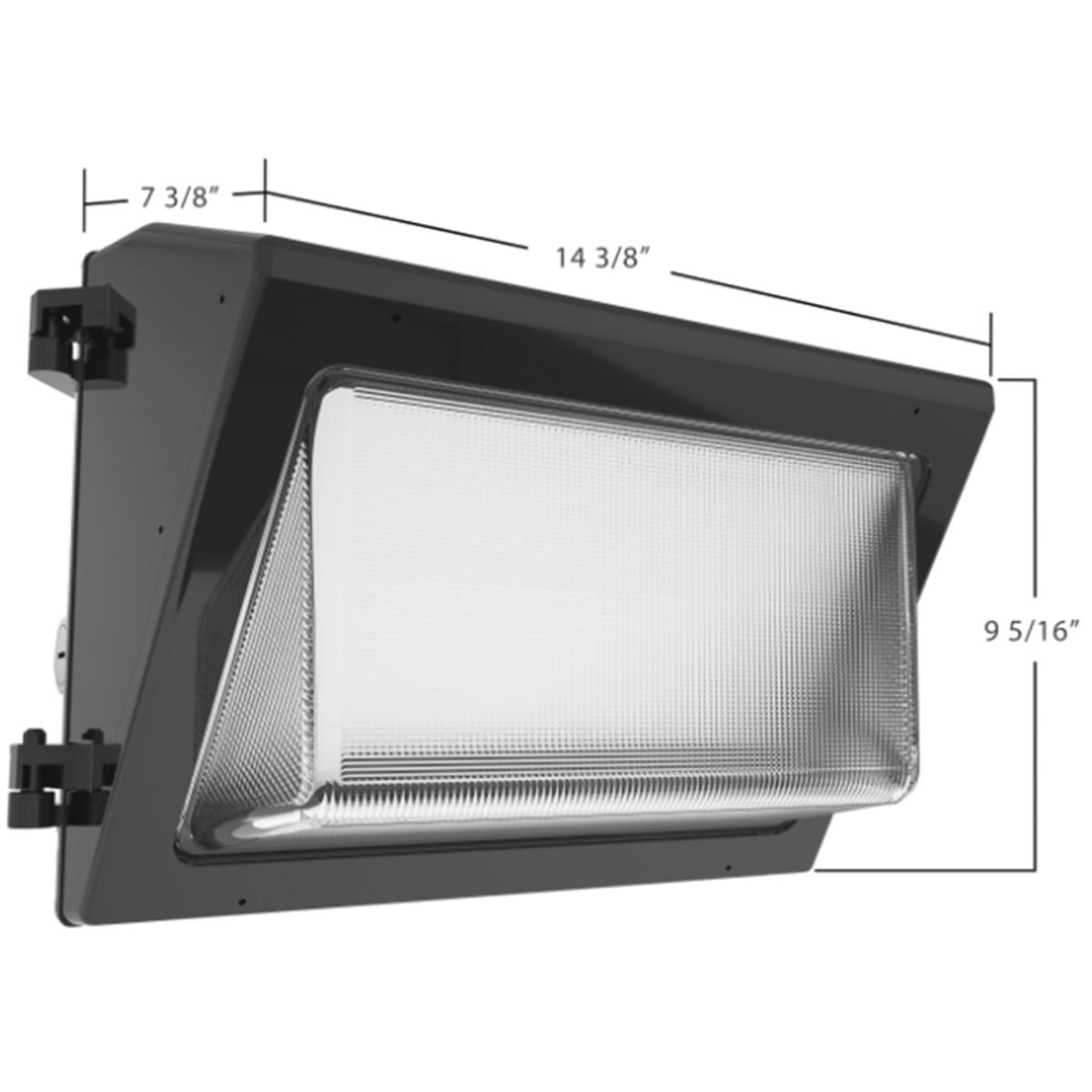

With a large 14.38" width, the WP2FA29 is ideal for retrofit projects as its footprint typically covers unsightly "ghosting" or stains left by previous HID fixtures. The housing includes multiple 1/2" conduit entry points (back and sides) and a mounting pattern that aligns with standard 4" junction boxes for a straightforward installation.

What's Included

• RAB WP2FA29 LED Wall Pack (Bronze)
• Integrated Selectable Photocell
