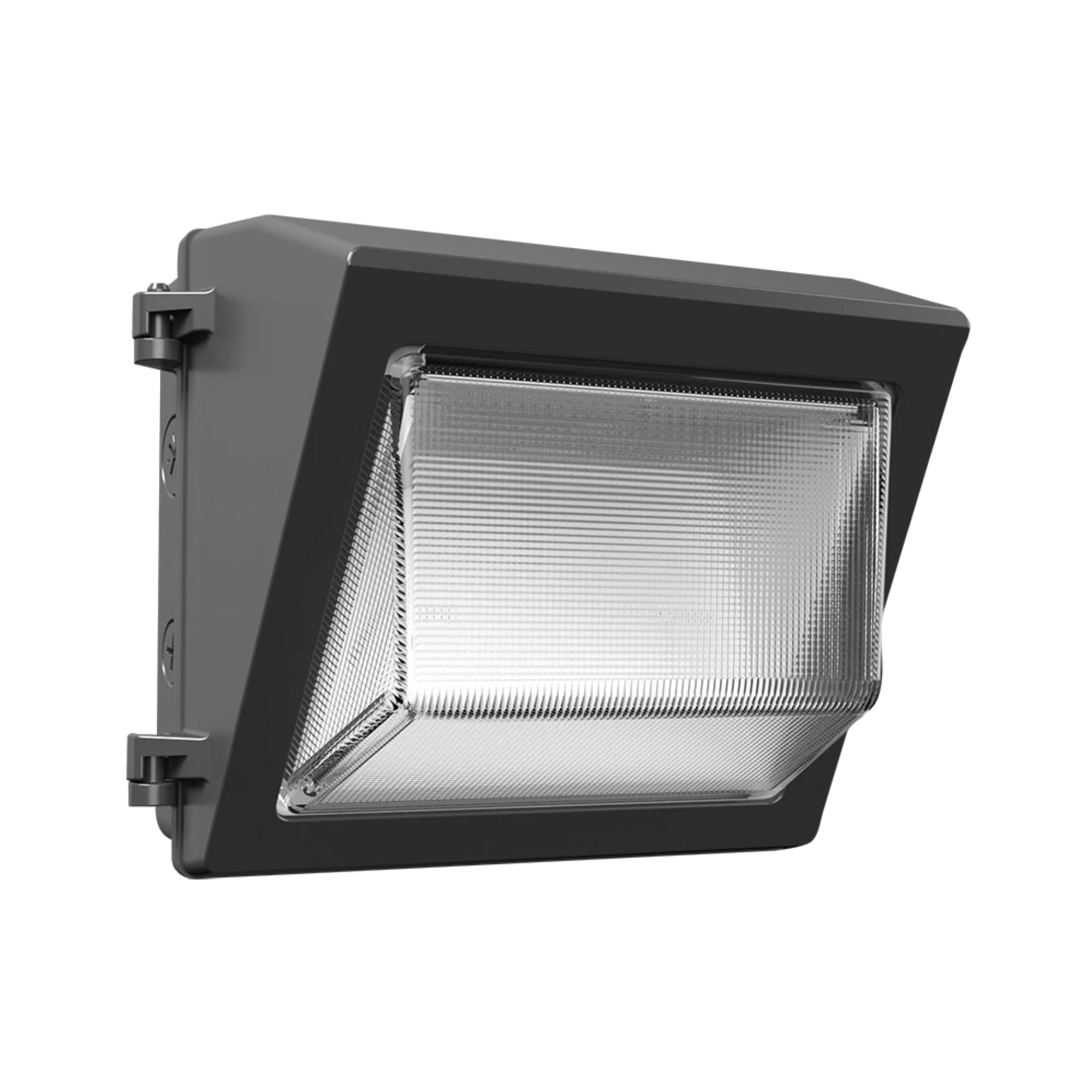

RAB WP1XFU29 WP1 Field-Adjustable Wall Pack 4,283 Lumens 15/20/29W Selectable 30K/40K/50K 120-277V Photocell Bronze
Available in stock (200)
About this item
About this item

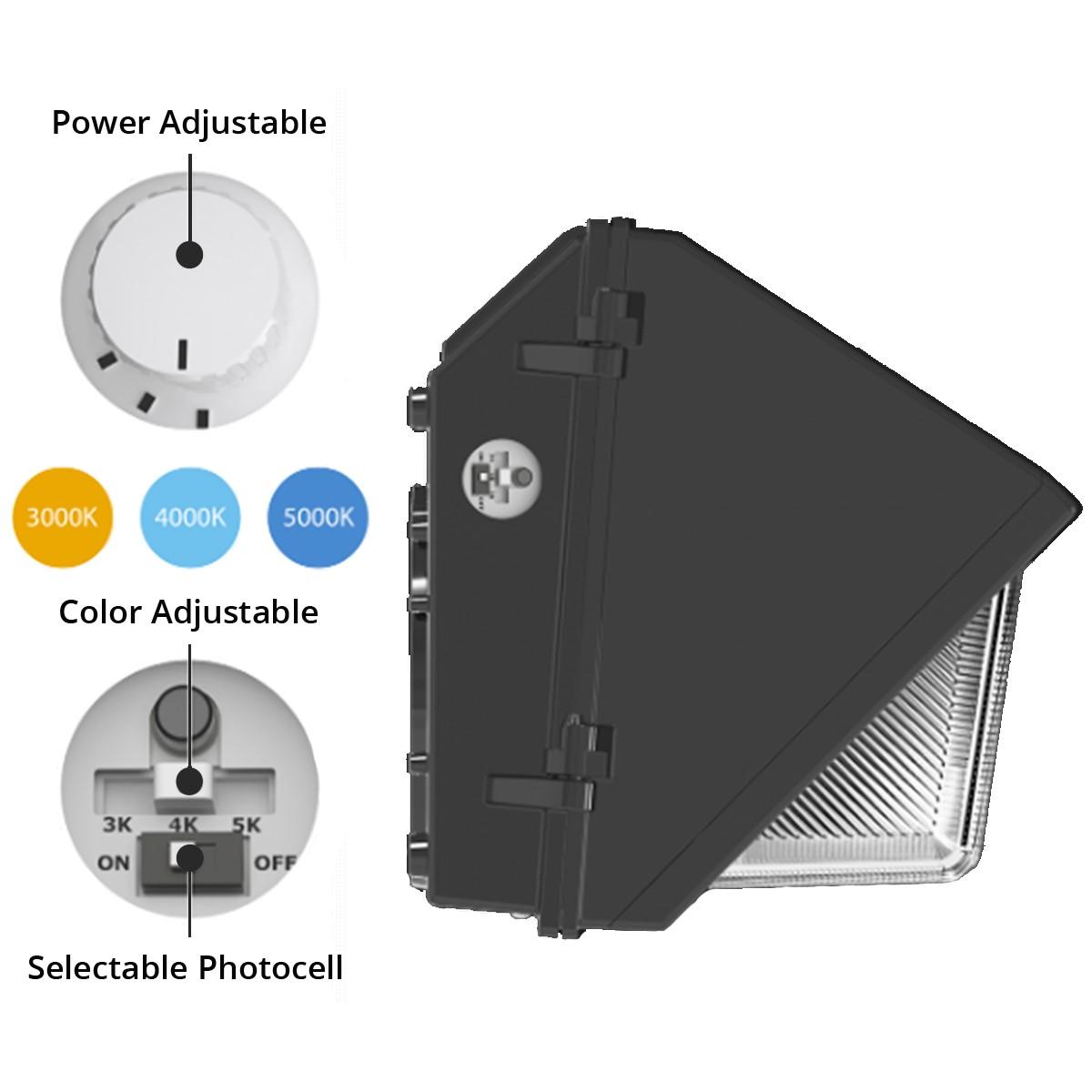

- 3-Way Field Adjustability: Features selectable wattage (15W/20W/29W) and selectable color temperature (3000K/4000K/5000K) for ultimate on-site customization.
- High Efficacy: Delivers up to 4,283 lumens with an impressive efficacy of up to 148.3 lm/W, providing a powerful replacement for up to 125W Metal Halide fixtures.
- Integrated Photocell: Comes equipped with a 120-277V selectable on/off photocell for automated dusk-to-dawn operation and energy savings.
- Superior Longevity: Rated for a 100,000-hour LED lifespan, significantly reducing maintenance costs over the life of the fixture.
- Rugged Build: Constructed with a precision die-cast aluminum housing and a tempered glass lens, carrying an IP65 rating for protection against dust and water.
We process payments securely and do not store credit card information.
Description
Description
RAB WP1 XFU Field-Adjustable LED Wall Pack — 15-29W Selectable, 120–277V, Bronze
The RAB WP1XFU29 is a highly adaptable field-adjustable LED wall pack delivering up to 4,283 lumens. Part of the XFU series, this fixture offers 3-way adjustability, allowing installers to select between 15W, 20W, or 29W of power and 3000K, 4000K, or 5000K color temperatures. Operating on a 120–277V universal driver, it includes an integrated selectable on/off photocell to provide automated security lighting. Its IP65 rating and durable die-cast aluminum housing make it a reliable choice for building perimeters, entryways, and general outdoor lighting applications.
Key Features
- Wattage: 15W / 20W / 29W Selectable (29W default)
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 2,115 to 4,283 lumens (up to 148.3 LPW)
- Voltage: 120–277V input
- Dimming: 0–10V dimming standard (dims down to 10%)
- Controls: Integrated 120-277V selectable on/off photocell included
- CRI: 82-84
- HID Equivalent: Replaces up to 125W Metal Halide
- Environmental Ratings: IP65 rated for Wet Locations

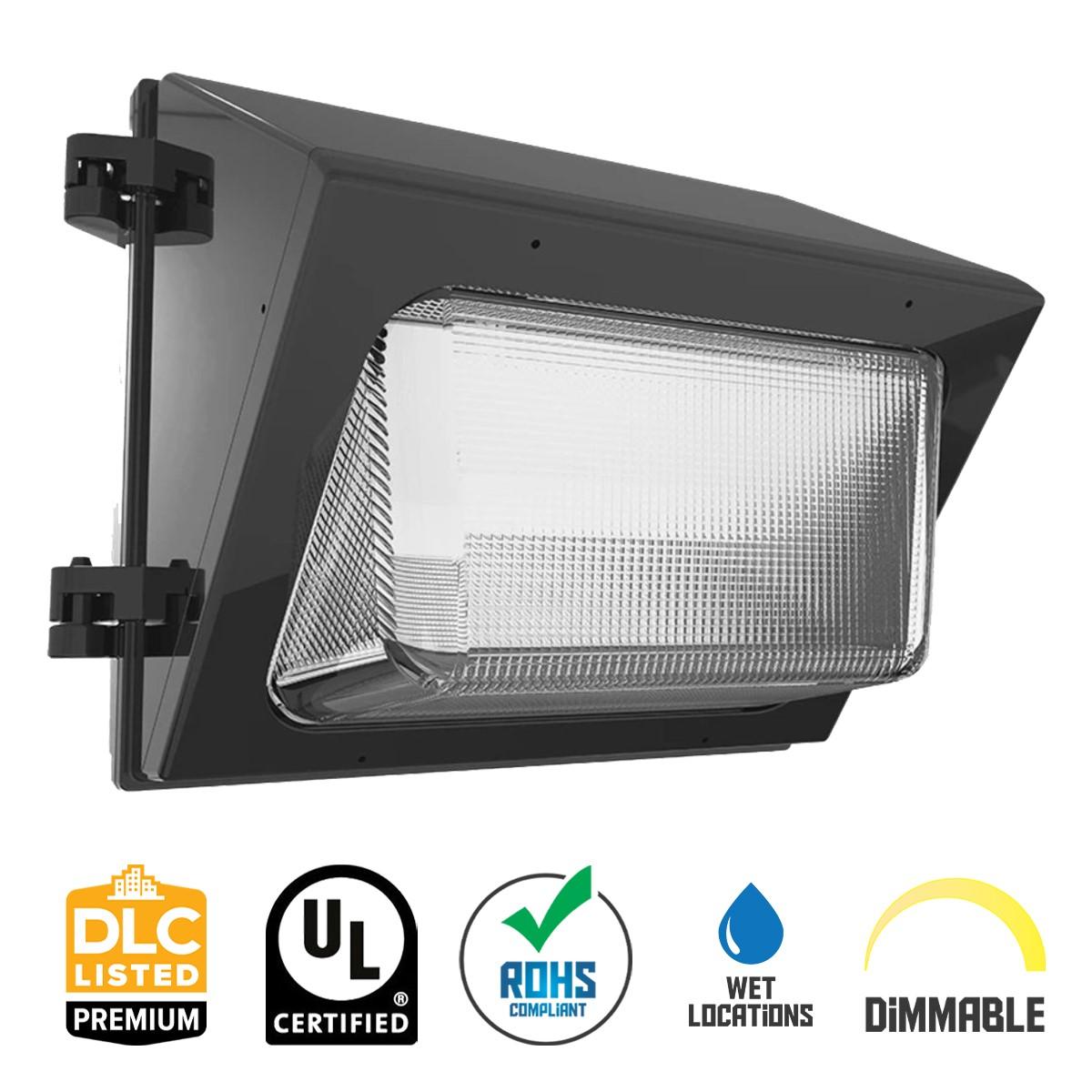

- Certifications: UL Listed, RoHS Compliant
- Estimated Life: 100,000 hours (L70)

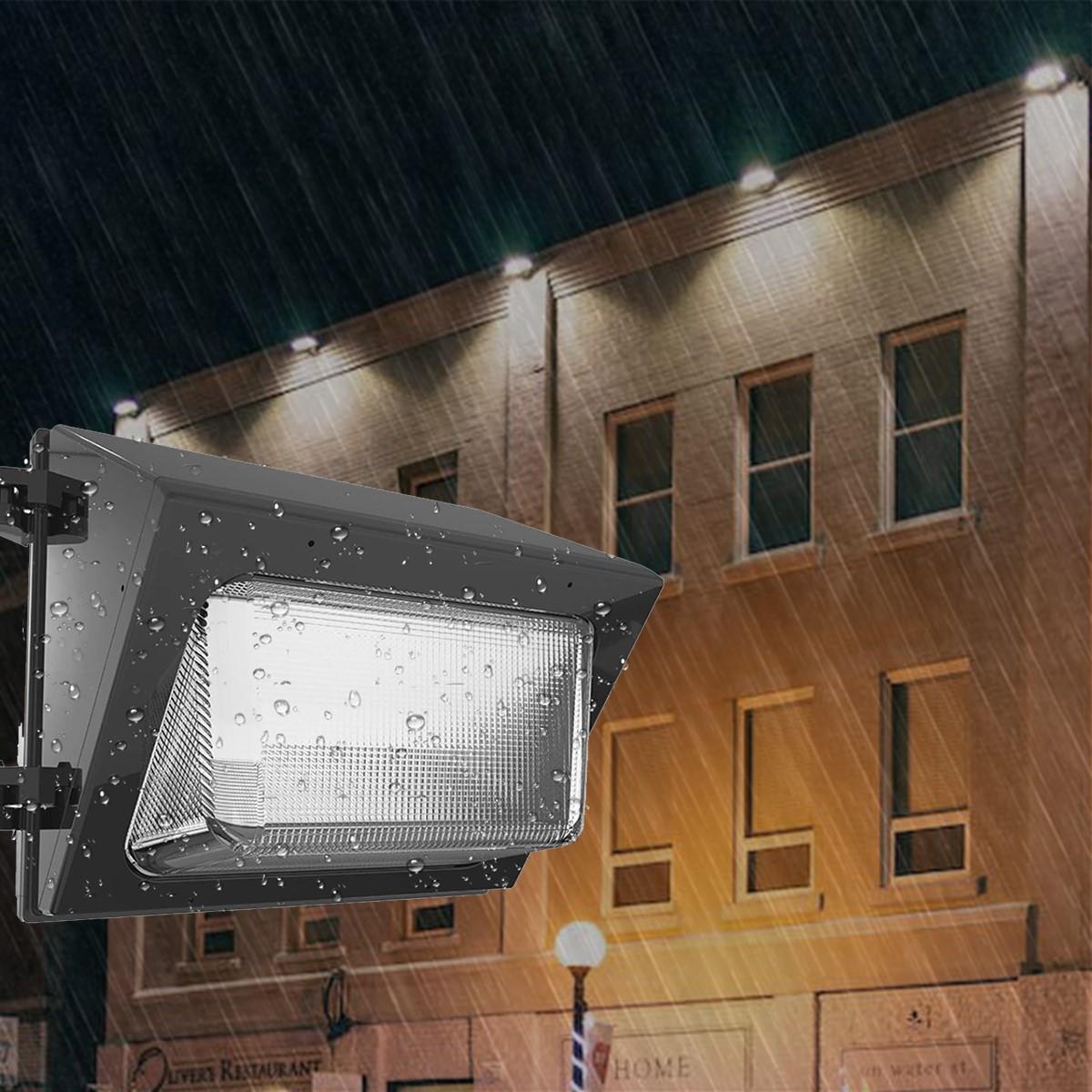

Typical Applications
- Building perimeters and facades
- Security and pathway lighting
- Entryways and loading docks
- Commercial and residential exteriors
Performance & Light Output
The WP1XFU29 provides high-efficiency illumination ranging from 2,115 to 4,283 lumens depending on the selected settings. With an efficacy reaching up to 148.3 lumens per watt, it serves as an energy-conscious choice that doesn't compromise on performance. The use of long-life, surface-mount LEDs ensuring a 100,000-hour rated life means this fixture will provide reliable light for years with minimal maintenance.
Electrical & Controls
This fixture features a constant current, Class 1 120–277V AC driver. It includes standard 0–10V dimming capabilities for advanced light control. The integrated photocell is field-selectable, giving users the choice to use automated dusk-to-dawn sensing or bypass it for manual control via an external switch or timer.
Construction & Durability
Built for durability, the WP1XFU29 features a precision die-cast aluminum housing and a tempered glass lens. The finish is formulated for high durability and long-lasting color. It is IP65 rated, protecting it against dust ingress and water spray. The fixture is also designed for extreme weather, with a cold-weather starting temperature as low as -40°C (-40°F) and a high ambient temperature rating up to 50°C (122°F) at max power.
Installation & Mounting

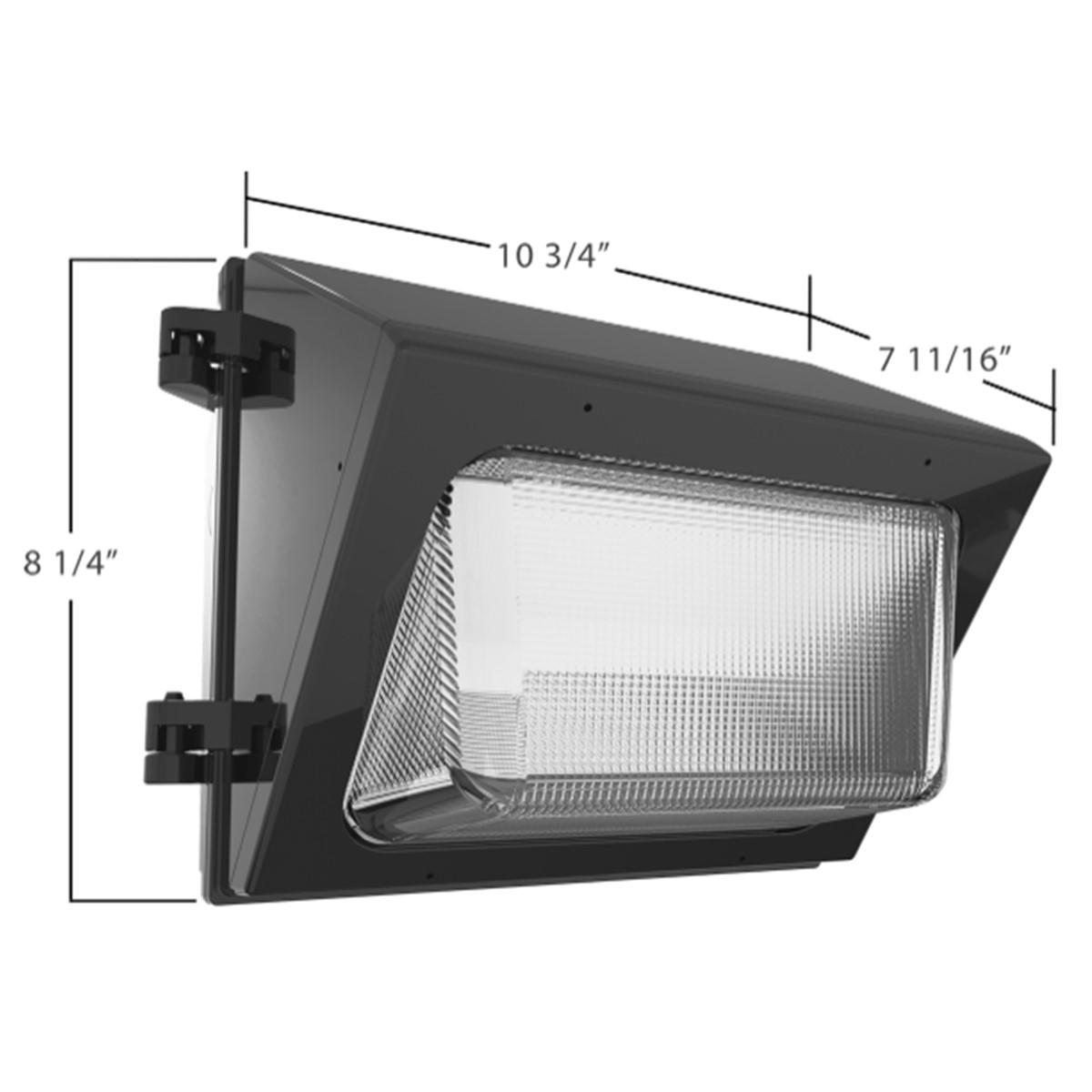

Designed for traditional wall mounting, the WP1XFU29 is a straightforward replacement for legacy HID fixtures. Its lightweight 6.6 lb design and standard mounting pattern allow for a quick and secure installation on a variety of outdoor surfaces.
What's Included
- RAB WP1XFU29 LED Wall Pack (Bronze)
- Integrated Selectable Photocell
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, the integrated 120-277V photocell includes an on/off switch, allowing you to choose between automated dusk-to-dawn operation or manual control.
Yes, the integrated 120-277V photocell includes an on/off switch, allowing you to choose between automated dusk-to-dawn operation or manual control.
What traditional lighting does this replace?
What traditional lighting does this replace?
The WP1XFU29 can replace Metal Halide fixtures up to 125W, depending on the wattage setting selected (29W replaces 125W, 20W replaces 100W, and 15W replaces 70W).
The WP1XFU29 can replace Metal Halide fixtures up to 125W, depending on the wattage setting selected (29W replaces 125W, 20W replaces 100W, and 15W replaces 70W).
Is the RAB WP1XFU29 dimmable?
Is the RAB WP1XFU29 dimmable?
Yes, the fixture comes standard with a 0-10V dimming driver, which allows for smooth dimming down to 10% (requires a compatible 0-10V dimming switch).
Yes, the fixture comes standard with a 0-10V dimming driver, which allows for smooth dimming down to 10% (requires a compatible 0-10V dimming switch).
