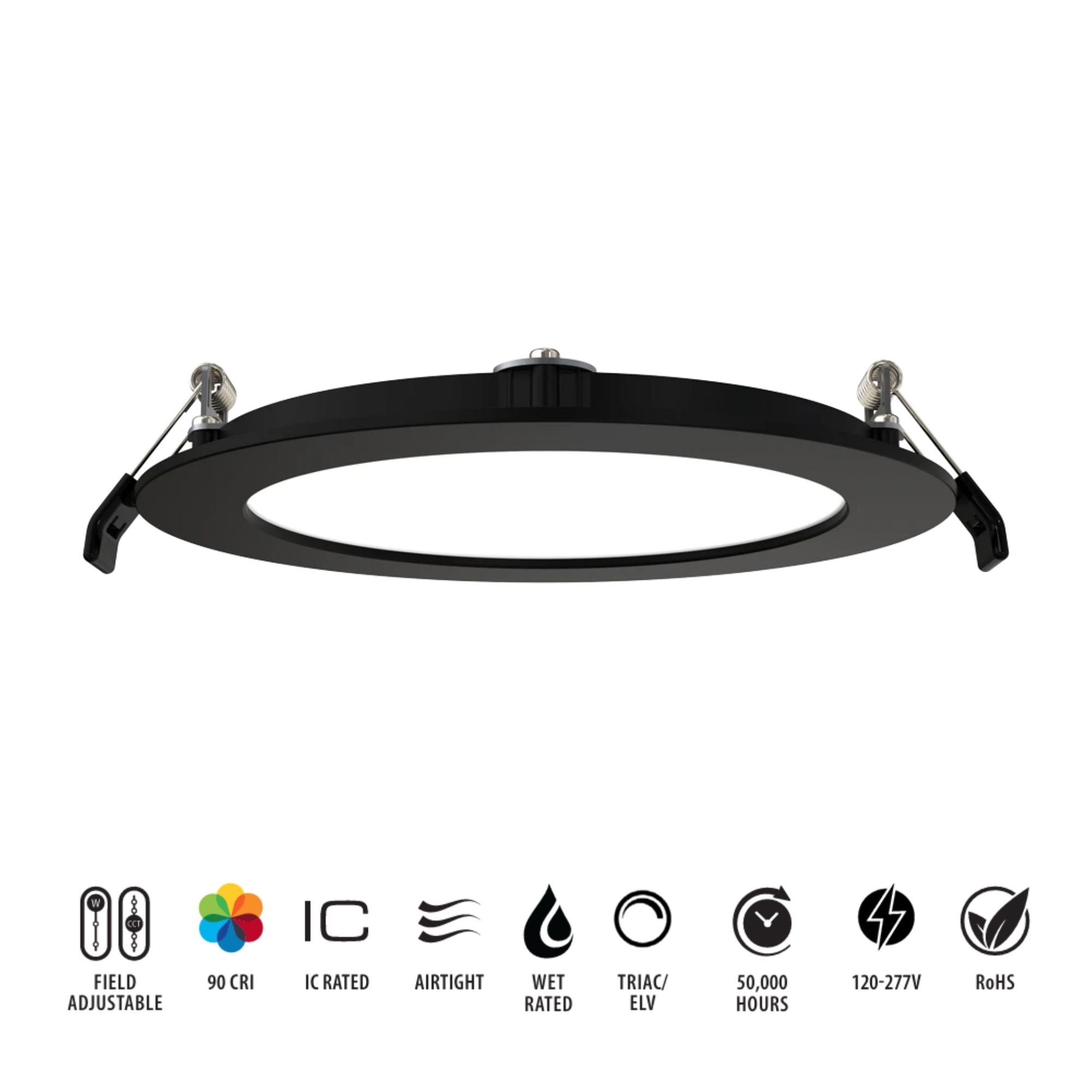

RAB WFRX-6D-K 6 in. Ultra Thin Downlight — 15W / Selectable CCT

The RAB WFRX-6D-K is a 6-inch ultra-thin downlight delivering up to 1350 lumens using 15W. This versatile fixture offers selectable color temperatures ranging from 2700K to 5000K, making it ideal for various lighting needs. Designed for both residential and commercial applications, it operates on 120-277V and is compatible with TRIAC/ELV dimming systems.

Key Features

• Wattage Options: 15/13/11W selectable
• Lumens: 1350/1100/900lm
• Voltage: 120-277V
• CRI: 90 for high color accuracy
• Beam Angle: 110°±10°
• Energy Star Certified: Yes
• Title 24 Compliant: Meets California standards
• RoHS Compliant: Mercury and UV free
• IC Rated: Suitable for direct contact with insulation
• Operating Temperature: -4°F to 104°F
• Warranty: 5-year no-compromise warranty

Construction & Aesthetics

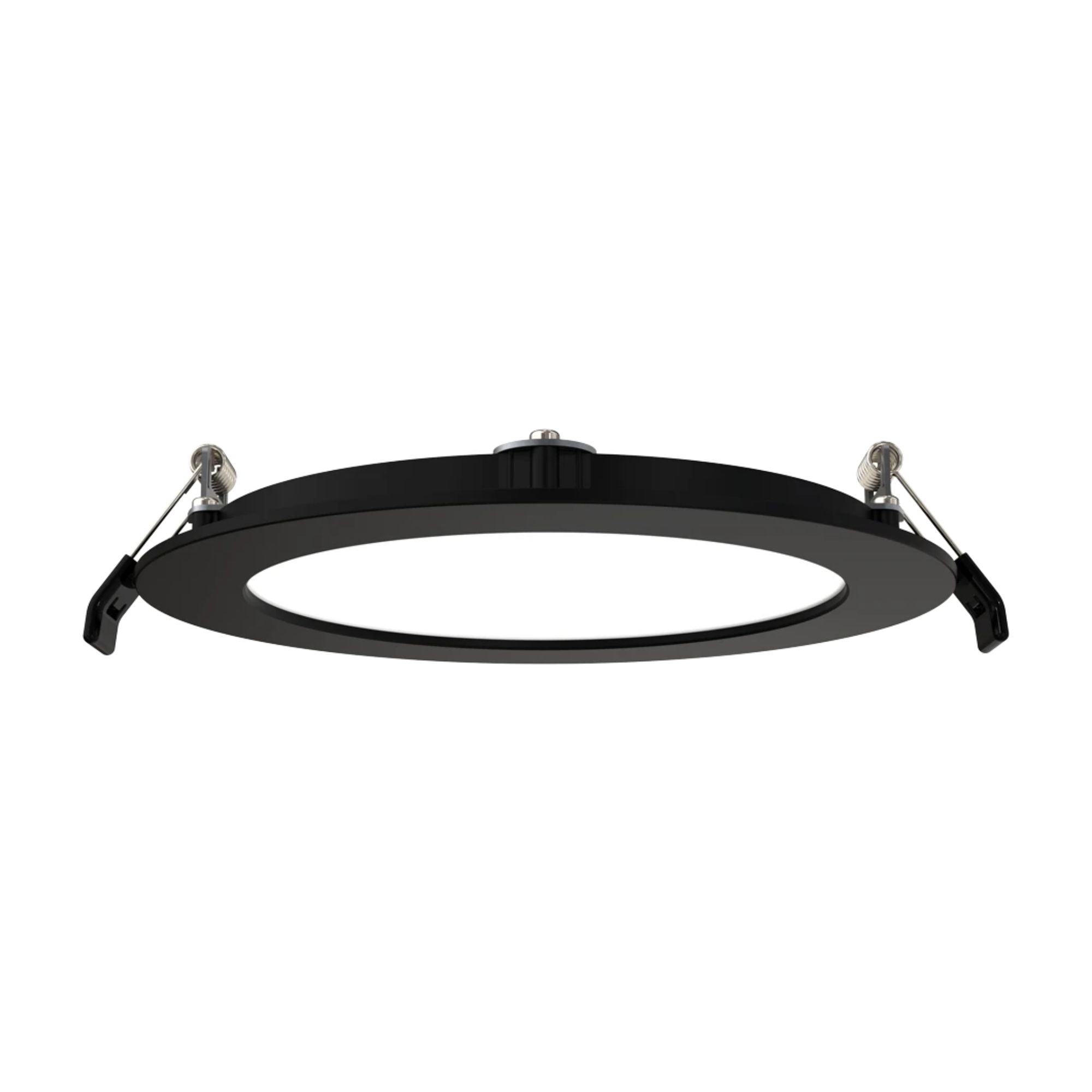

The fixture features a smooth trim style with a frosted polycarbonate lens for even light distribution. The black finish and dead front trim make it suitable for corrosive environments. Optional new construction frames are available for enhanced installation flexibility.

Electrical & Installation

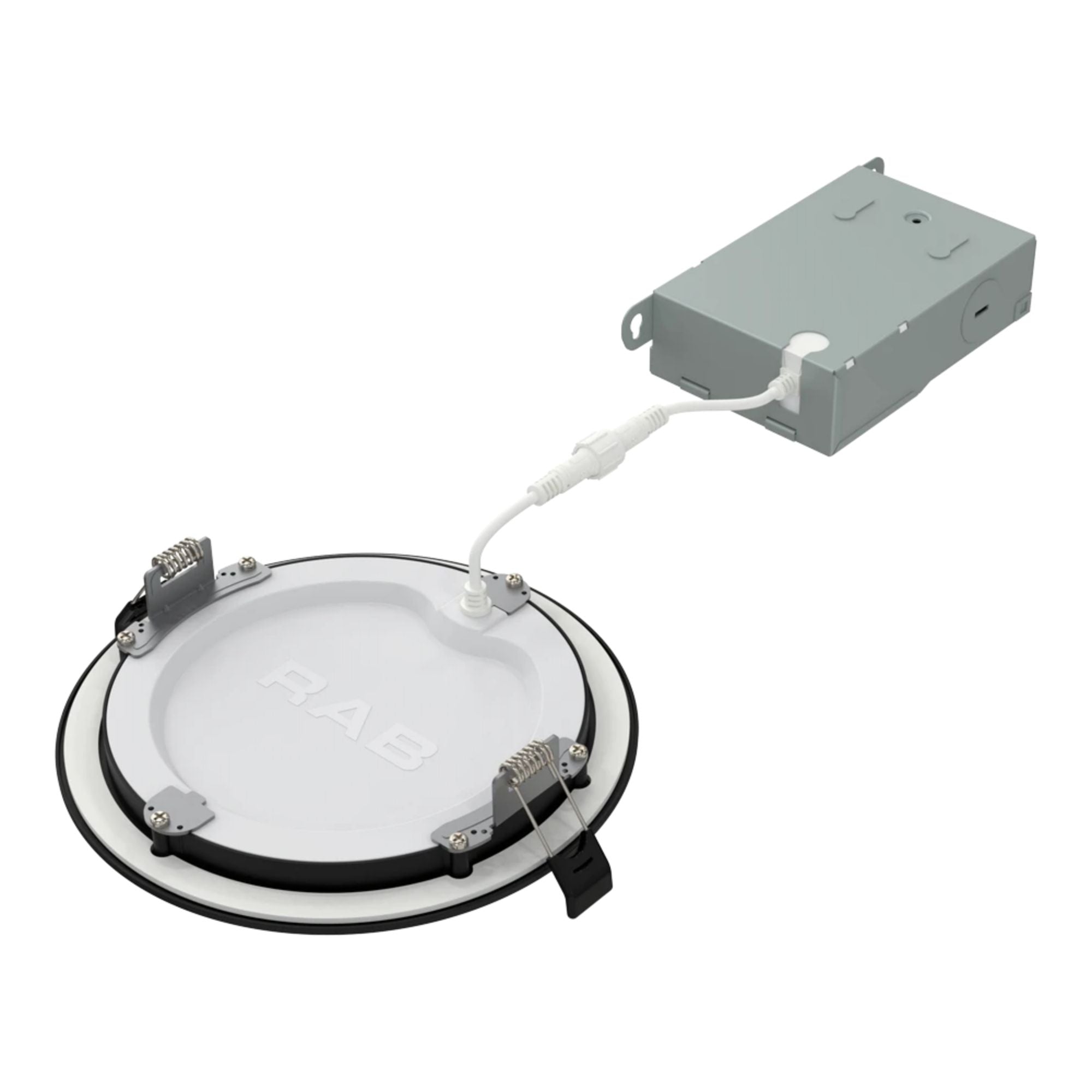

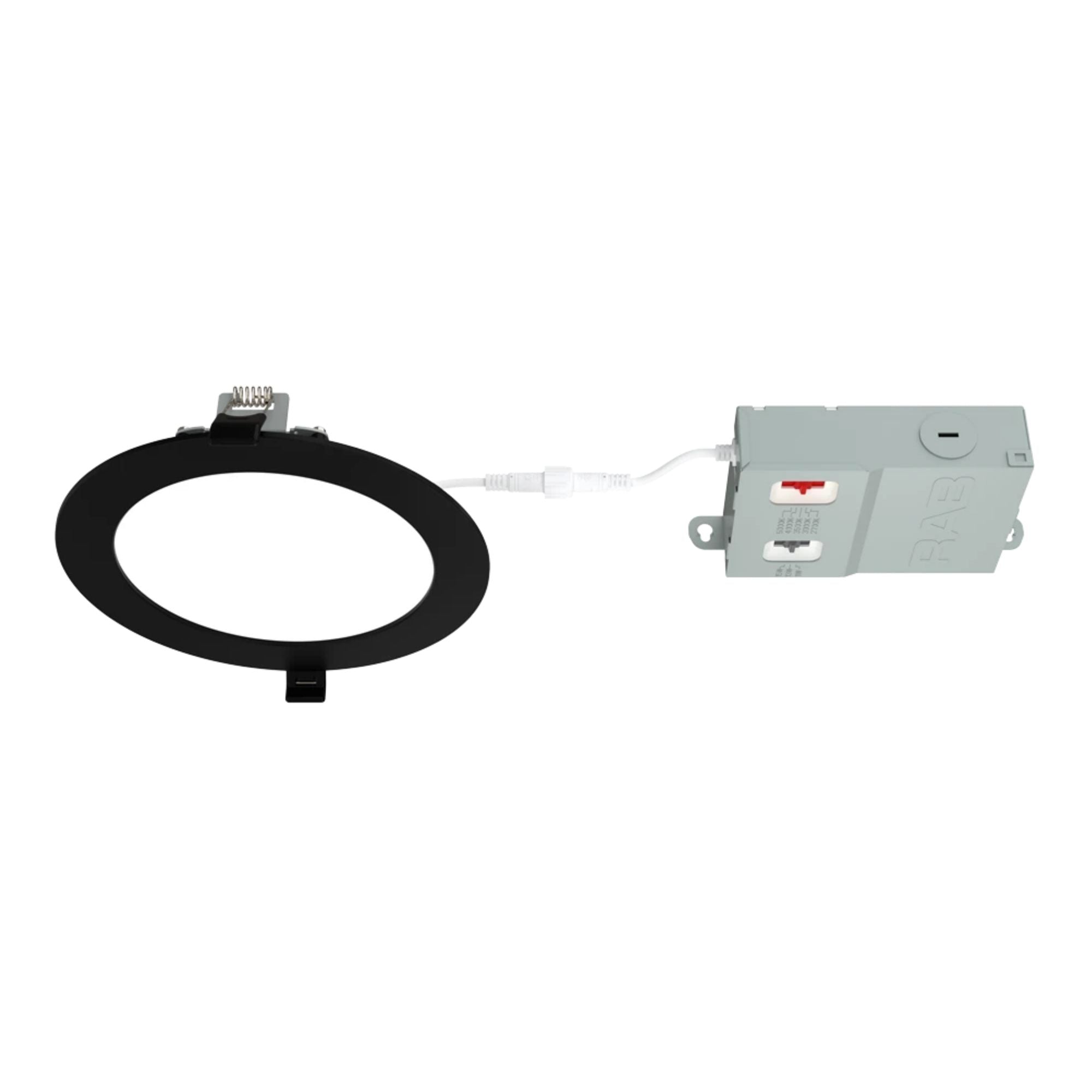

Equipped with a constant current driver, this downlight supports 120-277V input and TRIAC/ELV dimming. It features a die-formed metal driver/junction box with quick snap-in connectors for easy installation. No housing is required, and it can be directly mounted using tension steel spring clips.

Light Output & Performance

With a high efficacy of up to 90 lm/W, this downlight provides consistent color uniformity and stability. It boasts a 50,000-hour LED lifespan, ensuring long-lasting performance.

Typical Applications

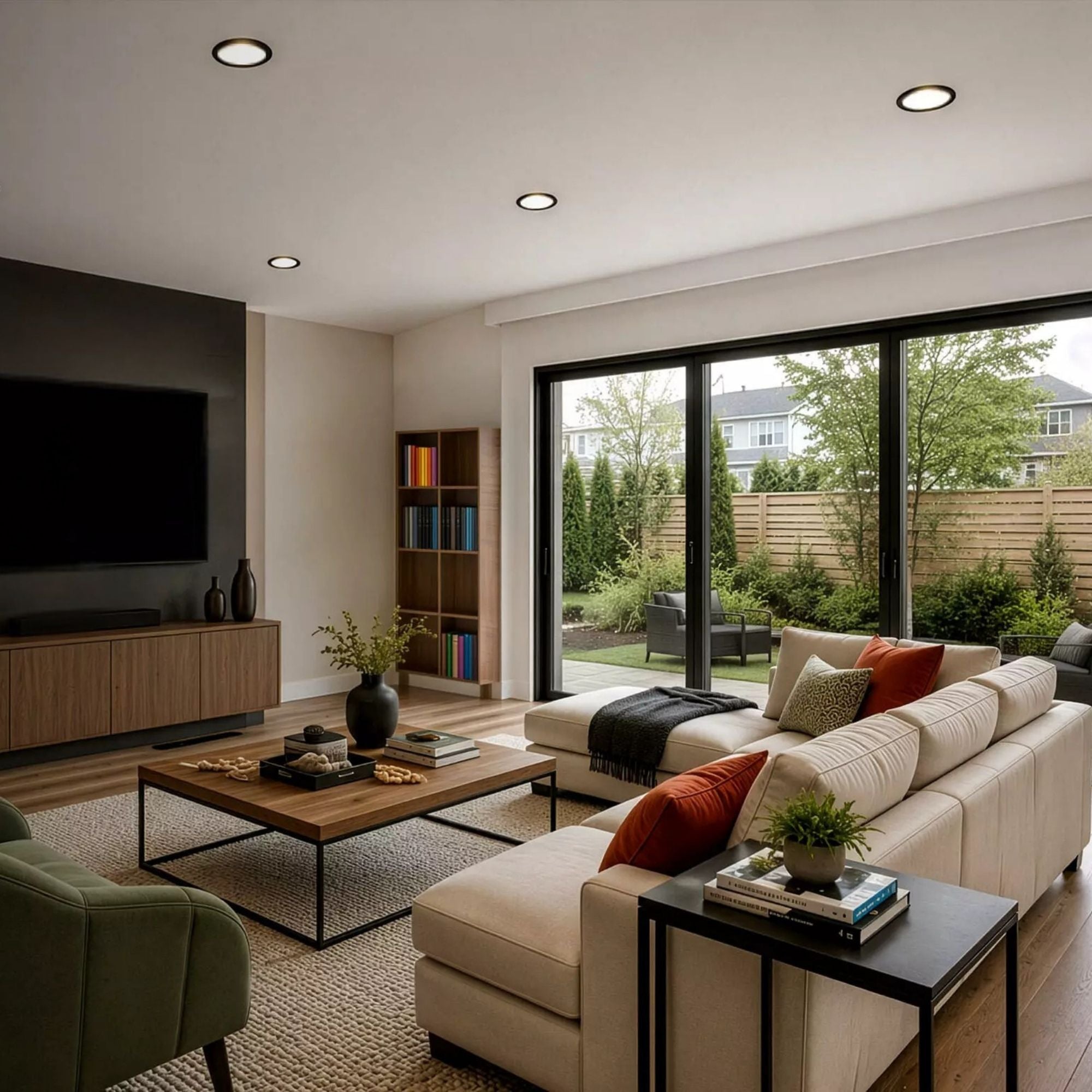

• Residential lighting
• Commercial spaces
• Wet locations
• Offices
• Retail environments
