RAB WFRX-6BD-K 6 in. Round Baffle Downlight 15W 1350 Lumens Selectable CCT, Black
Available in stock (100)
About this item
About this item
- Size: 6 inches for versatile installations
- Selectable CCT: 2700K to 5000K for customizable ambiance
- Lumens: Up to 1350 lumens for bright illumination
- Dimmable: Compatible with TRIAC/ELV dimming systems
- Wet Rated: Suitable for indoor and outdoor use
We process payments securely and do not store credit card information.
Description
Description
RAB WFRX-6BD-K 6 in. Open Trim Downlight — 15W / Selectable CCT
The RAB WFRX-6BD-K is a 6-inch round baffle downlight delivering up to 1350 lumens using 15W. This high-output edge-lit wafer is designed for 120-277V use and features selectable CCT ranging from 2700K to 5000K, making it ideal for both residential and commercial applications.

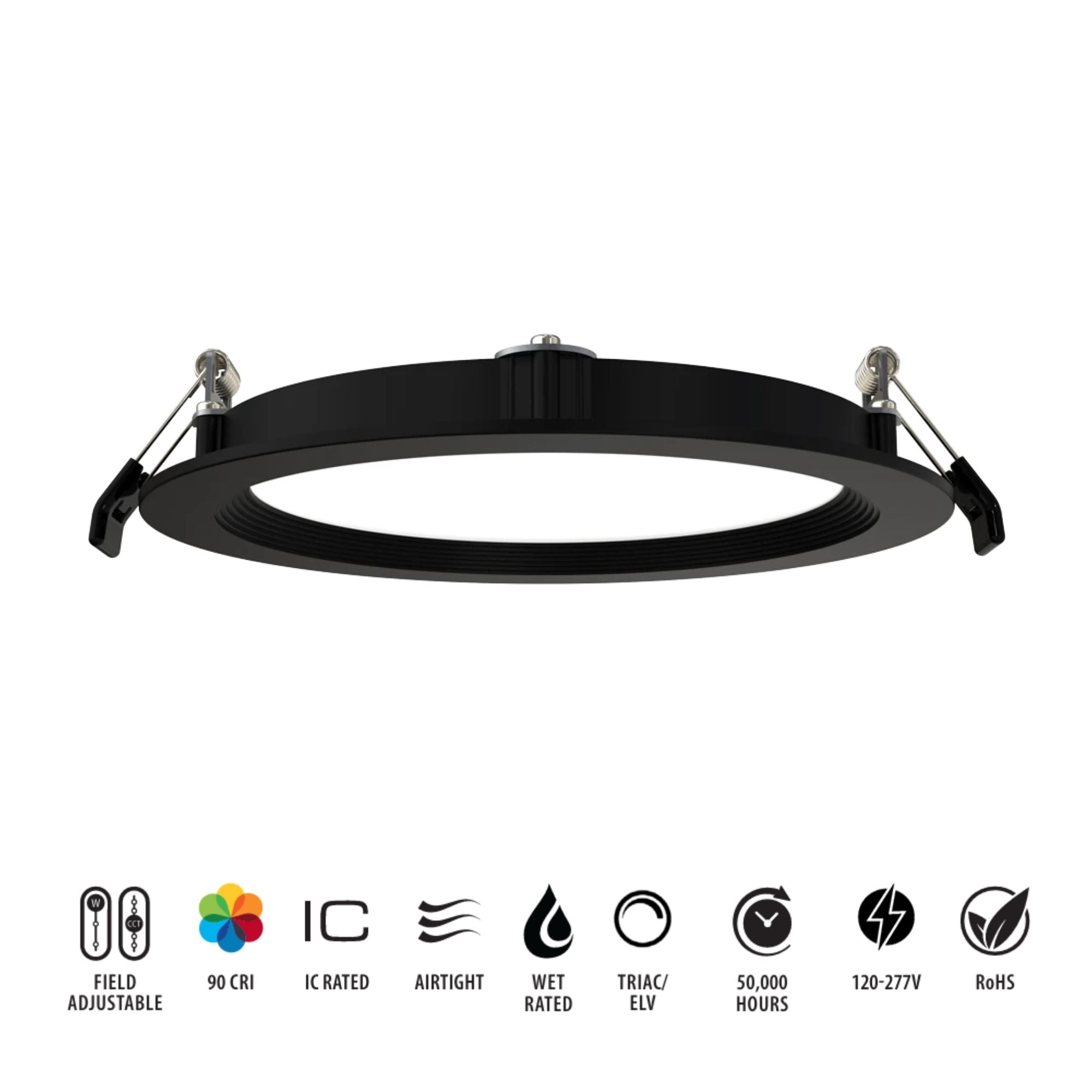

Key Features
- Wattage: 15/13/11W selectable
- Voltage: 120-277V
- CRI: 90 for high color accuracy
- Beam Angle: 110°±10°
- Dimming: TRIAC/ELV dimmable down to 10%
- Lifespan: 50,000 hours
- Compliance: Title 24 JA8, Energy Star, RoHS
- Environment: Suitable for wet locations
Construction & Aesthetics

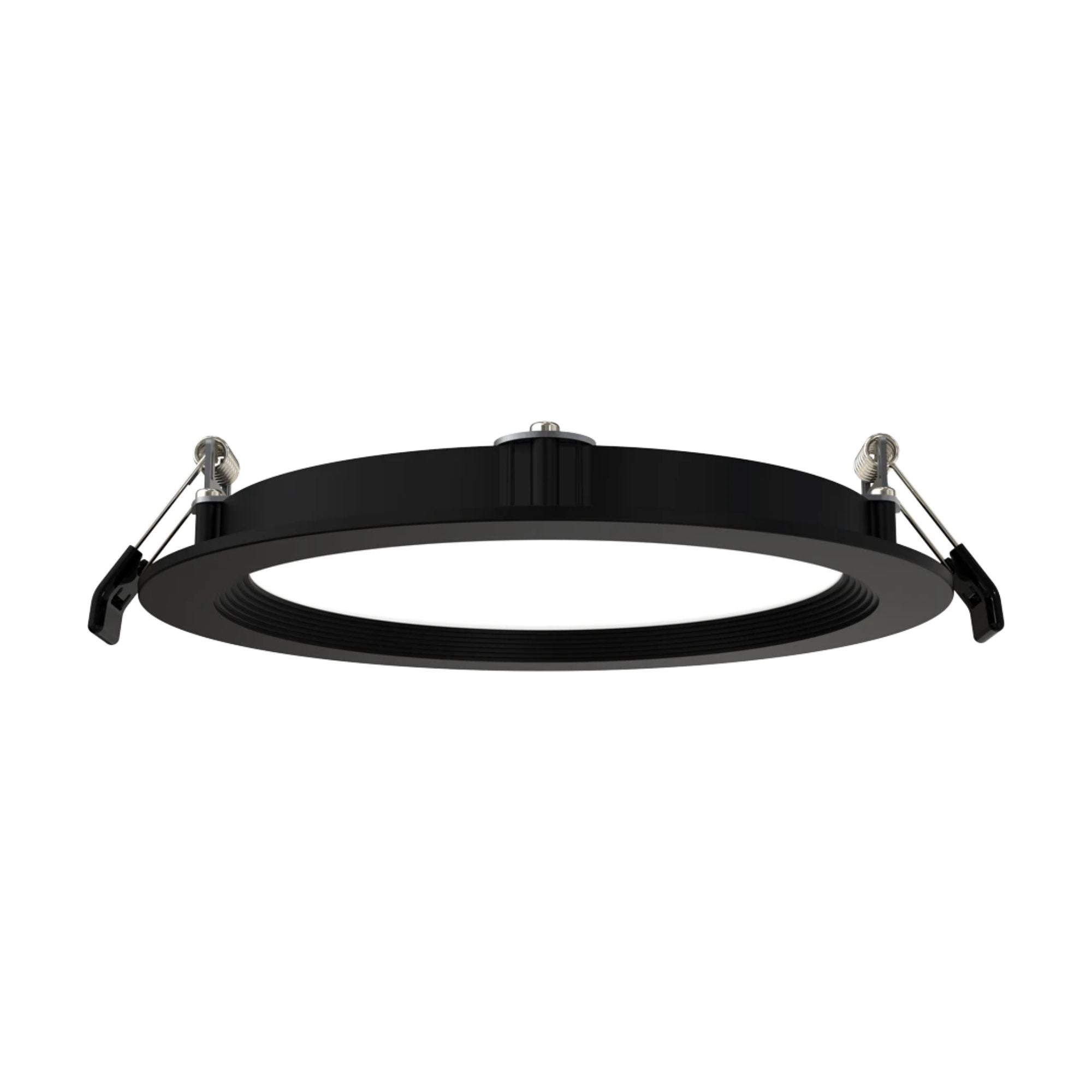

This downlight features a black finish with a baffle trim style. The polycarbonate light diffuser ensures even light distribution, while the aluminum back plate aids in heat dissipation. Accessories such as new construction frames are available.
Electrical & Installation

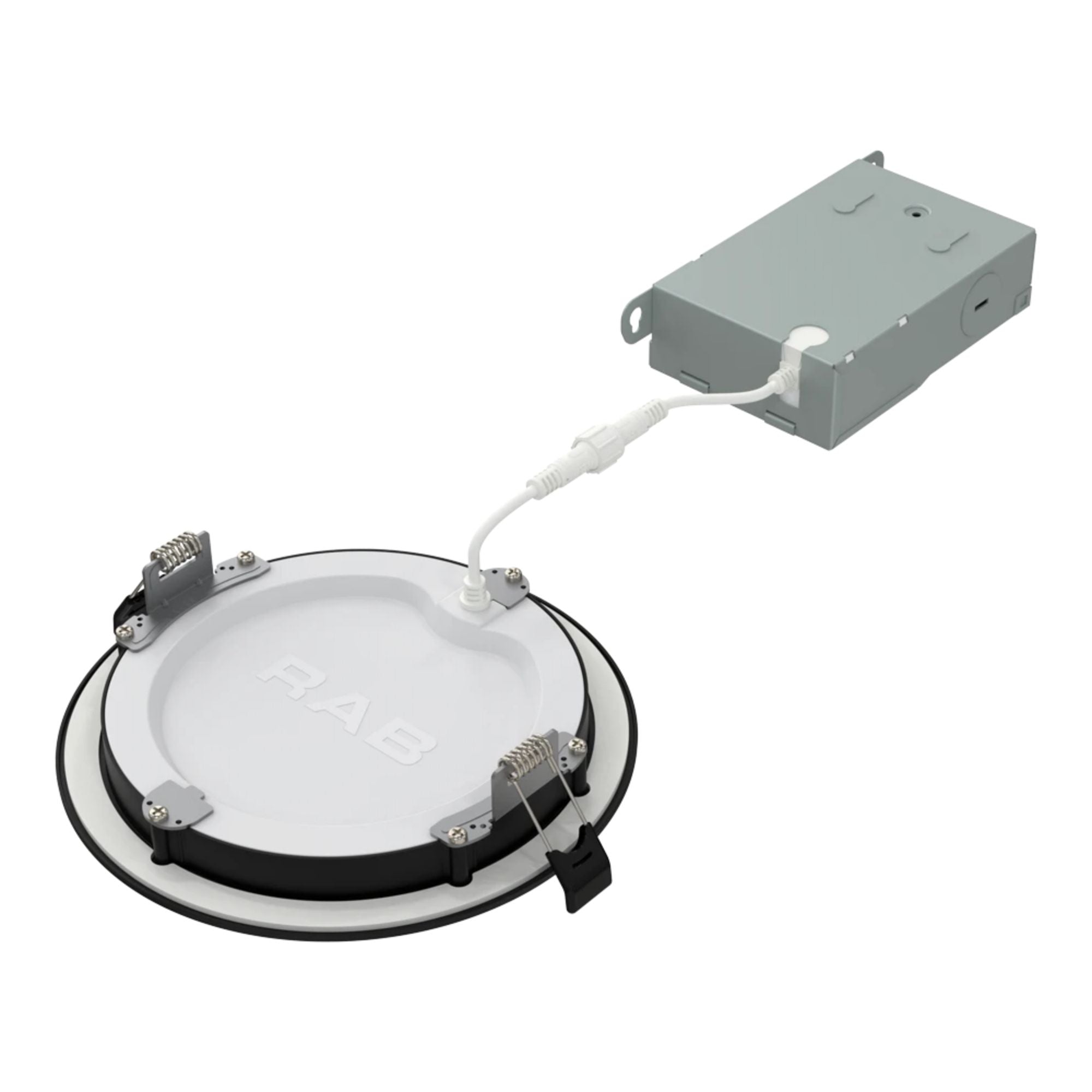

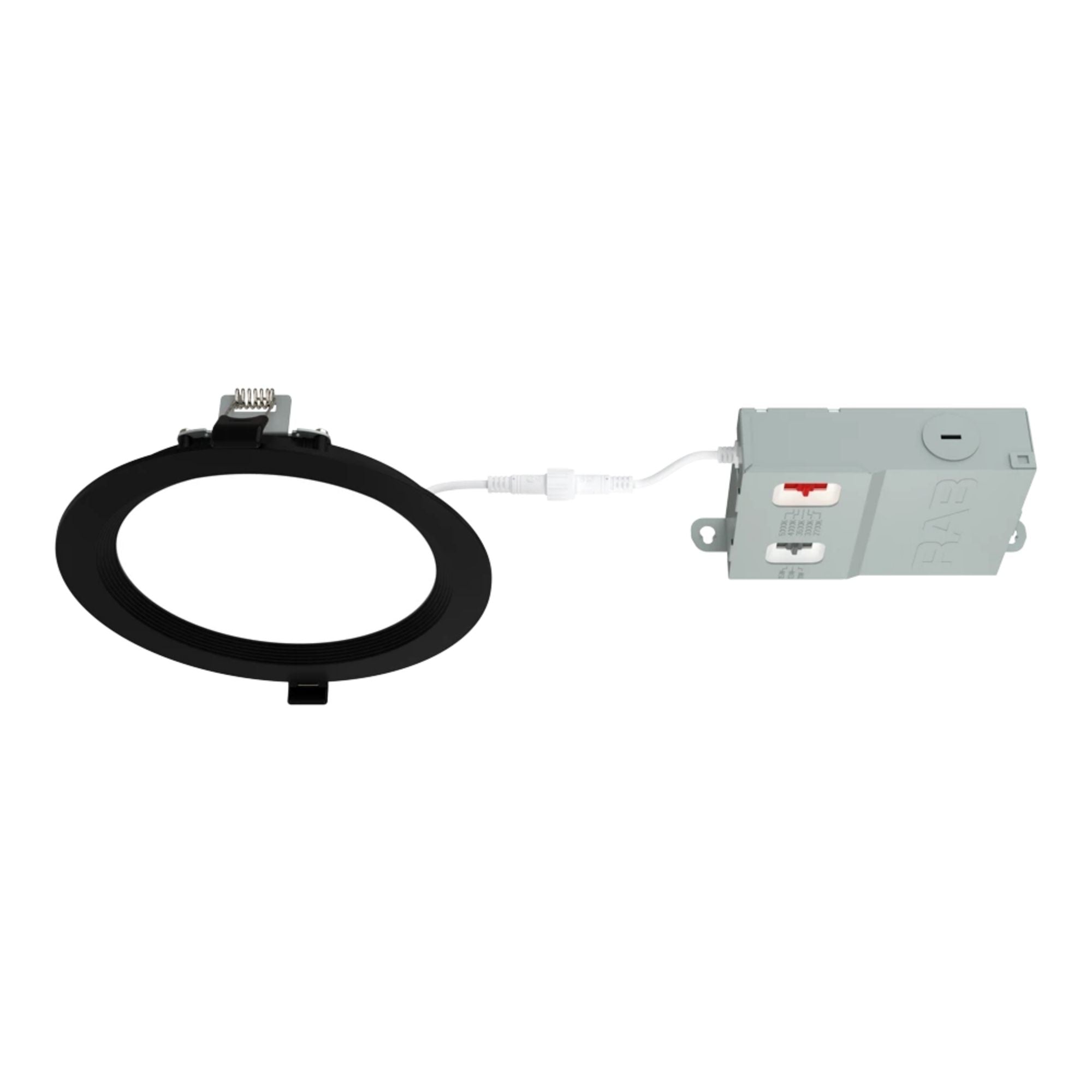

Operates on 120-277V with a constant current driver. Installation is simplified with no housing required, using two tension steel spring clips for secure ceiling mounting. Suitable for ceiling thickness up to 15/16 inches.
Light Output & Performance
Delivers up to 1350 lumens with a 90 CRI for excellent color rendering. The fixture offers a wide beam angle of 110°±10° and is designed for a long lifespan of 50,000 hours.
Typical Applications
- Residential lighting
- Commercial spaces
- Retail environments
- Hospitality settings
- Outdoor wet locations
Specifications
Specifications

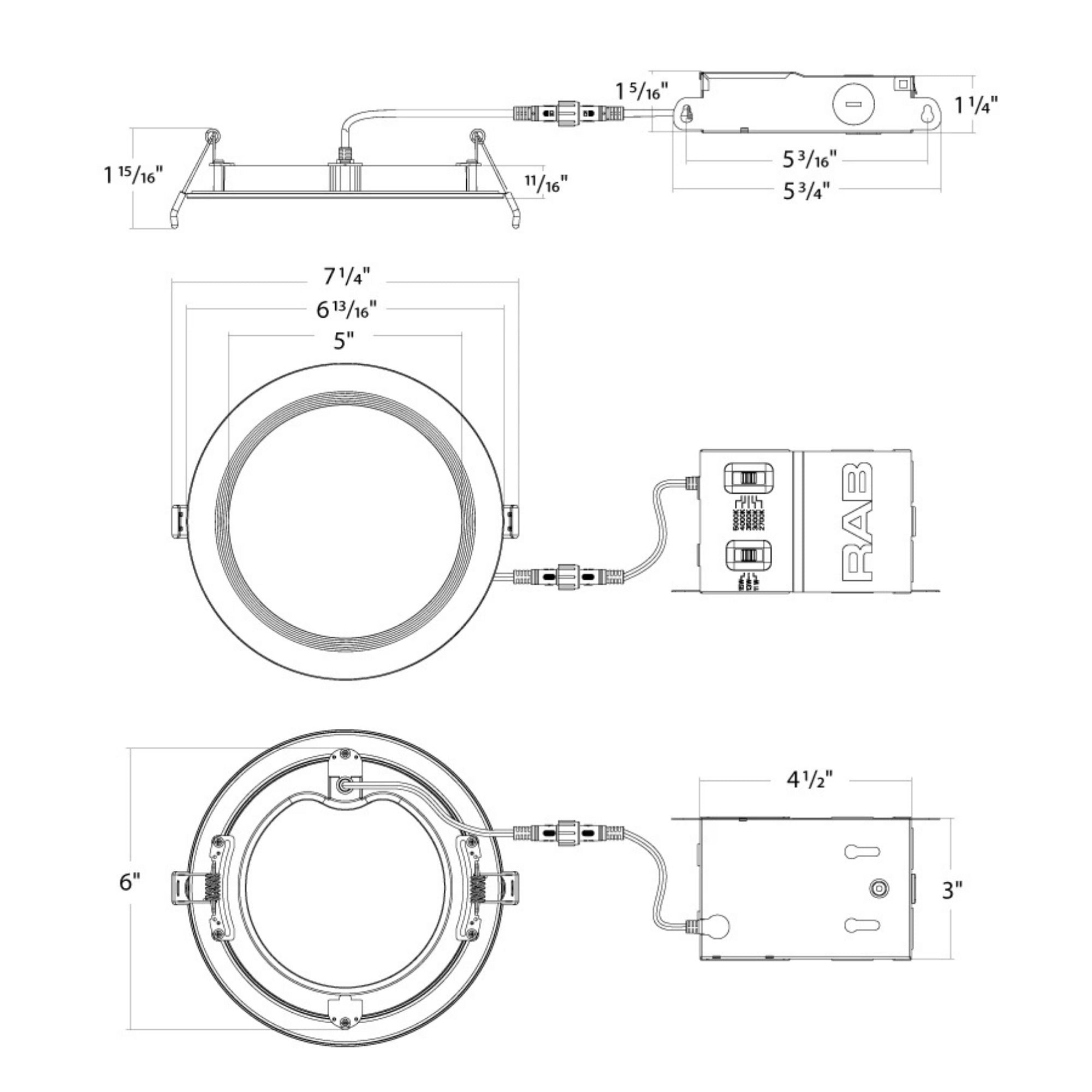

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB WFRX-6BD-K?
What is the wattage range for the RAB WFRX-6BD-K?
Is the RAB WFRX-6BD-K suitable for wet locations?
Is the RAB WFRX-6BD-K suitable for wet locations?
Can the RAB WFRX-6BD-K be dimmed?
Can the RAB WFRX-6BD-K be dimmed?
What is the beam angle of the RAB WFRX-6BD-K?
What is the beam angle of the RAB WFRX-6BD-K?
Does the RAB WFRX-6BD-K require a housing for installation?
Does the RAB WFRX-6BD-K require a housing for installation?
